Regrid Checks and Column Integrated Plots
Victoria Froh
07 April, 2025
Last updated: 2025-04-07
Checks: 7 0
Knit directory: oae_ccs_roms/
This reproducible R Markdown analysis was created with workflowr (version 1.7.1). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
The command set.seed(20240919) was run prior to running
the code in the R Markdown file. Setting a seed ensures that any results
that rely on randomness, e.g. subsampling or permutations, are
reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.
The results in this page were generated with repository version 5a5f21a. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.
Note that you need to be careful to ensure that all relevant files for
the analysis have been committed to Git prior to generating the results
(you can use wflow_publish or
wflow_git_commit). workflowr only checks the R Markdown
file, but you know if there are other scripts or data files that it
depends on. Below is the status of the Git repository when the results
were generated:
Ignored files:
Ignored: .Rhistory
Ignored: .Rproj.user/
Untracked files:
Untracked: code/dist_maps.R
Untracked: code/flux_driver_correlations.Rmd
Untracked: code/flux_drivers_calcs.R
Untracked: code/lineplot_stacks.R
Untracked: code/subregions.Rmd
Untracked: surface_dataRG2.feather
Unstaged changes:
Modified: code/Workflowr_project_managment.R
Modified: code/regrid_surface_data.R
Modified: code/temperature_indices.Rmd
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
These are the previous versions of the repository in which changes were
made to the R Markdown (analysis/column_int_plots.Rmd) and
HTML (docs/column_int_plots.html) files. If you’ve
configured a remote Git repository (see ?wflow_git_remote),
click on the hyperlinks in the table below to view the files as they
were in that past version.
| File | Version | Author | Date | Message |
|---|---|---|---|---|
| Rmd | 5a5f21a | vgfroh | 2025-04-07 | Final code push |
| html | 91e2272 | vgfroh | 2025-02-19 | Build site. |
| Rmd | a36bcfe | vgfroh | 2025-02-19 | Mixing depth and air-sea co2 flux anlaysis |
| html | dd18a78 | vgfroh | 2025-02-03 | Build site. |
| Rmd | 639b38d | vgfroh | 2025-02-03 | Column integrated plots and hovmoeller plots completed |
Introduction
- Checking regrid subregion
- Verifying scope of dTA in regrid
- Column-integrated dTA maps
#loading packages
library(tidyverse)
library(data.table)
library(arrow)
library(scales)
library(maps)
library(geosphere)
# Path to intermediate computation outputs
path_outputs <- "/net/sea/work/vifroh/oae_ccs_roms_data/regrid_2/"
# Path to save practice plots when working on them
path_plots <- "/net/sea/work/vifroh/test_plots/"
# loading in dTA conc data to make a surface plot/columnint
lanina_dTA_conc <- read_feather(
paste0(path_outputs,"lanina_dTA_concdataRG2.feather"))
neutral_dTA_conc <- read_feather(
paste0(path_outputs,"neutral_dTA_concdataRG2.feather"))
elnino_dTA_conc <- read_feather(
paste0(path_outputs,"elnino_dTA_concdataRG2.feather"))
# loading in dTA full integration data for competency check
lanina_dTA_int<- read_feather(
paste0(path_outputs,"lanina_CDReff_intRG2.feather"))
# loading in dTA sum original grid data for competency check
lanina_intdata_ogs <- read_feather(
"/net/sea/work/vifroh/oae_ccs_roms_data/regrid/lanina_dTAint_comparegrids.feather")Looking at the boundaries of the regridded subregion
# filtering dTA conc data to make a surface plot
surface_data <- lanina_dTA_conc[depth == 0 & time == "1998-09"]
# Convert lat and lon to numeric
surface_data$lat <- as.numeric(surface_data$lat)
surface_data$lon <- as.numeric(surface_data$lon)
# # Convert longitude to -180 to 180 range
# surface_data$lon <- surface_data$lon - 360
# Define the bounding box for the plot
lat_range <- range(surface_data$lat, na.rm = TRUE)
lon_range <- range(surface_data$lon, na.rm = TRUE)

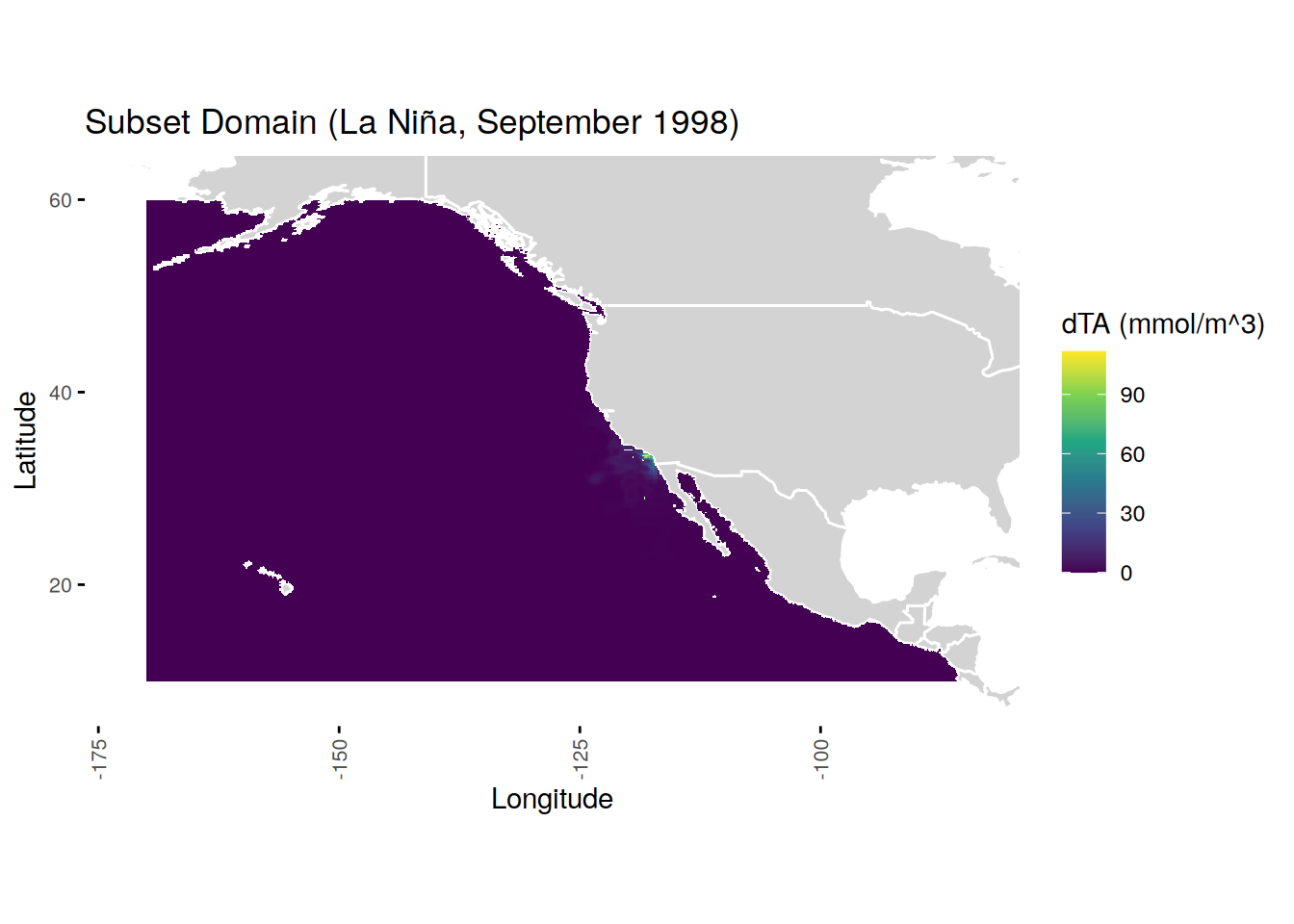

# plotting surface map
ggplot() +
geom_polygon(data = map_data("world"), aes(x = long, y = lat, group = group),
fill = "lightgray", color = "white") +
geom_raster(data = surface_data, aes(x = lon, y = lat, fill = dTA)) +
scale_fill_viridis_c() + # Change the color scale to suit your data
theme_minimal() +
coord_fixed(xlim = c(lon_range[1] - 2, lon_range[2] + 2),
ylim = c(lat_range[1] - 2, lat_range[2] + 2)) +
theme(
axis.text.x = element_text(angle = 90, hjust = 1, vjust = 0.5, size = 8),
axis.text.y = element_text(size = 8),
axis.ticks = element_line(size = 0.5),
panel.grid = element_blank()
) +
labs(title = "Subset Domain (La Niña, September 1998)",
x = "Longitude",
y = "Latitude",
fill = "dTA (mmol/m^3)")
| Version | Author | Date |
|---|---|---|
| dd18a78 | vgfroh | 2025-02-03 |
# # save plot
# ggsave(paste0(path_plots, "regrid_domainRG2.png"), plot = last_plot(),
# width = 8, height = 6, dpi = 300)
rm(surface_data)
gc() used (Mb) gc trigger (Mb) max used (Mb)
Ncells 1813457 96.9 3101934 165.7 2975083 158.9
Vcells 3148786932 24023.4 4534077182 34592.3 3227357167 24622.8Checking the alkalinity containment within the regridded subregion over the time series
# using full integrated data from cdr_eff_molar file
setDT(lanina_dTA_int)
# combine with original dTA sum data to compare; subtracting regrid from original
lanina_dTAint_compare <- merge(lanina_intdata_ogs, lanina_dTA_int[, .(time, dTA_sum_rg2 = dTA_sum)],
by = "time", all.x = FALSE) %>%
.[, dTA_dif_rg2 := dTA_sum_og - dTA_sum_rg2] %>%
.[, frac_miss_rg2 := dTA_dif_rg2 / dTA_sum_og]
# # save data file
# write_feather(lanina_dTAint_compare, paste0(path_outputs,
# "lanina_dTAint_comparegridsRG2.feather"))
rm(lanina_dTAint_compare, lanina_intdata_ogs)
gc()Column integrated plots of added alkalinity
To check lateral movement during the time series
# Defining Subregions (currently abandoned for now)
# loc_box <- c(30, 35, -115, -122)
# nep_box <- c(10, 60, -155, -95)
# #work in progress
# coastline <- map("world", plot = FALSE, fill = FALSE,
# xlim = c(-130, -113), ylim = c(20, 50))
# coastline <- data.table(lon = coastline$x, lat = coastline$y)[!is.na(lon) & !is.na(lat)]
# coastline <- coastline[lon >= -130 & lon <= -113 & lat >= 20 & lat <= 50]
#
# # filtering
#
#
# rm()
# gc()Column Integrated Plots
# rerunning these on own for different phases/months; can load saved column int
# files from folder
# using conc data then multiplied by depth bin size so have mmol/m^2
setDT(lanina_dTA_conc)
lanina_dTA_conc$depth <- as.numeric(lanina_dTA_conc$depth)
# filter out only top 100m for CDReff integrated plot
lanina_dTA_conc <- lanina_dTA_conc[depth <= 100]
lanina_dTA_conc <-
lanina_dTA_conc[, thickness :=
ifelse(depth == 0, 2.5,
ifelse(depth < 80, 5,
ifelse(depth == 80, 7.5,
ifelse(depth < 100, 10, #edit here for top 100
5
# ifelse(depth == 100, 15,
# ifelse(depth < 300, 20,
# 10
))))
] # two )) removed for top100
lanina_dTA_conc <- lanina_dTA_conc[, dTA_m2 := dTA * thickness] %>% # units now moles/m2
.[, dDIC_m2 := dDIC * thickness] %>%
.[, CDReff_m2 := fifelse(dDIC_m2/dTA_m2 == Inf, NaN, dDIC_m2/dTA_m2)]
# calculating CDR Efficiency per cell, replacing dDIC calcs producing Inf -> Na
# grouping by lat/lon and integrating vertically, averaging the CDR Efficiency
lanina_dTA_columnint<- lanina_dTA_conc[, .(dTA_column = sum(dTA_m2, na.rm = TRUE),
dDIC_column = sum(dDIC_m2, na.rm = TRUE),
CDReff_avg = mean(CDReff_m2, na.rm = TRUE)),
# averaging CDReff of individual grid cells
by = c("lat", "lon", "time")] %>%
.[, CDReff_col := fifelse(dDIC_column/dTA_column == Inf, NaN, dDIC_column/dTA_column)]
# total CDReff for column; this is fine for top 100m if thinking this is mixing
# Convert lat, lon to numeric
lanina_dTA_columnint$lat <- as.numeric(lanina_dTA_columnint$lat)
lanina_dTA_columnint$lon <- as.numeric(lanina_dTA_columnint$lon)
# filter by time to create a timestop plot
surface_data <- lanina_dTA_columnint[time == "2000-05"]
# # Convert longitude to -180 to 180 range
# surface_data$lon <- surface_data$lon - 360
# plotting column integrated map
ggplot() +
geom_polygon(data = map_data("world"), aes(x = long, y = lat, group = group),
fill = "lightgray", color = "white") +
geom_raster(data = surface_data, aes(x = lon, y = lat, fill = CDReff_col)) +
scale_fill_viridis_c(limit = c(0, 1)) + # set the color range
theme_light() +
coord_fixed(xlim = c(-170, -85),
ylim = c(10, 60)) +
scale_x_continuous(breaks = seq(-170, -85, by = 10)) +
scale_y_continuous(breaks = seq(10, 60, by = 10)) +
labs(title = "Vertically Integrated CDR Efficiency, top 100m (La Niña, May 2000)", # La Niña
x = "Longitude",
y = "Latitude",
fill = "CDR Efficiency") + # dTA (mmol/m^2)
theme(panel.border = element_blank())
# # save plot
# ggsave(paste0(path_plots, "lanina_columnint_May2000_CDReff100.png"), plot = last_plot(),
# width = 8, height = 6, dpi = 300)
# save column integrated data
# write_feather(lanina_dTA_columnint, paste0(path_outputs,
# "lanina_columnintRG2_top100.feather"))
# write_feather(neutral_dTA_columnint, paste0(path_outputs,
# "neutral_columnintRG2_top100.feather"))
# write_feather(elnino_dTA_columnint, paste0(path_outputs,
# "elnino_columnintRG2_top100.feather"))
rm(lanina_dTA_columnint, surface_data, lanina_dTA_conc)
gc() used (Mb) gc trigger (Mb) max used (Mb)
Ncells 1833058 97.9 3101934 165.7 3101934 165.7
Vcells 6031566 46.1 6710651979 51198.3 8374565549 63892.9Difference From Mean Plots

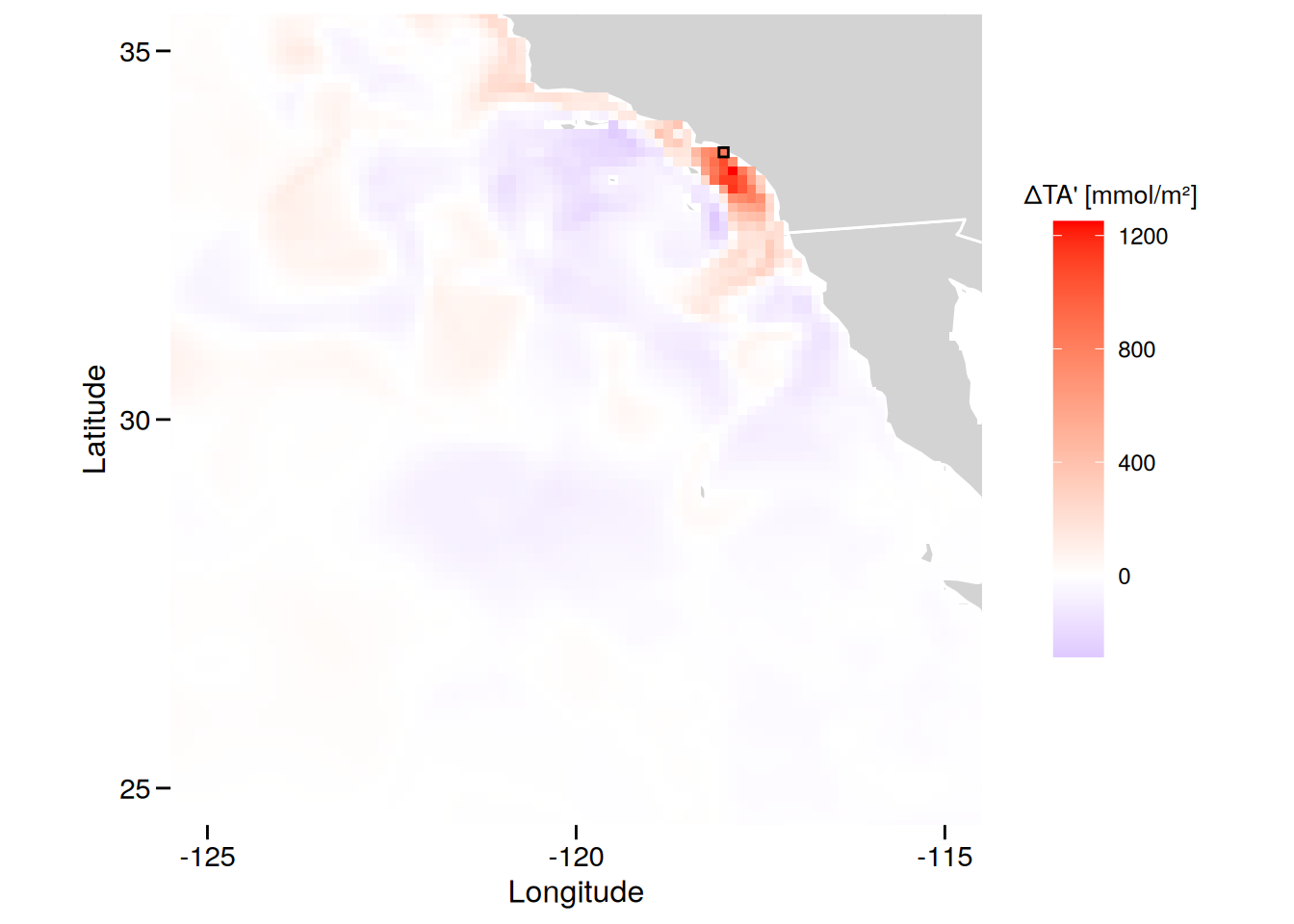

# load in full table with column ints and mean
colint_data <- read_feather(paste0(path_outputs, "colint_RG2.feather"))
# calc dfm
# dTA
col_dt <- colint_data[colint_data$phase == "neutral" & colint_data$month == 10]
ggplot() +
geom_polygon(data = map_data("world"), aes(x = long, y = lat, group = group),
fill = "lightgray", color = "white") +
geom_raster(data = col_dt, aes(x = lon, y = lat, fill = dTA_column - dTA_mean)) +
geom_rect(aes(xmin = -118.0625, xmax = -117.9375,
ymin = 33.5625, ymax = 33.6875),
fill = NA, color = "black", size = 0.5) + # Outline only (no fill)
scale_fill_gradient2(low = "blue", mid = "white", high = "red", midpoint = 0,
guide = guide_colorbar(
barwidth = unit(0.7, "cm"), barheight = unit(6, "cm"), title.hjust = 0.5)#,
#limits = c(-200000000, 200000000)
)+
# scale_fill_viridis_c(limit = c(-0.5, 103), guide = guide_colourbar(
# barwidth = 15, barheight = 0.5, title.position = "bottom", title.hjust = 0.5
# )) + # set the color range
theme_light() +
coord_fixed(xlim = c(-125, -115), #nep grid
ylim = c(25, 35)) +
# coord_fixed(xlim = c(-127, -115), # loc grid
# ylim = c(27.5, 37.5)) +
scale_x_continuous(breaks = seq(-155, -85, by = 5)) +
scale_y_continuous(breaks = seq(10, 60, by = 5)) +
labs(#title = "Added Alkalinity Mean Column Concentration (Month 13)",
x = "Longitude",
y = "Latitude",
fill = "\u0394TA' [mmol/m\u00B2]") + # dTA (mmol/m^2)
theme(panel.border = element_blank(),
axis.text = element_text(size = 11, color = "black"),
axis.title = element_text(size = 12),
axis.ticks = element_line(color = "black", size = 0.5),
axis.ticks.length = unit(0.2, "cm"),
legend.text = element_text(size = 9),
legend.title = element_text(size = 10)#,
#legend.position = "bottom",
#legend.direction = "horizontal"
)Warning: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0.
ℹ Please use `linewidth` instead.
This warning is displayed once every 8 hours.
Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
generated.
# # save plot
# ggsave(paste0(path_plots, "dTA_col_mean_10mo_neutdfm.png"), plot = last_plot(),
# width = 6, height = 6, dpi = 300)
rm(list = ls())
gc() used (Mb) gc trigger (Mb) max used (Mb)
Ncells 1835504 98.1 3101934 165.7 3101934 165.7
Vcells 6623831 50.6 5368521584 40958.6 8374565549 63892.9
sessionInfo()R version 4.4.2 (2024-10-31)
Platform: x86_64-pc-linux-gnu
Running under: openSUSE Leap 15.6
Matrix products: default
BLAS/LAPACK: /usr/local/OpenBLAS-0.3.28/lib/libopenblas_haswellp-r0.3.28.so; LAPACK version 3.12.0
locale:
[1] LC_CTYPE=en_US.UTF-8 LC_NUMERIC=C
[3] LC_TIME=en_US.UTF-8 LC_COLLATE=en_US.UTF-8
[5] LC_MONETARY=en_US.UTF-8 LC_MESSAGES=en_US.UTF-8
[7] LC_PAPER=en_US.UTF-8 LC_NAME=C
[9] LC_ADDRESS=C LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C
time zone: Europe/Zurich
tzcode source: system (glibc)
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] geosphere_1.5-20 maps_3.4.2.1 scales_1.3.0 arrow_18.1.0.1
[5] data.table_1.16.2 lubridate_1.9.3 forcats_1.0.0 stringr_1.5.1
[9] dplyr_1.1.4 purrr_1.0.2 readr_2.1.5 tidyr_1.3.1
[13] tibble_3.2.1 ggplot2_3.5.1 tidyverse_2.0.0 workflowr_1.7.1
loaded via a namespace (and not attached):
[1] gtable_0.3.6 xfun_0.49 bslib_0.8.0 processx_3.8.4
[5] lattice_0.22-6 callr_3.7.6 tzdb_0.4.0 vctrs_0.6.5
[9] tools_4.4.2 ps_1.8.1 generics_0.1.3 fansi_1.0.6
[13] pkgconfig_2.0.3 assertthat_0.2.1 lifecycle_1.0.4 farver_2.1.2
[17] compiler_4.4.2 git2r_0.35.0 munsell_0.5.1 getPass_0.2-4
[21] httpuv_1.6.15 htmltools_0.5.8.1 sass_0.4.9 yaml_2.3.10
[25] crayon_1.5.3 later_1.4.1 pillar_1.9.0 jquerylib_0.1.4
[29] whisker_0.4.1 cachem_1.1.0 tidyselect_1.2.1 digest_0.6.37
[33] stringi_1.8.4 labeling_0.4.3 rprojroot_2.0.4 fastmap_1.2.0
[37] grid_4.4.2 colorspace_2.1-1 cli_3.6.3 magrittr_2.0.3
[41] utf8_1.2.4 withr_3.0.2 promises_1.3.2 sp_2.1-4
[45] bit64_4.5.2 timechange_0.3.0 rmarkdown_2.29 httr_1.4.7
[49] bit_4.5.0 hms_1.1.3 evaluate_1.0.1 knitr_1.49
[53] viridisLite_0.4.2 rlang_1.1.4 Rcpp_1.0.13-1 glue_1.8.0
[57] rstudioapi_0.17.1 jsonlite_1.8.9 R6_2.5.1 fs_1.6.5
