version_id_pattern <- "g"
config <- "MLR_basins"

1 Read files

print(version_id_pattern)

[1] "g"

# identify required version IDs

Version_IDs_1 <- list.files(path = "/nfs/kryo/work/jenmueller/emlr_cant/observations",
                            pattern = paste0("v_1", "g"))

Version_IDs_2 <- list.files(path = "/nfs/kryo/work/jenmueller/emlr_cant/observations",
                            pattern = paste0("v_2", "g"))

Version_IDs_3 <- list.files(path = "/nfs/kryo/work/jenmueller/emlr_cant/observations",
                            pattern = paste0("v_3", "g"))

Version_IDs <- c(Version_IDs_1, Version_IDs_2, Version_IDs_3)

# print(Version_IDs)

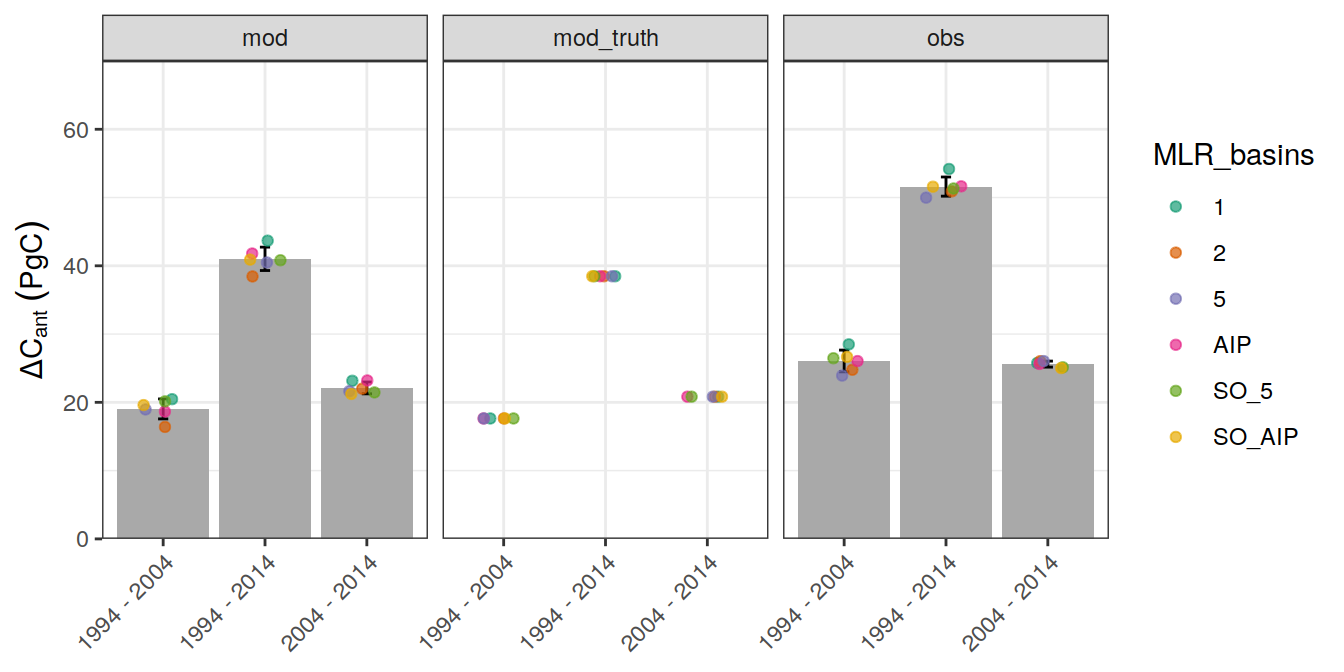

1.1 Global

for (i_Version_IDs in Version_IDs) {
  # i_Version_IDs <- Version_IDs[1]

  # print(i_Version_IDs)

  path_version_data     <-
    paste(path_observations,
          i_Version_IDs,
          "/data/",
          sep = "")

  # load and join data files

  dcant_budget_global <-
    read_csv(paste(path_version_data,
                   "dcant_budget_global.csv",
                   sep = ""))

  dcant_budget_global_mod_truth <-
    read_csv(paste(
      path_version_data,
      "dcant_budget_global_mod_truth.csv",
      sep = ""
    ))

  dcant_budget_global_bias <-
    read_csv(paste(path_version_data,
                   "dcant_budget_global_bias.csv",
                   sep = ""))

  lm_best_predictor_counts <-
    read_csv(paste(path_version_data,
                   "lm_best_predictor_counts.csv",
                   sep = ""))

  lm_best_dcant <-
    read_csv(paste(path_version_data,
                   "lm_best_dcant.csv",
                   sep = ""))

  dcant_budget_global <- bind_rows(dcant_budget_global,
                                      dcant_budget_global_mod_truth)

  dcant_budget_global <- dcant_budget_global %>%
    mutate(Version_ID = i_Version_IDs)

  dcant_budget_global_bias <- dcant_budget_global_bias %>%
    mutate(Version_ID = i_Version_IDs)

  lm_best_predictor_counts <- lm_best_predictor_counts %>%
    mutate(Version_ID = i_Version_IDs)

  lm_best_dcant <- lm_best_dcant %>%
    mutate(Version_ID = i_Version_IDs)

  params_local <-
    read_rds(paste(path_version_data,
                   "params_local.rds",
                   sep = ""))

  params_local <- bind_cols(
    Version_ID = i_Version_IDs,
    MLR_basins := str_c(params_local$MLR_basins, collapse = "|"),
    tref1 = params_local$tref1,
    tref2 = params_local$tref2)

  tref <- read_csv(paste(path_version_data,
                         "tref.csv",
                         sep = ""))

  params_local <- params_local %>%
    mutate(
      median_year_1 = sort(tref$median_year)[1],
      median_year_2 = sort(tref$median_year)[2],
      duration = median_year_2 - median_year_1,
      period = paste(median_year_1, "-", median_year_2)
    )

  if (exists("dcant_budget_global_all")) {
    dcant_budget_global_all <-
      bind_rows(dcant_budget_global_all, dcant_budget_global)
  }

  if (!exists("dcant_budget_global_all")) {
    dcant_budget_global_all <- dcant_budget_global
  }

  if (exists("dcant_budget_global_bias_all")) {
    dcant_budget_global_bias_all <-
      bind_rows(dcant_budget_global_bias_all,
                dcant_budget_global_bias)
  }

  if (!exists("dcant_budget_global_bias_all")) {
    dcant_budget_global_bias_all <- dcant_budget_global_bias
  }


  if (exists("lm_best_predictor_counts_all")) {
    lm_best_predictor_counts_all <-
      bind_rows(lm_best_predictor_counts_all, lm_best_predictor_counts)
  }

  if (!exists("lm_best_predictor_counts_all")) {
    lm_best_predictor_counts_all <- lm_best_predictor_counts
  }

  if (exists("lm_best_dcant_all")) {
    lm_best_dcant_all <-
      bind_rows(lm_best_dcant_all, lm_best_dcant)
  }

  if (!exists("lm_best_dcant_all")) {
    lm_best_dcant_all <- lm_best_dcant
  }

  if (exists("params_local_all")) {
    params_local_all <- bind_rows(params_local_all, params_local)
  }

  if (!exists("params_local_all")) {
    params_local_all <- params_local
  }


}

rm(
  dcant_budget_global,
  dcant_budget_global_bias,
  dcant_budget_global_mod_truth,
  lm_best_predictor_counts,
  lm_best_dcant,
  params_local,
  tref
)

1.2 Basins

# Version_IDs <- Version_IDs[1:length(Version_IDs)-1]

for (i_Version_IDs in Version_IDs) {
  # i_Version_IDs <- Version_IDs[1]

  # print(i_Version_IDs)

  path_version_data     <-
    paste(path_observations,
          i_Version_IDs,
          "/data/",
          sep = "")

  # load and join data files

  dcant_budget_basin_AIP <-
    read_csv(paste(path_version_data,
                   "dcant_budget_basin_AIP.csv",
                   sep = ""))

  dcant_budget_basin_AIP_mod_truth <-
    read_csv(paste(
      path_version_data,
      "dcant_budget_basin_AIP_mod_truth.csv",
      sep = ""
    ))


  dcant_budget_basin_AIP <- bind_rows(dcant_budget_basin_AIP,
                                      dcant_budget_basin_AIP_mod_truth)

  dcant_budget_basin_AIP_bias <-
    read_csv(paste(path_version_data,
                   "dcant_budget_basin_AIP_bias.csv",
                   sep = ""))

  dcant_slab_budget_bias <-
    read_csv(paste0(path_version_data,
                    "dcant_slab_budget_bias.csv"))

  dcant_slab_budget <-
    read_csv(paste0(path_version_data,
                    "dcant_slab_budget.csv"))

  dcant_budget_basin_AIP <- dcant_budget_basin_AIP %>%
    mutate(Version_ID = i_Version_IDs)

  dcant_budget_basin_AIP_bias <- dcant_budget_basin_AIP_bias %>%
    mutate(Version_ID = i_Version_IDs)

  dcant_slab_budget <- dcant_slab_budget %>%
    mutate(Version_ID = i_Version_IDs)

  dcant_slab_budget_bias <- dcant_slab_budget_bias %>%
    mutate(Version_ID = i_Version_IDs)

  if (exists("dcant_budget_basin_AIP_all")) {
    dcant_budget_basin_AIP_all <-
      bind_rows(dcant_budget_basin_AIP_all, dcant_budget_basin_AIP)
  }

  if (!exists("dcant_budget_basin_AIP_all")) {
    dcant_budget_basin_AIP_all <- dcant_budget_basin_AIP
  }

  if (exists("dcant_budget_basin_AIP_bias_all")) {
    dcant_budget_basin_AIP_bias_all <-
      bind_rows(dcant_budget_basin_AIP_bias_all,
                dcant_budget_basin_AIP_bias)
  }

  if (!exists("dcant_budget_basin_AIP_bias_all")) {
    dcant_budget_basin_AIP_bias_all <- dcant_budget_basin_AIP_bias
  }

  if (exists("dcant_slab_budget_all")) {
    dcant_slab_budget_all <-
      bind_rows(dcant_slab_budget_all, dcant_slab_budget)
  }

  if (!exists("dcant_slab_budget_all")) {
    dcant_slab_budget_all <- dcant_slab_budget
  }

  if (exists("dcant_slab_budget_bias_all")) {
    dcant_slab_budget_bias_all <-
      bind_rows(dcant_slab_budget_bias_all,
                dcant_slab_budget_bias)
  }

  if (!exists("dcant_slab_budget_bias_all")) {
    dcant_slab_budget_bias_all <- dcant_slab_budget_bias
  }

}

rm(
  dcant_budget_basin_AIP,
  dcant_budget_basin_AIP_bias,
  dcant_budget_basin_AIP_mod_truth,
  dcant_slab_budget,
  dcant_slab_budget_bias
)

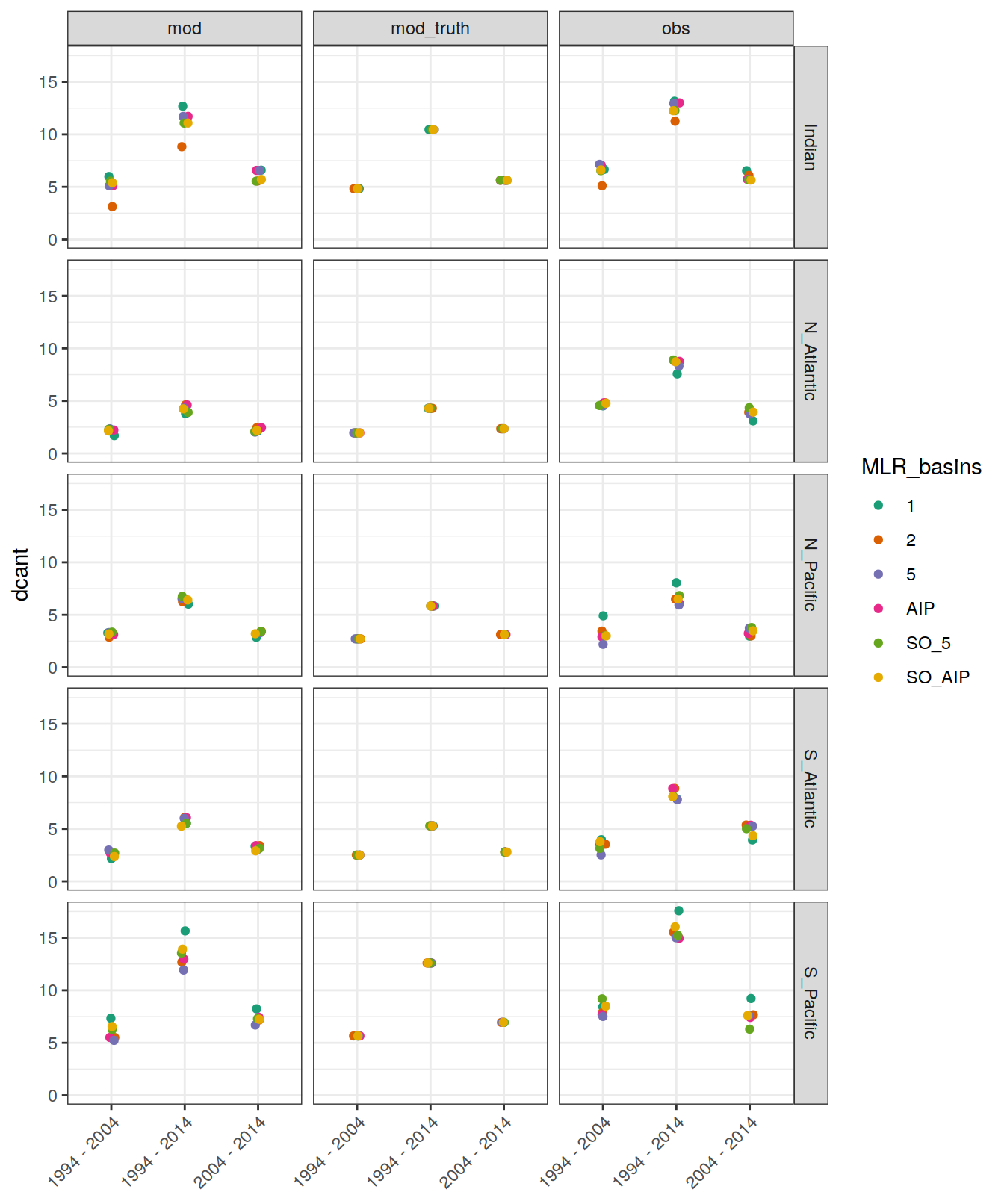

1.3 Basins hemisphere

# Version_IDs <- Version_IDs[1:length(Version_IDs)-1]

for (i_Version_IDs in Version_IDs) {
  # i_Version_IDs <- Version_IDs[1]

  # print(i_Version_IDs)

  path_version_data     <-
    paste(path_observations,
          i_Version_IDs,
          "/data/",
          sep = "")

  # load and join data files

  dcant_budget_basin_MLR <-
    read_csv(paste(path_version_data,
                   "dcant_budget_basin_MLR.csv",
                   sep = ""))

  dcant_budget_basin_MLR_mod_truth <-
    read_csv(paste(
      path_version_data,
      "dcant_budget_basin_MLR_mod_truth.csv",
      sep = ""
    ))


  dcant_budget_basin_MLR <- bind_rows(dcant_budget_basin_MLR,
                                      dcant_budget_basin_MLR_mod_truth)


  dcant_budget_basin_MLR <- dcant_budget_basin_MLR %>%
    mutate(Version_ID = i_Version_IDs)

  if (exists("dcant_budget_basin_MLR_all")) {
    dcant_budget_basin_MLR_all <-
      bind_rows(dcant_budget_basin_MLR_all, dcant_budget_basin_MLR)
  }

  if (!exists("dcant_budget_basin_MLR_all")) {
    dcant_budget_basin_MLR_all <- dcant_budget_basin_MLR
  }


}

rm(
  dcant_budget_basin_MLR,
  dcant_budget_basin_MLR_mod_truth
)

1.4 Steady state

for (i_Version_IDs in Version_IDs) {
  # i_Version_IDs <- Version_IDs[1]

  # print(i_Version_IDs)

  path_version_data     <-
    paste(path_observations,
          i_Version_IDs,
          "/data/",
          sep = "")

  # load and join data files

  dcant_obs_budget <-
    read_csv(paste0(path_version_data,
                    "anom_dcant_obs_budget.csv"))

  dcant_obs_budget <- dcant_obs_budget %>%
    mutate(Version_ID = i_Version_IDs)

  if (exists("dcant_obs_budget_all")) {
    dcant_obs_budget_all <-
      bind_rows(dcant_obs_budget_all, dcant_obs_budget)
  }

  if (!exists("dcant_obs_budget_all")) {
    dcant_obs_budget_all <- dcant_obs_budget
  }

}


rm(dcant_obs_budget)

1.5 Atm CO2

co2_atm <-
  read_csv(paste(path_preprocessing,
                 "co2_atm.csv",
                 sep = ""))

all_predictors <- c("saltempaouoxygenphosphatenitratesilicate")

params_local_all <- params_local_all %>%
  mutate(MLR_predictors = str_remove_all(all_predictors,
                                         MLR_predictors))

dcant_budget_global_all <- dcant_budget_global_all %>%
  filter(estimate == "dcant",
         method == "total") %>%
  select(-c(estimate, method)) %>%
  rename(dcant = value)

dcant_budget_global_all_depth <- dcant_budget_global_all

dcant_budget_global_all <- dcant_budget_global_all %>%
  filter(inv_depth == params_global$inventory_depth_standard)

dcant_budget_global_bias_all <- dcant_budget_global_bias_all %>%
  filter(estimate == "dcant") %>%
  select(-c(estimate))

dcant_budget_global_bias_all_depth <- dcant_budget_global_bias_all

dcant_budget_global_bias_all <- dcant_budget_global_bias_all %>%
  filter(inv_depth == params_global$inventory_depth_standard)

dcant_budget_basin_AIP_all <- dcant_budget_basin_AIP_all %>%
  filter(estimate == "dcant",
         method == "total") %>%
  select(-c(estimate, method)) %>%
  rename(dcant = value)

dcant_budget_basin_AIP_all_depth <- dcant_budget_basin_AIP_all

dcant_budget_basin_AIP_all <- dcant_budget_basin_AIP_all %>%
  filter(inv_depth == params_global$inventory_depth_standard)

dcant_budget_basin_AIP_bias_all <- dcant_budget_basin_AIP_bias_all %>%
  filter(estimate == "dcant") %>%
  select(-c(estimate))

dcant_budget_basin_AIP_bias_all_depth <- dcant_budget_basin_AIP_bias_all

dcant_budget_basin_AIP_bias_all <- dcant_budget_basin_AIP_bias_all %>%
  filter(inv_depth == params_global$inventory_depth_standard)

dcant_budget_basin_MLR_all <- dcant_budget_basin_MLR_all %>%
  filter(estimate == "dcant",
         method == "total") %>%
  select(-c(estimate, method)) %>%
  rename(dcant = value)

# dcant_budget_basin_MLR_all_depth <- dcant_budget_basin_MLR_all

dcant_budget_basin_MLR_all <- dcant_budget_basin_MLR_all %>%
  filter(inv_depth == params_global$inventory_depth_standard)

# dcant_budget_basin_MLR_bias_all <- dcant_budget_basin_MLR_bias_all %>%
#   filter(estimate == "dcant") %>%
#   select(-c(estimate))
#
# dcant_budget_basin_MLR_bias_all_depth <- dcant_budget_basin_MLR_bias_all
#
# dcant_budget_basin_MLR_bias_all <- dcant_budget_basin_MLR_bias_all %>%
#   filter(inv_depth == params_global$inventory_depth_standard)

2 Bias thresholds

global_bias_rel_max <- 10
global_bias_rel_max

[1] 10

regional_bias_rel_max <- 20
regional_bias_rel_max

[1] 20

3 Individual cases

3.1 Global

3.1.1 Absoulte values

legend_title = expression(atop(Delta * C[ant],
                               (mu * mol ~ kg ^ {
                                 -1
                               })))

dcant_budget_global_all %>%
  ggplot(aes(period, dcant, col = MLR_basins)) +
  geom_jitter(width = 0.05, height = 0) +
  scale_color_brewer(palette = "Dark2") +
  facet_grid(. ~ data_source) +
  ylim(0,NA) +
  theme(axis.text.x = element_text(angle = 45, hjust=1),
        axis.title.x = element_blank())

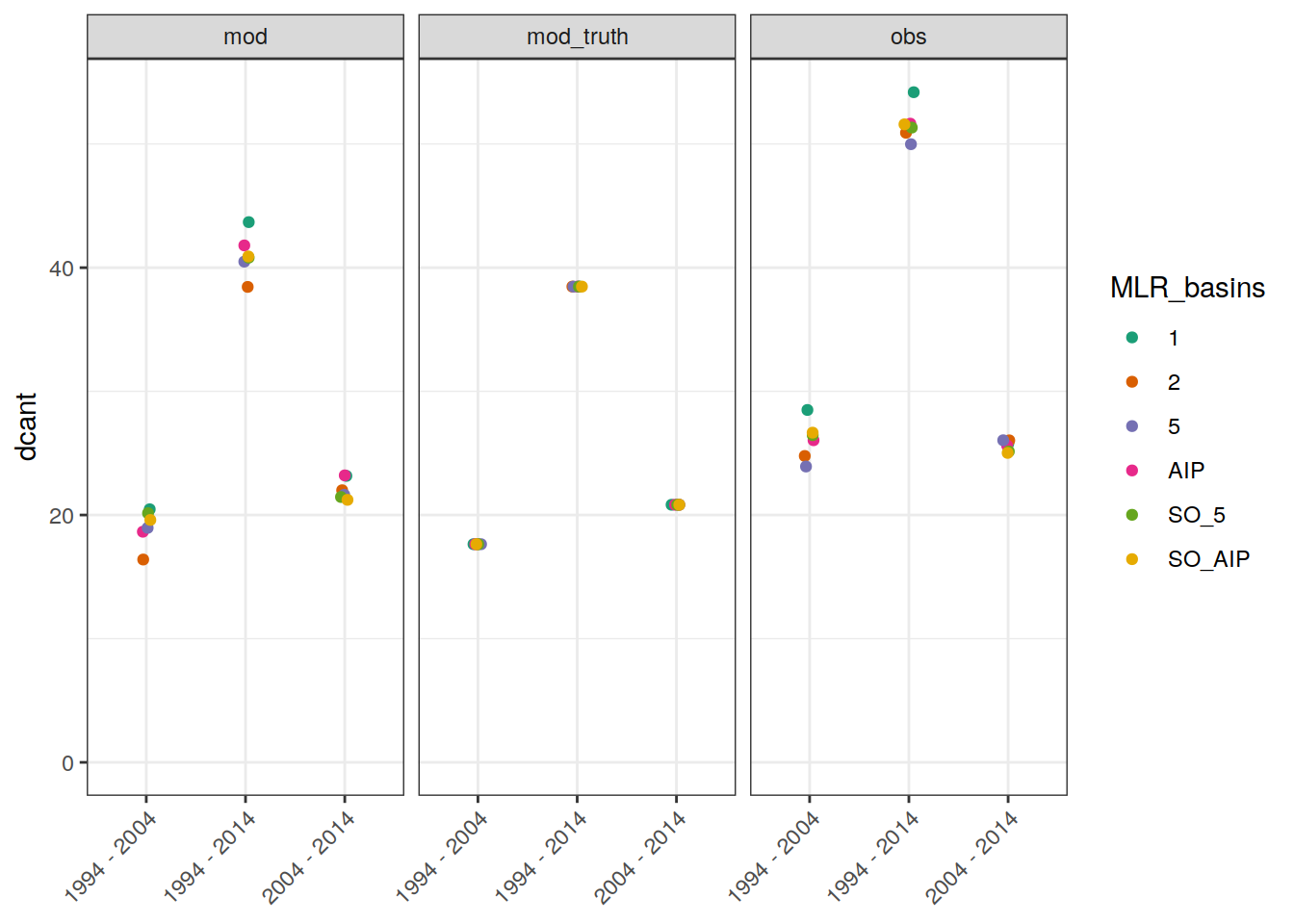

Past versions of cases_absolute_global-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
c3a6238	jens-daniel-mueller	2022-03-08
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

3.1.2 Biases

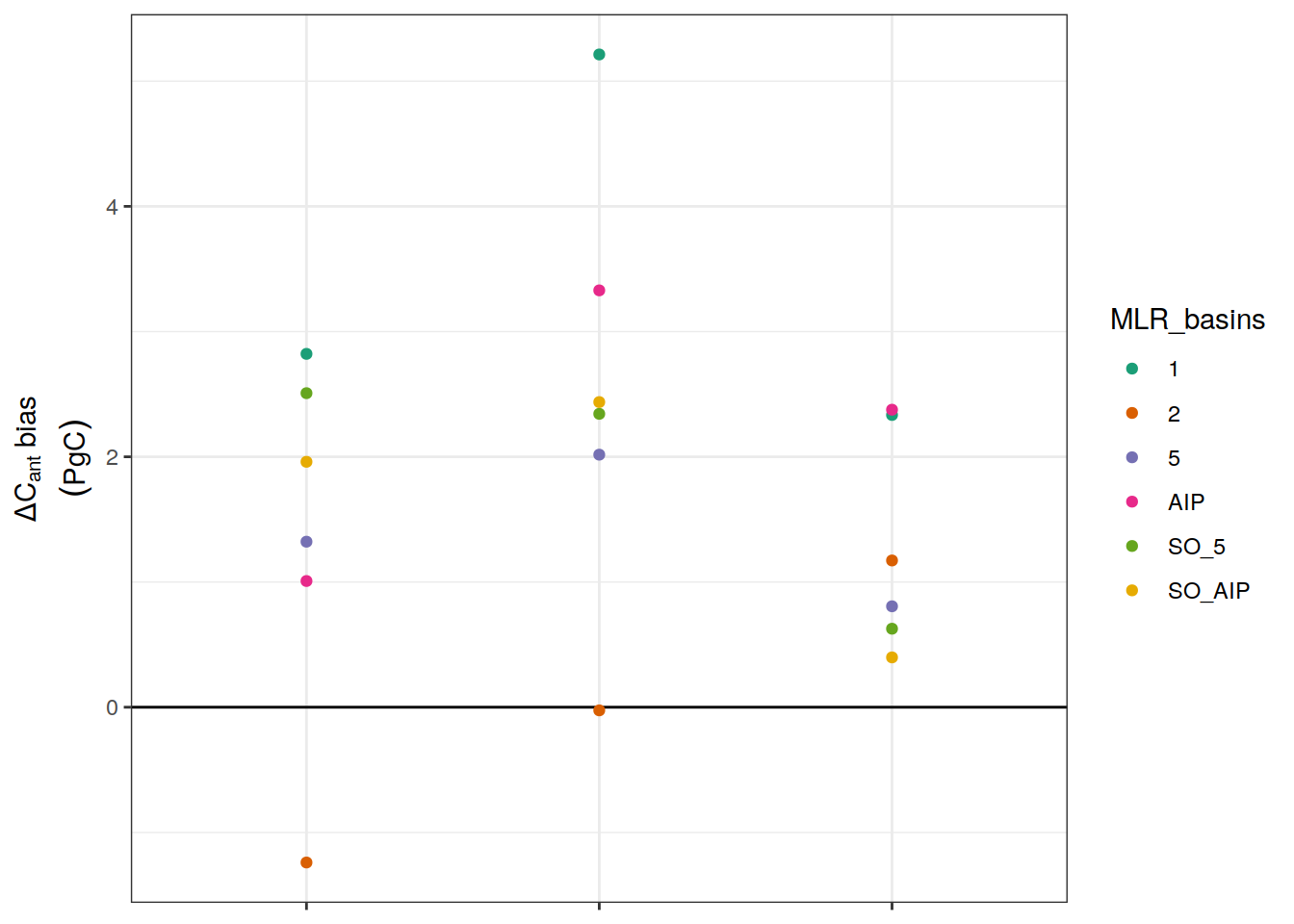

dcant_budget_global_bias_all %>%
  ggplot(aes(period, dcant_bias, col=MLR_basins)) +
  geom_hline(yintercept = 0) +
  scale_color_brewer(palette = "Dark2") +
  labs(y = expression(atop(Delta * C[ant] ~ bias,
                               (PgC)))) +
  geom_point() +
  theme(axis.text.x = element_blank(),
        axis.title.x = element_blank())

Past versions of cases_bias_global-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
1aabfea	jens-daniel-mueller	2022-07-12
b44c72a	jens-daniel-mueller	2022-07-03
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

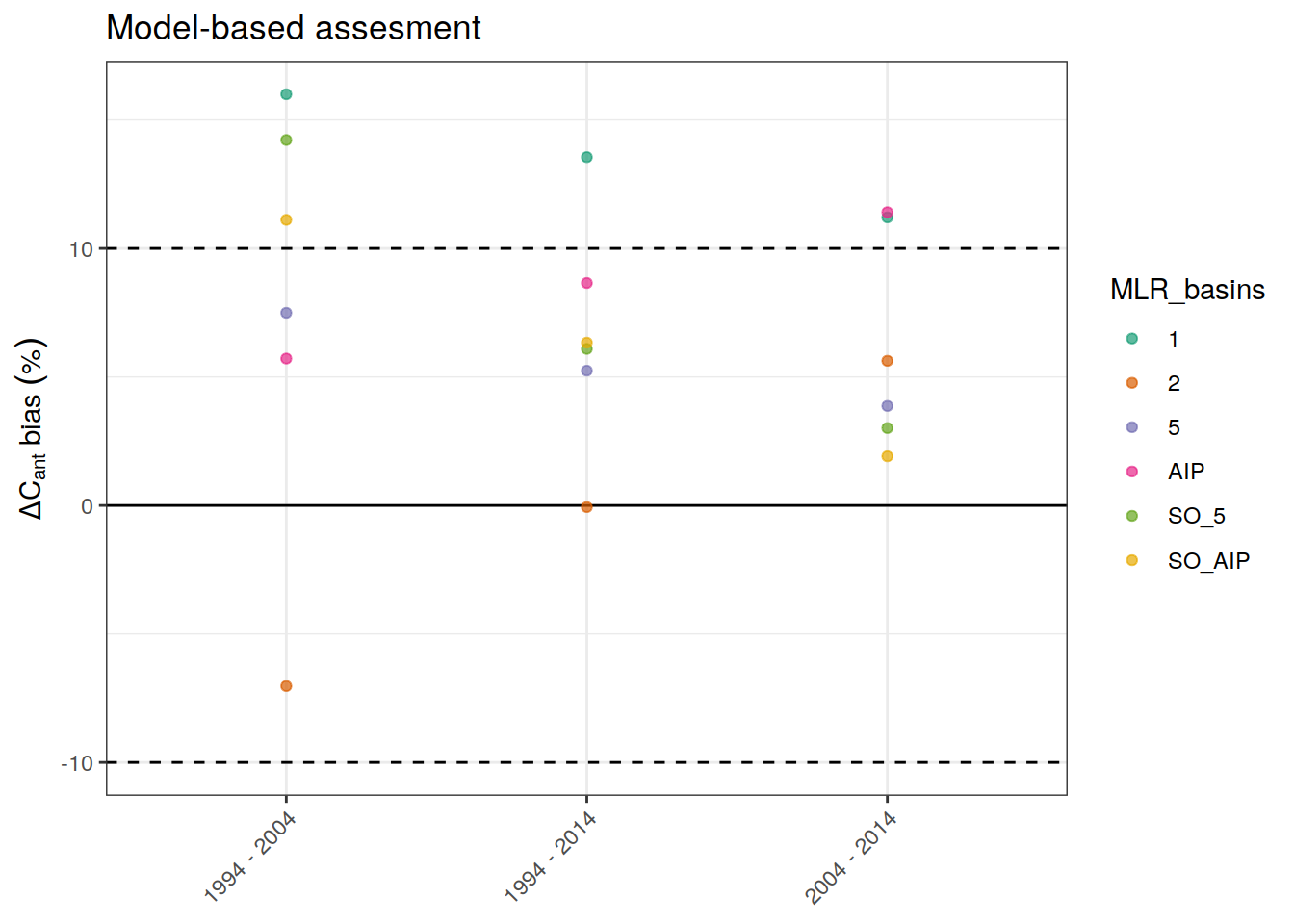

p_global_bias <-
  dcant_budget_global_bias_all %>%
  ggplot() +
  geom_hline(yintercept = global_bias_rel_max * c(-1, 1),
             linetype = 2) +
  geom_hline(yintercept = 0) +
  scale_color_brewer(palette = "Dark2") +
  labs(y = expression(Delta * C[ant] ~ bias ~ ("%")),
       title = "Model-based assesment") +
  theme(axis.title.x = element_blank()) +
  geom_point(aes(period, dcant_bias_rel, col = MLR_basins),
  alpha = 0.7) +
  theme(axis.text.x = element_text(angle = 45, hjust = 1),
        axis.title.x = element_blank())

p_global_bias

Past versions of cases_bias_global-2.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
b44c72a	jens-daniel-mueller	2022-07-03
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

dcant_budget_global_bias_all %>%
  group_by(period) %>%
  summarise(
    dcant_bias_sd = sd(dcant_bias),
    dcant_bias = mean(dcant_bias),
    dcant_bias_rel_sd = sd(dcant_bias_rel),
    dcant_bias_rel = mean(dcant_bias_rel)
  ) %>%
  ungroup() %>%
  kable() %>%
  kable_styling() %>%
  scroll_box(height = "300px")

period	dcant_bias_sd	dcant_bias	dcant_bias_rel_sd	dcant_bias_rel
1994 - 2004	1.4623699	1.396667	8.290079	7.917611
1994 - 2014	1.7128169	2.552333	4.452576	6.634952
2004 - 2014	0.8663283	1.285500	4.159441	6.171980

3.2 Basins

3.2.1 Absoulte values

dcant_budget_basin_AIP_all %>%
  ggplot(aes(period, dcant, col = MLR_basins)) +
  geom_jitter(width = 0.05, height = 0) +
  scale_color_brewer(palette = "Dark2") +
  facet_grid(basin_AIP ~ data_source) +
  ylim(0,NA) +
  theme(axis.text.x = element_text(angle = 45, hjust=1),
        axis.title.x = element_blank())

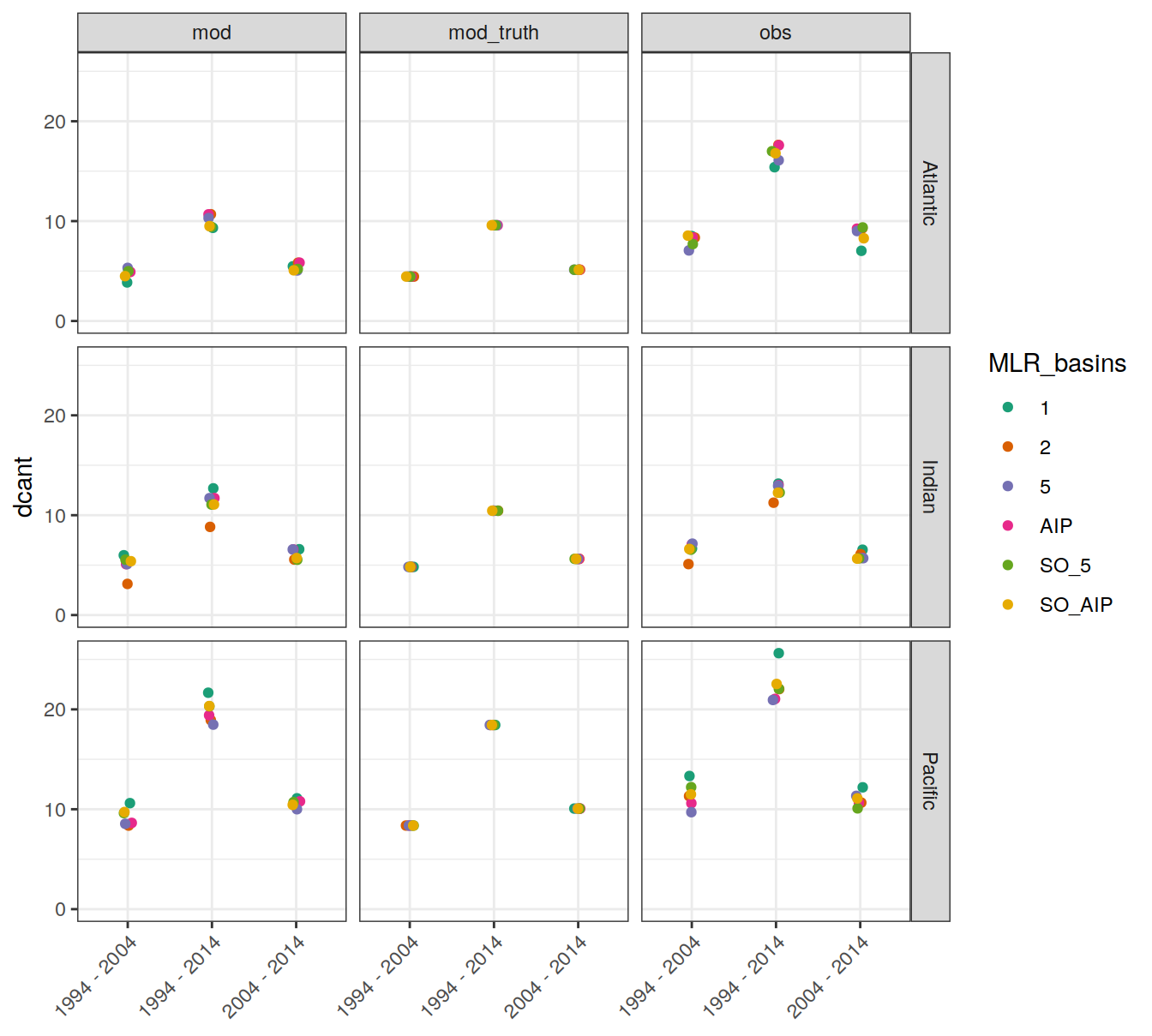

Past versions of cases_absolute-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
c3a6238	jens-daniel-mueller	2022-03-08
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

3.2.2 Biases

dcant_budget_basin_AIP_bias_all %>%
  ggplot(aes(period, dcant_bias, col=MLR_basins)) +
  geom_hline(yintercept = 0) +
  geom_point() +
  facet_grid(basin_AIP ~ .)

Past versions of cases_bias-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
1aabfea	jens-daniel-mueller	2022-07-12
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

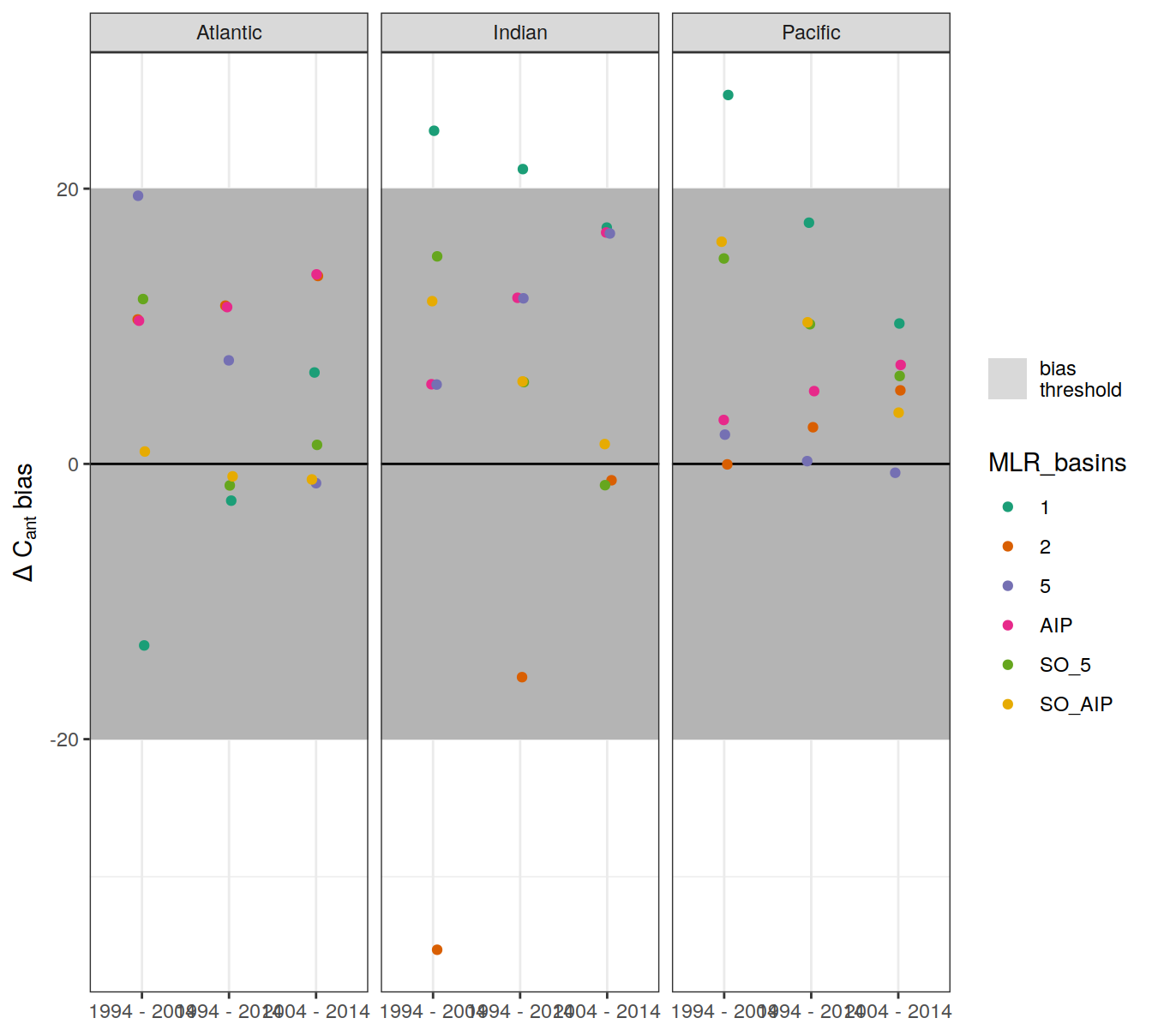

dcant_budget_basin_AIP_bias_all %>%
  ggplot() +
  geom_tile(aes(y = 0, height = regional_bias_rel_max * 2,
                x = "2004 - 2014", width = Inf,
                fill = "bias\nthreshold"), alpha = 0.5) +
  geom_hline(yintercept = 0) +
  scale_fill_manual(values = "grey70", name = "") +
  scale_color_brewer(palette = "Dark2") +
  labs(y = expression(Delta ~ C[ant] ~ bias)) +
  theme(axis.title.x = element_blank()) +
  geom_jitter(aes(period, dcant_bias_rel, col = MLR_basins),
              width = 0.05, height = 0) +
  facet_grid(. ~ basin_AIP)

Past versions of cases_bias-2.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
1aabfea	jens-daniel-mueller	2022-07-12
b44c72a	jens-daniel-mueller	2022-07-03
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

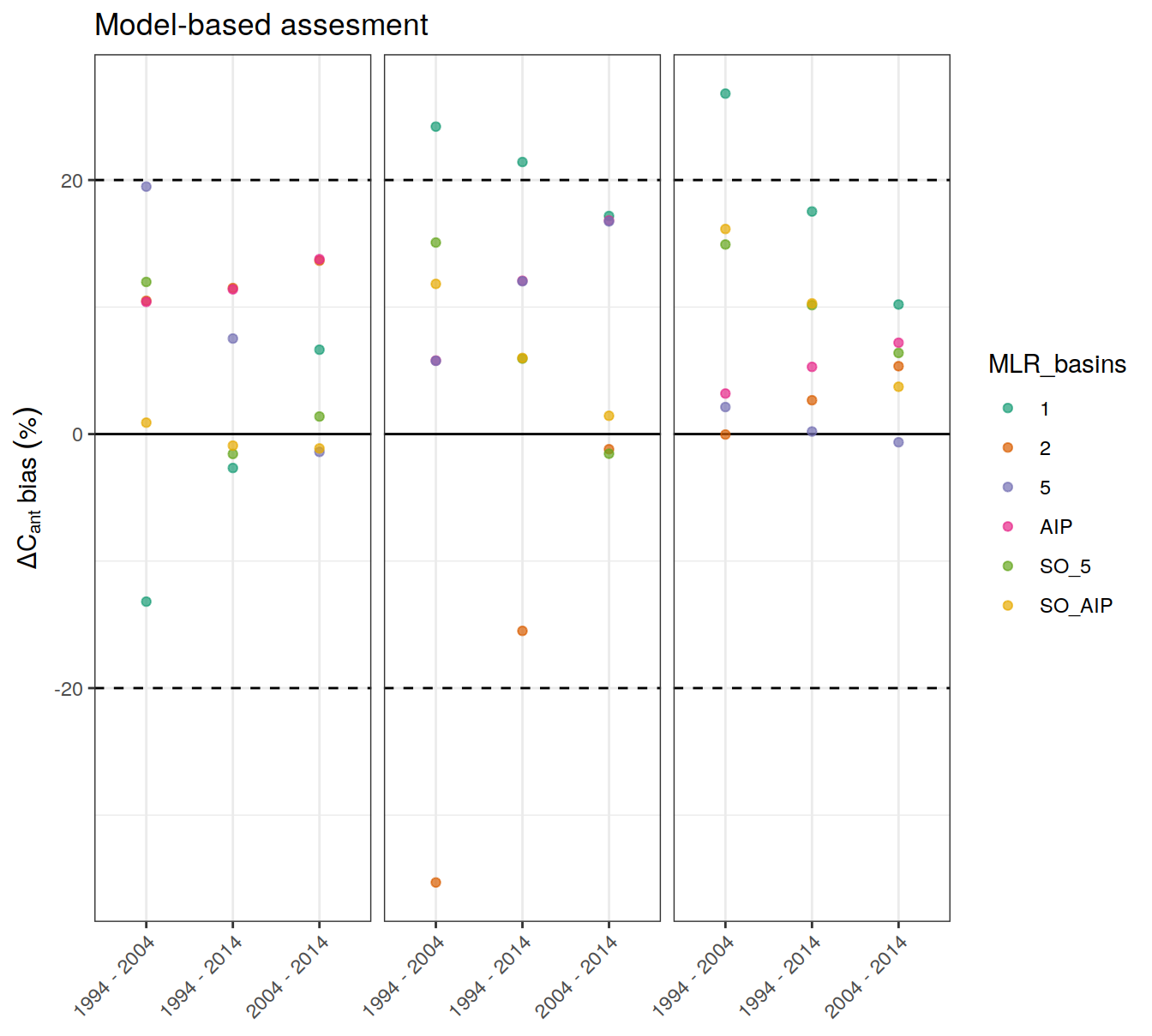

p_regional_bias <-
  dcant_budget_basin_AIP_bias_all %>%
  ggplot() +
  geom_hline(yintercept = regional_bias_rel_max * c(-1,1),
             linetype = 2) +
  geom_hline(yintercept = 0) +
  scale_color_brewer(palette = "Dark2") +
  labs(y = expression(Delta * C[ant] ~ bias ~ ("%")),
       title = "Model-based assesment") +
  theme(axis.title.x = element_blank()) +
  geom_point(aes(period, dcant_bias_rel, col = MLR_basins),
             alpha = 0.7) +
    theme(axis.text.x = element_text(angle = 45, hjust=1),
        axis.title.x = element_blank()) +
  facet_grid(. ~ basin_AIP) +
  theme(
  strip.background = element_blank(),
  strip.text.x = element_blank()
)

p_regional_bias

Past versions of cases_bias-3.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
b44c72a	jens-daniel-mueller	2022-07-03
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

3.3 Slab budgets

3.3.1 Absolute values

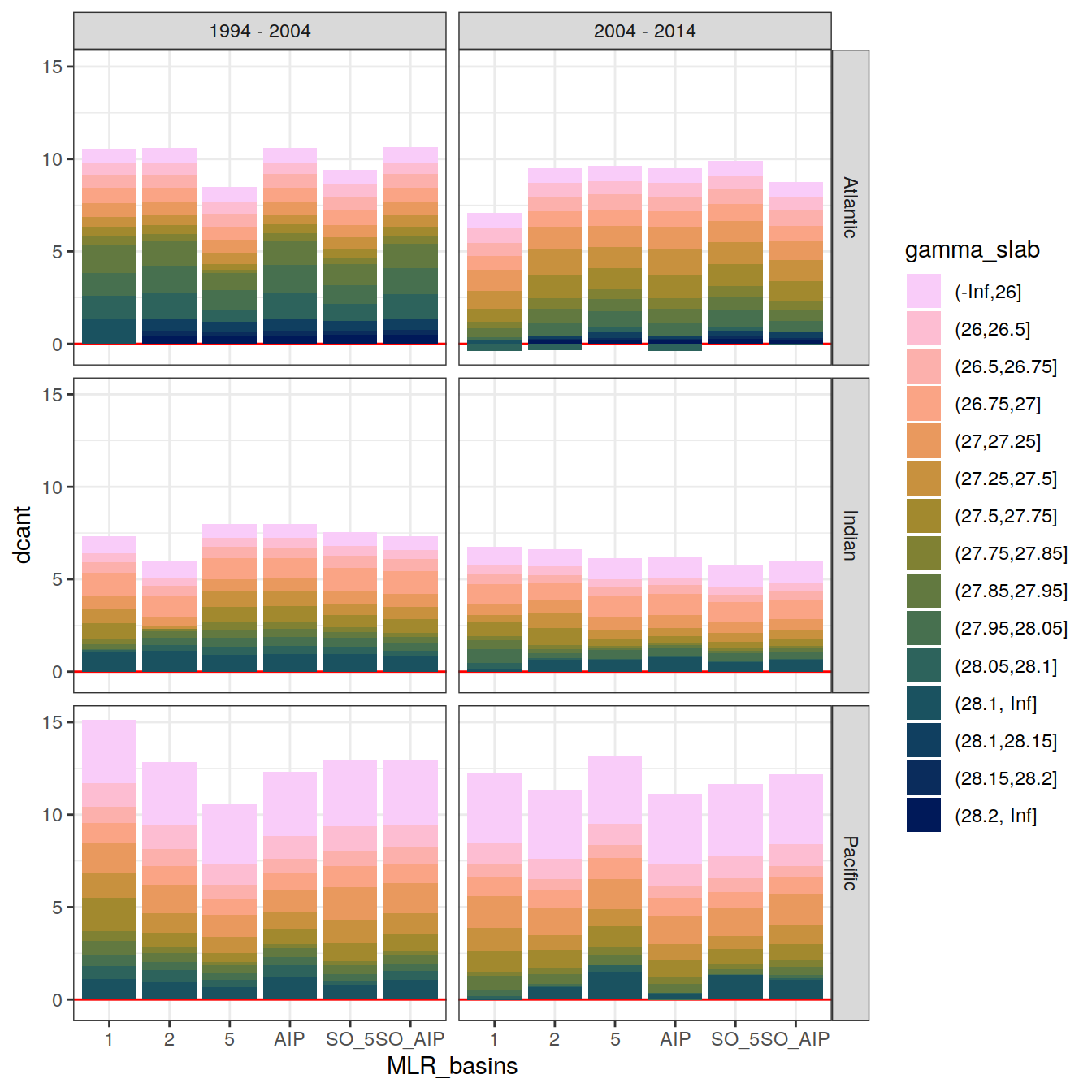

dcant_slab_budget_all %>%
  filter(data_source == "obs",
         period != "1994 - 2014") %>%
  ggplot(aes(MLR_basins, dcant, fill = gamma_slab)) +
  geom_hline(yintercept = 0, col = "red") +
  geom_col() +
  scale_fill_scico_d(direction = -1) +
  facet_grid(basin_AIP ~ period)

Past versions of slab_budgets-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

dcant_slab_budget_all %>%
  filter(data_source == "obs",
         period != "1994 - 2014") %>%
  group_by(basin_AIP) %>%
  group_split() %>%
  map(
    ~ ggplot(data = .x,
             aes(MLR_basins, dcant, fill = gamma_slab)) +
      geom_hline(yintercept = 0) +
      geom_col() +
      scale_fill_scico_d(direction = -1) +
      labs(title = paste("data_source:", unique(.x$basin_AIP))) +
      facet_grid(gamma_slab ~ period)
  )

[[1]]

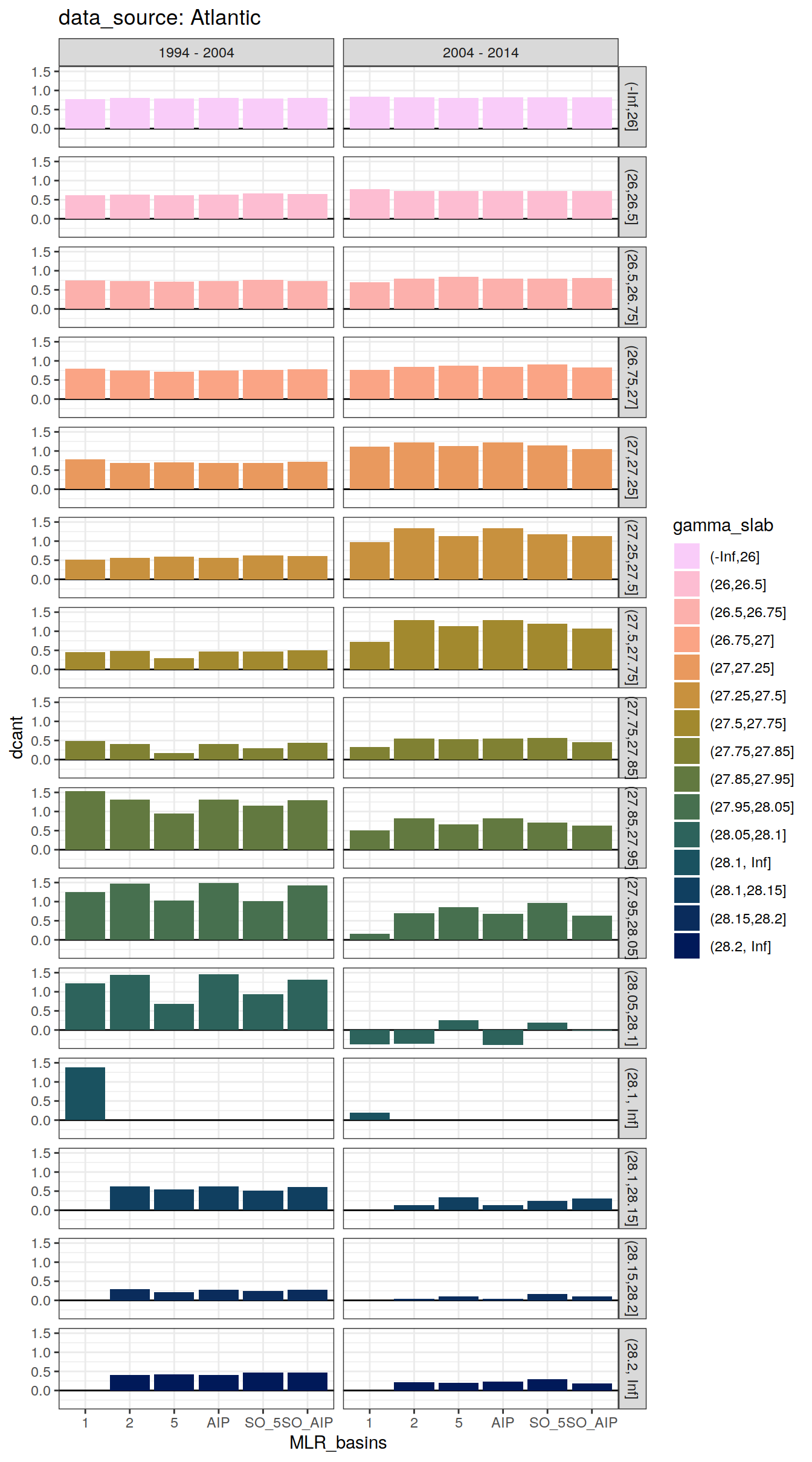

Past versions of slab_budgets_individual-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

[[2]]

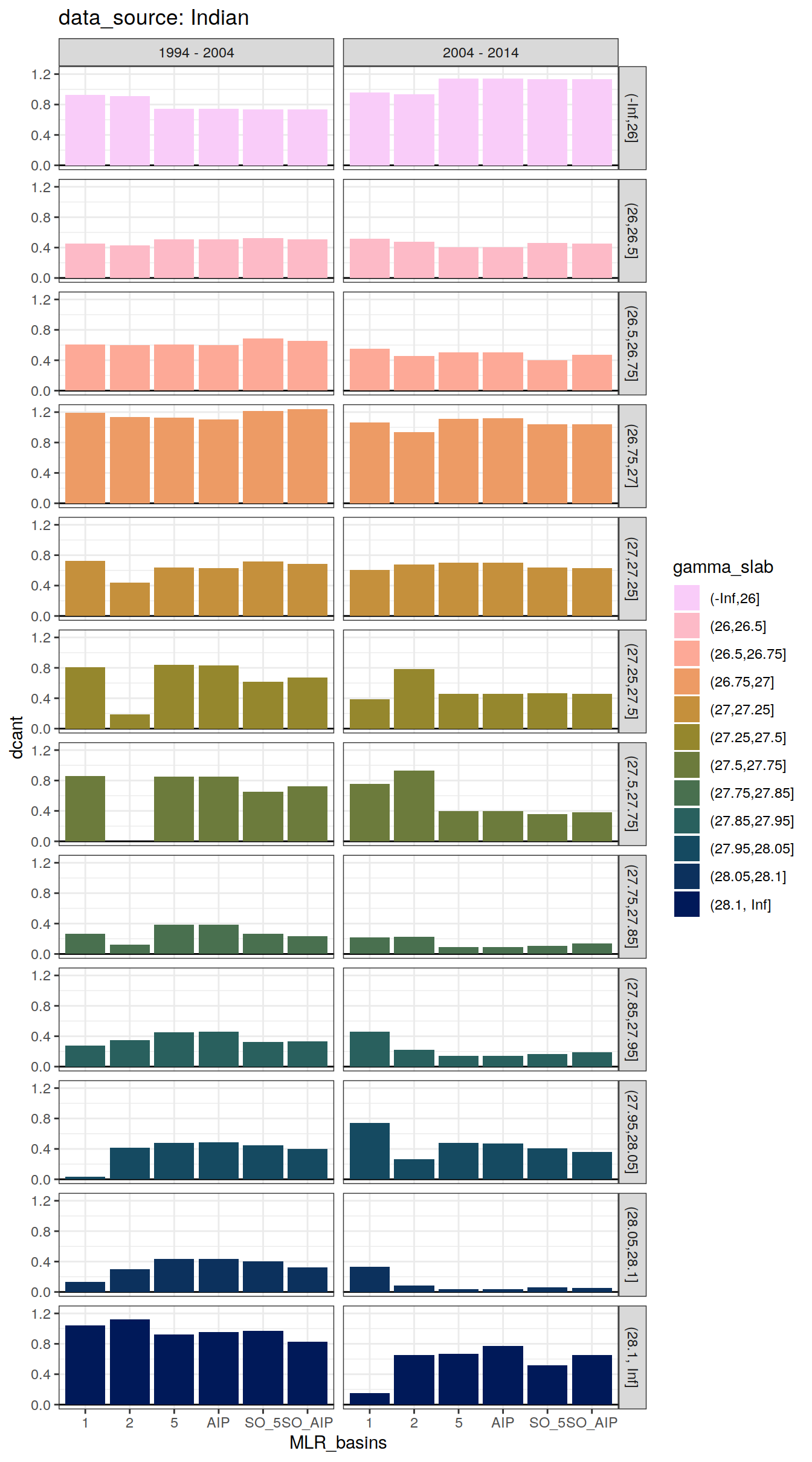

Past versions of slab_budgets_individual-2.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

[[3]]

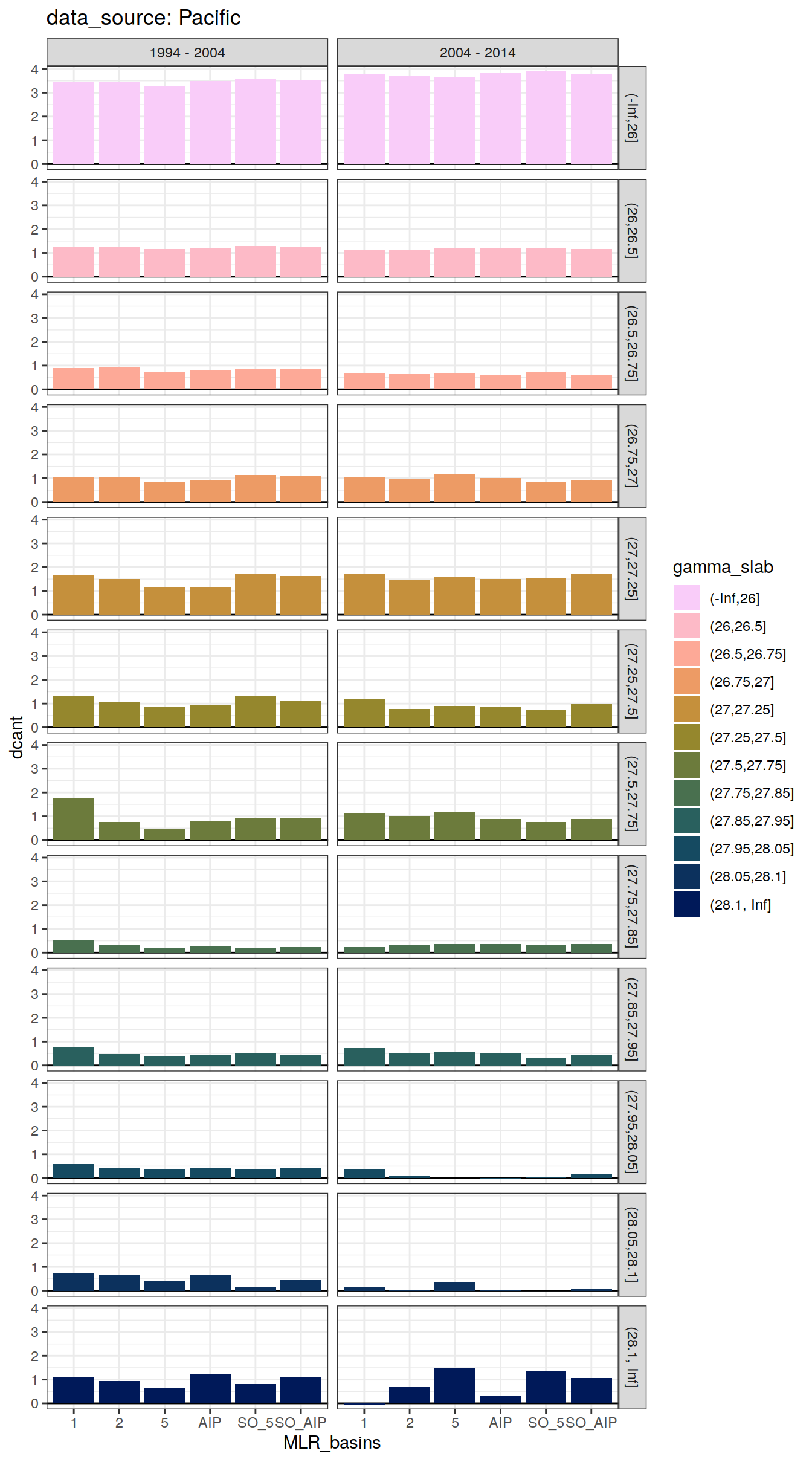

Past versions of slab_budgets_individual-3.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

3.3.2 Bias

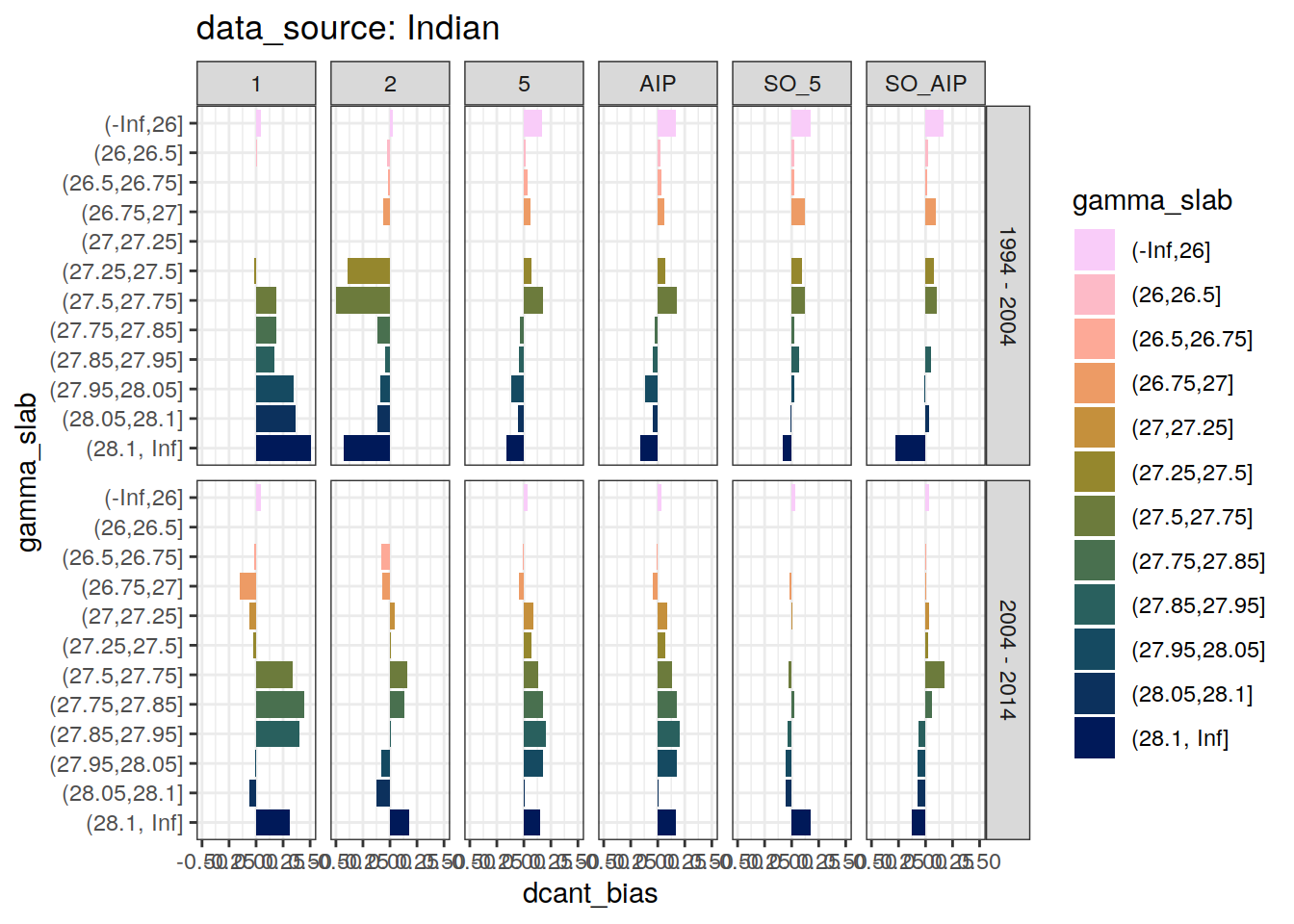

dcant_slab_budget_bias_all %>%
  filter(period != "1994 - 2014") %>%
  group_by(basin_AIP) %>%
  group_split() %>%
  # head(1) %>%
  map(
    ~ ggplot(data = .x,
             aes(gamma_slab, dcant_bias, fill = gamma_slab)) +
      geom_col() +
      coord_flip() +
      scale_x_discrete(limits = rev) +
      scale_fill_scico_d(direction = -1) +
      facet_grid(period ~ MLR_basins) +
      labs(title = paste("data_source:", unique(.x$basin_AIP)))
    )

[[1]]

Warning: Removed 40 rows containing missing values (position_stack).

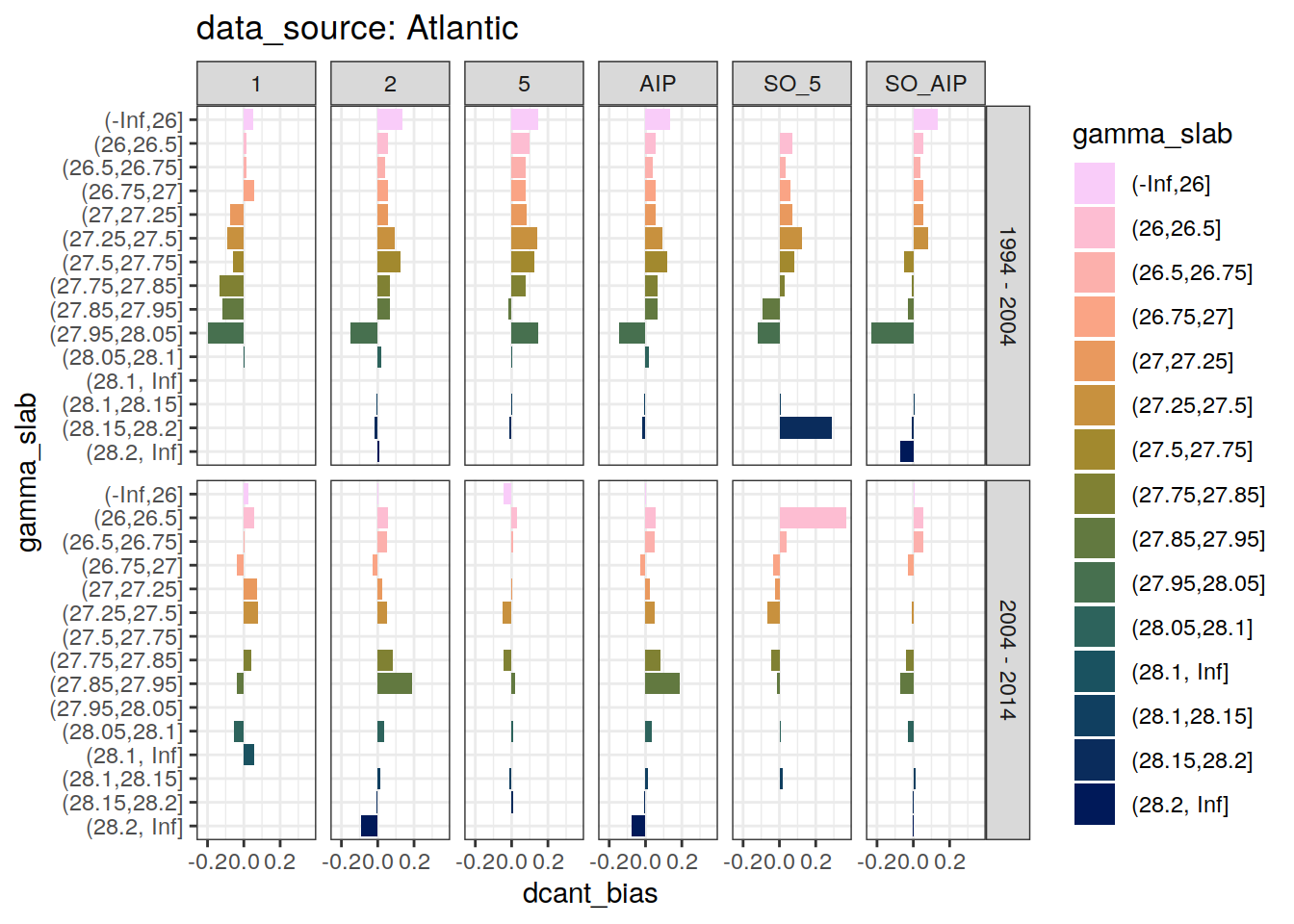

Past versions of slab_budgets_bias-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

[[2]]

Warning: Removed 24 rows containing missing values (position_stack).

Past versions of slab_budgets_bias-2.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

[[3]]

Warning: Removed 108 rows containing missing values (position_stack).

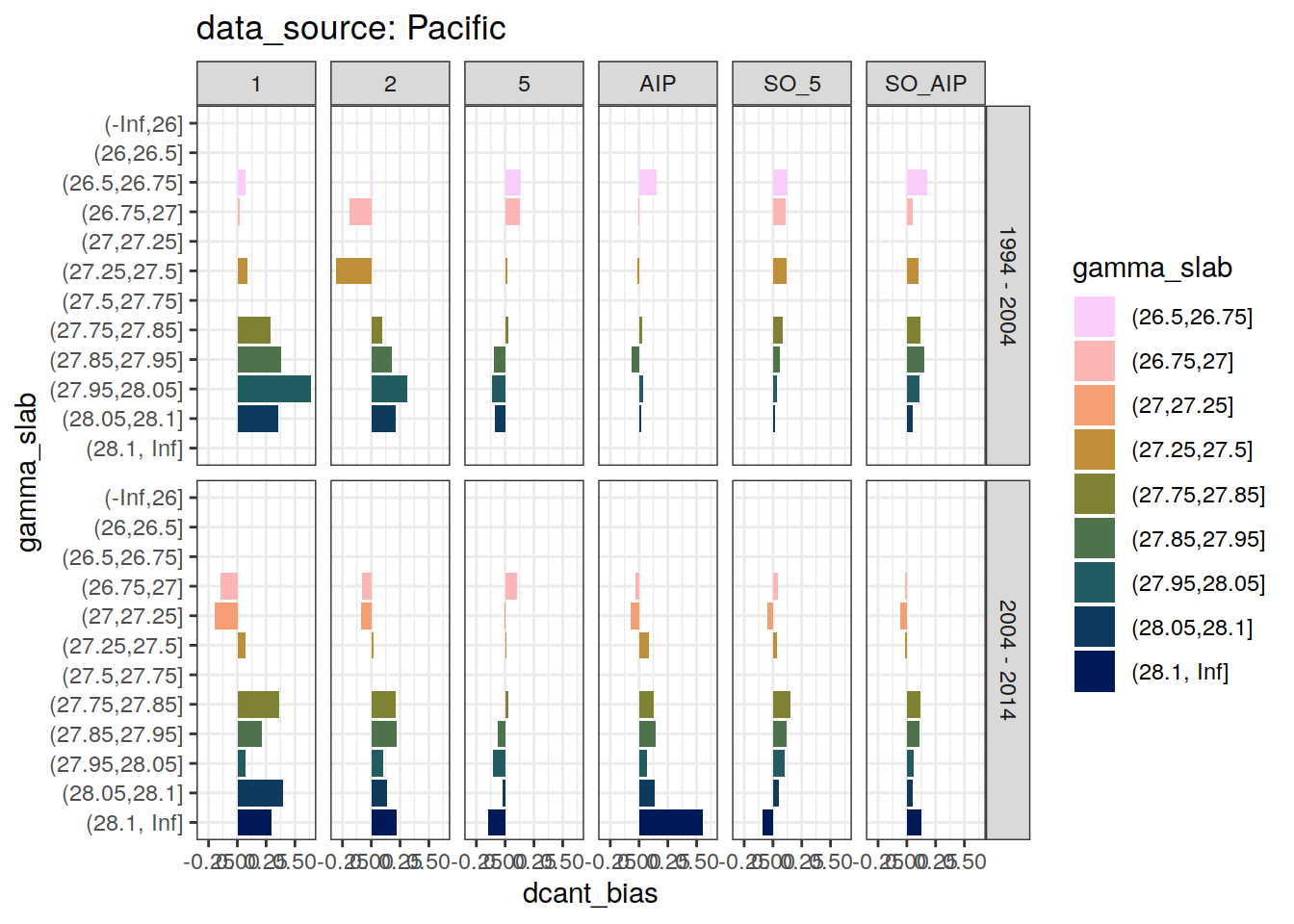

Past versions of slab_budgets_bias-3.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

3.3.3 Spread

dcant_slab_budget_all %>%
  filter(period != "1994 - 2014",
         data_source != "mod_truth") %>%
  group_by(data_source, basin_AIP, gamma_slab, period) %>%
  summarise(dcant_range = max(dcant) - min(dcant)) %>%
  ungroup() %>%
  group_split(basin_AIP) %>%
  # head(1) %>%
  map(
    ~ ggplot(data = .x,
             aes(gamma_slab, dcant_range, fill = gamma_slab)) +
      geom_col() +
      coord_flip() +
      scale_x_discrete(limits = rev) +
      scale_fill_scico_d(direction = -1) +
      facet_grid(period ~ data_source) +
      labs(title = paste("data_source:", unique(.x$basin_AIP)))
  )

`summarise()` has grouped output by 'data_source', 'basin_AIP', 'gamma_slab'.
You can override using the `.groups` argument.

[[1]]

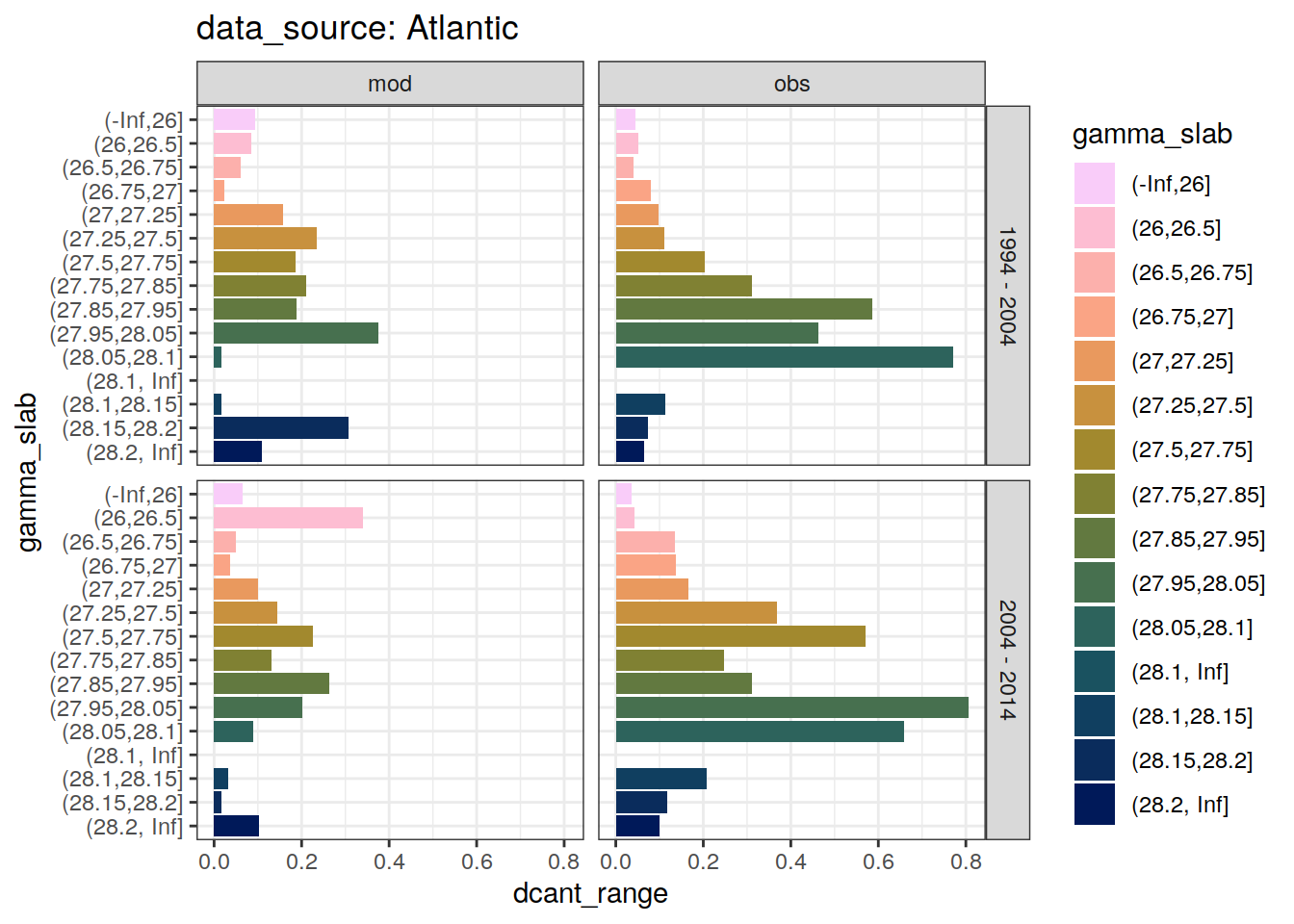

Past versions of slab_budgets_spread-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
269809e	jens-daniel-mueller	2022-01-12

[[2]]

Past versions of slab_budgets_spread-2.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
269809e	jens-daniel-mueller	2022-01-12

[[3]]

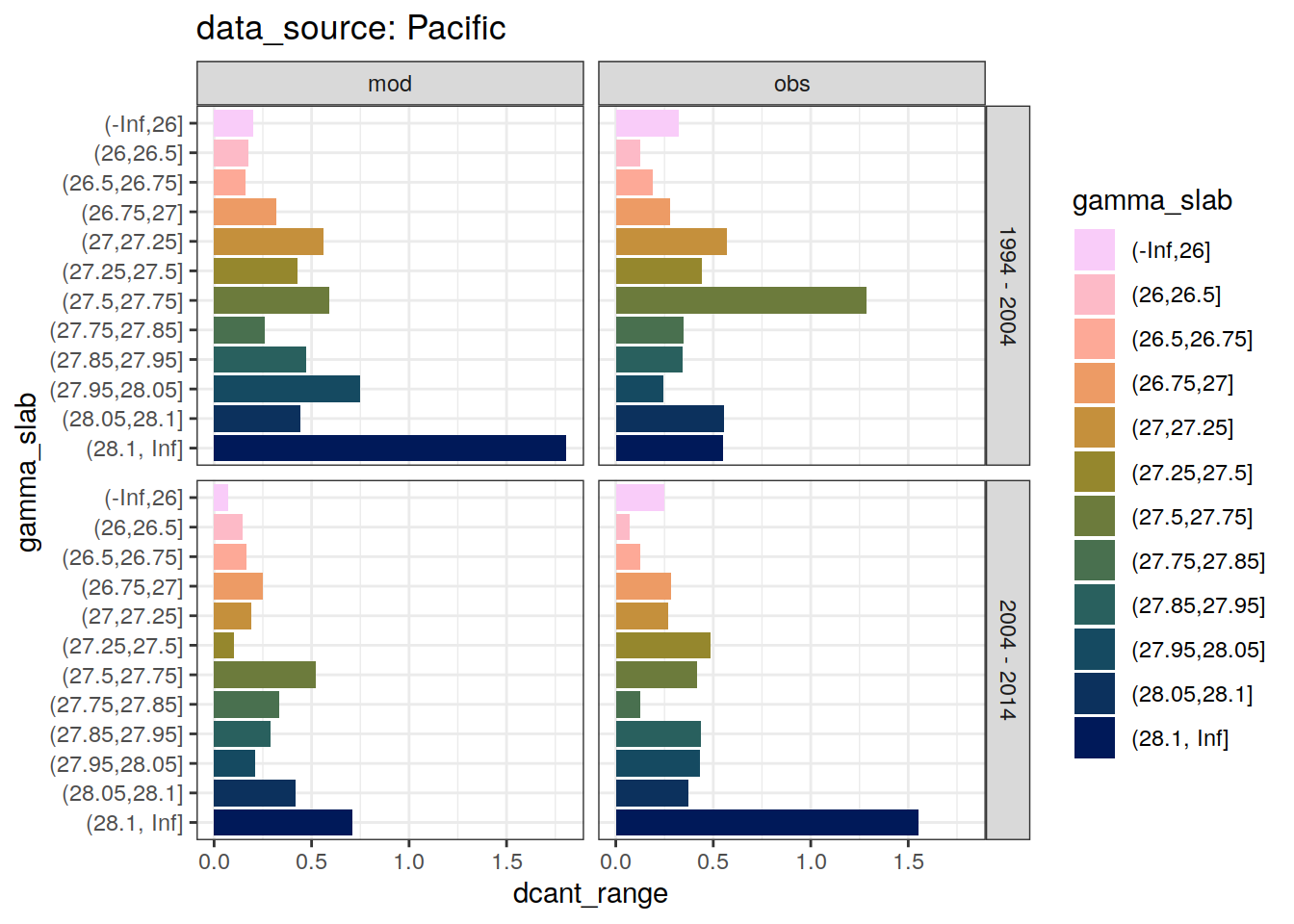

Past versions of slab_budgets_spread-3.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
269809e	jens-daniel-mueller	2022-01-12

3.4 Basins hemisphere

3.4.1 Absoulte values

dcant_budget_basin_MLR_all %>%
  ggplot(aes(period, dcant, col = MLR_basins)) +
  geom_jitter(width = 0.05, height = 0) +
  scale_color_brewer(palette = "Dark2") +
  facet_grid(basin ~ data_source) +
  ylim(0,NA) +
  theme(axis.text.x = element_text(angle = 45, hjust=1),
        axis.title.x = element_blank())

Past versions of cases_absolute_basins_hemisphere-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
c3a6238	jens-daniel-mueller	2022-03-08
f347cd7	jens-daniel-mueller	2022-01-18

3.4.2 Biases

dcant_budget_basin_MLR_bias_all <-
  dcant_budget_basin_MLR_all %>%
  filter(data_source %in% c("mod", "mod_truth")) %>%
  pivot_wider(names_from = data_source,
              values_from = dcant) %>%
  mutate(dcant_bias = mod - mod_truth,
         dcant_bias_rel = 100*(mod - mod_truth)/mod_truth)

dcant_budget_basin_MLR_bias_all %>%
  ggplot(aes(period, dcant_bias, col=MLR_basins)) +
  geom_hline(yintercept = 0) +
  geom_point() +
  facet_grid(basin ~ .)

Past versions of cases_bias_basins_hemisphere-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
b44c72a	jens-daniel-mueller	2022-07-03

dcant_budget_basin_MLR_bias_all %>%
  ggplot() +
  geom_tile(aes(y = 0, height = regional_bias_rel_max * 2,
                x = "2004 - 2014", width = Inf,
                fill = "bias\nthreshold"), alpha = 0.5) +
  geom_hline(yintercept = 0) +
  scale_fill_manual(values = "grey70", name = "") +
  scale_color_brewer(palette = "Dark2") +
  labs(y = expression(Delta ~ C[ant] ~ bias)) +
  theme(axis.title.x = element_blank()) +
  geom_jitter(aes(period, dcant_bias_rel, col = MLR_basins),
              width = 0.05, height = 0) +
  facet_grid(. ~ basin)

Past versions of cases_bias_basins_hemisphere-2.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
b44c72a	jens-daniel-mueller	2022-07-03

p_regional_bias <-
  dcant_budget_basin_MLR_bias_all %>%
  ggplot() +
  geom_hline(yintercept = regional_bias_rel_max * c(-1,1),
             linetype = 2) +
  geom_hline(yintercept = 0) +
  scale_color_brewer(palette = "Dark2") +
  labs(y = expression(Delta * C[ant] ~ bias ~ ("%")),
       title = "Model-based assesment") +
  theme(axis.title.x = element_blank()) +
  geom_point(aes(period, dcant_bias_rel, col = MLR_basins),
             alpha = 0.7) +
    theme(axis.text.x = element_text(angle = 45, hjust=1),
        axis.title.x = element_blank()) +
  facet_grid(. ~ basin) +
  theme(
  strip.background = element_blank(),
  strip.text.x = element_blank()
)

p_regional_bias

Past versions of cases_bias_basins_hemisphere-3.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
b44c72a	jens-daniel-mueller	2022-07-03

dcant_budget_basin_MLR_bias_all %>%
  group_by(period, basin) %>%
  summarise(
    dcant_bias_sd = sd(dcant_bias),
    dcant_bias = mean(dcant_bias),
    dcant_bias_rel_sd = sd(dcant_bias_rel),
    dcant_bias_rel = mean(dcant_bias_rel)
  ) %>%
  ungroup() %>%
  kable() %>%
  kable_styling() %>%
  scroll_box(height = "300px")

`summarise()` has grouped output by 'period'. You can override using the
`.groups` argument.

period	basin	dcant_bias_sd	dcant_bias	dcant_bias_rel_sd	dcant_bias_rel
1994 - 2004	Indian	0.9977261	0.2198333	20.695418	4.559912
1994 - 2004	N_Atlantic	0.2349874	0.2005000	12.044462	10.276781
1994 - 2004	N_Pacific	0.1787092	0.4691667	6.579866	17.274178
1994 - 2004	S_Atlantic	0.2865469	0.0955000	11.461874	3.820000
1994 - 2004	S_Pacific	0.8011616	0.4116667	14.174833	7.283557
1994 - 2014	Indian	1.2941599	0.7306667	12.386676	6.993364
1994 - 2014	N_Atlantic	0.3465991	-0.0478333	8.067950	-1.113439
1994 - 2014	N_Pacific	0.2536877	0.5663333	4.345456	9.700811
1994 - 2014	S_Atlantic	0.3459918	0.4515000	6.541724	8.536585
1994 - 2014	S_Pacific	1.2831324	0.8516667	10.186015	6.760869
2004 - 2014	Indian	0.5375986	0.4635000	9.555610	8.238535
2004 - 2014	N_Atlantic	0.1797095	-0.1295000	7.663518	-5.522388
2004 - 2014	N_Pacific	0.2146098	0.1411667	6.874113	4.521674
2004 - 2014	S_Atlantic	0.2104428	0.4108333	7.545457	14.730489
2004 - 2014	S_Pacific	0.5028805	0.4000000	7.240900	5.759539

4 Ensemble

4.1 Global

dcant_budget_global_all_in <- dcant_budget_global_all %>%
  filter(data_source %in% c("mod", "obs"))

dcant_budget_global_ensemble <- dcant_budget_global_all_in %>%
  group_by(data_source, period, tref2) %>%
  summarise(dcant_mean = mean(dcant),
            dcant_sd = sd(dcant),
            dcant_range = max(dcant)- min(dcant)) %>%
  ungroup()

`summarise()` has grouped output by 'data_source', 'period'. You can override
using the `.groups` argument.

4.1.1 Mean

legend_title = expression(Delta * C[ant]~(PgC))

ggplot() +
  geom_col(data = dcant_budget_global_ensemble,
           aes(x = period,
               y = dcant_mean),
           fill = "darkgrey") +
  geom_errorbar(
    data = dcant_budget_global_ensemble,
    aes(
      x = period,
      y = dcant_mean,
      ymax = dcant_mean + dcant_sd,
      ymin = dcant_mean - dcant_sd
    ),
    width = 0.1
  ) +
  geom_point(
    data = dcant_budget_global_all,
    aes(period, dcant, col = MLR_basins),
    alpha = 0.7,
    position = position_jitter(width = 0.2, height = 0)
  ) +
  scale_y_continuous(limits = c(0,70), expand = c(0,0)) +
  scale_color_brewer(palette = "Dark2") +
  facet_grid(. ~ data_source) +
  labs(y = legend_title) +
  theme(axis.text.x = element_text(angle = 45, hjust=1),
        axis.title.x = element_blank())

Past versions of ensemble_mean_global-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
b44c72a	jens-daniel-mueller	2022-07-03
cdabe91	jens-daniel-mueller	2022-06-27
c3a6238	jens-daniel-mueller	2022-03-08
f347cd7	jens-daniel-mueller	2022-01-18
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

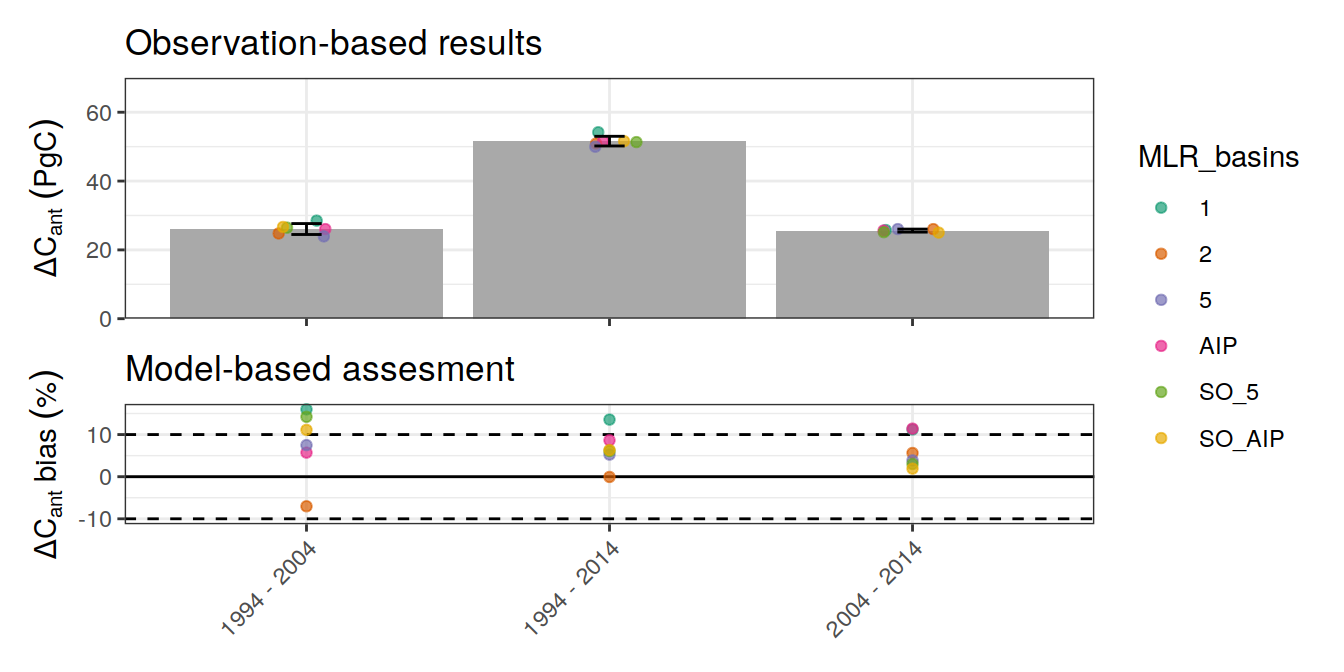

p_global_dcant <- ggplot() +
  geom_col(data = dcant_budget_global_ensemble %>%
             filter(data_source == "obs"),
           aes(x = period,
               y = dcant_mean),
           fill = "darkgrey") +
    geom_point(
    data = dcant_budget_global_all %>%
             filter(data_source == "obs"),
    aes(period, dcant, col = MLR_basins),
    alpha = 0.7,
    position = position_jitter(width = 0.1, height = 0)
  ) +
  geom_errorbar(
    data = dcant_budget_global_ensemble %>%
             filter(data_source == "obs"),
    aes(
      x = period,
      y = dcant_mean,
      ymax = dcant_mean + dcant_sd,
      ymin = dcant_mean - dcant_sd
    ),
    width = 0.1
  ) +
  scale_y_continuous(limits = c(0,70), expand = c(0,0)) +
  scale_color_brewer(palette = "Dark2") +
  labs(y = legend_title,
       title = "Observation-based results") +
  theme(axis.text.x = element_blank(),
        axis.title.x = element_blank())

p_global_dcant_bias <-
p_global_dcant / p_global_bias +
  plot_layout(guides = 'collect',
              heights = c(2,1))

p_global_dcant_bias

Past versions of ensemble_mean_global-2.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
b44c72a	jens-daniel-mueller	2022-07-03
cdabe91	jens-daniel-mueller	2022-06-27
c3a6238	jens-daniel-mueller	2022-03-08
f347cd7	jens-daniel-mueller	2022-01-18
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

# ggsave(plot = p_global_dcant_bias,
#        path = here::here("output/publication"),
#        filename = "Fig_global_dcant_budget.png",
#        height = 5,
#        width = 5)

rm(p_global_bias, p_global_dcant, p_global_dcant_bias)

4.1.2 Mean vs atm CO2

dcant_ensemble <- dcant_budget_global_ensemble %>%
  filter(data_source == "obs",
         period != "1994 - 2014") %>%
  select(year = tref2, dcant_mean, dcant_sd)

tcant_S04 <- bind_cols(year = 1994, dcant_mean = 118, dcant_sd = 19)

tcant_ensemble <- full_join(dcant_ensemble, tcant_S04)

Joining, by = c("year", "dcant_mean", "dcant_sd")

tcant_ensemble <- left_join(tcant_ensemble, co2_atm)

Joining, by = "year"

co2_atm_pi <- bind_cols(pCO2 = 280, dcant_mean = 0, year = 1750, dcant_sd = 0)

tcant_ensemble <- full_join(tcant_ensemble, co2_atm_pi)

Joining, by = c("year", "dcant_mean", "dcant_sd", "pCO2")

tcant_ensemble <- tcant_ensemble %>%
  arrange(year) %>%
  mutate(tcant = cumsum(dcant_mean),
         tcant_sd = cumsum(dcant_sd))

tcant_ensemble %>%
  ggplot(aes(pCO2, tcant, ymin = tcant - tcant_sd, ymax = tcant + tcant_sd)) +
  geom_ribbon(fill = "grey80") +
  geom_point() +
  geom_line() +
  scale_x_continuous(breaks = seq(280, 400, 30),
                     sec.axis = dup_axis(labels =  c(1750, 1940, 1980, 2000, 2015),
                                         name = "Year")) +
  geom_text(aes(label = year), nudge_x = -5, nudge_y = 5) +
  labs(x = expression(Atmospheric~pCO[2]~(µatm)),
       y = expression(Total~oceanic~C[ant]~(PgC)))

Past versions of mean_tcant_over_atm_co2-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
f347cd7	jens-daniel-mueller	2022-01-18
d7dfc7c	jens-daniel-mueller	2022-01-18
269809e	jens-daniel-mueller	2022-01-12

# ggsave(path = "output/publication",
#        filename = "Fig_global_dcant_budget_vs_atm_pCO2.png",
#        height = 4,
#        width = 7)

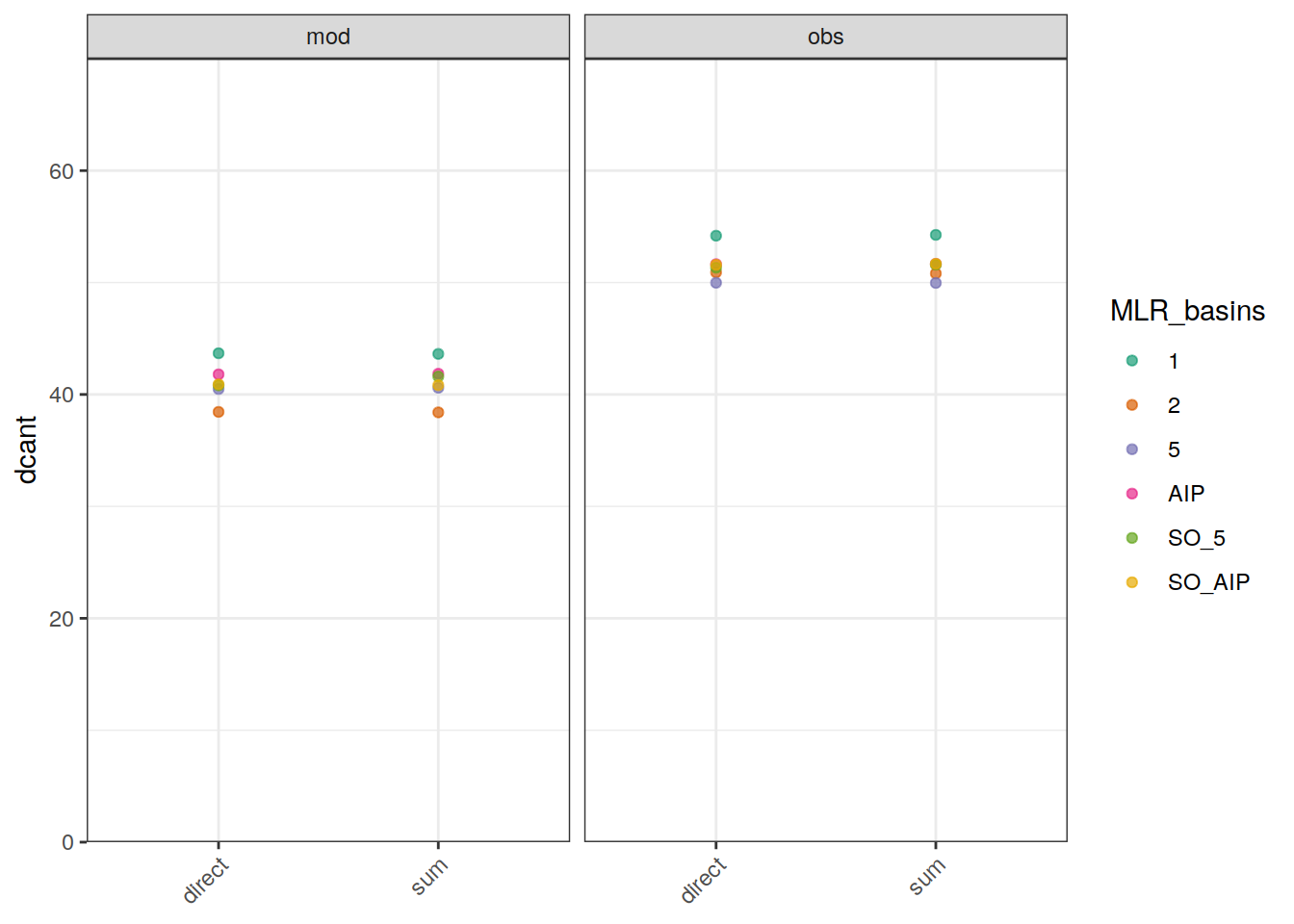

4.1.3 Sum decades

dcant_budget_global_all_in_sum <-
  dcant_budget_global_all_in %>%
  filter(period != "1994 - 2014") %>%
  arrange(tref1) %>%
  group_by(data_source, MLR_basins) %>%
  mutate(dcant = dcant + lag(dcant)) %>%
  ungroup() %>%
  drop_na() %>%
  mutate(estimate = "sum")

dcant_budget_global_all_in_sum <-
  bind_rows(
    dcant_budget_global_all_in_sum,
    dcant_budget_global_all_in %>%
      filter(period == "1994 - 2014") %>%
      mutate(estimate = "direct")
  )

ggplot() +
  geom_point(
    data = dcant_budget_global_all_in_sum,
    aes(estimate, dcant, col = MLR_basins),
    alpha = 0.7,
    position = position_jitter(width = 0, height = 0)
  ) +
  scale_y_continuous(limits = c(0,70), expand = c(0,0)) +
  scale_color_brewer(palette = "Dark2") +
  facet_grid(. ~ data_source) +
  theme(axis.text.x = element_text(angle = 45, hjust=1),
        axis.title.x = element_blank())

Past versions of summed_decades-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
c3a6238	jens-daniel-mueller	2022-03-08
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

4.1.4 Mean bias

dcant_budget_global_ensemble_bias <- full_join(
  dcant_budget_global_ensemble %>%
    filter(data_source == "mod") %>%
    select(period, dcant_mean, dcant_sd),
  dcant_budget_global_all %>%
    filter(data_source == "mod_truth",
           MLR_basins == unique(dcant_budget_global_all$MLR_basins)[1]) %>%
    select(period, dcant)
)

Joining, by = "period"

dcant_budget_global_ensemble_bias <- dcant_budget_global_ensemble_bias %>%
  mutate(dcant_mean_bias = dcant_mean - dcant,
         dcant_mean_bias_rel = 100 * dcant_mean_bias / dcant)

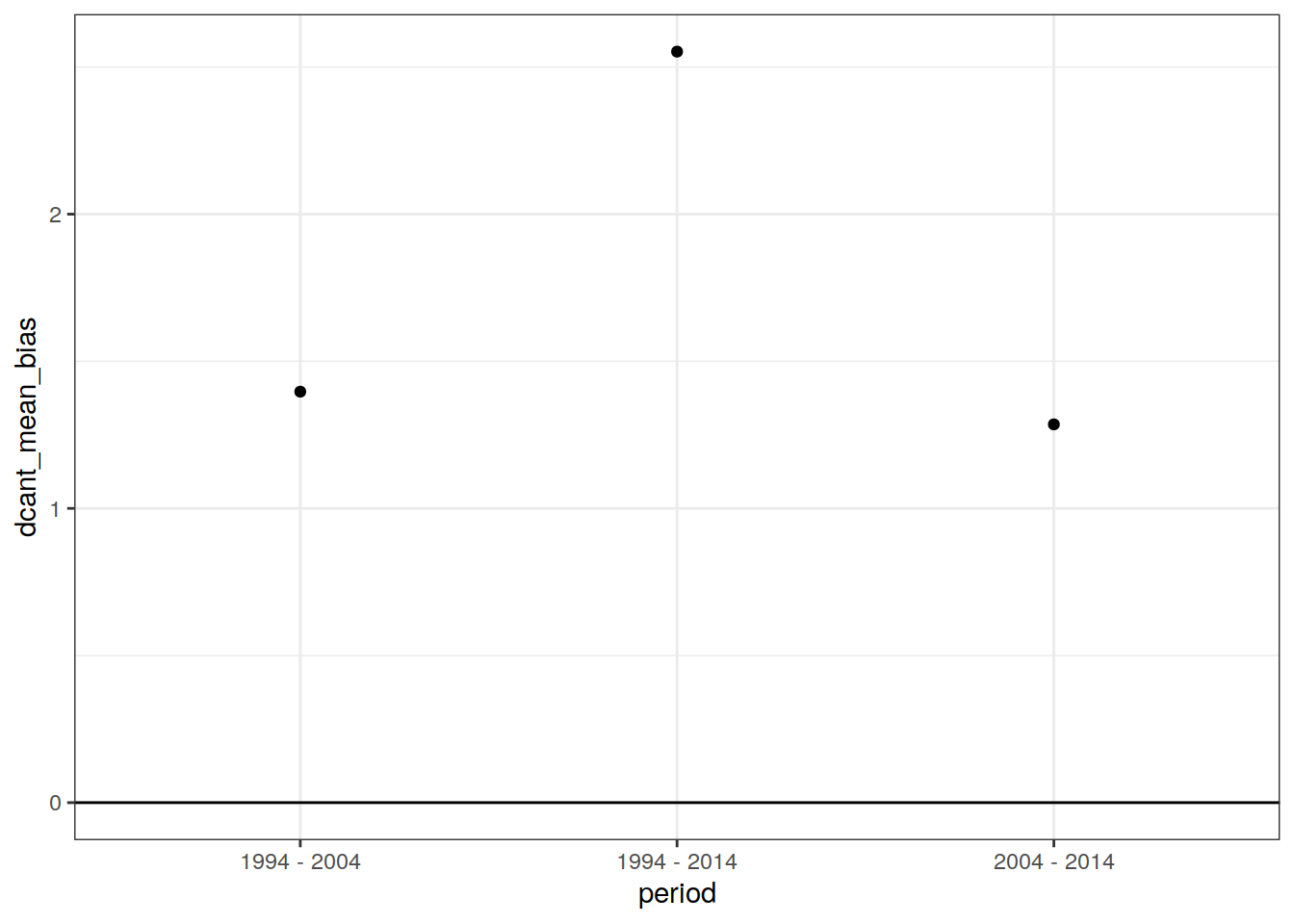

dcant_budget_global_ensemble_bias %>%
  ggplot(aes(period, dcant_mean_bias)) +
  geom_hline(yintercept = 0) +
  geom_point()

Past versions of ensemble_mean_bias_global-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
c3a6238	jens-daniel-mueller	2022-03-08
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

dcant_budget_global_ensemble_bias %>%
  ggplot(aes(period, dcant_mean_bias_rel)) +
  geom_hline(yintercept = 0) +
  geom_point()

Past versions of ensemble_mean_bias_global-2.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
c3a6238	jens-daniel-mueller	2022-03-08
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

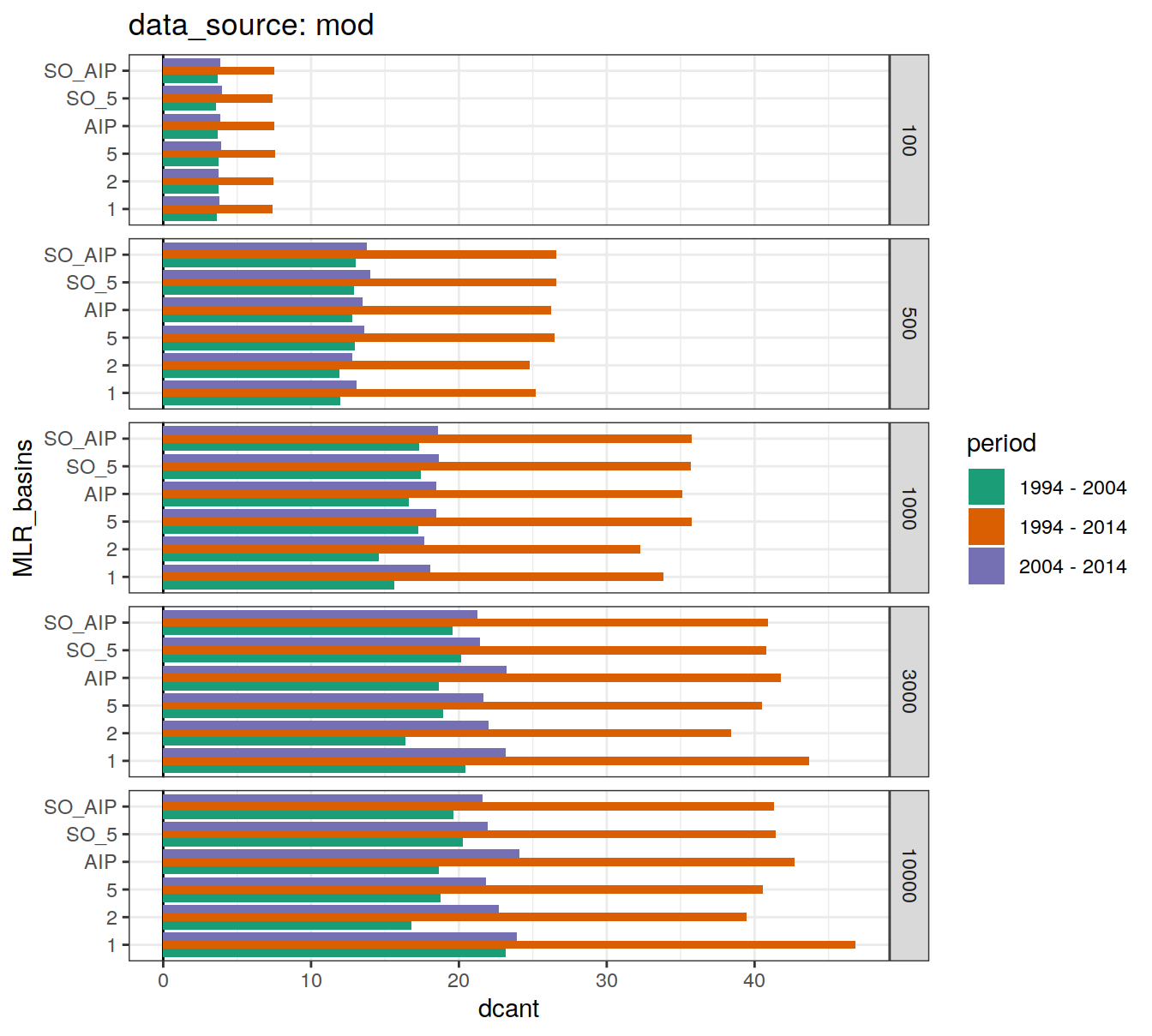

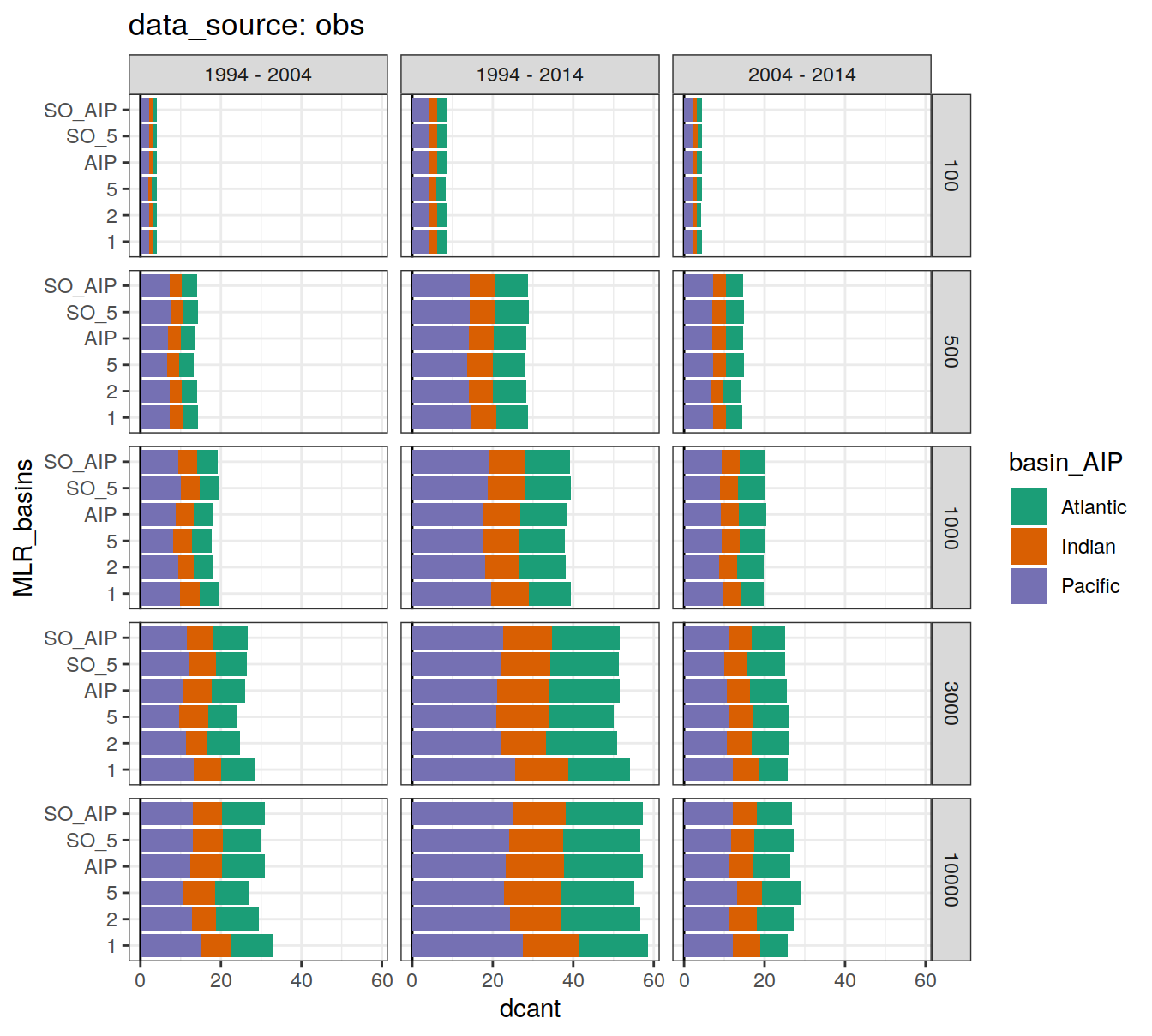

4.1.5 Vertical patterns

4.1.5.1 Absoulte values

dcant_budget_global_all_depth %>%
  filter(data_source != "mod_truth") %>%
  group_by(data_source) %>%
  group_split() %>%
  # head(1) %>%
  map(
    ~  ggplot(data = .x,
              aes(dcant, MLR_basins, fill=period)) +
      geom_vline(xintercept = 0) +
      geom_col(position = "dodge") +
      scale_fill_brewer(palette = "Dark2") +
      facet_grid(inv_depth ~ .) +
      labs(title = paste("data_source:", unique(.x$data_source)))
  )

[[1]]

Past versions of cases_absolute_depth_global-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

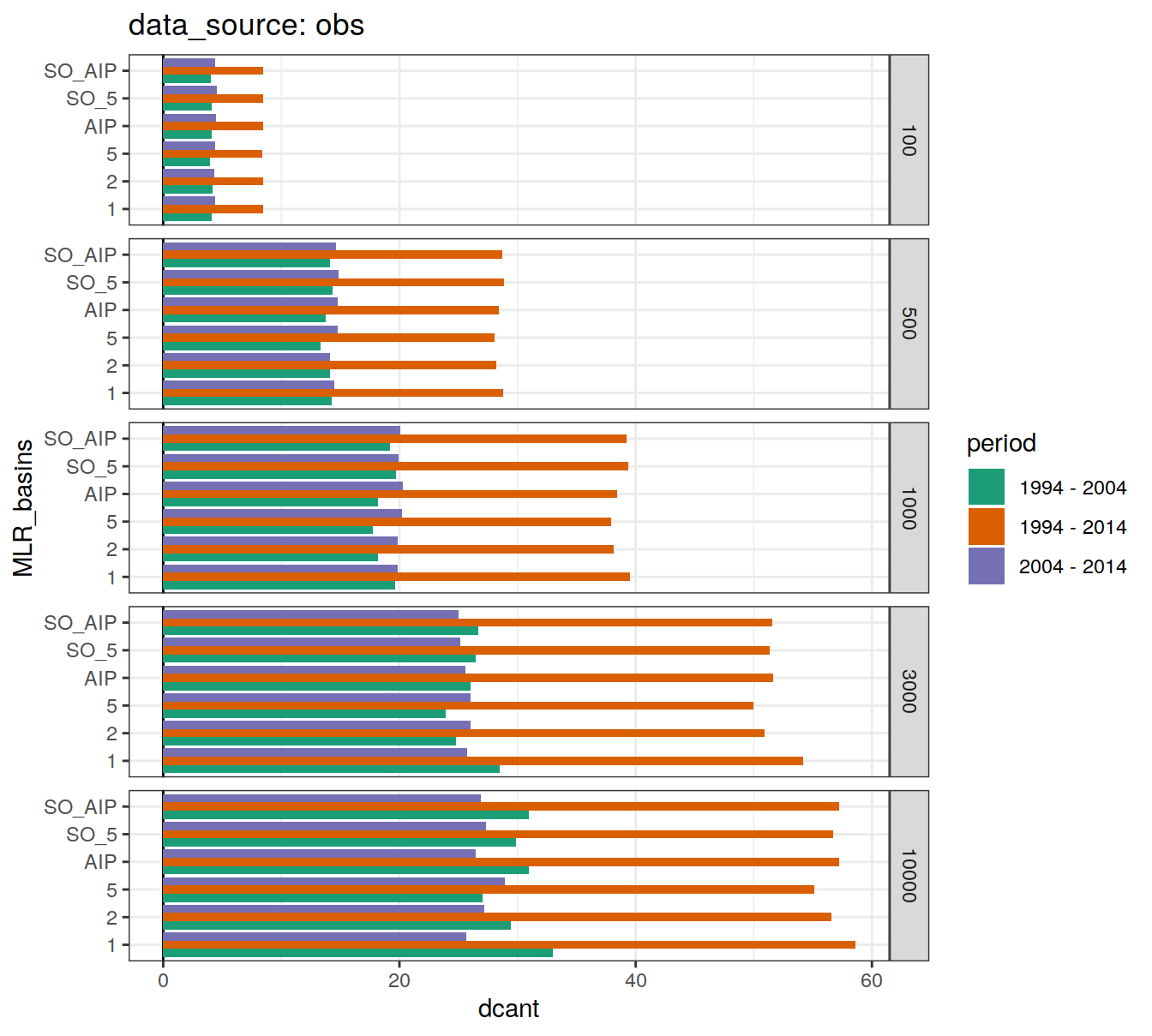

[[2]]

Past versions of cases_absolute_depth_global-2.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
c3a6238	jens-daniel-mueller	2022-03-08
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

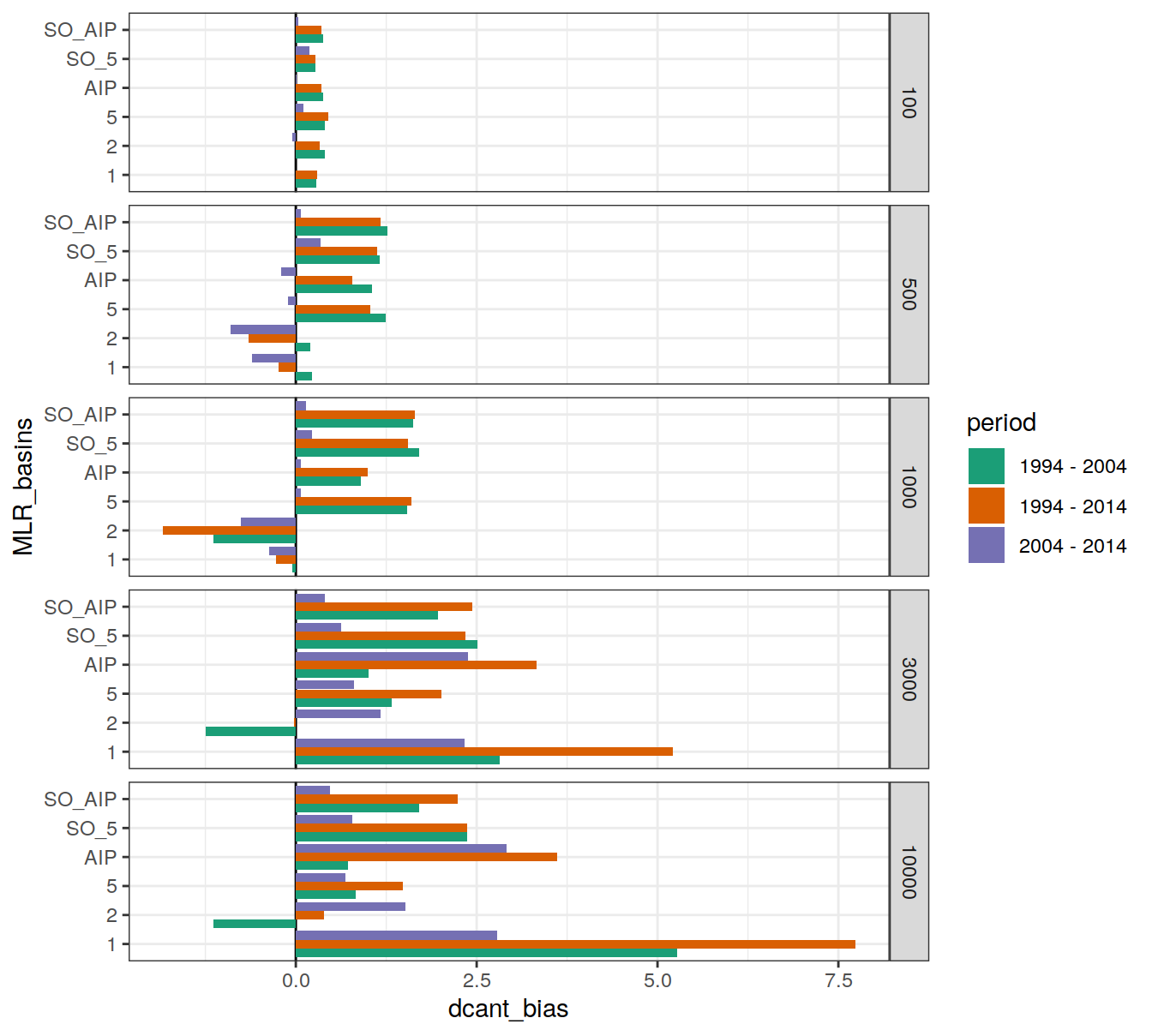

4.1.5.2 Biases

dcant_budget_global_bias_all_depth %>%
  ggplot(aes(dcant_bias, MLR_basins, fill = period)) +
  geom_vline(xintercept = 0) +
  geom_col(position = "dodge") +
  scale_fill_brewer(palette = "Dark2") +
  facet_grid(inv_depth ~ .)

Past versions of cases_bias_depth_global-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
1aabfea	jens-daniel-mueller	2022-07-12
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

dcant_budget_global_bias_all_depth %>%
  ggplot(aes(dcant_bias_rel, MLR_basins, fill = period)) +
  geom_vline(xintercept = 0) +
  geom_col(position = "dodge") +
  scale_fill_brewer(palette = "Dark2") +
  facet_grid(inv_depth ~ .)

Past versions of cases_bias_rel_depth_global-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

rm(dcant_budget_global_all,
   dcant_budget_global_all_depth,
   dcant_budget_global_bias_all,
   dcant_budget_global_bias_all_depth,
   dcant_budget_global_ensemble,
   dcant_budget_global_ensemble_bias)

4.2 Basins

dcant_budget_basin_AIP_ensemble <- dcant_budget_basin_AIP_all %>%
  filter(data_source %in% c("mod", "obs")) %>%
  group_by(basin_AIP, data_source, period) %>%
  summarise(dcant_mean = mean(dcant),
            dcant_sd = sd(dcant),
            dcant_range = max(dcant)- min(dcant)) %>%
  ungroup()

`summarise()` has grouped output by 'basin_AIP', 'data_source'. You can override
using the `.groups` argument.

4.2.1 Mean

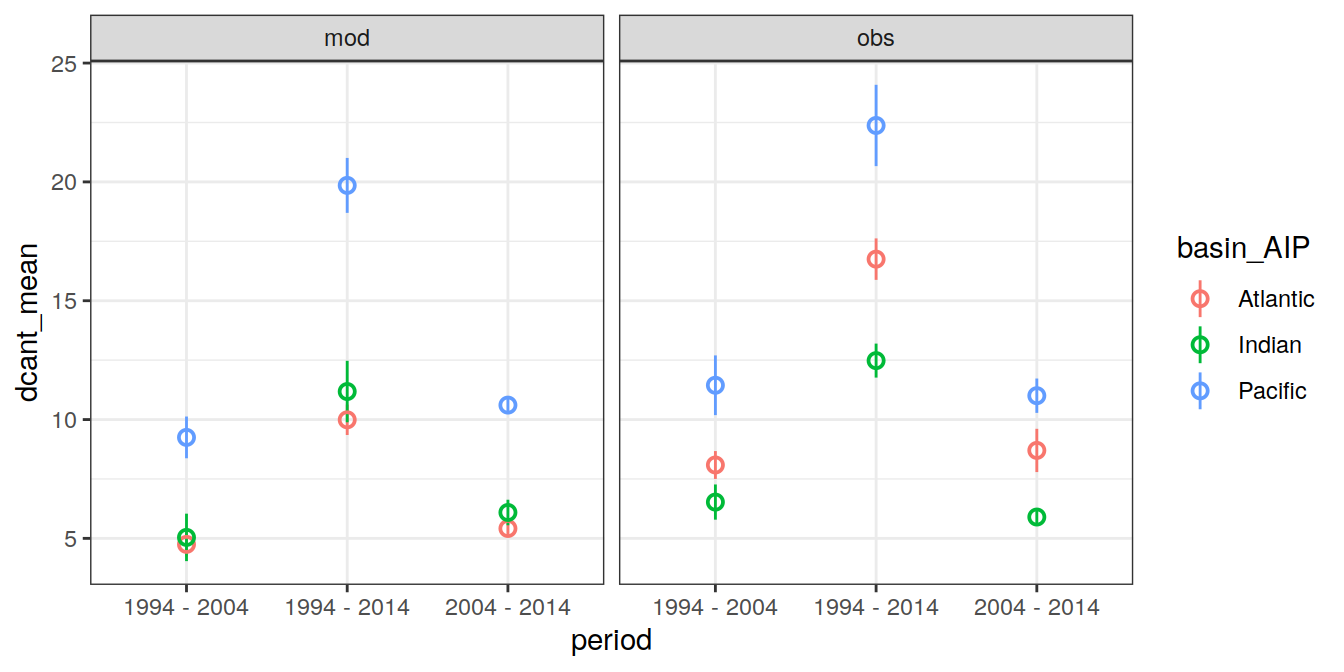

dcant_budget_basin_AIP_ensemble %>%
  ggplot(aes(period, dcant_mean, col=basin_AIP)) +
  geom_pointrange(aes(ymax = dcant_mean + dcant_sd,
                      ymin = dcant_mean - dcant_sd),
                  shape = 21) +
  facet_grid(. ~ data_source)

Past versions of ensemble_mean-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
c3a6238	jens-daniel-mueller	2022-03-08
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

p_regional_dcant <- ggplot() +
  geom_col(
    data = dcant_budget_basin_AIP_ensemble %>%
      filter(data_source == "obs"),
    aes(x = period,
        y = dcant_mean),
    fill = "darkgrey"
  ) +
  geom_point(
    data = dcant_budget_basin_AIP_all %>%
      filter(data_source == "obs"),
    aes(period, dcant, col = MLR_basins),
    position = position_jitter(width = 0.1, height = 0),
    alpha = 0.7
  ) +
  geom_errorbar(
    data = dcant_budget_basin_AIP_ensemble %>%
      filter(data_source == "obs"),
    aes(
      x = period,
      y = dcant_mean,
      ymax = dcant_mean + dcant_sd,
      ymin = dcant_mean - dcant_sd
    ),
    width = 0.1
  ) +
  scale_y_continuous(limits = c(0, 35), expand = c(0, 0)) +
  scale_color_brewer(palette = "Dark2") +
  labs(y = legend_title,
       title = "Observation-based results") +
  theme(axis.text.x = element_blank(),
        axis.title.x = element_blank()) +
  facet_grid(. ~ basin_AIP)

p_regional_dcant_bias <-
p_regional_dcant / p_regional_bias +
  plot_layout(guides = 'collect',
              heights = c(2,1))

p_regional_dcant_bias

Past versions of ensemble_mean-2.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
b44c72a	jens-daniel-mueller	2022-07-03
cdabe91	jens-daniel-mueller	2022-06-27
c3a6238	jens-daniel-mueller	2022-03-08
f347cd7	jens-daniel-mueller	2022-01-18
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
66ec048	jens-daniel-mueller	2021-11-04
f9b4f93	jens-daniel-mueller	2021-10-05

# ggsave(plot = p_regional_dcant_bias,
#        path = "output/publication",
#        filename = "Fig_regional_dcant_budget.png",
#        height = 5,
#        width = 10)

rm(p_regional_bias, p_regional_dcant, p_regional_dcant_bias)

4.2.2 Mean bias

dcant_budget_basin_AIP_ensemble_bias <- full_join(
  dcant_budget_basin_AIP_ensemble %>%
    filter(data_source == "mod") %>%
    select(basin_AIP, period, dcant_mean, dcant_sd),
  dcant_budget_basin_AIP_all %>%
    filter(data_source == "mod_truth",
           MLR_basins == unique(dcant_budget_basin_AIP_all$MLR_basins)[1]) %>%
    select(basin_AIP, period, dcant)
)

Joining, by = c("basin_AIP", "period")

dcant_budget_basin_AIP_ensemble_bias <- dcant_budget_basin_AIP_ensemble_bias %>%
  mutate(dcant_mean_bias = dcant_mean - dcant,
         dcant_mean_bias_rel = 100 * dcant_mean_bias / dcant)


dcant_budget_basin_AIP_ensemble_bias %>%
  ggplot(aes(period, dcant_mean_bias, col = basin_AIP)) +
  geom_hline(yintercept = 0) +
  geom_point()

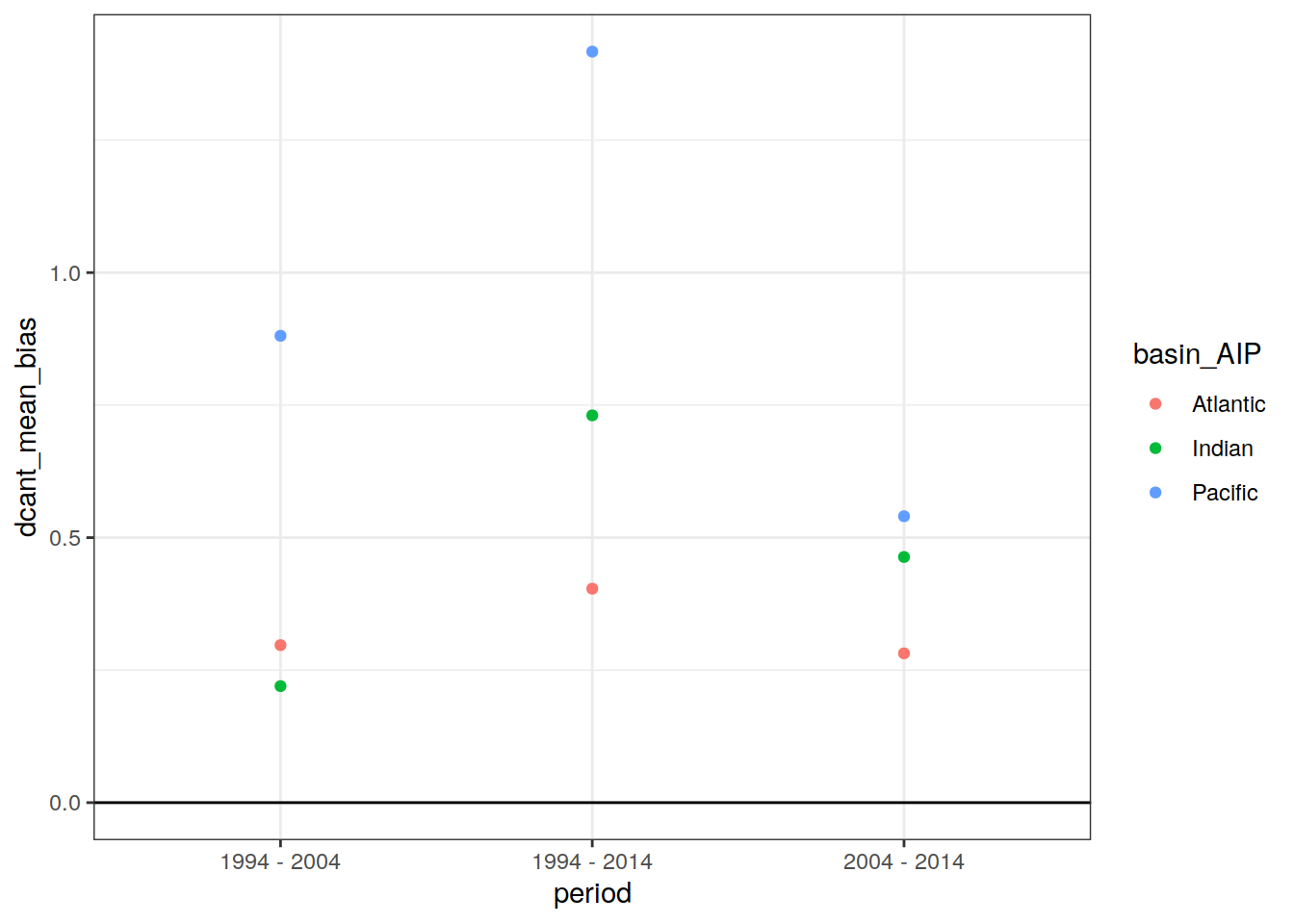

Past versions of ensemble_mean_bias-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
c3a6238	jens-daniel-mueller	2022-03-08
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

dcant_budget_basin_AIP_ensemble_bias %>%
  ggplot(aes(period, dcant_mean_bias_rel, col = basin_AIP)) +
  geom_hline(yintercept = 0) +
  geom_point()

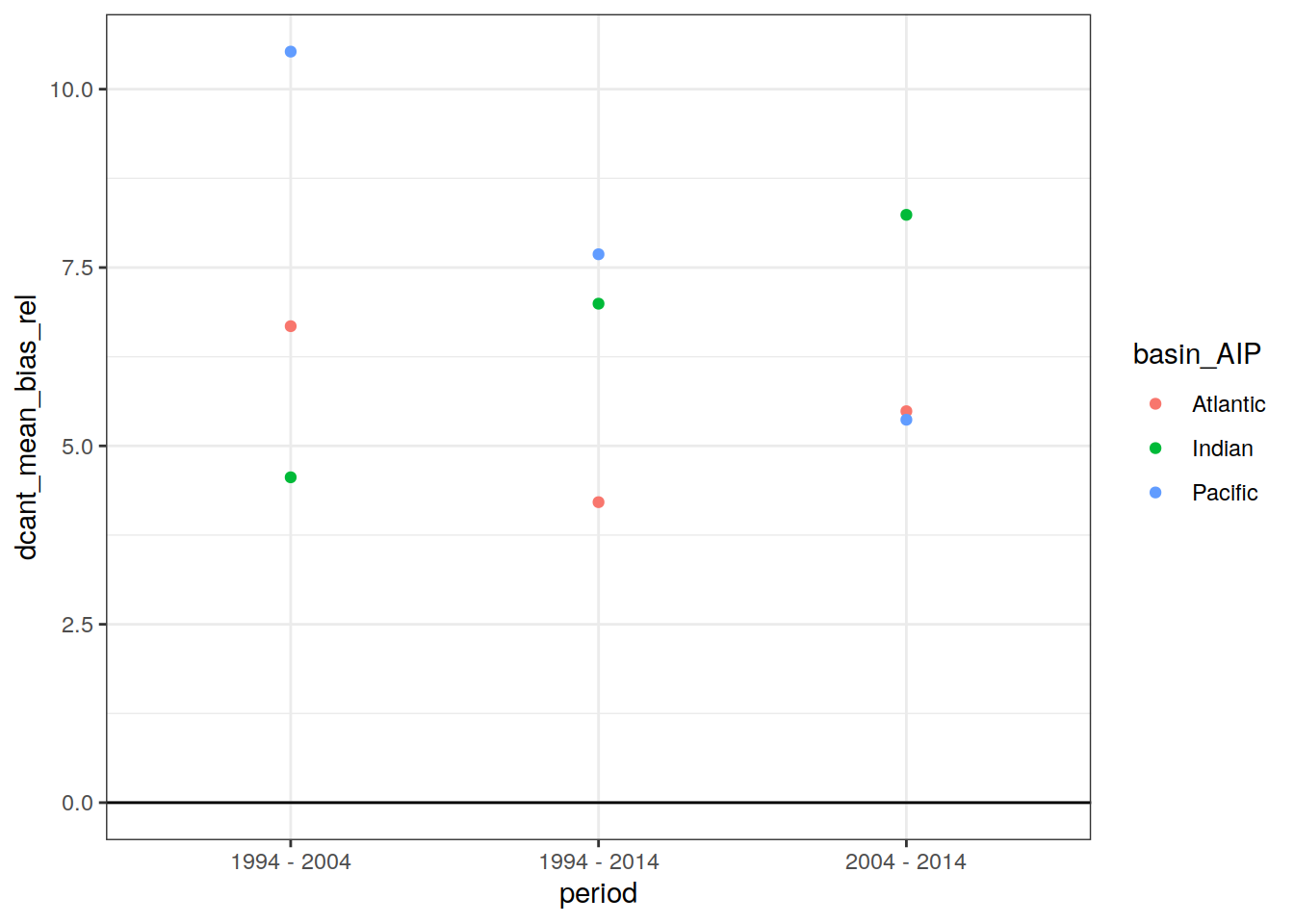

Past versions of ensemble_mean_bias-2.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
c3a6238	jens-daniel-mueller	2022-03-08
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

4.2.3 Vertical patterns

4.2.3.1 Absoulte values

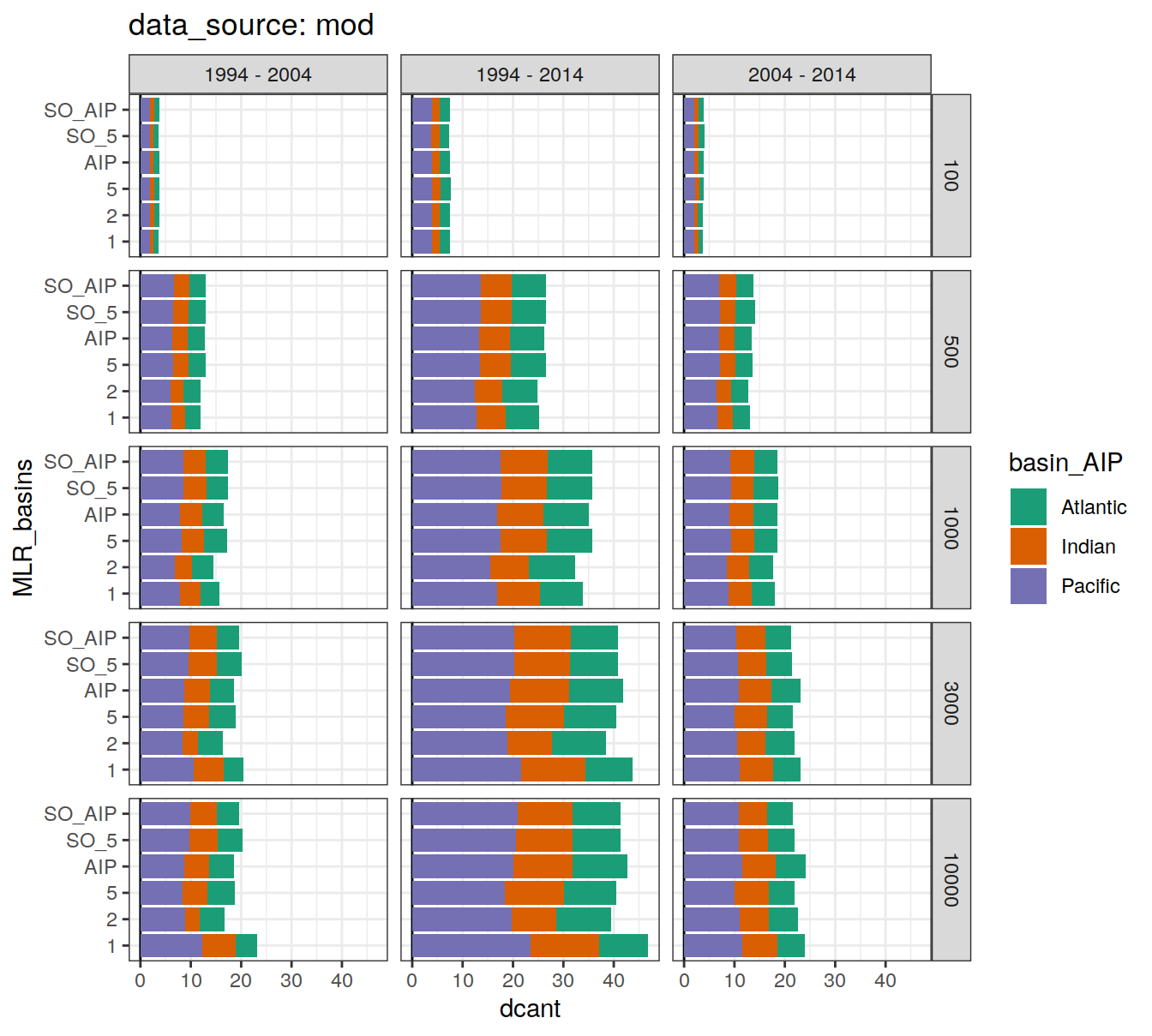

dcant_budget_basin_AIP_all_depth %>%
  filter(data_source != "mod_truth") %>%
  group_by(data_source) %>%
  group_split() %>%
  # head(1) %>%
  map(
    ~  ggplot(data = .x,
              aes(dcant, MLR_basins, fill = basin_AIP)) +
      geom_vline(xintercept = 0) +
      geom_col() +
      scale_fill_brewer(palette = "Dark2") +
      facet_grid(inv_depth ~ period) +
      labs(title = paste("data_source:", unique(.x$data_source)))
  )

[[1]]

Past versions of cases_absolute_depth-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

[[2]]

Past versions of cases_absolute_depth-2.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

4.2.3.2 Biases

dcant_budget_basin_AIP_bias_all_depth %>%
  ggplot(aes(dcant_bias, MLR_basins, fill = basin_AIP)) +
  geom_vline(xintercept = 0) +
  geom_col() +
  scale_fill_brewer(palette = "Dark2") +
  facet_grid(inv_depth ~ period)

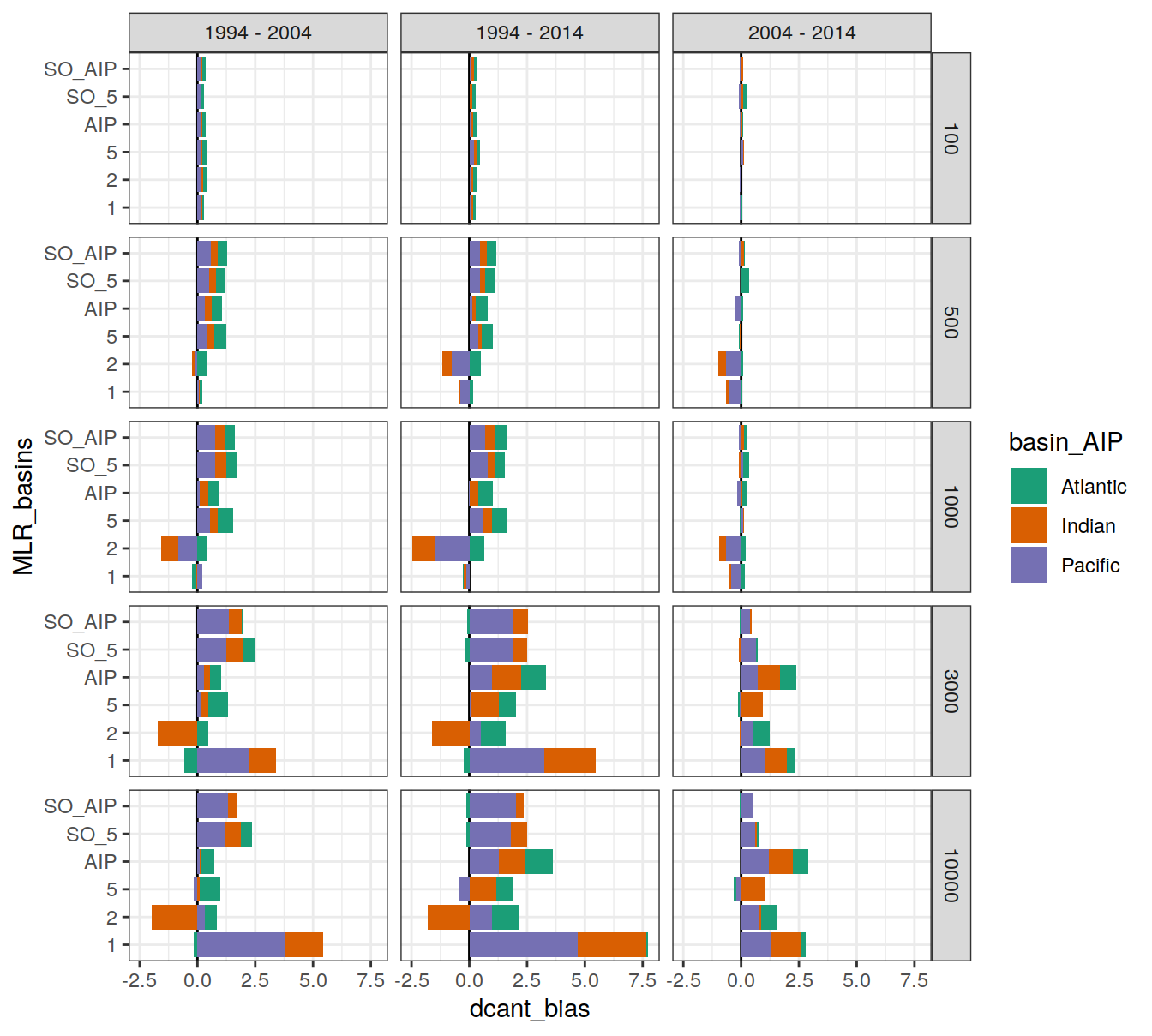

Past versions of cases_bias_depth-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
1aabfea	jens-daniel-mueller	2022-07-12
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

dcant_budget_basin_AIP_bias_all_depth %>%
  ggplot(aes(dcant_bias_rel, MLR_basins, fill = basin_AIP)) +
  geom_vline(xintercept = 0) +
  geom_col(position = "dodge") +
  scale_fill_brewer(palette = "Dark2") +
  facet_grid(inv_depth ~ period)

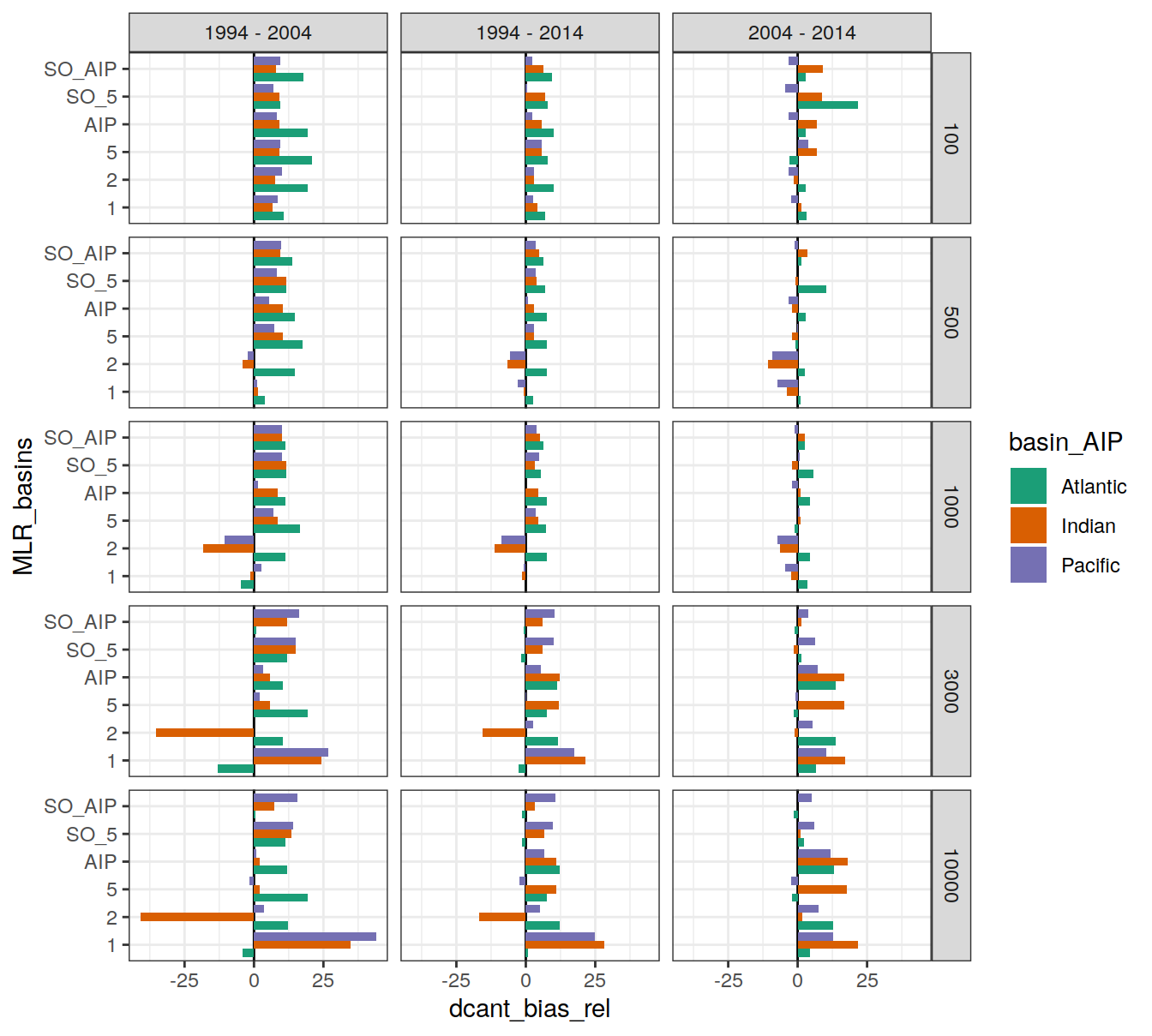

Past versions of cases_bias_rel_depth-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

5 Steady state

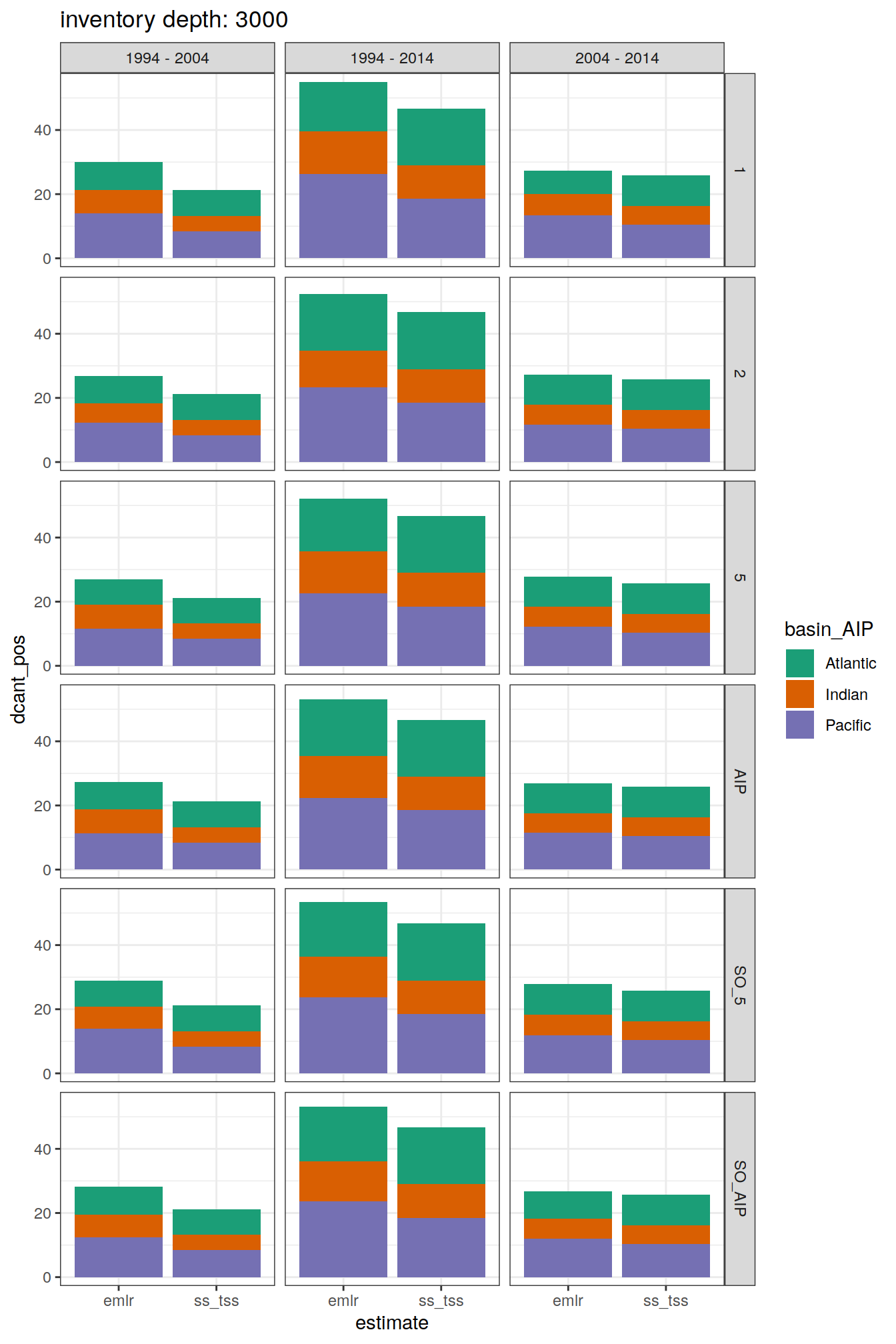

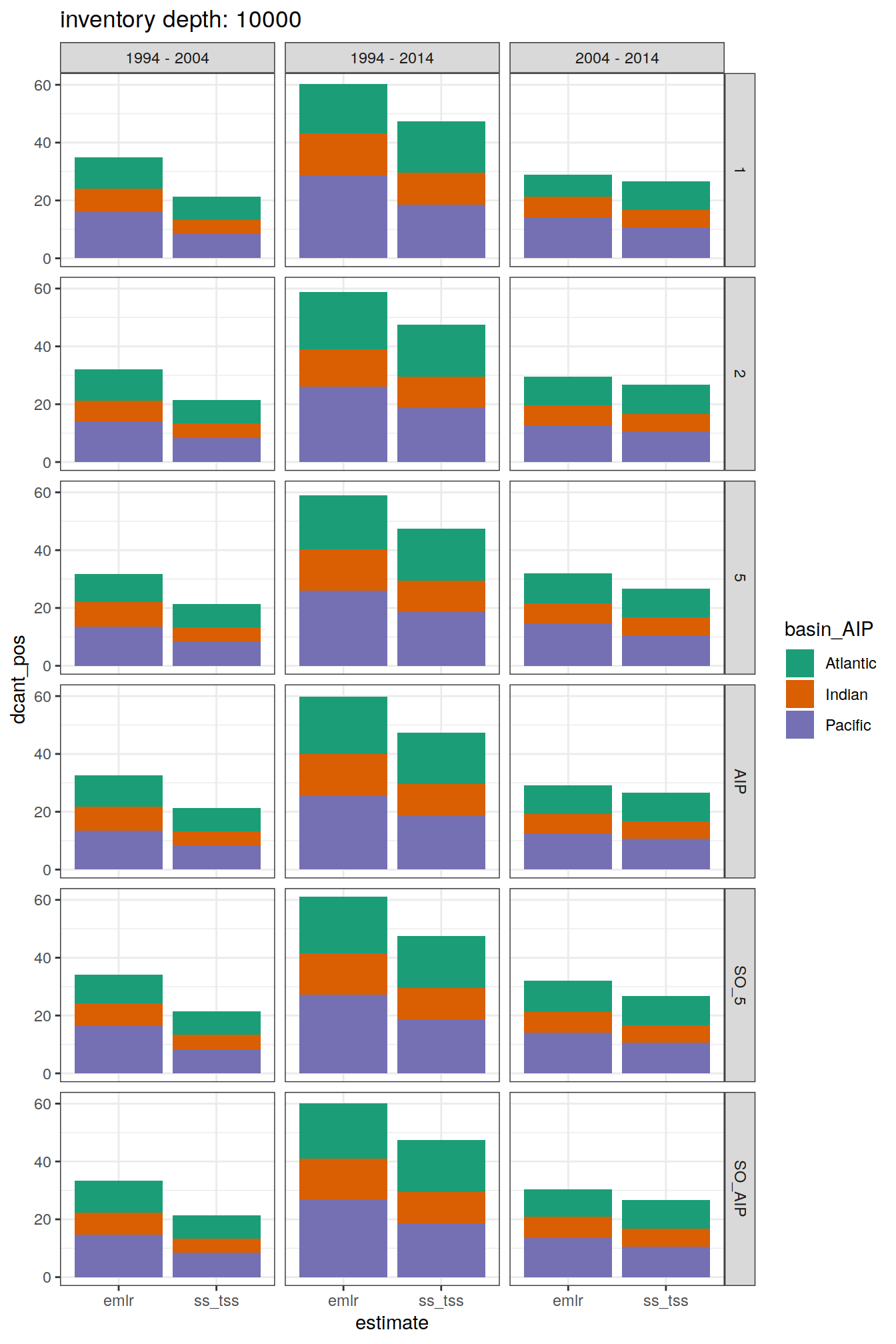

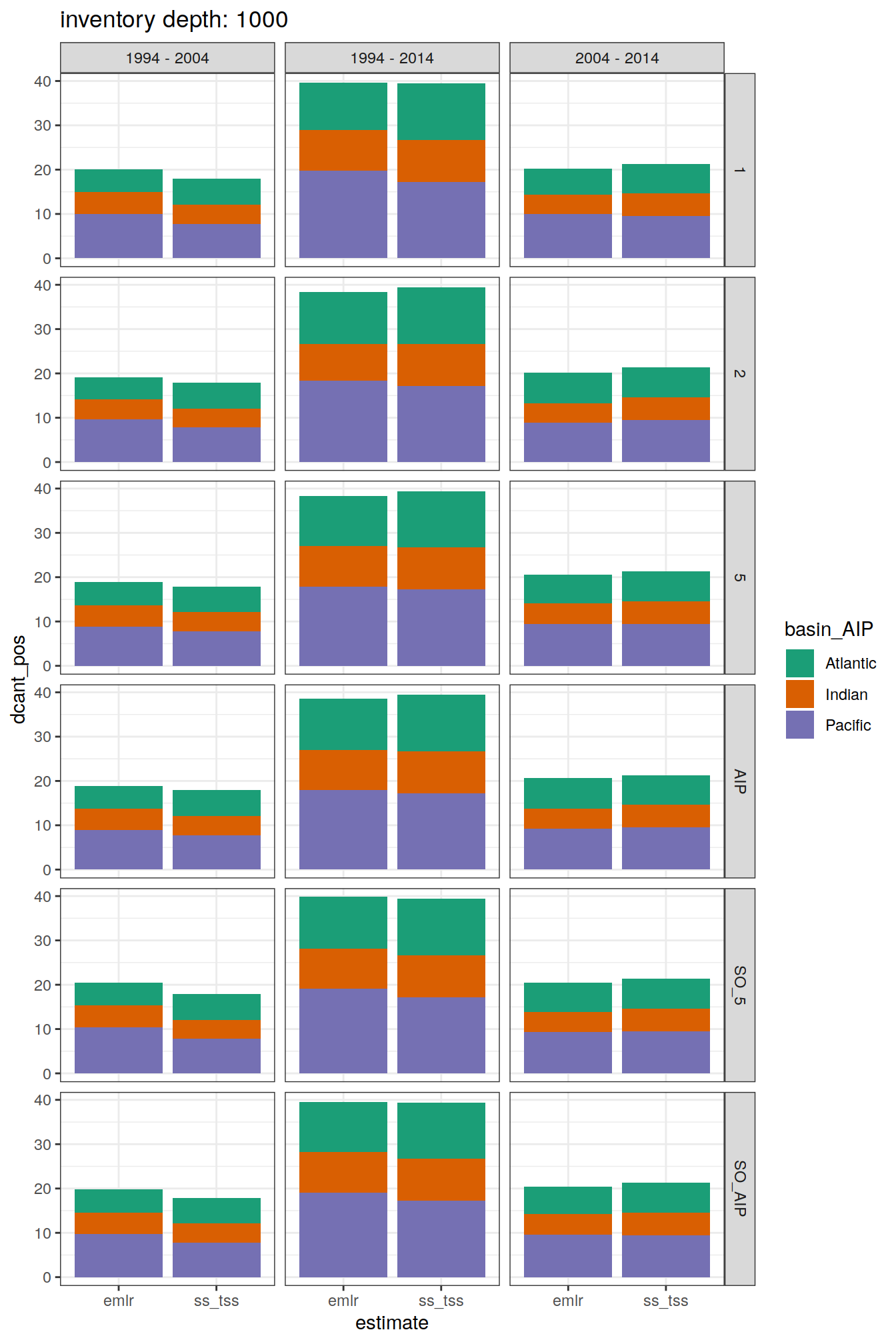

dcant_obs_budget_all %>%
  group_by(inv_depth) %>%
  group_split() %>%
  # head(1) %>%
  map(
    ~ ggplot(data = .x,
             aes(estimate, dcant_pos, fill = basin_AIP)) +
      scale_fill_brewer(palette = "Dark2") +
      geom_col() +
      facet_grid(MLR_basins ~ period) +
      labs(title = paste("inventory depth:",unique(.x$inv_depth)))
  )

[[1]]

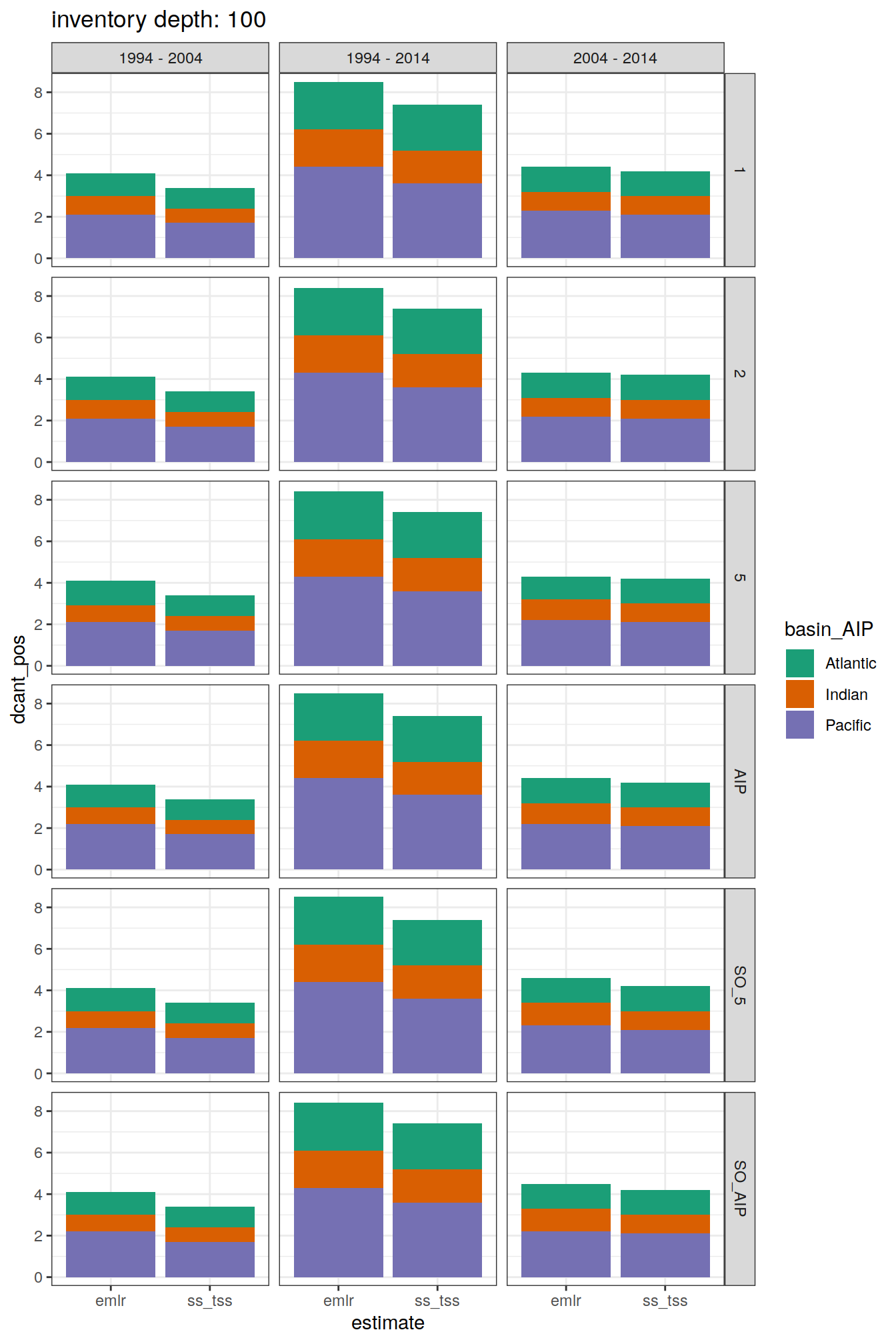

Past versions of steady_state_comparison-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

[[2]]

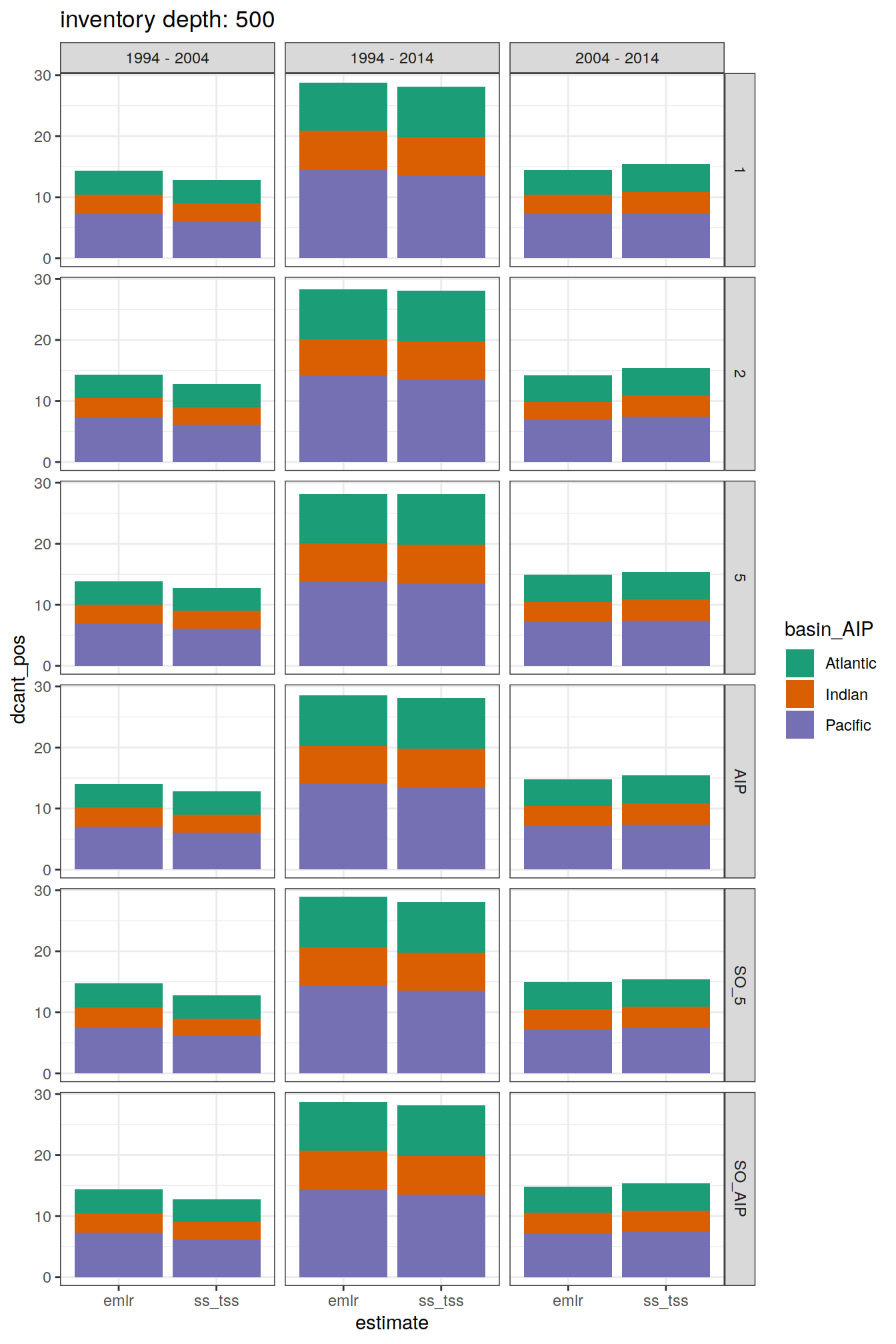

Past versions of steady_state_comparison-2.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

[[3]]

Past versions of steady_state_comparison-3.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

[[4]]

Past versions of steady_state_comparison-4.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

[[5]]

Past versions of steady_state_comparison-5.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

6 Predictor analysis

lm_best_predictor_counts_all <-
  full_join(lm_best_predictor_counts_all,
            params_local_all)

Joining, by = "Version_ID"

lm_best_predictor_counts_all <- lm_best_predictor_counts_all %>%
  mutate(n_predictors_total = rowSums(across(aou:temp), na.rm = TRUE)/10)

lm_best_predictor_counts_all %>%
  ggplot(aes(x = MLR_basins, y = n_predictors_total)) +
  # ggdist::stat_halfeye(
  #   adjust = .5,
  #   width = .6,
  #   .width = 0,
  #   justification = -.2,
  #   point_colour = NA
  # ) +
  geom_boxplot(width = 0.5,
               outlier.shape = NA) +
  gghalves::geom_half_point(
    side = "l",
    range_scale = .4,
    alpha = .5,
    aes(col = gamma_slab)
  ) +
  scale_color_viridis_d() +
  facet_grid(basin ~ data_source)

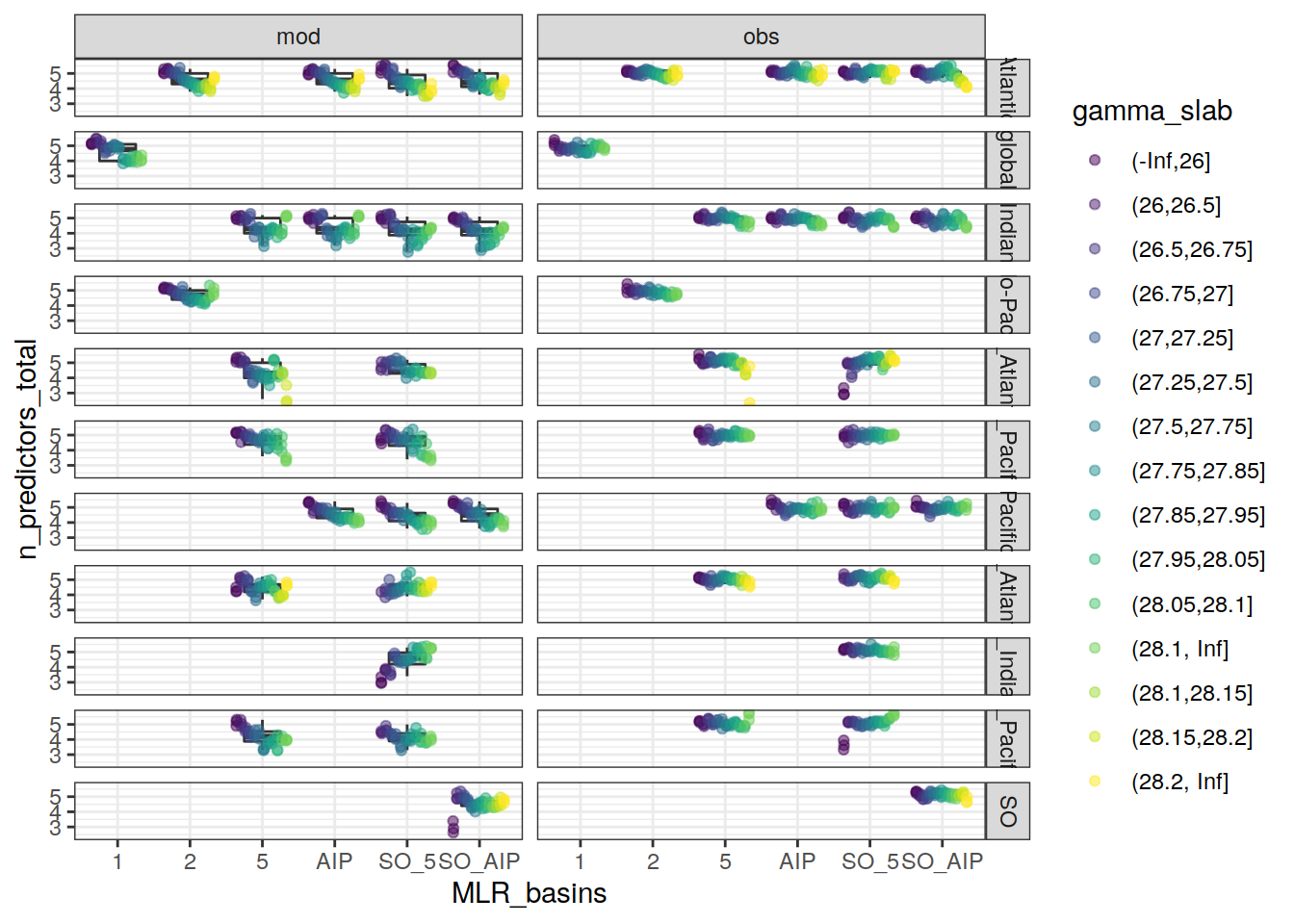

Past versions of predictor_analysis-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
b44c72a	jens-daniel-mueller	2022-07-03
cdabe91	jens-daniel-mueller	2022-06-27
f347cd7	jens-daniel-mueller	2022-01-18
513630f	jens-daniel-mueller	2022-01-18

lm_best_predictor_counts_all %>%
  pivot_longer(aou:temp,
               names_to = "predictor",
               values_to = "count") %>%
  group_split(predictor) %>%
  # head(1) %>%
  map(
    ~ ggplot(data = .x,
             aes(MLR_basins, count, color = gamma_slab)) +
      geom_jitter(alpha = 0.5) +
      scale_color_viridis_d() +
      labs(title = paste0("predictor:", unique(.x$predictor))) +
      coord_cartesian(ylim = c(0, 10)) +
      facet_grid(basin ~ data_source)
  )

[[1]]

Warning: Removed 2 rows containing missing values (geom_point).

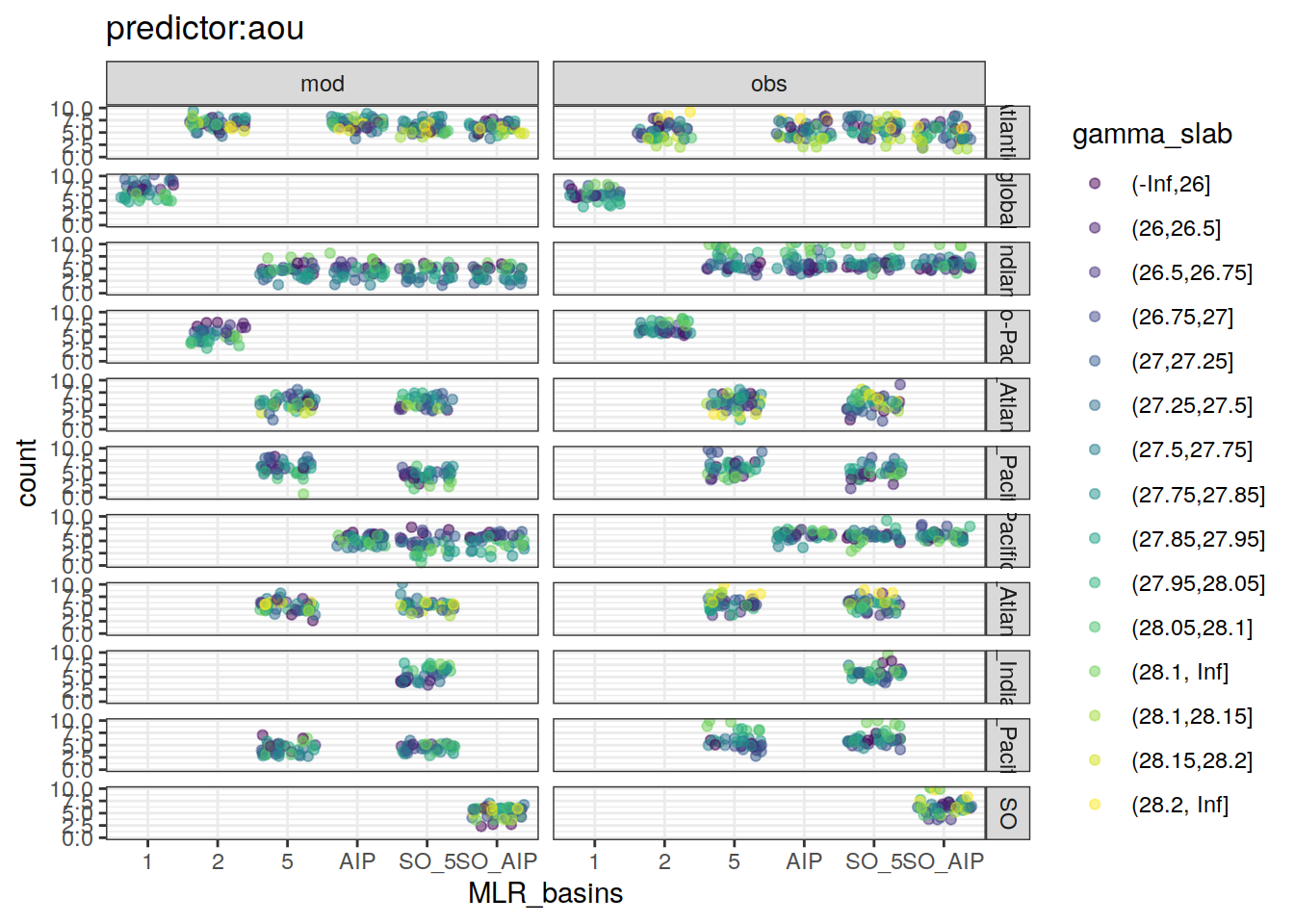

Past versions of predictor_analysis-2.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
b44c72a	jens-daniel-mueller	2022-07-03
cdabe91	jens-daniel-mueller	2022-06-27
f347cd7	jens-daniel-mueller	2022-01-18
513630f	jens-daniel-mueller	2022-01-18

[[2]]

Warning: Removed 44 rows containing missing values (geom_point).

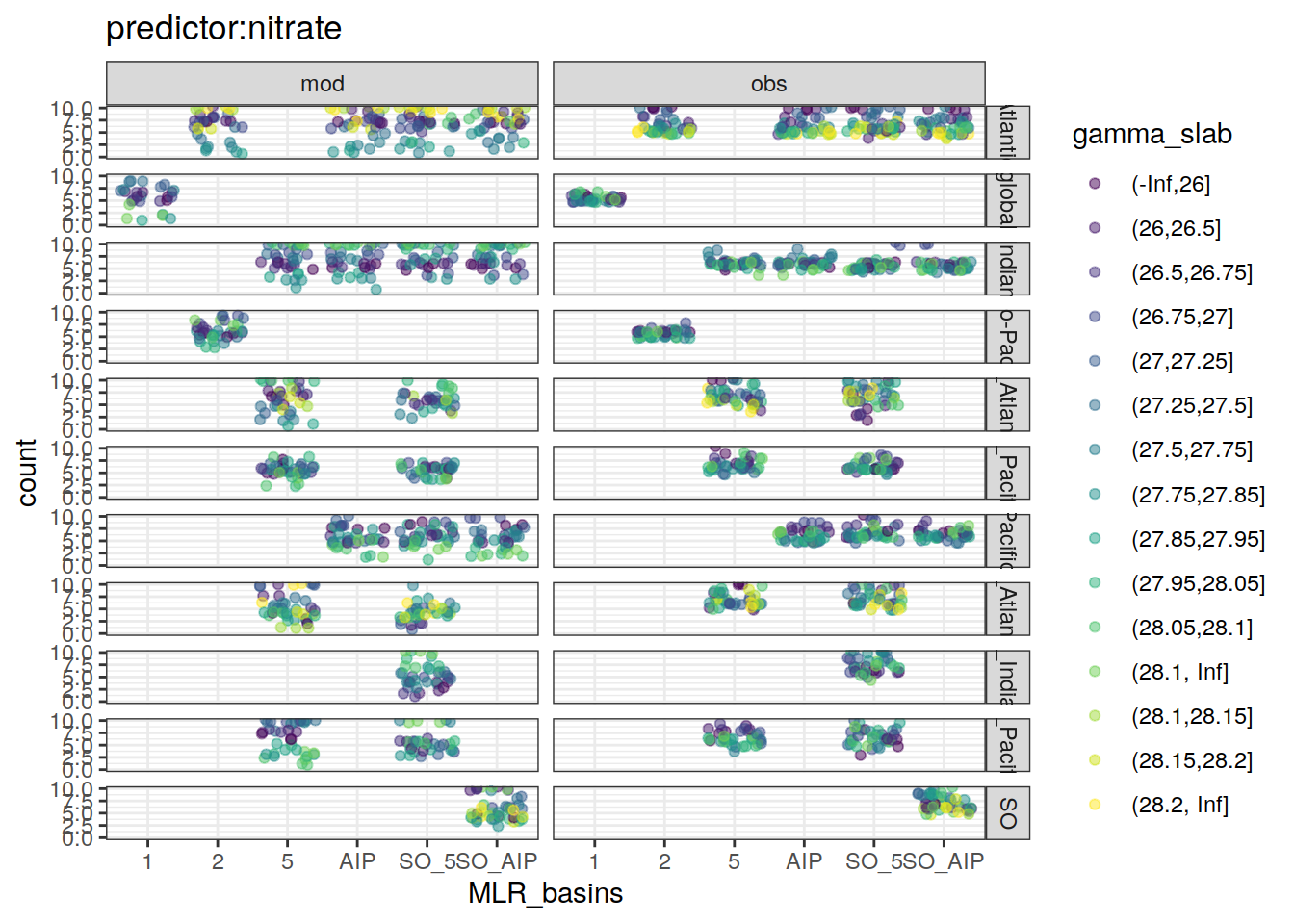

Past versions of predictor_analysis-3.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
b44c72a	jens-daniel-mueller	2022-07-03
cdabe91	jens-daniel-mueller	2022-06-27
f347cd7	jens-daniel-mueller	2022-01-18
513630f	jens-daniel-mueller	2022-01-18

[[3]]

Warning: Removed 1 rows containing missing values (geom_point).

Past versions of predictor_analysis-4.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
b44c72a	jens-daniel-mueller	2022-07-03
cdabe91	jens-daniel-mueller	2022-06-27
f347cd7	jens-daniel-mueller	2022-01-18
513630f	jens-daniel-mueller	2022-01-18

[[4]]

Warning: Removed 9 rows containing missing values (geom_point).

Past versions of predictor_analysis-5.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
b44c72a	jens-daniel-mueller	2022-07-03
cdabe91	jens-daniel-mueller	2022-06-27
f347cd7	jens-daniel-mueller	2022-01-18
513630f	jens-daniel-mueller	2022-01-18

[[5]]

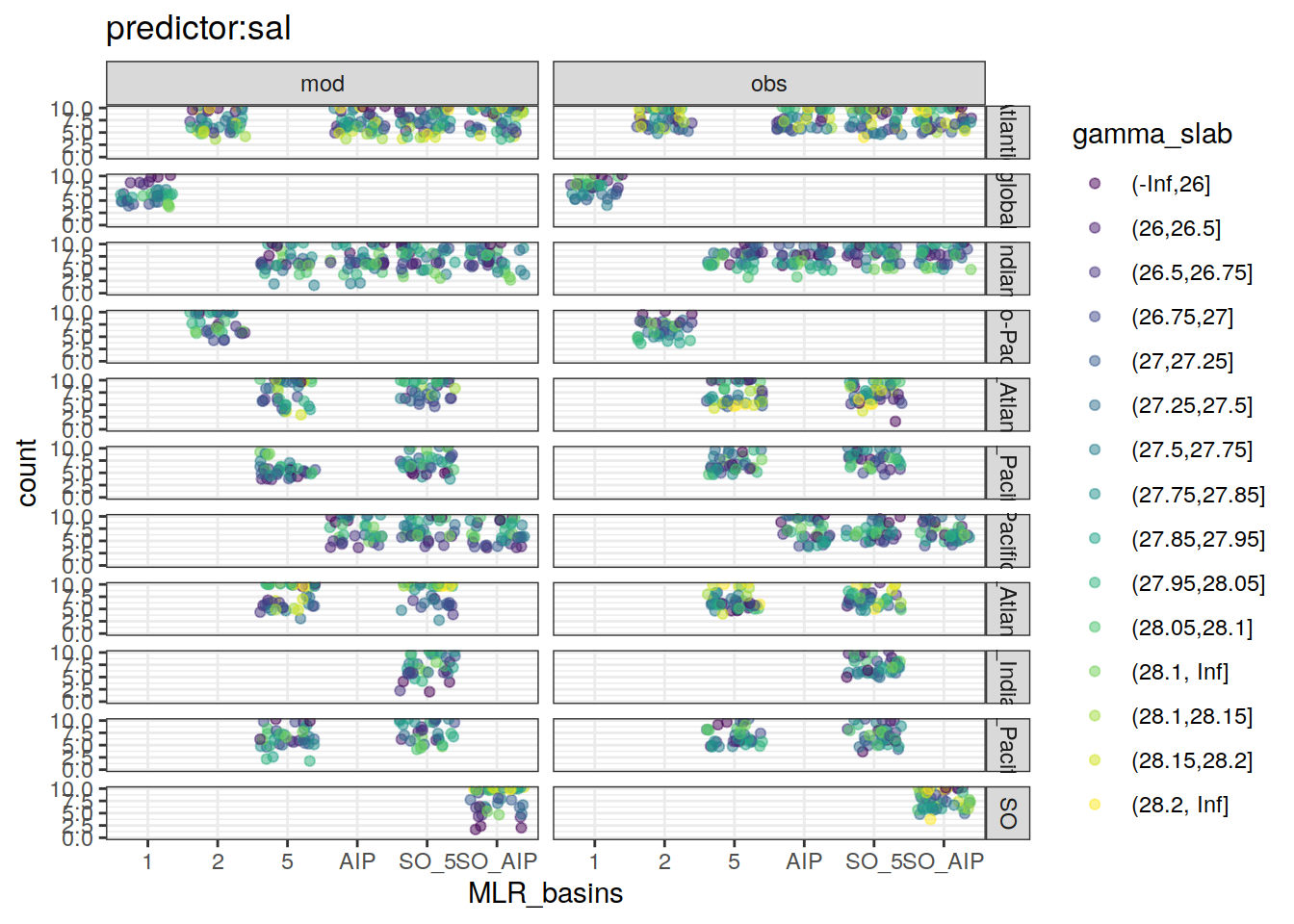

Past versions of predictor_analysis-6.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
b44c72a	jens-daniel-mueller	2022-07-03
cdabe91	jens-daniel-mueller	2022-06-27
f347cd7	jens-daniel-mueller	2022-01-18
513630f	jens-daniel-mueller	2022-01-18

[[6]]

Warning: Removed 3 rows containing missing values (geom_point).

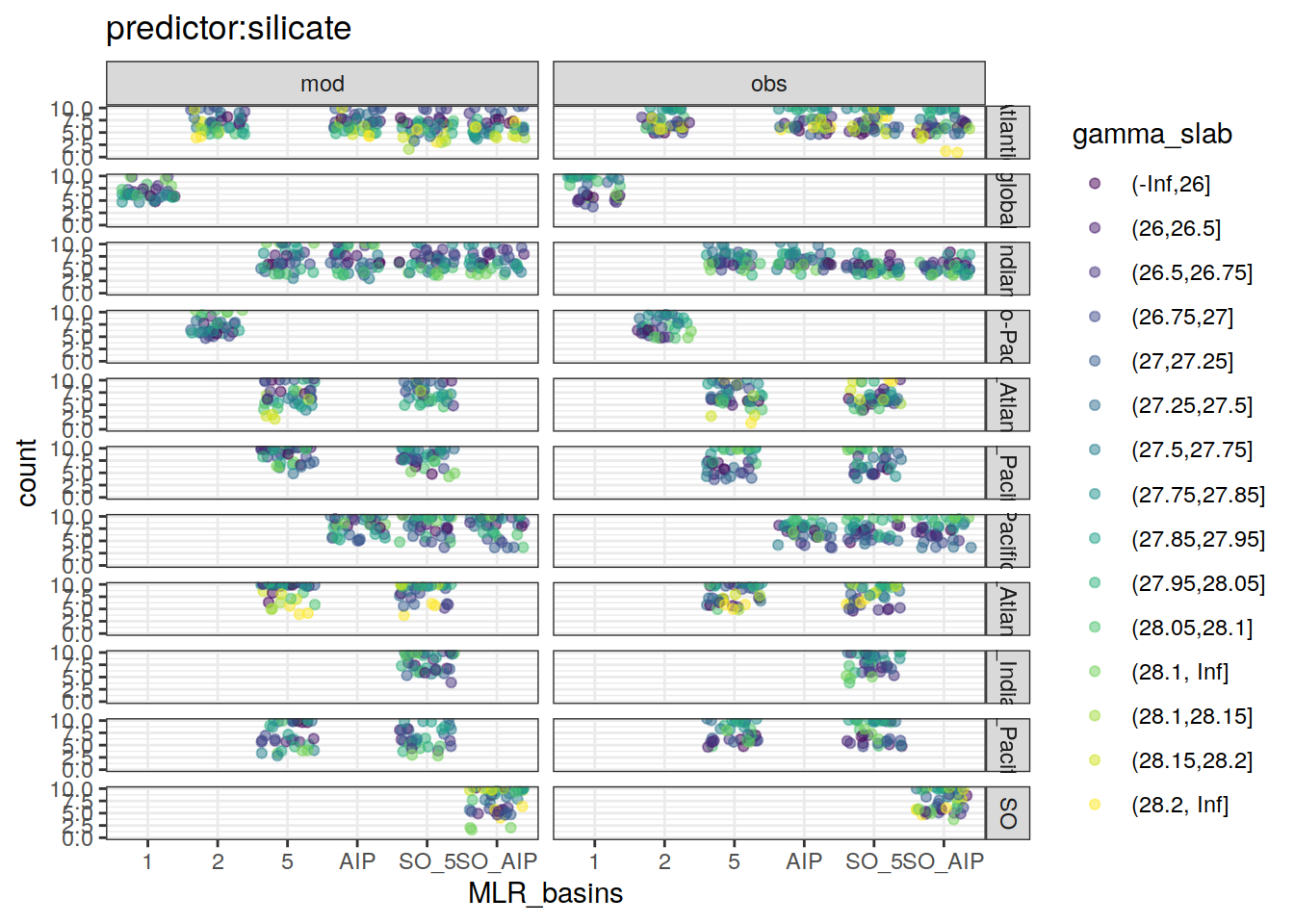

Past versions of predictor_analysis-7.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
b44c72a	jens-daniel-mueller	2022-07-03
cdabe91	jens-daniel-mueller	2022-06-27
f347cd7	jens-daniel-mueller	2022-01-18
513630f	jens-daniel-mueller	2022-01-18

[[7]]

Warning: Removed 2 rows containing missing values (geom_point).

Past versions of predictor_analysis-8.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
b44c72a	jens-daniel-mueller	2022-07-03
cdabe91	jens-daniel-mueller	2022-06-27
f347cd7	jens-daniel-mueller	2022-01-18
513630f	jens-daniel-mueller	2022-01-18

lm_best_dcant_all <-
  full_join(lm_best_dcant_all,
            params_local_all)

Joining, by = "Version_ID"

lm_best_dcant_all %>%
  count(basin, data_source, gamma_slab, MLR_basins, period) %>%
  ggplot(aes(MLR_basins, n)) +
  geom_jitter(height = 0, alpha = 0.3) +
  facet_grid(basin ~ data_source)

Past versions of predictor_analysis-9.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
b44c72a	jens-daniel-mueller	2022-07-03
cdabe91	jens-daniel-mueller	2022-06-27
f347cd7	jens-daniel-mueller	2022-01-18
513630f	jens-daniel-mueller	2022-01-18

7 Drift and bias

dcant_budget_global_all_dissic %>%
  filter(estimate == "dcant") %>%
  ggplot(aes(inv_depth, value, col = !!sym(config))) +
  geom_hline(yintercept = 0) +
  scale_color_brewer(palette = "Dark2") +
  geom_point() +
  geom_path() +
  labs(y = "DIC change (PgC)") +
  facet_grid(data_source ~ period, scales = "free_y")

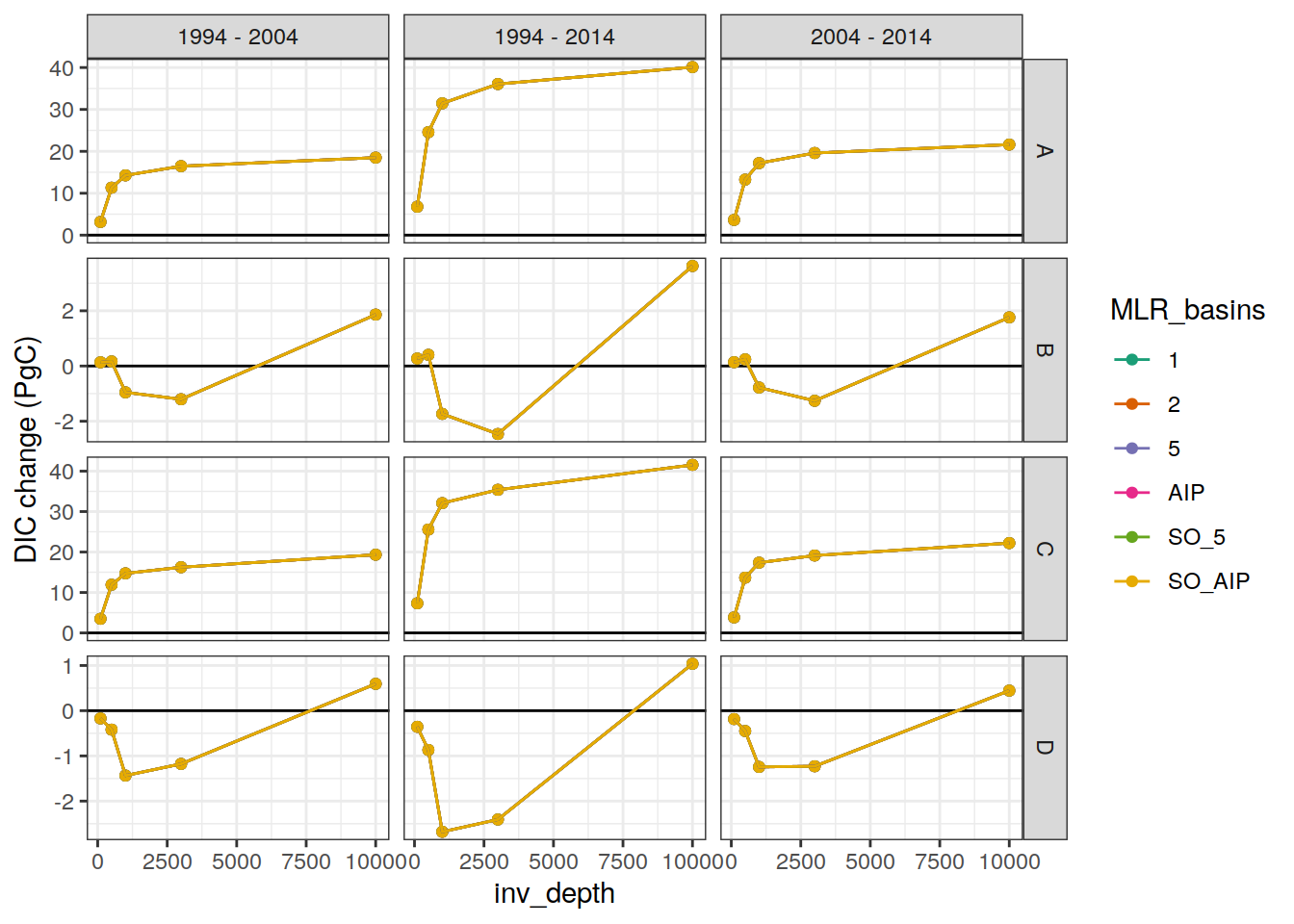

Past versions of drift_bias_plots-1.png

Version	Author	Date
1aabfea	jens-daniel-mueller	2022-07-12

dcant_budget_global_bias_all_decomposition <-
  dcant_budget_global_bias_all_decomposition %>%
  filter(estimate == "dcant") %>%
  select(inv_depth, dcant_bias, contribution, !!sym(config), period) %>%
  pivot_wider(names_from = contribution,
              values_from = dcant_bias)

dcant_budget_global_bias_all_decomposition <-
  full_join(
    dcant_budget_global_bias_all_decomposition,
    dcant_budget_global_bias_all_depth %>%
      select(inv_depth, !!sym(config), period, mod_truth)
  )

Joining, by = c("inv_depth", "MLR_basins", "period")

dcant_budget_global_bias_all_decomposition %>%
  ggplot(aes(`dcant offset`, `delta C* - mod_truth`, col = !!sym(config))) +
  geom_vline(xintercept = 0, col = "grey50") +
  geom_hline(yintercept = 0, col = "grey50") +
  geom_abline(intercept = 0, slope = 1) +
  geom_point() +
  coord_fixed() +
  scale_color_brewer(palette = "Dark2") +
  facet_grid(inv_depth ~ period)

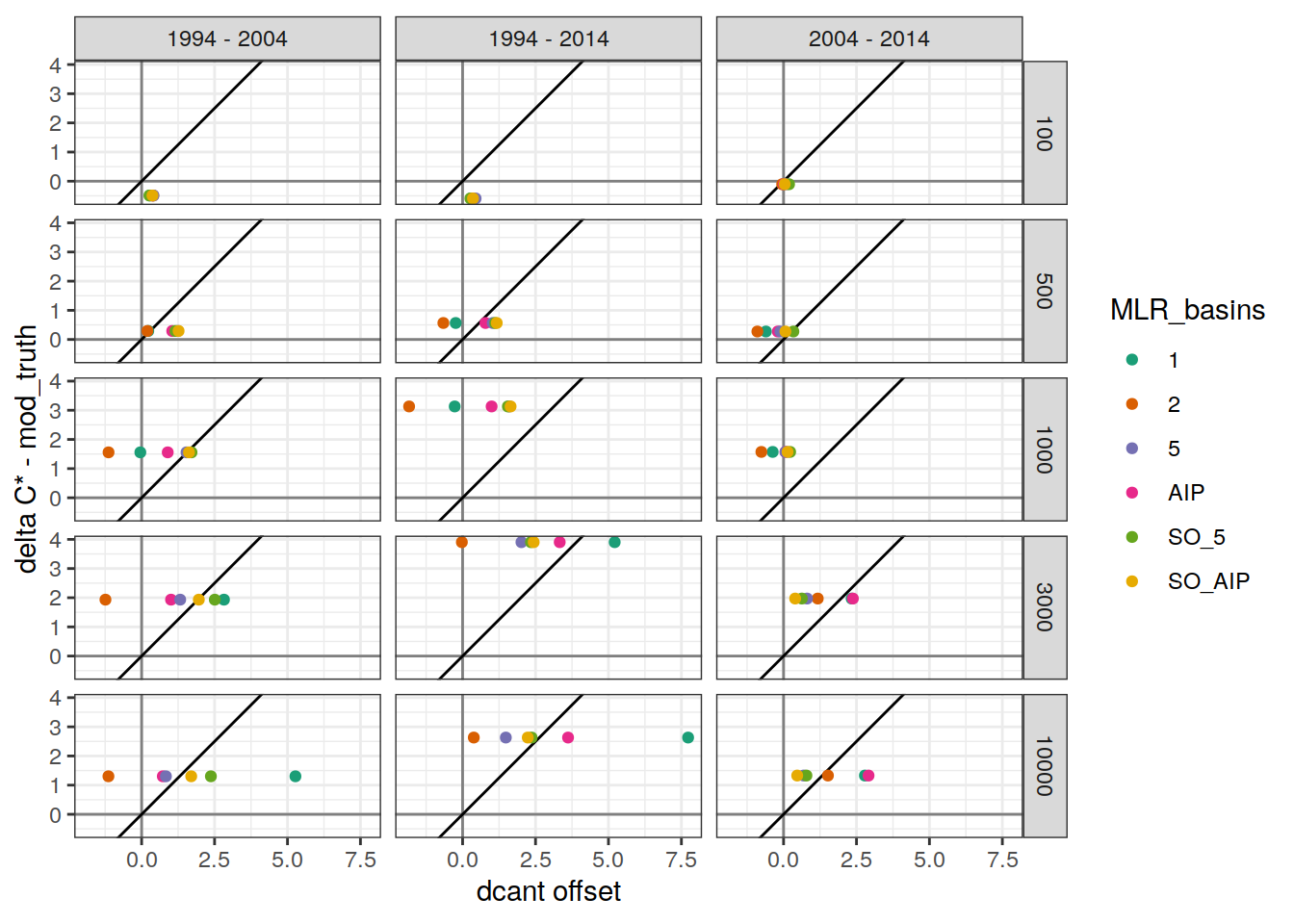

Past versions of drift_bias_plots-2.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
1aabfea	jens-daniel-mueller	2022-07-12

dcant_budget_global_bias_all_decomposition %>%
  ggplot(aes(`dcant offset`, `C* prediction error`, col = !!sym(config))) +
  geom_vline(xintercept = 0, col = "grey50") +
  geom_hline(yintercept = 0, col = "grey50") +
  geom_abline(intercept = 0, slope = 1) +
  geom_point() +
  coord_fixed() +
  scale_color_brewer(palette = "Dark2") +
  facet_grid(inv_depth ~ period)

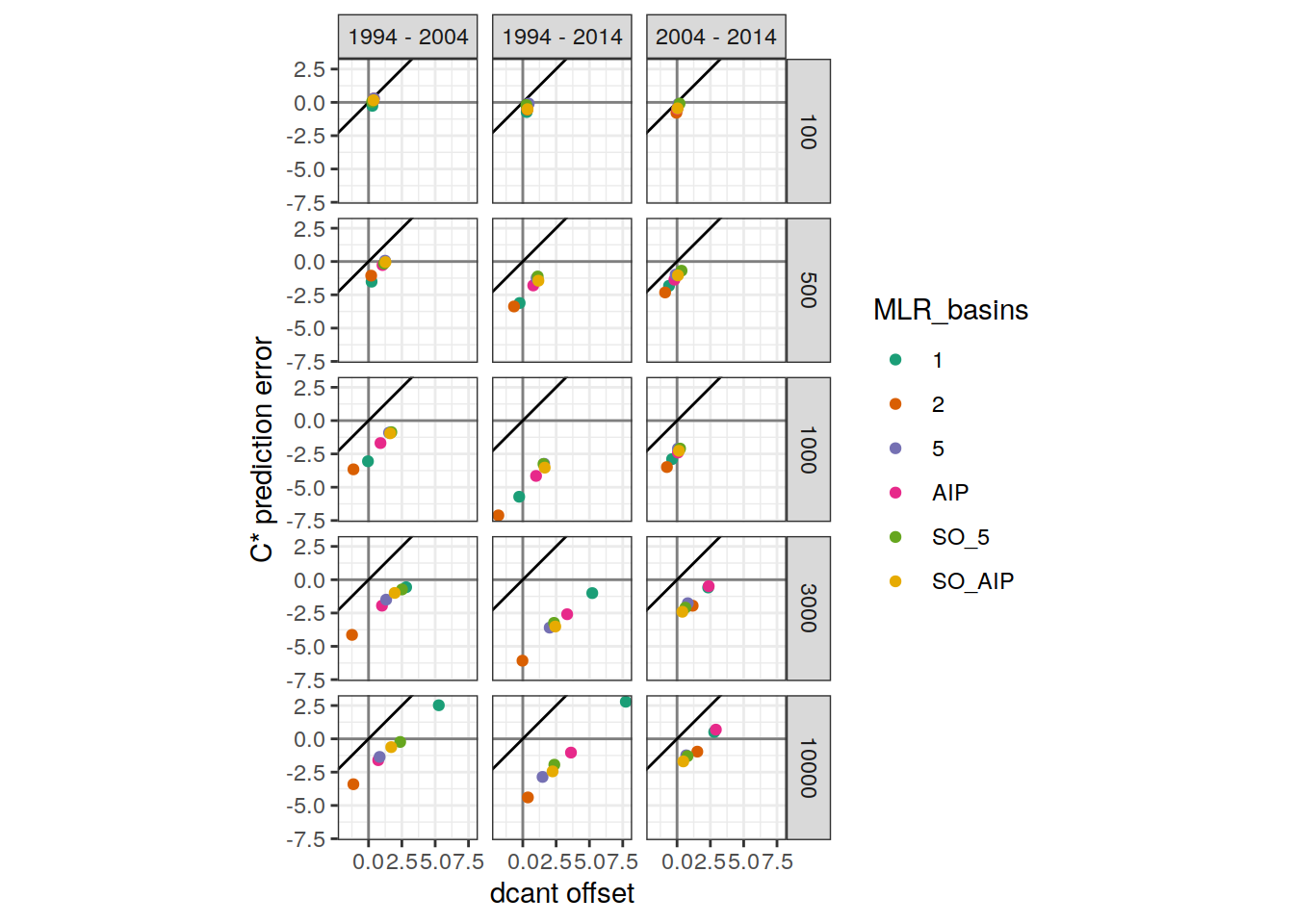

Past versions of drift_bias_plots-3.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
1aabfea	jens-daniel-mueller	2022-07-12

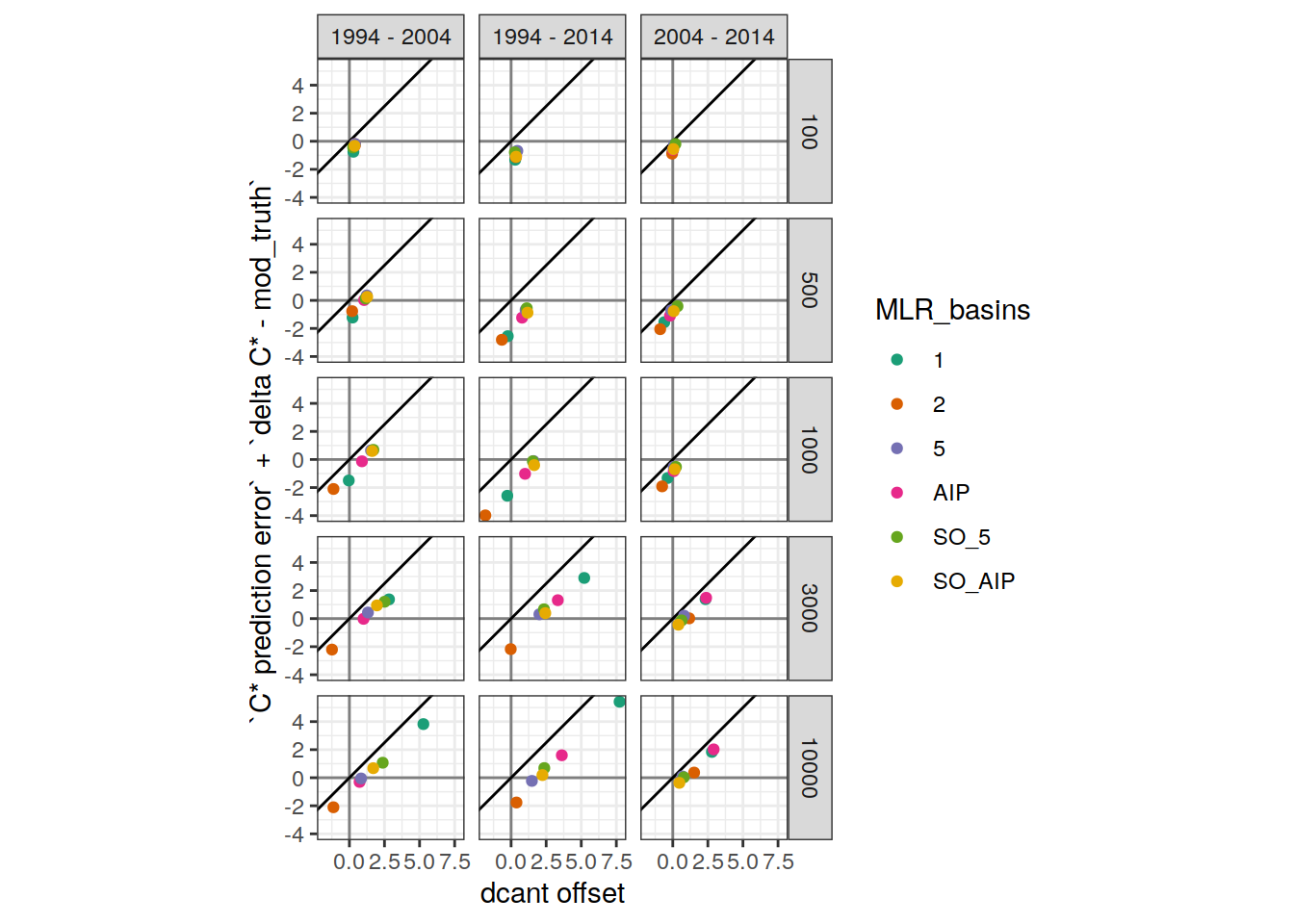

dcant_budget_global_bias_all_decomposition %>%
  ggplot(aes(
    `dcant offset`,
    `C* prediction error` + `delta C* - mod_truth`,
    col = !!sym(config)
  )) +
  geom_vline(xintercept = 0, col = "grey50") +
  geom_hline(yintercept = 0, col = "grey50") +
  geom_abline(intercept = 0, slope = 1) +
  geom_point() +
  coord_fixed() +
  scale_color_brewer(palette = "Dark2") +
  facet_grid(inv_depth ~ period)

Past versions of drift_bias_plots-4.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
1aabfea	jens-daniel-mueller	2022-07-12

dcant_budget_global_bias_all_decomposition %>%
  ggplot(aes(`dcant offset`, `C* drift`, col = !!sym(config))) +
  geom_vline(xintercept = 0, col = "grey50") +
  geom_hline(yintercept = 0, col = "grey50") +
  geom_abline(intercept = 0, slope = 1) +
  geom_point() +
  coord_fixed() +
  scale_color_brewer(palette = "Dark2") +
  facet_grid(inv_depth ~ period)

Past versions of drift_bias_plots-5.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
1aabfea	jens-daniel-mueller	2022-07-12

dcant_budget_global_bias_all_decomposition %>%
  ggplot(aes(
    `dcant offset` - `C* drift`,
    `C* prediction error`,
    col = !!sym(config)
  )) +
  geom_vline(xintercept = 0, col = "grey50") +
  geom_hline(yintercept = 0, col = "grey50") +
  geom_abline(intercept = 0, slope = 1) +
  geom_point() +
  coord_fixed() +
  scale_color_brewer(palette = "Dark2") +
  facet_grid(inv_depth ~ period)

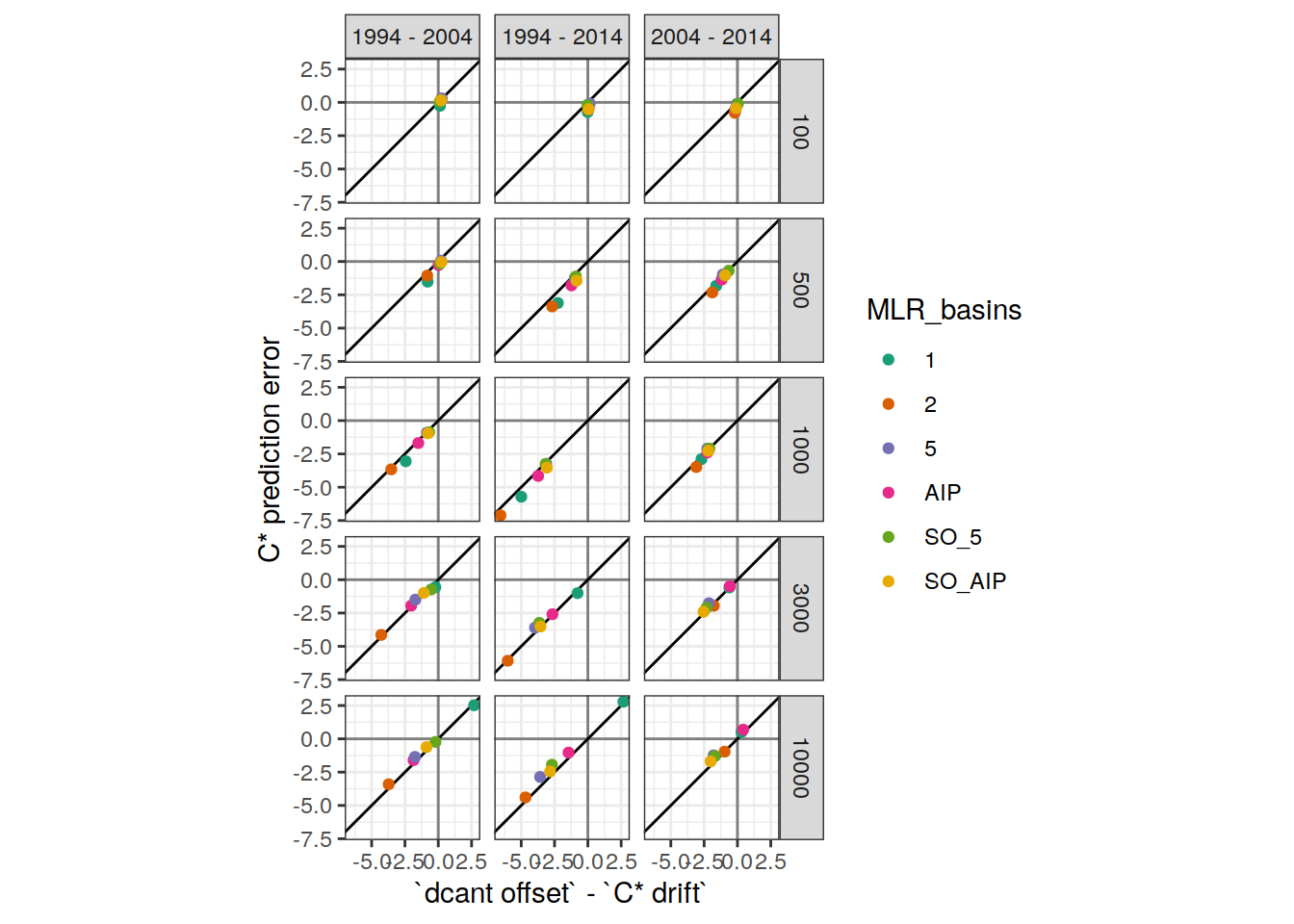

Past versions of drift_bias_plots-6.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
1aabfea	jens-daniel-mueller	2022-07-12

dcant_budget_global_bias_all_decomposition %>%
  ggplot(aes(
    x = period,
    fill = !!sym(config),
    col = !!sym(config)
  )) +
  geom_hline(yintercept = 0) +
  geom_point(
    aes(y = `dcant offset`, shape = "dcant offset"),
    position = position_nudge(x = -0.05),
    alpha = 0.5
  ) +
  geom_point(
    aes(y = `dcant offset` - `C* drift`, shape = "dcant offset - C* drift"),
    position = position_nudge(x = 0.05),
    alpha = 0.5
  ) +
  scale_color_brewer(palette = "Dark2") +
  scale_fill_brewer(palette = "Dark2") +
  scale_shape_manual(values = c(21,23)) +
  facet_grid(inv_depth ~ .)

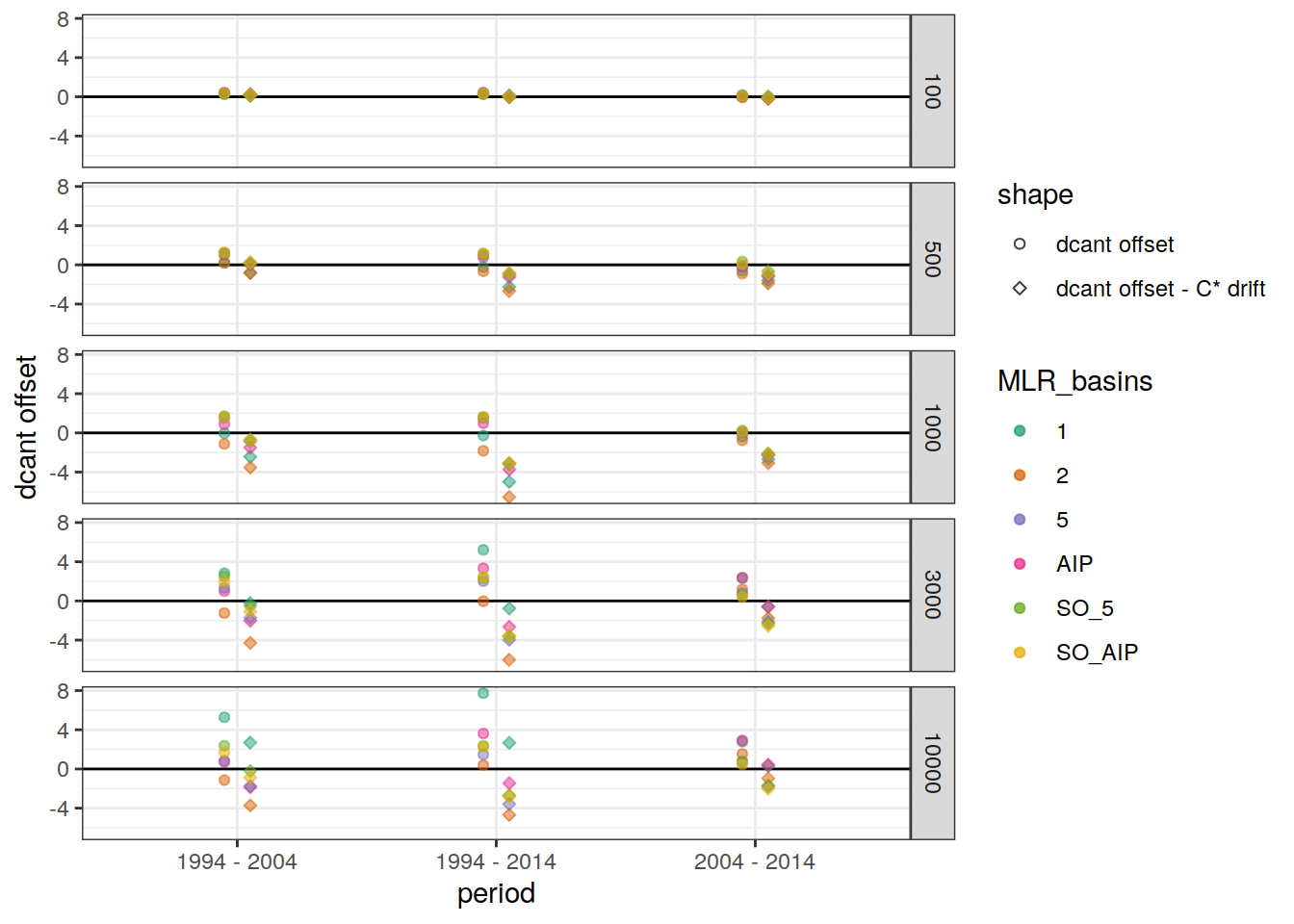

Past versions of drift_bias_plots-7.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
1aabfea	jens-daniel-mueller	2022-07-12

dcant_budget_global_bias_all_decomposition <-
  dcant_budget_global_bias_all_decomposition %>%
  mutate(
    `dcant offset rel` = 100 * `dcant offset` / mod_truth,
    `dcant offset rel corr` = 100 * (`dcant offset` - `C* drift`) / mod_truth,
    `C* prediction error rel` = 100 * (`C* prediction error`) / mod_truth
  )

dcant_budget_global_bias_all_decomposition %>%
  ggplot(aes(
    x = period,
    fill = !!sym(config),
    col = !!sym(config)
  )) +
  geom_hline(yintercept = 0) +
  geom_point(
    aes(y = `dcant offset rel`, shape = "dcant offset"),
    position = position_nudge(x = -0.05),
    alpha = 0.5
  ) +
  geom_point(
    aes(y = `dcant offset rel corr`, shape = "dcant offset - C* drift"),
    position = position_nudge(x = 0.05),
    alpha = 0.5
  ) +
  scale_color_brewer(palette = "Dark2") +
  scale_fill_brewer(palette = "Dark2") +
  scale_shape_manual(values = c(21,23)) +
  facet_grid(inv_depth ~ .)

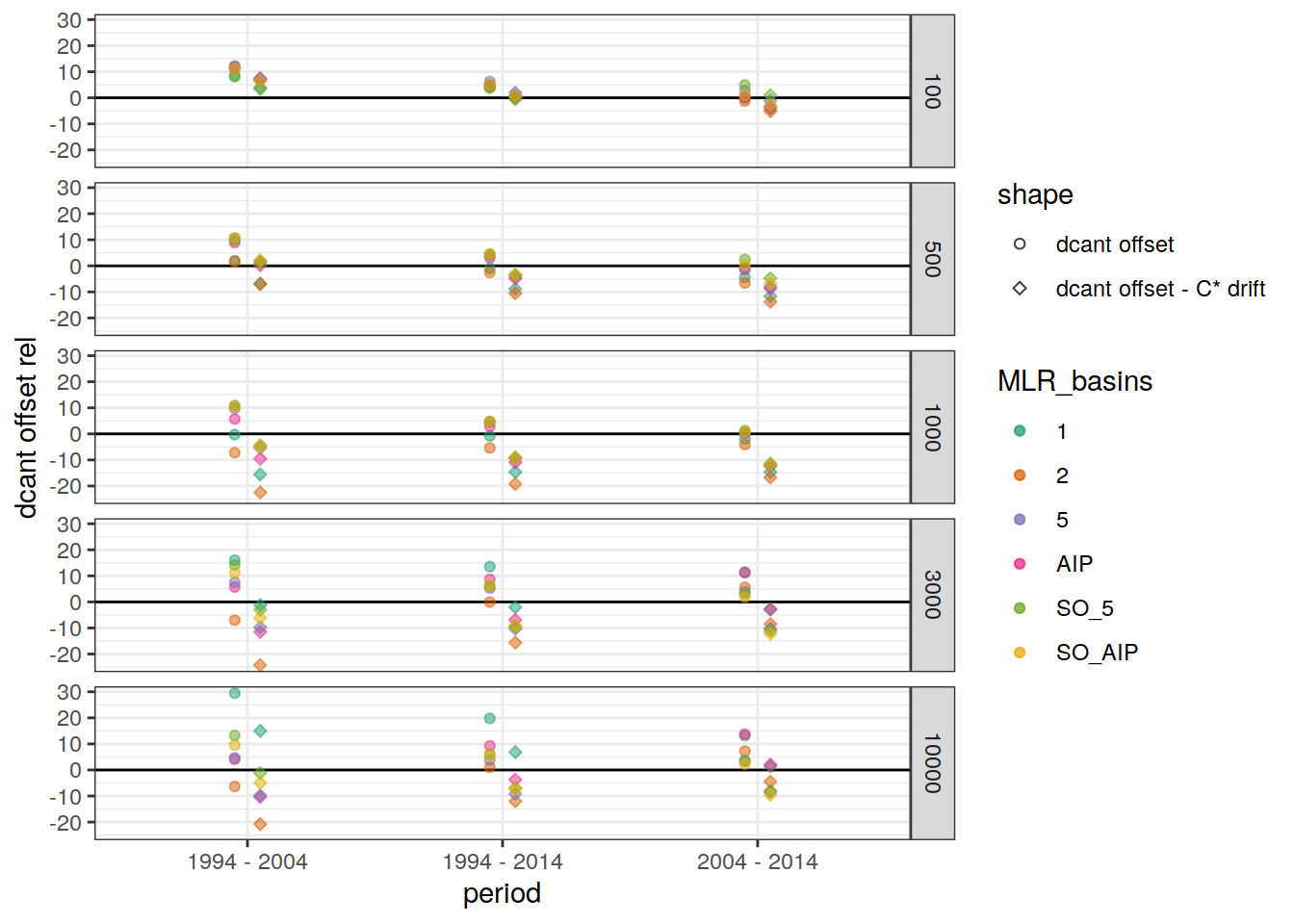

Past versions of drift_bias_plots-8.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
1aabfea	jens-daniel-mueller	2022-07-12

dcant_budget_global_bias_all_decomposition <-
  dcant_budget_global_bias_all_decomposition %>%
  pivot_longer(-c(inv_depth:period),
               names_to = "estimate",
               values_to = "value")


dcant_budget_global_bias_all_decomposition %>%
  group_by(inv_depth, estimate) %>%
  summarise(mean = mean(value),
            sd = sd(value)) %>%
  ungroup() %>%
  kable() %>%
  kable_styling() %>%
  scroll_box(height = "300px")

`summarise()` has grouped output by 'inv_depth'. You can override using the
`.groups` argument.

inv_depth	estimate	mean	sd
100	C* drift	0.2033333	0.0740032
100	C* prediction error	-0.2393333	0.3401014
100	C* prediction error rel	-4.4153483	8.1142990
100	dcant offset	0.2468333	0.1582806
100	dcant offset rel	5.5372104	4.2463854
100	dcant offset rel corr	1.2451436	3.9621830
100	delta C* - mod_truth	-0.3946667	0.2164184
100	mod_truth	4.7563333	1.7425592
500	C* drift	1.3446667	0.4893907
500	C* prediction error	-1.2952222	0.9603342
500	C* prediction error rel	-7.3927199	4.9897061
500	dcant offset	0.3857778	0.7326238
500	dcant offset rel	2.5613516	5.0780565
500	dcant offset rel corr	-5.4050140	4.6308913
500	delta C* - mod_truth	0.3773333	0.1374833
500	mod_truth	16.9600000	6.2242462
1000	C* drift	3.1486667	1.1458415
1000	C* prediction error	-2.9658889	1.6097098
1000	C* prediction error rel	-12.9309922	5.2246033
1000	dcant offset	0.4245556	1.0755111
1000	dcant offset rel	2.0326474	5.1976306
1000	dcant offset rel corr	-11.8764223	4.8139167
1000	delta C* - mod_truth	2.0866667	0.7598902
1000	mod_truth	22.7516667	8.3557301
3000	C* drift	3.9900000	1.4521475
3000	C* prediction error	-2.1771111	1.4920166
3000	C* prediction error rel	-8.4792959	5.2085990
3000	dcant offset	1.7448333	1.4352606
3000	dcant offset rel	6.9081812	5.6311765
3000	dcant offset rel corr	-8.7359634	5.6104634
3000	delta C* - mod_truth	2.6026667	0.9469936
3000	mod_truth	25.6453333	9.4254881
10000	C* drift	3.3760000	1.2289476
10000	C* prediction error	-1.0326667	1.8383415
10000	C* prediction error rel	-3.9143573	7.3203530
10000	dcant offset	2.0411667	2.0215797
10000	dcant offset rel	7.9697268	7.9500201
10000	dcant offset rel corr	-5.0691493	7.9168272
10000	delta C* - mod_truth	1.7546667	0.6384472
10000	mod_truth	26.0420000	9.5725748

dcant_budget_global_bias_all_decomposition %>%
  group_by(inv_depth, estimate, period) %>%
  summarise(mean = mean(value),
            sd = sd(value)) %>%
  ungroup() %>%
  kable() %>%
  kable_styling() %>%
  scroll_box(height = "300px")

`summarise()` has grouped output by 'inv_depth', 'estimate'. You can override
using the `.groups` argument.

inv_depth	estimate	period	mean	sd
100	C* drift	1994 - 2004	0.1550000	0.0000000
100	C* drift	1994 - 2014	0.3050000	0.0000000
100	C* drift	2004 - 2014	0.1500000	0.0000000
100	C* prediction error	1994 - 2004	0.1158333	0.2040700
100	C* prediction error	1994 - 2014	-0.4196667	0.2337757
100	C* prediction error	2004 - 2014	-0.4141667	0.2643909
100	C* prediction error rel	1994 - 2004	3.4900070	6.1485388
100	C* prediction error rel	1994 - 2014	-5.8826278	3.2769228
100	C* prediction error rel	2004 - 2014	-10.8534242	6.9284836
100	dcant offset	1994 - 2004	0.3498333	0.0589251
100	dcant offset	1994 - 2014	0.3418333	0.0626432
100	dcant offset	2004 - 2014	0.0488333	0.0847193
100	dcant offset rel	1994 - 2004	10.5403234	1.7753870
100	dcant offset rel	1994 - 2014	4.7916083	0.8780932
100	dcant offset rel	2004 - 2014	1.2796995	2.2201085
100	dcant offset rel corr	1994 - 2004	5.8702420	1.7753870
100	dcant offset rel corr	1994 - 2014	0.5163069	0.8780932
100	dcant offset rel corr	2004 - 2014	-2.6511181	2.2201085
100	delta C* - mod_truth	1994 - 2004	-0.4900000	0.0000000
100	delta C* - mod_truth	1994 - 2014	-0.5910000	0.0000000
100	delta C* - mod_truth	2004 - 2014	-0.1030000	0.0000000
100	mod_truth	1994 - 2004	3.3190000	0.0000000
100	mod_truth	1994 - 2014	7.1340000	0.0000000
100	mod_truth	2004 - 2014	3.8160000	0.0000000
500	C* drift	1994 - 2004	1.0250000	0.0000000
500	C* drift	1994 - 2014	2.0170000	0.0000000
500	C* drift	2004 - 2014	0.9920000	0.0000000
500	C* prediction error	1994 - 2004	-0.4975000	0.6386714
500	C* prediction error	1994 - 2014	-2.0165000	0.9823093
500	C* prediction error	2004 - 2014	-1.3716667	0.6065099
500	C* prediction error rel	1994 - 2004	-4.2358450	5.4378149
500	C* prediction error rel	1994 - 2014	-7.9264937	3.8612786
500	C* prediction error rel	2004 - 2014	-10.0158209	4.4286959
500	dcant offset	1994 - 2004	0.8561667	0.5043937
500	dcant offset	1994 - 2014	0.5353333	0.7843639
500	dcant offset	2004 - 2014	-0.2341667	0.4491233
500	dcant offset rel	1994 - 2004	7.2896268	4.2945395
500	dcant offset rel	1994 - 2014	2.1042977	3.0831913
500	dcant offset rel	2004 - 2014	-1.7098698	3.2794694
500	dcant offset rel corr	1994 - 2004	-1.4374911	4.2945395
500	dcant offset rel corr	1994 - 2014	-5.8241614	3.0831913
500	dcant offset rel corr	2004 - 2014	-8.9533893	3.2794694
500	delta C* - mod_truth	1994 - 2004	0.2920000	0.0000000
500	delta C* - mod_truth	1994 - 2014	0.5660000	0.0000000
500	delta C* - mod_truth	2004 - 2014	0.2740000	0.0000000
500	mod_truth	1994 - 2004	11.7450000	0.0000000
500	mod_truth	1994 - 2014	25.4400000	0.0000000
500	mod_truth	2004 - 2014	13.6950000	0.0000000
1000	C* drift	1994 - 2004	2.3950000	0.0000000
1000	C* drift	1994 - 2014	4.7230000	0.0000000
1000	C* drift	2004 - 2014	2.3280000	0.0000000
1000	C* prediction error	1994 - 2004	-1.8541667	1.2167319
1000	C* prediction error	1994 - 2014	-4.5021667	1.5806612
1000	C* prediction error	2004 - 2014	-2.5413333	0.5472190
1000	C* prediction error rel	1994 - 2004	-11.8099788	7.7498848
1000	C* prediction error rel	1994 - 2014	-13.1923892	4.6317027
1000	C* prediction error rel	2004 - 2014	-13.7906085	2.9694977
1000	dcant offset	1994 - 2004	0.7648333	1.1406881
1000	dcant offset	1994 - 2014	0.6148333	1.4021001
1000	dcant offset	2004 - 2014	-0.1060000	0.3816118
1000	dcant offset rel	1994 - 2004	4.8715499	7.2655294
1000	dcant offset rel	1994 - 2014	1.8016038	4.1084773
1000	dcant offset rel	2004 - 2014	-0.5752116	2.0708262
1000	dcant offset rel corr	1994 - 2004	-10.3832272	7.2655294
1000	dcant offset rel corr	1994 - 2014	-12.0378781	4.1084773
1000	dcant offset rel corr	2004 - 2014	-13.2081615	2.0708262
1000	delta C* - mod_truth	1994 - 2004	1.5570000	0.0000000
1000	delta C* - mod_truth	1994 - 2014	3.1310000	0.0000000
1000	delta C* - mod_truth	2004 - 2014	1.5720000	0.0000000
1000	mod_truth	1994 - 2004	15.7000000	0.0000000
1000	mod_truth	1994 - 2014	34.1270000	0.0000000
1000	mod_truth	2004 - 2014	18.4280000	0.0000000
3000	C* drift	1994 - 2004	3.0410000	0.0000000
3000	C* drift	1994 - 2014	5.9850000	0.0000000
3000	C* drift	2004 - 2014	2.9440000	0.0000000
3000	C* prediction error	1994 - 2004	-1.6451667	1.3246916
3000	C* prediction error	1994 - 2014	-3.3375000	1.6505759
3000	C* prediction error	2004 - 2014	-1.5486667	0.8125798
3000	C* prediction error rel	1994 - 2004	-9.3263416	7.5095894
3000	C* prediction error rel	1994 - 2014	-8.6760424	4.2907764
3000	C* prediction error rel	2004 - 2014	-7.4355035	3.9013816
3000	dcant offset	1994 - 2004	1.3966667	1.4623699
3000	dcant offset	1994 - 2014	2.5523333	1.7128169
3000	dcant offset	2004 - 2014	1.2855000	0.8663283
3000	dcant offset rel	1994 - 2004	7.9176115	8.2900791
3000	dcant offset rel	1994 - 2014	6.6349520	4.4525760
3000	dcant offset rel	2004 - 2014	6.1719800	4.1594406
3000	dcant offset rel corr	1994 - 2004	-9.3216175	8.2900791
3000	dcant offset rel corr	1994 - 2014	-8.9234342	4.4525760
3000	dcant offset rel corr	2004 - 2014	-7.9628385	4.1594406
3000	delta C* - mod_truth	1994 - 2004	1.9330000	0.0000000
3000	delta C* - mod_truth	1994 - 2014	3.9040000	0.0000000
3000	delta C* - mod_truth	2004 - 2014	1.9710000	0.0000000
3000	mod_truth	1994 - 2004	17.6400000	0.0000000
3000	mod_truth	1994 - 2014	38.4680000	0.0000000
3000	mod_truth	2004 - 2014	20.8280000	0.0000000
10000	C* drift	1994 - 2004	2.5830000	0.0000000
10000	C* drift	1994 - 2014	5.0640000	0.0000000
10000	C* drift	2004 - 2014	2.4810000	0.0000000
10000	C* prediction error	1994 - 2004	-0.7836667	1.9554335
10000	C* prediction error	1994 - 2014	-1.6490000	2.4401269
10000	C* prediction error	2004 - 2014	-0.6653333	1.0100481
10000	C* prediction error rel	1994 - 2004	-4.3775370	10.9229892
10000	C* prediction error rel	1994 - 2014	-4.2213860	6.2466449
10000	C* prediction error rel	2004 - 2014	-3.1441488	4.7731584
10000	dcant offset	1994 - 2004	1.6278333	2.1418133
10000	dcant offset	1994 - 2014	2.9685000	2.5644361
10000	dcant offset	2004 - 2014	1.5271667	1.0850739
10000	dcant offset rel	1994 - 2004	9.0930250	11.9641006
10000	dcant offset rel	1994 - 2014	7.5992627	6.5648725
10000	dcant offset rel	2004 - 2014	7.2168927	5.1277062
10000	dcant offset rel corr	1994 - 2004	-5.3355305	11.9641006
10000	dcant offset rel corr	1994 - 2014	-5.3644113	6.5648725
10000	dcant offset rel corr	2004 - 2014	-4.5075059	5.1277062
10000	delta C* - mod_truth	1994 - 2004	1.3030000	0.0000000
10000	delta C* - mod_truth	1994 - 2014	2.6320000	0.0000000
10000	delta C* - mod_truth	2004 - 2014	1.3290000	0.0000000
10000	mod_truth	1994 - 2004	17.9020000	0.0000000
10000	mod_truth	1994 - 2014	39.0630000	0.0000000
10000	mod_truth	2004 - 2014	21.1610000	0.0000000

Session information

sessionInfo()

R version 4.1.2 (2021-11-01)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: openSUSE Leap 15.3

Matrix products: default
BLAS:   /usr/local/R-4.1.2/lib64/R/lib/libRblas.so
LAPACK: /usr/local/R-4.1.2/lib64/R/lib/libRlapack.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
