Column inventories

workflowr

• Summary
• Checks
• Past versions

Last updated: 2022-11-14

Checks: 7 0

Knit directory: emlr_obs_analysis/analysis/

This reproducible R Markdown analysis was created with workflowr (version 1.7.0). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.

---

R Markdown file: up-to-date

Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.

Environment: empty

Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.

Seed: set.seed(20210412)

The command set.seed(20210412) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.

Session information: recorded

Great job! Recording the operating system, R version, and package versions is critical for reproducibility.

Cache: none

Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.

File paths: relative

Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.

Repository version: 40f357d

Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.

The results in this page were generated with repository version 40f357d. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.

Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:

Ignored files:
    Ignored:    .Rhistory
    Ignored:    .Rproj.user/
    Ignored:    data/
    Ignored:    output/other/
    Ignored:    output/presentation/
    Ignored:    output/publication/

Untracked files:
    Untracked:  code/results_publication_backup_incl_ensemble_uncertainty_20221111.Rmd

Unstaged changes:
    Deleted:    analysis/MLR_target_budgets.Rmd
    Deleted:    analysis/MLR_target_column_inventories.Rmd
    Deleted:    analysis/MLR_target_zonal_sections.Rmd
    Modified:   analysis/_site.yml
    Modified:   code/Workflowr_project_managment.R

Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.

---

These are the previous versions of the repository in which changes were made to the R Markdown (analysis/gaps_filter_column_inventories.Rmd) and HTML (docs/gaps_filter_column_inventories.html) files. If you’ve configured a remote Git repository (see ?wflow_git_remote), click on the hyperlinks in the table below to view the files as they were in that past version.

File	Version	Author	Date	Message
html	cc337dd	jens-daniel-mueller	2022-11-11	Build site.
html	ec60f68	jens-daniel-mueller	2022-11-07	Build site.
html	e99640e	jens-daniel-mueller	2022-07-29	Build site.
html	d5765c9	jens-daniel-mueller	2022-07-17	Build site.
html	08c00b4	jens-daniel-mueller	2022-07-16	Build site.
html	692c937	jens-daniel-mueller	2022-07-16	Build site.
html	1aabfea	jens-daniel-mueller	2022-07-12	Build site.
html	b44c72a	jens-daniel-mueller	2022-07-03	Build site.
html	6e173bf	jens-daniel-mueller	2022-06-30	updated regional budget plots
html	a13a7cf	jens-daniel-mueller	2022-06-28	Build site.
html	b52b159	jens-daniel-mueller	2022-06-27	Build site.
html	cdabe91	jens-daniel-mueller	2022-06-27	Build site.
html	09b0780	jens-daniel-mueller	2022-05-24	Build site.
html	25da2fb	jens-daniel-mueller	2022-05-24	Build site.
html	e09320d	jens-daniel-mueller	2022-04-12	Build site.
html	8dca96a	jens-daniel-mueller	2022-04-12	Build site.
html	acad2e2	jens-daniel-mueller	2022-04-09	Build site.
html	c3a6238	jens-daniel-mueller	2022-03-08	Build site.
html	de557de	jens-daniel-mueller	2022-01-28	Build site.
html	9753eb8	jens-daniel-mueller	2022-01-26	Build site.
html	f347cd7	jens-daniel-mueller	2022-01-18	Build site.
html	513630f	jens-daniel-mueller	2022-01-18	Build site.
html	d7dfc7c	jens-daniel-mueller	2022-01-18	Build site.
html	ba43a11	jens-daniel-mueller	2022-01-12	Build site.
Rmd	63c2c4f	jens-daniel-mueller	2022-01-12	code for coverage maps included
html	3b07c04	jens-daniel-mueller	2022-01-12	Build site.
Rmd	53dee50	jens-daniel-mueller	2022-01-12	rebuild with correct config
html	269809e	jens-daniel-mueller	2022-01-12	Build site.
Rmd	0e16fb3	jens-daniel-mueller	2022-01-12	rebuild without any gap filter or flagging exceptions
html	1696b98	jens-daniel-mueller	2022-01-11	Build site.
html	570e738	jens-daniel-mueller	2022-01-10	Build site.
html	9bf6789	jens-daniel-mueller	2022-01-10	Build site.
Rmd	4f32215	jens-daniel-mueller	2022-01-10	rebuild after splitting into child docs
html	b10afbc	jens-daniel-mueller	2022-01-05	Build site.
html	f0c828a	jens-daniel-mueller	2021-12-22	Build site.
html	316ea5f	jens-daniel-mueller	2021-12-09	Build site.
html	9c72ef3	jens-daniel-mueller	2021-12-08	Build site.
html	f4250b0	jens-daniel-mueller	2021-12-08	Build site.
html	5557471	jens-daniel-mueller	2021-12-04	Build site.
Rmd	16485a9	jens-daniel-mueller	2021-12-04	added gap filling coverage map
html	bd4091f	jens-daniel-mueller	2021-12-04	Build site.
html	a037b24	jens-daniel-mueller	2021-12-03	Build site.
Rmd	43a45a7	jens-daniel-mueller	2021-12-03	added gap filling coverage map
html	ecbdffe	jens-daniel-mueller	2021-12-03	Build site.
Rmd	ade2bab	jens-daniel-mueller	2021-12-03	revised gap filling analysis
html	7e0a36b	jens-daniel-mueller	2021-11-21	Build site.
html	e505a4b	jens-daniel-mueller	2021-11-09	Build site.
html	66ec048	jens-daniel-mueller	2021-11-04	Build site.
Rmd	3eaddfc	jens-daniel-mueller	2021-11-04	compared G19 and this study directly
html	f7c3da2	jens-daniel-mueller	2021-11-03	Build site.
html	e534f51	jens-daniel-mueller	2021-11-02	Build site.
html	57cfc36	jens-daniel-mueller	2021-11-01	Build site.
html	4331a22	jens-daniel-mueller	2021-10-29	Build site.
html	ae5ae64	jens-daniel-mueller	2021-10-26	Build site.
html	581baa0	jens-daniel-mueller	2021-10-07	Build site.
html	a7af62f	jens-daniel-mueller	2021-10-06	Build site.
html	f9b4f93	jens-daniel-mueller	2021-10-05	Build site.
Rmd	066f9b0	jens-daniel-mueller	2021-10-05	add no gap filling and flag filter analysis

---

version_id_pattern <- "g"
config <- "MLR_basins"

1 Read files

print(version_id_pattern)

[1] "g"

# identify required version IDs

Version_IDs_1 <- list.files(path = "/nfs/kryo/work/jenmueller/emlr_cant/observations",
                            pattern = paste0("v_1", "g"))

Version_IDs_2 <- list.files(path = "/nfs/kryo/work/jenmueller/emlr_cant/observations",
                            pattern = paste0("v_2", "g"))

Version_IDs_3 <- list.files(path = "/nfs/kryo/work/jenmueller/emlr_cant/observations",
                            pattern = paste0("v_3", "g"))

Version_IDs <- c(Version_IDs_1, Version_IDs_2, Version_IDs_3)

print(Version_IDs)

 [1] "v_1g01" "v_1g02" "v_1g03" "v_1g04" "v_1g05" "v_1g06" "v_2g01" "v_2g02"
 [9] "v_2g03" "v_2g04" "v_2g05" "v_2g06" "v_3g01" "v_3g02" "v_3g03" "v_3g04"
[17] "v_3g05" "v_3g06"

for (i_Version_IDs in Version_IDs) {
  # i_Version_IDs <- Version_IDs[1]

  # print(i_Version_IDs)

  path_version_data     <-
    paste(path_observations,
          i_Version_IDs,
          "/data/",
          sep = "")

  # load and join data files

  dcant_inv <-
    read_csv(paste(path_version_data,
                   "dcant_inv.csv",
                   sep = ""))

  dcant_inv_mod_truth <-
    read_csv(paste(path_version_data,
                   "dcant_inv_mod_truth.csv",
                   sep = "")) %>%
    filter(method == "total") %>%
    select(-method)

  dcant_inv_bias <-
    read_csv(paste(path_version_data,
                   "dcant_inv_bias.csv",
                   sep = "")) %>%
    mutate(Version_ID = i_Version_IDs)

  dcant_inv <- bind_rows(dcant_inv,
                         dcant_inv_mod_truth) %>%
    mutate(Version_ID = i_Version_IDs)

  dcant_budget_lat_grid <-
    read_csv(paste(path_version_data,
                   "dcant_budget_lat_grid.csv",
                   sep = "")) %>%
    mutate(Version_ID = i_Version_IDs)

  dcant_budget_lon_grid <-
    read_csv(paste(path_version_data,
                   "dcant_budget_lon_grid.csv",
                   sep = "")) %>%
    mutate(Version_ID = i_Version_IDs)


  params_local <-
    read_rds(paste(path_version_data,
                   "params_local.rds",
                   sep = ""))

  params_local <- bind_cols(
    Version_ID = i_Version_IDs,
    MLR_basins := str_c(params_local$MLR_basins, collapse = "|"),
    tref1 = params_local$tref1,
    tref2 = params_local$tref2)

  tref <- read_csv(paste(path_version_data,
                         "tref.csv",
                         sep = ""))

  params_local <- params_local %>%
    mutate(
      median_year_1 = sort(tref$median_year)[1],
      median_year_2 = sort(tref$median_year)[2],
      duration = median_year_2 - median_year_1,
      period = paste(median_year_1, "-", median_year_2)
    )

  if (exists("dcant_inv_all")) {
    dcant_inv_all <- bind_rows(dcant_inv_all, dcant_inv)
  }

  if (!exists("dcant_inv_all")) {
    dcant_inv_all <- dcant_inv
  }

  if (exists("dcant_inv_bias_all")) {
    dcant_inv_bias_all <- bind_rows(dcant_inv_bias_all, dcant_inv_bias)
  }

  if (!exists("dcant_inv_bias_all")) {
    dcant_inv_bias_all <- dcant_inv_bias
  }

  if (exists("dcant_budget_lat_grid_all")) {
    dcant_budget_lat_grid_all <- bind_rows(dcant_budget_lat_grid_all, dcant_budget_lat_grid)
  }

  if (!exists("dcant_budget_lat_grid_all")) {
    dcant_budget_lat_grid_all <- dcant_budget_lat_grid
  }

  if (exists("dcant_budget_lon_grid_all")) {
    dcant_budget_lon_grid_all <- bind_rows(dcant_budget_lon_grid_all, dcant_budget_lon_grid)
  }

  if (!exists("dcant_budget_lon_grid_all")) {
    dcant_budget_lon_grid_all <- dcant_budget_lon_grid
  }

  if (exists("params_local_all")) {
    params_local_all <- bind_rows(params_local_all, params_local)
  }

  if (!exists("params_local_all")) {
    params_local_all <- params_local
  }


}

rm(dcant_inv,
   dcant_inv_bias,
   dcant_inv_mod_truth,
   dcant_budget_lat_grid,
   dcant_budget_lon_grid,
   params_local,
   tref)

# params_local_all <-
#   params_local_all %>%
#   mutate(period = factor(period, c("1994 - 2004", "2004 - 2014", "1994 - 2014")))

dcant_inv_all <- dcant_inv_all %>%
  filter(inv_depth == params_global$inventory_depth_standard)

dcant_budget_lat_grid_all <- dcant_budget_lat_grid_all %>%
  filter(inv_depth == params_global$inventory_depth_standard)

dcant_budget_lon_grid_all <- dcant_budget_lon_grid_all %>%
  filter(inv_depth == params_global$inventory_depth_standard)

all_predictors <- c("saltempaouoxygenphosphatenitratesilicate")

params_local_all <- params_local_all %>%
  mutate(MLR_predictors = str_remove_all(all_predictors,
                                         MLR_predictors))

dcant_budget_lat_grid_all <- dcant_budget_lat_grid_all %>%
  pivot_wider(names_from = estimate,
              values_from = value) %>%
  filter(period != "1994 - 2014",
         method == "total")

dcant_budget_lon_grid_all <- dcant_budget_lon_grid_all %>%
  pivot_wider(names_from = estimate,
              values_from = value) %>%
  filter(period != "1994 - 2014",
         method == "total")

2 Uncertainty limit

sd_uncertainty_limit <- 4

3 Individual cases

3.1 Absoulte values

dcant_inv_all %>%
  filter(#data_source %in% c("mod", "obs"),
         period != "1994 - 2014") %>%
  group_by(data_source) %>%
  group_split() %>%
  # head(1) %>%
  map(
    ~ p_map_cant_inv(df = .x,
                     var = "dcant",
                     subtitle_text = paste("data_source:",
                                           unique(.x$data_source))) +
      facet_grid(MLR_basins ~ period) +
      theme(axis.text = element_blank(),
            axis.ticks = element_blank())
  )

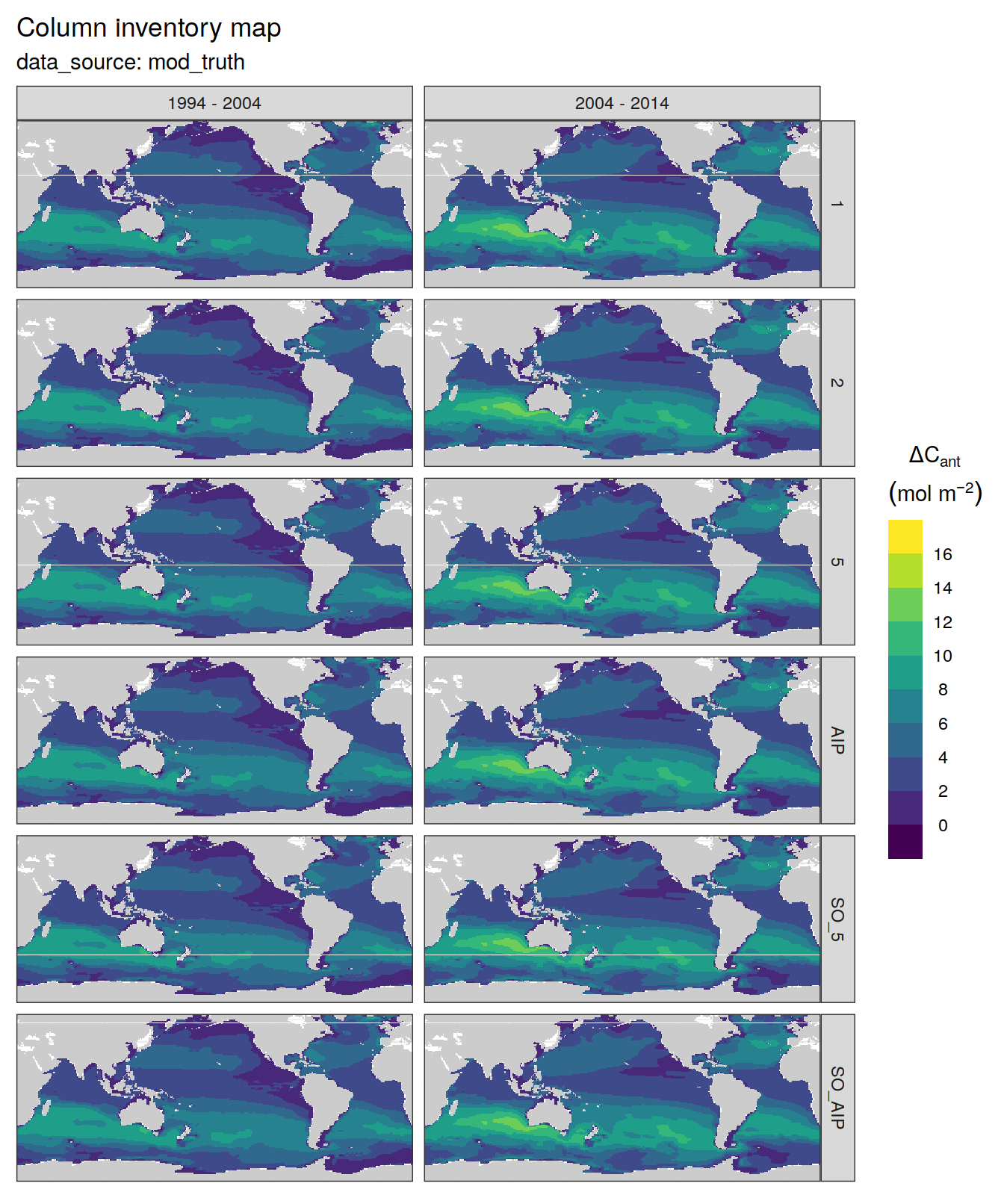

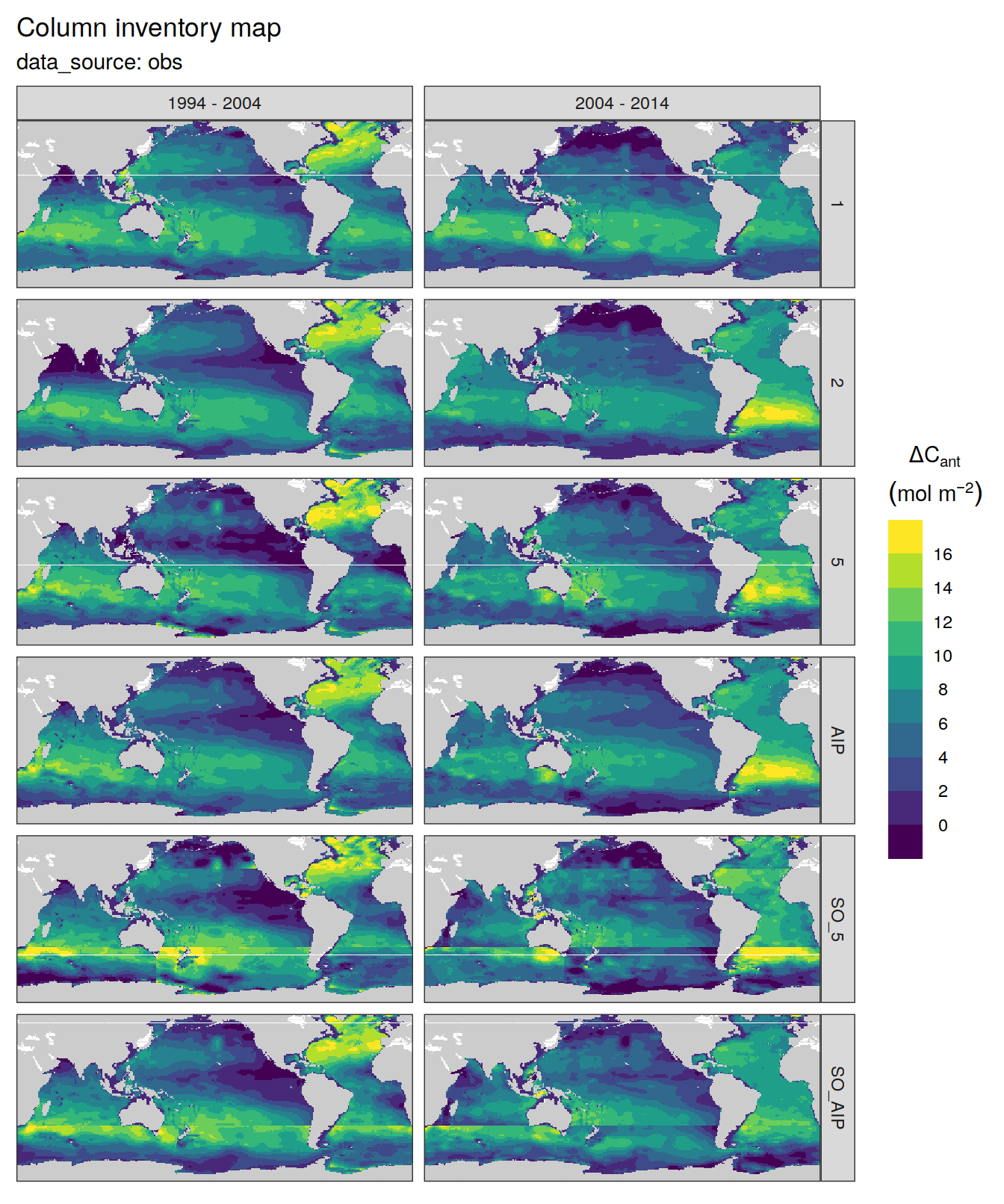

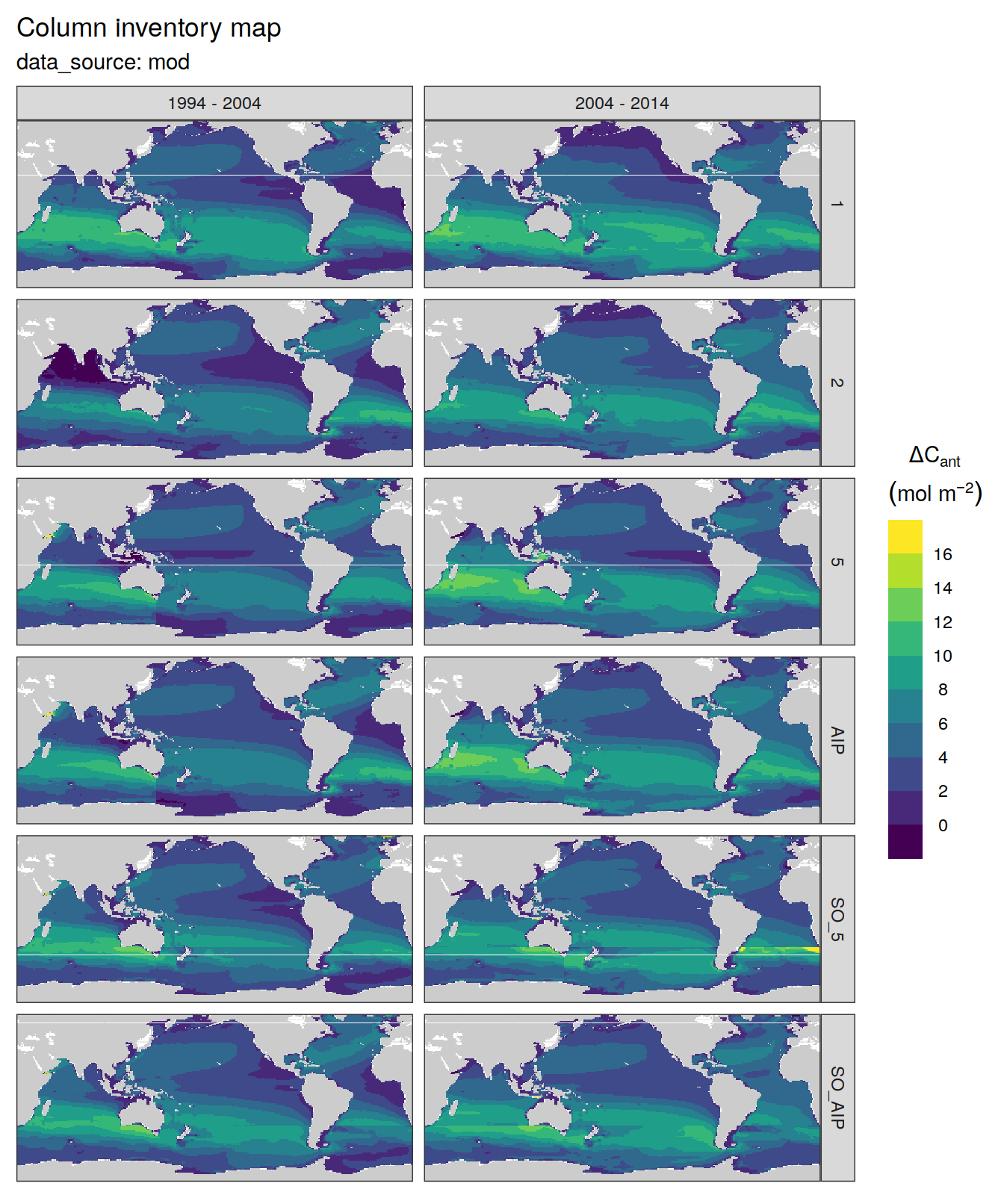

[[1]]

Past versions of cases_absolute-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
09b0780	jens-daniel-mueller	2022-05-24
acad2e2	jens-daniel-mueller	2022-04-09
c3a6238	jens-daniel-mueller	2022-03-08
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
a037b24	jens-daniel-mueller	2021-12-03
ecbdffe	jens-daniel-mueller	2021-12-03
ae5ae64	jens-daniel-mueller	2021-10-26
f9b4f93	jens-daniel-mueller	2021-10-05

[[2]]

Past versions of cases_absolute-2.png

Version	Author	Date
cdabe91	jens-daniel-mueller	2022-06-27
09b0780	jens-daniel-mueller	2022-05-24
acad2e2	jens-daniel-mueller	2022-04-09
c3a6238	jens-daniel-mueller	2022-03-08
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
a037b24	jens-daniel-mueller	2021-12-03
ecbdffe	jens-daniel-mueller	2021-12-03
ae5ae64	jens-daniel-mueller	2021-10-26
f9b4f93	jens-daniel-mueller	2021-10-05

[[3]]

Past versions of cases_absolute-3.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
09b0780	jens-daniel-mueller	2022-05-24
66ec048	jens-daniel-mueller	2021-11-04
ae5ae64	jens-daniel-mueller	2021-10-26
f9b4f93	jens-daniel-mueller	2021-10-05

dcant_inv_all %>%
  filter(data_source %in% c("mod", "obs"),
         period == "1994 - 2014") %>%
  p_map_cant_inv(
    var = "dcant",
    subtitle_text = "1994 - 2014",
    breaks = c(-Inf, seq(0, 16, 2), Inf) * 2
  ) +
  facet_grid(MLR_basins ~ data_source) +
  theme(axis.text = element_blank(),
        axis.ticks = element_blank())

Past versions of cases_absolute-4.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
09b0780	jens-daniel-mueller	2022-05-24

p_dcant_inv_all_1994_2004 <-
  dcant_inv_all %>%
  filter(data_source %in% c("obs"),
         period == "1994 - 2004") %>%
  mutate(period = recode(period,
                         "1994 - 2004" = "Observation-based")) %>%
  p_map_cant_inv(var = "dcant",
                 title_text = "1994 - 2004") +
  facet_grid(MLR_basins ~ period) +
  theme(
    axis.text = element_blank(),
    axis.ticks = element_blank(),
    strip.background.y = element_blank(),
    strip.text.y = element_blank(),
    legend.position = "left"
  )

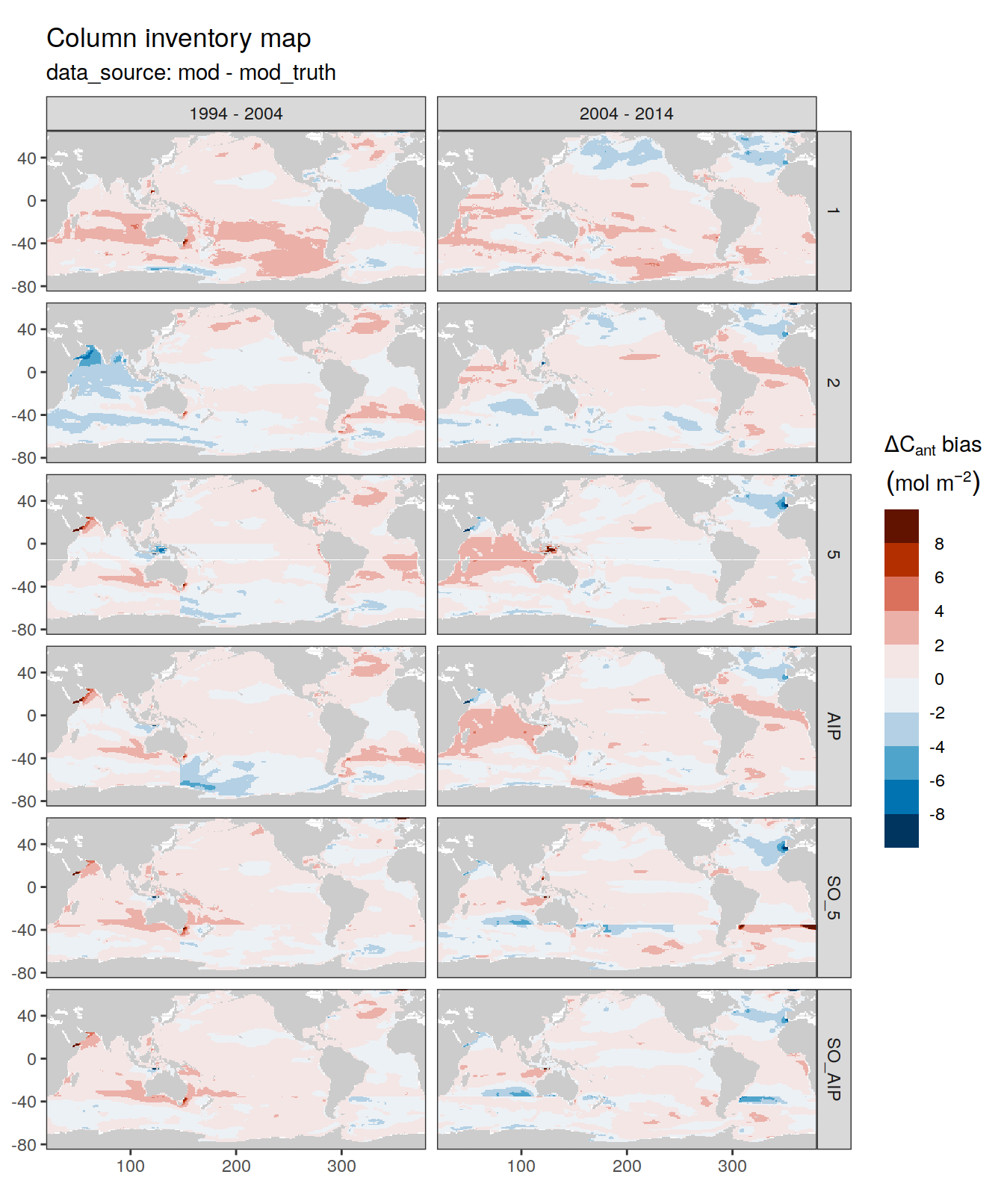

3.2 Biases

dcant_inv_bias_all %>%
  filter(period != "1994 - 2014") %>%
  p_map_cant_inv(var = "dcant_bias",
                 col = "bias",
                 subtitle_text = "data_source: mod - mod_truth") +
  facet_grid(MLR_basins ~ period)

Past versions of cases_bias-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
e99640e	jens-daniel-mueller	2022-07-29
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
09b0780	jens-daniel-mueller	2022-05-24
acad2e2	jens-daniel-mueller	2022-04-09
c3a6238	jens-daniel-mueller	2022-03-08
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
a037b24	jens-daniel-mueller	2021-12-03
ecbdffe	jens-daniel-mueller	2021-12-03
ae5ae64	jens-daniel-mueller	2021-10-26
f9b4f93	jens-daniel-mueller	2021-10-05

dcant_inv_bias_all %>%
  filter(period == "1994 - 2014") %>%
  p_map_cant_inv(var = "dcant_bias",
                 col = "bias",
                 subtitle_text = "data_source: mod - mod_truth") +
  facet_grid(MLR_basins ~ period)

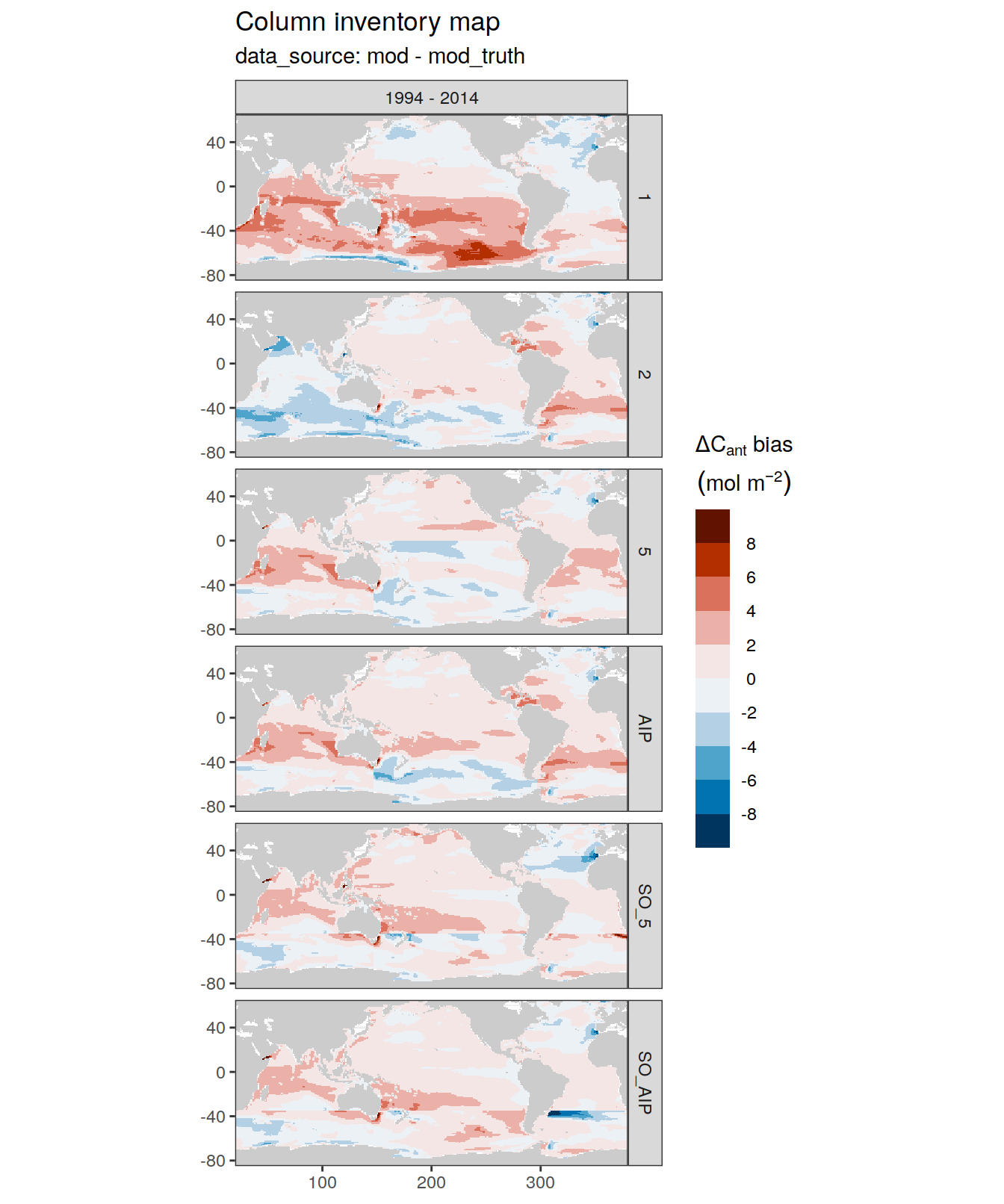

Past versions of cases_bias-2.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
e99640e	jens-daniel-mueller	2022-07-29
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
09b0780	jens-daniel-mueller	2022-05-24
acad2e2	jens-daniel-mueller	2022-04-09
c3a6238	jens-daniel-mueller	2022-03-08
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
a037b24	jens-daniel-mueller	2021-12-03
ecbdffe	jens-daniel-mueller	2021-12-03
ae5ae64	jens-daniel-mueller	2021-10-26
f9b4f93	jens-daniel-mueller	2021-10-05

p_dcant_inv_bias_all_1994_2004 <-
  dcant_inv_bias_all %>%
  filter(period == "1994 - 2004") %>%
  mutate(period = recode(period,
                         "1994 - 2004" = "Model-based")) %>%
  p_map_cant_inv(var = "dcant_bias",
                 col = "bias",
                 title_text = "Models") +
  facet_grid(MLR_basins ~ period) +
  theme(
    axis.text = element_blank(),
    axis.ticks = element_blank(),
    plot.title = element_blank()
  )

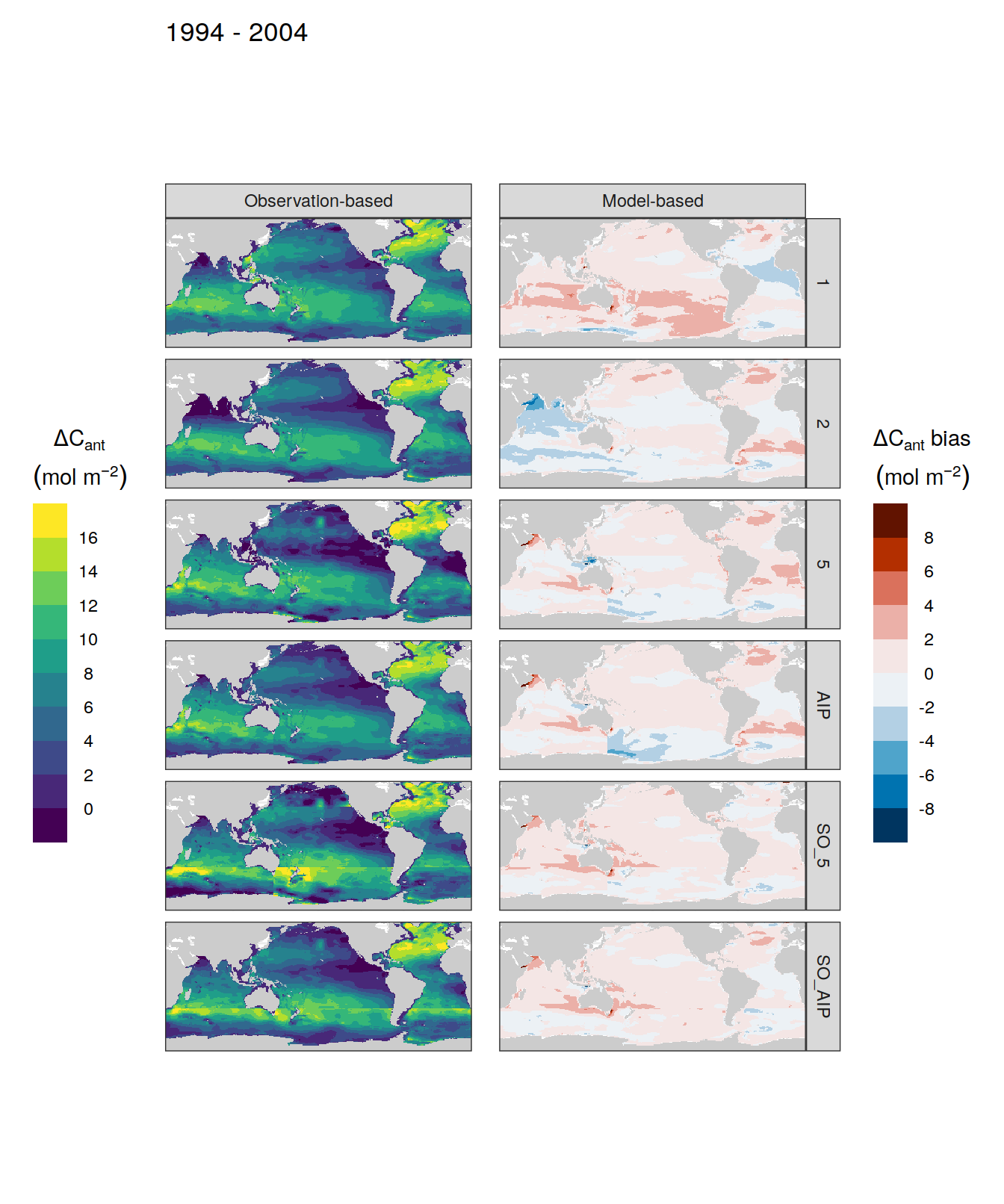

p_dcant_1994_2004 <-
p_dcant_inv_all_1994_2004 +
  p_dcant_inv_bias_all_1994_2004

p_dcant_1994_2004

Past versions of composed_absolute_and_bias_figure-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
e99640e	jens-daniel-mueller	2022-07-29
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
09b0780	jens-daniel-mueller	2022-05-24
acad2e2	jens-daniel-mueller	2022-04-09
c3a6238	jens-daniel-mueller	2022-03-08
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12

# ggsave(plot = p_dcant_1994_2004,
#        path = "output/other",
#        filename = "inv_dcant_1994_2004_abs_bias.png",
#        height = 8,
#        width = 8)

3.3 Decadal offset

dcant_inv_all %>%
  filter(period != "1994 - 2014") %>%
  select(data_source, lon, lat, MLR_basins, period, dcant_pos) %>%
  pivot_wider(values_from = dcant_pos,
              names_from = period) %>%
  mutate(dcant_pos_bias = `2004 - 2014`- `1994 - 2004`) %>%
  group_by(data_source) %>%
  group_split() %>%
  # head(1) %>%
  map(
    ~ p_map_cant_inv(df = .x,
                     var = "dcant_pos_bias",
                     col = "bias",
                     subtitle_text = paste("data_source:",
                                           unique(.x$data_source))) +
      facet_grid(MLR_basins ~ .) +
      theme(axis.text = element_blank(),
            axis.ticks = element_blank())
  )

[[1]]

Past versions of decadal_dcant_offset_column_inventory_map-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
e99640e	jens-daniel-mueller	2022-07-29
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
09b0780	jens-daniel-mueller	2022-05-24

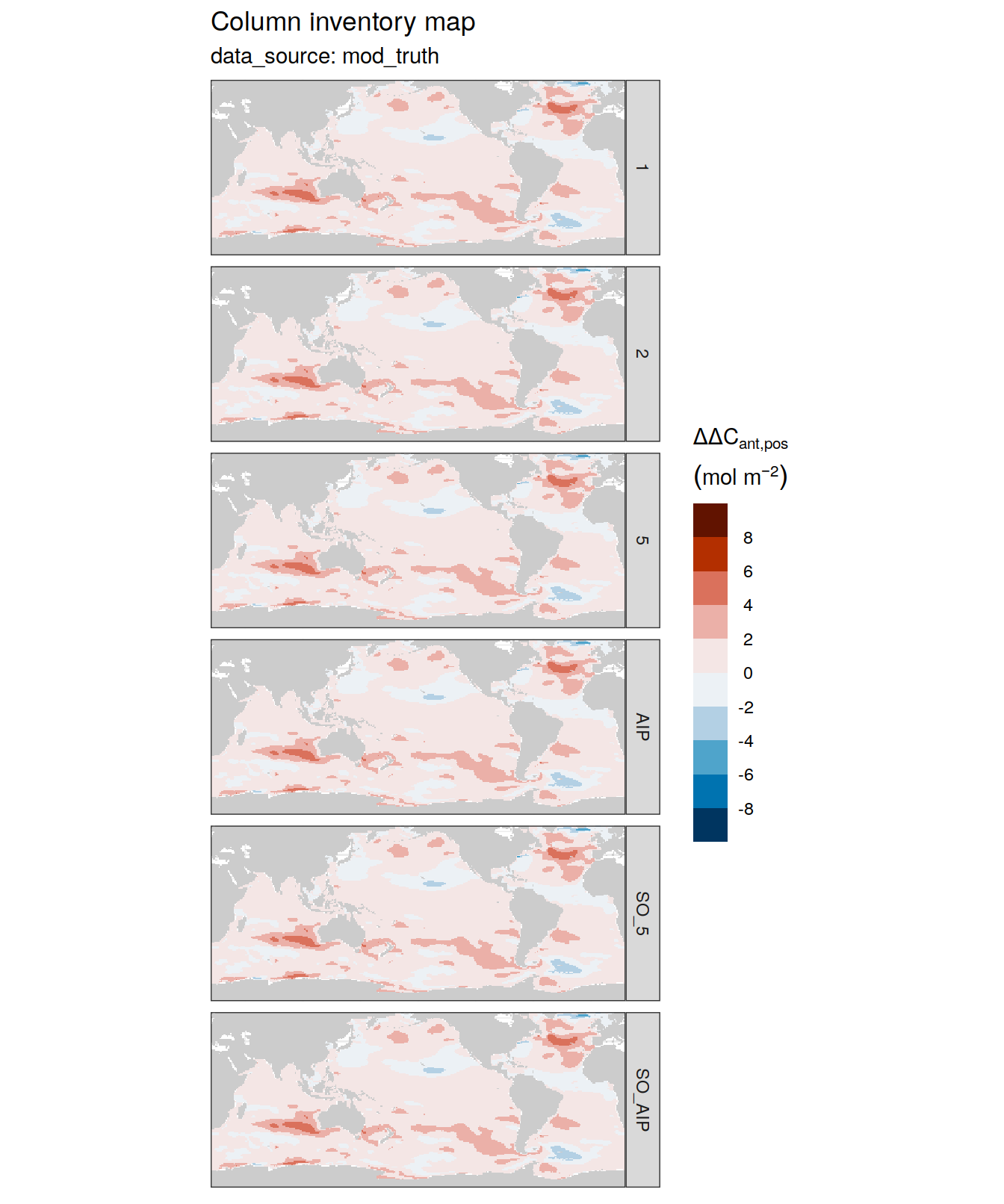

[[2]]

Past versions of decadal_dcant_offset_column_inventory_map-2.png

Version	Author	Date
e99640e	jens-daniel-mueller	2022-07-29
cdabe91	jens-daniel-mueller	2022-06-27
09b0780	jens-daniel-mueller	2022-05-24

[[3]]

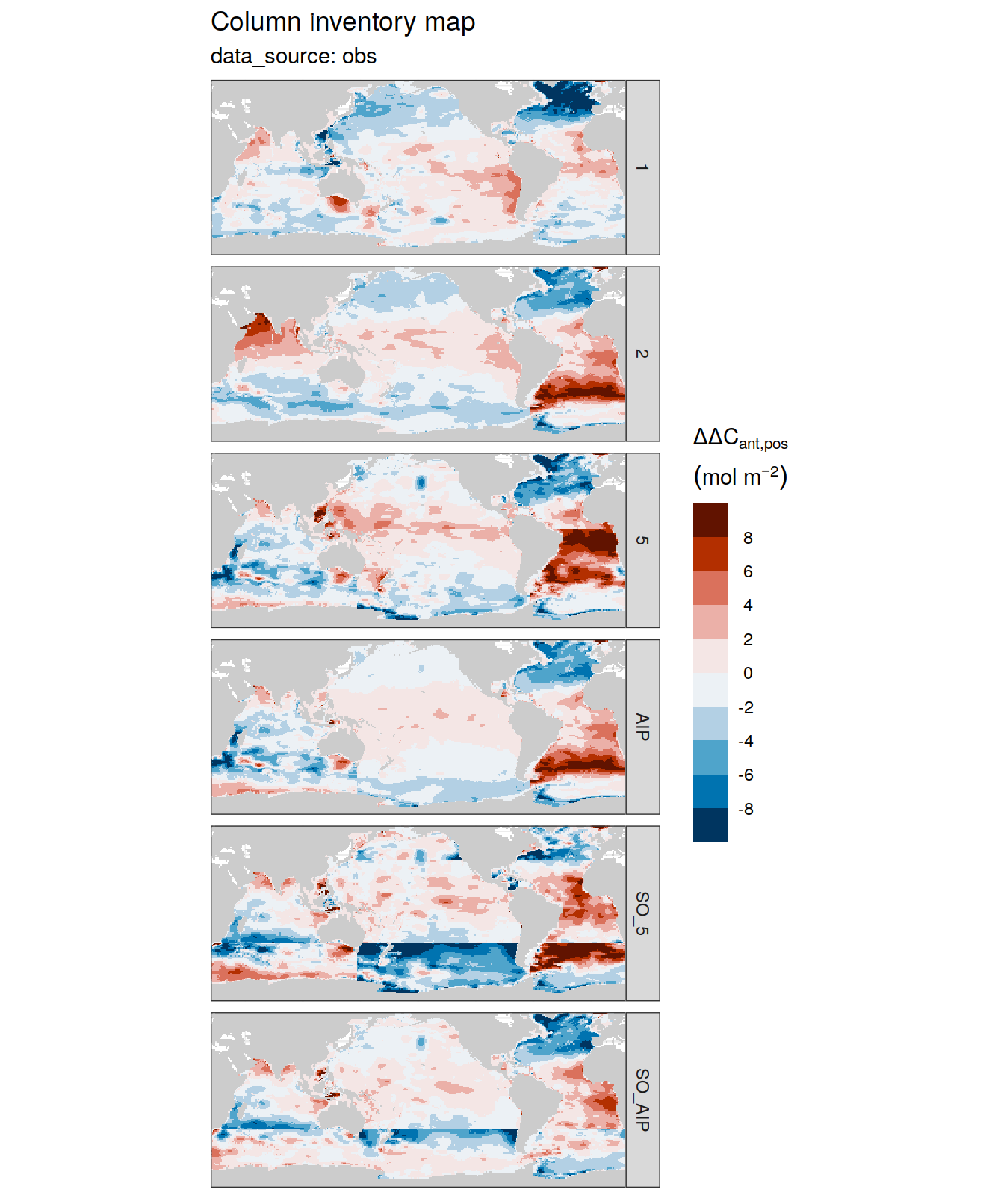

Past versions of decadal_dcant_offset_column_inventory_map-3.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
e99640e	jens-daniel-mueller	2022-07-29
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
09b0780	jens-daniel-mueller	2022-05-24

dcant_inv_bias_all %>%
  filter(period != "1994 - 2014") %>%
  select(lon, lat, MLR_basins, period, dcant_pos_bias) %>%
  pivot_wider(values_from = dcant_pos_bias,
              names_from = period) %>%
  mutate(dcant_pos_bias = `2004 - 2014` - `1994 - 2004`) %>%
  p_map_cant_inv(var = "dcant_pos_bias",
                 col = "bias") +
  facet_grid(MLR_basins ~ .) +
  theme(axis.text = element_blank(),
        axis.ticks = element_blank())

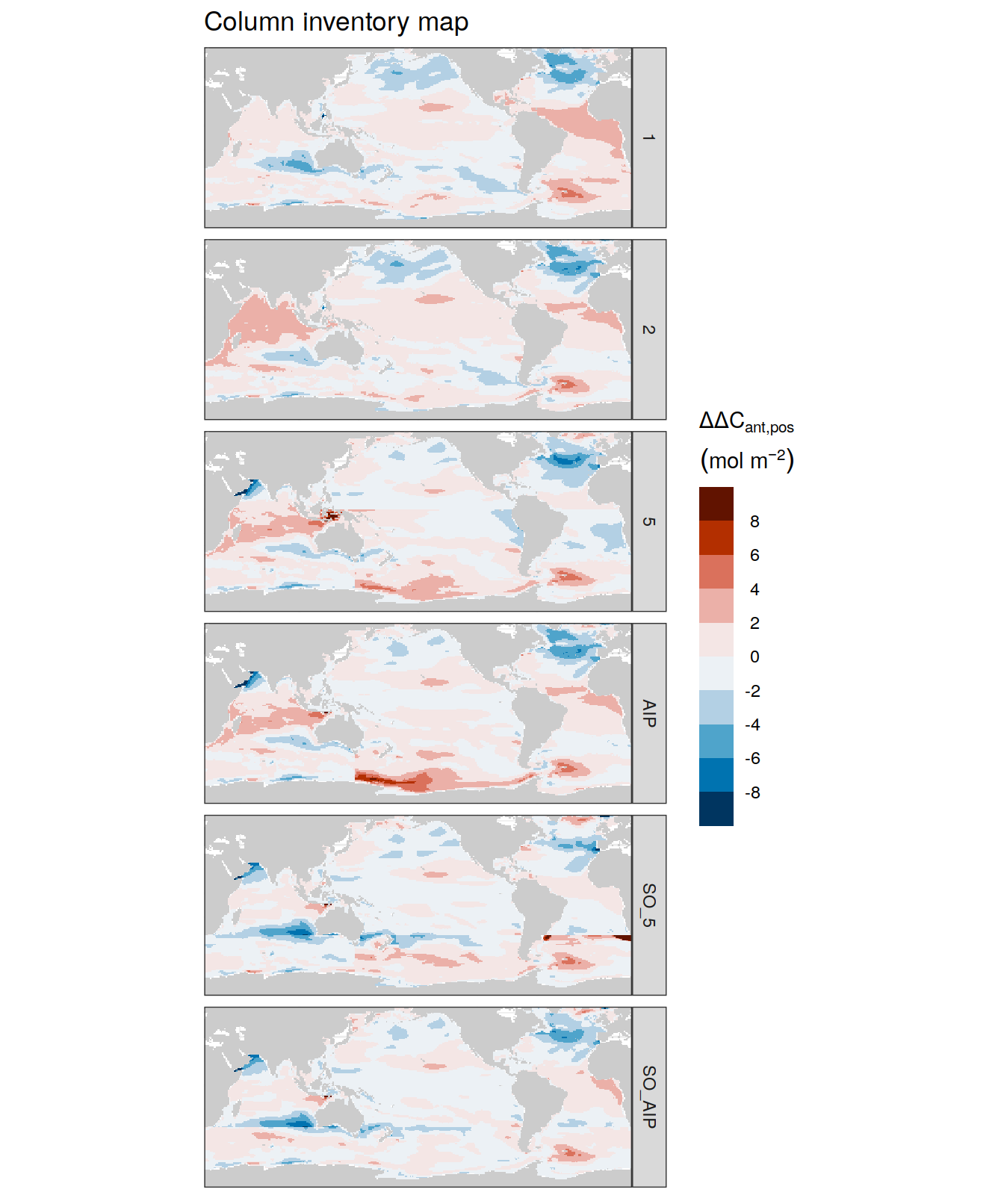

Past versions of decadal_bias_offset_column_inventory_map-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
e99640e	jens-daniel-mueller	2022-07-29
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
09b0780	jens-daniel-mueller	2022-05-24

3.3.1 Density distribution

dcant_inv_bias_all %>%
  filter(abs(dcant_bias) < 10) %>%
  ggplot(aes(dcant_bias, col = MLR_basins)) +
  scale_color_brewer(palette = "Dark2") +
  geom_vline(xintercept = 0) +
  geom_density() +
  facet_grid(period ~.)

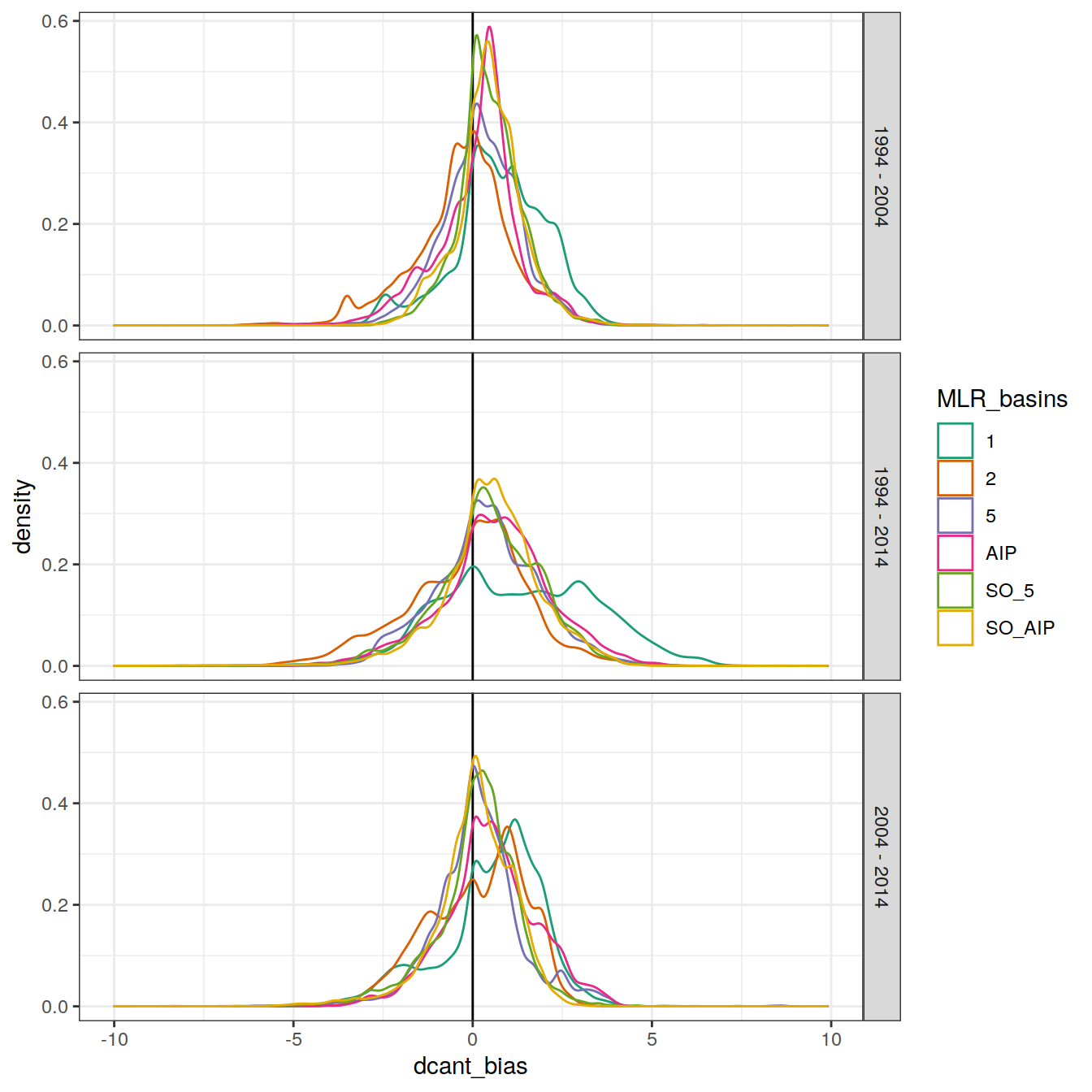

Past versions of bias_density_distribution-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
66ec048	jens-daniel-mueller	2021-11-04

3.4 Lat grid budgets

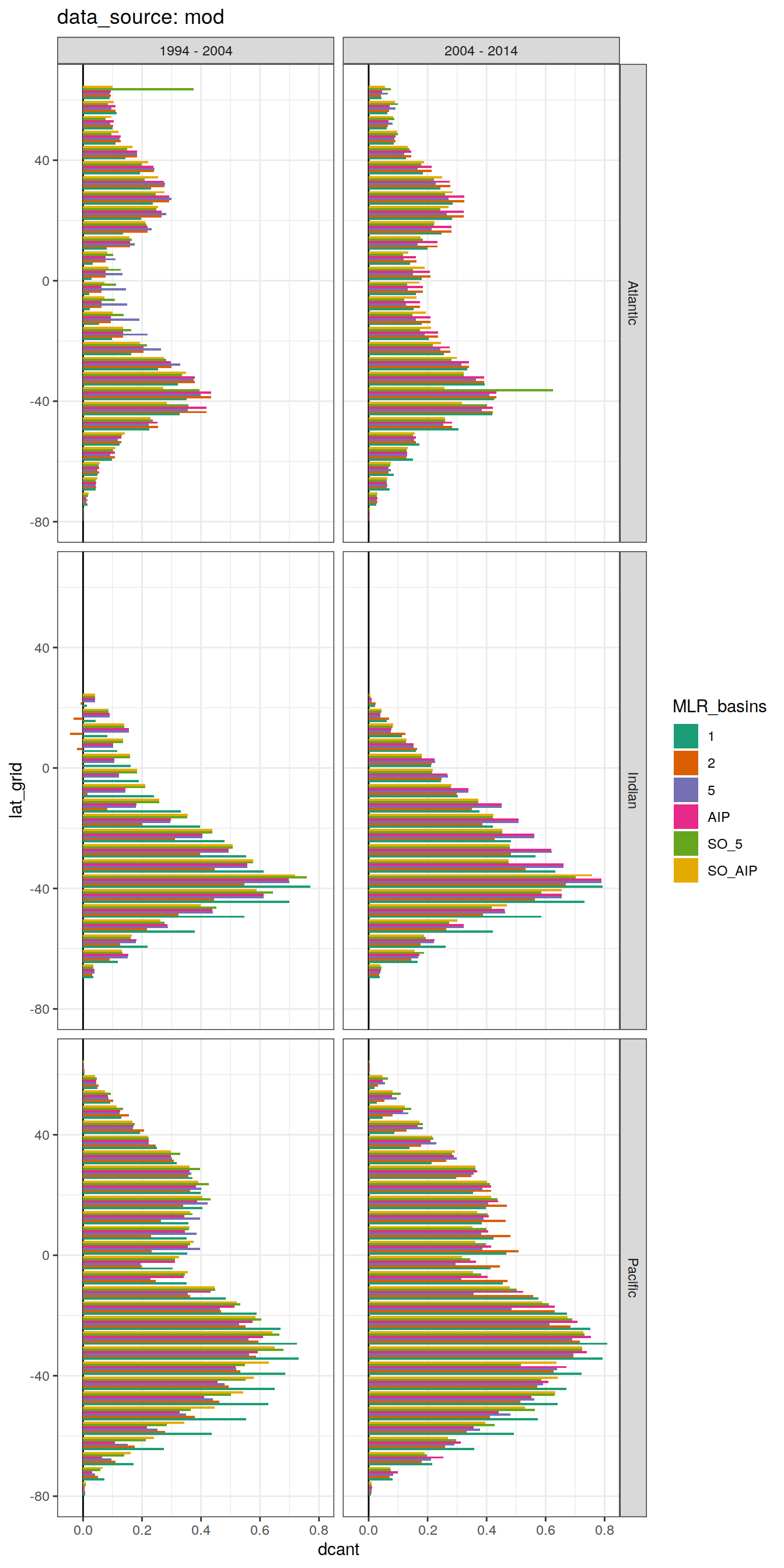

dcant_budget_lat_grid_all %>%
  group_split(data_source) %>%
  # head(1) %>%
  map(
    ~ ggplot(data = .x,
             aes(lat_grid, dcant, fill = MLR_basins)) +
      geom_hline(yintercept = 0) +
      geom_col(position = "dodge") +
      coord_flip() +
      scale_fill_brewer(palette = "Dark2") +
      labs(title = paste("data_source:", unique(.x$data_source))) +
      facet_grid(basin_AIP ~ period)
  )

[[1]]

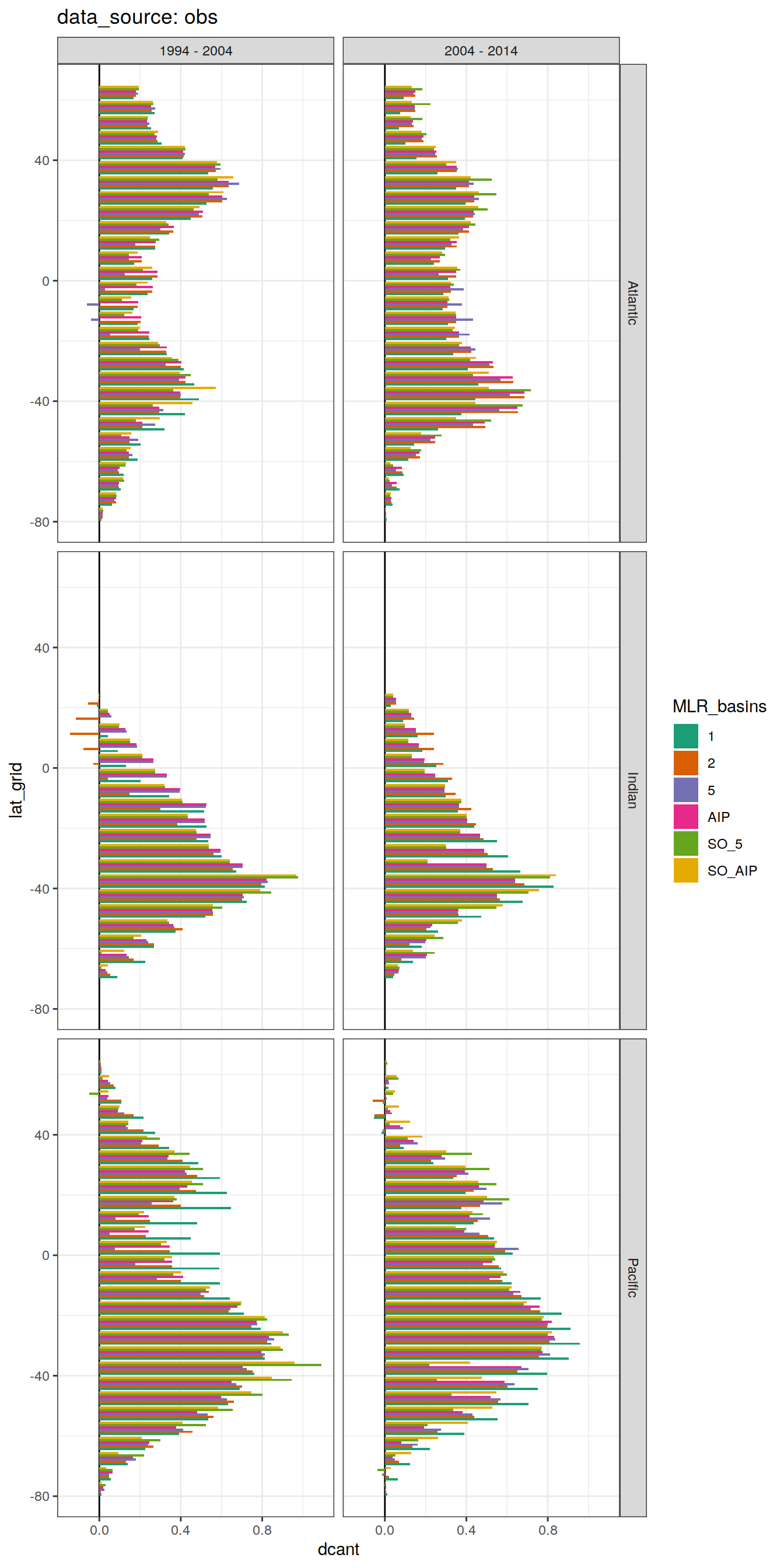

Past versions of lat_grid_budget_all-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12

[[2]]

Past versions of lat_grid_budget_all-2.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12

3.5 Lon grid budgets

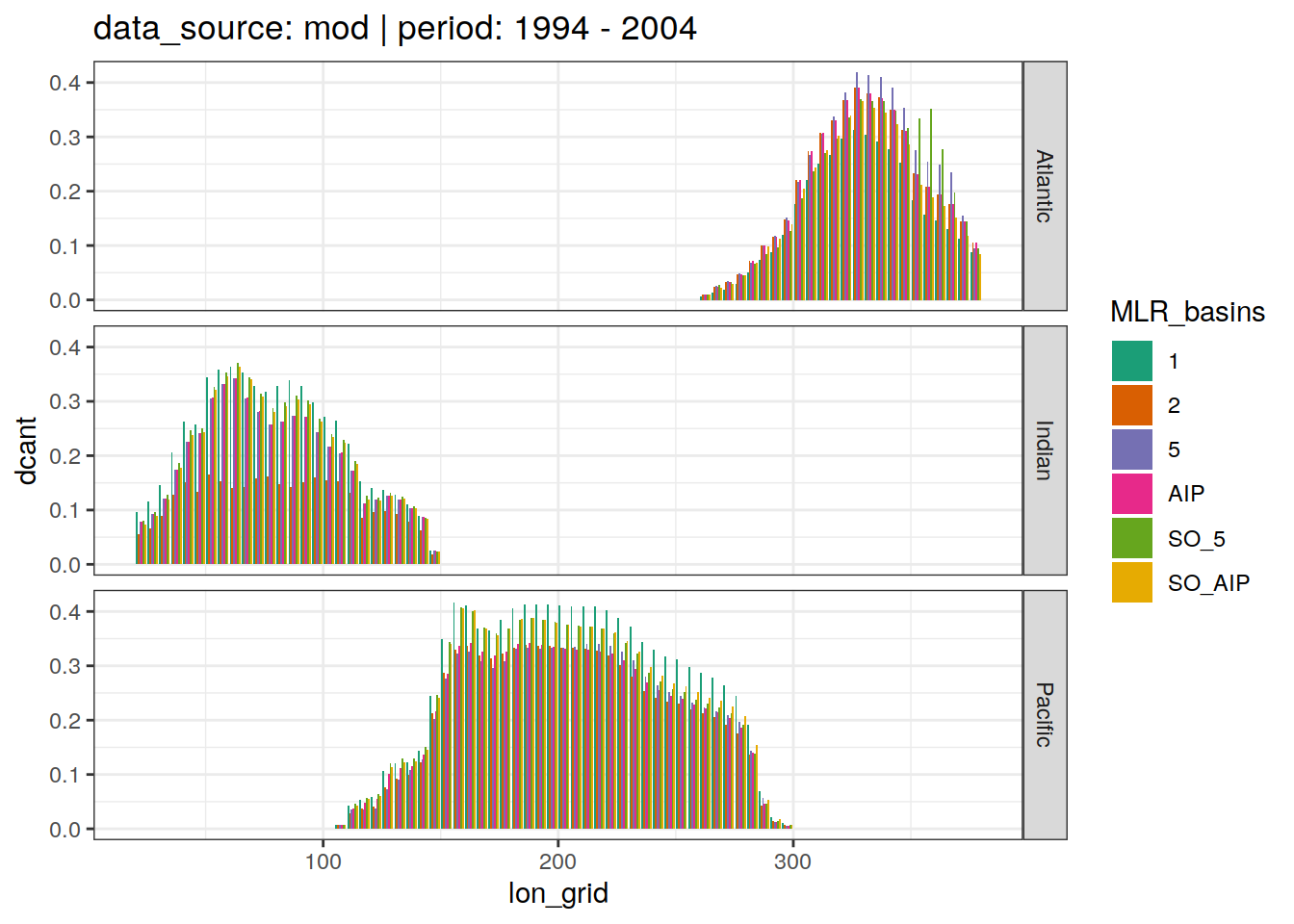

dcant_budget_lon_grid_all %>%
  group_split(data_source, period) %>%
  # head(1) %>%
  map(
    ~ ggplot(data = .x,
             aes(lon_grid, dcant, fill = MLR_basins)) +
      geom_col(position = "dodge") +
      scale_fill_brewer(palette = "Dark2") +
      labs(title = paste(
        "data_source:",
        unique(.x$data_source),
        "| period:",
        unique(.x$period)
      )) +
      facet_grid(basin_AIP ~ .)
  )

[[1]]

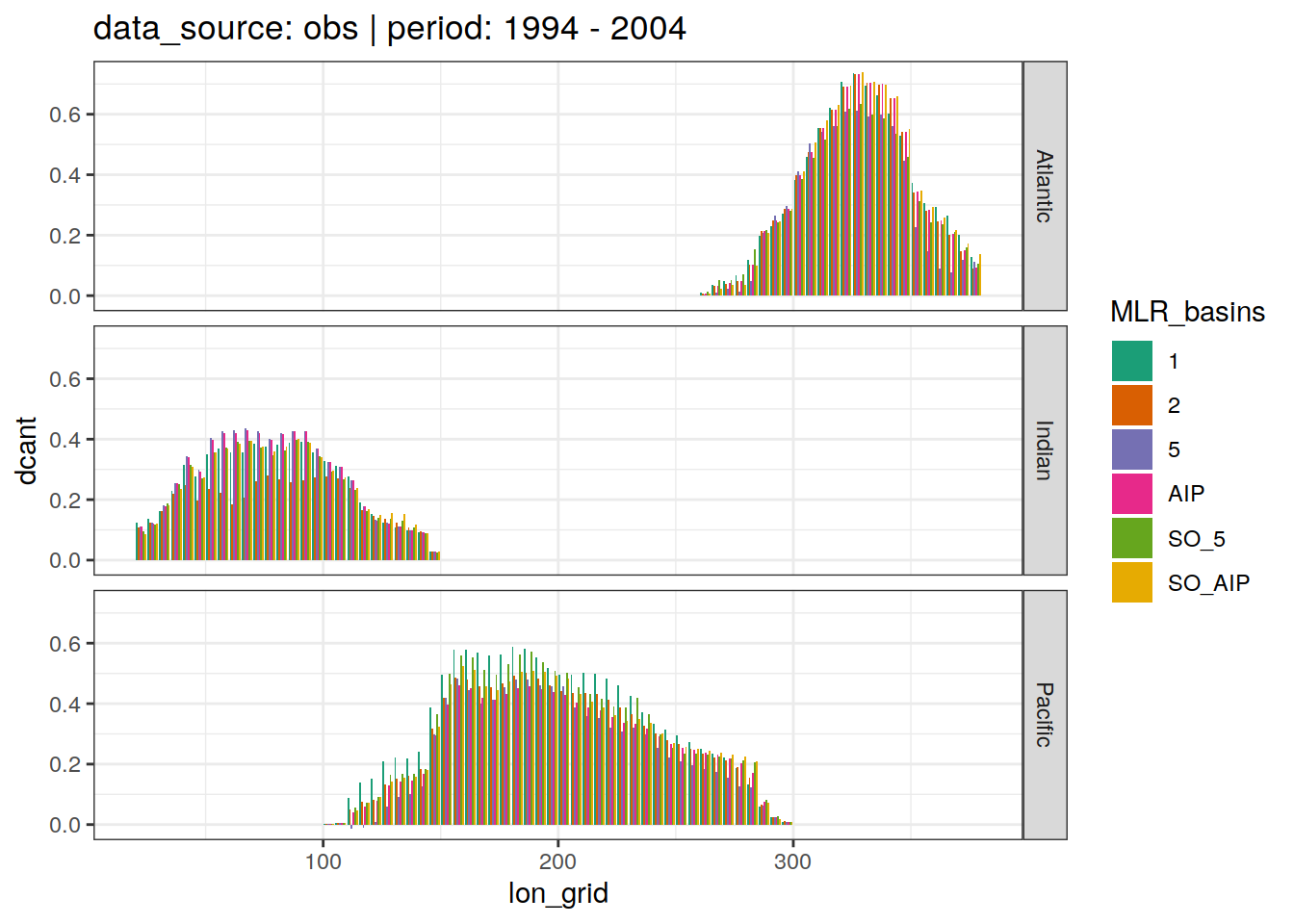

Past versions of lon_grid_budget_all-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12

[[2]]

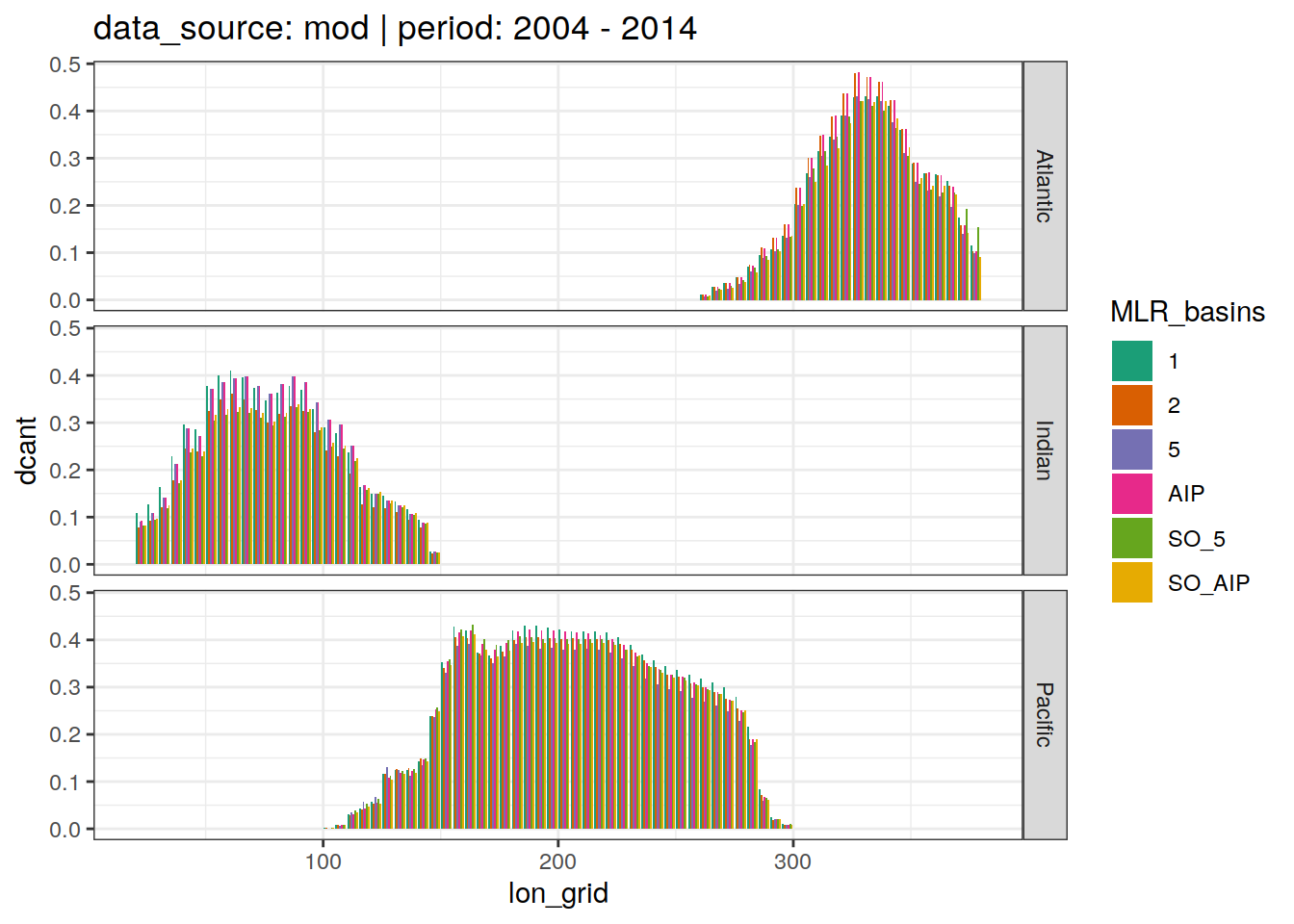

Past versions of lon_grid_budget_all-2.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12

[[3]]

Past versions of lon_grid_budget_all-3.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12

[[4]]

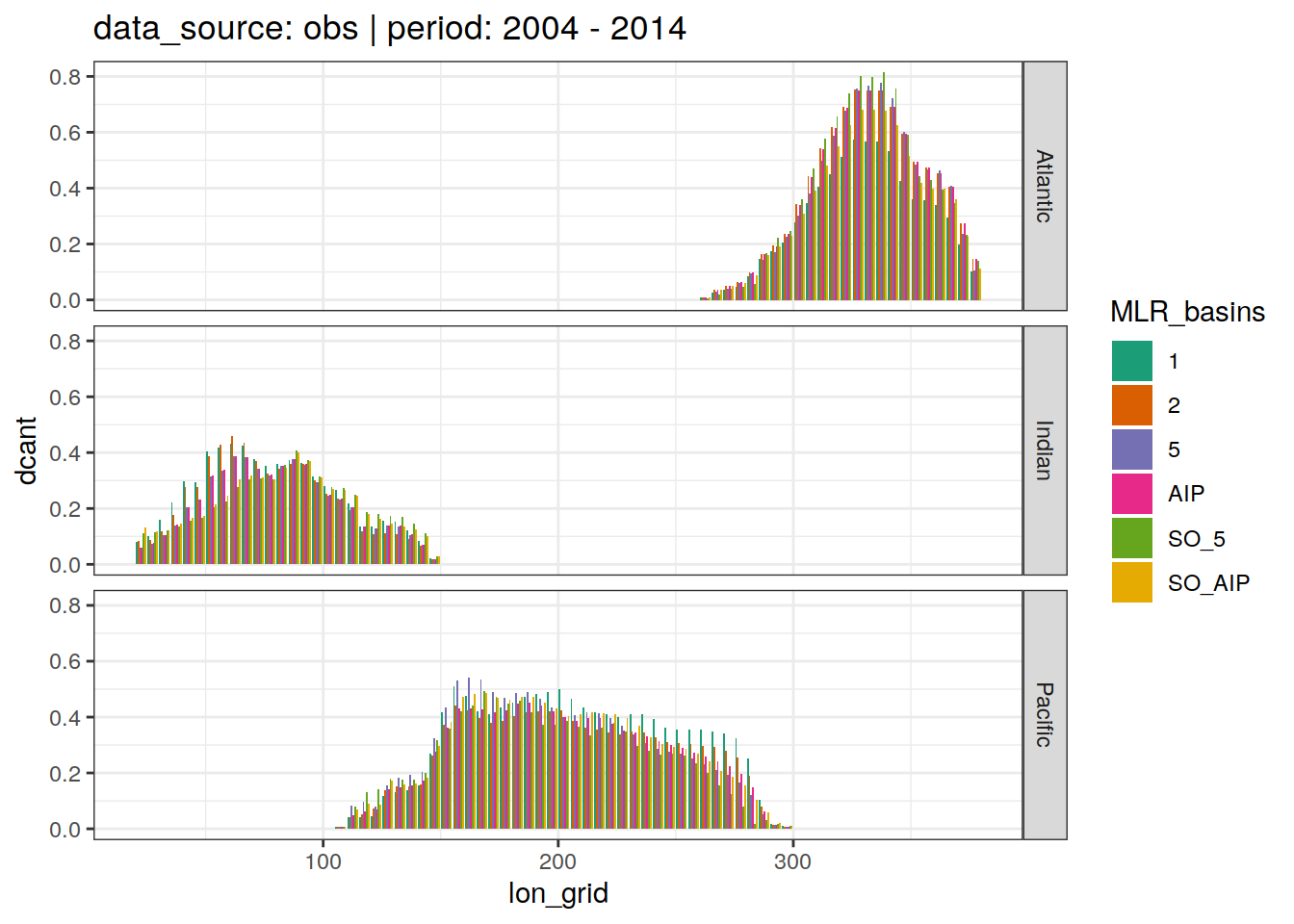

Past versions of lon_grid_budget_all-4.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12

4 Ensemble

dcant_inv_ensemble <- dcant_inv_all %>%
  filter(data_source %in% c("mod", "obs")) %>%
  group_by(lat, lon, data_source, period) %>%
  summarise(dcant_mean = mean(dcant),
            dcant_sd = sd(dcant),
            dcant_range = max(dcant)- min(dcant)) %>%
  ungroup()

`summarise()` has grouped output by 'lat', 'lon', 'data_source'. You can
override using the `.groups` argument.

dcant_lat_grid_ensemble <- dcant_budget_lat_grid_all %>%
  filter(data_source %in% c("mod", "obs")) %>%
  group_by(lat_grid, data_source, period, MLR_basins) %>%
  summarise(dcant = sum(dcant, na.rm = TRUE)) %>%
  ungroup() %>%
  group_by(lat_grid, data_source, period) %>%
  summarise(dcant_mean = mean(dcant),
            dcant_sd = sd(dcant),
            dcant_max = max(dcant),
            dcant_min = min(dcant)) %>%
  ungroup()

`summarise()` has grouped output by 'lat_grid', 'data_source', 'period'. You can override using the `.groups` argument.
`summarise()` has grouped output by 'lat_grid', 'data_source'. You can override using the `.groups` argument.

dcant_lon_grid_ensemble <- dcant_budget_lon_grid_all %>%
  filter(data_source %in% c("mod", "obs")) %>%
  group_by(lon_grid, data_source, period, MLR_basins) %>%
  summarise(dcant = sum(dcant, na.rm = TRUE)) %>%
  ungroup() %>%
  group_by(lon_grid, data_source, period) %>%
  summarise(dcant_mean = mean(dcant),
            dcant_sd = sd(dcant),
            dcant_max = max(dcant),
            dcant_min = min(dcant)) %>%
  ungroup()

`summarise()` has grouped output by 'lon_grid', 'data_source', 'period'. You can override using the `.groups` argument.
`summarise()` has grouped output by 'lon_grid', 'data_source'. You can override using the `.groups` argument.

4.1 Mean

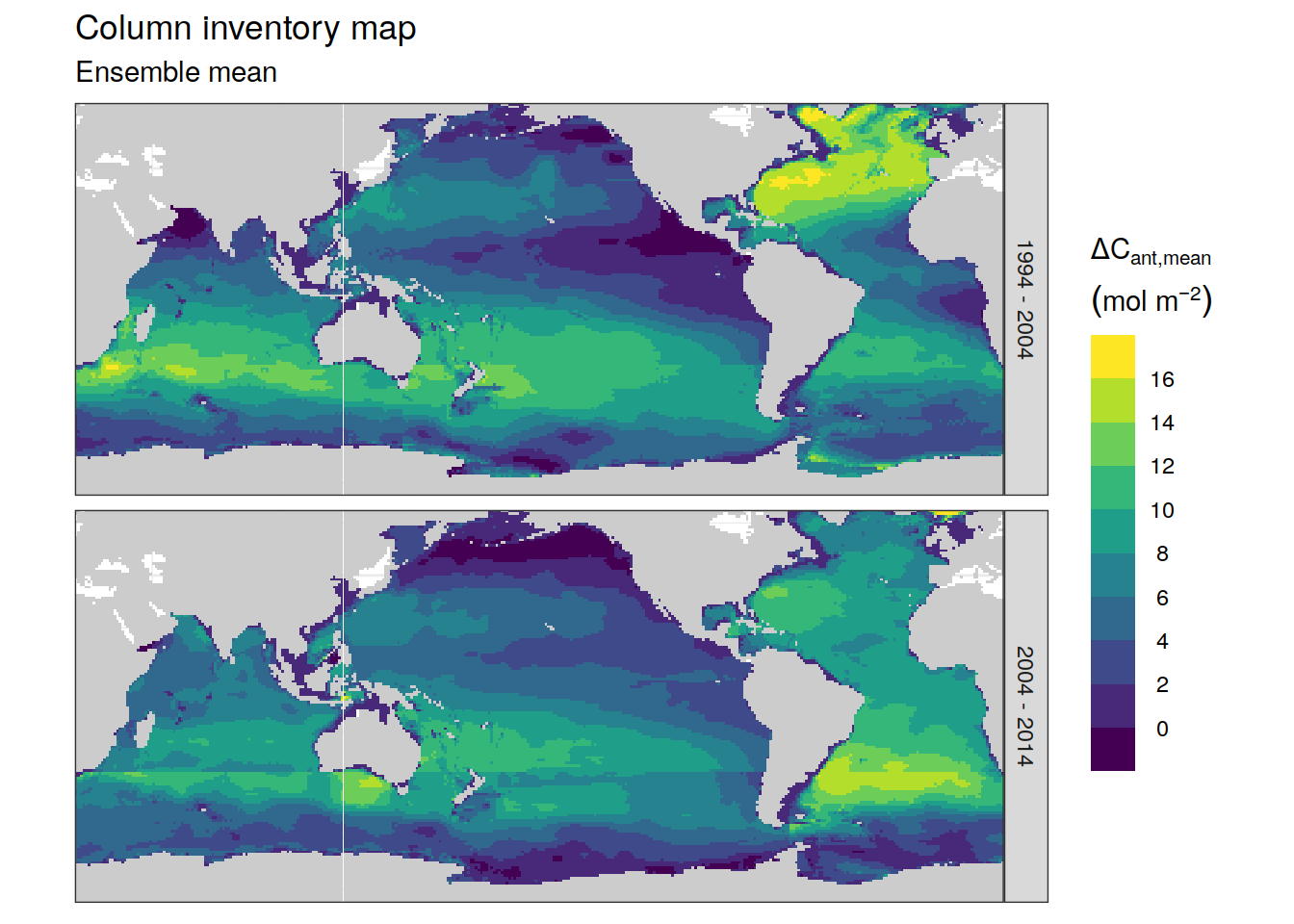

p_map_cant_inv(
  df = dcant_inv_ensemble %>%
    filter(period != "1994 - 2014",
           data_source == "obs"),
  var = "dcant_mean",
  subtitle_text = paste("Ensemble mean")
) +
  facet_grid(period ~ .) +
  theme(axis.text = element_blank(),
        axis.ticks = element_blank())

Past versions of ensemble_mean-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
09b0780	jens-daniel-mueller	2022-05-24
acad2e2	jens-daniel-mueller	2022-04-09
c3a6238	jens-daniel-mueller	2022-03-08
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
ae5ae64	jens-daniel-mueller	2021-10-26
f9b4f93	jens-daniel-mueller	2021-10-05

p_map_cant_inv(
  df = dcant_inv_ensemble %>%
    filter(data_source == "obs",
           period == "1994 - 2014"),
  var = "dcant_mean",
  title_text = paste("Ensemble mean"),
  breaks = c(-Inf, seq(0, 28, 4), Inf)
) +
  facet_grid(period ~ .) +
  theme(
    axis.text = element_blank(),
    axis.ticks = element_blank(),
    legend.position = "left"
  )

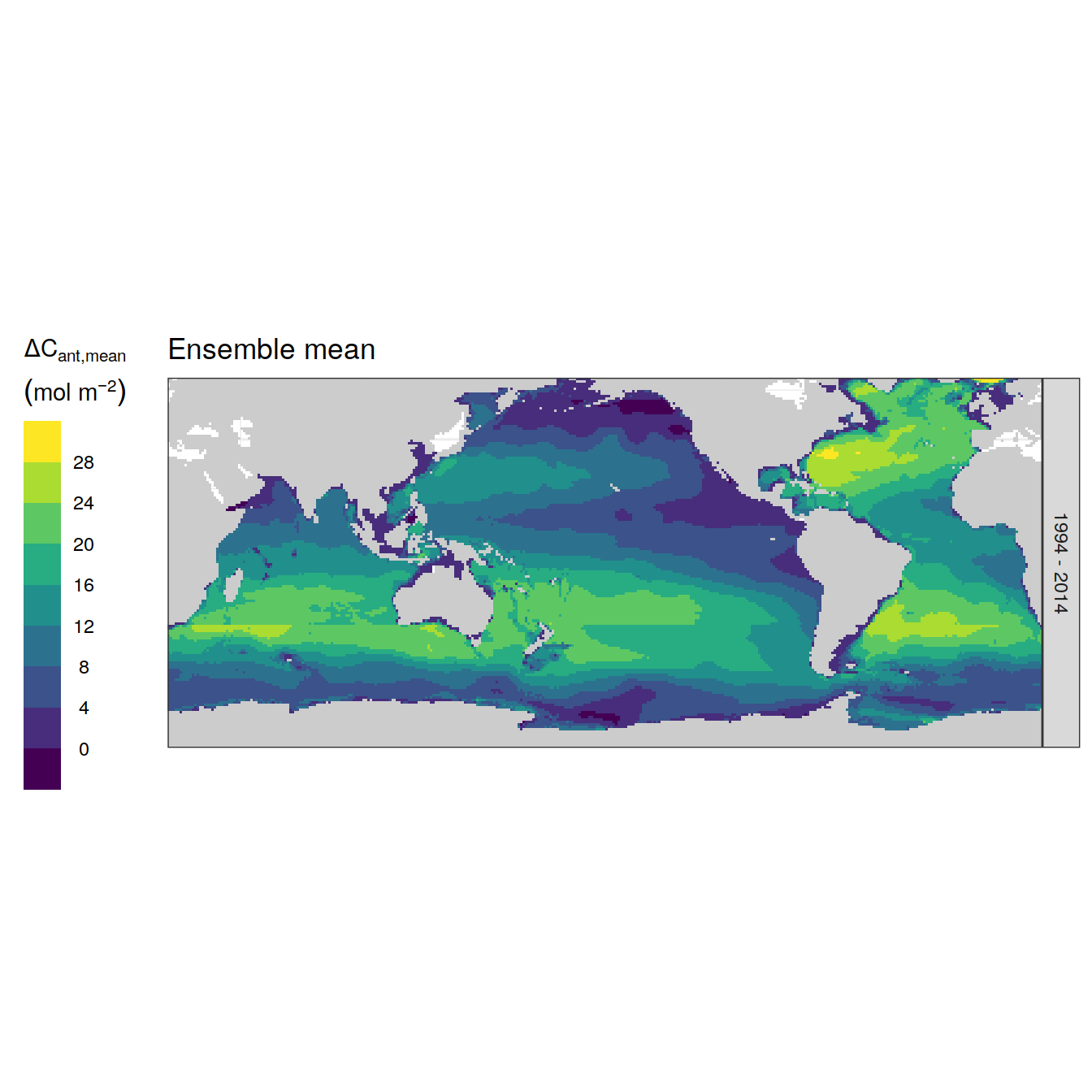

Past versions of ensemble_mean_two_decades-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
09b0780	jens-daniel-mueller	2022-05-24
acad2e2	jens-daniel-mueller	2022-04-09
c3a6238	jens-daniel-mueller	2022-03-08
269809e	jens-daniel-mueller	2022-01-12

4.2 Mean bias

dcant_inv_ensemble_bias <- full_join(
  dcant_inv_ensemble %>%
    filter(data_source == "mod") %>%
    select(lat, lon, period, dcant_mean, dcant_sd),
  dcant_inv_all %>%
    filter(data_source == "mod_truth",
           MLR_basins == unique(dcant_inv_all$MLR_basins)[1]) %>%
    select(lat, lon, period, dcant)
)

Joining, by = c("lat", "lon", "period")

dcant_inv_ensemble_bias <- dcant_inv_ensemble_bias %>%
  mutate(dcant_mean_bias = dcant_mean - dcant)

dcant_inv_ensemble_bias %>%
  filter(period != "1994 - 2014") %>%
  p_map_cant_inv(var = "dcant_mean_bias",
                 col = "bias",
                 subtitle_text = "Ensemble mean - mod_truth") +
  facet_grid(period ~ .)

Past versions of ensemble_mean_bias-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
e99640e	jens-daniel-mueller	2022-07-29
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
09b0780	jens-daniel-mueller	2022-05-24
acad2e2	jens-daniel-mueller	2022-04-09
c3a6238	jens-daniel-mueller	2022-03-08
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
ae5ae64	jens-daniel-mueller	2021-10-26
f9b4f93	jens-daniel-mueller	2021-10-05

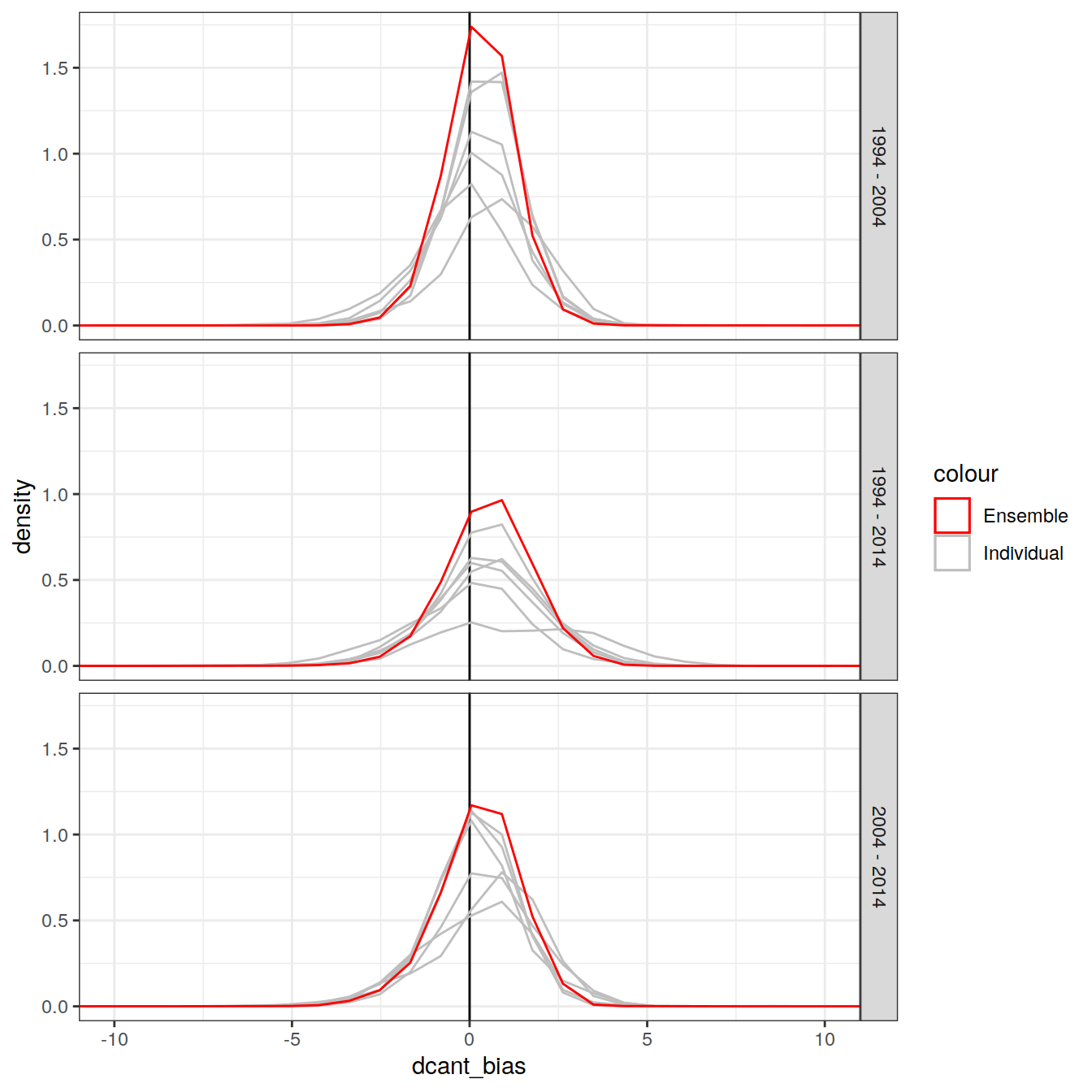

4.2.1 Density distribution

dcant_inv_bias_all %>%
  ggplot() +
  scale_color_manual(values = c("red", "grey")) +
  geom_vline(xintercept = 0) +
  geom_density(aes(dcant_bias, group = MLR_basins, col = "Individual")) +
  geom_density(data = dcant_inv_ensemble_bias,
               aes(dcant_mean_bias, col = "Ensemble")) +
  facet_grid(period ~.) +
  coord_cartesian(xlim = c(-10, 10))

Past versions of bias_density_distribution_ensemble-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
c3a6238	jens-daniel-mueller	2022-03-08
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12

4.3 Mean lat grid budgets

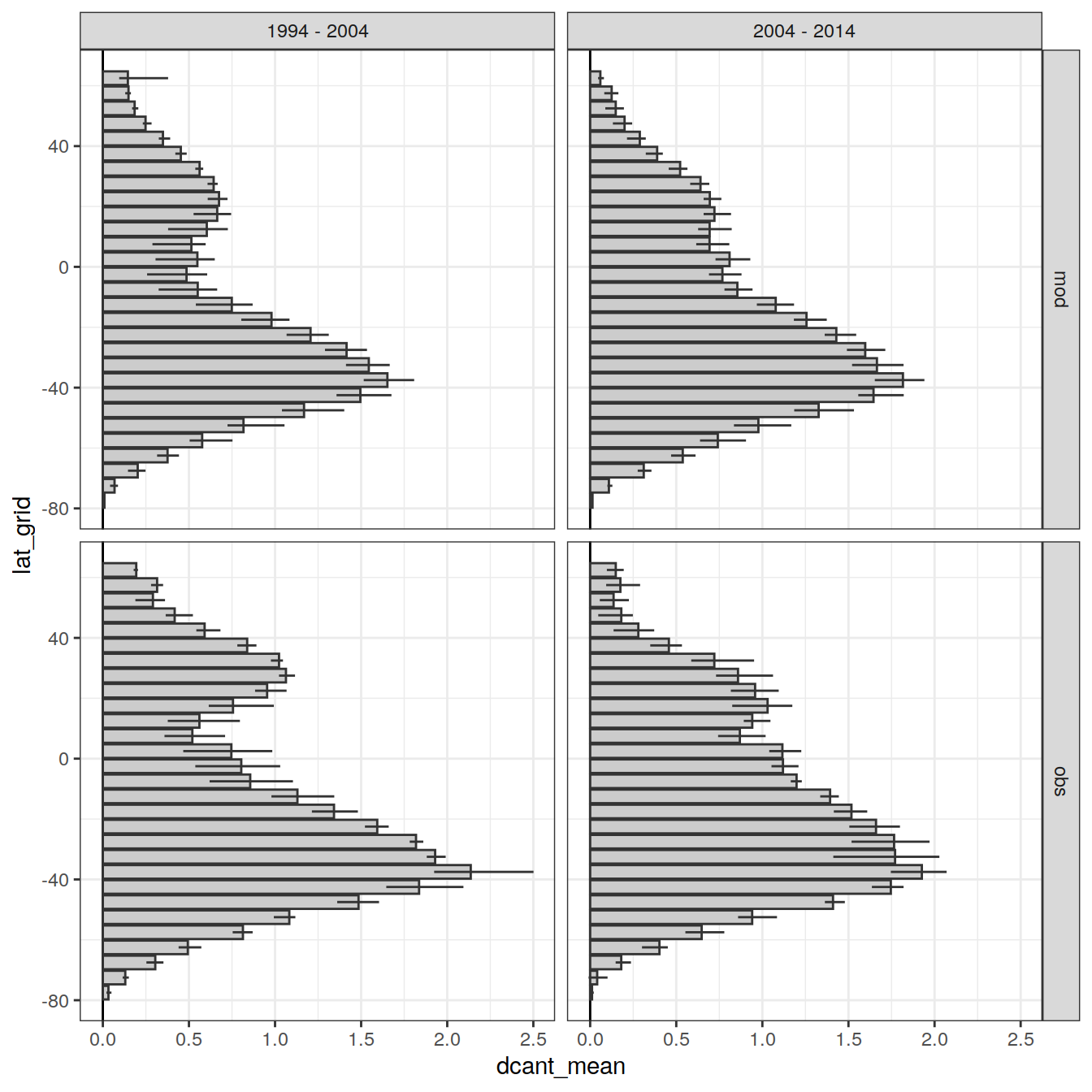

dcant_lat_grid_ensemble %>%
  ggplot(aes(lat_grid, dcant_mean)) +
  geom_hline(yintercept = 0) +
  geom_col(position = "dodge",
           fill = "grey80",
           col = "grey20") +
  geom_errorbar(aes(
    ymin = dcant_min,
    ymax = dcant_max
  ),
  col = "grey20",
  width = 0) +
  scale_color_brewer(palette = "Set1") +
  coord_flip() +
  scale_fill_brewer(palette = "Dark2") +
  facet_grid(data_source ~ period)

Past versions of lat_grid_budget_ensemble-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
c3a6238	jens-daniel-mueller	2022-03-08
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12

4.4 Mean lon grid budgets

dcant_lon_grid_ensemble %>%
  ggplot(aes(lon_grid, dcant_mean)) +
  geom_col(position = "dodge",
           fill = "grey80",
           col = "grey20") +
  geom_errorbar(aes(
    ymin = dcant_min,
    ymax = dcant_max
  ),
  col = "grey20",
  width = 0) +
  facet_grid(data_source ~ period)

Past versions of lon_grid_budget_ensemble-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12

4.5 Standard deviation

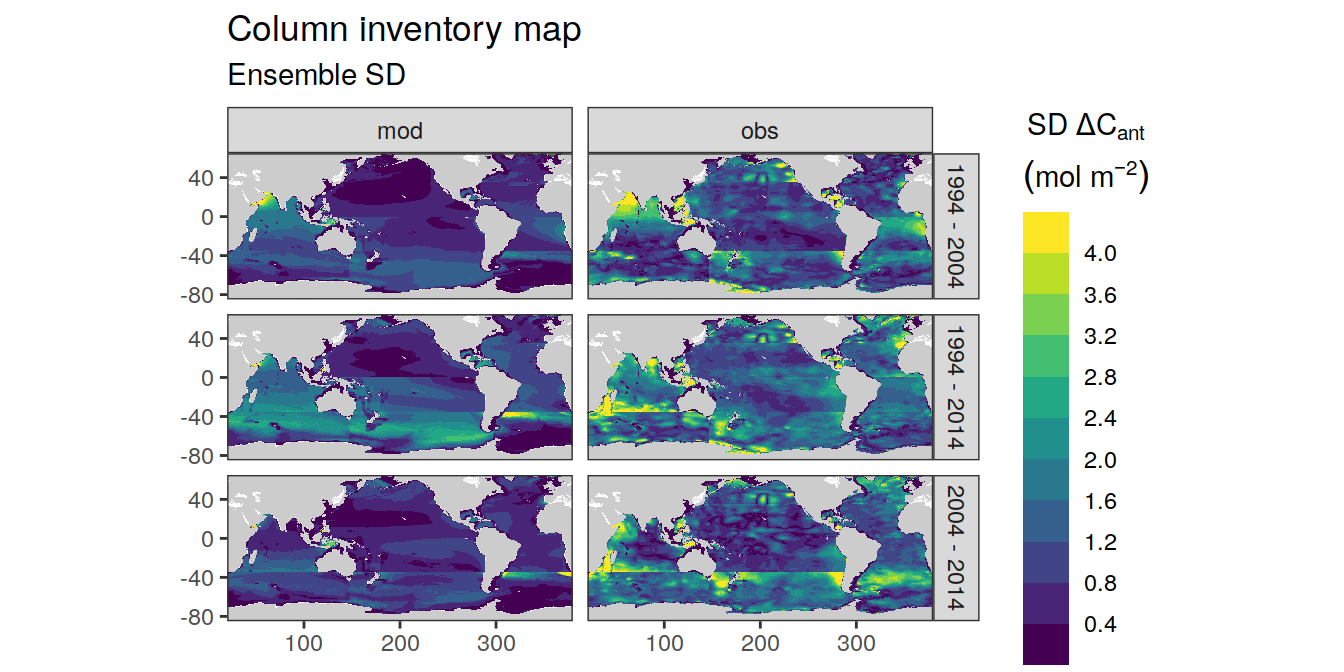

p_map_cant_inv(
  df = dcant_inv_ensemble,
  var = "dcant_sd",
  breaks = c(seq(0, 4, 0.4), Inf),
  subtitle_text = paste("Ensemble SD")
) +
  facet_grid(period ~ data_source)

Past versions of ensemble_sd-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
a13a7cf	jens-daniel-mueller	2022-06-28
cdabe91	jens-daniel-mueller	2022-06-27
09b0780	jens-daniel-mueller	2022-05-24
acad2e2	jens-daniel-mueller	2022-04-09
c3a6238	jens-daniel-mueller	2022-03-08
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
f9b4f93	jens-daniel-mueller	2021-10-05

4.6 SD as uncertainty

uncertainty_grid <- dcant_inv_ensemble %>%
  filter(dcant_sd > sd_uncertainty_limit) %>%
  distinct(lon, lat, data_source, period)

uncertainty_grid <- m_grid_horizontal_coarse(uncertainty_grid) %>%
  distinct(lon_grid, lat_grid, data_source, period)

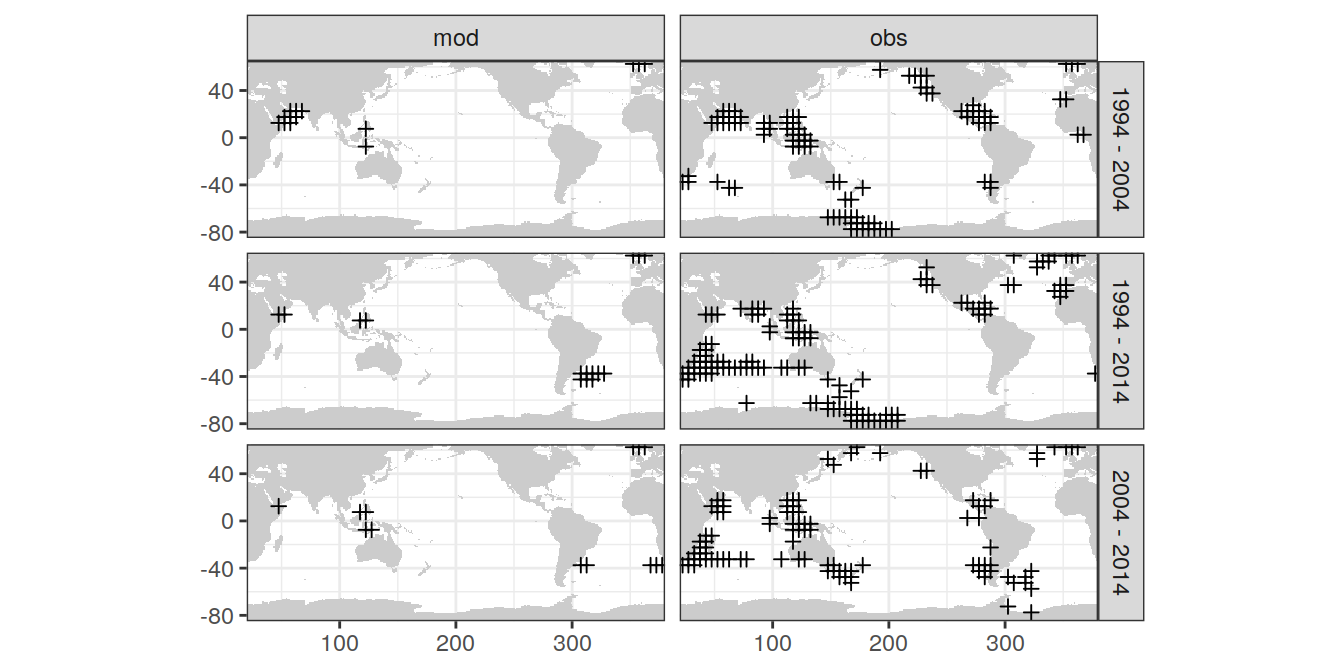

map +
  geom_point(data =
               uncertainty_grid,
             aes(lon_grid, lat_grid),
             shape = 3) +
  facet_grid(period ~ data_source)

Past versions of ensemble_sd_uncertainty-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
acad2e2	jens-daniel-mueller	2022-04-09
c3a6238	jens-daniel-mueller	2022-03-08
269809e	jens-daniel-mueller	2022-01-12

4.7 SD vs abs bias

4.7.1 2D bin

dcant_inv_ensemble_bias %>%
  ggplot(aes(abs(dcant_mean_bias), dcant_sd)) +
  geom_bin2d() +
  scale_fill_viridis_c() +
  facet_grid(. ~ period)

Past versions of ensemble_sd_vs_bias-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
c3a6238	jens-daniel-mueller	2022-03-08
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12

4.7.2 Density distributions

legend_title = expression(Delta * C[ant]~(mol~m^2))

dcant_density_distribution_bias <- dcant_inv_ensemble_bias %>%
  select(dcant_mean_bias, period) %>%
  pivot_longer(dcant_mean_bias,
               names_to = "estimate",
               values_to = "value") %>%
  mutate(data_source = "mod")

dcant_density_distribution <- dcant_inv_ensemble %>%
  select(dcant_mean, dcant_sd, period, data_source) %>%
  pivot_longer(dcant_mean:dcant_sd,
               names_to = "estimate",
               values_to = "value")

dcant_density_distribution <- bind_rows(dcant_density_distribution,
                                        dcant_density_distribution_bias) %>%
  mutate(period = factor(period, c("1994 - 2004", "2004 - 2014", "1994 - 2014")))

p_ensemble_distribution <-
  dcant_density_distribution %>%
  filter(period != "1994 - 2014") %>%
  mutate(
    data_source = recode(data_source,
                         mod = "Model",
                         obs = "Observations"),
    estimate = recode(
      estimate,
      dcant_mean = "Mean",
      dcant_mean_bias = "Bias",
      dcant_sd = "SD"
    )
  ) %>%
  ggplot(aes(value, fill = estimate, col = estimate)) +
  scale_color_brewer(palette = "Dark2") +
  scale_fill_brewer(palette = "Dark2") +
  geom_density(alpha = 0.2) +
  facet_grid(period ~ data_source) +
  labs(title = "Density distributions of column inventory ensemble properties",
       x = legend_title,
       y = "Density of 1x1° grid cells") +
  coord_cartesian(ylim = c(0, 0.5),
                  xlim = c(-5, 32))

# ggsave(plot = p_ensemble_distribution,
#        path = "output/other",
#        filename = "inv_ensemble_distribution.png",
#        height = 4,
#        width = 8)


p_ensemble_distribution <-
  dcant_density_distribution %>%
  filter(data_source == "obs") %>%
  mutate(
    data_source = recode(data_source,
                         mod = "Model",
                         obs = "Observations"),
    estimate = recode(
      estimate,
      dcant_mean = "Mean",
      dcant_mean_bias = "Bias",
      dcant_sd = "SD"
    )
  ) %>%
  ggplot(aes(value, fill = estimate, col = estimate)) +
  scale_color_brewer(palette = "Dark2") +
  scale_fill_brewer(palette = "Dark2") +
  geom_density(alpha = 0.2) +
  facet_grid(period ~ data_source) +
  labs(title = "Density distributions of column inventory ensemble properties",
       x = legend_title,
       y = "Density of 1x1° grid cells") +
  coord_cartesian(ylim = c(0, 0.5),
                  xlim = c(-5, 32))

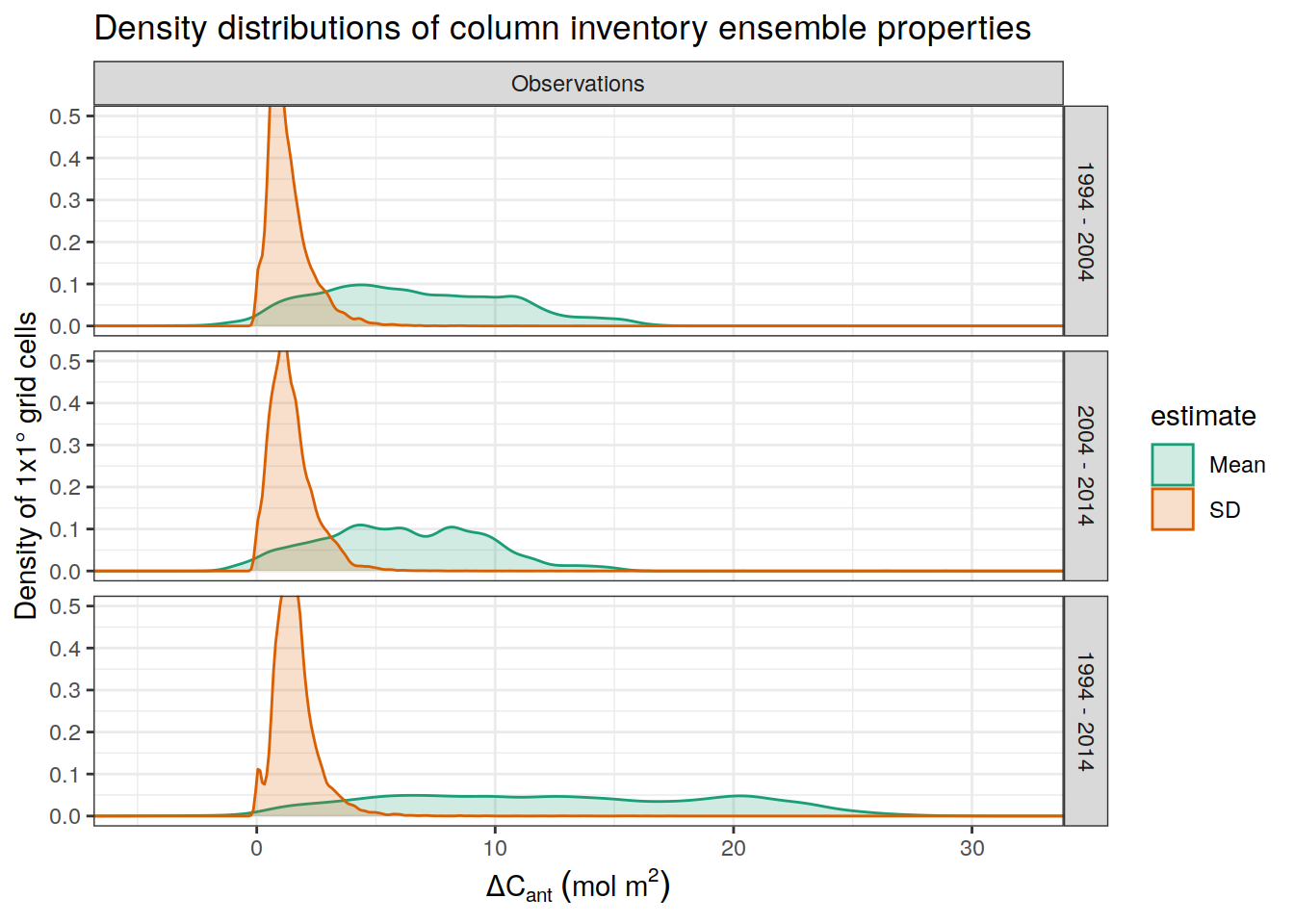

p_ensemble_distribution

Past versions of density_distributions-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
c3a6238	jens-daniel-mueller	2022-03-08
269809e	jens-daniel-mueller	2022-01-12

# ggsave(plot = p_ensemble_distribution,
#        path = "output/other",
#        filename = "inv_ensemble_distribution_all.png",
#        height = 6,
#        width = 5)

4.8 Range

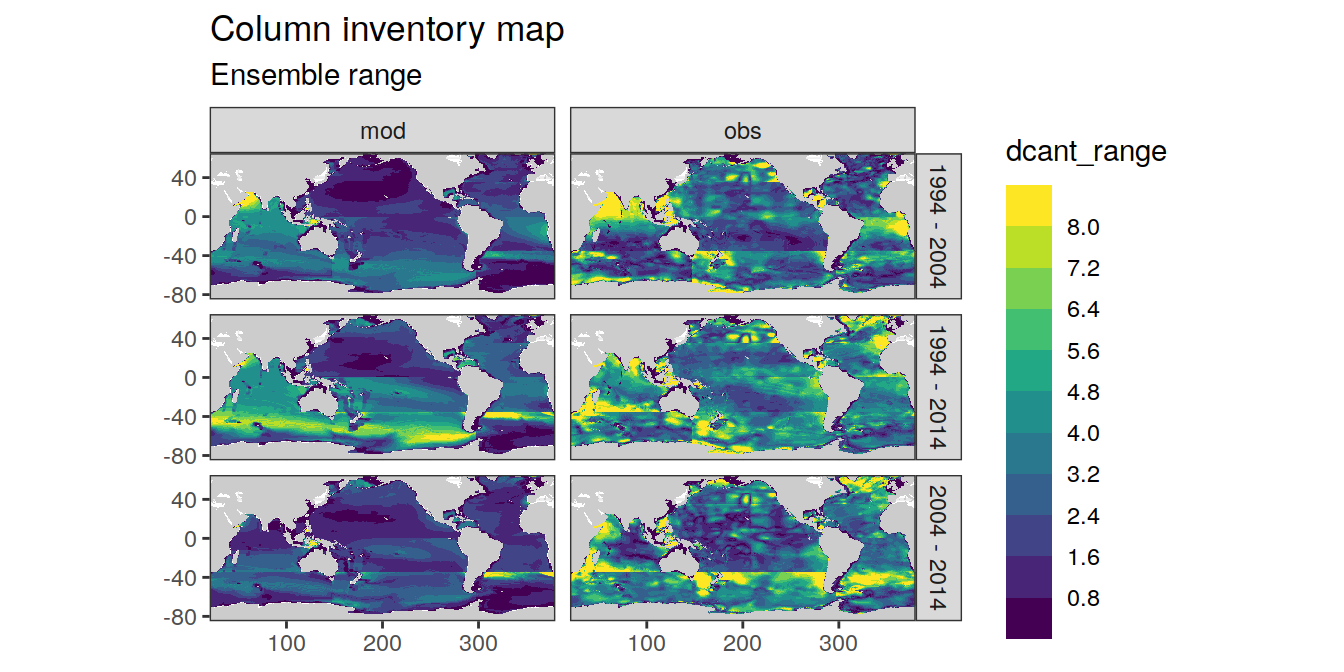

p_map_cant_inv(
  df = dcant_inv_ensemble,
  var = "dcant_range",
  breaks = c(seq(0,8,0.8), Inf),
  subtitle_text = paste("Ensemble range")
) +
  facet_grid(period ~ data_source)

Past versions of ensemble_range-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
09b0780	jens-daniel-mueller	2022-05-24
acad2e2	jens-daniel-mueller	2022-04-09
c3a6238	jens-daniel-mueller	2022-03-08
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
ecbdffe	jens-daniel-mueller	2021-12-03
ae5ae64	jens-daniel-mueller	2021-10-26
f9b4f93	jens-daniel-mueller	2021-10-05

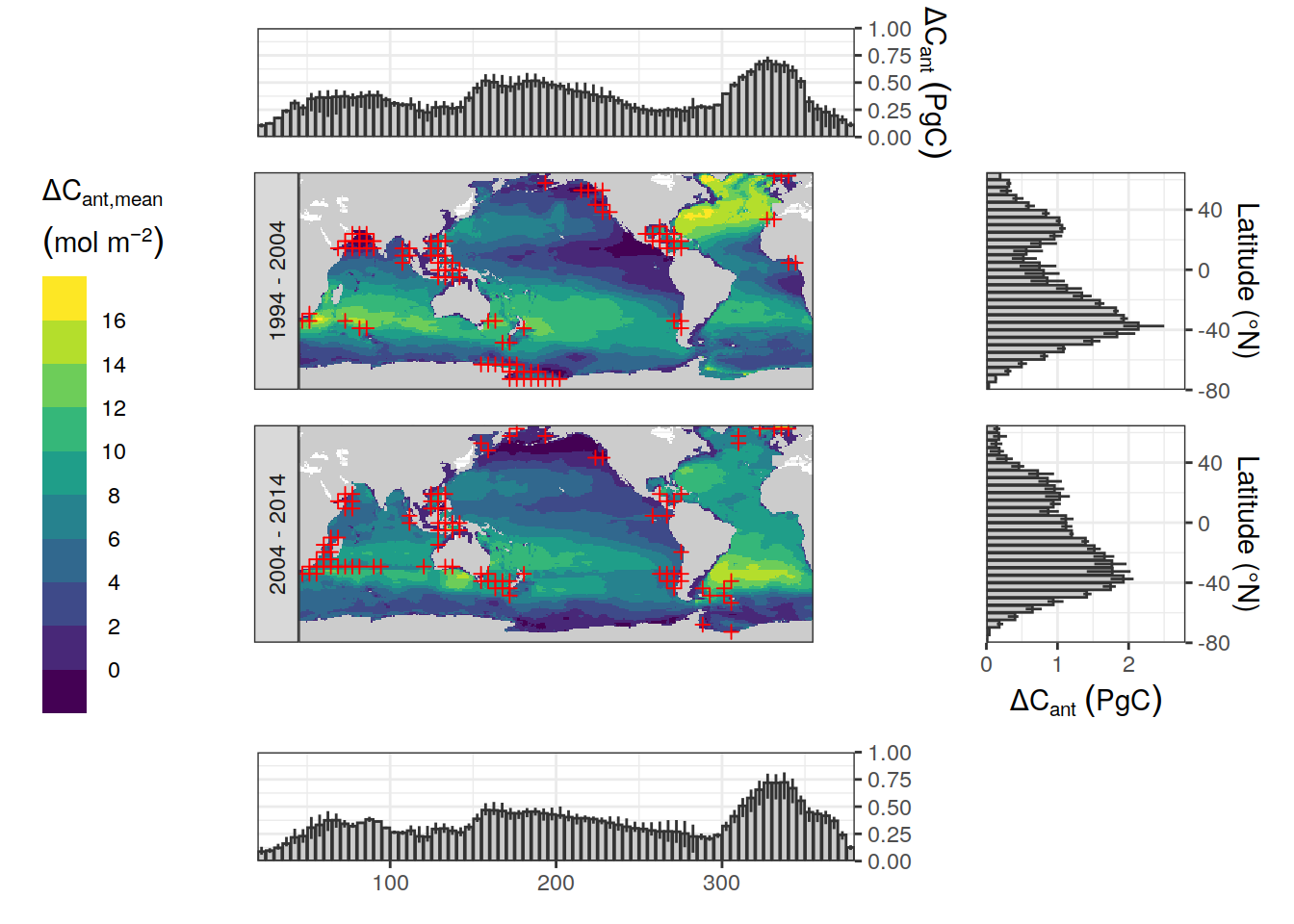

4.9 Composed figure

uncertainty_grid <- uncertainty_grid %>%
  filter(data_source == "obs")

p_map_94 <- p_map_cant_inv(
  df = dcant_inv_ensemble %>%
    filter(period == "1994 - 2004",
           data_source == "obs"),
  var = "dcant_mean",
  subtitle_text = NULL,
  title_text = NULL
) +
  geom_point(
    data =
      uncertainty_grid %>% filter(period == "1994 - 2004"),
    aes(lon_grid, lat_grid),
    shape = 3,
    col = "red"
  ) +
  theme(
    axis.text = element_blank(),
    axis.ticks = element_blank(),
    legend.position = "left"
  ) +
  facet_grid(period ~ .,
             switch = "y")

p_map_04 <- p_map_cant_inv(
  df = dcant_inv_ensemble %>%
    filter(period == "2004 - 2014",
           data_source == "obs"),
  var = "dcant_mean",
  subtitle_text = NULL,
  title_text = NULL
) +
  geom_point(
    data =
      uncertainty_grid %>% filter(period == "2004 - 2014"),
    aes(lon_grid, lat_grid),
    shape = 3,
    col = "red"
  ) +
  theme(
    axis.text = element_blank(),
    axis.ticks = element_blank(),
    legend.position = "left"
  ) +
  facet_grid(period ~ .,
             switch = "y")

p_lon_94 <- dcant_lon_grid_ensemble %>%
  filter(data_source == "obs",
         period == "1994 - 2004") %>%
  ggplot(aes(lon_grid, dcant_mean)) +
  geom_col(position = "dodge",
           fill = "grey80",
           col = "grey20") +
  geom_errorbar(aes(ymin = dcant_min,
                    ymax = dcant_max),
                col = "grey20",
                width = 0) +
  scale_y_continuous(
    limits = c(0, 1),
    expand = c(0, 0),
    name = expression(Delta * C[ant] ~ (PgC)),
    position = "right"
  ) +
  scale_x_continuous(name = "Longitude (°E)",
                     limits = c(20, 380),
                     expand = c(0, 0)) +
  theme(
    axis.title.x = element_blank(),
    axis.text.x = element_blank(),
    axis.ticks.x = element_blank()
  )
# coord_fixed(ratio = 100)

p_lon_04 <- dcant_lon_grid_ensemble %>%
  filter(data_source == "obs",
         period == "2004 - 2014") %>%
  ggplot(aes(lon_grid, dcant_mean)) +
  geom_col(position = "dodge",
           fill = "grey80",
           col = "grey20") +
  geom_errorbar(aes(
    ymin = dcant_min,
    ymax = dcant_max
  ),
  col = "grey20",
  width = 0) +
  scale_y_continuous(limits = c(0,1), expand = c(0,0),
                     name = expression(Delta*C[ant]~(PgC)),
                     position = "right") +
  scale_x_continuous(name = "Longitude (°E)",
                     limits = c(20,380), expand = c(0,0)) +
  theme(title = element_blank())
  # coord_fixed(ratio = 100)

p_lat_94 <- dcant_lat_grid_ensemble %>%
  filter(data_source == "obs",
         period == "1994 - 2004") %>%
  ggplot(aes(dcant_mean, lat_grid)) +
  geom_col(
    position = "dodge",
    fill = "grey80",
    col = "grey20",
    orientation = "y"
  ) +
  geom_errorbar(aes(xmin = dcant_min,
                    xmax = dcant_max),
                col = "grey20",
                width = 0) +
  scale_x_continuous(
    limits = c(0, 2.8),
    expand = c(0, 0),
    name = expression(Delta * C[ant] ~ (PgC))
  ) +
  scale_y_continuous(
    name = "Latitude (°N)",
    limits = c(-80, 65),
    expand = c(0, 0),
    position = "right"
  ) +
  theme(
    axis.title.x = element_blank(),
    axis.text.x = element_blank(),
    axis.ticks.x = element_blank()
  )
  # coord_fixed(ratio = 5e-2)

p_lat_04 <- dcant_lat_grid_ensemble %>%
  filter(data_source == "obs",
         period == "2004 - 2014") %>%
  ggplot(aes(dcant_mean, lat_grid)) +
  geom_col(position = "dodge",
           fill = "grey80",
           col = "grey20",
           orientation = "y") +
  geom_errorbar(aes(xmin = dcant_min,
                    xmax = dcant_max),
                col = "grey20",
                width = 0) +
  scale_x_continuous(
    limits = c(0, 2.8),
    expand = c(0, 0),
    name = expression(Delta * C[ant] ~ (PgC))
  ) +
  scale_y_continuous(name = "Latitude (°N)",
                     limits = c(-80, 65),
                     expand = c(0, 0),
                     position = "right")

t_94 <- grid::textGrob("1994 -\n2004")
t_04 <- grid::textGrob("2004 -\n2014")


layout <- "
BBB#
AAAD
AAAD
CCCE
CCCE
GGG#
"

wrap_plots(B = p_lon_94, A = p_map_94, D = p_lat_94,
           G = p_lon_04, C = p_map_04, E = p_lat_04,
           design = layout,
           guides = "collect")&
  theme(legend.position = "left")

Past versions of composed_figure-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
d5765c9	jens-daniel-mueller	2022-07-17
cdabe91	jens-daniel-mueller	2022-06-27
09b0780	jens-daniel-mueller	2022-05-24
acad2e2	jens-daniel-mueller	2022-04-09
c3a6238	jens-daniel-mueller	2022-03-08
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12

# ggsave("output/publication/Fig_column_inventories.png",
#        width=11,
#        height=9.27)

5 Cases vs ensemble

5.1 Offset from mean

dcant_inv_all <- full_join(dcant_inv_all,
                           dcant_inv_ensemble)

Joining, by = c("data_source", "lon", "lat", "period")

dcant_inv_all <- dcant_inv_all %>%
  mutate(dcant_offset = dcant - dcant_mean)

dcant_inv_all %>%
  filter(data_source %in% c("mod", "obs")) %>%
  group_by(period) %>%
  group_split() %>%
  # head(1) %>%
  map(
    ~ p_map_cant_inv(df = .x,
                     var = "dcant_offset",
                     col = "bias",
                     subtitle_text = paste("period:",
                                           unique(.x$period))) +
      facet_grid(MLR_basins ~ data_source)
  )

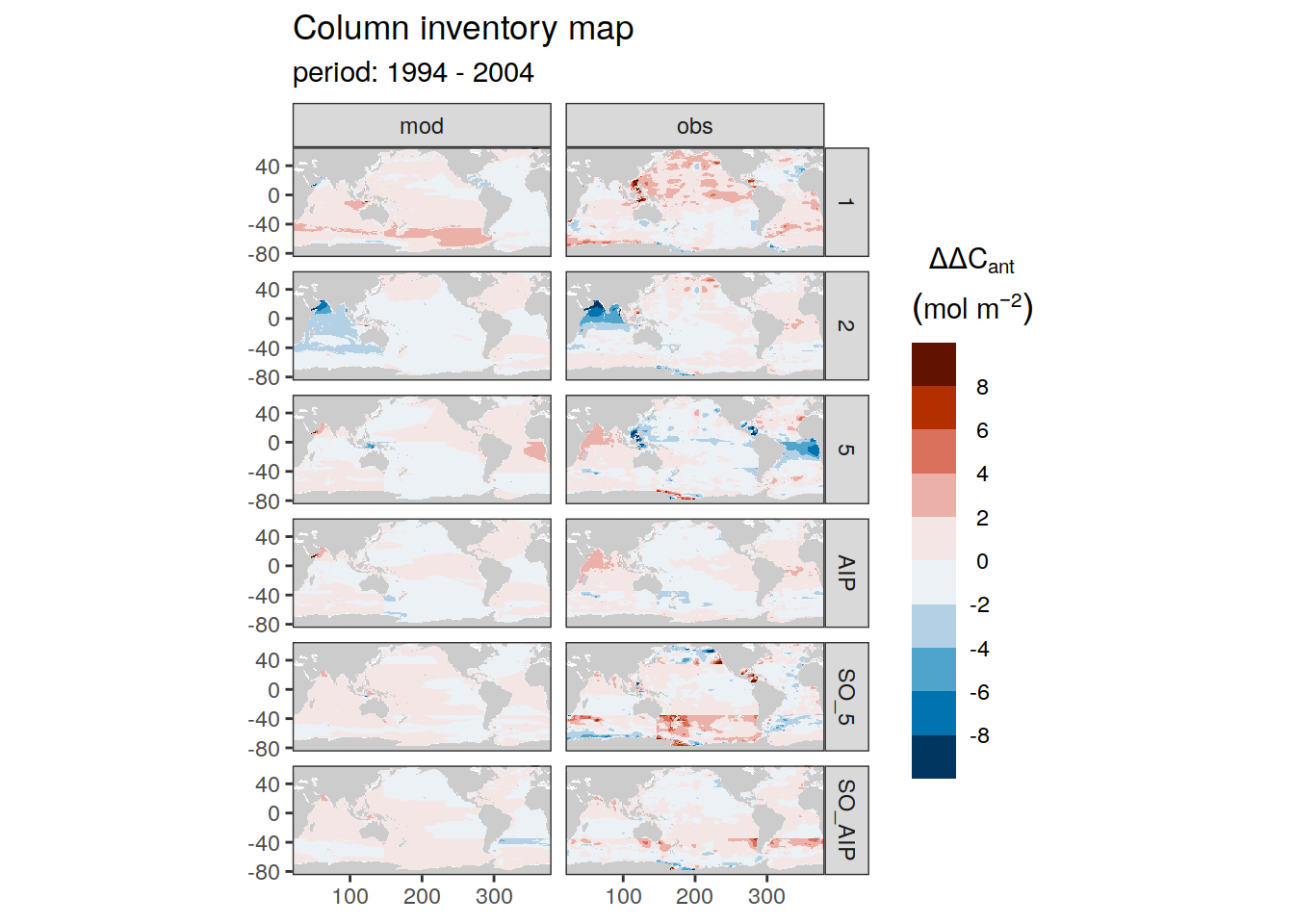

[[1]]

Past versions of ensemble_deviation_from_mean-1.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
e99640e	jens-daniel-mueller	2022-07-29
d5765c9	jens-daniel-mueller	2022-07-17
b44c72a	jens-daniel-mueller	2022-07-03
cdabe91	jens-daniel-mueller	2022-06-27
09b0780	jens-daniel-mueller	2022-05-24
acad2e2	jens-daniel-mueller	2022-04-09
c3a6238	jens-daniel-mueller	2022-03-08
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
316ea5f	jens-daniel-mueller	2021-12-09
9c72ef3	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
a037b24	jens-daniel-mueller	2021-12-03
ecbdffe	jens-daniel-mueller	2021-12-03
ae5ae64	jens-daniel-mueller	2021-10-26
f9b4f93	jens-daniel-mueller	2021-10-05

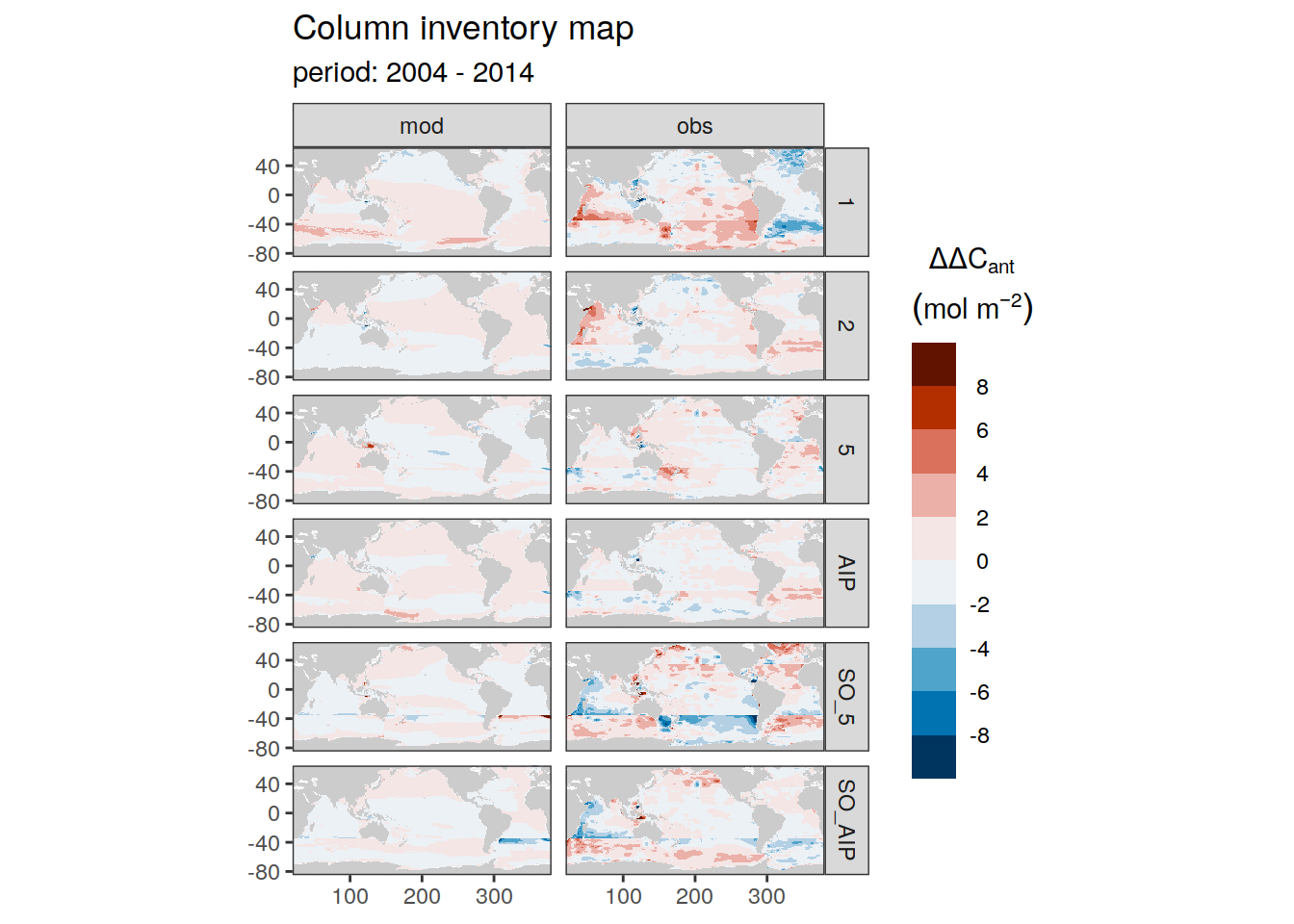

[[2]]

Past versions of ensemble_deviation_from_mean-2.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
e99640e	jens-daniel-mueller	2022-07-29
d5765c9	jens-daniel-mueller	2022-07-17
b44c72a	jens-daniel-mueller	2022-07-03
cdabe91	jens-daniel-mueller	2022-06-27
09b0780	jens-daniel-mueller	2022-05-24
acad2e2	jens-daniel-mueller	2022-04-09
c3a6238	jens-daniel-mueller	2022-03-08
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12
b10afbc	jens-daniel-mueller	2022-01-05
f0c828a	jens-daniel-mueller	2021-12-22
f4250b0	jens-daniel-mueller	2021-12-08
bd4091f	jens-daniel-mueller	2021-12-04
a037b24	jens-daniel-mueller	2021-12-03
ecbdffe	jens-daniel-mueller	2021-12-03
ae5ae64	jens-daniel-mueller	2021-10-26
f9b4f93	jens-daniel-mueller	2021-10-05

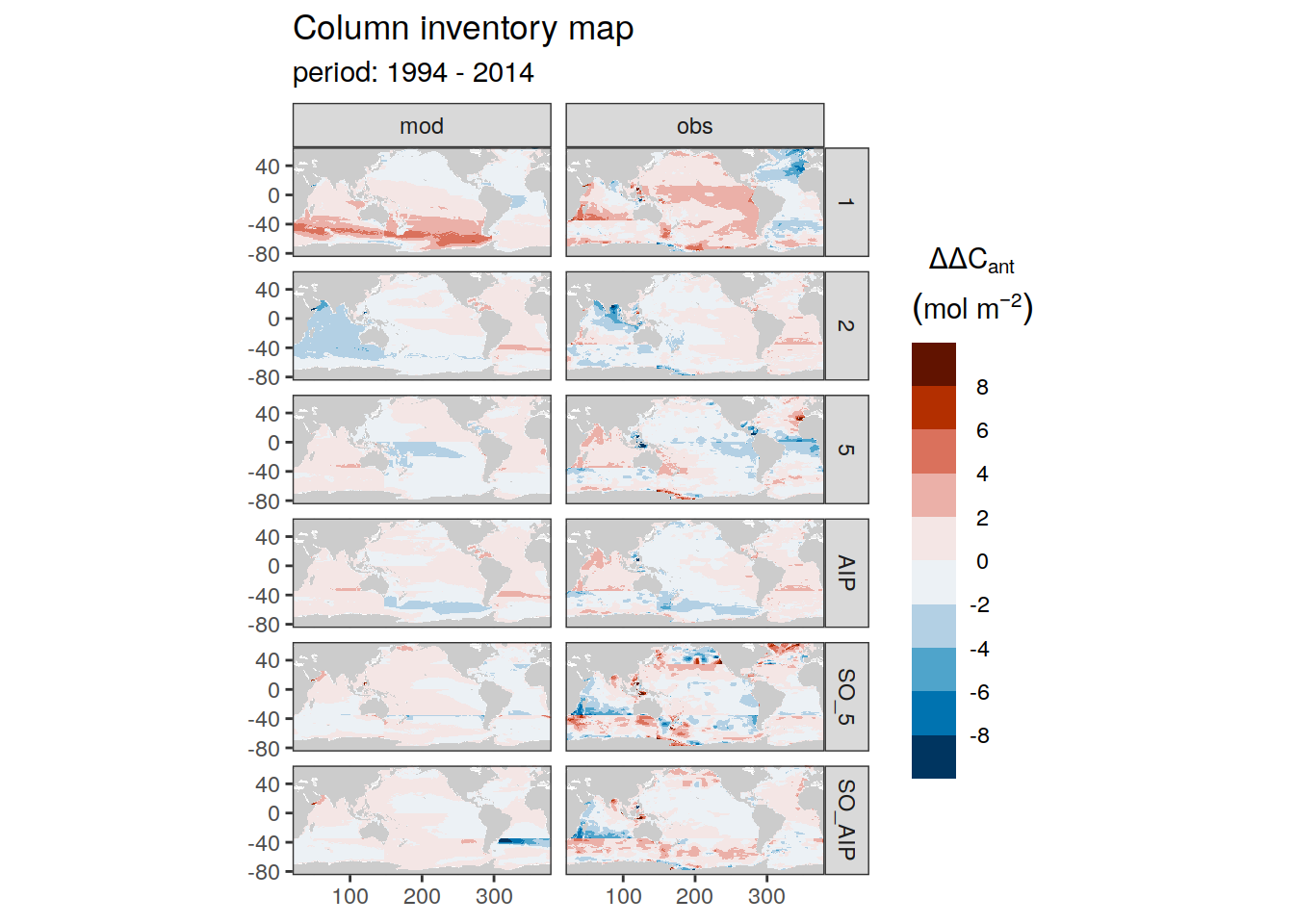

[[3]]

Past versions of ensemble_deviation_from_mean-3.png

Version	Author	Date
ec60f68	jens-daniel-mueller	2022-11-07
e99640e	jens-daniel-mueller	2022-07-29
d5765c9	jens-daniel-mueller	2022-07-17
b44c72a	jens-daniel-mueller	2022-07-03
cdabe91	jens-daniel-mueller	2022-06-27
09b0780	jens-daniel-mueller	2022-05-24
acad2e2	jens-daniel-mueller	2022-04-09
c3a6238	jens-daniel-mueller	2022-03-08
3b07c04	jens-daniel-mueller	2022-01-12
269809e	jens-daniel-mueller	2022-01-12

for (i_Version_IDs in Version_IDs) {
  # i_Version_IDs <- Version_IDs[1]

  path_version_data     <-
  paste(path_observations,
        i_Version_IDs,
        "/data/",
        sep = "")



  GLODAP_grid_era  <-
  read_csv(paste(path_version_data,
                  "GLODAPv2.2020_clean_obs_grid_era.csv",
                  sep = ""))


  GLODAP_grid_era  <- GLODAP_grid_era %>%
    mutate(Version_ID = i_Version_IDs)



  if (exists("GLODAP_grid_era_all")) {
    GLODAP_grid_era_all <- bind_rows(GLODAP_grid_era_all, GLODAP_grid_era)
  }

  if (!exists("GLODAP_grid_era_all")) {
    GLODAP_grid_era_all <- GLODAP_grid_era
  }


  GLODAP_grid_era_all %>%
  group_split(period) %>%
  # head(1) %>%
  map(
    ~ map +
      geom_tile(data = .x,
             aes(lon, lat)) +
      facet_grid(gap_filling ~ era) +
      theme(axis.text = element_blank(),
            axis.ticks = element_blank())
  )


  GLODAP_grid_era_all <- full_join(GLODAP_grid_era_all,
                                params_local_all)



}

Session information

sessionInfo()

R version 4.1.2 (2021-11-01)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: openSUSE Leap 15.3

Matrix products: default
BLAS:   /usr/local/R-4.1.2/lib64/R/lib/libRblas.so
LAPACK: /usr/local/R-4.1.2/lib64/R/lib/libRlapack.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] geomtextpath_0.1.0 colorspace_2.0-2   marelac_2.1.10     shape_1.4.6
 [5] ggforce_0.3.3      metR_0.11.0        scico_1.3.0        patchwork_1.1.1
 [9] collapse_1.7.0     forcats_0.5.1      stringr_1.4.0      dplyr_1.0.7
[13] purrr_0.3.4        readr_2.1.1        tidyr_1.1.4        tibble_3.1.6
[17] ggplot2_3.3.5      tidyverse_1.3.1    workflowr_1.7.0

loaded via a namespace (and not attached):
 [1] fs_1.5.2           bit64_4.0.5        lubridate_1.8.0    gsw_1.0-6
 [5] RColorBrewer_1.1-2 httr_1.4.2         rprojroot_2.0.2    tools_4.1.2
 [9] backports_1.4.1    bslib_0.3.1        utf8_1.2.2         R6_2.5.1
[13] DBI_1.1.2          withr_2.4.3        tidyselect_1.1.1   processx_3.5.2
[17] bit_4.0.4          compiler_4.1.2     git2r_0.29.0       textshaping_0.3.6
[21] cli_3.1.1          rvest_1.0.2        xml2_1.3.3         labeling_0.4.2
[25] sass_0.4.0         scales_1.1.1       checkmate_2.0.0    SolveSAPHE_2.1.0
[29] callr_3.7.0        systemfonts_1.0.3  digest_0.6.29      rmarkdown_2.11
[33] oce_1.5-0          pkgconfig_2.0.3    htmltools_0.5.2    highr_0.9
[37] dbplyr_2.1.1       fastmap_1.1.0      rlang_1.0.2        readxl_1.3.1
[41] rstudioapi_0.13    jquerylib_0.1.4    generics_0.1.1     farver_2.1.0
[45] jsonlite_1.7.3     vroom_1.5.7        magrittr_2.0.1     Rcpp_1.0.8
[49] munsell_0.5.0      fansi_1.0.2        lifecycle_1.0.1    stringi_1.7.6
[53] whisker_0.4        yaml_2.2.1         MASS_7.3-55        grid_4.1.2
[57] parallel_4.1.2     promises_1.2.0.1   crayon_1.4.2       haven_2.4.3
[61] hms_1.1.1          seacarb_3.3.0      knitr_1.37         ps_1.6.0
[65] pillar_1.6.4       reprex_2.0.1       glue_1.6.0         evaluate_0.14
[69] getPass_0.2-2      data.table_1.14.2  modelr_0.1.8       vctrs_0.3.8
[73] tzdb_0.2.0         tweenr_1.0.2       httpuv_1.6.5       cellranger_1.1.0
[77] gtable_0.3.0       polyclip_1.10-0    assertthat_0.2.1   xfun_0.29
[81] broom_0.7.11       later_1.3.0        viridisLite_0.4.0  ellipsis_0.3.2
[85] here_1.0.1
