version_id_pattern <- "g"
config <- "MLR_basins"

1 Read files

print(version_id_pattern)
[1] "g"
# identify required version IDs

Version_IDs_1 <- list.files(path = "/nfs/kryo/work/jenmueller/emlr_cant/observations",
                            pattern = paste0("v_1", "g"))

Version_IDs_2 <- list.files(path = "/nfs/kryo/work/jenmueller/emlr_cant/observations",
                            pattern = paste0("v_2", "g"))

Version_IDs_3 <- list.files(path = "/nfs/kryo/work/jenmueller/emlr_cant/observations",
                            pattern = paste0("v_3", "g"))

Version_IDs <- c(Version_IDs_1, Version_IDs_2, Version_IDs_3)

# print(Version_IDs)
for (i_Version_IDs in Version_IDs) {
  # i_Version_IDs <- Version_IDs[1]

  # print(i_Version_IDs)

  path_version_data     <-
  paste(path_observations,
        i_Version_IDs,
        "/data/",
        sep = "")

  # load and join data files

  dcant_zonal <-
    read_csv(paste(path_version_data,
                   "dcant_zonal.csv",
                   sep = ""))

  dcant_zonal_mod_truth <-
    read_csv(paste(path_version_data,
                   "dcant_zonal_mod_truth.csv",
                   sep = ""))

  dcant_zonal <- bind_rows(dcant_zonal,
                         dcant_zonal_mod_truth)

  dcant_profile <-
    read_csv(paste(path_version_data,
                   "dcant_profile.csv",
                   sep = ""))

  dcant_profile_mod_truth <-
    read_csv(paste(path_version_data,
                   "dcant_profile_mod_truth.csv",
                   sep = ""))

  dcant_profile <- bind_rows(dcant_profile,
                             dcant_profile_mod_truth)

  dcant_budget_basin_AIP_layer <-
    read_csv(paste(path_version_data,
                   "dcant_budget_basin_AIP_layer.csv",
                   sep = ""))

  dcant_zonal_bias <-
    read_csv(paste(path_version_data,
                   "dcant_zonal_bias.csv",
                   sep = ""))


  dcant_zonal <- dcant_zonal %>%
    mutate(Version_ID = i_Version_IDs)

  dcant_profile <- dcant_profile %>%
    mutate(Version_ID = i_Version_IDs)

  dcant_budget_basin_AIP_layer <- dcant_budget_basin_AIP_layer %>%
    mutate(Version_ID = i_Version_IDs)

  dcant_zonal_bias <- dcant_zonal_bias %>%
    mutate(Version_ID = i_Version_IDs)

  params_local <-
    read_rds(paste(path_version_data,
                   "params_local.rds",
                   sep = ""))

  params_local <- bind_cols(
    Version_ID = i_Version_IDs,
    MLR_basins := str_c(params_local$MLR_basins, collapse = "|"),
    tref1 = params_local$tref1,
    tref2 = params_local$tref2)

  tref <- read_csv(paste(path_version_data,
                         "tref.csv",
                         sep = ""))

  params_local <- params_local %>%
    mutate(median_year_1 = sort(tref$median_year)[1],
           median_year_2 = sort(tref$median_year)[2],
           duration = median_year_2 - median_year_1,
           period = paste(median_year_1, "-", median_year_2))

  if (exists("dcant_zonal_all")) {
    dcant_zonal_all <- bind_rows(dcant_zonal_all, dcant_zonal)
  }

  if (!exists("dcant_zonal_all")) {
    dcant_zonal_all <- dcant_zonal
  }

  if (exists("dcant_profile_all")) {
    dcant_profile_all <- bind_rows(dcant_profile_all, dcant_profile)
  }

  if (!exists("dcant_profile_all")) {
    dcant_profile_all <- dcant_profile
  }

  if (exists("dcant_budget_basin_AIP_layer_all")) {
    dcant_budget_basin_AIP_layer_all <-
      bind_rows(dcant_budget_basin_AIP_layer_all,
                dcant_budget_basin_AIP_layer)
  }

  if (!exists("dcant_budget_basin_AIP_layer_all")) {
    dcant_budget_basin_AIP_layer_all <- dcant_budget_basin_AIP_layer
  }

  if (exists("dcant_zonal_bias_all")) {
    dcant_zonal_bias_all <- bind_rows(dcant_zonal_bias_all, dcant_zonal_bias)
  }

  if (!exists("dcant_zonal_bias_all")) {
    dcant_zonal_bias_all <- dcant_zonal_bias
  }

  if (exists("params_local_all")) {
    params_local_all <- bind_rows(params_local_all, params_local)
  }

  if (!exists("params_local_all")) {
    params_local_all <- params_local
  }


}

rm(dcant_zonal, dcant_zonal_bias, dcant_zonal_mod_truth,
   dcant_budget_basin_AIP_layer,
   tref)
all_predictors <- c("saltempaouoxygenphosphatenitratesilicate")

params_local_all <- params_local_all %>%
  mutate(MLR_predictors = str_remove_all(all_predictors,
                                         MLR_predictors))

2 Uncertainty limit

sd_uncertainty_limit <- 1.5

3 Individual cases

3.1 Absoulte values

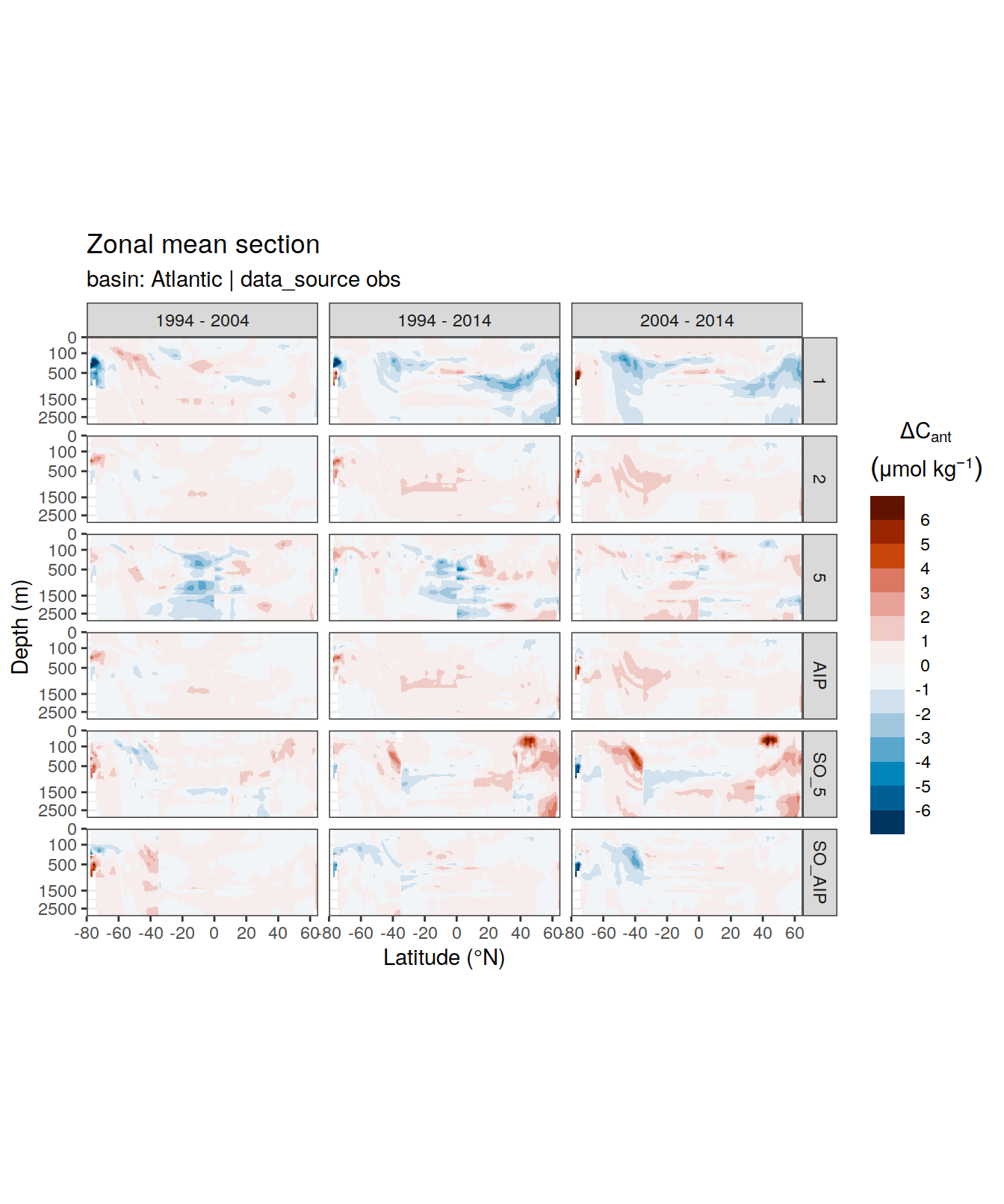

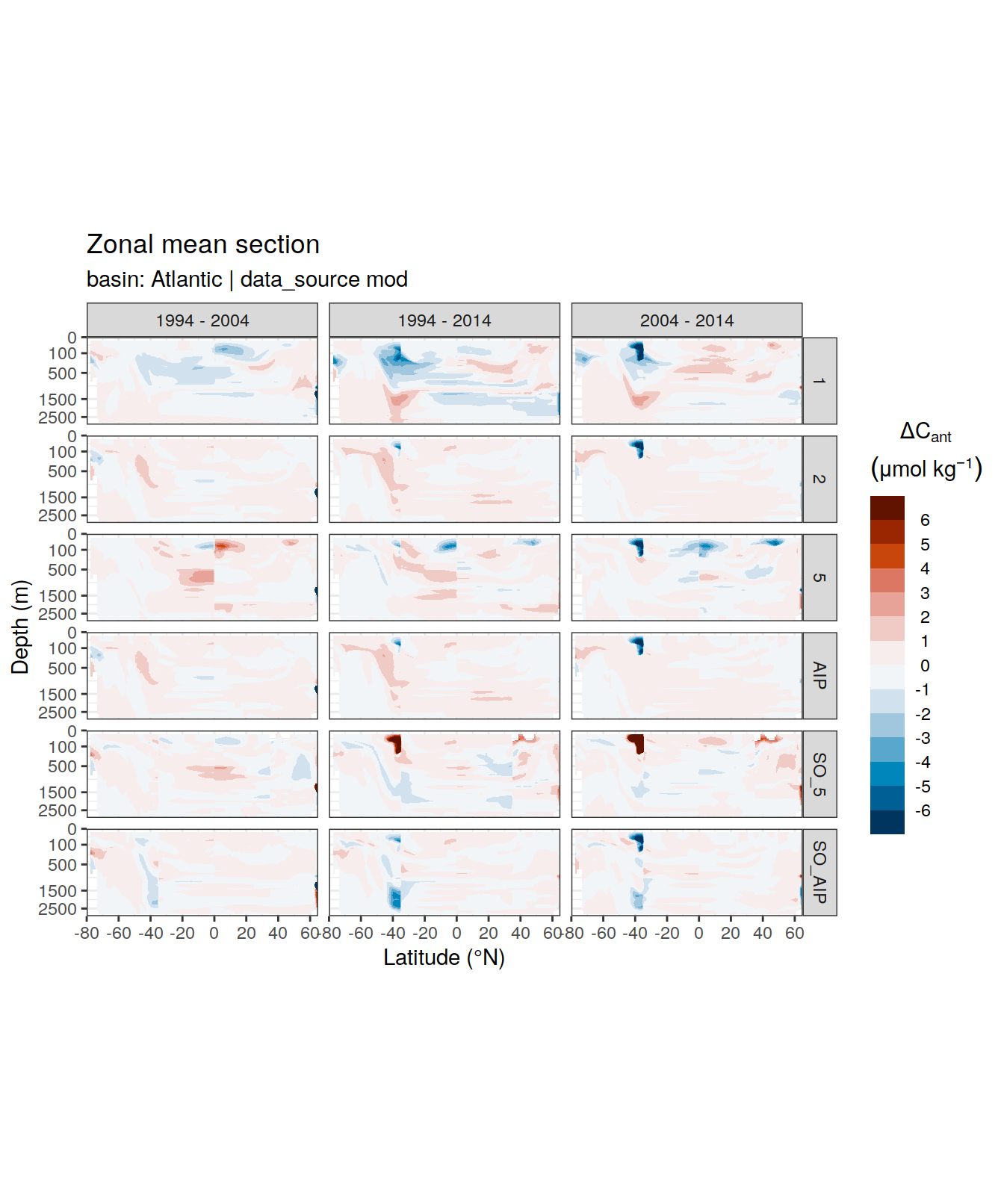

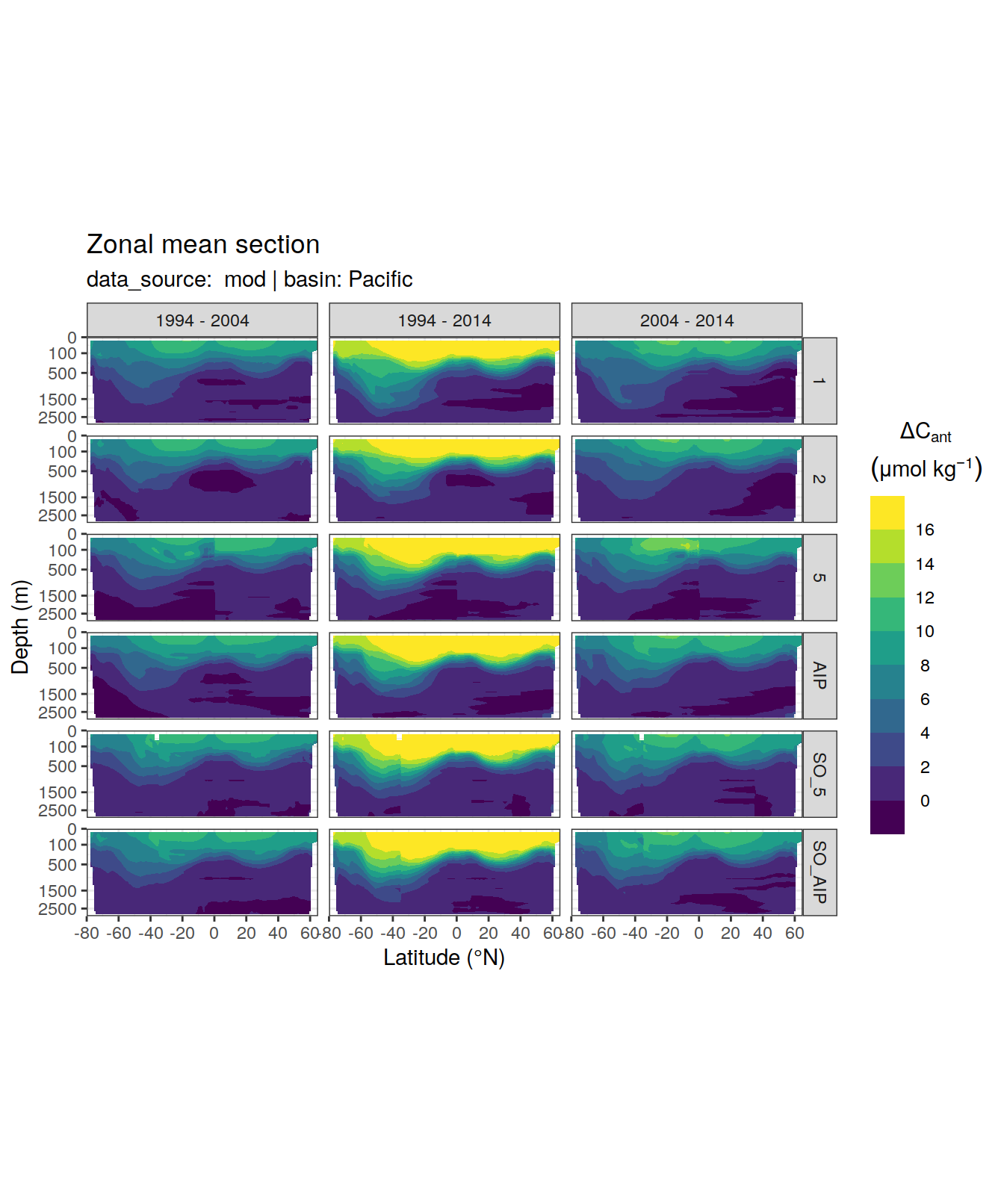

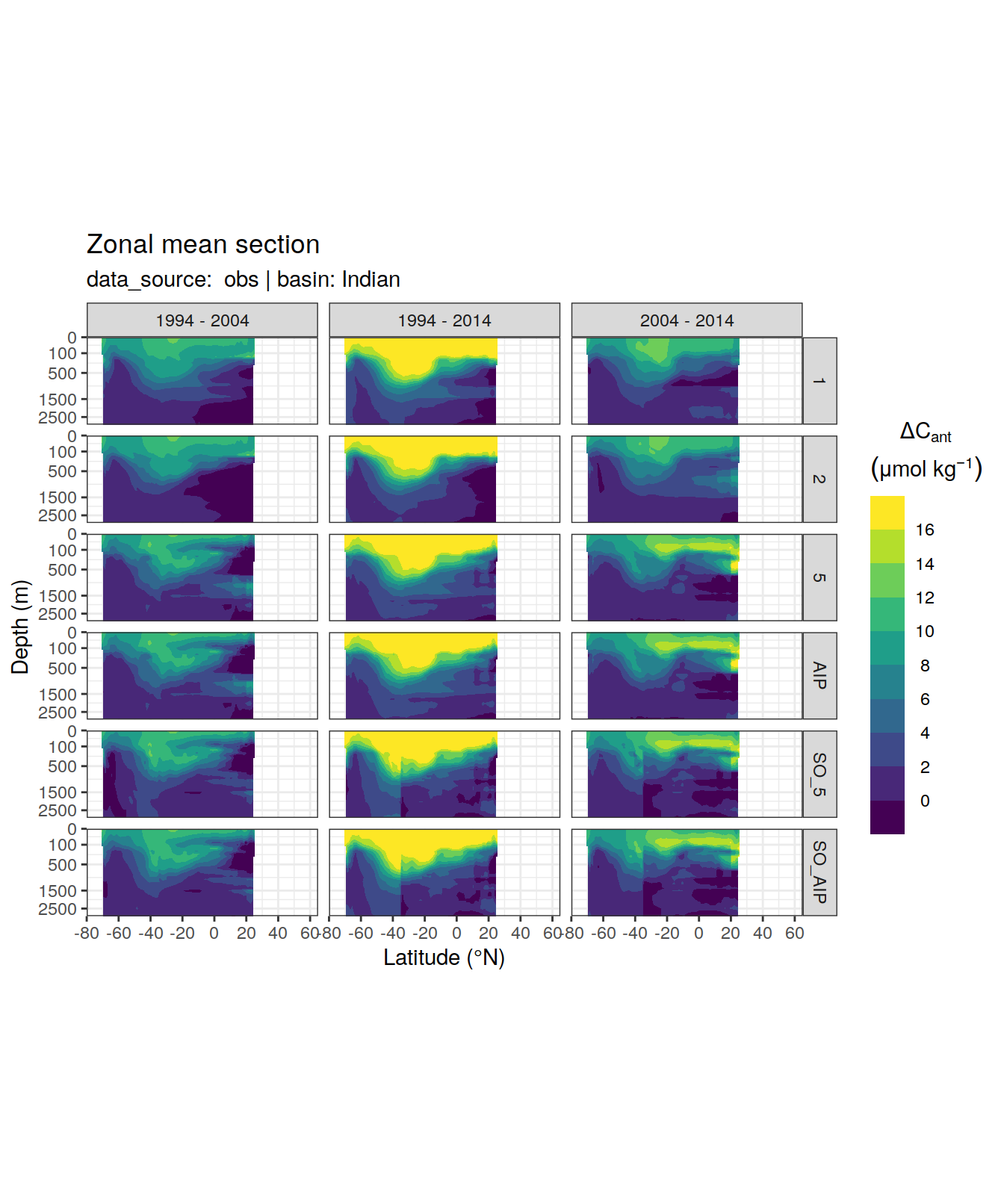

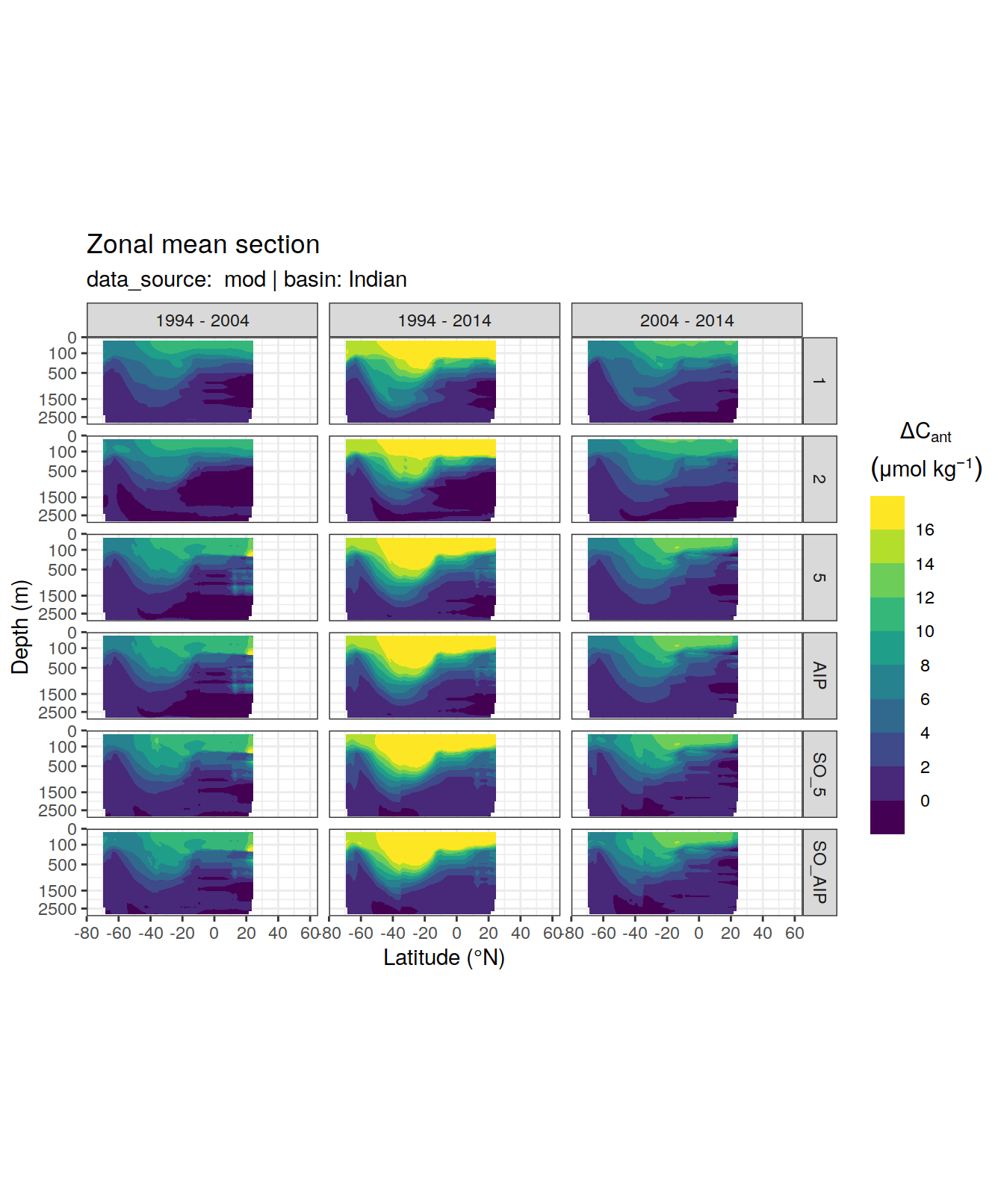

dcant_zonal_all %>%
  filter(data_source %in% c("mod", "obs")) %>%
  group_by(basin_AIP, data_source) %>%
  group_split() %>%
  # head(1) %>%
  map(
    ~ p_section_zonal_continous_depth(
      df = .x,
      var = "dcant",
      plot_slabs = "n",
      subtitle_text = paste(
        "data_source: ",
        unique(.x$data_source),
        "| basin:",
        unique(.x$basin_AIP)
      )
    ) +
      facet_grid(MLR_basins ~ period)
  )
[[1]]
Warning: Removed 20190 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
09b0780 jens-daniel-mueller 2022-05-24
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12
b10afbc jens-daniel-mueller 2022-01-05
f0c828a jens-daniel-mueller 2021-12-22
316ea5f jens-daniel-mueller 2021-12-09
9c72ef3 jens-daniel-mueller 2021-12-08
f4250b0 jens-daniel-mueller 2021-12-08
bd4091f jens-daniel-mueller 2021-12-04
ecbdffe jens-daniel-mueller 2021-12-03
ae5ae64 jens-daniel-mueller 2021-10-26
f9b4f93 jens-daniel-mueller 2021-10-05

[[2]]
Warning: Removed 10278 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
09b0780 jens-daniel-mueller 2022-05-24
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12
b10afbc jens-daniel-mueller 2022-01-05
f0c828a jens-daniel-mueller 2021-12-22
316ea5f jens-daniel-mueller 2021-12-09
9c72ef3 jens-daniel-mueller 2021-12-08
f4250b0 jens-daniel-mueller 2021-12-08
bd4091f jens-daniel-mueller 2021-12-04
ecbdffe jens-daniel-mueller 2021-12-03
ae5ae64 jens-daniel-mueller 2021-10-26
f9b4f93 jens-daniel-mueller 2021-10-05

[[3]]
Warning: Removed 13338 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
09b0780 jens-daniel-mueller 2022-05-24
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12
b10afbc jens-daniel-mueller 2022-01-05
f0c828a jens-daniel-mueller 2021-12-22
316ea5f jens-daniel-mueller 2021-12-09
9c72ef3 jens-daniel-mueller 2021-12-08
f4250b0 jens-daniel-mueller 2021-12-08
bd4091f jens-daniel-mueller 2021-12-04
ecbdffe jens-daniel-mueller 2021-12-03
ae5ae64 jens-daniel-mueller 2021-10-26
f9b4f93 jens-daniel-mueller 2021-10-05

[[4]]
Warning: Removed 6876 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
09b0780 jens-daniel-mueller 2022-05-24
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12
b10afbc jens-daniel-mueller 2022-01-05
f0c828a jens-daniel-mueller 2021-12-22
316ea5f jens-daniel-mueller 2021-12-09
9c72ef3 jens-daniel-mueller 2021-12-08
f4250b0 jens-daniel-mueller 2021-12-08
bd4091f jens-daniel-mueller 2021-12-04
ecbdffe jens-daniel-mueller 2021-12-03
ae5ae64 jens-daniel-mueller 2021-10-26
f9b4f93 jens-daniel-mueller 2021-10-05

[[5]]
Warning: Removed 22212 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
09b0780 jens-daniel-mueller 2022-05-24
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12
b10afbc jens-daniel-mueller 2022-01-05
f0c828a jens-daniel-mueller 2021-12-22
316ea5f jens-daniel-mueller 2021-12-09
9c72ef3 jens-daniel-mueller 2021-12-08
f4250b0 jens-daniel-mueller 2021-12-08
bd4091f jens-daniel-mueller 2021-12-04
ecbdffe jens-daniel-mueller 2021-12-03
ae5ae64 jens-daniel-mueller 2021-10-26
f9b4f93 jens-daniel-mueller 2021-10-05

[[6]]
Warning: Removed 11448 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
09b0780 jens-daniel-mueller 2022-05-24
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12
b10afbc jens-daniel-mueller 2022-01-05
f0c828a jens-daniel-mueller 2021-12-22
316ea5f jens-daniel-mueller 2021-12-09
9c72ef3 jens-daniel-mueller 2021-12-08
f4250b0 jens-daniel-mueller 2021-12-08
bd4091f jens-daniel-mueller 2021-12-04
ecbdffe jens-daniel-mueller 2021-12-03
ae5ae64 jens-daniel-mueller 2021-10-26
f9b4f93 jens-daniel-mueller 2021-10-05
p_dcant_Indian_1994_2004 <-
  dcant_zonal_all %>%
  filter(data_source %in% c("obs"),
         period == "1994 - 2004",
         basin_AIP == "Indian") %>%
  p_section_zonal_continous_depth(var = "dcant",
                                  plot_slabs = "n",
                                  subtitle_text = "Indian Ocean") +
  facet_grid(MLR_basins ~ period)

# ggsave(plot = p_dcant_Indian_1994_2004,
#        path = "output/other",
#        filename = "zonal_indian_1994_2004.png",
#        height = 8,
#        width = 5)

p_dcant_Indian_2004_2014 <-
  dcant_zonal_all %>%
  filter(data_source %in% c("obs"),
         period == "2004 - 2014",
         basin_AIP == "Pacific") %>%
  p_section_zonal_continous_depth(var = "dcant",
                                  plot_slabs = "n",
                                  subtitle_text = "Pacific Ocean") +
  facet_grid(MLR_basins ~ period)

# ggsave(plot = p_dcant_Indian_2004_2014,
#        path = "output/other",
#        filename = "zonal_Pacific_2004_2014.png",
#        height = 8,
#        width = 5)

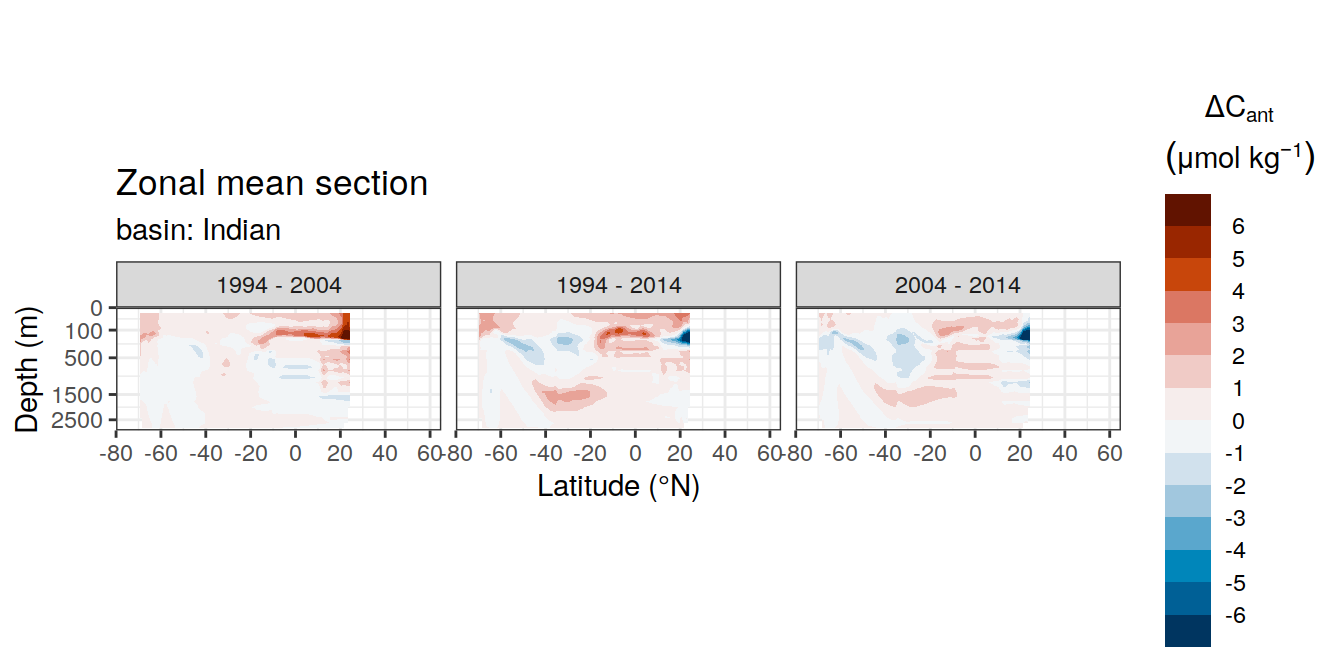

3.2 Biases

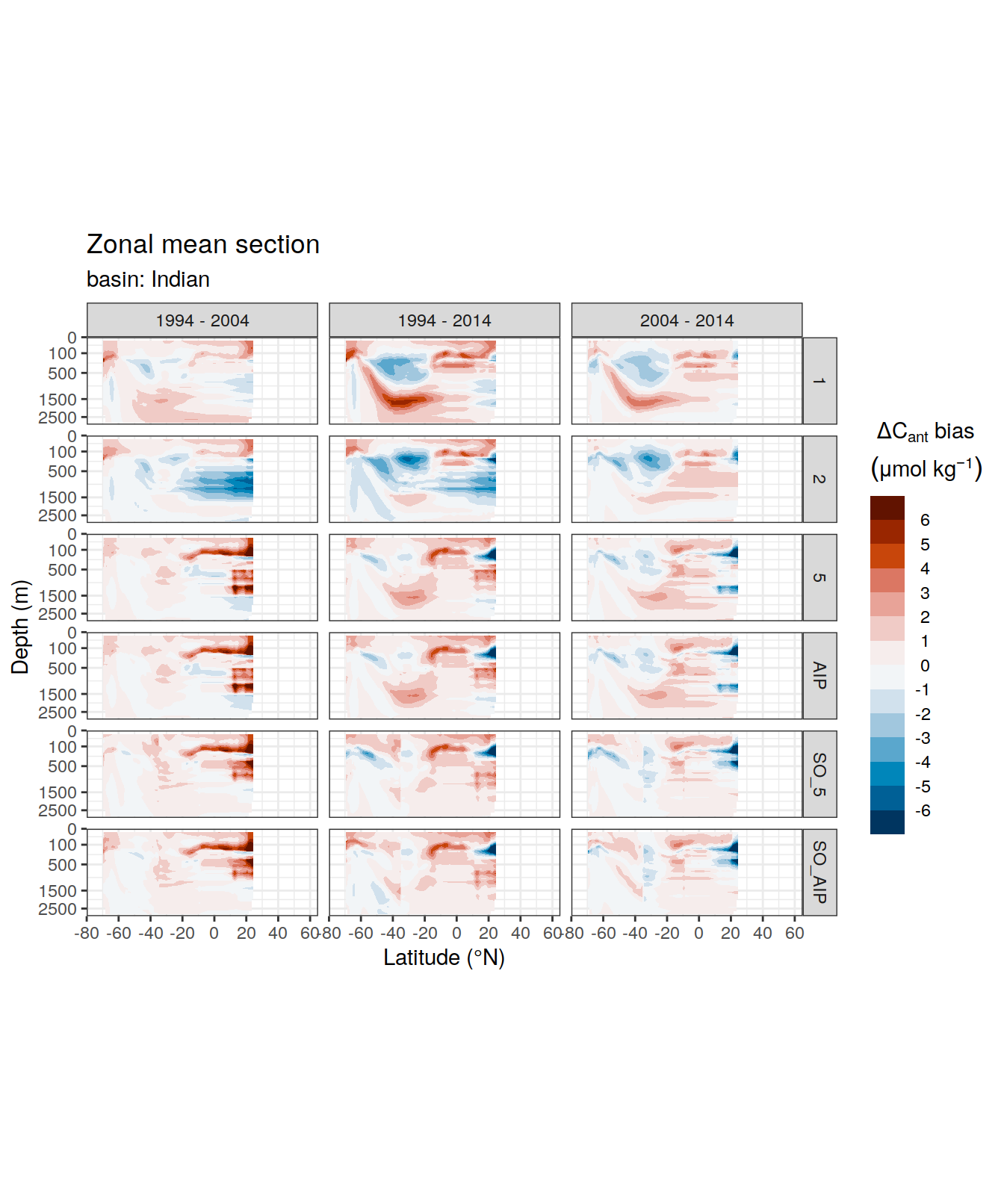

dcant_zonal_bias_all %>%
  group_by(basin_AIP) %>%
  group_split() %>%
  # head(1) %>%
  map(
    ~ p_section_zonal_continous_depth(
      df = .x,
      var = "dcant_bias",
      col = "divergent",
      plot_slabs = "n",
      subtitle_text = paste("basin:",
        unique(.x$basin_AIP)
      )
    ) +
      facet_grid(MLR_basins ~ period)
  )
[[1]]
Warning: Removed 20282 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
e09320d jens-daniel-mueller 2022-04-12
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12
b10afbc jens-daniel-mueller 2022-01-05
f0c828a jens-daniel-mueller 2021-12-22
316ea5f jens-daniel-mueller 2021-12-09
9c72ef3 jens-daniel-mueller 2021-12-08
f4250b0 jens-daniel-mueller 2021-12-08
bd4091f jens-daniel-mueller 2021-12-04
ecbdffe jens-daniel-mueller 2021-12-03
ae5ae64 jens-daniel-mueller 2021-10-26
f9b4f93 jens-daniel-mueller 2021-10-05

[[2]]
Warning: Removed 13338 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
e09320d jens-daniel-mueller 2022-04-12
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12
b10afbc jens-daniel-mueller 2022-01-05
f0c828a jens-daniel-mueller 2021-12-22
316ea5f jens-daniel-mueller 2021-12-09
9c72ef3 jens-daniel-mueller 2021-12-08
f4250b0 jens-daniel-mueller 2021-12-08
bd4091f jens-daniel-mueller 2021-12-04
ecbdffe jens-daniel-mueller 2021-12-03
ae5ae64 jens-daniel-mueller 2021-10-26
f9b4f93 jens-daniel-mueller 2021-10-05

[[3]]
Warning: Removed 22230 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
e09320d jens-daniel-mueller 2022-04-12
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12
b10afbc jens-daniel-mueller 2022-01-05
f0c828a jens-daniel-mueller 2021-12-22
316ea5f jens-daniel-mueller 2021-12-09
9c72ef3 jens-daniel-mueller 2021-12-08
f4250b0 jens-daniel-mueller 2021-12-08
bd4091f jens-daniel-mueller 2021-12-04
ecbdffe jens-daniel-mueller 2021-12-03
ae5ae64 jens-daniel-mueller 2021-10-26
f9b4f93 jens-daniel-mueller 2021-10-05

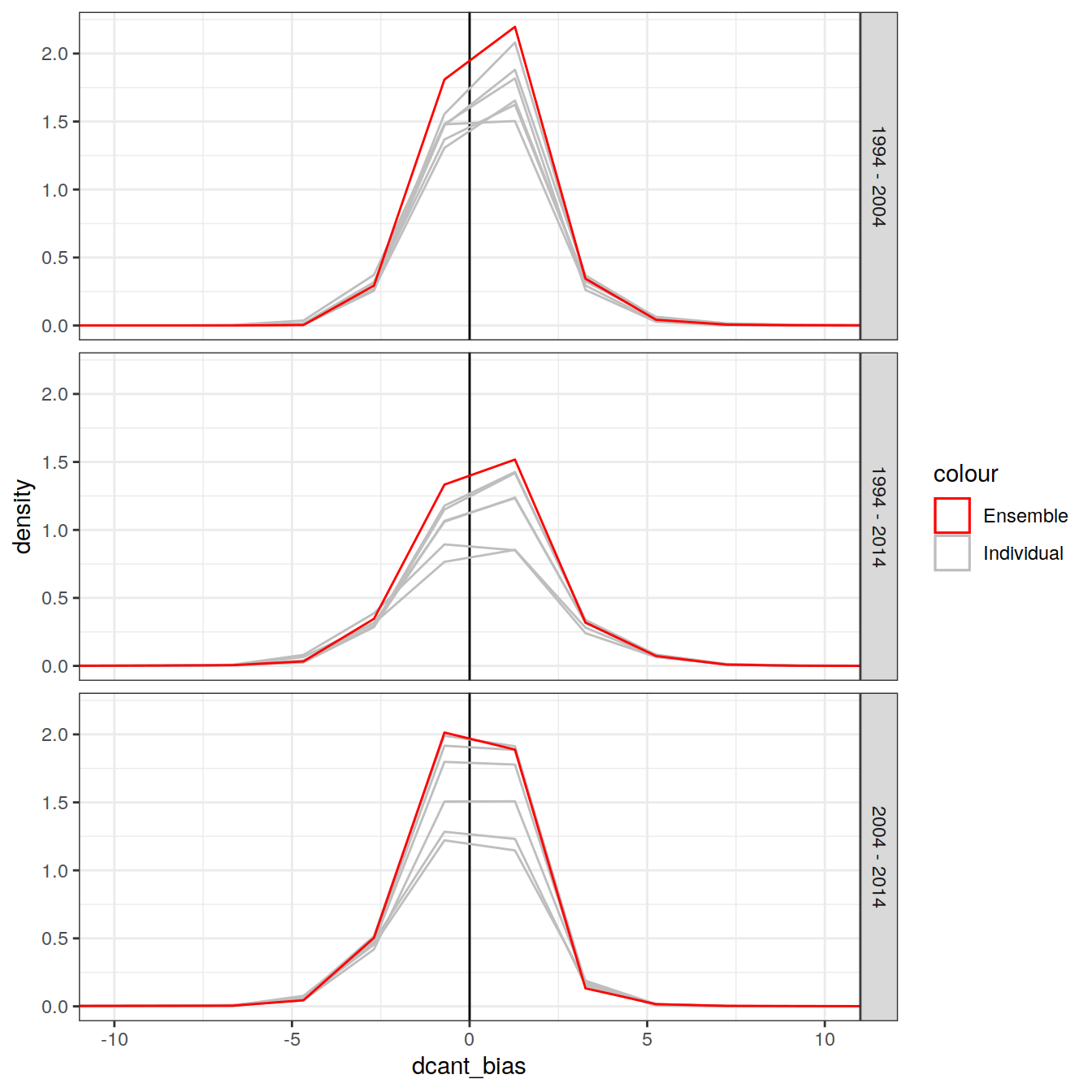

3.2.1 Density distribution

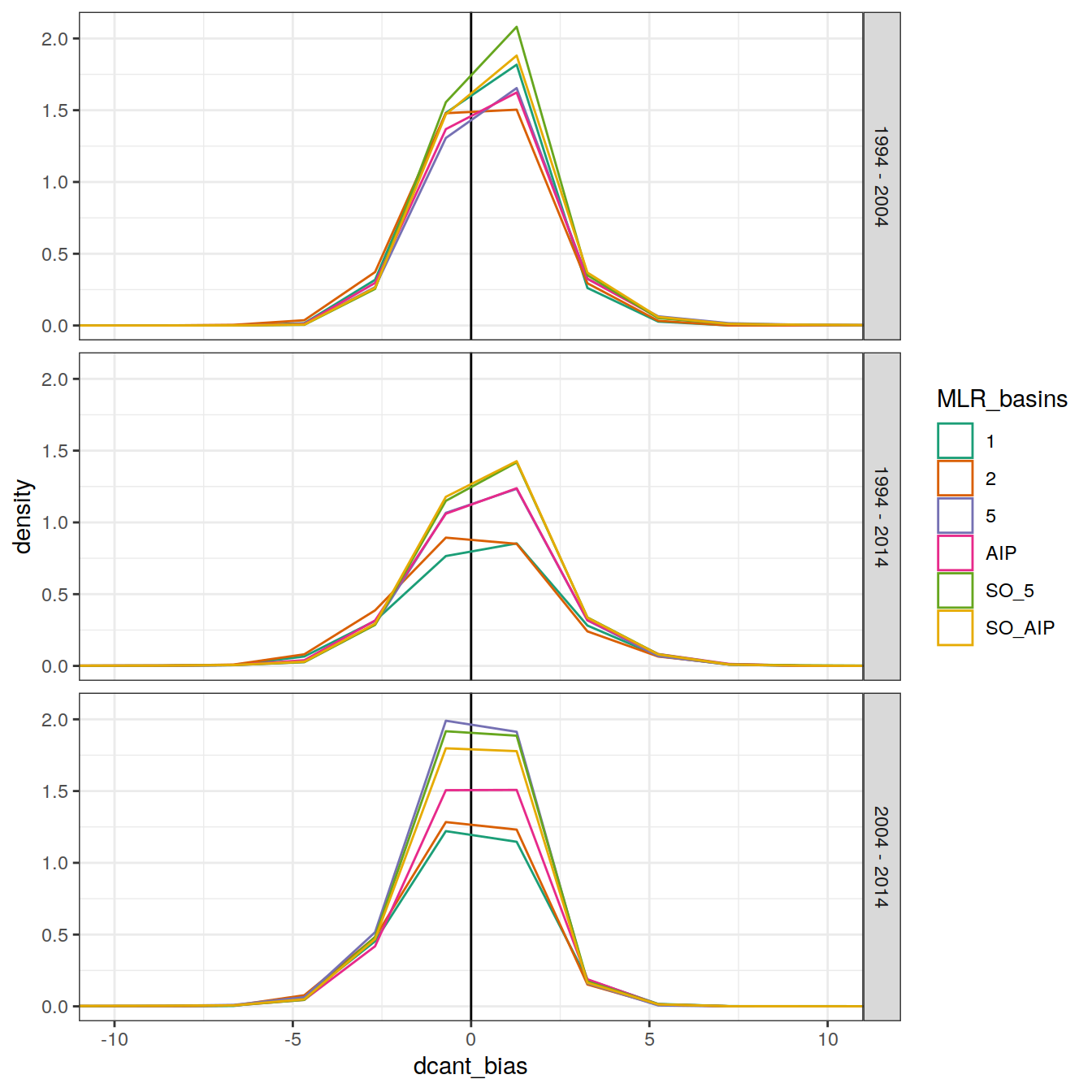

dcant_zonal_bias_all %>%
  ggplot(aes(dcant_bias, col = MLR_basins)) +
  scale_color_brewer(palette = "Dark2") +
  geom_vline(xintercept = 0) +
  geom_density() +
  facet_grid(period ~.) +
  coord_cartesian(xlim = c(-10, 10))
Warning: Removed 110 rows containing non-finite values (stat_density).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
cdabe91 jens-daniel-mueller 2022-06-27
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12

3.3 Bias correlation eras

dcant_zonal_bias_all_corr <- dcant_zonal_bias_all %>%
  select(lat, depth, basin_AIP, dcant_bias, MLR_basins, period) %>%
  pivot_wider(names_from = period,
              values_from = dcant_bias,
              names_prefix = "dcant_bias ")

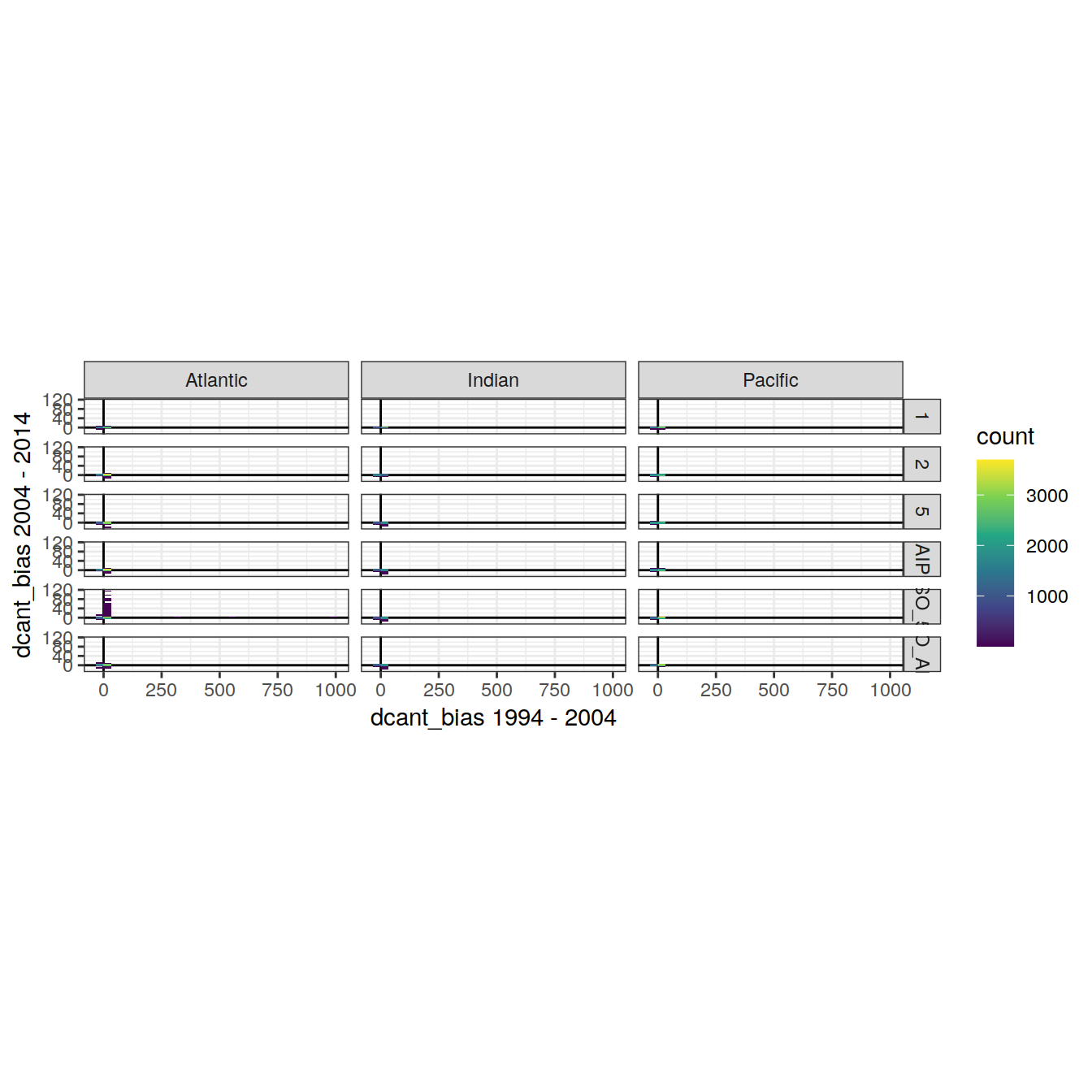

dcant_zonal_bias_all_corr %>%
  ggplot(aes(`dcant_bias 1994 - 2004`, `dcant_bias 2004 - 2014`)) +
  geom_vline(xintercept = 0) +
  geom_hline(yintercept = 0) +
  geom_bin2d() +
  coord_fixed() +
  facet_grid(MLR_basins ~ basin_AIP) +
  scale_fill_viridis_c()
Warning: Removed 37 rows containing non-finite values (stat_bin2d).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
cdabe91 jens-daniel-mueller 2022-06-27
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12
b10afbc jens-daniel-mueller 2022-01-05
f0c828a jens-daniel-mueller 2021-12-22
316ea5f jens-daniel-mueller 2021-12-09
9c72ef3 jens-daniel-mueller 2021-12-08
f4250b0 jens-daniel-mueller 2021-12-08
bd4091f jens-daniel-mueller 2021-12-04
ecbdffe jens-daniel-mueller 2021-12-03
f9b4f93 jens-daniel-mueller 2021-10-05

3.4 Concentration profiles

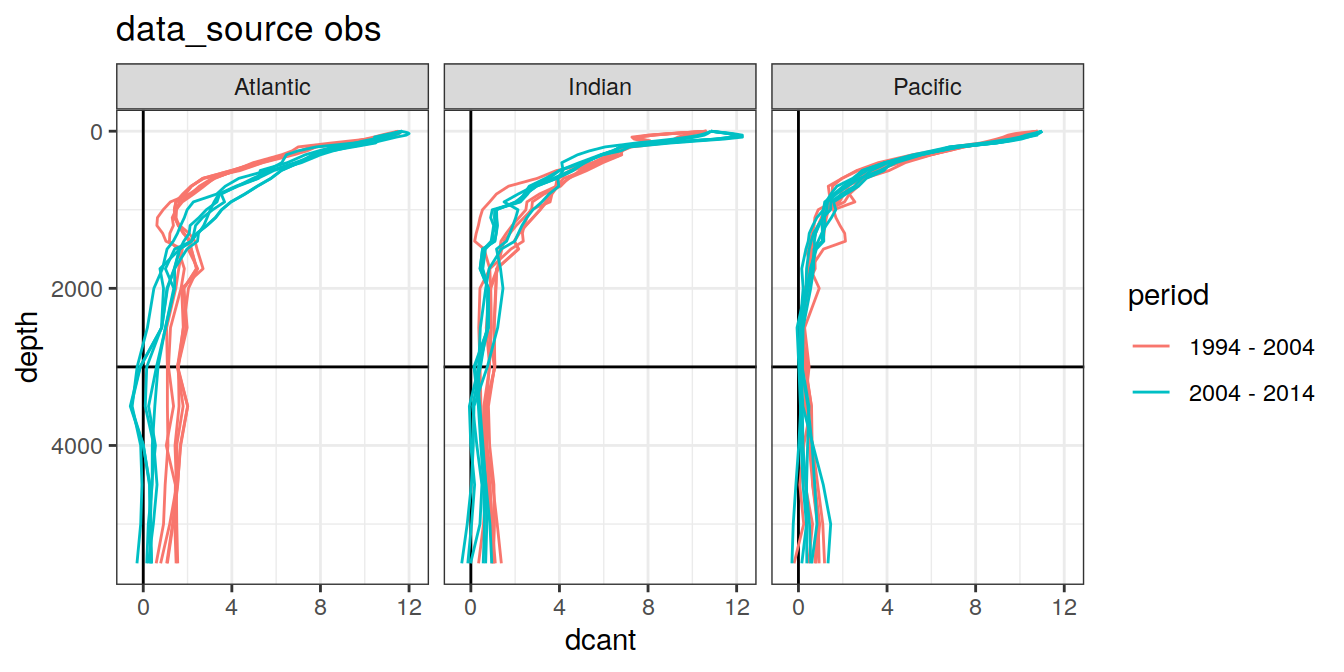

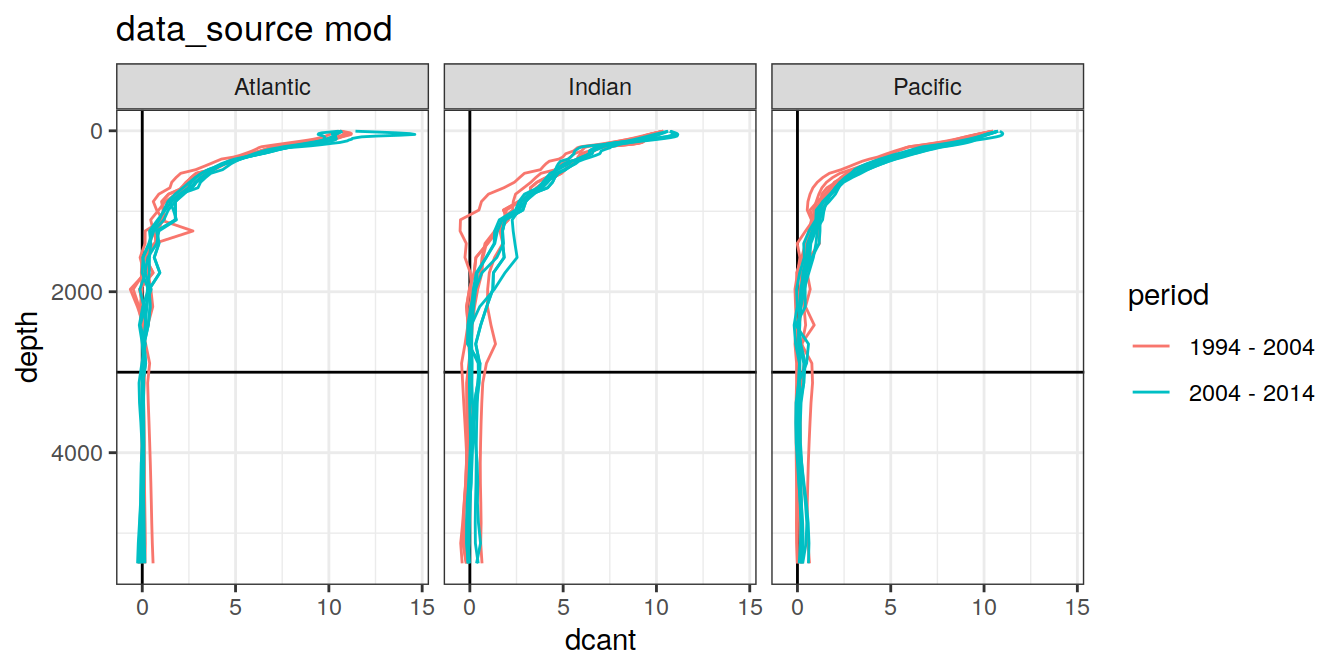

3.4.1 Data source

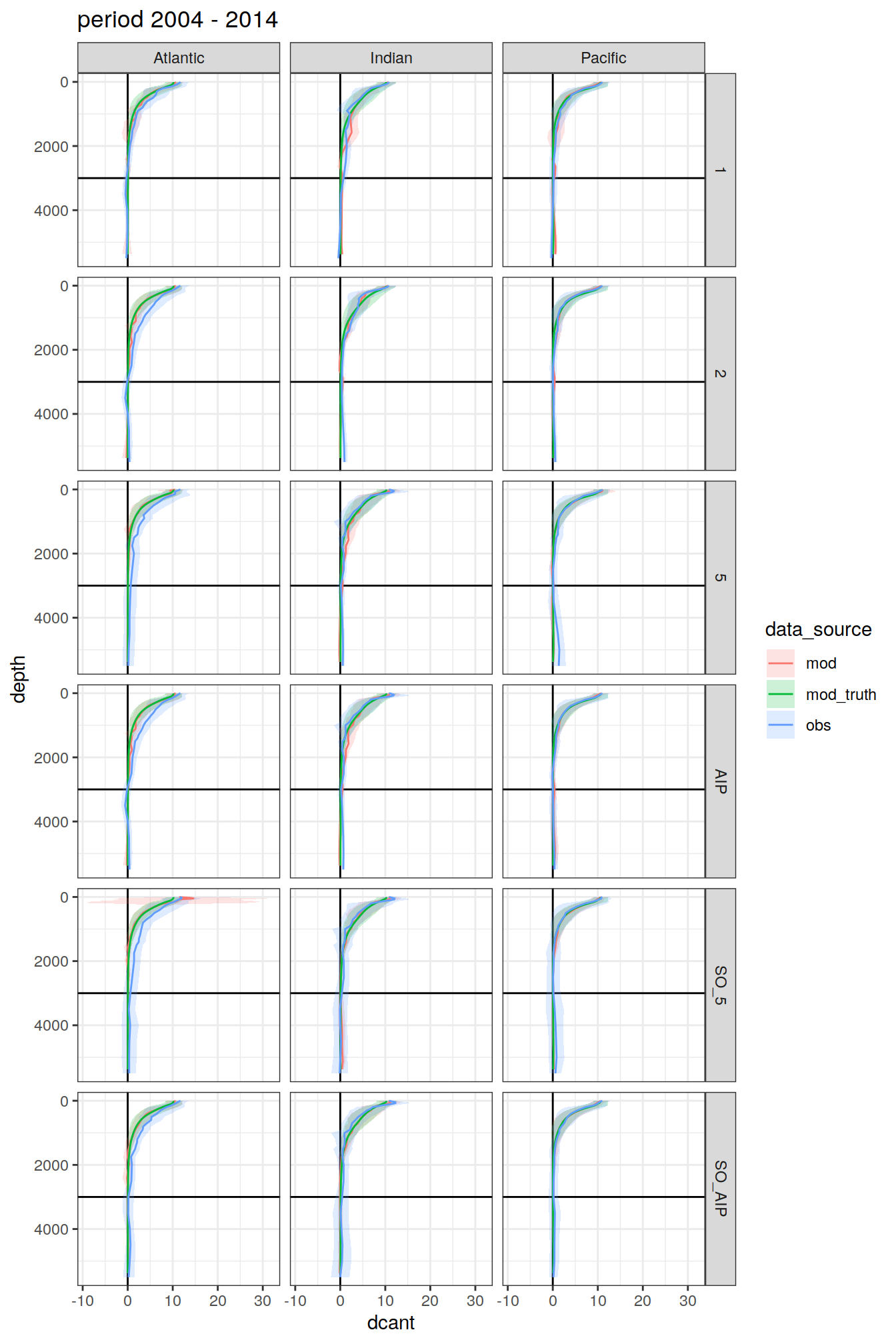

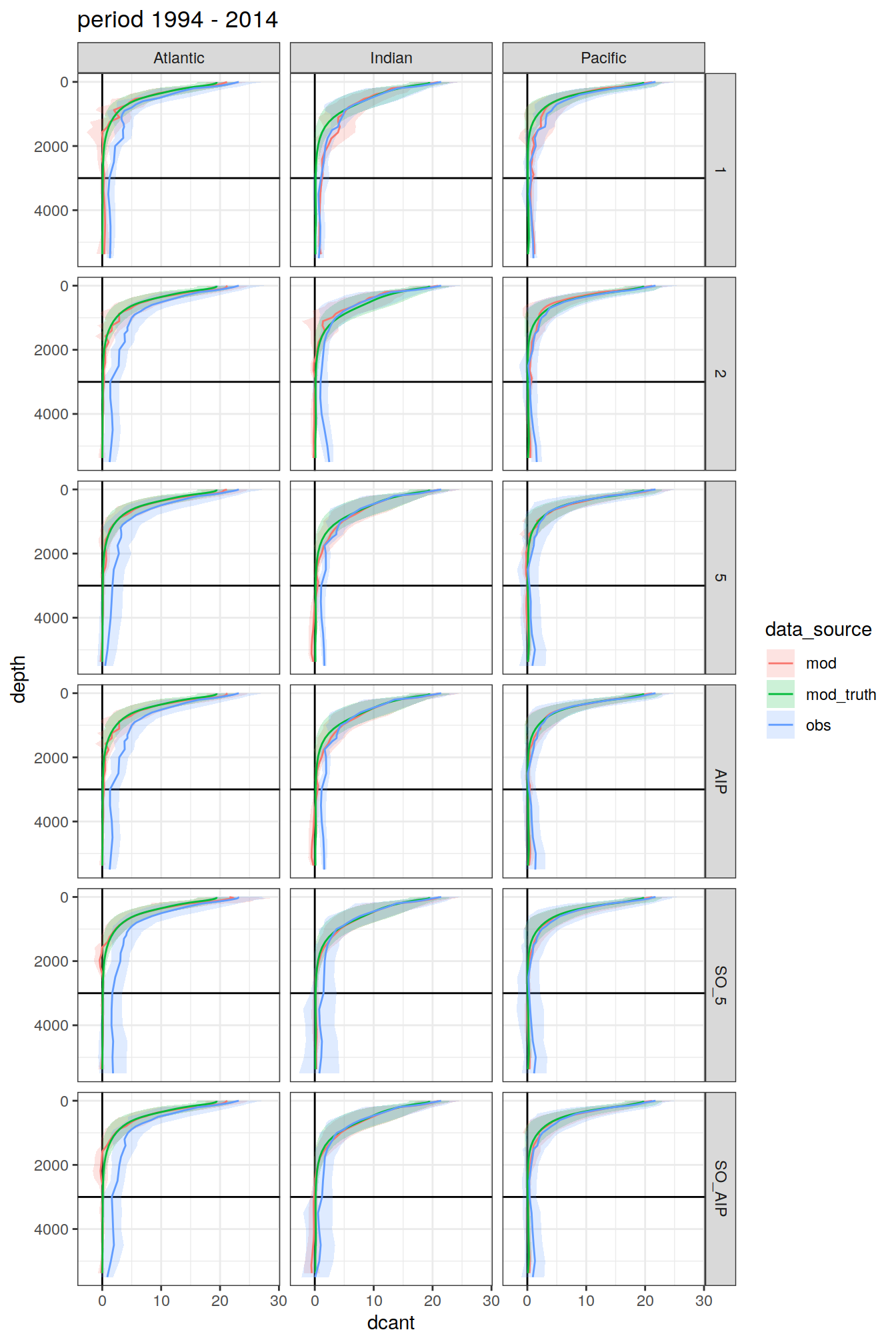

dcant_profile_all %>%
  group_split(period) %>%
  map(
    ~ ggplot(data = .x,
             aes(
               dcant, depth,
               col = data_source, fill = data_source
             )) +
      geom_hline(yintercept = params_global$inventory_depth_standard) +
      geom_vline(xintercept = 0) +
      geom_ribbon(
        aes(xmin = dcant - dcant_sd,
            xmax = dcant + dcant_sd),
        alpha = 0.2,
        col = "transparent"
      ) +
      geom_path() +
      scale_y_reverse() +
      labs(title = paste("period", unique(.x$period))) +
      facet_grid(MLR_basins ~ basin_AIP)
  )
[[1]]

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
cdabe91 jens-daniel-mueller 2022-06-27
c3a6238 jens-daniel-mueller 2022-03-08
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12

[[2]]

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
cdabe91 jens-daniel-mueller 2022-06-27
c3a6238 jens-daniel-mueller 2022-03-08
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12

[[3]]

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
cdabe91 jens-daniel-mueller 2022-06-27
c3a6238 jens-daniel-mueller 2022-03-08
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12

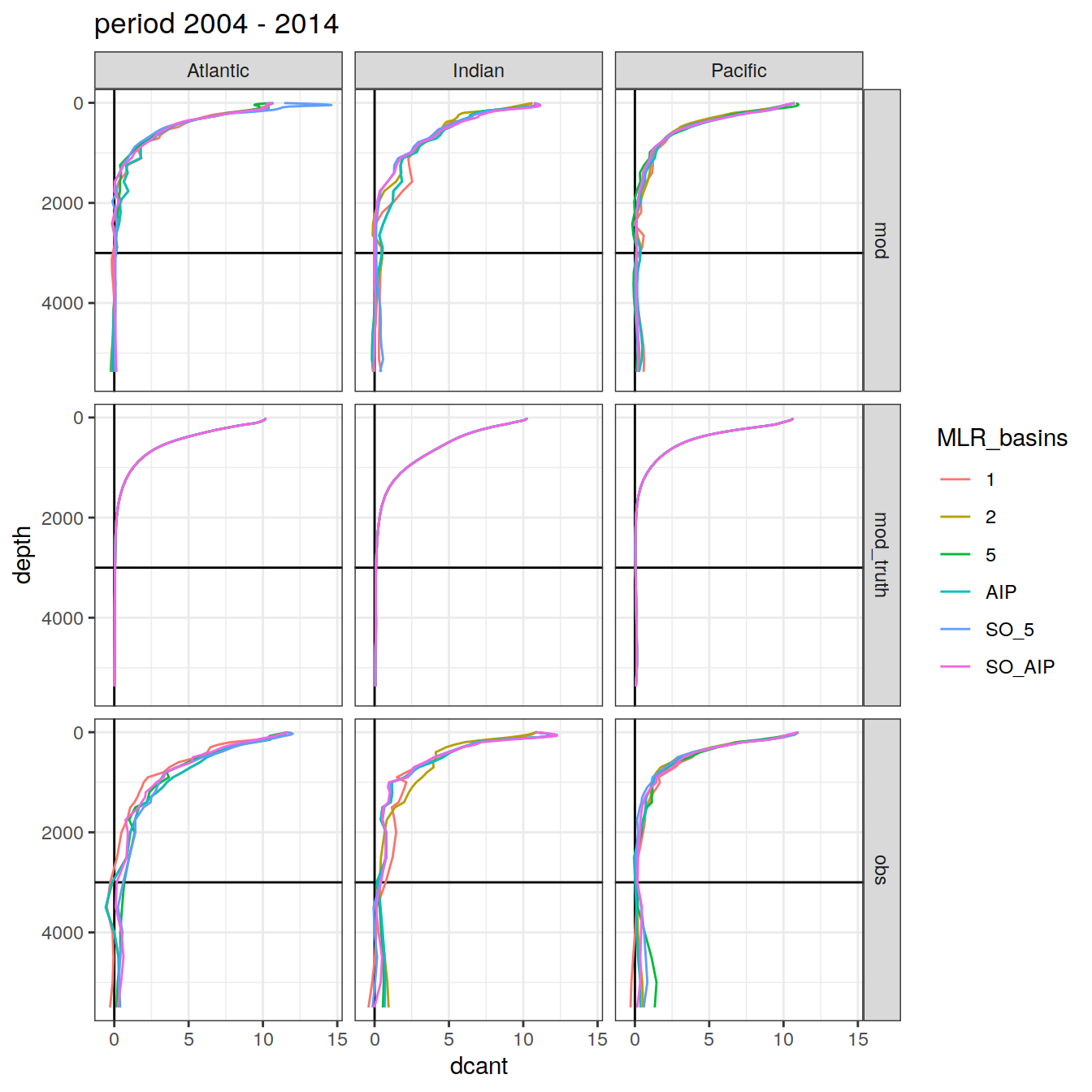

3.4.2 Basin separation

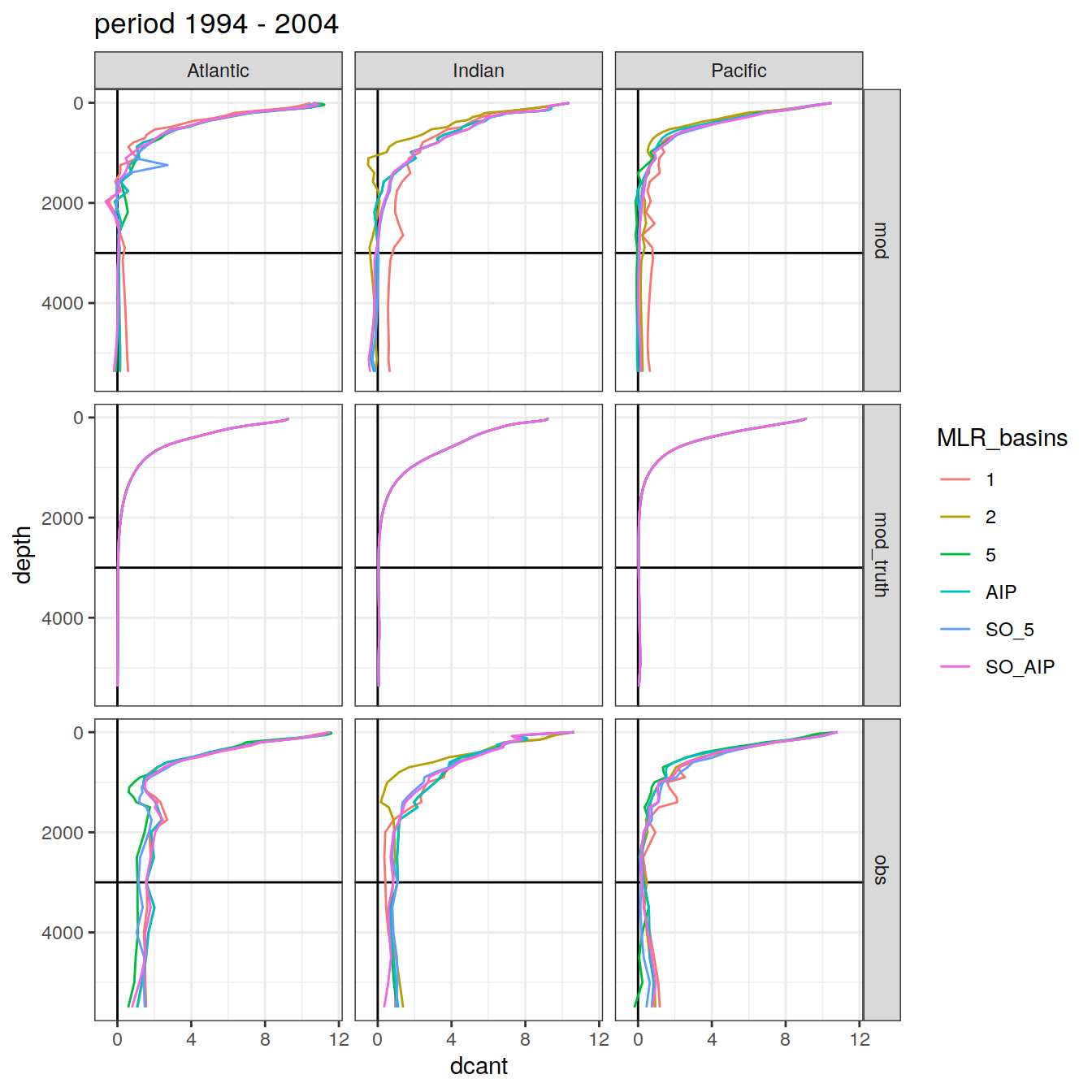

dcant_profile_all %>%
  group_split(period) %>%
  map(
    ~ ggplot(data = .x,
             aes(
               dcant, depth,
               col = MLR_basins, fill = MLR_basins
             )) +
      geom_hline(yintercept = params_global$inventory_depth_standard) +
      geom_vline(xintercept = 0) +
      geom_path() +
      scale_y_reverse() +
      labs(title = paste("period", unique(.x$period))) +
      facet_grid(data_source ~ basin_AIP)
  )
[[1]]

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
cdabe91 jens-daniel-mueller 2022-06-27
c3a6238 jens-daniel-mueller 2022-03-08
3b07c04 jens-daniel-mueller 2022-01-12

[[2]]

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
cdabe91 jens-daniel-mueller 2022-06-27
c3a6238 jens-daniel-mueller 2022-03-08
3b07c04 jens-daniel-mueller 2022-01-12

[[3]]

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
cdabe91 jens-daniel-mueller 2022-06-27
c3a6238 jens-daniel-mueller 2022-03-08
3b07c04 jens-daniel-mueller 2022-01-12

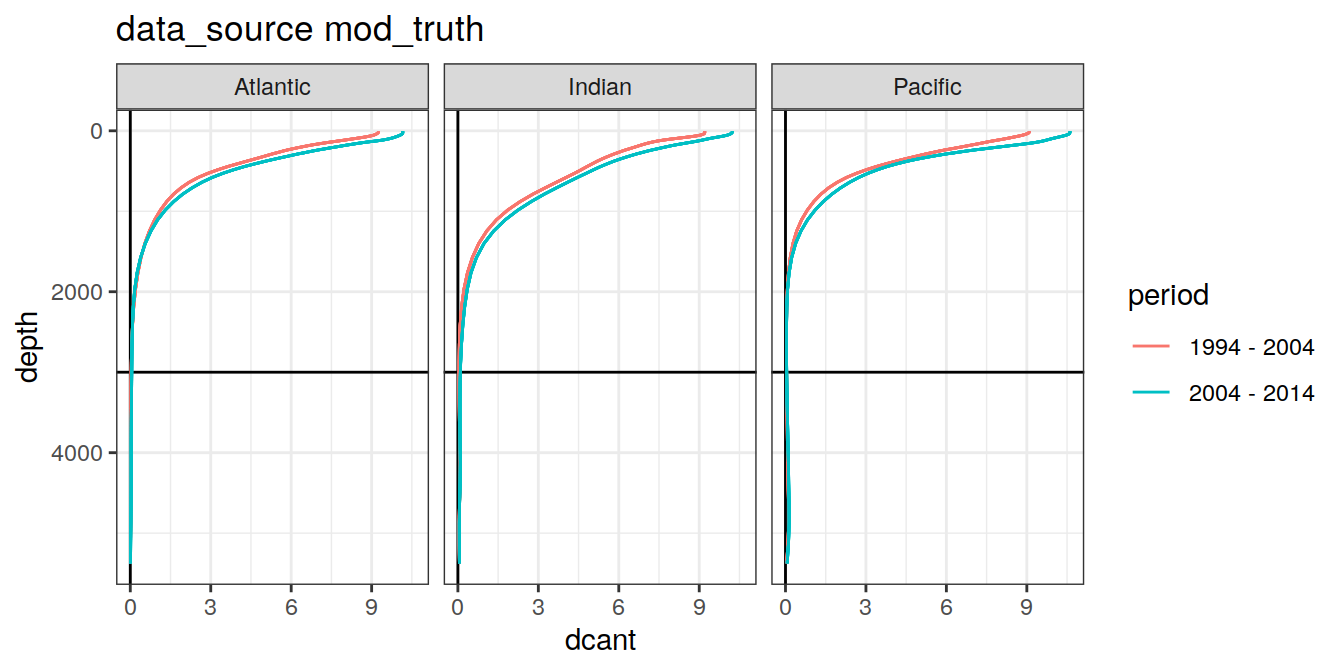

3.4.3 Era

dcant_profile_all %>%
  arrange(depth) %>%
  filter(period != "1994 - 2014") %>%
  group_split(data_source) %>%
  map(
    ~ ggplot(
      data = .x,
      aes(
        dcant,
        depth,
        col = period,
        group = interaction(MLR_basins, period)
      )
    ) +
      geom_hline(yintercept = params_global$inventory_depth_standard) +
      geom_vline(xintercept = 0) +
      geom_path() +
      scale_y_reverse() +
      labs(title = paste("data_source", unique(.x$data_source))) +
      facet_grid(. ~ basin_AIP)
  )
[[1]]

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
cdabe91 jens-daniel-mueller 2022-06-27
c3a6238 jens-daniel-mueller 2022-03-08
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12

[[2]]

Version Author Date
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12

[[3]]

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
cdabe91 jens-daniel-mueller 2022-06-27
c3a6238 jens-daniel-mueller 2022-03-08
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12

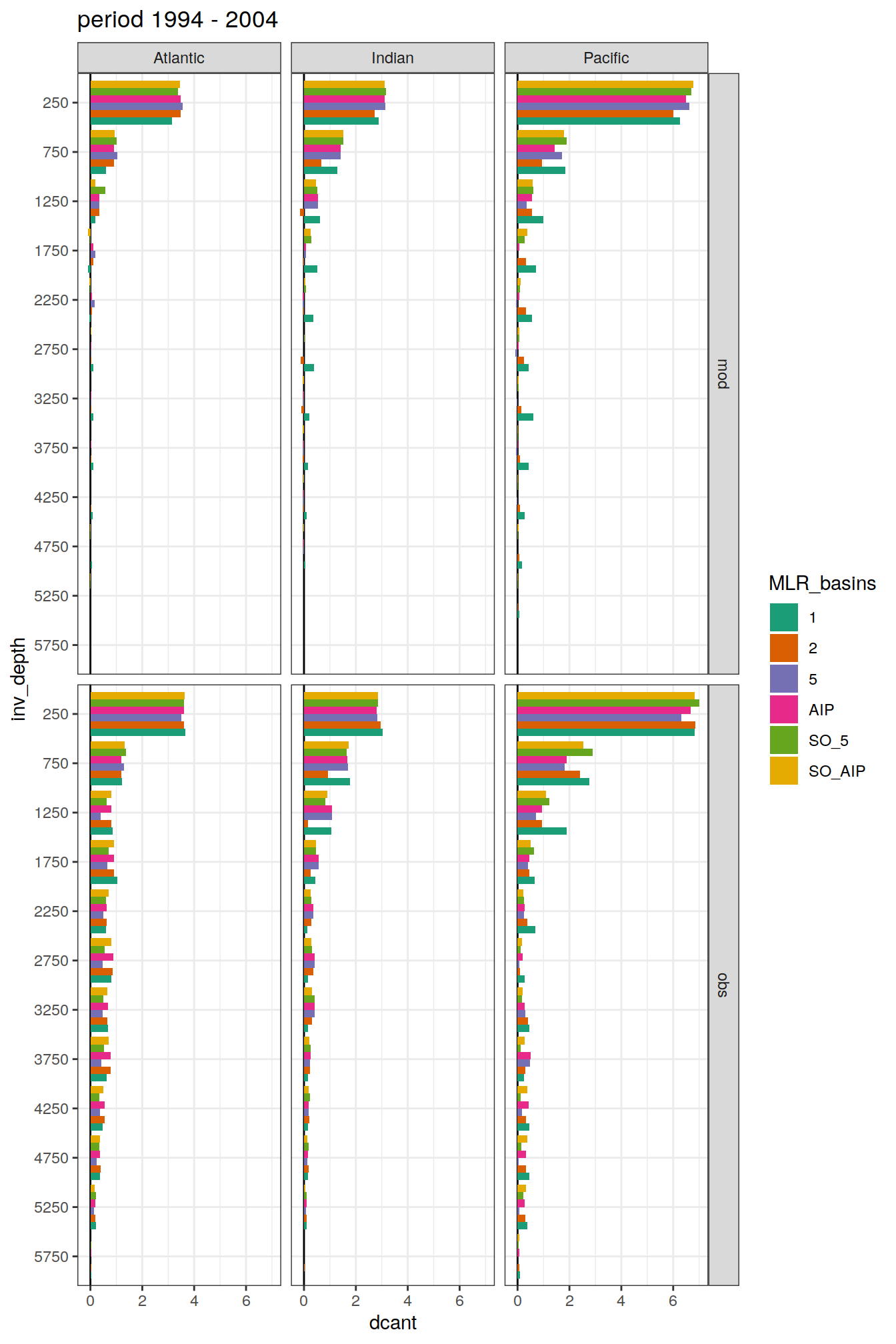

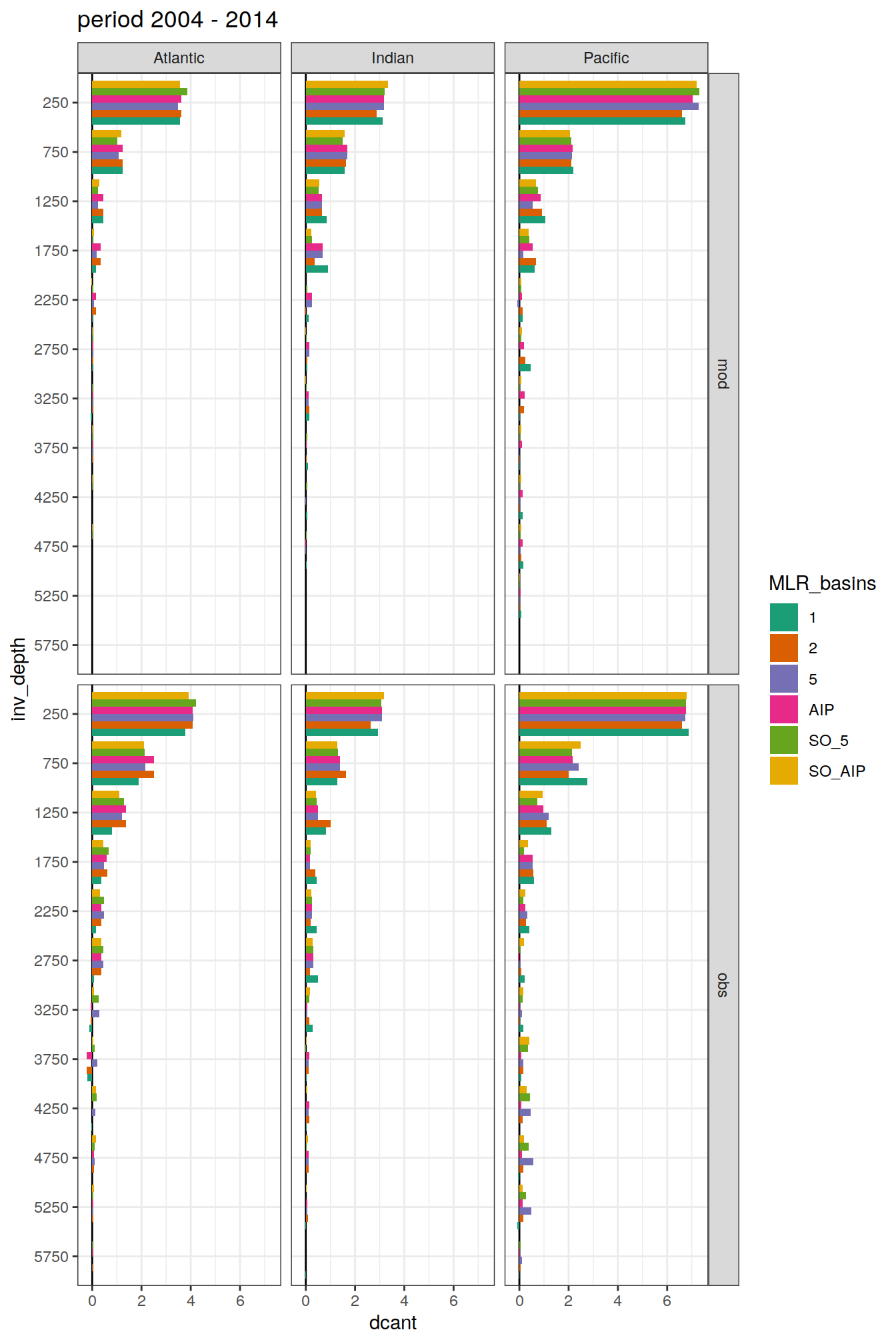

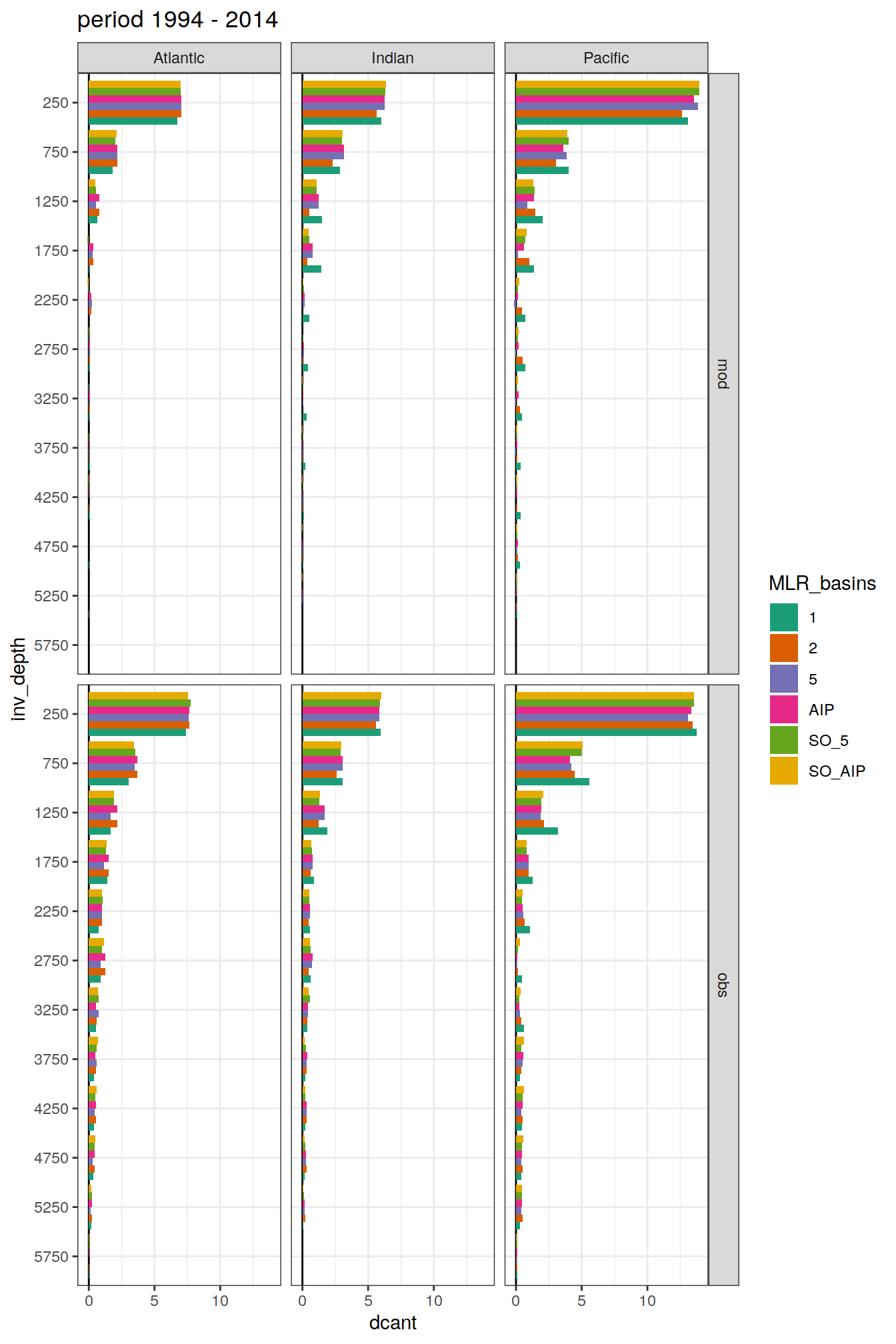

3.5 Layer budgets

dcant_budget_basin_AIP_layer_all %>%
  filter(estimate == "dcant") %>%
  mutate(dcant = value,
         inv_depth = fct_inorder(as.factor(inv_depth))) %>%
  group_split(period) %>%
  # head(1) %>%
  map(
    ~ ggplot(data = .x,
             aes(dcant, inv_depth,
                 fill = MLR_basins)) +
      geom_vline(xintercept = 0) +
      geom_col(position = "dodge") +
      scale_y_discrete(limits = rev) +
      scale_fill_brewer(palette = "Dark2") +
      labs(title = paste("period", unique(.x$period))) +
      facet_grid(data_source ~ basin_AIP)
  )
[[1]]

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
cdabe91 jens-daniel-mueller 2022-06-27
c3a6238 jens-daniel-mueller 2022-03-08
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12

[[2]]

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
cdabe91 jens-daniel-mueller 2022-06-27
c3a6238 jens-daniel-mueller 2022-03-08
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12

[[3]]

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
cdabe91 jens-daniel-mueller 2022-06-27
c3a6238 jens-daniel-mueller 2022-03-08
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12

4 Ensemble

dcant_zonal_ensemble <- dcant_zonal_all %>%
  filter(data_source %in% c("mod", "obs")) %>%
  group_by(lat, depth, basin_AIP, data_source, period) %>%
  summarise(
    dcant_ensemble_mean = mean(dcant),
    dcant_sd = sd(dcant),
    dcant_range = max(dcant) - min(dcant)
  ) %>%
  ungroup()
`summarise()` has grouped output by 'lat', 'depth', 'basin_AIP', 'data_source'.
You can override using the `.groups` argument.
dcant_budget_basin_AIP_layer_ensemble <-
  dcant_budget_basin_AIP_layer_all %>%
  mutate(inv_depth = fct_inorder(as.factor(inv_depth))) %>%
  filter(data_source %in% c("mod", "obs"),
         estimate == "dcant") %>%
  rename(dcant = value) %>%
  group_by(inv_depth, data_source, period, basin_AIP) %>%
  summarise(
    dcant_mean = mean(dcant),
    dcant_sd = sd(dcant),
    dcant_max = max(dcant),
    dcant_min = min(dcant)
  ) %>%
  ungroup()
`summarise()` has grouped output by 'inv_depth', 'data_source', 'period'. You
can override using the `.groups` argument.

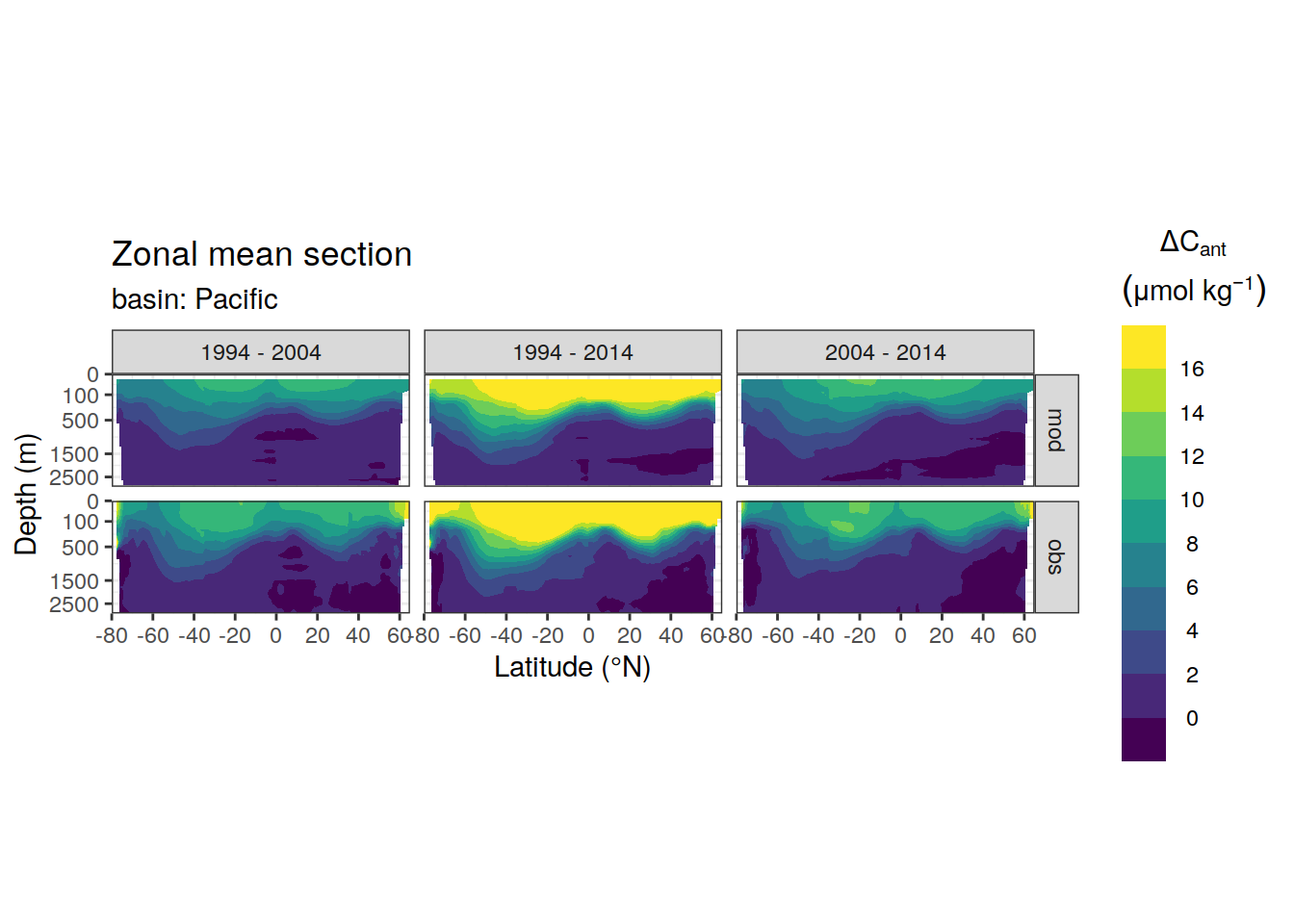

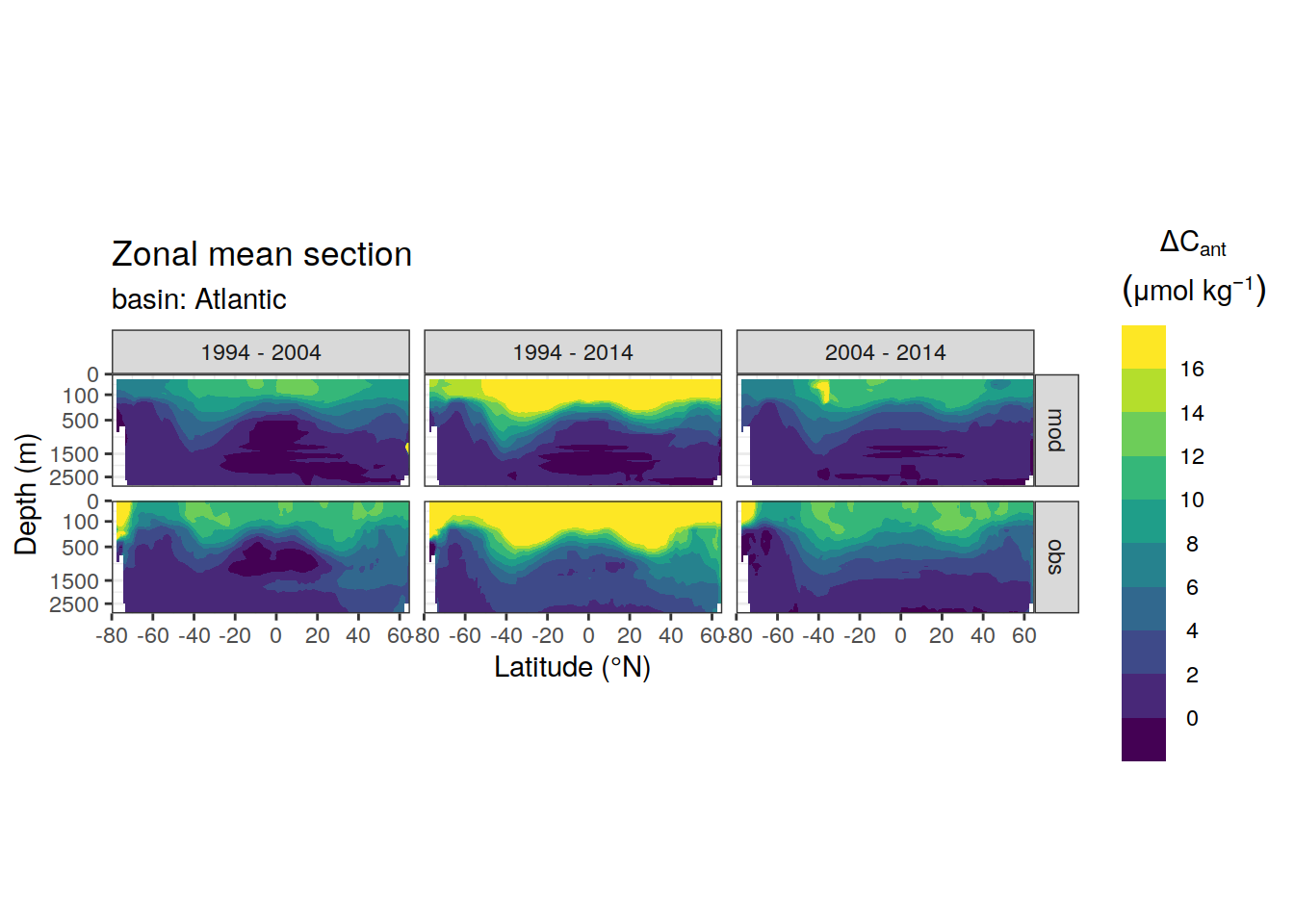

4.1 Mean

dcant_zonal_ensemble %>%
  group_by(basin_AIP) %>%
  group_split() %>%
  # head(1) %>%
  map(
    ~ p_section_zonal_continous_depth(
      df = .x,
      var = "dcant_ensemble_mean",
      plot_slabs = "n",
      subtitle_text = paste("basin:",
                            unique(.x$basin_AIP))
    ) +
      facet_grid(data_source ~ period)
  )
[[1]]
Warning: Removed 5079 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
09b0780 jens-daniel-mueller 2022-05-24
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
269809e jens-daniel-mueller 2022-01-12
b10afbc jens-daniel-mueller 2022-01-05
f0c828a jens-daniel-mueller 2021-12-22
316ea5f jens-daniel-mueller 2021-12-09
9c72ef3 jens-daniel-mueller 2021-12-08
f4250b0 jens-daniel-mueller 2021-12-08
bd4091f jens-daniel-mueller 2021-12-04
ecbdffe jens-daniel-mueller 2021-12-03
ae5ae64 jens-daniel-mueller 2021-10-26
f9b4f93 jens-daniel-mueller 2021-10-05

[[2]]
Warning: Removed 3369 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
09b0780 jens-daniel-mueller 2022-05-24
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
269809e jens-daniel-mueller 2022-01-12
b10afbc jens-daniel-mueller 2022-01-05
f0c828a jens-daniel-mueller 2021-12-22
316ea5f jens-daniel-mueller 2021-12-09
9c72ef3 jens-daniel-mueller 2021-12-08
f4250b0 jens-daniel-mueller 2021-12-08
bd4091f jens-daniel-mueller 2021-12-04
ecbdffe jens-daniel-mueller 2021-12-03
ae5ae64 jens-daniel-mueller 2021-10-26
f9b4f93 jens-daniel-mueller 2021-10-05

[[3]]
Warning: Removed 5610 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
09b0780 jens-daniel-mueller 2022-05-24
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
269809e jens-daniel-mueller 2022-01-12
b10afbc jens-daniel-mueller 2022-01-05
f0c828a jens-daniel-mueller 2021-12-22
316ea5f jens-daniel-mueller 2021-12-09
9c72ef3 jens-daniel-mueller 2021-12-08
f4250b0 jens-daniel-mueller 2021-12-08
bd4091f jens-daniel-mueller 2021-12-04
ecbdffe jens-daniel-mueller 2021-12-03
ae5ae64 jens-daniel-mueller 2021-10-26
f9b4f93 jens-daniel-mueller 2021-10-05

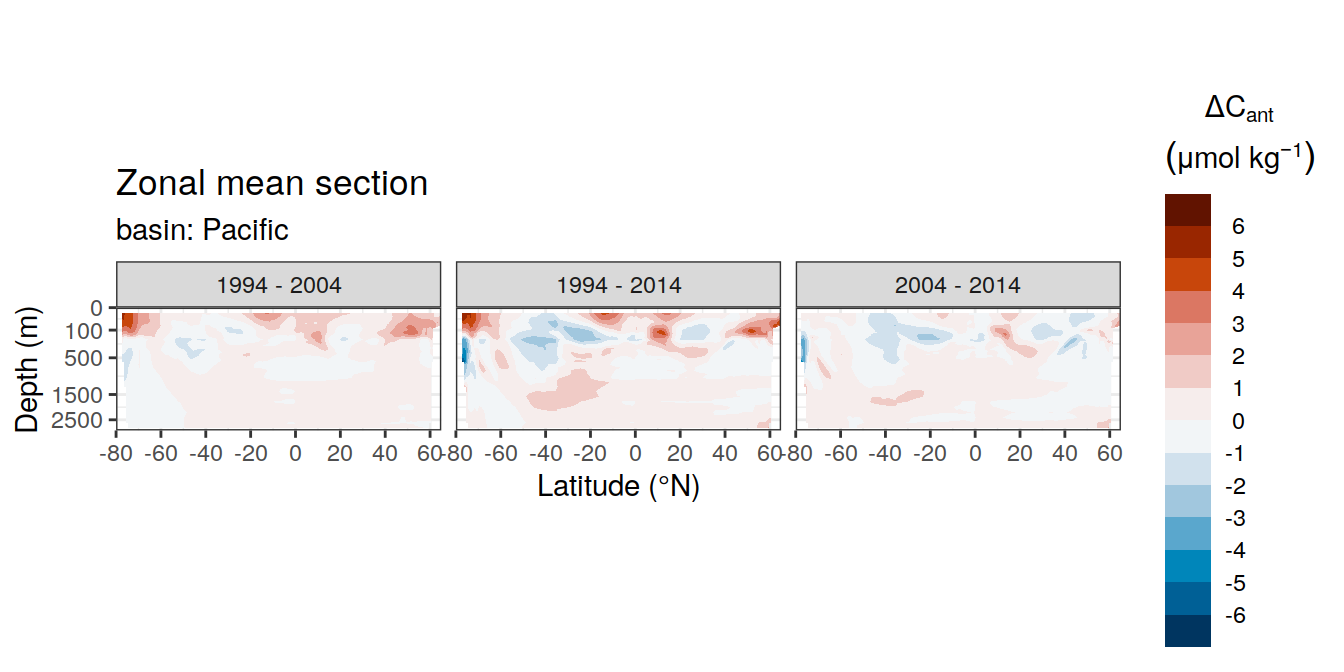

4.2 Mean bias

dcant_zonal_ensemble_bias <- full_join(
  dcant_zonal_ensemble %>%
    filter(data_source == "mod") %>%
    select(lat, depth, basin_AIP, period, dcant_ensemble_mean, dcant_sd),
  dcant_zonal_all %>%
    filter(data_source == "mod_truth",
           MLR_basins == unique(dcant_zonal_all$MLR_basins)[1]) %>%
    select(lat, depth, basin_AIP, period, dcant_mod_truth = dcant)
)
Joining, by = c("lat", "depth", "basin_AIP", "period")
dcant_zonal_ensemble_bias <- dcant_zonal_ensemble_bias %>%
  mutate(dcant_mean_bias = dcant_ensemble_mean - dcant_mod_truth)

dcant_zonal_ensemble_bias %>%
  group_by(basin_AIP) %>%
  group_split() %>%
  # head(1) %>%
  map(
    ~ p_section_zonal_continous_depth(
      df = .x,
      var = "dcant_mean_bias",
      col = "divergent",
      plot_slabs = "n",
      subtitle_text = paste("basin:",
        unique(.x$basin_AIP)
      )
    ) +
      facet_grid(. ~ period)
  )
[[1]]
Warning: Removed 3366 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
e09320d jens-daniel-mueller 2022-04-12
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
269809e jens-daniel-mueller 2022-01-12
b10afbc jens-daniel-mueller 2022-01-05
f0c828a jens-daniel-mueller 2021-12-22
316ea5f jens-daniel-mueller 2021-12-09
9c72ef3 jens-daniel-mueller 2021-12-08
f4250b0 jens-daniel-mueller 2021-12-08
bd4091f jens-daniel-mueller 2021-12-04
ecbdffe jens-daniel-mueller 2021-12-03
ae5ae64 jens-daniel-mueller 2021-10-26
f9b4f93 jens-daniel-mueller 2021-10-05

[[2]]
Warning: Removed 2223 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
e09320d jens-daniel-mueller 2022-04-12
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
269809e jens-daniel-mueller 2022-01-12
b10afbc jens-daniel-mueller 2022-01-05
f0c828a jens-daniel-mueller 2021-12-22
316ea5f jens-daniel-mueller 2021-12-09
9c72ef3 jens-daniel-mueller 2021-12-08
f4250b0 jens-daniel-mueller 2021-12-08
bd4091f jens-daniel-mueller 2021-12-04
ecbdffe jens-daniel-mueller 2021-12-03
ae5ae64 jens-daniel-mueller 2021-10-26
f9b4f93 jens-daniel-mueller 2021-10-05

[[3]]
Warning: Removed 3702 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
e09320d jens-daniel-mueller 2022-04-12
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
269809e jens-daniel-mueller 2022-01-12
b10afbc jens-daniel-mueller 2022-01-05
f0c828a jens-daniel-mueller 2021-12-22
316ea5f jens-daniel-mueller 2021-12-09
9c72ef3 jens-daniel-mueller 2021-12-08
f4250b0 jens-daniel-mueller 2021-12-08
bd4091f jens-daniel-mueller 2021-12-04
ecbdffe jens-daniel-mueller 2021-12-03
ae5ae64 jens-daniel-mueller 2021-10-26
f9b4f93 jens-daniel-mueller 2021-10-05

4.2.1 Density distribution

dcant_zonal_bias_all %>%
  ggplot() +
  scale_color_manual(values = c("red", "grey")) +
  geom_vline(xintercept = 0) +
  geom_density(aes(dcant_bias, group = MLR_basins, col = "Individual")) +
  geom_density(data = dcant_zonal_ensemble_bias,
               aes(dcant_mean_bias, col = "Ensemble")) +
  facet_grid(period ~.) +
  coord_cartesian(xlim = c(-10, 10))
Warning: Removed 110 rows containing non-finite values (stat_density).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
cdabe91 jens-daniel-mueller 2022-06-27
c3a6238 jens-daniel-mueller 2022-03-08
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12

4.3 Mean depth layer budgets

dcant_lat_grid_ensemble %>%
  ggplot(aes(lat_grid, dcant_mean)) +
  geom_hline(yintercept = 0) +
  geom_col(position = "dodge",
           fill = "grey80",
           col = "grey20") +
  geom_errorbar(aes(
    ymin = dcant_min,
    ymax = dcant_max
  ),
  col = "grey20",
  width = 0) +
  scale_color_brewer(palette = "Set1") +
  coord_flip() +
  scale_fill_brewer(palette = "Dark2") +
  facet_grid(data_source ~ period)

4.4 Standard deviation

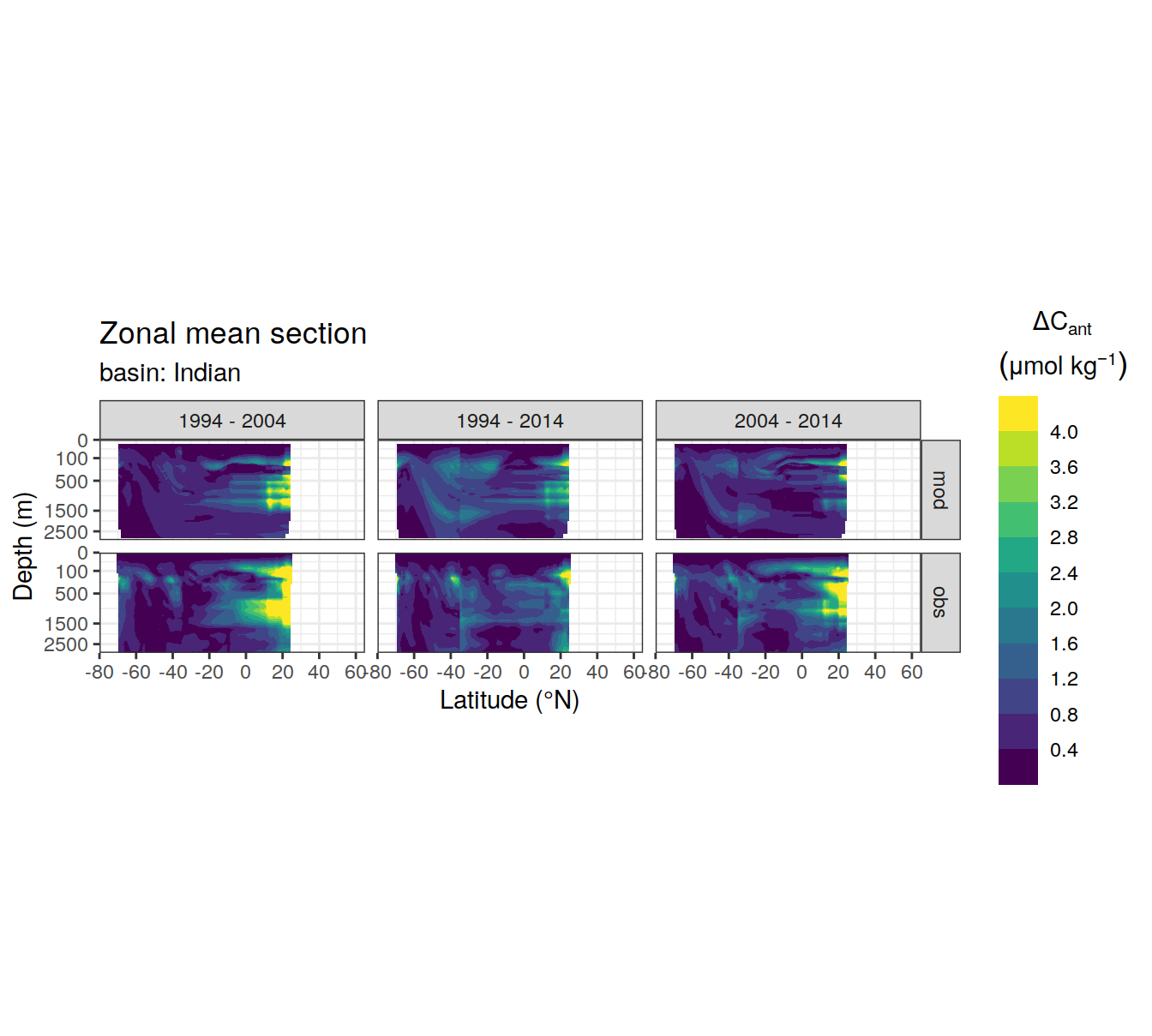

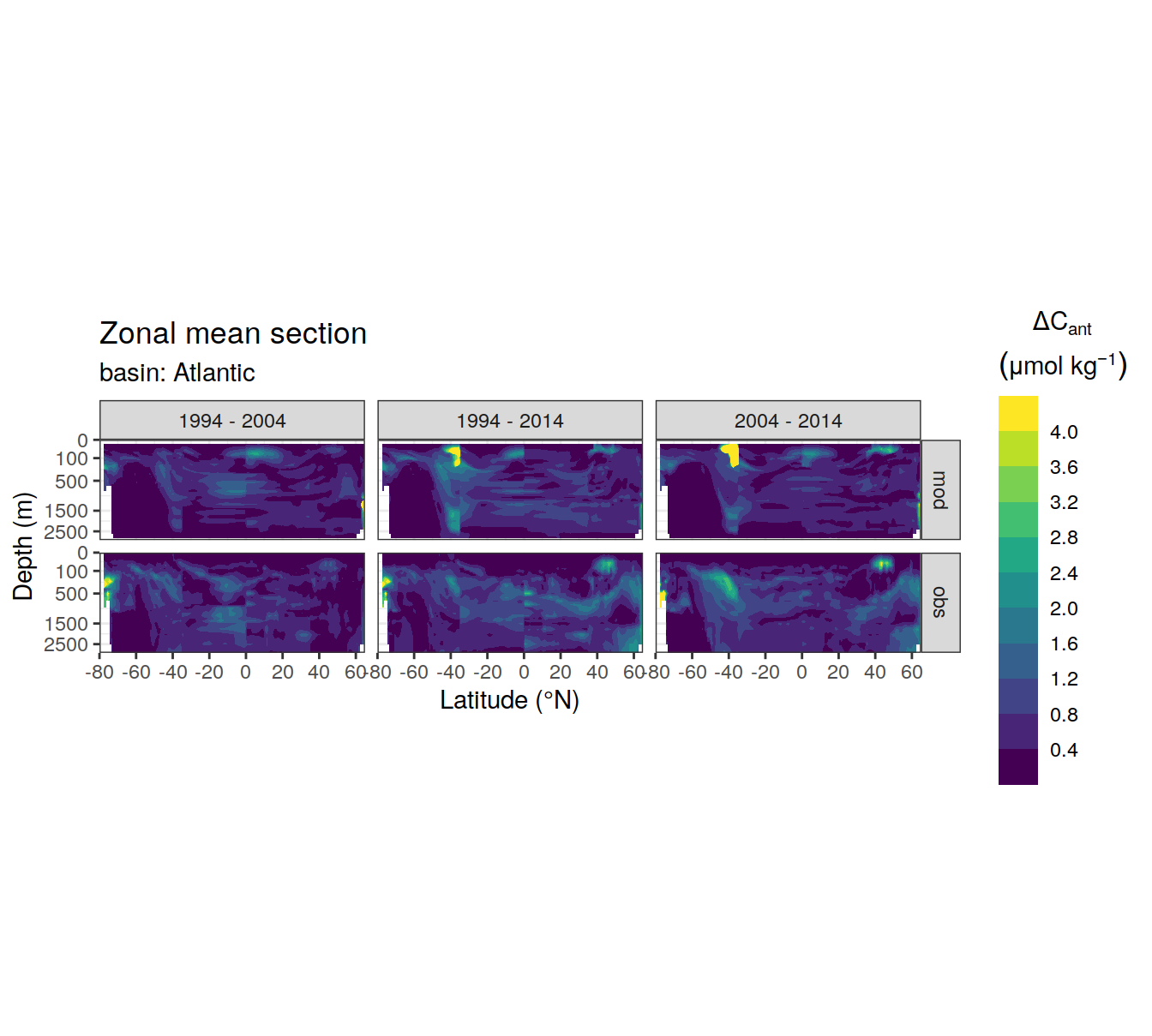

dcant_zonal_ensemble %>%
  group_by(basin_AIP) %>%
  group_split() %>%
  # head(1) %>%
  map(
    ~ p_section_zonal_continous_depth(
      df = .x,
      var = "dcant_sd",
      breaks = c(seq(0,4,0.4), Inf),
      plot_slabs = "n",
      subtitle_text = paste("basin:",
                            unique(.x$basin_AIP))
    ) +
      facet_grid(data_source ~ period)
  )
[[1]]
Warning: Removed 5079 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
09b0780 jens-daniel-mueller 2022-05-24
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
269809e jens-daniel-mueller 2022-01-12

[[2]]
Warning: Removed 3369 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
09b0780 jens-daniel-mueller 2022-05-24
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
269809e jens-daniel-mueller 2022-01-12

[[3]]
Warning: Removed 5610 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
09b0780 jens-daniel-mueller 2022-05-24
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
269809e jens-daniel-mueller 2022-01-12

4.5 SD as uncertainty

uncertainty_grid <- dcant_zonal_ensemble %>%
  filter(dcant_sd > sd_uncertainty_limit) %>%
  distinct(depth, lat, data_source, period, basin_AIP)

uncertainty_grid <- uncertainty_grid %>%
  mutate(
    lat_grid = cut(lat, seq(-90, 90, 5), seq(-87.5, 87.5, 5)),
    lat_grid = as.numeric(as.character(lat_grid)),
    depth_grid = cut(depth, seq(0, 1e4, 500), seq(250, 1e4, 500)),
    depth_grid = as.numeric(as.character(depth_grid))
  ) %>%
  distinct(depth_grid, lat_grid, data_source, period, basin_AIP)

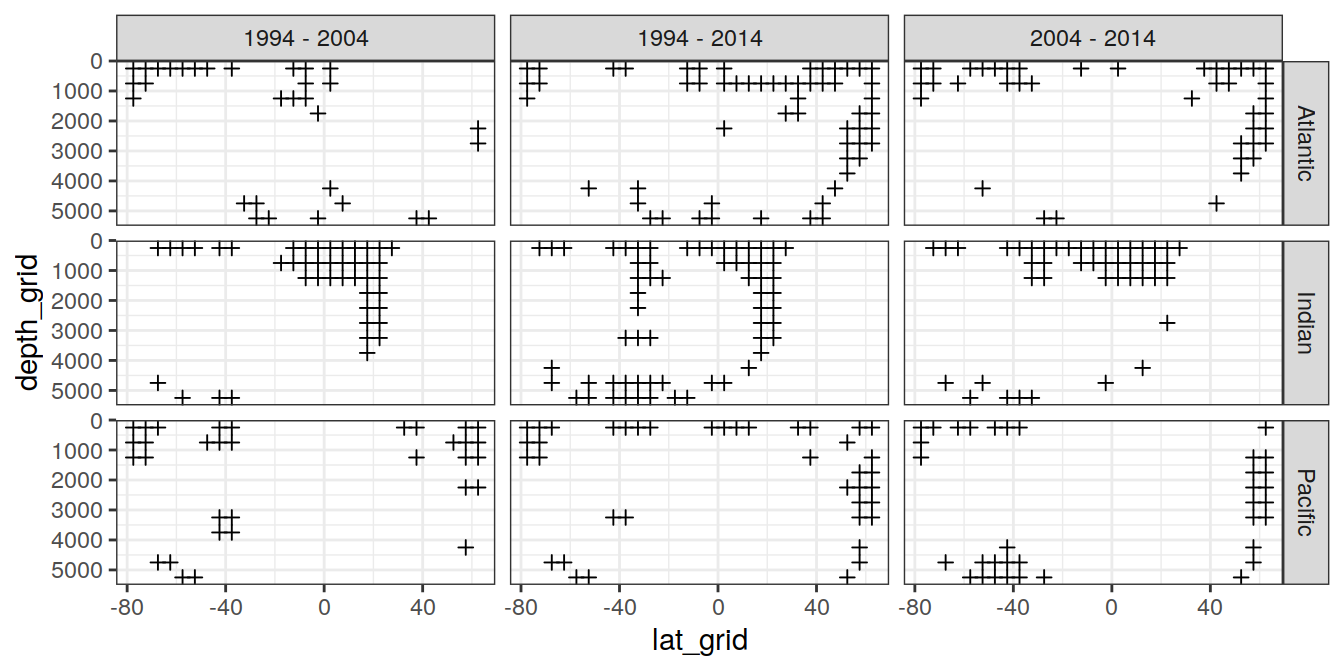

uncertainty_grid %>%
  filter(data_source == "obs") %>%
  ggplot() +
  geom_point(aes(lat_grid, depth_grid),
             shape = 3) +
  facet_grid(basin_AIP ~ period) +
  scale_y_reverse()

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
cdabe91 jens-daniel-mueller 2022-06-27
269809e jens-daniel-mueller 2022-01-12

4.6 SD vs bias

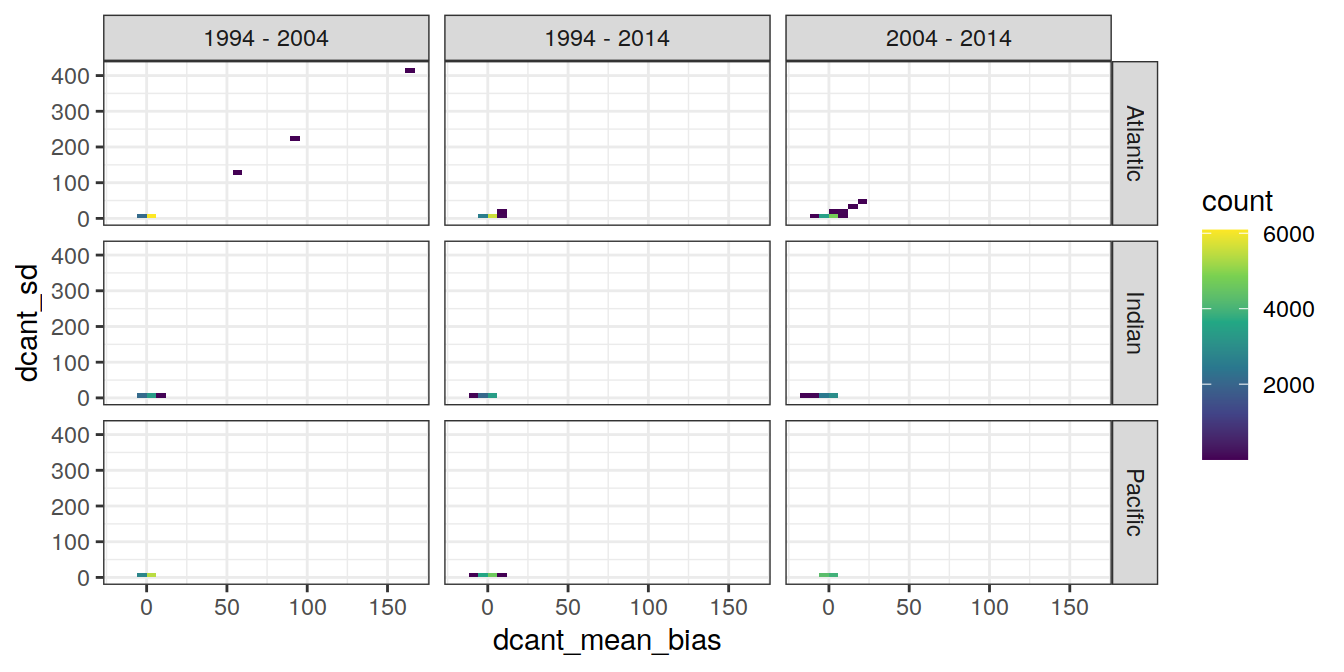

dcant_zonal_ensemble_bias %>%
  ggplot(aes(dcant_mean_bias, dcant_sd)) +
  geom_bin2d() +
  scale_fill_viridis_c() +
  facet_grid(basin_AIP ~ period)

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
cdabe91 jens-daniel-mueller 2022-06-27
c3a6238 jens-daniel-mueller 2022-03-08
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12

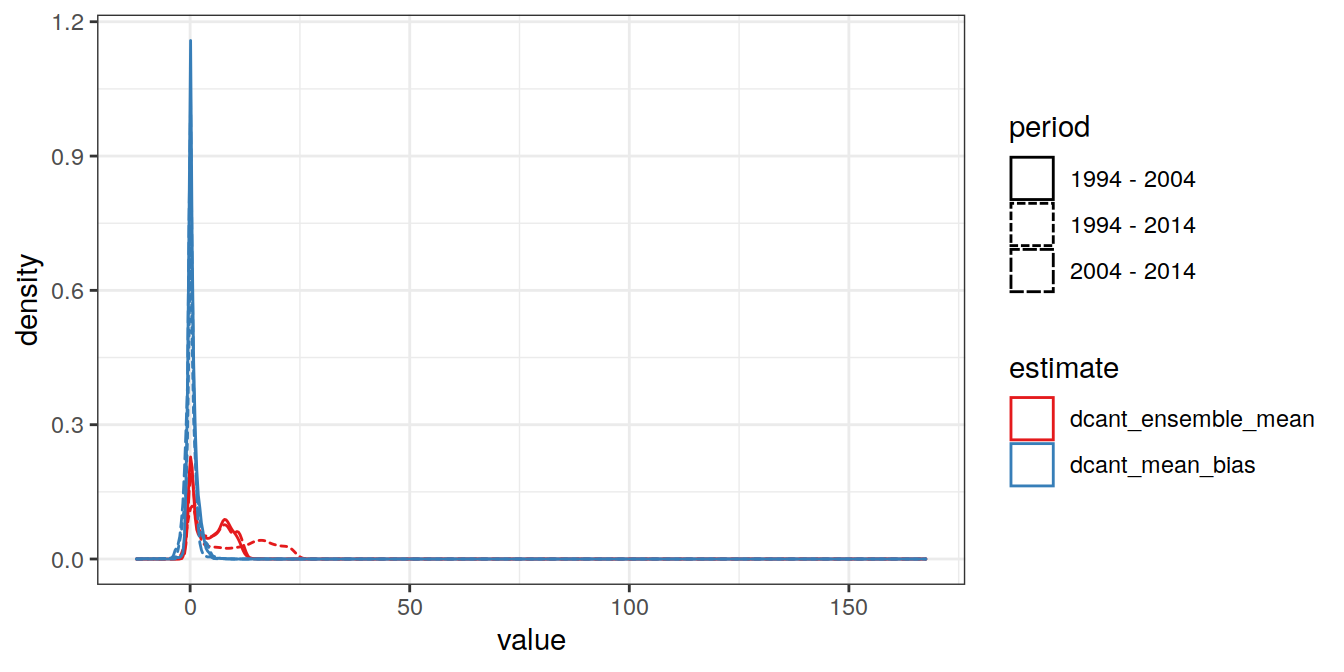

dcant_zonal_ensemble_bias %>%
  select(dcant_ensemble_mean, dcant_mean_bias, period) %>%
  pivot_longer(dcant_ensemble_mean:dcant_mean_bias,
               names_to = "estimate",
               values_to = "value") %>%
  ggplot(aes(value, col=estimate, linetype = period)) +
  scale_color_brewer(palette = "Set1") +
  geom_density()

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
cdabe91 jens-daniel-mueller 2022-06-27
c3a6238 jens-daniel-mueller 2022-03-08
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12

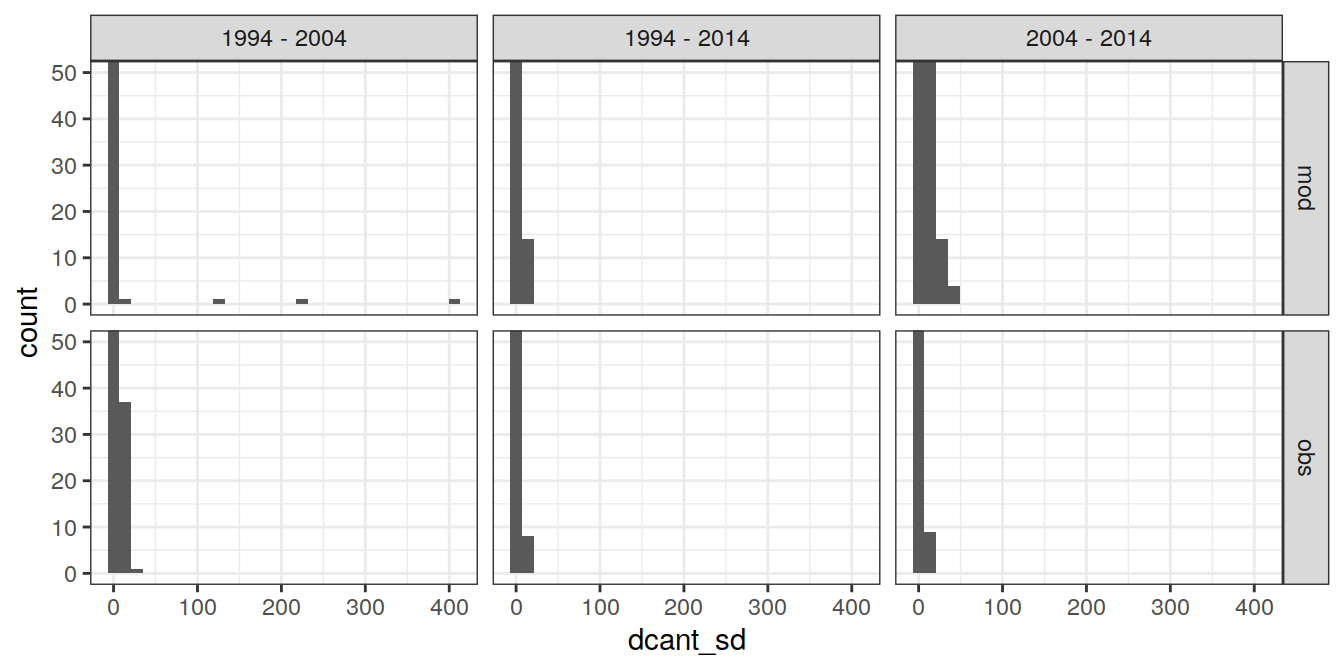

dcant_zonal_ensemble %>%
  ggplot(aes(dcant_sd)) +
  geom_histogram() +
  facet_grid(data_source ~ period) +
  coord_cartesian(ylim = c(0,50))
`stat_bin()` using `bins = 30`. Pick better value with `binwidth`.

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
cdabe91 jens-daniel-mueller 2022-06-27
269809e jens-daniel-mueller 2022-01-12

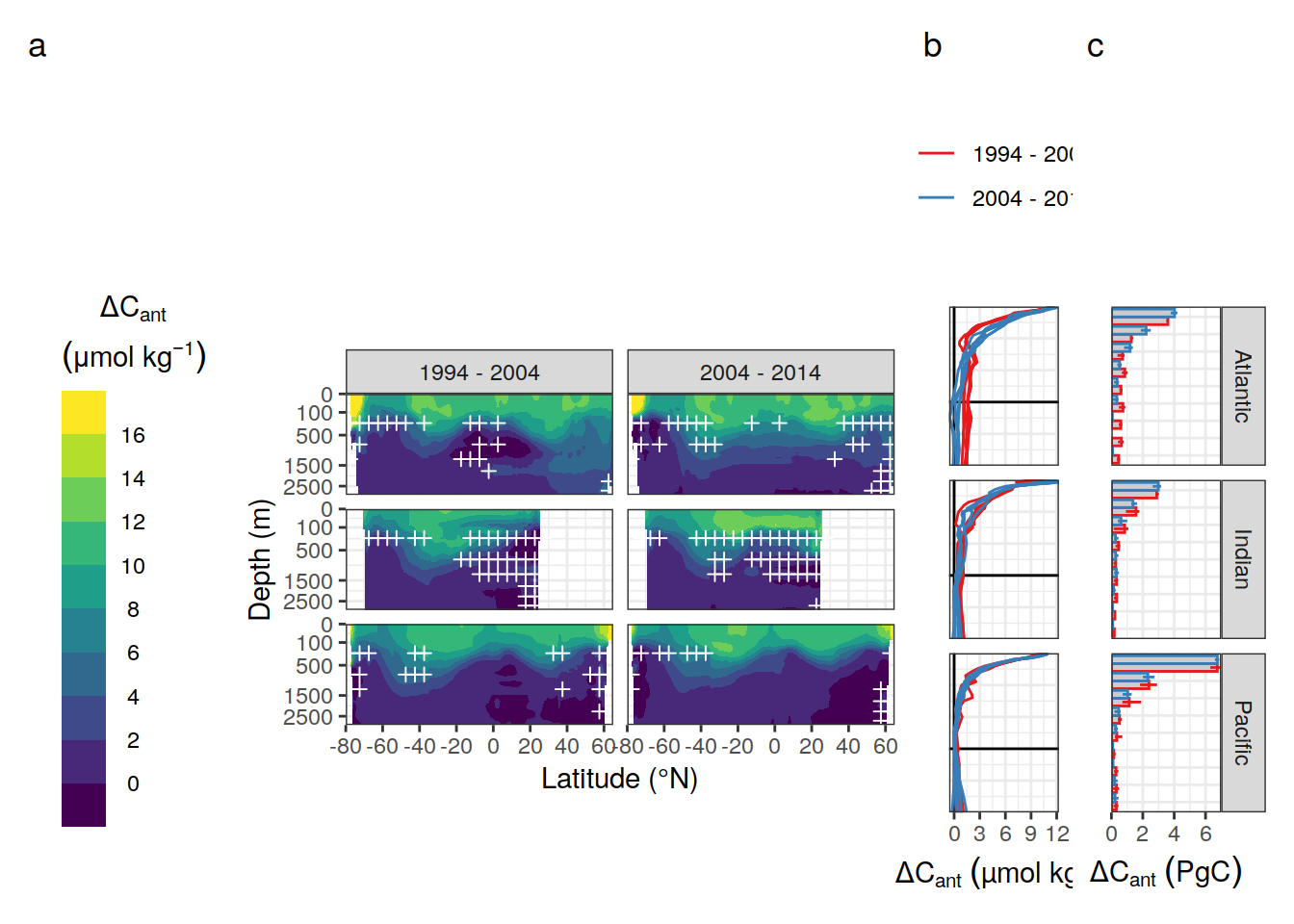

4.7 Composed figure

uncertainty_grid <- uncertainty_grid %>%
  filter(data_source == "obs",
         period != "1994 - 2014")

p_zonal_ensemble <- dcant_zonal_ensemble %>%
  filter(data_source == "obs",
         period != "1994 - 2014") %>%
  p_section_zonal_continous_depth(var = "dcant_ensemble_mean",
                                  plot_slabs = "n",
                                  title_text = NULL) +
  geom_point(data = uncertainty_grid,
             aes(lat_grid, depth_grid),
             shape = 3,
             col = "white") +
  facet_grid(basin_AIP ~ period,
             switch = "y") +
  theme(legend.position = "left",
        strip.background.y = element_blank(),
        strip.text.y = element_blank())

p_profiles <-
  dcant_profile_all %>%
  arrange(depth) %>%
  filter(period != "1994 - 2014",
         data_source == "obs") %>%
  ggplot(aes(
           dcant,
           depth,
           col = period,
           fill = "grey80",
           group = interaction(MLR_basins, period)
         )) +
  geom_hline(yintercept = params_global$inventory_depth_standard) +
  geom_vline(xintercept = 0) +
  geom_path() +
  scale_y_reverse(name = "Depth (m)",
                  limits = c(5000,0)) +
  scale_x_continuous(name = expression(Delta * C[ant] ~ (µmol~kg^{-1}))) +
  coord_cartesian(expand = 0) +
  scale_color_brewer(palette = "Set1") +
  facet_grid(basin_AIP ~.) +
  theme(legend.position = "top",
        legend.direction = "vertical",
        legend.title = element_blank(),
        strip.background = element_blank(),
        strip.text = element_blank(),
        axis.text.y = element_blank(),
        axis.title.y = element_blank(),
        axis.ticks.y = element_blank())


p_layer_budget <- dcant_budget_basin_AIP_layer_ensemble %>%
  filter(data_source == "obs",
         period != "1994 - 2014") %>%
  mutate(depth =
           as.numeric(str_split(inv_depth, " - ", simplify = TRUE)[, 1]) + 250) %>%
  filter(depth < 5000) %>%
  ggplot(aes(dcant_mean, inv_depth, col = period)) +
  geom_col(position = "dodge",
           orientation = "y",
           fill = "grey80") +
  geom_errorbar(
    aes(xmin = dcant_min,
        xmax = dcant_max),
    width = 0,
    position = position_dodge(width = 0.9)
  ) +
  scale_color_brewer(palette = "Set1", guide = "none") +
  scale_x_continuous(
    limits = c(0, NA),
    expand = c(0, 0),
    name = expression(Delta * C[ant] ~ (PgC))
  ) +
  scale_y_discrete(name = "Depth intervals (m)",
                   limits = rev) +
  facet_grid(basin_AIP ~ .) +
  theme(legend.position = "top",
        legend.title = element_blank(),
        axis.text.y = element_blank(),
        axis.title.y = element_blank(),
        axis.ticks.y = element_blank())


p_zonal_ensemble + p_profiles + p_layer_budget +
  plot_layout(widths = c(5,1,1)) +
  plot_annotation(tag_levels = 'a')
Warning: Removed 3178 rows containing non-finite values (stat_contour_filled).
Warning: Removed 57 rows containing missing values (geom_point).
Warning: Removed 36 row(s) containing missing values (geom_path).
Warning: Removed 1 rows containing missing values (geom_col).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
09b0780 jens-daniel-mueller 2022-05-24
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12
# ggsave("output/publication/Fig_zonal_mean.png",
#        width=15.25,
#        height=9.27)

5 Cases vs ensemble

5.1 Offset from mean

dcant_zonal_all <- full_join(dcant_zonal_all %>% select(-dcant_sd),
                             dcant_zonal_ensemble)
Joining, by = c("data_source", "lat", "depth", "basin_AIP", "period")
dcant_zonal_all <- dcant_zonal_all %>%
  mutate(dcant_offset = dcant - dcant_ensemble_mean)


legend_title <- expression(atop(Delta * C[ant, offset],
                                (mu * mol ~ kg ^ {
                                  -1
                                })))

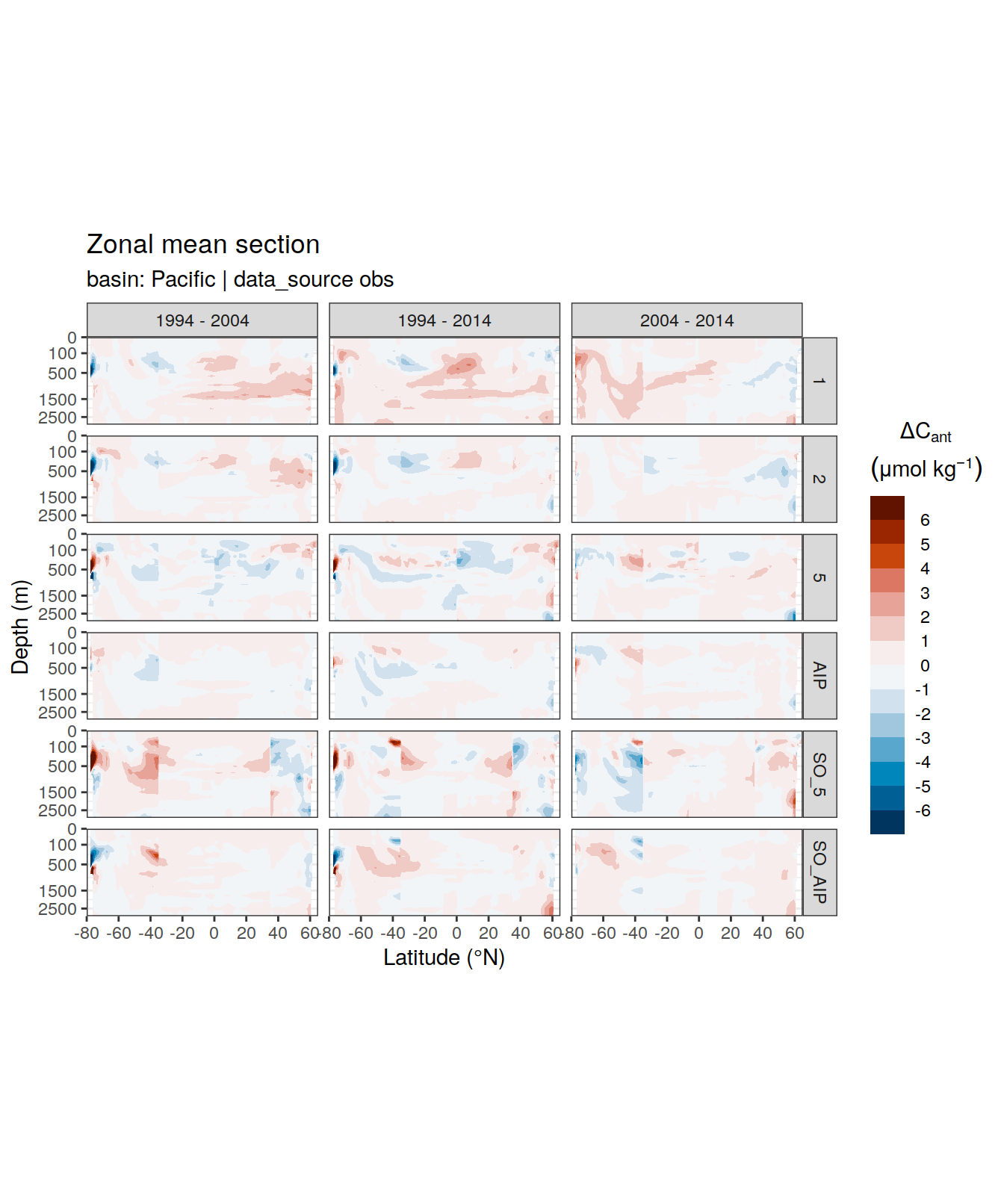

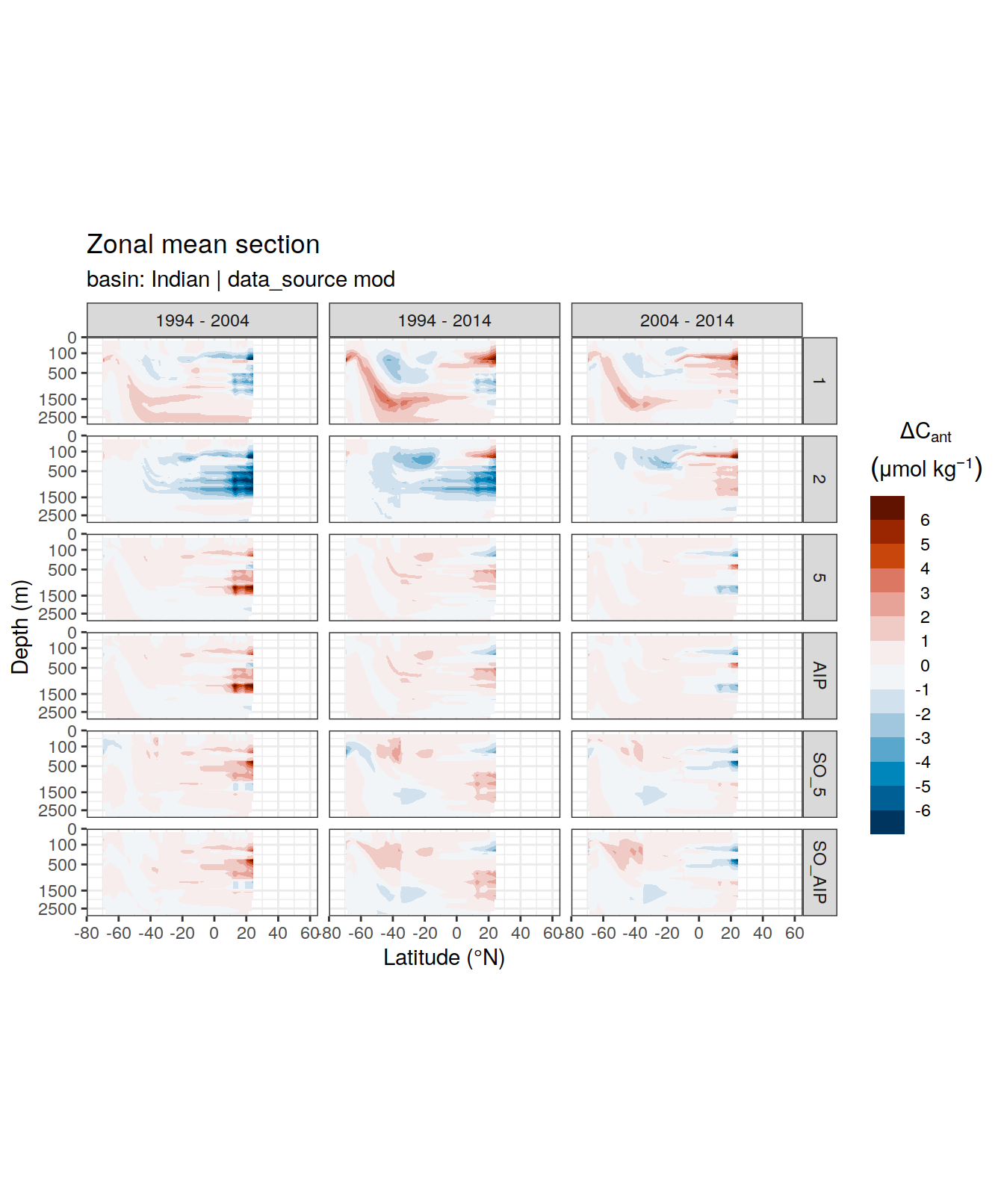

dcant_zonal_all %>%
  filter(data_source %in% c("mod", "obs")) %>%
  group_by(basin_AIP, data_source) %>%
  group_split() %>%
  # head(1) %>%
  map(
    ~ p_section_zonal_continous_depth(
      df = .x,
      var = "dcant_offset",
      col = "divergent",
      plot_slabs = "n",
      subtitle_text = paste("basin:",
                            unique(.x$basin_AIP),
                            "| data_source",
                            unique(.x$data_source))
    ) +
      facet_grid(MLR_basins ~ period)
  )
[[1]]
Warning: Removed 20190 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
e09320d jens-daniel-mueller 2022-04-12
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12
b10afbc jens-daniel-mueller 2022-01-05
f0c828a jens-daniel-mueller 2021-12-22
316ea5f jens-daniel-mueller 2021-12-09
9c72ef3 jens-daniel-mueller 2021-12-08
f4250b0 jens-daniel-mueller 2021-12-08
bd4091f jens-daniel-mueller 2021-12-04
ecbdffe jens-daniel-mueller 2021-12-03
ae5ae64 jens-daniel-mueller 2021-10-26
f9b4f93 jens-daniel-mueller 2021-10-05

[[2]]
Warning: Removed 10278 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
e09320d jens-daniel-mueller 2022-04-12
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12
b10afbc jens-daniel-mueller 2022-01-05
f0c828a jens-daniel-mueller 2021-12-22
316ea5f jens-daniel-mueller 2021-12-09
9c72ef3 jens-daniel-mueller 2021-12-08
f4250b0 jens-daniel-mueller 2021-12-08
bd4091f jens-daniel-mueller 2021-12-04
ecbdffe jens-daniel-mueller 2021-12-03
ae5ae64 jens-daniel-mueller 2021-10-26
f9b4f93 jens-daniel-mueller 2021-10-05

[[3]]
Warning: Removed 13338 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
e09320d jens-daniel-mueller 2022-04-12
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12
b10afbc jens-daniel-mueller 2022-01-05
f0c828a jens-daniel-mueller 2021-12-22
316ea5f jens-daniel-mueller 2021-12-09
9c72ef3 jens-daniel-mueller 2021-12-08
f4250b0 jens-daniel-mueller 2021-12-08
bd4091f jens-daniel-mueller 2021-12-04
ecbdffe jens-daniel-mueller 2021-12-03
ae5ae64 jens-daniel-mueller 2021-10-26
f9b4f93 jens-daniel-mueller 2021-10-05

[[4]]
Warning: Removed 6876 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
e09320d jens-daniel-mueller 2022-04-12
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12
b10afbc jens-daniel-mueller 2022-01-05
f0c828a jens-daniel-mueller 2021-12-22
316ea5f jens-daniel-mueller 2021-12-09
9c72ef3 jens-daniel-mueller 2021-12-08
f4250b0 jens-daniel-mueller 2021-12-08
bd4091f jens-daniel-mueller 2021-12-04
ecbdffe jens-daniel-mueller 2021-12-03
ae5ae64 jens-daniel-mueller 2021-10-26
f9b4f93 jens-daniel-mueller 2021-10-05

[[5]]
Warning: Removed 22212 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
e09320d jens-daniel-mueller 2022-04-12
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12
b10afbc jens-daniel-mueller 2022-01-05
f0c828a jens-daniel-mueller 2021-12-22
316ea5f jens-daniel-mueller 2021-12-09
9c72ef3 jens-daniel-mueller 2021-12-08
f4250b0 jens-daniel-mueller 2021-12-08
bd4091f jens-daniel-mueller 2021-12-04
ecbdffe jens-daniel-mueller 2021-12-03
ae5ae64 jens-daniel-mueller 2021-10-26
f9b4f93 jens-daniel-mueller 2021-10-05

[[6]]
Warning: Removed 11448 rows containing non-finite values (stat_contour_filled).

Version Author Date
ec60f68 jens-daniel-mueller 2022-11-07
e99640e jens-daniel-mueller 2022-07-29
d5765c9 jens-daniel-mueller 2022-07-17
b44c72a jens-daniel-mueller 2022-07-03
6e173bf jens-daniel-mueller 2022-06-30
a13a7cf jens-daniel-mueller 2022-06-28
cdabe91 jens-daniel-mueller 2022-06-27
e09320d jens-daniel-mueller 2022-04-12
c3a6238 jens-daniel-mueller 2022-03-08
9753eb8 jens-daniel-mueller 2022-01-26
d7dfc7c jens-daniel-mueller 2022-01-18
3b07c04 jens-daniel-mueller 2022-01-12
269809e jens-daniel-mueller 2022-01-12
b10afbc jens-daniel-mueller 2022-01-05
f0c828a jens-daniel-mueller 2021-12-22
316ea5f jens-daniel-mueller 2021-12-09
9c72ef3 jens-daniel-mueller 2021-12-08
f4250b0 jens-daniel-mueller 2021-12-08
bd4091f jens-daniel-mueller 2021-12-04
ecbdffe jens-daniel-mueller 2021-12-03
ae5ae64 jens-daniel-mueller 2021-10-26
f9b4f93 jens-daniel-mueller 2021-10-05

sessionInfo()
R version 4.1.2 (2021-11-01)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: openSUSE Leap 15.3

Matrix products: default
BLAS:   /usr/local/R-4.1.2/lib64/R/lib/libRblas.so
LAPACK: /usr/local/R-4.1.2/lib64/R/lib/libRlapack.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] geomtextpath_0.1.0 colorspace_2.0-2   marelac_2.1.10     shape_1.4.6
 [5] ggforce_0.3.3      metR_0.11.0        scico_1.3.0        patchwork_1.1.1
 [9] collapse_1.7.0     forcats_0.5.1      stringr_1.4.0      dplyr_1.0.7
[13] purrr_0.3.4        readr_2.1.1        tidyr_1.1.4        tibble_3.1.6
[17] ggplot2_3.3.5      tidyverse_1.3.1    workflowr_1.7.0

loaded via a namespace (and not attached):
 [1] fs_1.5.2           bit64_4.0.5        lubridate_1.8.0    gsw_1.0-6
 [5] RColorBrewer_1.1-2 httr_1.4.2         rprojroot_2.0.2    tools_4.1.2
 [9] backports_1.4.1    bslib_0.3.1        utf8_1.2.2         R6_2.5.1
[13] DBI_1.1.2          withr_2.4.3        tidyselect_1.1.1   processx_3.5.2
[17] bit_4.0.4          compiler_4.1.2     git2r_0.29.0       textshaping_0.3.6
[21] cli_3.1.1          rvest_1.0.2        xml2_1.3.3         isoband_0.2.5
[25] labeling_0.4.2     sass_0.4.0         scales_1.1.1       checkmate_2.0.0
[29] SolveSAPHE_2.1.0   callr_3.7.0        systemfonts_1.0.3  digest_0.6.29
[33] rmarkdown_2.11     oce_1.5-0          pkgconfig_2.0.3    htmltools_0.5.2
[37] highr_0.9          dbplyr_2.1.1       fastmap_1.1.0      rlang_1.0.2
[41] readxl_1.3.1       rstudioapi_0.13    jquerylib_0.1.4    generics_0.1.1
[45] farver_2.1.0       jsonlite_1.7.3     vroom_1.5.7        magrittr_2.0.1
[49] Rcpp_1.0.8         munsell_0.5.0      fansi_1.0.2        lifecycle_1.0.1
[53] stringi_1.7.6      whisker_0.4        yaml_2.2.1         MASS_7.3-55
[57] grid_4.1.2         parallel_4.1.2     promises_1.2.0.1   crayon_1.4.2
[61] haven_2.4.3        hms_1.1.1          seacarb_3.3.0      knitr_1.37
[65] ps_1.6.0           pillar_1.6.4       reprex_2.0.1       glue_1.6.0
[69] evaluate_0.14      getPass_0.2-2      data.table_1.14.2  modelr_0.1.8
[73] vctrs_0.3.8        tzdb_0.2.0         tweenr_1.0.2       httpuv_1.6.5
[77] cellranger_1.1.0   gtable_0.3.0       polyclip_1.10-0    assertthat_0.2.1
[81] xfun_0.29          broom_0.7.11       later_1.3.0        viridisLite_0.4.0
[85] ellipsis_0.3.2     here_1.0.1
