path_GLODAP_preprocessing <-
  paste(path_root, "/observations/preprocessing/", sep = "")

path_cmorized <-
  "/nfs/kryo/work/loher/CESM_output/RECCAP2/cmorized_March2021/split_monthly/"

path_preprocessing <-
  paste0(path_root, "/model/preprocessing/GLODAP_subset_A_all_models/")

1 Select basin mask

# use only three basin to assign general basin mask
# ie this is not specific to the MLR fitting
basinmask <- basinmask %>%
  filter(MLR_basins == "2") %>%
  select(lat, lon, basin_AIP)

2 Read GLODAPv2_2021 preprocessed files

GLODAP <-
  read_csv(paste(path_GLODAP_preprocessing,
                 "GLODAPv2.2021_preprocessed.csv",
                 sep = ""))

GLODAP <- GLODAP %>%
  mutate(month = month(date))

# GLODAP <- GLODAP %>%
#   filter(year <= 2019)

3 Subset cmorized data according to GLODAP observation

Here we subset cmorized (1x1) data from the model with variable forcing, according to the presence of GLODAP observations in a previously cleaned file.

Besides, Model results are given in [mol m^-3], whereas GLODAP data are in [µmol kg^-1]. This refers to the variables:

DIC
ALK
O2
NO3
PO4
SiO3
AOU (calculated)

For comparison, model results were converted from [mol m^-3] to [µmol kg^-1]

# set name of model to be subsetted
model_ID <- "A"

# for loop across years
years <- c("1982":"2020")

for (i_year in years) {
  # i_year <- years[39]

  # select GLODAP data for that year
  GLODAP_year <- GLODAP %>%
    filter(year == i_year)

  # create month x lat x lon grid of observations
  Glodap_year_grid_horizontal <- GLODAP_year %>%
    distinct(month, lat, lon)

  # create month x lat x lon x depth grid of observations
  Glodap_year_grid_depth <- GLODAP_year %>%
    distinct(month, lat, lon, depth)

  # for loop across variables
  variables <-
    c("so", "thetao", "dissic", "talk", "o2", "no3", "po4", "si")

  for (i_variable in variables) {
    # i_variable <- variables[3]

    # read list of all files

    if (i_year <= 2019) {
      file <-
        list.files(
          path = path_cmorized,
          pattern = paste(
            "^",
            i_variable,
            "_CESM-ETHZ_",
            model_ID,
            "_1_gr_",
            i_year,
            ".nc",
            sep = ""
          )
        )
    } else {
      file <-
        list.files(
          path = path_cmorized,
          pattern = paste(
            "^",
            i_variable,
            "_CESM-ETHZ_",
            model_ID,
            "_1_gr_",
            i_year-1,
            ".nc",
            sep = ""
          )
        )
    }

    print(file)

    # read in data
    variable_data <-
      read_ncdf(paste(path_cmorized,
                      file,
                      sep = ""),
                make_units = FALSE)

    # convert to tibble
    variable_data_tibble <- variable_data %>%
      as_tibble()

    # remove open link to nc file
    rm(variable_data)

    # remove na values
    variable_data_tibble <-
      variable_data_tibble %>%
      filter(!is.na(!!sym(i_variable)))

    # harmonize longitudes
    variable_data_tibble <- variable_data_tibble %>%
      mutate(lon = if_else(lon < 20, lon + 360, lon))

    # only consider model grids within basinmask
    variable_data_tibble <-
      inner_join(variable_data_tibble, basinmask) %>%
      select(-basin_AIP)

    # mutate variables
    variable_data_tibble <- variable_data_tibble %>%
      mutate(month = month(time_mon)) %>%
      select(-time_mon)

    # calculate model summary stats
    stats <- variable_data_tibble %>%
      pull(!!sym(i_variable)) %>%
      summary()

    stats <- c(year = i_year, variable = i_variable, stats)

    if (exists("stats_summary")) {
      stats_summary <- bind_rows(stats_summary, stats)
    }

    if (!exists("stats_summary")) {
      stats_summary <- stats
    }

    rm(stats)

    # subset model at month x lat x lon grid of observations
    model_grid_horizontal <-
      inner_join(Glodap_year_grid_horizontal, variable_data_tibble)

    # join model and month x lat x lon x depth grid of observations
    model_obs <-
      full_join(model_grid_horizontal, Glodap_year_grid_depth)

    # calculate nr of observations per month x lat x lon grid
    model_obs <- model_obs %>%
      group_by(month, lat, lon) %>%
      mutate(n = sum(!is.na(!!sym(i_variable)))) %>%
      ungroup()

    # set variable value from model for observation depth, if only one model depth available
    model_obs_set <- model_obs %>%
      filter(n == 1) %>%
      group_by(lon, lat, month) %>%
      mutate(!!sym(i_variable) := mean(!!sym(i_variable), na.rm = TRUE)) %>%
      ungroup()

    # interpolate variable value from model to observation depth
    model_obs_interpo <- model_obs %>%
      filter(n > 1) %>%
      group_by(lon, lat, month) %>%
      arrange(depth) %>%
      mutate(!!sym(i_variable) := approxfun(depth, !!sym(i_variable), rule = 2)(depth)) %>%
      ungroup()

    # join interpolated and set model values
    model_obs_interpo <- full_join(model_obs_interpo, model_obs_set)
    rm(model_obs_set)

    # subsetted interpolated values at observation depth
    model_obs_interpo <-
      inner_join(Glodap_year_grid_depth, model_obs_interpo) %>%
      select(-n) %>%
      mutate(year = as.numeric(i_year))

    # select observation grids without corresponding model subset
    na_model <-
      full_join(Glodap_year_grid_depth, model_obs_interpo) %>%
      filter(is.na(!!sym(i_variable))) %>%
      select(month, lat, lon) %>%
      unique()

    # rename interpolated model variable to indicate as model output
    model_obs_interpo <- model_obs_interpo %>%
      rename(!!sym(paste(i_variable, "model", sep = "_")) := !!sym(i_variable))

    # add model subset to GLODAP
    GLODAP <-
      natural_join(
        GLODAP,
        model_obs_interpo,
        by = c("year", "month", "lat", "lon", "depth"),
        jointype = "FULL"
      )

    # calculate annual average variable
    variable_data_tibble_annual_average <- variable_data_tibble %>%
      fselect(-month) %>%
      fgroup_by(lat, lon, depth) %>% {
        add_vars(fgroup_vars(., "unique"),
                 fmean(., keep.group_vars = FALSE))
      }

    # select surface annual average variable
    variable_data_tibble_annual_average_surface <-
      variable_data_tibble_annual_average %>%
      filter(depth == min(depth))

    # surface map of variable
    map +
      geom_raster(data = variable_data_tibble_annual_average_surface,
                  aes(lon, lat, fill = !!sym(i_variable))) +
      scale_fill_viridis_c(name = i_variable) +
      geom_raster(data = model_obs_interpo,
                  aes(lon, lat), fill = "black") +
      geom_raster(data = na_model,
                  aes(lon, lat), fill = "red") +
      labs(
        title = "GLODAP-based cmorized subset distribution",
        subtitle = paste(
          "Model depth: 5m | Annual average of year",
          i_year,
          "| red = subsetting failed"
        ),
        x = "Longitude",
        y = "Latitude"
      )

    ggsave(
      paste(
        path_preprocessing,
        "regular_subset_distribution_runA_2021/",
        "CESM-ETHZ_v20211122_monthly_",
        i_variable,
        "_",
        i_year,
        ".png",
        sep = ""
      ),
      width = 5,
      height = 3
    )
  }

}

[1] "so_CESM-ETHZ_A_1_gr_1982.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_1982.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_1982.nc"

[1] "talk_CESM-ETHZ_A_1_gr_1982.nc"

[1] "o2_CESM-ETHZ_A_1_gr_1982.nc"

[1] "no3_CESM-ETHZ_A_1_gr_1982.nc"

[1] "po4_CESM-ETHZ_A_1_gr_1982.nc"

[1] "si_CESM-ETHZ_A_1_gr_1982.nc"

[1] "so_CESM-ETHZ_A_1_gr_1983.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_1983.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_1983.nc"

[1] "talk_CESM-ETHZ_A_1_gr_1983.nc"

[1] "o2_CESM-ETHZ_A_1_gr_1983.nc"

[1] "no3_CESM-ETHZ_A_1_gr_1983.nc"

[1] "po4_CESM-ETHZ_A_1_gr_1983.nc"

[1] "si_CESM-ETHZ_A_1_gr_1983.nc"

[1] "so_CESM-ETHZ_A_1_gr_1984.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_1984.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_1984.nc"

[1] "talk_CESM-ETHZ_A_1_gr_1984.nc"

[1] "o2_CESM-ETHZ_A_1_gr_1984.nc"

[1] "no3_CESM-ETHZ_A_1_gr_1984.nc"

[1] "po4_CESM-ETHZ_A_1_gr_1984.nc"

[1] "si_CESM-ETHZ_A_1_gr_1984.nc"

[1] "so_CESM-ETHZ_A_1_gr_1985.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_1985.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_1985.nc"

[1] "talk_CESM-ETHZ_A_1_gr_1985.nc"

[1] "o2_CESM-ETHZ_A_1_gr_1985.nc"

[1] "no3_CESM-ETHZ_A_1_gr_1985.nc"

[1] "po4_CESM-ETHZ_A_1_gr_1985.nc"

[1] "si_CESM-ETHZ_A_1_gr_1985.nc"

[1] "so_CESM-ETHZ_A_1_gr_1986.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_1986.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_1986.nc"

[1] "talk_CESM-ETHZ_A_1_gr_1986.nc"

[1] "o2_CESM-ETHZ_A_1_gr_1986.nc"

[1] "no3_CESM-ETHZ_A_1_gr_1986.nc"

[1] "po4_CESM-ETHZ_A_1_gr_1986.nc"

[1] "si_CESM-ETHZ_A_1_gr_1986.nc"

[1] "so_CESM-ETHZ_A_1_gr_1987.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_1987.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_1987.nc"

[1] "talk_CESM-ETHZ_A_1_gr_1987.nc"

[1] "o2_CESM-ETHZ_A_1_gr_1987.nc"

[1] "no3_CESM-ETHZ_A_1_gr_1987.nc"

[1] "po4_CESM-ETHZ_A_1_gr_1987.nc"

[1] "si_CESM-ETHZ_A_1_gr_1987.nc"

[1] "so_CESM-ETHZ_A_1_gr_1988.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_1988.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_1988.nc"

[1] "talk_CESM-ETHZ_A_1_gr_1988.nc"

[1] "o2_CESM-ETHZ_A_1_gr_1988.nc"

[1] "no3_CESM-ETHZ_A_1_gr_1988.nc"

[1] "po4_CESM-ETHZ_A_1_gr_1988.nc"

[1] "si_CESM-ETHZ_A_1_gr_1988.nc"

[1] "so_CESM-ETHZ_A_1_gr_1989.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_1989.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_1989.nc"

[1] "talk_CESM-ETHZ_A_1_gr_1989.nc"

[1] "o2_CESM-ETHZ_A_1_gr_1989.nc"

[1] "no3_CESM-ETHZ_A_1_gr_1989.nc"

[1] "po4_CESM-ETHZ_A_1_gr_1989.nc"

[1] "si_CESM-ETHZ_A_1_gr_1989.nc"

[1] "so_CESM-ETHZ_A_1_gr_1990.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_1990.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_1990.nc"

[1] "talk_CESM-ETHZ_A_1_gr_1990.nc"

[1] "o2_CESM-ETHZ_A_1_gr_1990.nc"

[1] "no3_CESM-ETHZ_A_1_gr_1990.nc"

[1] "po4_CESM-ETHZ_A_1_gr_1990.nc"

[1] "si_CESM-ETHZ_A_1_gr_1990.nc"

[1] "so_CESM-ETHZ_A_1_gr_1991.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_1991.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_1991.nc"

[1] "talk_CESM-ETHZ_A_1_gr_1991.nc"

[1] "o2_CESM-ETHZ_A_1_gr_1991.nc"

[1] "no3_CESM-ETHZ_A_1_gr_1991.nc"

[1] "po4_CESM-ETHZ_A_1_gr_1991.nc"

[1] "si_CESM-ETHZ_A_1_gr_1991.nc"

[1] "so_CESM-ETHZ_A_1_gr_1992.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_1992.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_1992.nc"

[1] "talk_CESM-ETHZ_A_1_gr_1992.nc"

[1] "o2_CESM-ETHZ_A_1_gr_1992.nc"

[1] "no3_CESM-ETHZ_A_1_gr_1992.nc"

[1] "po4_CESM-ETHZ_A_1_gr_1992.nc"

[1] "si_CESM-ETHZ_A_1_gr_1992.nc"

[1] "so_CESM-ETHZ_A_1_gr_1993.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_1993.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_1993.nc"

[1] "talk_CESM-ETHZ_A_1_gr_1993.nc"

[1] "o2_CESM-ETHZ_A_1_gr_1993.nc"

[1] "no3_CESM-ETHZ_A_1_gr_1993.nc"

[1] "po4_CESM-ETHZ_A_1_gr_1993.nc"

[1] "si_CESM-ETHZ_A_1_gr_1993.nc"

[1] "so_CESM-ETHZ_A_1_gr_1994.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_1994.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_1994.nc"

[1] "talk_CESM-ETHZ_A_1_gr_1994.nc"

[1] "o2_CESM-ETHZ_A_1_gr_1994.nc"

[1] "no3_CESM-ETHZ_A_1_gr_1994.nc"

[1] "po4_CESM-ETHZ_A_1_gr_1994.nc"

[1] "si_CESM-ETHZ_A_1_gr_1994.nc"

[1] "so_CESM-ETHZ_A_1_gr_1995.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_1995.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_1995.nc"

[1] "talk_CESM-ETHZ_A_1_gr_1995.nc"

[1] "o2_CESM-ETHZ_A_1_gr_1995.nc"

[1] "no3_CESM-ETHZ_A_1_gr_1995.nc"

[1] "po4_CESM-ETHZ_A_1_gr_1995.nc"

[1] "si_CESM-ETHZ_A_1_gr_1995.nc"

[1] "so_CESM-ETHZ_A_1_gr_1996.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_1996.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_1996.nc"

[1] "talk_CESM-ETHZ_A_1_gr_1996.nc"

[1] "o2_CESM-ETHZ_A_1_gr_1996.nc"

[1] "no3_CESM-ETHZ_A_1_gr_1996.nc"

[1] "po4_CESM-ETHZ_A_1_gr_1996.nc"

[1] "si_CESM-ETHZ_A_1_gr_1996.nc"

[1] "so_CESM-ETHZ_A_1_gr_1997.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_1997.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_1997.nc"

[1] "talk_CESM-ETHZ_A_1_gr_1997.nc"

[1] "o2_CESM-ETHZ_A_1_gr_1997.nc"

[1] "no3_CESM-ETHZ_A_1_gr_1997.nc"

[1] "po4_CESM-ETHZ_A_1_gr_1997.nc"

[1] "si_CESM-ETHZ_A_1_gr_1997.nc"

[1] "so_CESM-ETHZ_A_1_gr_1998.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_1998.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_1998.nc"

[1] "talk_CESM-ETHZ_A_1_gr_1998.nc"

[1] "o2_CESM-ETHZ_A_1_gr_1998.nc"

[1] "no3_CESM-ETHZ_A_1_gr_1998.nc"

[1] "po4_CESM-ETHZ_A_1_gr_1998.nc"

[1] "si_CESM-ETHZ_A_1_gr_1998.nc"

[1] "so_CESM-ETHZ_A_1_gr_1999.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_1999.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_1999.nc"

[1] "talk_CESM-ETHZ_A_1_gr_1999.nc"

[1] "o2_CESM-ETHZ_A_1_gr_1999.nc"

[1] "no3_CESM-ETHZ_A_1_gr_1999.nc"

[1] "po4_CESM-ETHZ_A_1_gr_1999.nc"

[1] "si_CESM-ETHZ_A_1_gr_1999.nc"

[1] "so_CESM-ETHZ_A_1_gr_2000.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_2000.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_2000.nc"

[1] "talk_CESM-ETHZ_A_1_gr_2000.nc"

[1] "o2_CESM-ETHZ_A_1_gr_2000.nc"

[1] "no3_CESM-ETHZ_A_1_gr_2000.nc"

[1] "po4_CESM-ETHZ_A_1_gr_2000.nc"

[1] "si_CESM-ETHZ_A_1_gr_2000.nc"

[1] "so_CESM-ETHZ_A_1_gr_2001.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_2001.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_2001.nc"

[1] "talk_CESM-ETHZ_A_1_gr_2001.nc"

[1] "o2_CESM-ETHZ_A_1_gr_2001.nc"

[1] "no3_CESM-ETHZ_A_1_gr_2001.nc"

[1] "po4_CESM-ETHZ_A_1_gr_2001.nc"

[1] "si_CESM-ETHZ_A_1_gr_2001.nc"

[1] "so_CESM-ETHZ_A_1_gr_2002.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_2002.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_2002.nc"

[1] "talk_CESM-ETHZ_A_1_gr_2002.nc"

[1] "o2_CESM-ETHZ_A_1_gr_2002.nc"

[1] "no3_CESM-ETHZ_A_1_gr_2002.nc"

[1] "po4_CESM-ETHZ_A_1_gr_2002.nc"

[1] "si_CESM-ETHZ_A_1_gr_2002.nc"

[1] "so_CESM-ETHZ_A_1_gr_2003.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_2003.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_2003.nc"

[1] "talk_CESM-ETHZ_A_1_gr_2003.nc"

[1] "o2_CESM-ETHZ_A_1_gr_2003.nc"

[1] "no3_CESM-ETHZ_A_1_gr_2003.nc"

[1] "po4_CESM-ETHZ_A_1_gr_2003.nc"

[1] "si_CESM-ETHZ_A_1_gr_2003.nc"

[1] "so_CESM-ETHZ_A_1_gr_2004.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_2004.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_2004.nc"

[1] "talk_CESM-ETHZ_A_1_gr_2004.nc"

[1] "o2_CESM-ETHZ_A_1_gr_2004.nc"

[1] "no3_CESM-ETHZ_A_1_gr_2004.nc"

[1] "po4_CESM-ETHZ_A_1_gr_2004.nc"

[1] "si_CESM-ETHZ_A_1_gr_2004.nc"

[1] "so_CESM-ETHZ_A_1_gr_2005.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_2005.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_2005.nc"

[1] "talk_CESM-ETHZ_A_1_gr_2005.nc"

[1] "o2_CESM-ETHZ_A_1_gr_2005.nc"

[1] "no3_CESM-ETHZ_A_1_gr_2005.nc"

[1] "po4_CESM-ETHZ_A_1_gr_2005.nc"

[1] "si_CESM-ETHZ_A_1_gr_2005.nc"

[1] "so_CESM-ETHZ_A_1_gr_2006.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_2006.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_2006.nc"

[1] "talk_CESM-ETHZ_A_1_gr_2006.nc"

[1] "o2_CESM-ETHZ_A_1_gr_2006.nc"

[1] "no3_CESM-ETHZ_A_1_gr_2006.nc"

[1] "po4_CESM-ETHZ_A_1_gr_2006.nc"

[1] "si_CESM-ETHZ_A_1_gr_2006.nc"

[1] "so_CESM-ETHZ_A_1_gr_2007.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_2007.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_2007.nc"

[1] "talk_CESM-ETHZ_A_1_gr_2007.nc"

[1] "o2_CESM-ETHZ_A_1_gr_2007.nc"

[1] "no3_CESM-ETHZ_A_1_gr_2007.nc"

[1] "po4_CESM-ETHZ_A_1_gr_2007.nc"

[1] "si_CESM-ETHZ_A_1_gr_2007.nc"

[1] "so_CESM-ETHZ_A_1_gr_2008.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_2008.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_2008.nc"

[1] "talk_CESM-ETHZ_A_1_gr_2008.nc"

[1] "o2_CESM-ETHZ_A_1_gr_2008.nc"

[1] "no3_CESM-ETHZ_A_1_gr_2008.nc"

[1] "po4_CESM-ETHZ_A_1_gr_2008.nc"

[1] "si_CESM-ETHZ_A_1_gr_2008.nc"

[1] "so_CESM-ETHZ_A_1_gr_2009.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_2009.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_2009.nc"

[1] "talk_CESM-ETHZ_A_1_gr_2009.nc"

[1] "o2_CESM-ETHZ_A_1_gr_2009.nc"

[1] "no3_CESM-ETHZ_A_1_gr_2009.nc"

[1] "po4_CESM-ETHZ_A_1_gr_2009.nc"

[1] "si_CESM-ETHZ_A_1_gr_2009.nc"

[1] "so_CESM-ETHZ_A_1_gr_2010.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_2010.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_2010.nc"

[1] "talk_CESM-ETHZ_A_1_gr_2010.nc"

[1] "o2_CESM-ETHZ_A_1_gr_2010.nc"

[1] "no3_CESM-ETHZ_A_1_gr_2010.nc"

[1] "po4_CESM-ETHZ_A_1_gr_2010.nc"

[1] "si_CESM-ETHZ_A_1_gr_2010.nc"

[1] "so_CESM-ETHZ_A_1_gr_2011.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_2011.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_2011.nc"

[1] "talk_CESM-ETHZ_A_1_gr_2011.nc"

[1] "o2_CESM-ETHZ_A_1_gr_2011.nc"

[1] "no3_CESM-ETHZ_A_1_gr_2011.nc"

[1] "po4_CESM-ETHZ_A_1_gr_2011.nc"

[1] "si_CESM-ETHZ_A_1_gr_2011.nc"

[1] "so_CESM-ETHZ_A_1_gr_2012.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_2012.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_2012.nc"

[1] "talk_CESM-ETHZ_A_1_gr_2012.nc"

[1] "o2_CESM-ETHZ_A_1_gr_2012.nc"

[1] "no3_CESM-ETHZ_A_1_gr_2012.nc"

[1] "po4_CESM-ETHZ_A_1_gr_2012.nc"

[1] "si_CESM-ETHZ_A_1_gr_2012.nc"

[1] "so_CESM-ETHZ_A_1_gr_2013.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_2013.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_2013.nc"

[1] "talk_CESM-ETHZ_A_1_gr_2013.nc"

[1] "o2_CESM-ETHZ_A_1_gr_2013.nc"

[1] "no3_CESM-ETHZ_A_1_gr_2013.nc"

[1] "po4_CESM-ETHZ_A_1_gr_2013.nc"

[1] "si_CESM-ETHZ_A_1_gr_2013.nc"

[1] "so_CESM-ETHZ_A_1_gr_2014.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_2014.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_2014.nc"

[1] "talk_CESM-ETHZ_A_1_gr_2014.nc"

[1] "o2_CESM-ETHZ_A_1_gr_2014.nc"

[1] "no3_CESM-ETHZ_A_1_gr_2014.nc"

[1] "po4_CESM-ETHZ_A_1_gr_2014.nc"

[1] "si_CESM-ETHZ_A_1_gr_2014.nc"

[1] "so_CESM-ETHZ_A_1_gr_2015.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_2015.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_2015.nc"

[1] "talk_CESM-ETHZ_A_1_gr_2015.nc"

[1] "o2_CESM-ETHZ_A_1_gr_2015.nc"

[1] "no3_CESM-ETHZ_A_1_gr_2015.nc"

[1] "po4_CESM-ETHZ_A_1_gr_2015.nc"

[1] "si_CESM-ETHZ_A_1_gr_2015.nc"

[1] "so_CESM-ETHZ_A_1_gr_2016.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_2016.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_2016.nc"

[1] "talk_CESM-ETHZ_A_1_gr_2016.nc"

[1] "o2_CESM-ETHZ_A_1_gr_2016.nc"

[1] "no3_CESM-ETHZ_A_1_gr_2016.nc"

[1] "po4_CESM-ETHZ_A_1_gr_2016.nc"

[1] "si_CESM-ETHZ_A_1_gr_2016.nc"

[1] "so_CESM-ETHZ_A_1_gr_2017.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_2017.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_2017.nc"

[1] "talk_CESM-ETHZ_A_1_gr_2017.nc"

[1] "o2_CESM-ETHZ_A_1_gr_2017.nc"

[1] "no3_CESM-ETHZ_A_1_gr_2017.nc"

[1] "po4_CESM-ETHZ_A_1_gr_2017.nc"

[1] "si_CESM-ETHZ_A_1_gr_2017.nc"

[1] "so_CESM-ETHZ_A_1_gr_2018.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_2018.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_2018.nc"

[1] "talk_CESM-ETHZ_A_1_gr_2018.nc"

[1] "o2_CESM-ETHZ_A_1_gr_2018.nc"

[1] "no3_CESM-ETHZ_A_1_gr_2018.nc"

[1] "po4_CESM-ETHZ_A_1_gr_2018.nc"

[1] "si_CESM-ETHZ_A_1_gr_2018.nc"

[1] "so_CESM-ETHZ_A_1_gr_2019.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_2019.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_2019.nc"

[1] "talk_CESM-ETHZ_A_1_gr_2019.nc"

[1] "o2_CESM-ETHZ_A_1_gr_2019.nc"

[1] "no3_CESM-ETHZ_A_1_gr_2019.nc"

[1] "po4_CESM-ETHZ_A_1_gr_2019.nc"

[1] "si_CESM-ETHZ_A_1_gr_2019.nc"

[1] "so_CESM-ETHZ_A_1_gr_2019.nc"

[1] "thetao_CESM-ETHZ_A_1_gr_2019.nc"

[1] "dissic_CESM-ETHZ_A_1_gr_2019.nc"

[1] "talk_CESM-ETHZ_A_1_gr_2019.nc"

[1] "o2_CESM-ETHZ_A_1_gr_2019.nc"

[1] "no3_CESM-ETHZ_A_1_gr_2019.nc"

[1] "po4_CESM-ETHZ_A_1_gr_2019.nc"

[1] "si_CESM-ETHZ_A_1_gr_2019.nc"

# write raw data file for GLODAP-based subsetting model variables
GLODAP %>%
  write_csv(
    paste(
      path_preprocessing,
      "CESM-ETHZ_v20211122_monthly_GLODAPv2.2021_preprocessed_model_runA_raw_subset.csv",
      sep = ""
    )
  )

# write file for model summary statistics (original cmorized unit)
stats_summary %>%
  write_csv(
    paste(
      path_preprocessing,
      "regular_subset_distribution_runA_2021/",
      "CESM-ETHZ_v20211122_monthly",
      "_",
      model_ID,
      "_summary_stats.csv",
      sep = ""
    )
  )

# read file for GLODAP-based subsetting model variables
GLODAP <-
  read_csv(
    paste(
      path_preprocessing,
      "CESM-ETHZ_v20211122_monthly_GLODAPv2.2021_preprocessed_model_runA_raw_subset.csv",
      sep = ""
    ),
    col_types = cols(
      .default = col_double(),
      basin_AIP = col_character(),
      date = col_date(format = ""),
      dissic_model = col_double(),
      no3_model = col_double(),
      o2_model = col_double(),
      po4_model = col_double(),
      si_model = col_double(),
      so_model = col_double(),
      talk_model = col_double(),
      thetao_model = col_double()
    )
  )


# filter out GLODAP grids without model subset
GLODAP <- GLODAP %>%
  filter(!is.na(so_model))

# calculate model temperature
GLODAP <- GLODAP %>%
  mutate(temp_model = gsw_pt_from_t(
    SA = so_model,
    t = thetao_model,
    p = 10.1325,
    p_ref = depth
  ))

# unit conversion from mol/m3 to µmol/kg
GLODAP <- GLODAP %>%
  mutate(
    rho = gsw_pot_rho_t_exact(
      SA = so_model,
      t = temp_model,
      p = depth,
      p_ref = 10.1325
    ),
    dissic_model = dissic_model * (1e+6 / rho),
    talk_model = talk_model * (1e+6 / rho),
    o2_model = o2_model * (1e+6 / rho),
    no3_model = no3_model * (1e+6 / rho),
    po4_model = po4_model * (1e+6 / rho),
    si_model = si_model * (1e+6 / rho)
  )

# calculate AOU
GLODAP <- GLODAP %>%
  mutate(
    oxygen_sat_m3 = gas_satconc(
      S = so_model,
      t = temp_model,
      P = 1.013253,
      species = "O2"
    ),
    oxygen_sat_kg = oxygen_sat_m3 * (1e+3 / rho),
    aou_model = oxygen_sat_kg - o2_model
  ) %>%
  select(-oxygen_sat_kg, -oxygen_sat_m3)

# calculate gamma model in temporary data frame
GLODAP_gamma <- GLODAP %>%
  select(depth, lat,
         so_model, thetao_model, lon)

GLODAP_gamma <- GLODAP_gamma %>%
  mutate(CTDPRS = gsw_p_from_z(-depth,
                               lat))

GLODAP_gamma <- GLODAP_gamma %>%
  rename(
    LATITUDE = lat,
    LONGITUDE = lon,
    SALNTY = so_model,
    THETA = thetao_model
  )

source_python(
  paste(
    path_root,
    "/utilities/functions/python_scripts/",
    "Gamma_GLODAP_python.py",
    sep = ""
  )
)

GLODAP_gamma <- calculate_gamma(GLODAP_gamma)

# join gamma column with original data frame
GLODAP <- GLODAP %>%
  mutate(gamma_model = GLODAP_gamma$GAMMA)

GLODAP_NA_filled <- GLODAP

rm(GLODAP_gamma)

# Replace model value with NA, if observations are NA
GLODAP$so_model <-
  ifelse(is.na(GLODAP$sal), NA, GLODAP$so_model)

GLODAP$thetao_model <-
  ifelse(is.na(GLODAP$theta), NA, GLODAP$thetao_model)

GLODAP$temp_model <-
  ifelse(is.na(GLODAP$temp), NA, GLODAP$temp_model)

GLODAP$dissic_model <-
  ifelse(is.na(GLODAP$tco2), NA, GLODAP$dissic_model)

GLODAP$talk_model <-
  ifelse(is.na(GLODAP$talk), NA, GLODAP$talk_model)

GLODAP$o2_model <-
  ifelse(is.na(GLODAP$oxygen), NA, GLODAP$o2_model)

GLODAP$no3_model <-
  ifelse(is.na(GLODAP$nitrate), NA, GLODAP$no3_model)

GLODAP$po4_model <-
  ifelse(is.na(GLODAP$phosphate), NA, GLODAP$po4_model)

GLODAP$si_model <-
  ifelse(is.na(GLODAP$silicate), NA, GLODAP$si_model)

GLODAP$aou_model <-
  ifelse(is.na(GLODAP$aou), NA, GLODAP$aou_model)


# write file for GLODAP observations + subsetted model variables
GLODAP %>%
  write_csv(
    paste(
      path_preprocessing,
      "CESM-ETHZ_v20211122_monthly_GLODAPv2.2021_preprocessed_model_runA_both.csv",
      sep = ""
    )
  )

GLODAP_NA_filled %>%
  write_csv(
    paste(
      path_preprocessing,
      "CESM-ETHZ_v20211122_monthly_GLODAPv2.2021_preprocessed_model_runA_both_NA_filled.csv",
      sep = ""
    )
  )

# remove GLODAP observations and rename model subset
GLODAP <- GLODAP %>%
  select(-c(
    sal,
    theta,
    temp,
    tco2,
    talk,
    oxygen,
    nitrate,
    phosphate,
    silicate,
    aou,
    gamma
  )) %>%
  rename(
    sal = so_model,
    theta = thetao_model,
    temp = temp_model,
    tco2 = dissic_model,
    talk = talk_model,
    oxygen = o2_model,
    nitrate = no3_model,
    phosphate = po4_model,
    silicate = si_model,
    aou = aou_model,
    gamma = gamma_model
  )


GLODAP_NA_filled <- GLODAP_NA_filled %>%
  select(-c(
    sal,
    theta,
    temp,
    tco2,
    talk,
    oxygen,
    nitrate,
    phosphate,
    silicate,
    aou,
    gamma
  )) %>%
  rename(
    sal = so_model,
    theta = thetao_model,
    temp = temp_model,
    tco2 = dissic_model,
    talk = talk_model,
    oxygen = o2_model,
    nitrate = no3_model,
    phosphate = po4_model,
    silicate = si_model,
    aou = aou_model,
    gamma = gamma_model
  )

4 Write files

# write final file for GLODAP-based subsetting model variables
GLODAP %>%
  select(-row_number) %>%
  write_csv(paste(path_preprocessing,
                  "CESM-ETHZ_v20211122_monthly_GLODAPv2.2021_preprocessed_model_runA_final.csv",
                  sep = ""))

GLODAP_NA_filled %>%
  select(-row_number) %>%
  write_csv(paste(path_preprocessing,
                  "CESM-ETHZ_v20211122_monthly_GLODAPv2.2021_preprocessed_model_runA_final_NA_filled.csv",
                  sep = ""))

5 Test for interpolation

GLODAP <-
  read_csv(paste(path_GLODAP_preprocessing,
                 "GLODAPv2.2021_preprocessed.csv",
                 sep = ""))

GLODAP <- GLODAP %>%
  mutate(month = month(date))

# select GLODAP data for 2019
GLODAP_2019 <- GLODAP %>%
  filter(year == 2019)

# create month x lat x lon grid of observations
Glodap_year_grid_horizontal <- GLODAP_2019 %>%
  select(month, lat, lon) %>%
  unique()

# create month x lat x lon x depth grid of observations
Glodap_year_grid_depth <- GLODAP_2019 %>%
  select(month, lat, lon, depth) %>%
  unique()

# read in cmorized tco2 output in year 2019
variable_data_tibble <-
  read_ncdf(paste(path_cmorized,
    "dissic_CESM-ETHZ_A_1_gr_2019.nc",
    sep = ""
  )) %>%
  as_tibble()

# remove na values
variable_data_tibble <-
  variable_data_tibble %>%
  filter(!is.na(dissic))

# harmonize longitudes
variable_data_tibble <- variable_data_tibble %>%
  mutate(lon = if_else(lon < 20, lon + 360, lon))

# only consider model grids within basinmask
variable_data_tibble <-
  inner_join(variable_data_tibble, basinmask) %>%
  select(-basin_AIP)

# mutate variables
variable_data_tibble <- variable_data_tibble %>%
  mutate(month = month(time_mon), dissic = as.numeric(dissic)) %>%
  select(-time_mon)

# subset model at month x lat x lon grid of observations
model_grid_horizontal <-
  inner_join(Glodap_year_grid_horizontal, variable_data_tibble)

# join model and month x lat x lon x depth grid of observations
model_obs <-
  full_join(model_grid_horizontal, Glodap_year_grid_depth)

# calculate nr of observations per month x lat x lon grid
model_obs <- model_obs %>%
  group_by(month, lat, lon) %>%
  mutate(n = sum(!is.na(dissic))) %>%
  ungroup()

# interpolate variable value from model to observation depth
model_obs_interpo <- model_obs %>%
  filter(n > 1) %>%
  group_by(lon, lat, month) %>%
  arrange(month, lat, lon, depth) %>%
  mutate(dissic_interpolate = approxfun(depth, dissic, rule = 2)(depth)) %>%
  ungroup()

ggplot() +
  geom_path(
    data = model_obs_interpo %>%
      filter(lat == -47.5, lon == 306.5, !is.na(dissic), month == 4) %>%
      arrange(depth),
    aes(dissic, depth, col = "model")
  ) +
  geom_point(
    data = model_obs_interpo %>%
      filter(lat == -47.5, lon == 306.5, !is.na(dissic), month == 4) %>%
      arrange(depth),
    aes(dissic, depth, col = "model")
  ) +
  geom_point(
    data = model_obs_interpo %>%
      filter(lat == -47.5, lon == 306.5, is.na(dissic), month == 4),
    aes(dissic_interpolate, depth, col = "interpolated")
  ) +
  scale_y_reverse() +
  scale_color_brewer(palette = "Dark2", name = "") +
  labs(title = "Interpolation to sampling depth - tco2 of year 2019")

6 Test for obs-model depth offset

GLODAP_max_depth <- GLODAP %>%
  select(lon, lat, depth) %>%
  group_by(lon, lat) %>%
  summarise(max_depth_GLODAP = max(depth))

model_max_depth <- variable_data_tibble %>%
  select(lon, lat, depth) %>%
  group_by(lon, lat) %>%
  summarise(max_depth_model = max(depth))

GLODAP_model_depth_offset <-
  left_join(GLODAP_max_depth, model_max_depth) %>%
  mutate(offset = max_depth_GLODAP - max_depth_model)

map +
  geom_raster(
    data = GLODAP_model_depth_offset %>%
      filter(offset > 500),
    aes(lon, lat, fill = offset)
  ) +
  scale_fill_viridis_c(direction =  -1) +
  labs(
    title = "GLODAP-model max sampling depth offset",
    subtitle = "Year 1971 - 2019",
    x = "Longitude",
    y = "Latitude"
  )

7 GLODAP observations vs cmorized subset comparison

GLODAP_cmorized <- read_csv(paste(path_preprocessing,
                                  "CESM-ETHZ_v20211122_monthly_GLODAPv2.2021_preprocessed_model_runA_both.csv",
                                  sep = ""))

# for loop across variables
obs_var <-
  c(
    "tco2",
    "talk",
    "oxygen",
    "aou",
    "nitrate",
    "phosphate",
    "silicate",
    "sal",
    "temp",
    "theta",
    "gamma"
  )

model_var <-
  c(
    "dissic_model",
    "talk_model",
    "o2_model",
    "aou_model",
    "no3_model",
    "po4_model",
    "si_model",
    "so_model",
    "temp_model",
    "thetao_model",
    "gamma_model"
  )

for (i in 1:11) {
#  i <- 1

  # select correlated observation and model variable
  GLODAP_cmorized_var <- GLODAP_cmorized %>%
    select(year,
           month,
           lat,
           lon,
           depth,
           basin_AIP,
           !!sym(obs_var[i]),
           !!sym(model_var[i])) %>%
    drop_na() %>%
    mutate(
      season = case_when(
        month %in% c(3, 4, 5) ~ "Spring",
        month %in% c(6, 7, 8) ~ "Summer",
        month %in% c(9, 10, 11) ~ "Autumn",
        month %in% c(12, 1, 2) ~ "Winter"
      )
    )

  # calculate equal axis limits and binwidth
  axis_lims <- GLODAP_cmorized_var %>%
    summarise(max_value = max(c(max(!!sym(
      obs_var[i]
    )),
    max(
      !!sym(model_var[i])
    ))),
    min_value = min(c(min(!!sym(
      obs_var[i]
    )),
    min(
      !!sym(model_var[i])
    ))))

  binwidth_value <- (axis_lims$max_value - axis_lims$min_value) / 40
  axis_lims <- c(axis_lims$min_value, axis_lims$max_value)

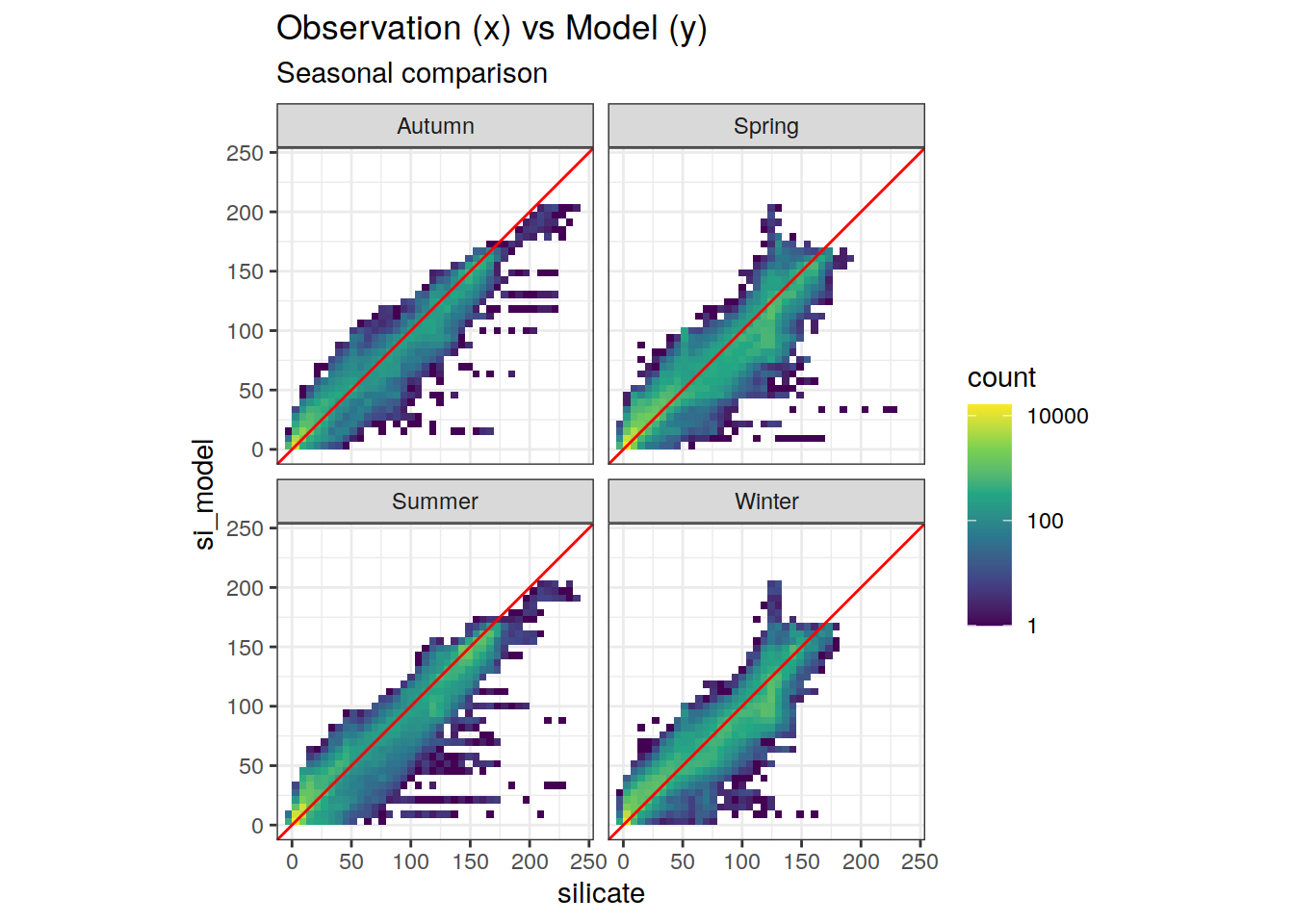

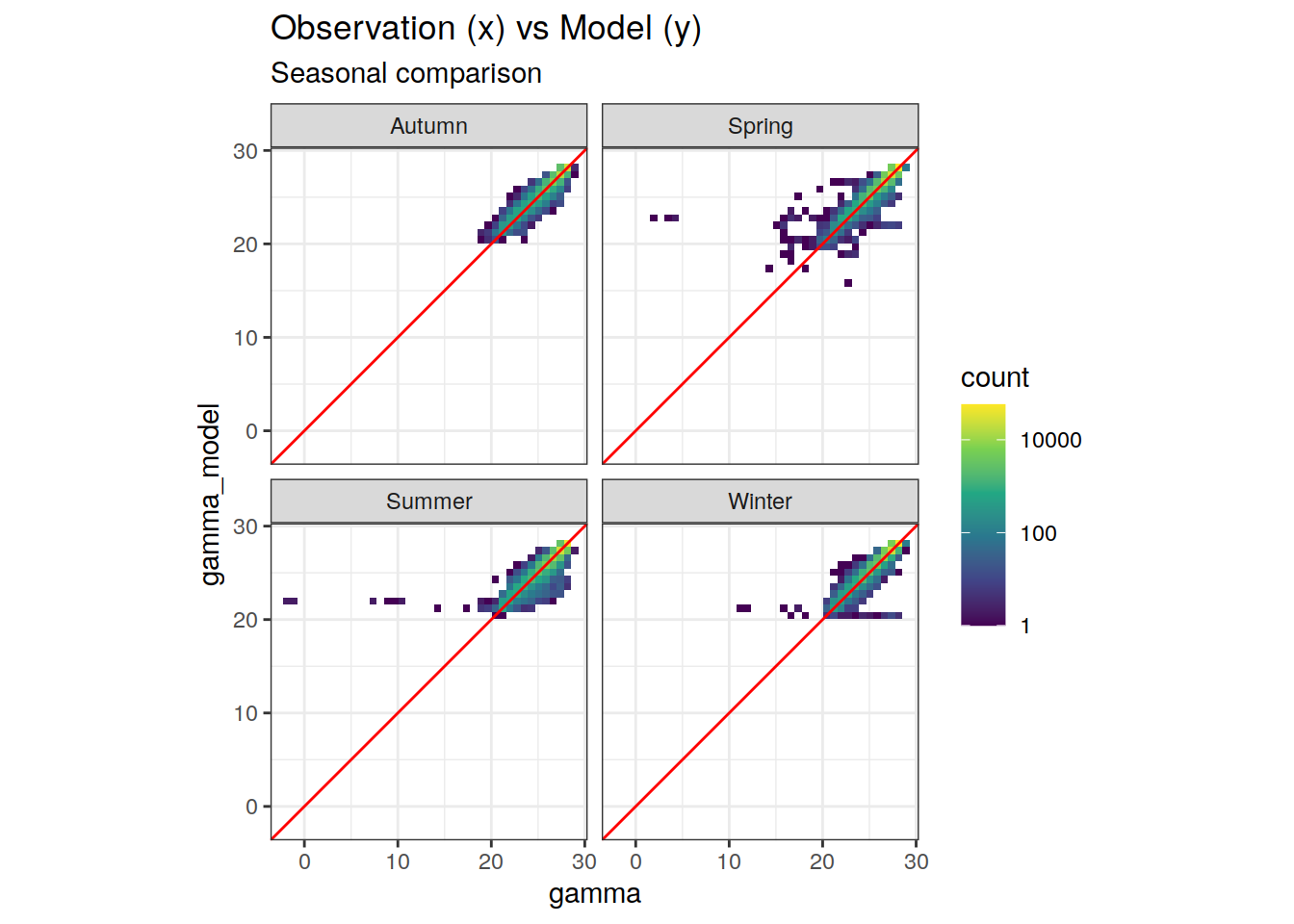

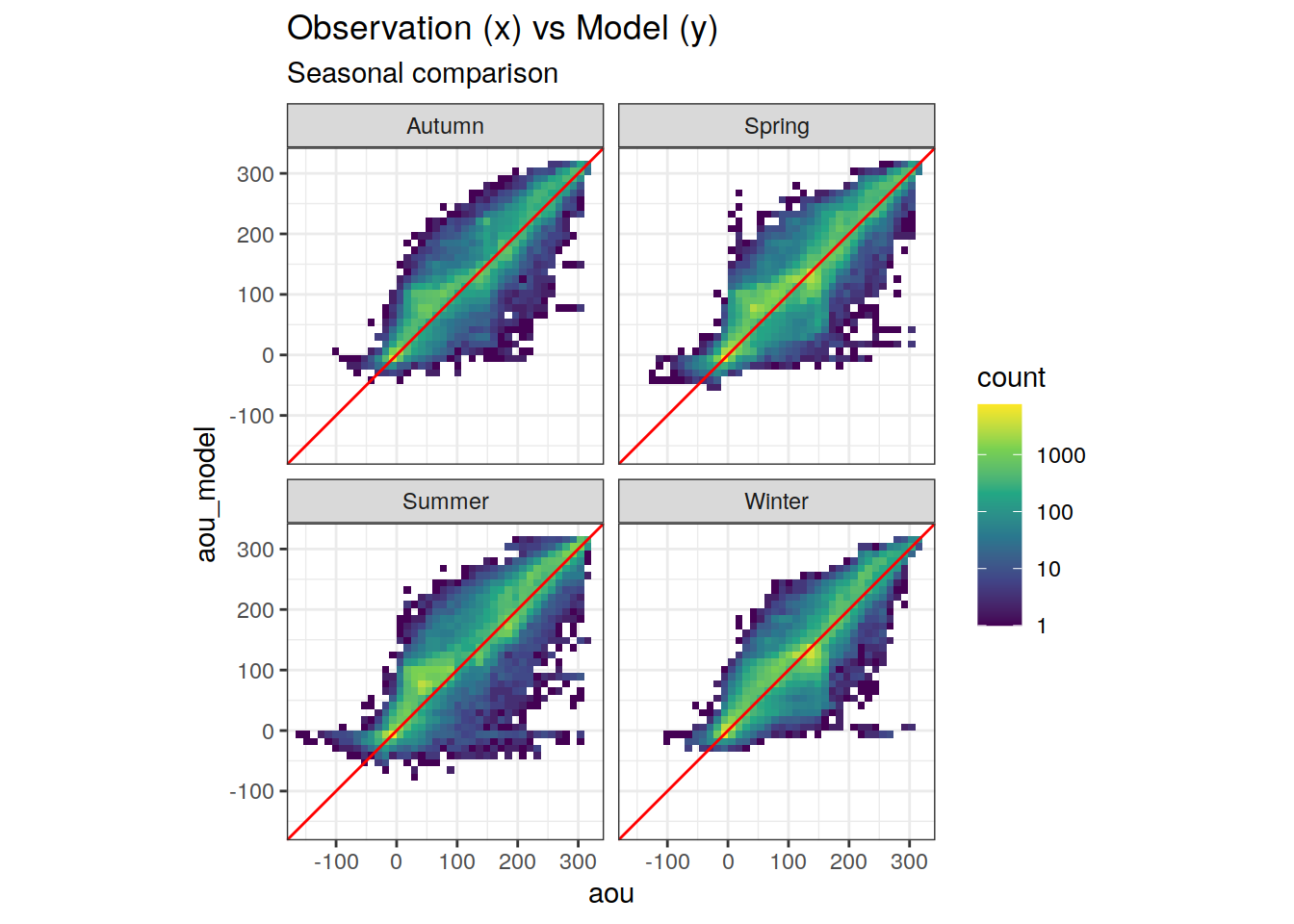

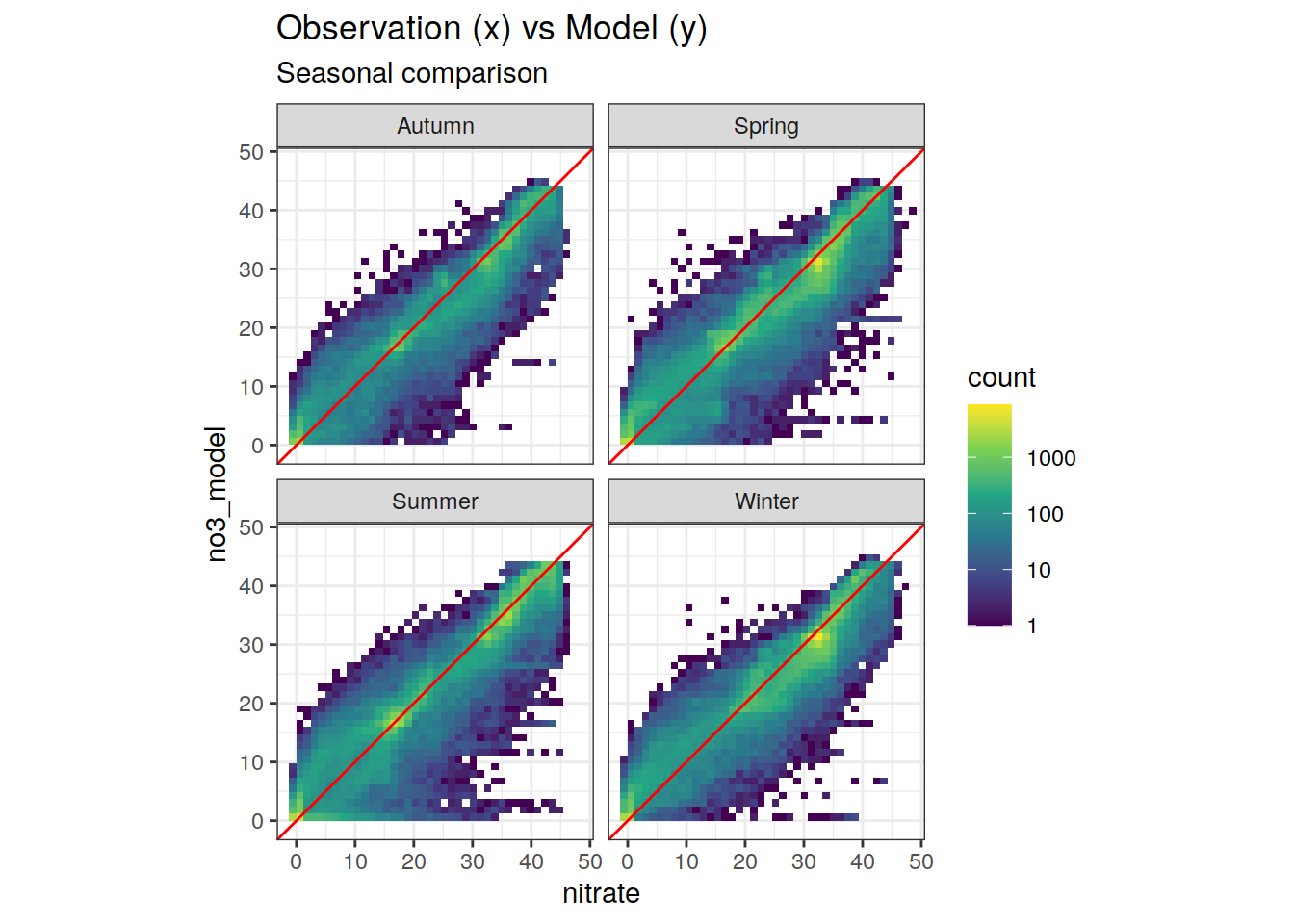

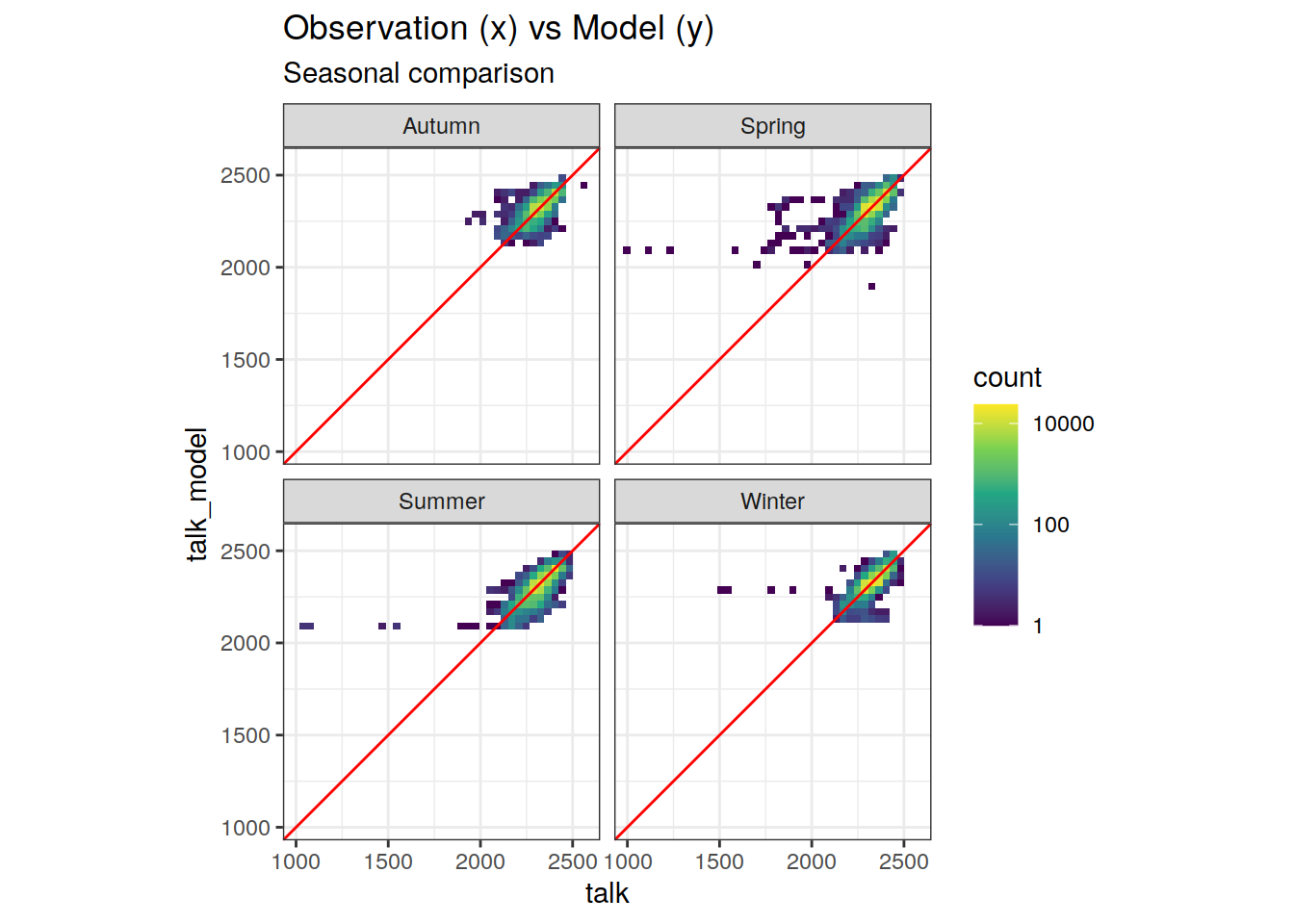

  # obs-model plot (season)

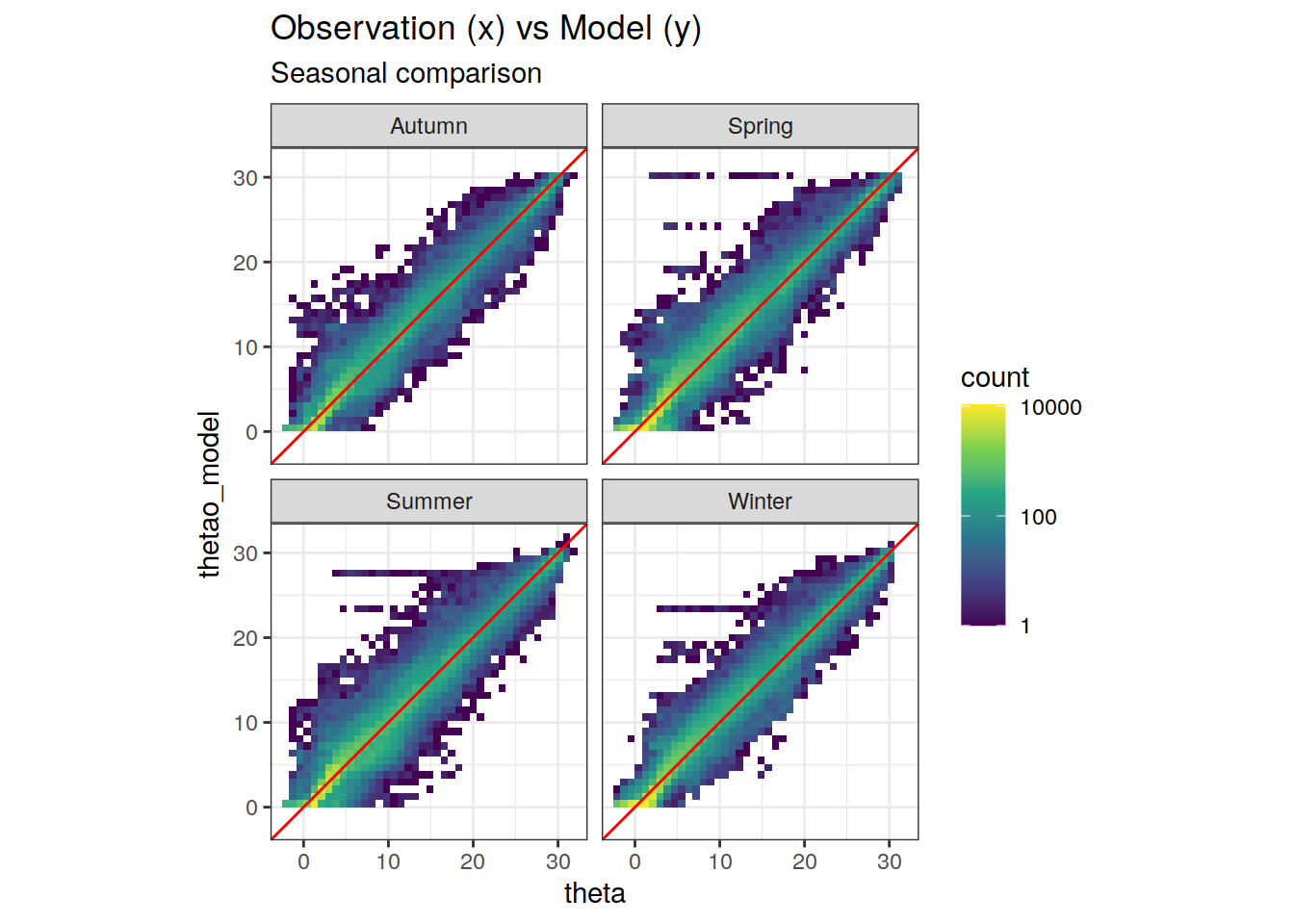

  print(

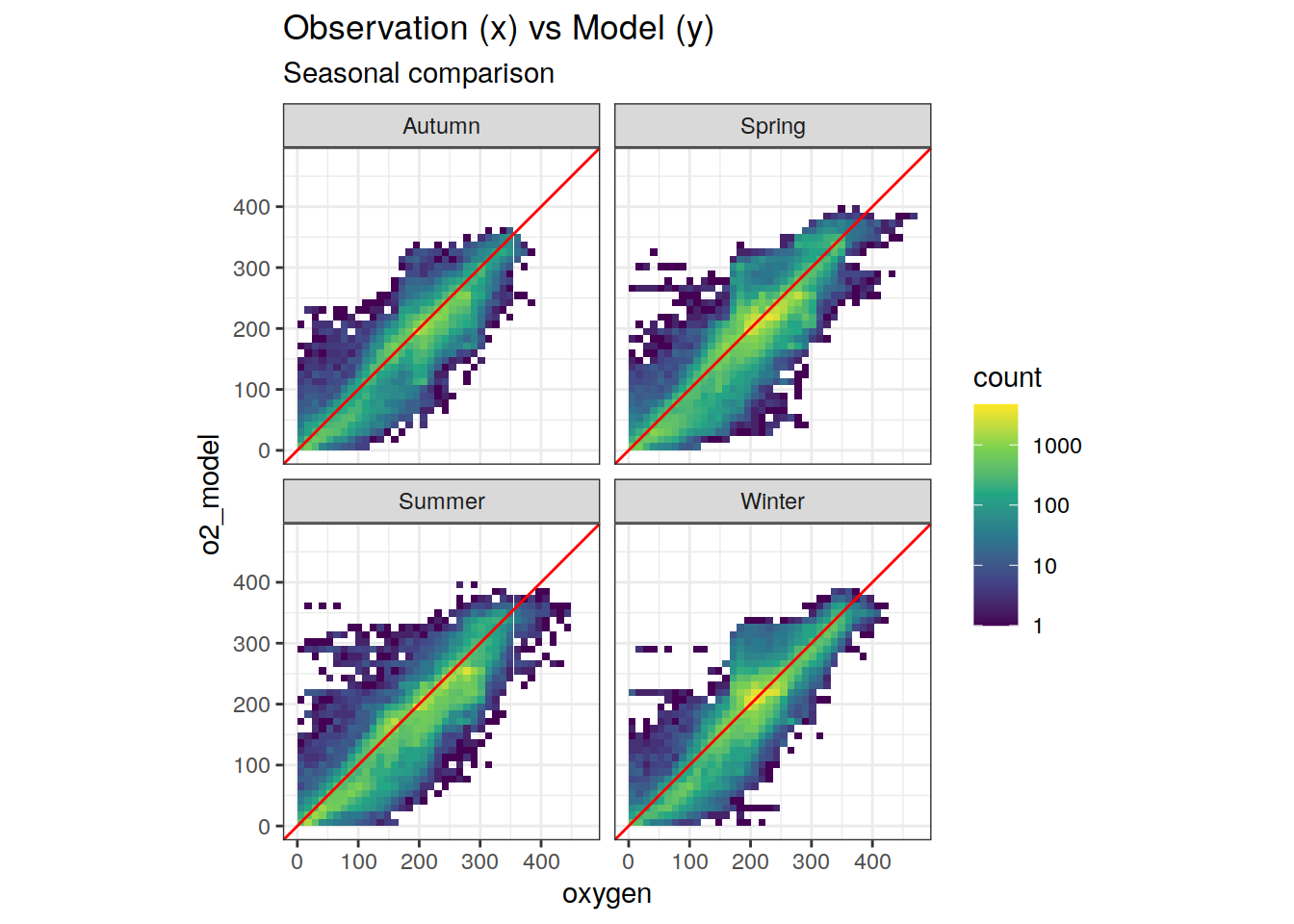

    ggplot(GLODAP_cmorized_var, aes(
      x = !!sym(obs_var[i]),
      y = !!sym(model_var[i])
    )) +
      geom_bin2d(binwidth = binwidth_value) +

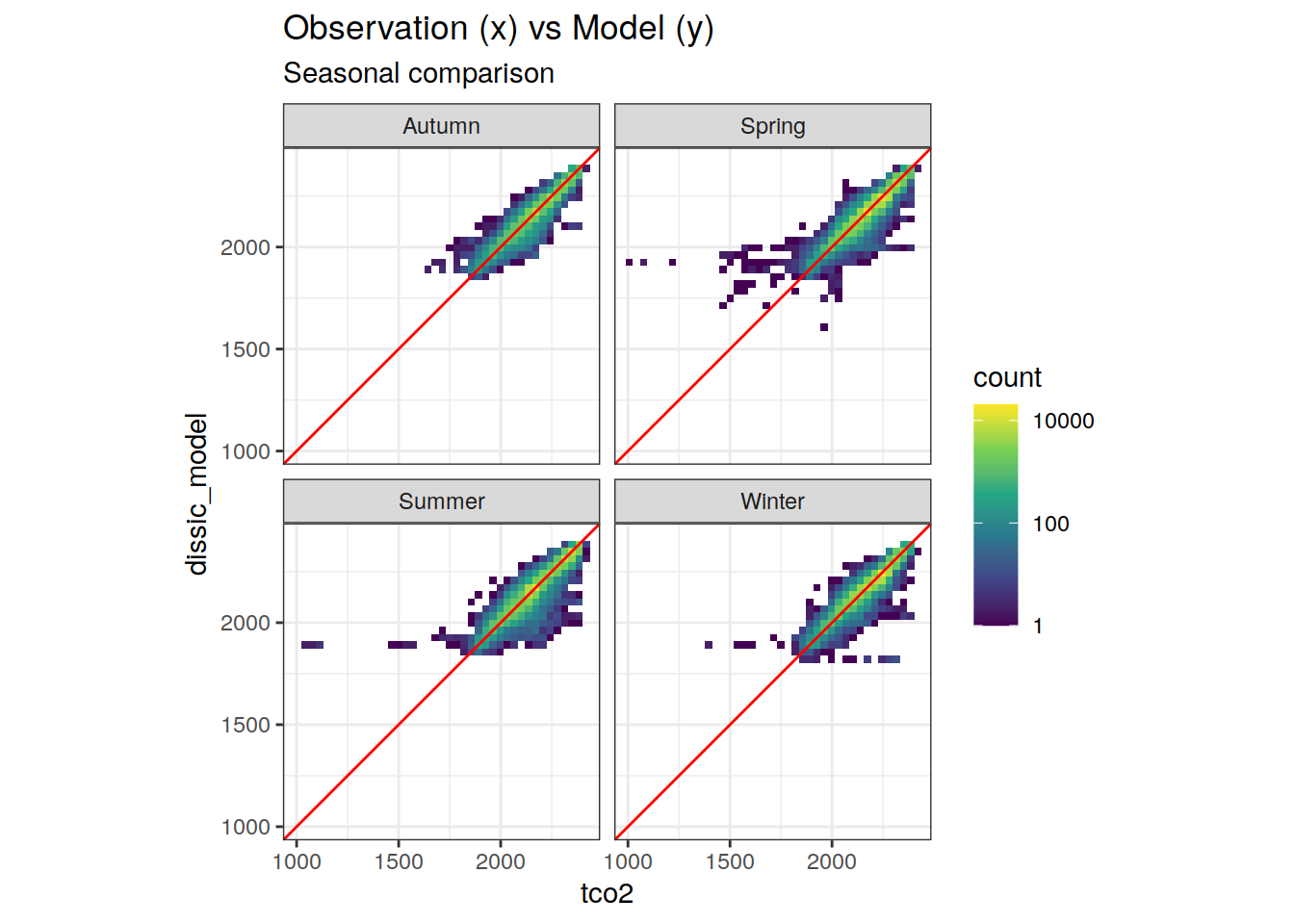

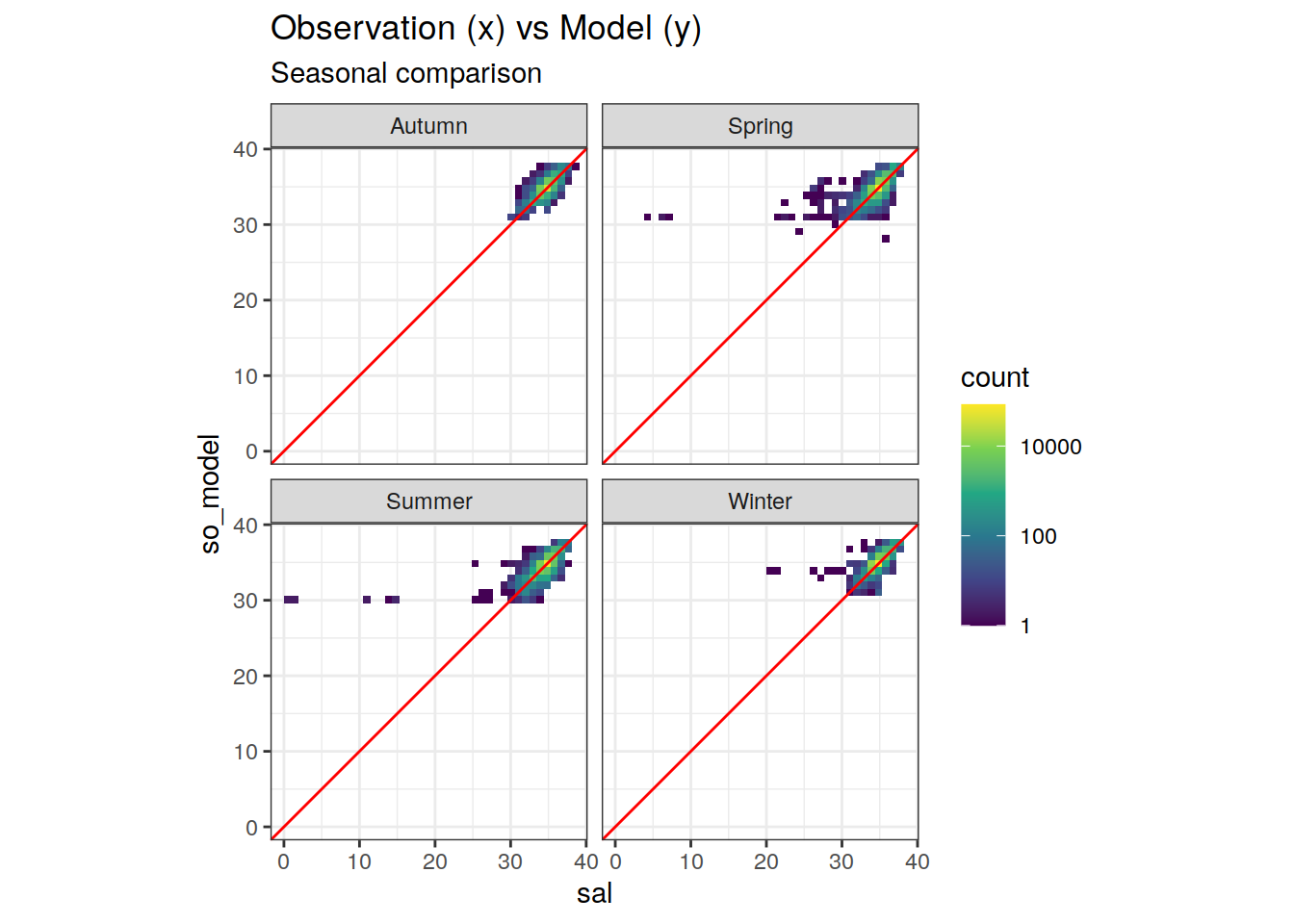

      labs(title = "Observation (x) vs Model (y)",
           subtitle = "Seasonal comparison") +
      scale_fill_viridis_c(trans = "log10") +
      geom_abline(slope = 1,
                  col = 'red') +
      coord_equal(xlim = axis_lims,
                  ylim = axis_lims) +
      facet_wrap( ~ season)
  )

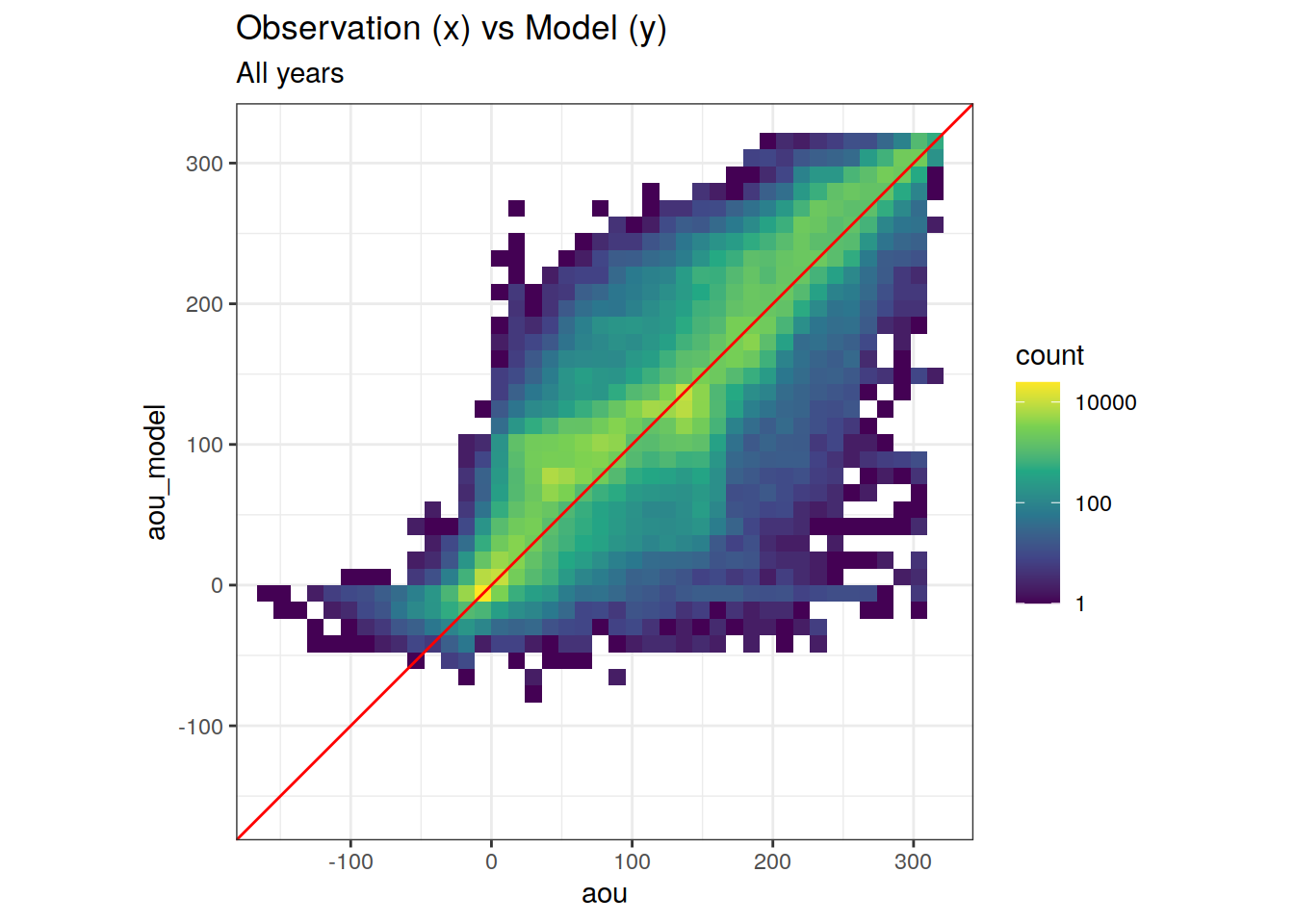

  # obs-model plot (year)

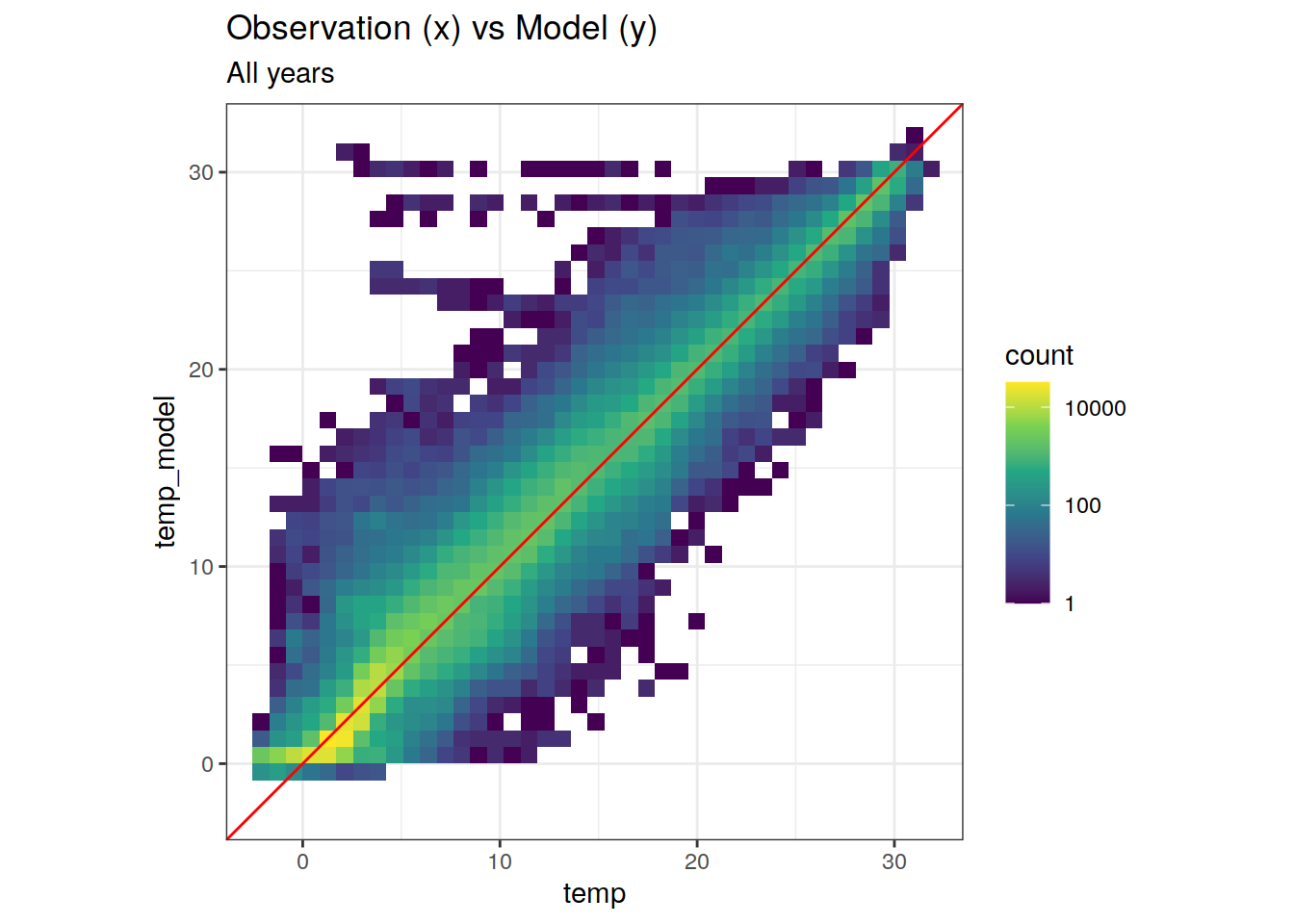

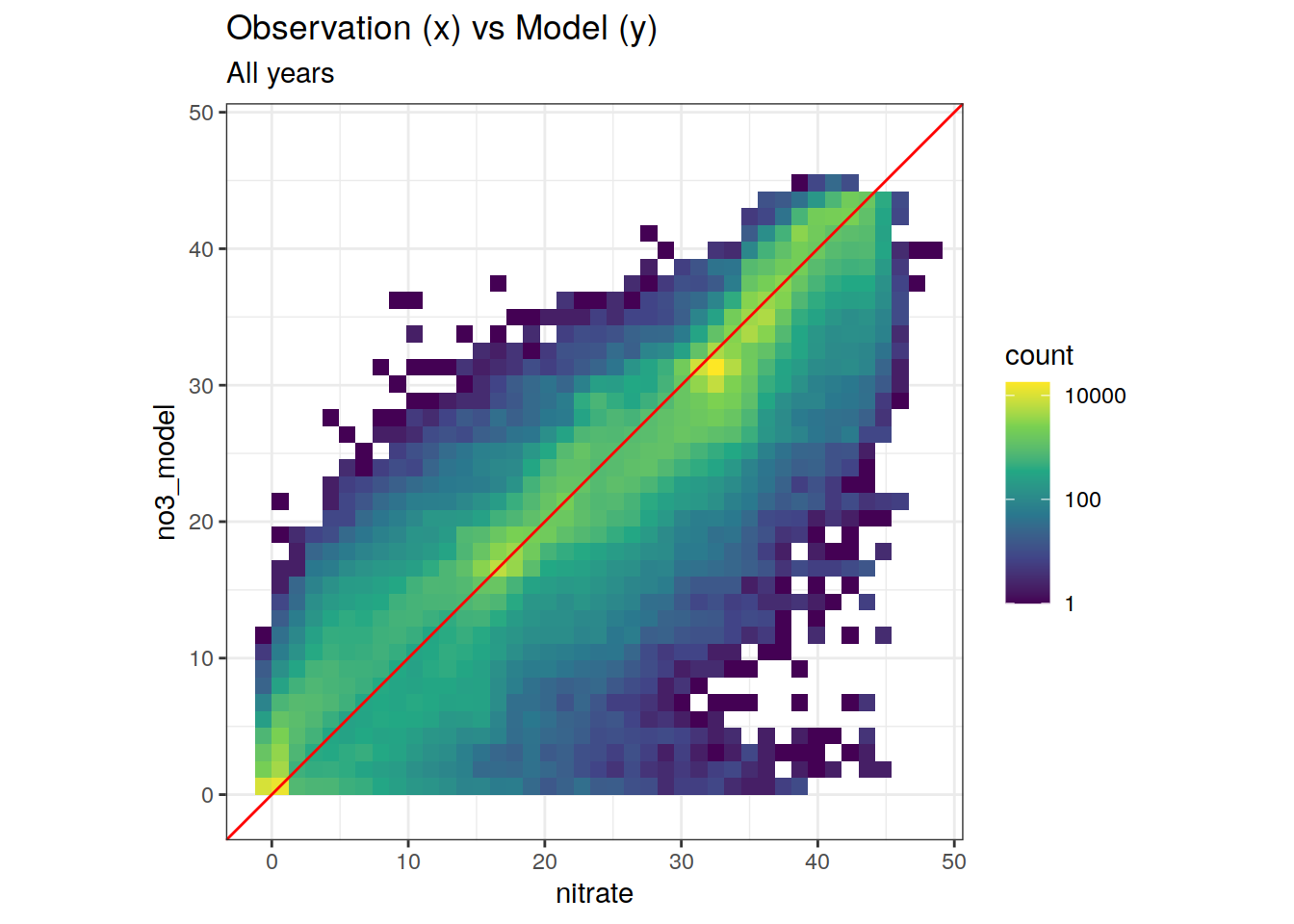

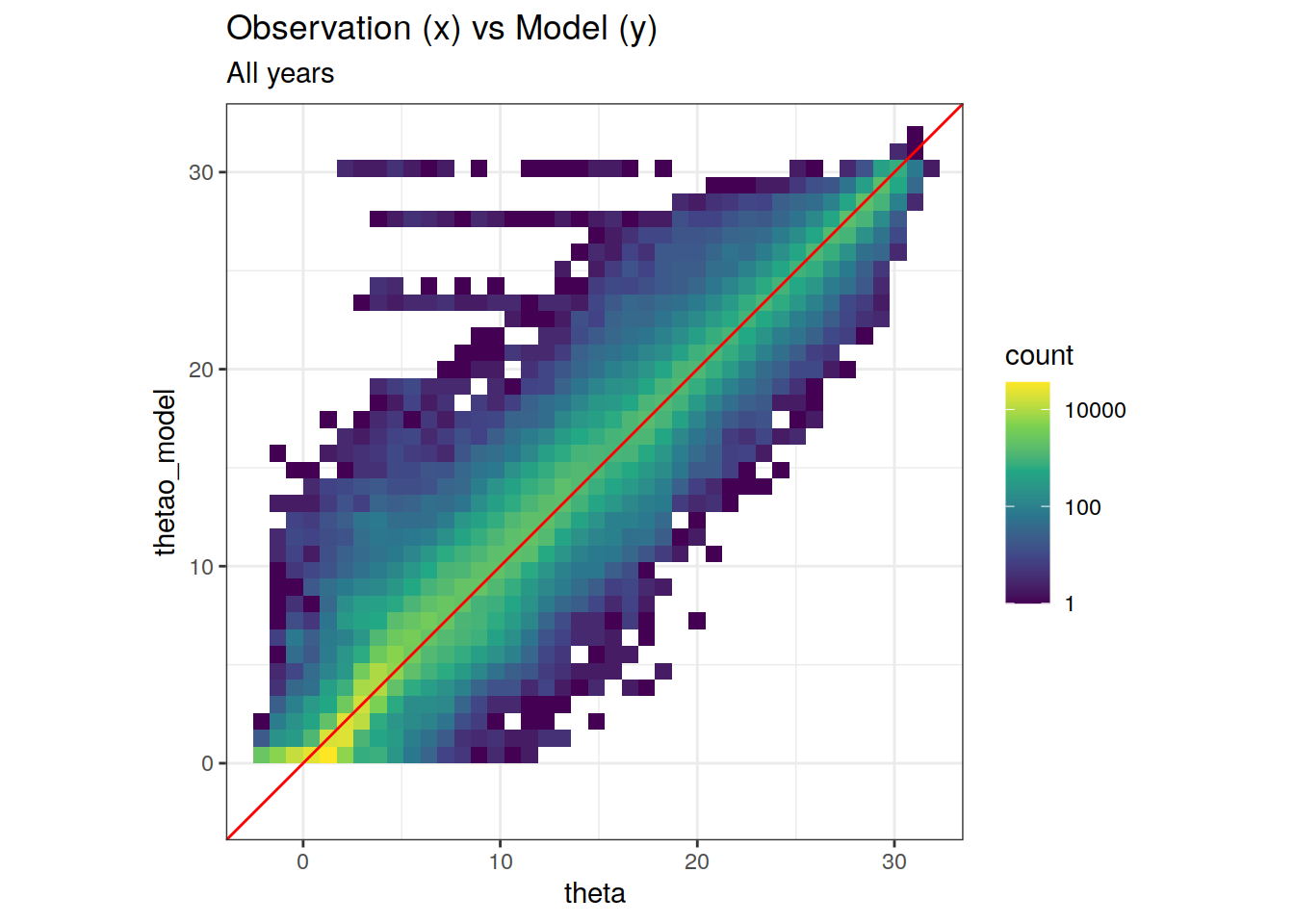

  print(

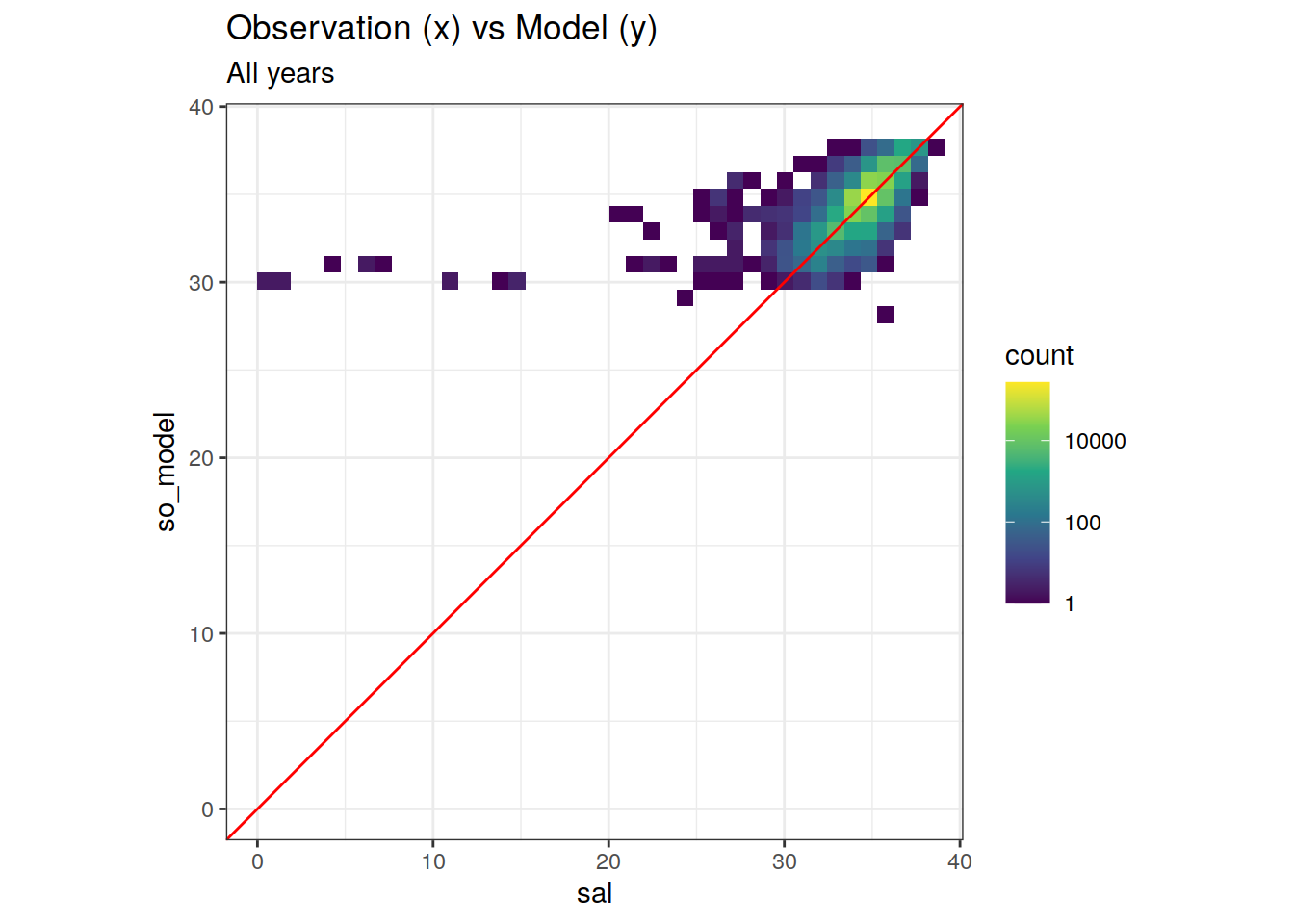

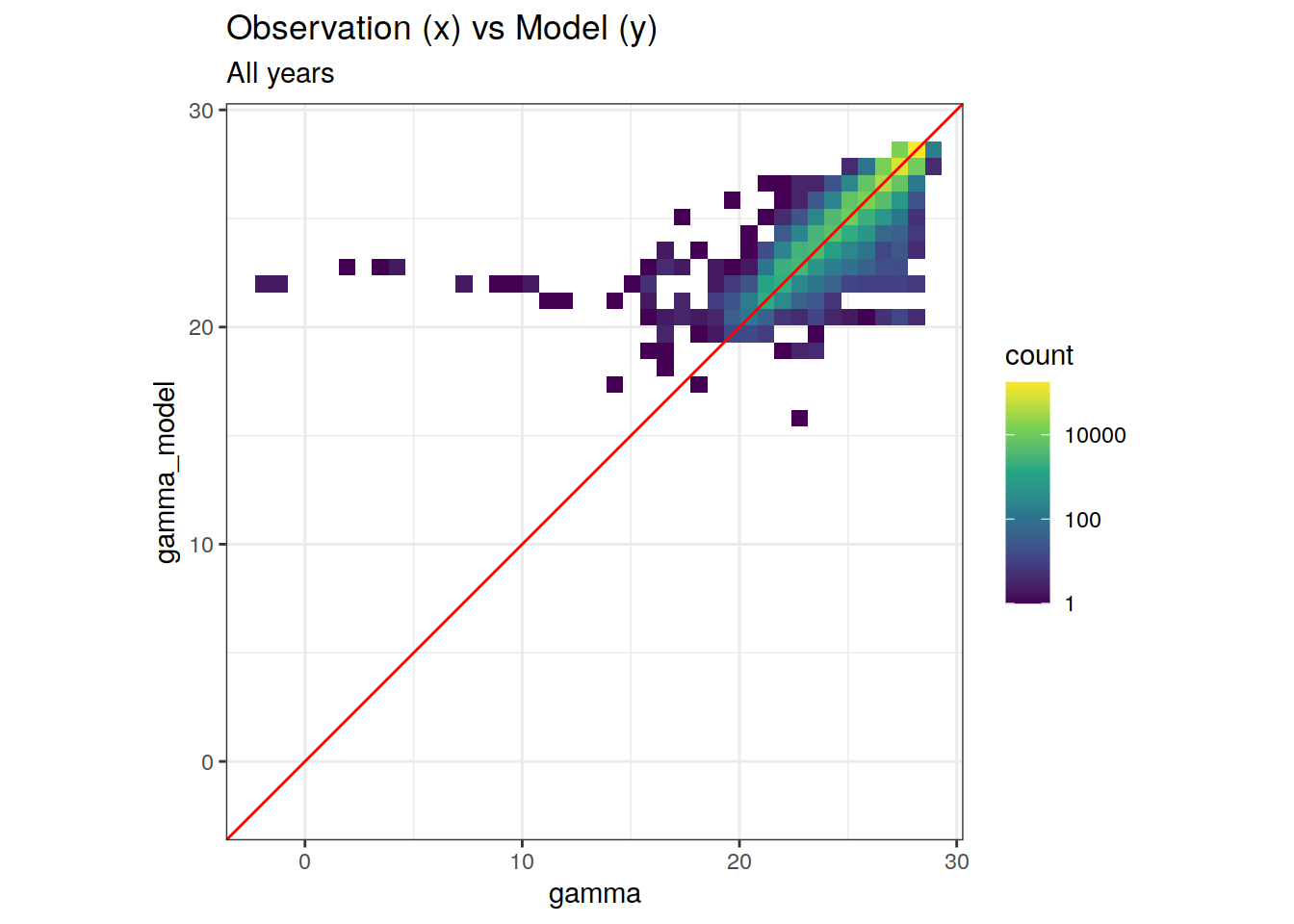

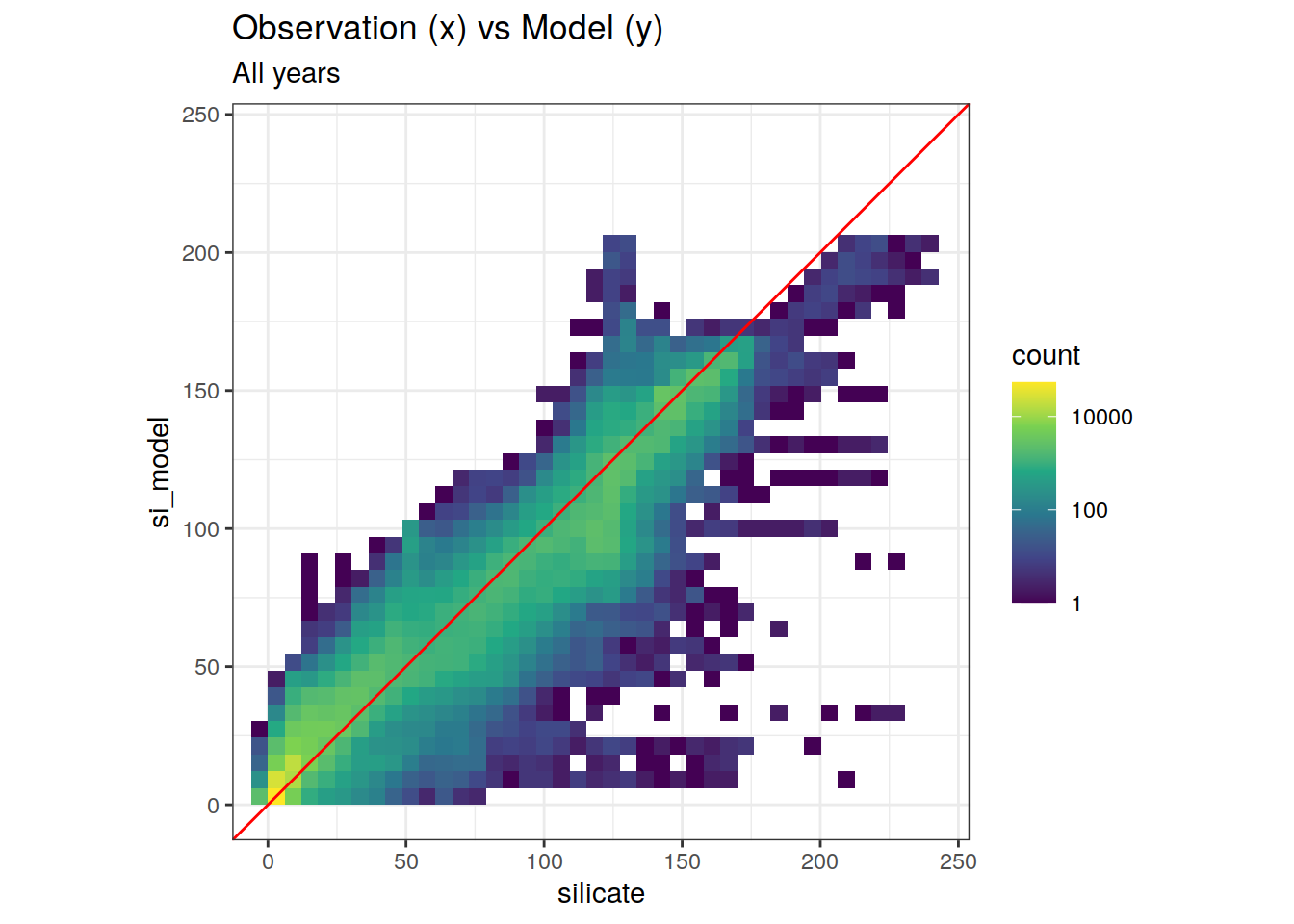

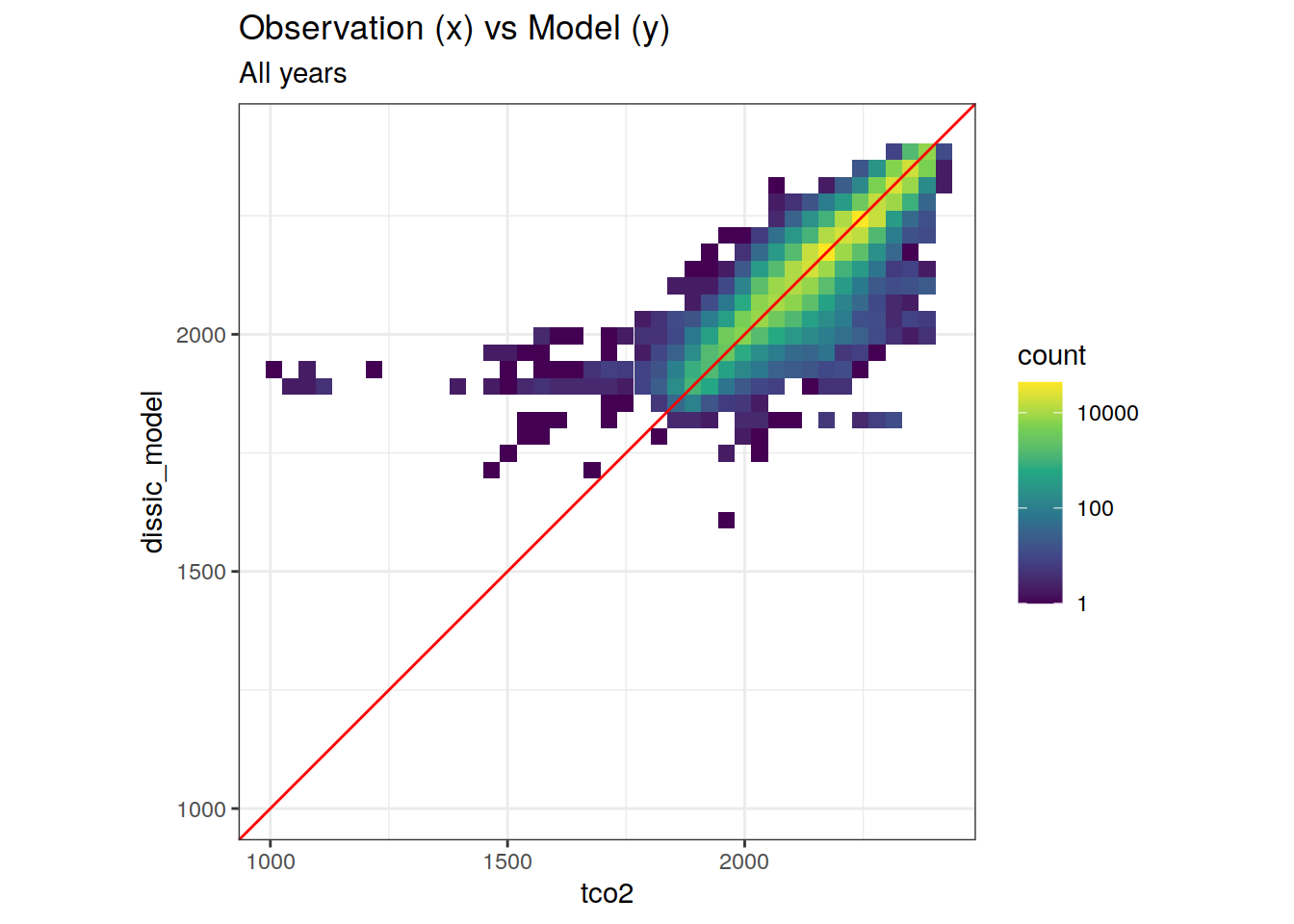

    ggplot(GLODAP_cmorized_var, aes(
      x = !!sym(obs_var[i]),
      y = !!sym(model_var[i])
    )) +
      geom_bin2d(binwidth = binwidth_value) +

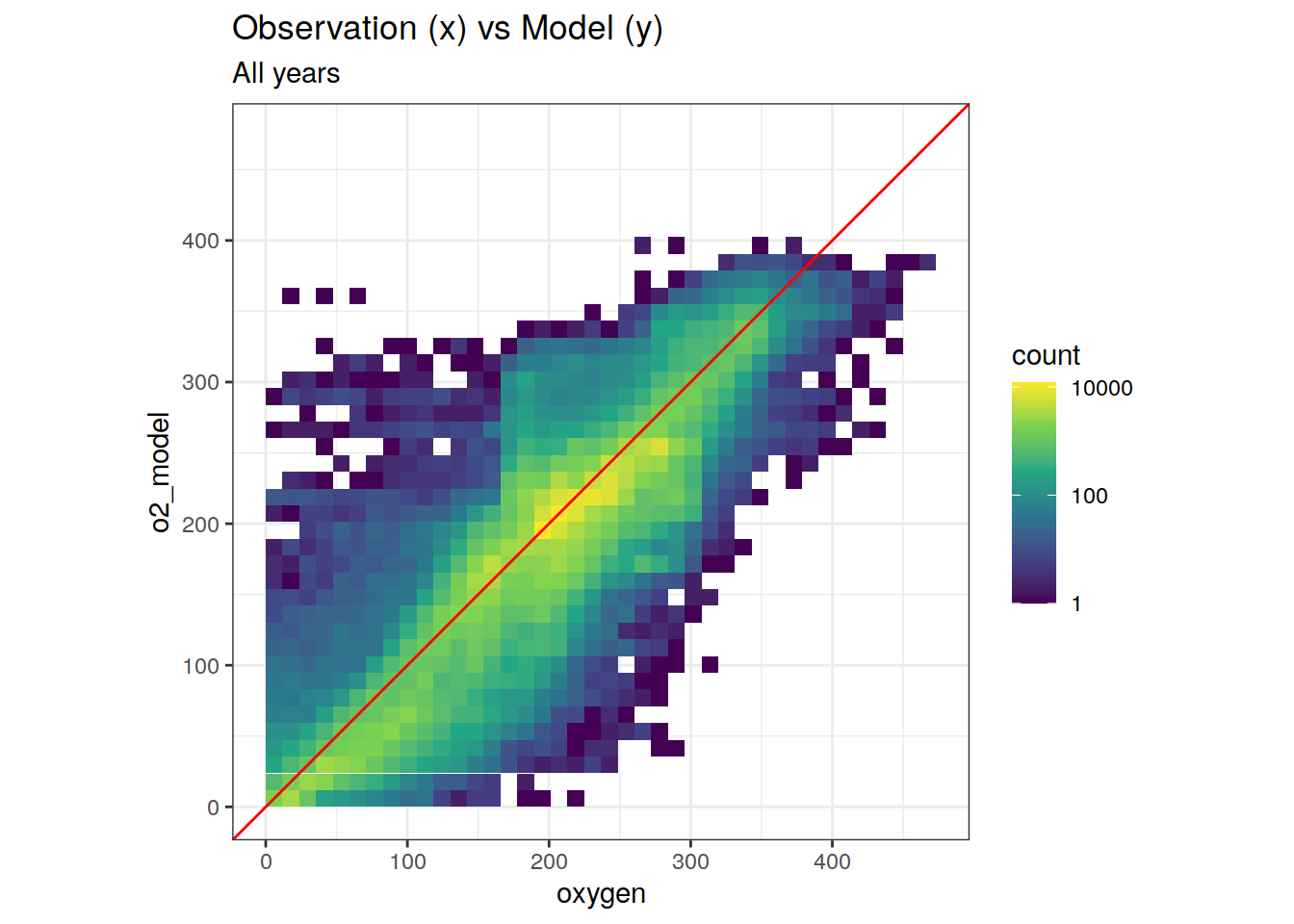

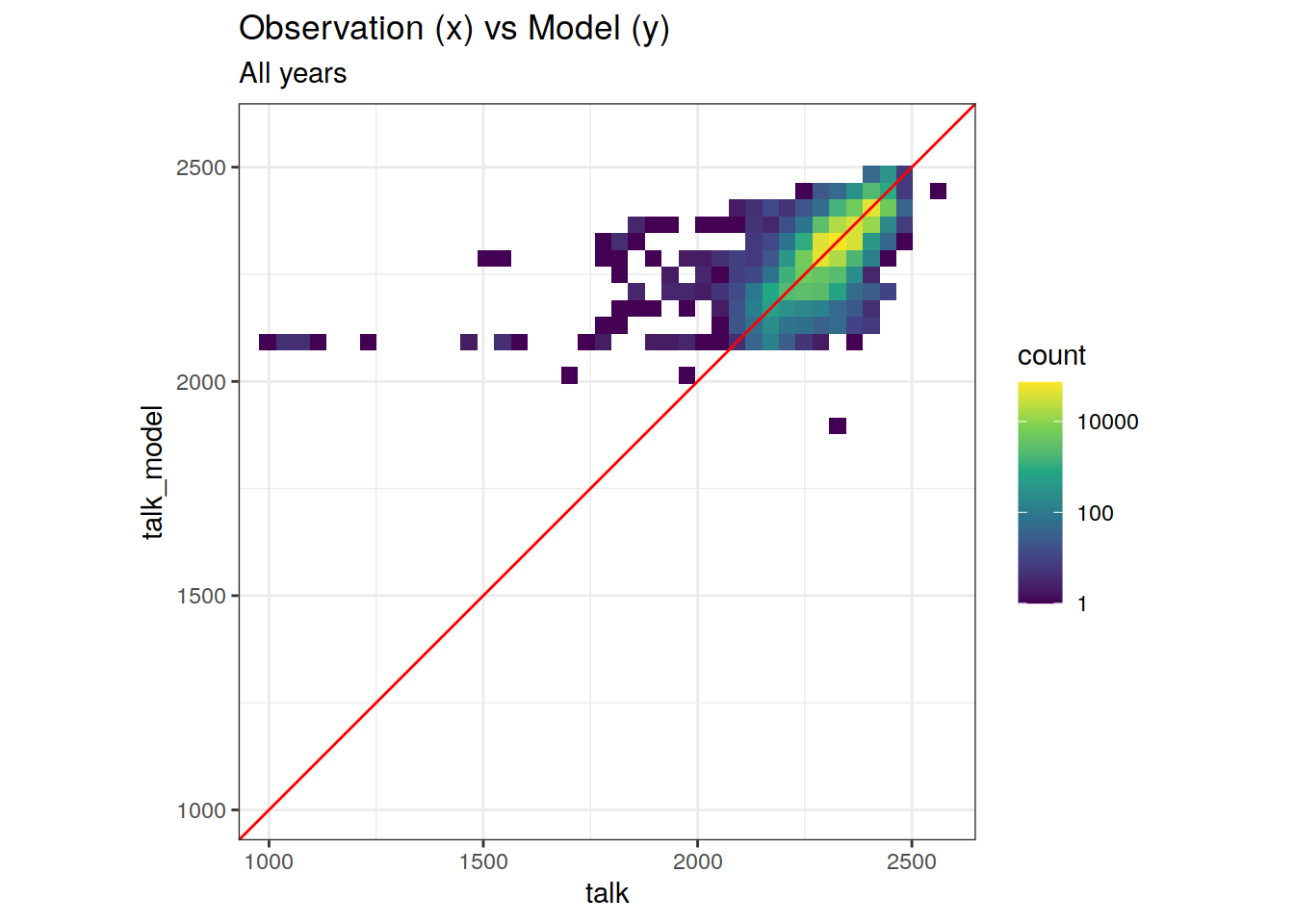

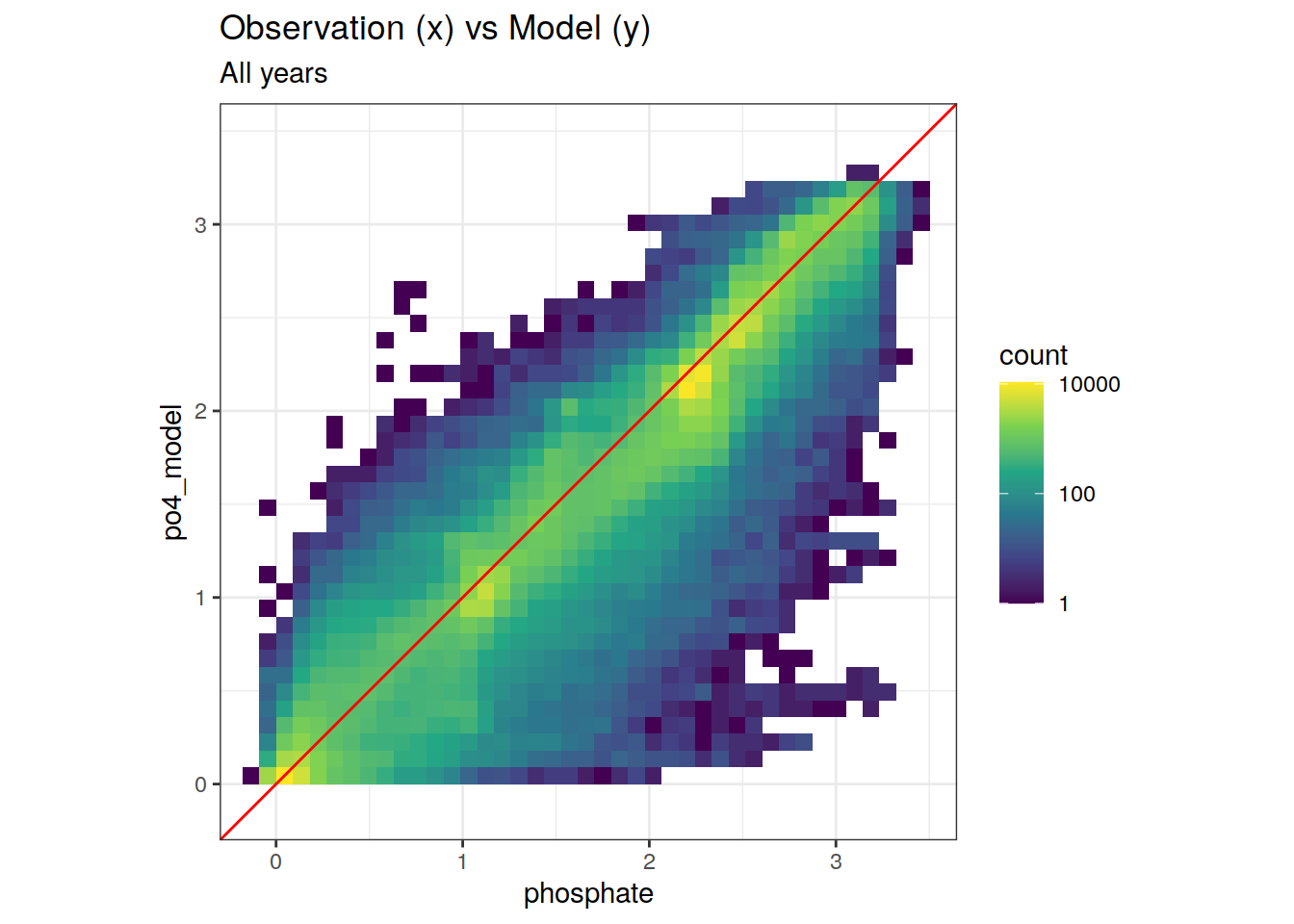

      labs(title = "Observation (x) vs Model (y)",
           subtitle = "All years") +
      scale_fill_viridis_c(trans = "log10") +
      geom_abline(slope = 1, col = 'red') +
      coord_equal(xlim = axis_lims,
                  ylim = axis_lims)
  )


  # Calculate variable offset
  GLODAP_cmorized_var <- GLODAP_cmorized_var %>%
    mutate(offset = !!sym(model_var[i]) -!!sym(obs_var[i]))

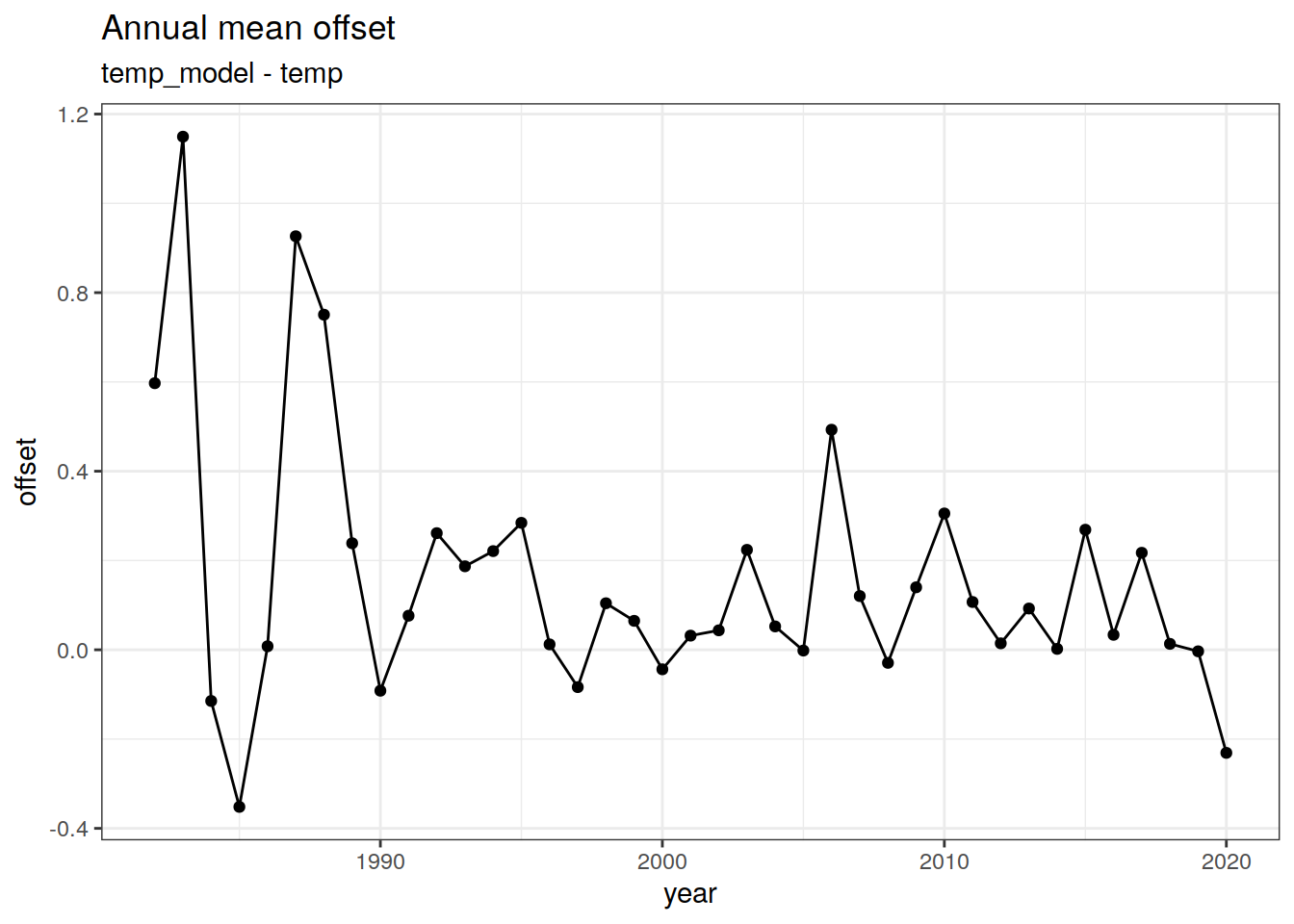

  # Calculate annual mean offset
  GLODAP_cmorized_var_year <- GLODAP_cmorized_var %>%
    group_by(year) %>%
    summarise(offset = mean(offset)) %>%
    ungroup()

  # plot annual mean offset

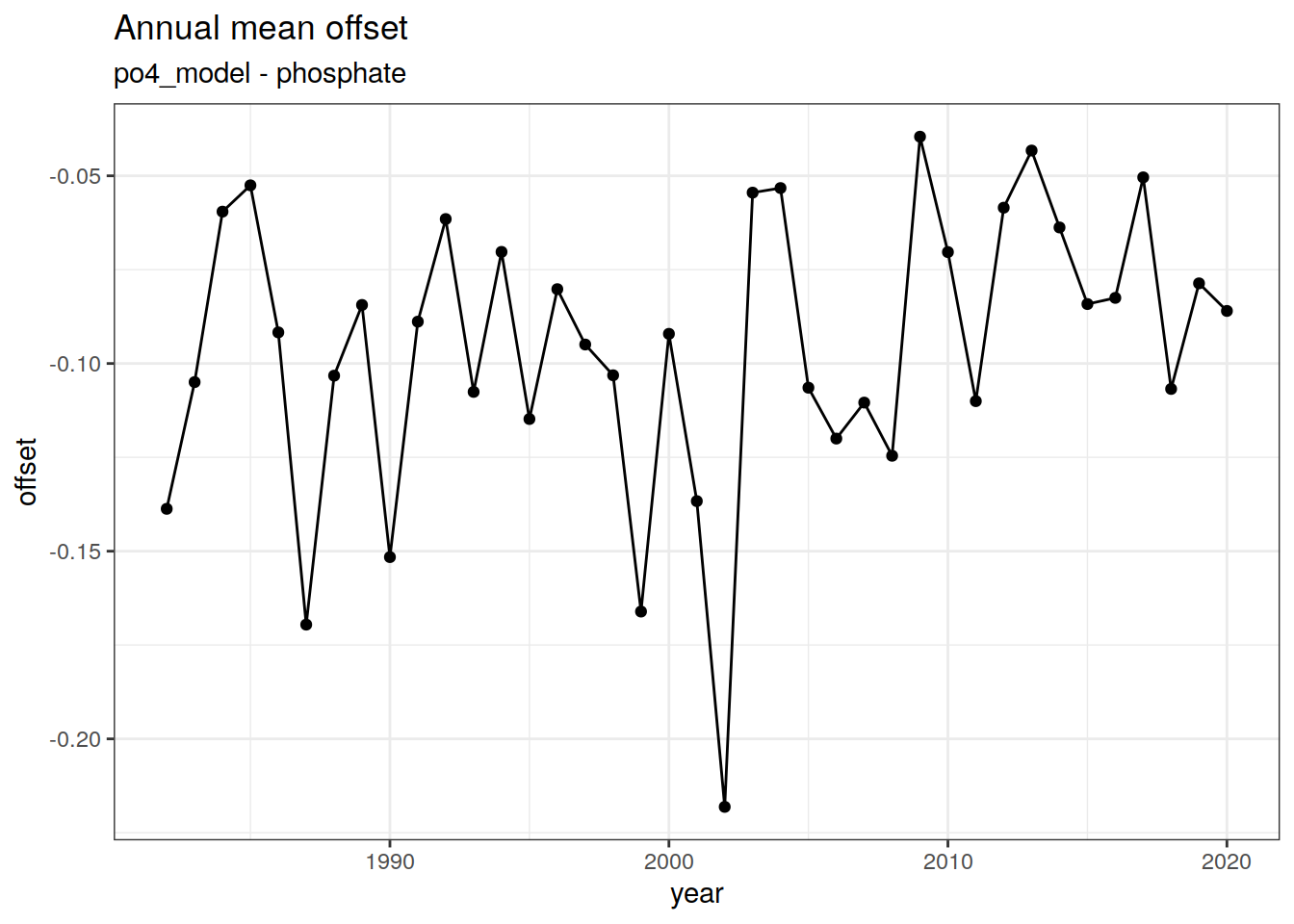

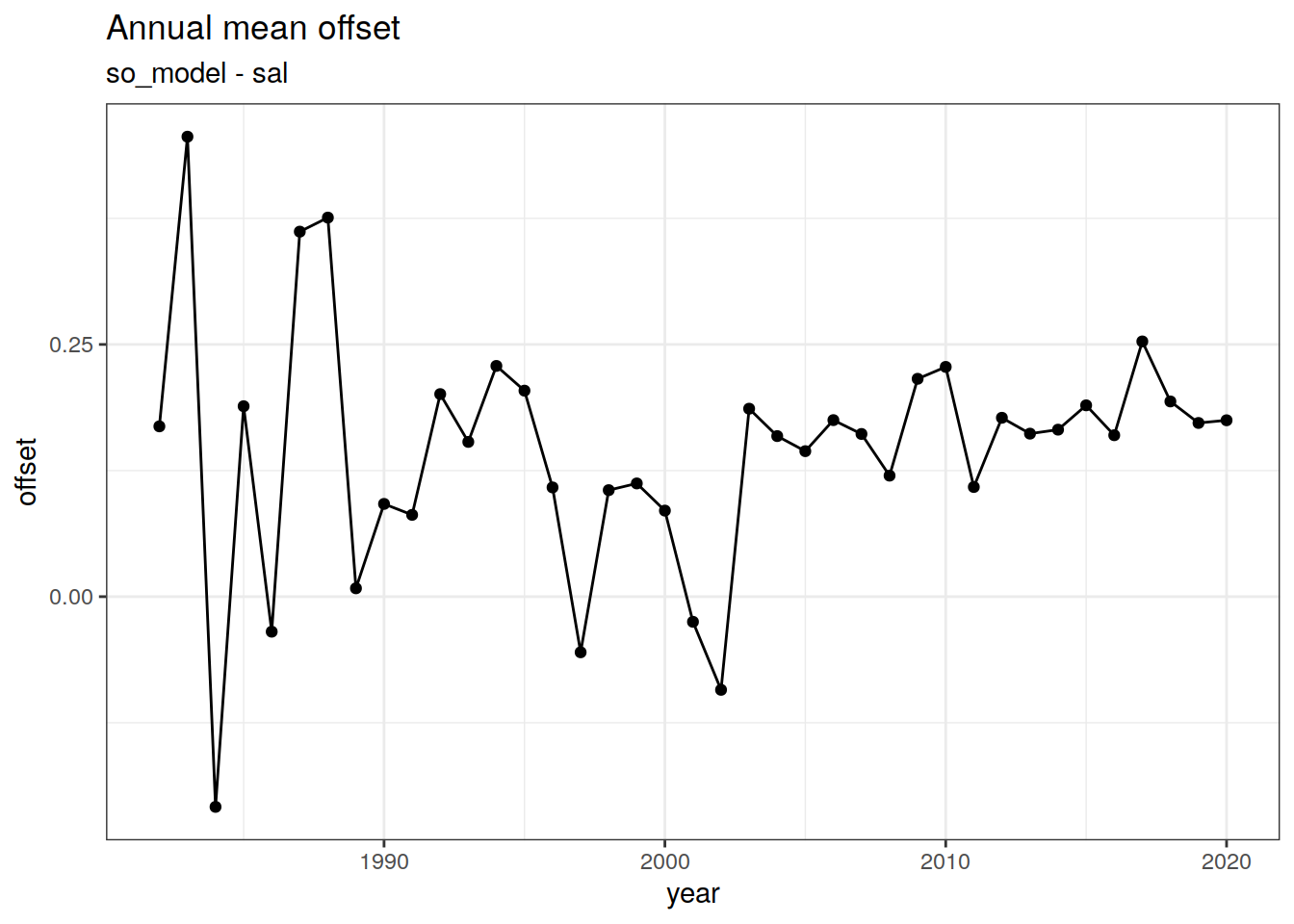

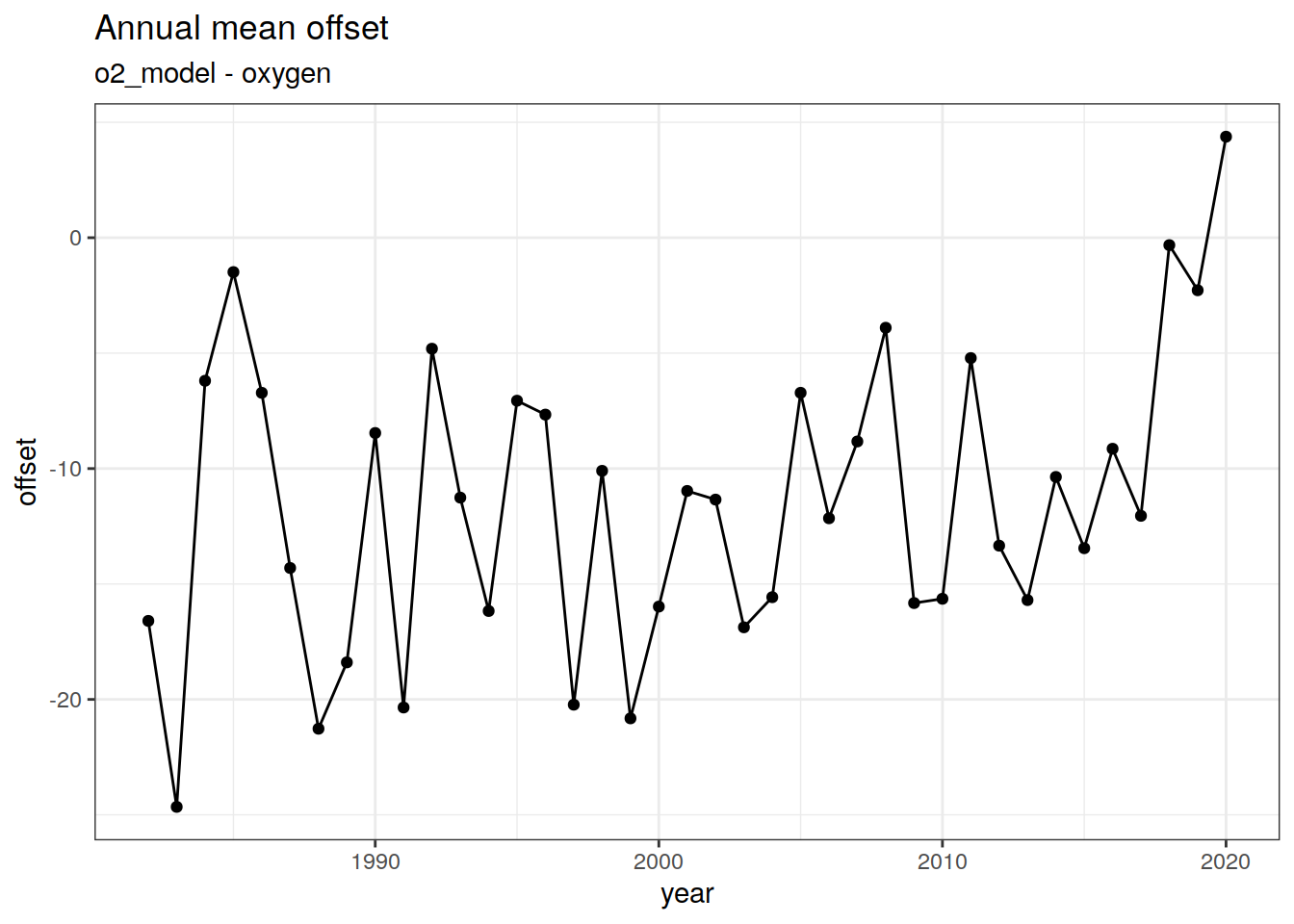

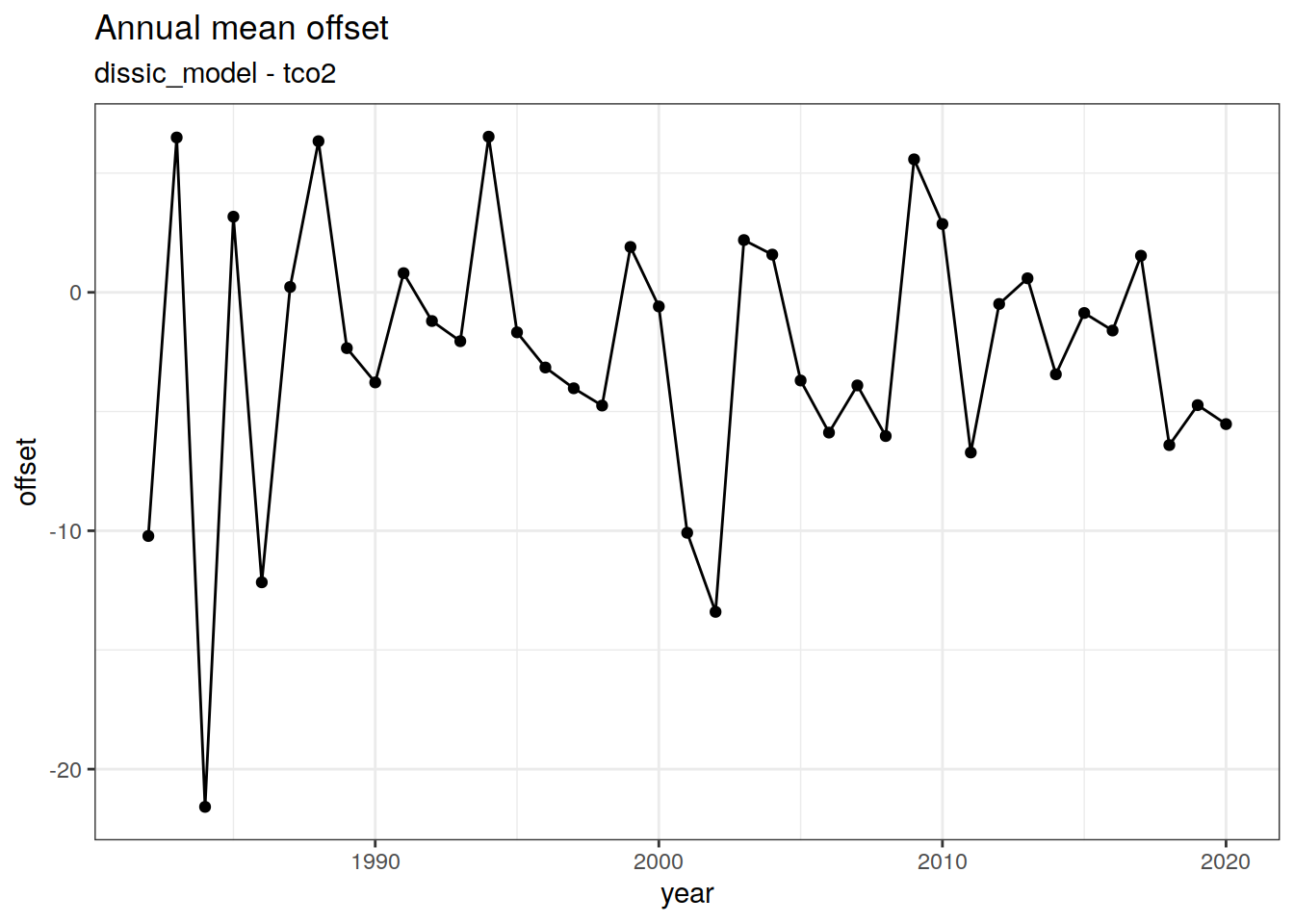

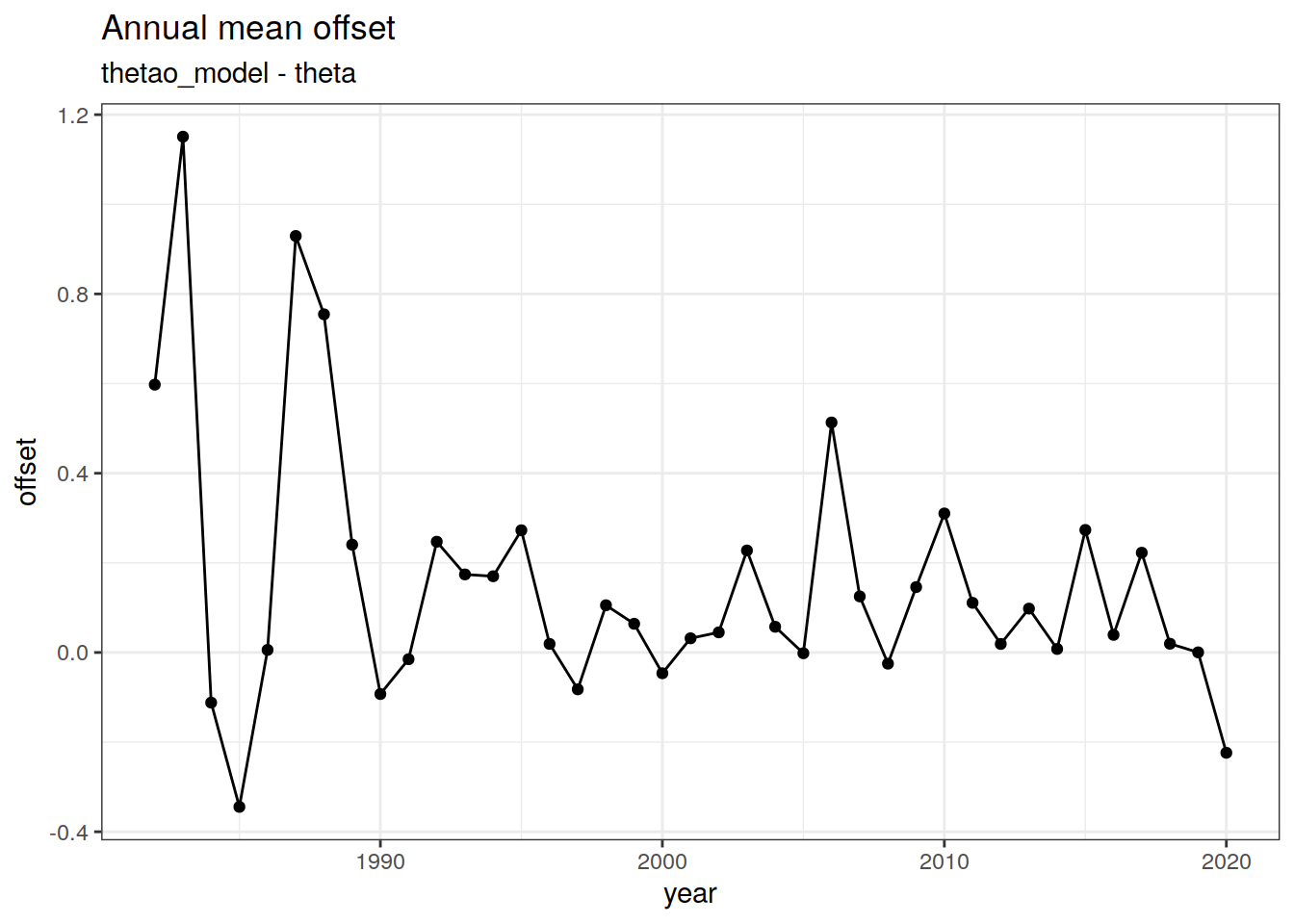

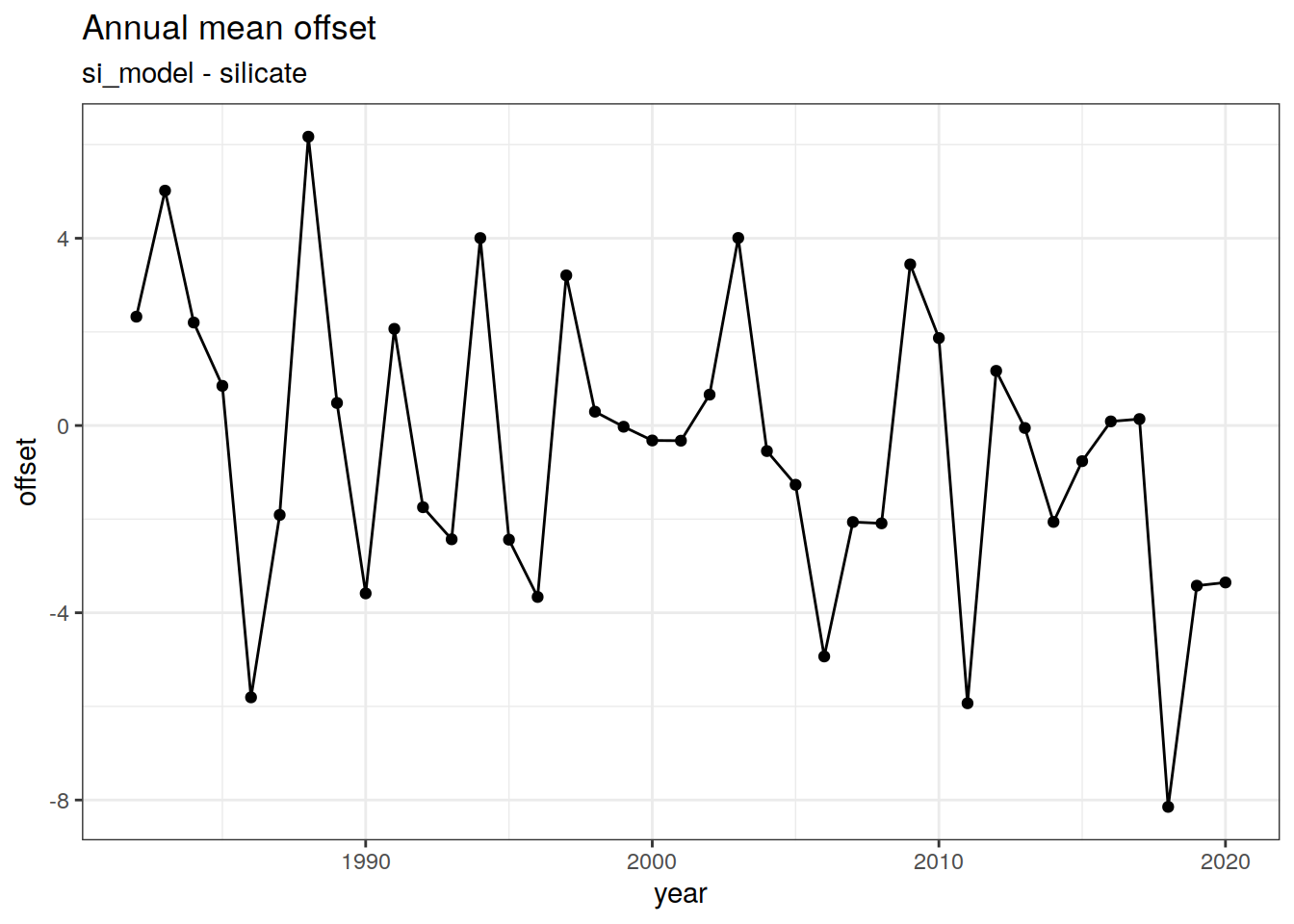

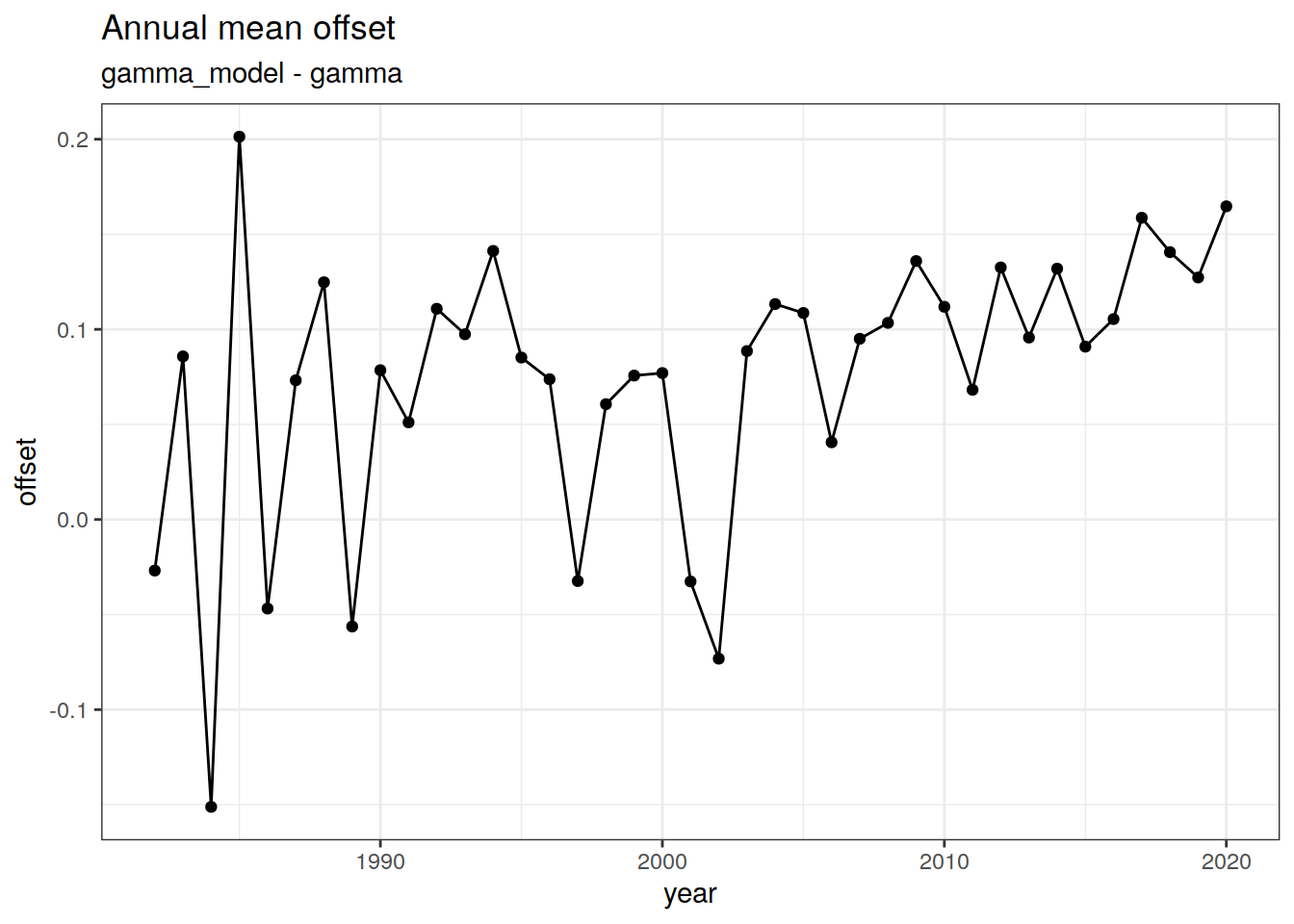

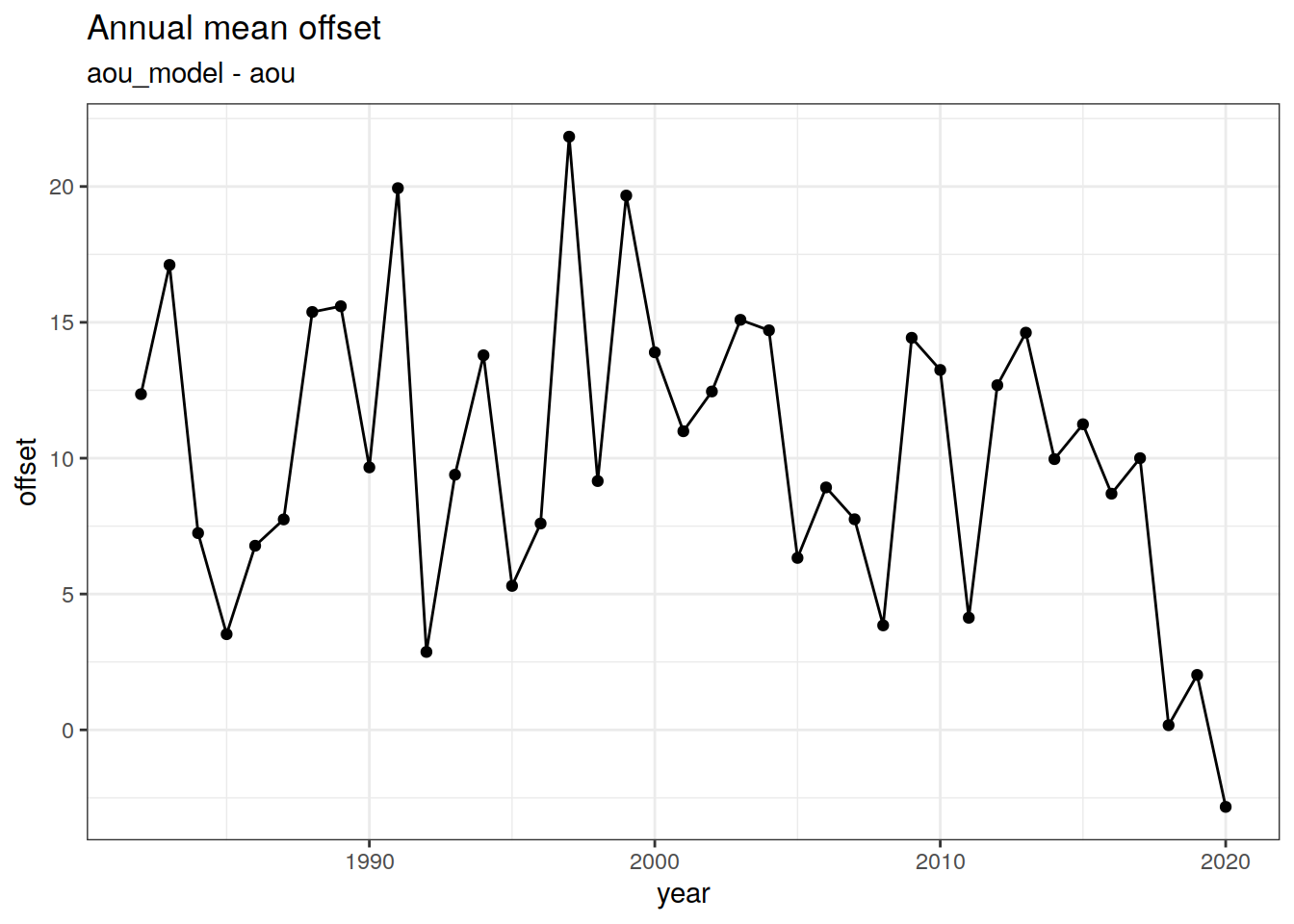

  print(
    GLODAP_cmorized_var_year %>%
      ggplot(aes(year, offset)) +
      geom_point() +
      geom_line() +

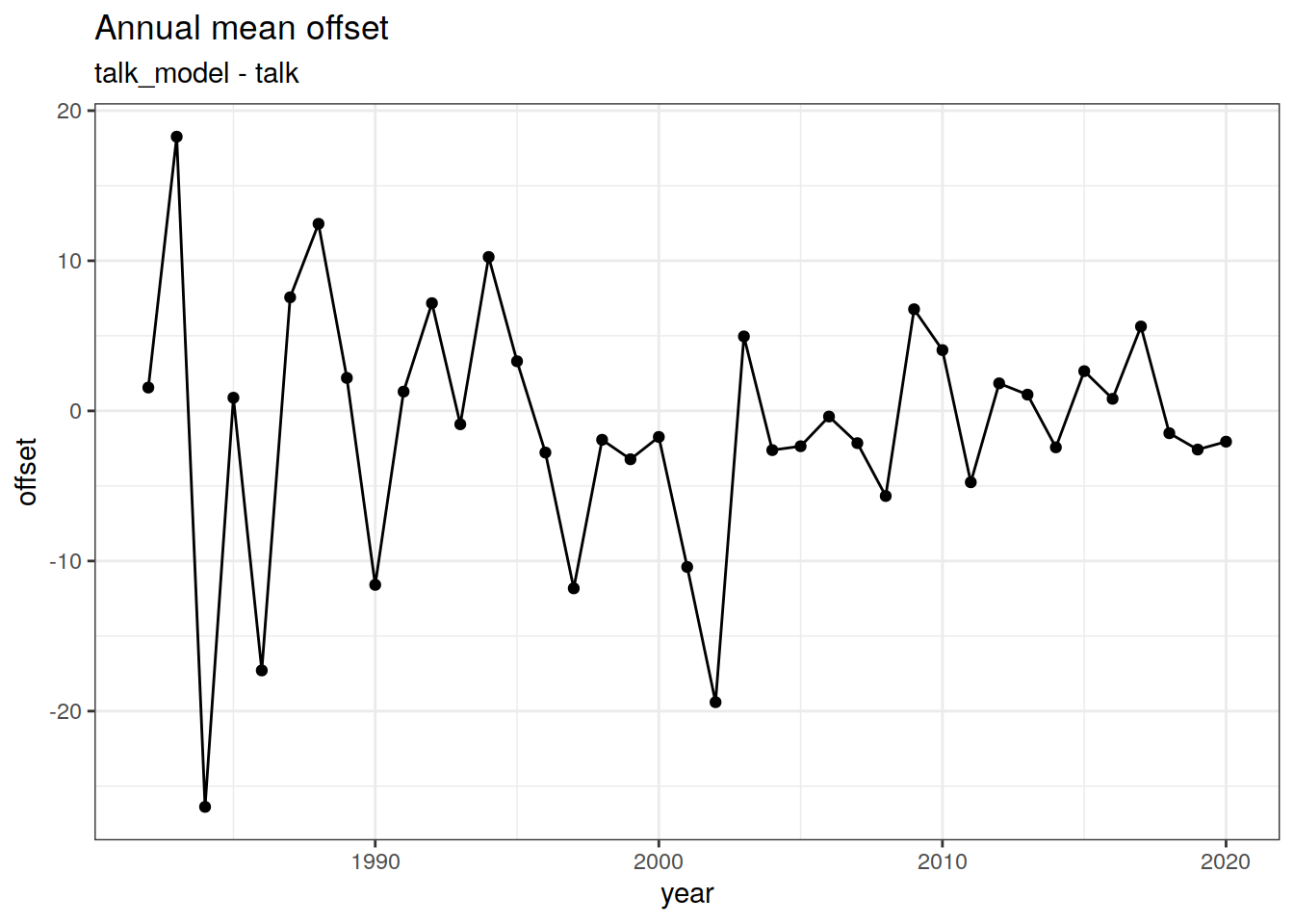

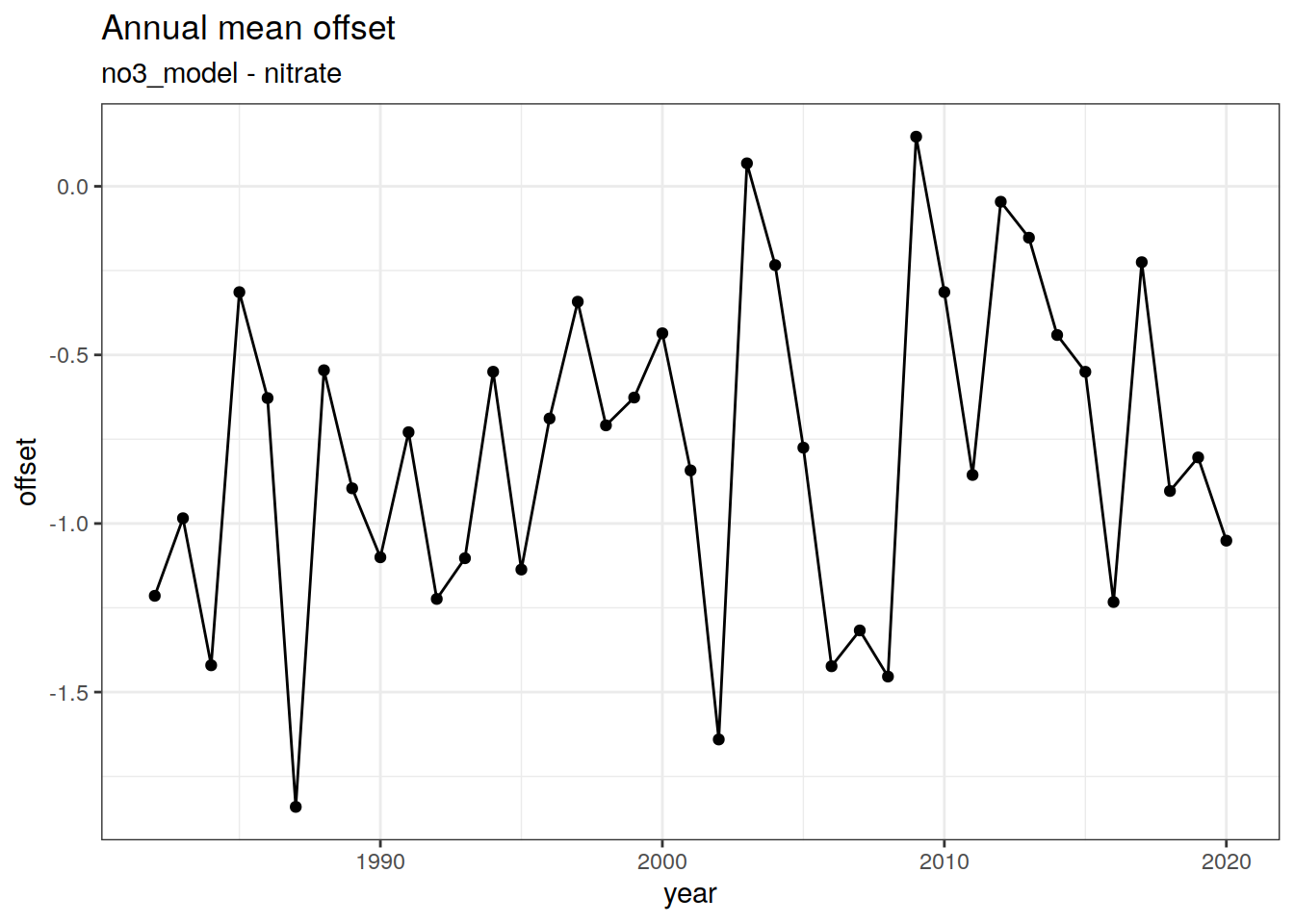

      labs(title = "Annual mean offset",
           subtitle = paste(sym(model_var[i]), "-", sym(obs_var[i])))
  )

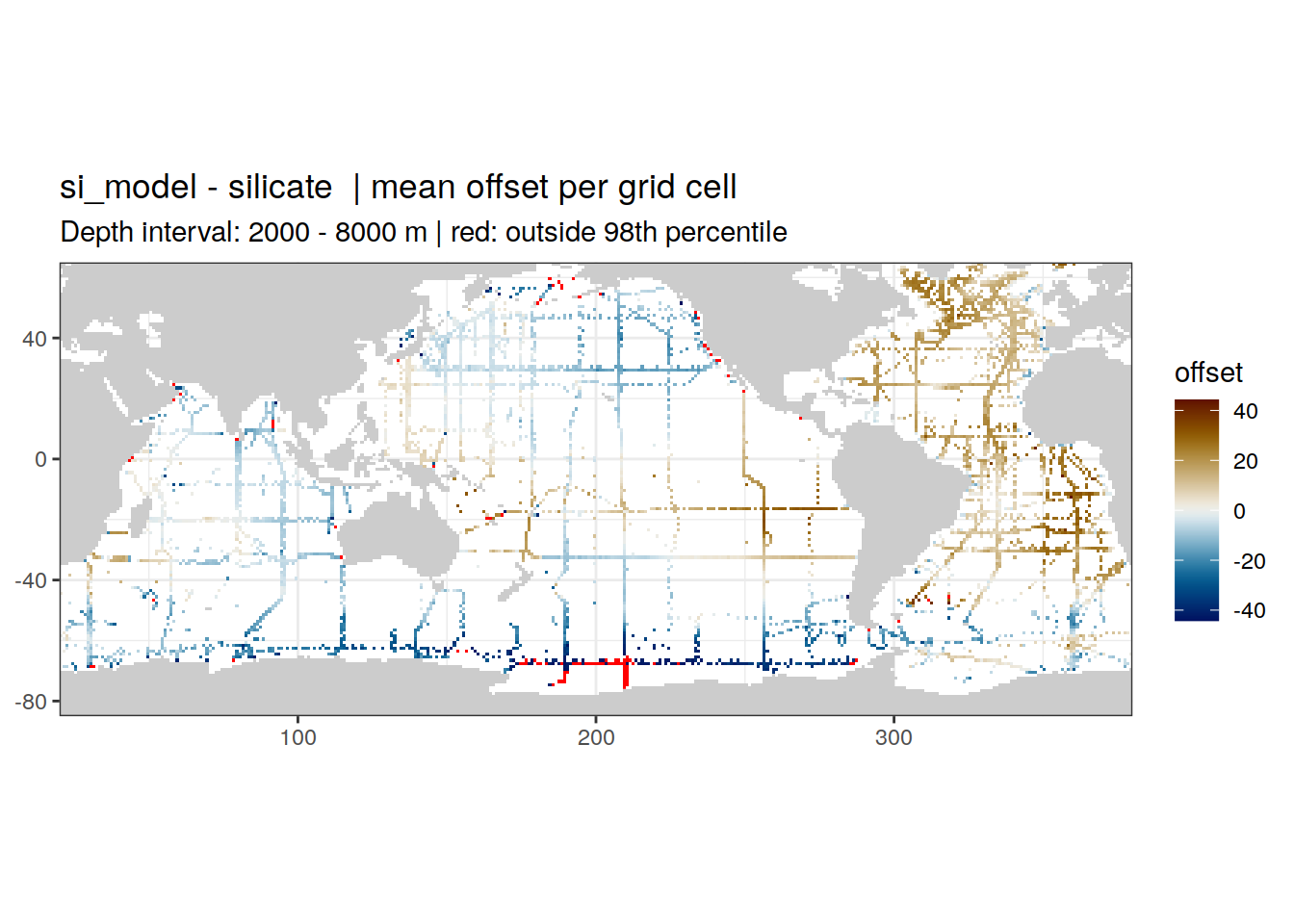

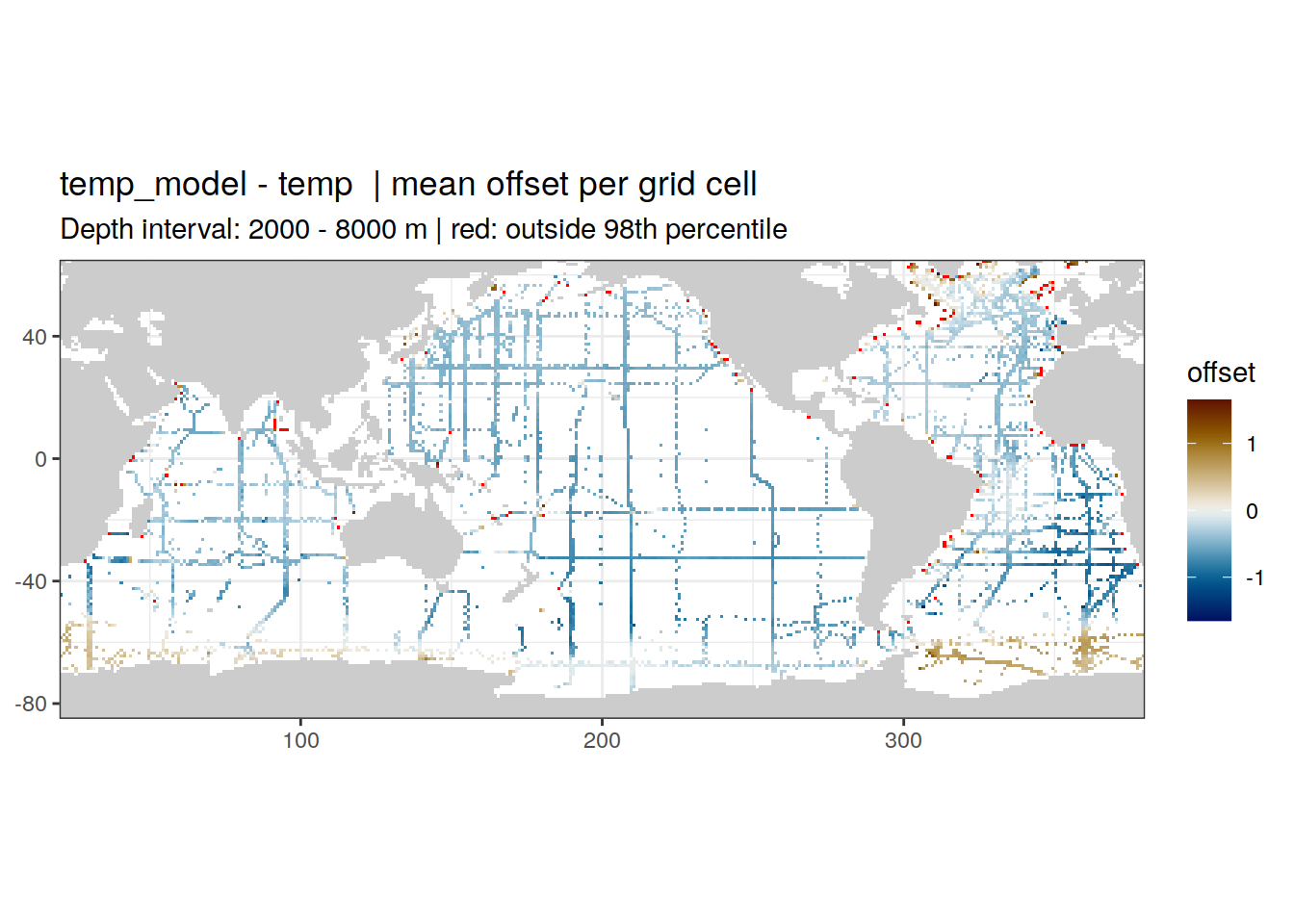

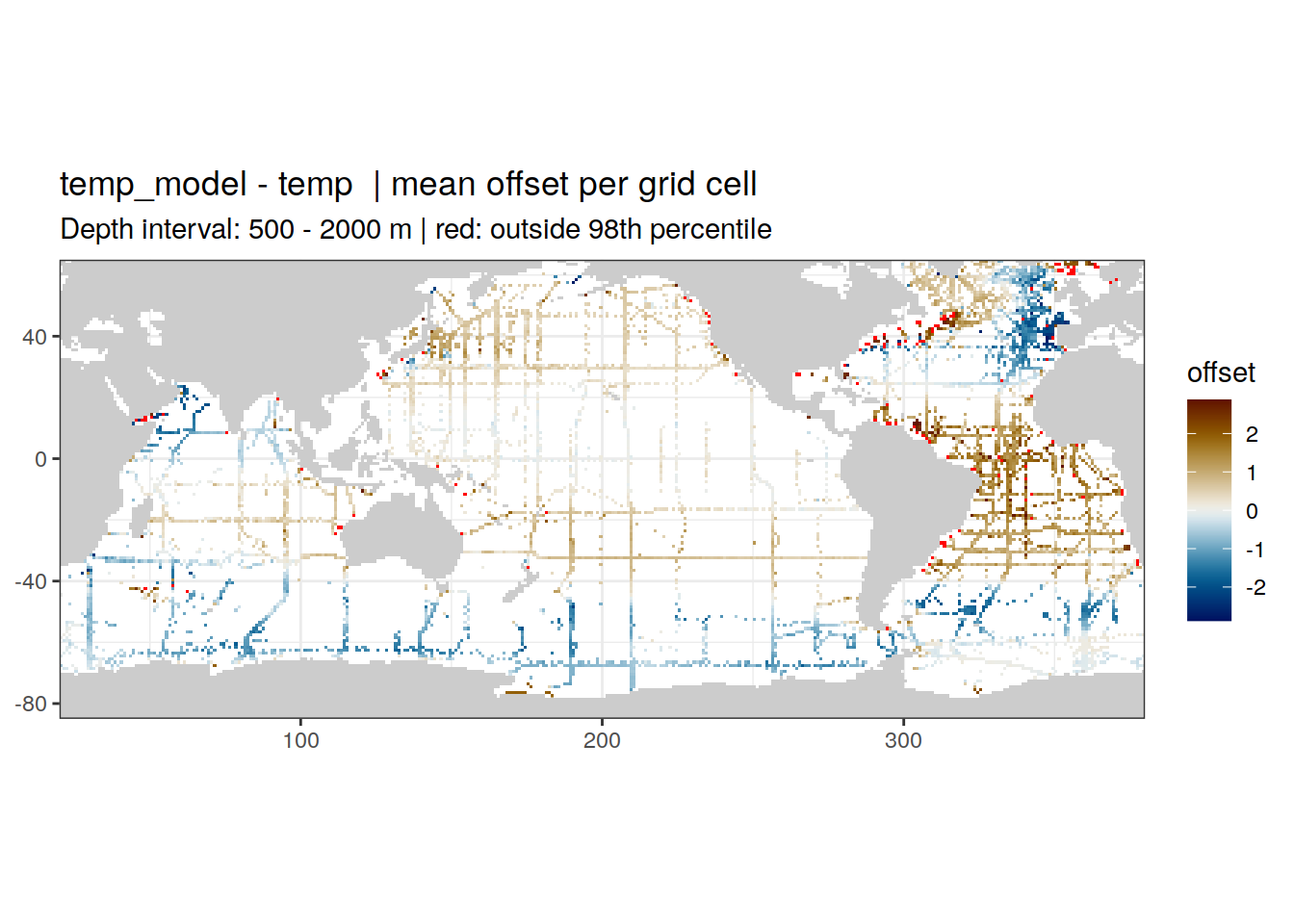

  # spatial distribution of the model-observations offset for 4 depth intervals
  intervals <- c(0, 150, 500, 2000, 8000)
  for (j in 1:4) {
    # j <- 1
    GLODAP_cmorized_var_grid <- GLODAP_cmorized_var %>%
      filter(depth >= intervals[j],
             depth < intervals[j + 1]) %>%
      group_by(lat, lon) %>%
      summarise(offset = mean(offset)) %>%
      ungroup()

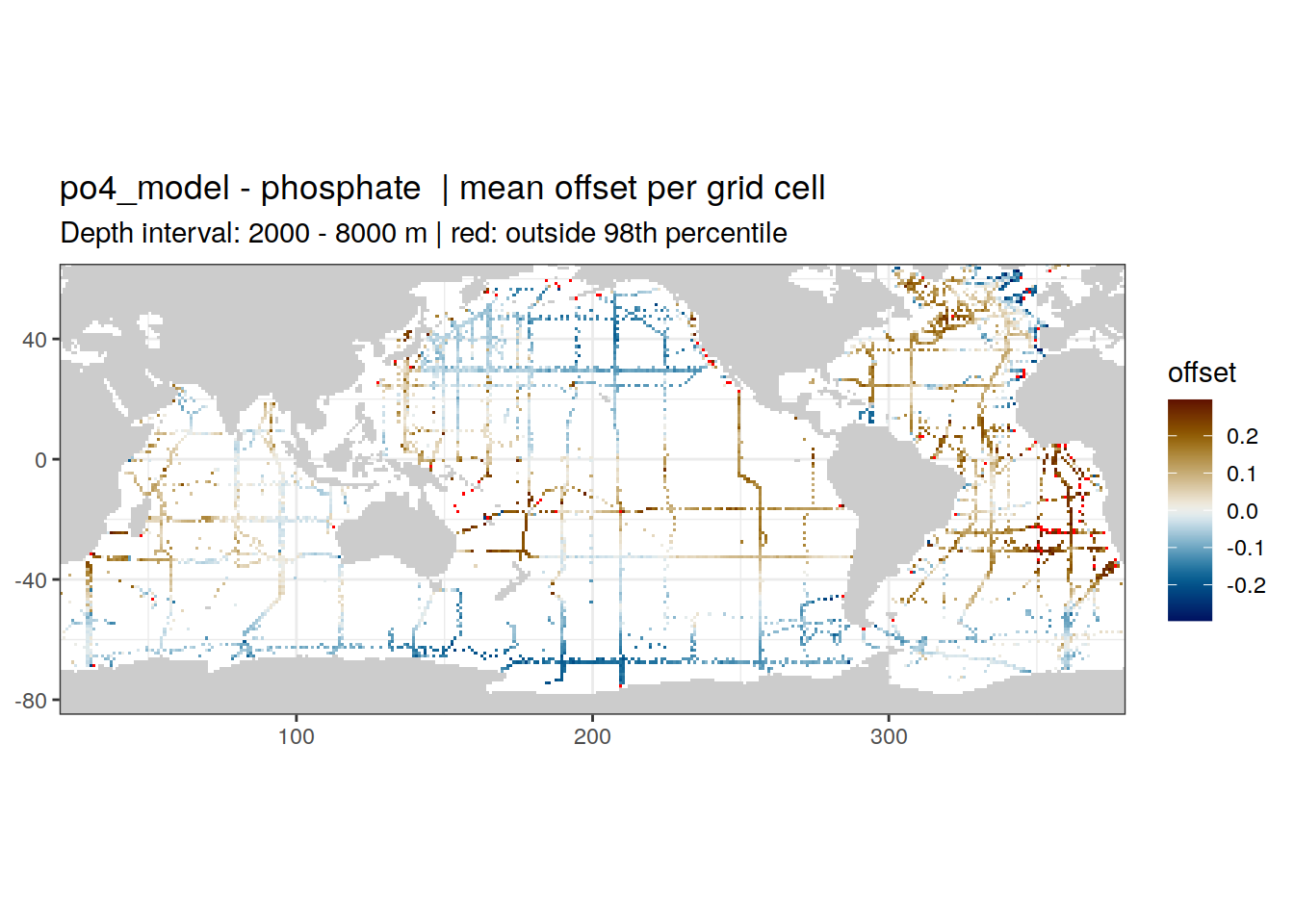

    # plot mean spatial distribution (model - obs)
    limit <-
      quantile(abs(GLODAP_cmorized_var_grid$offset), 0.98) * c(-1, 1)

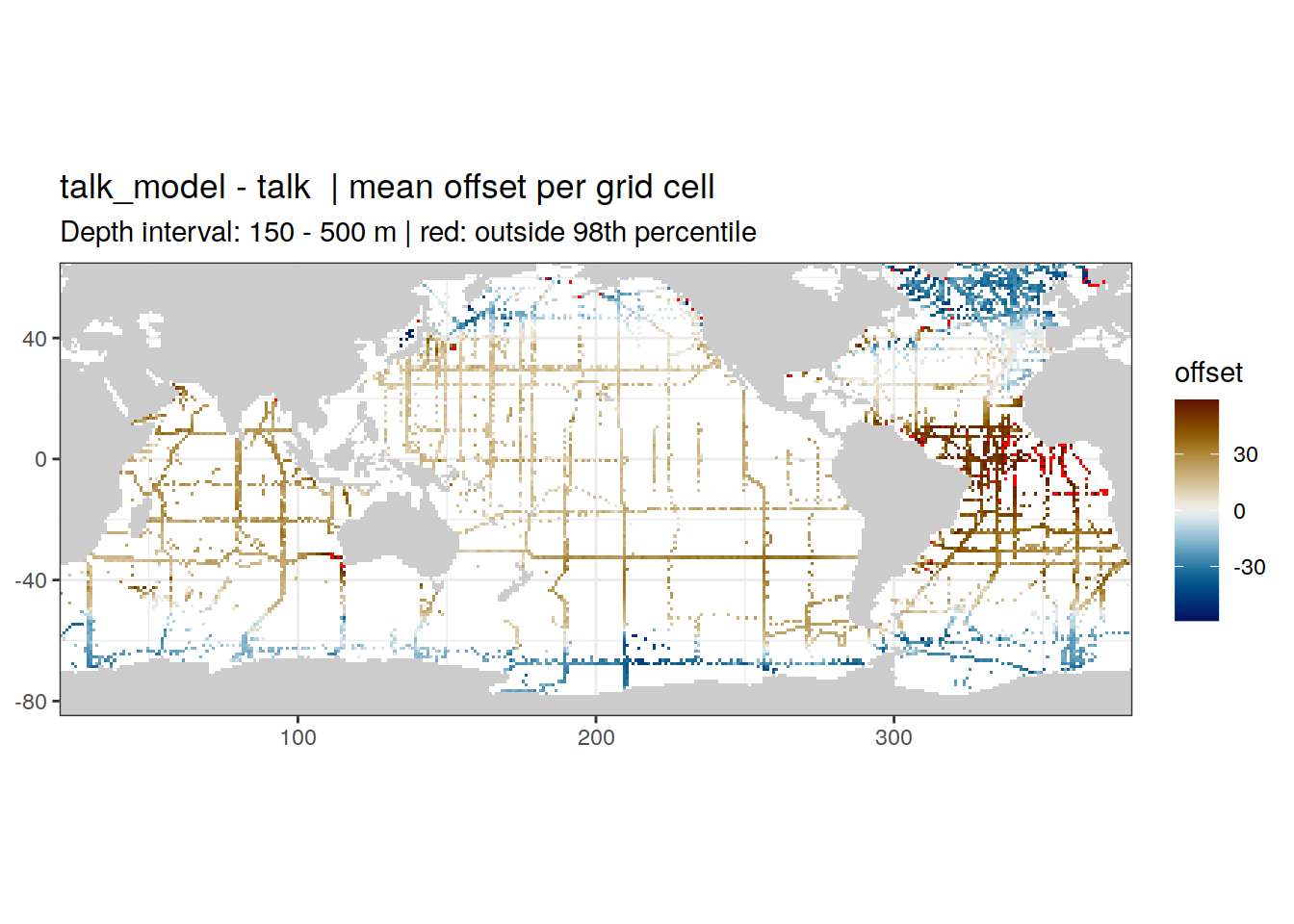

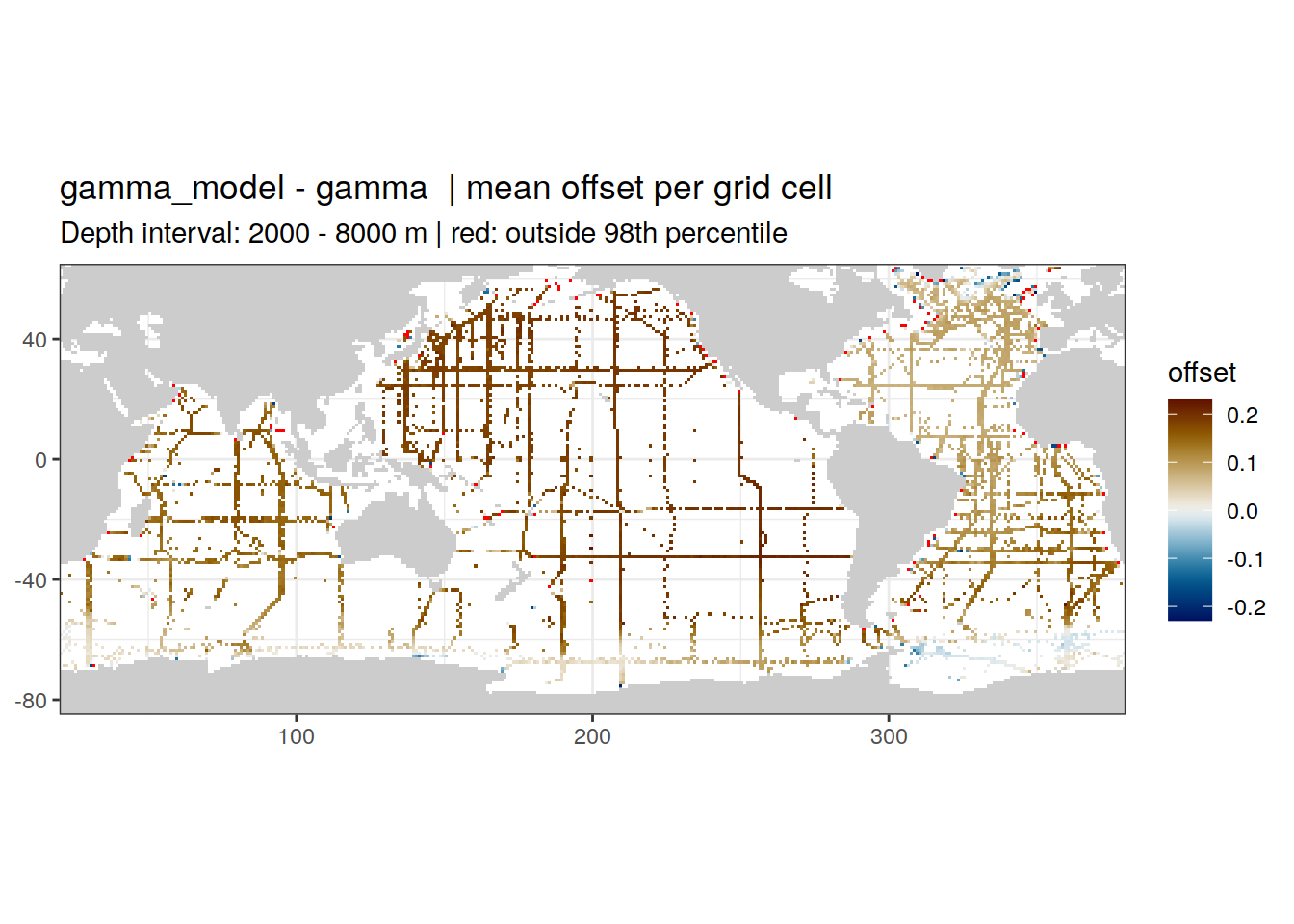

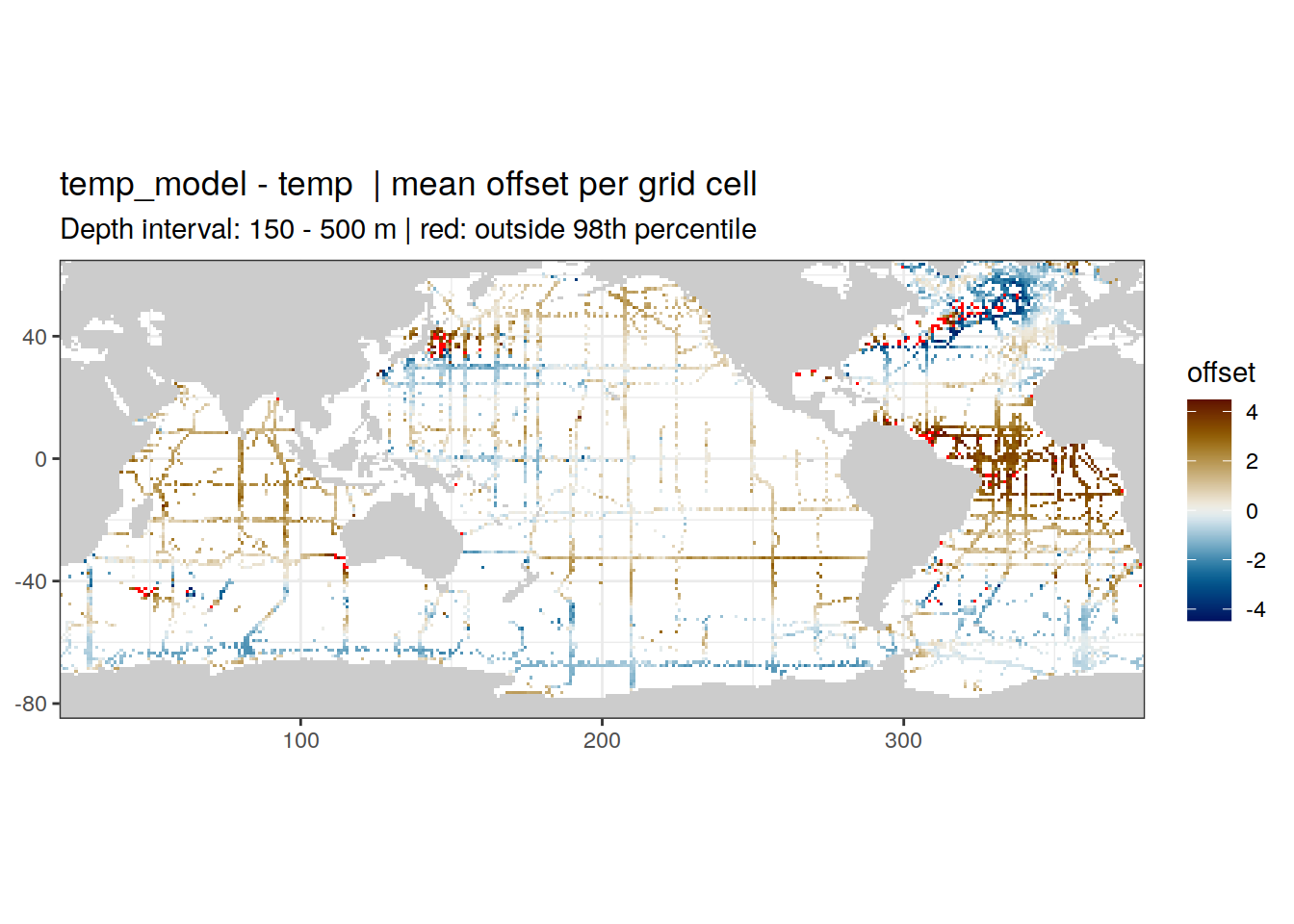

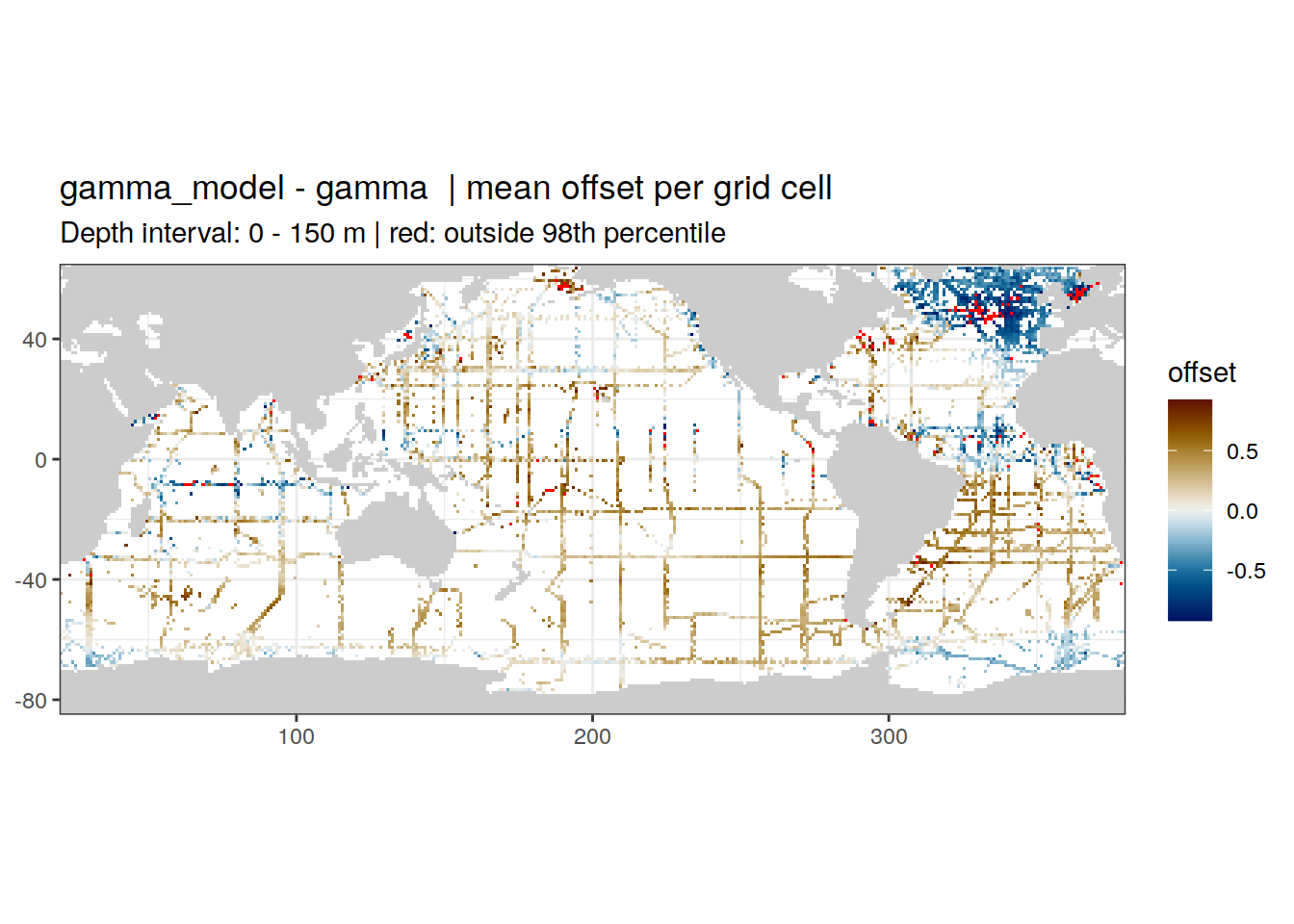

    print(

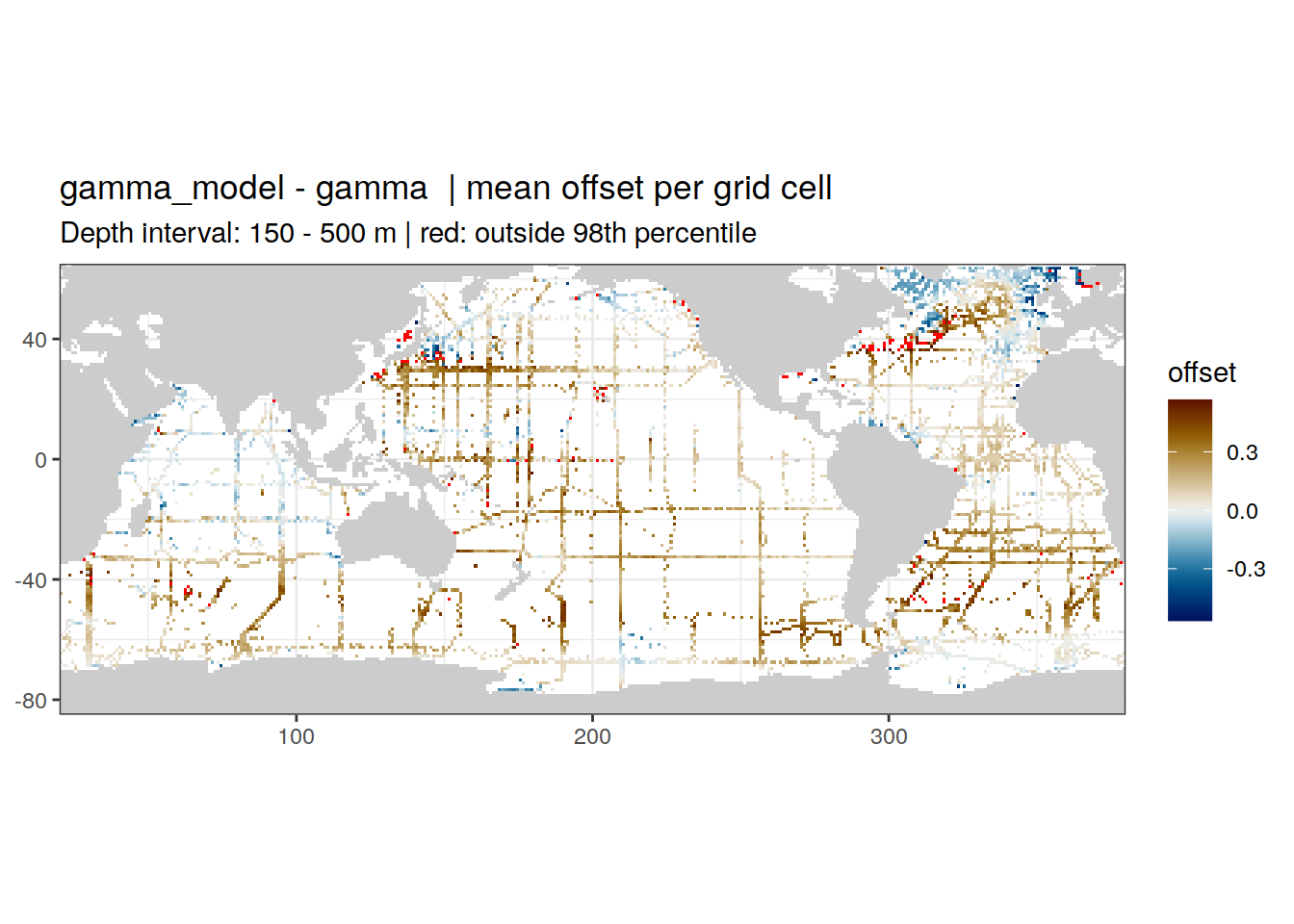

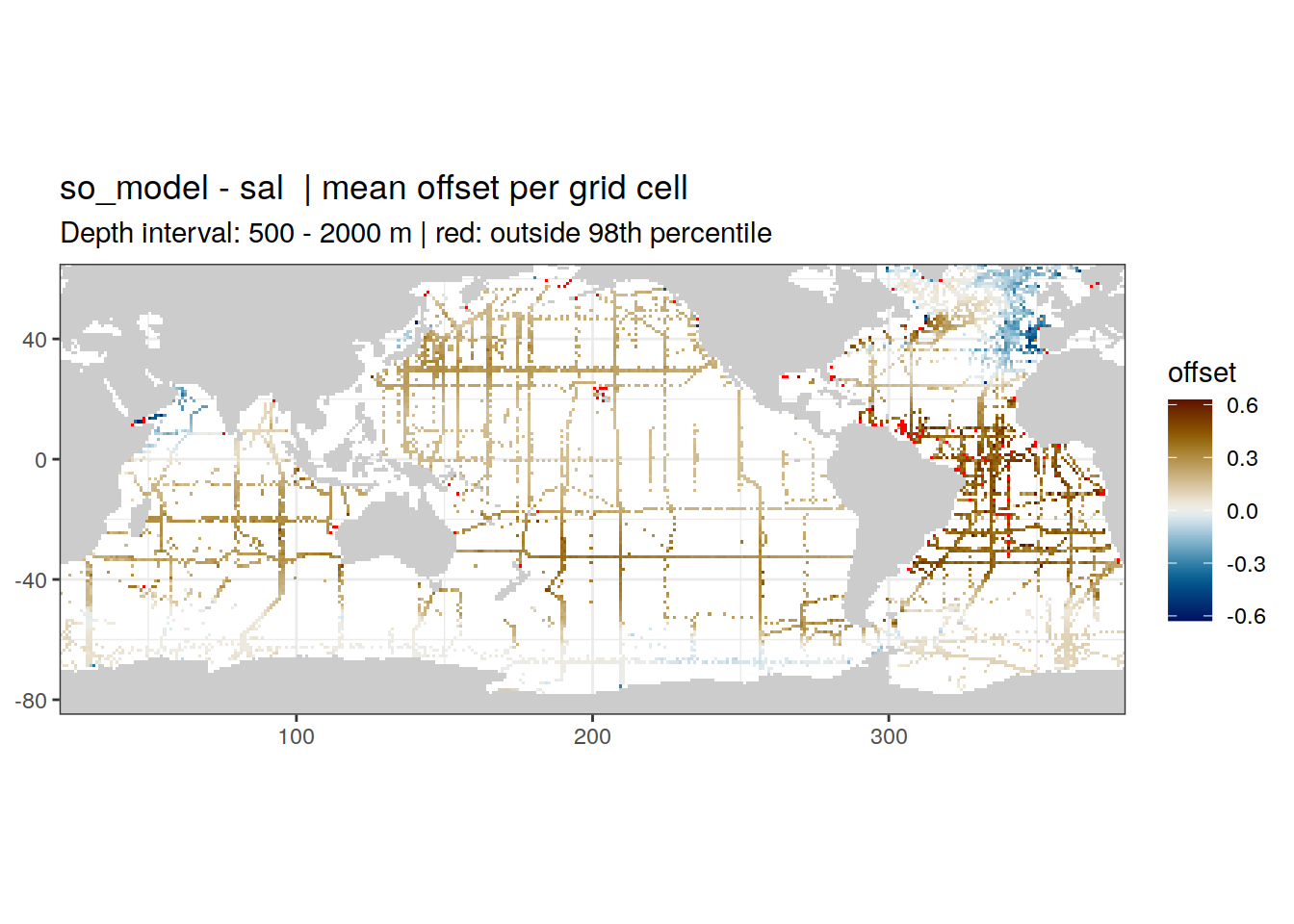

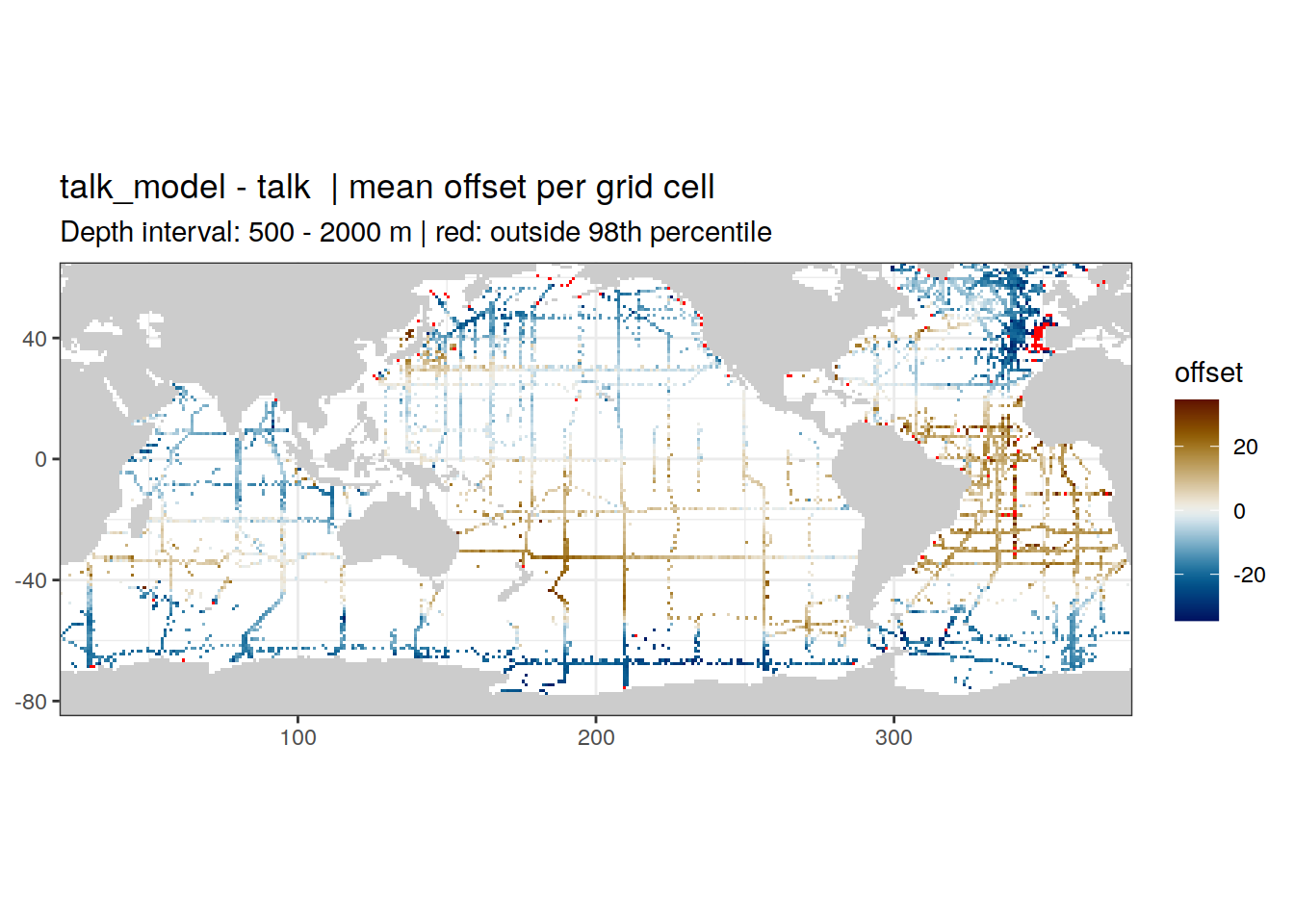

      map +

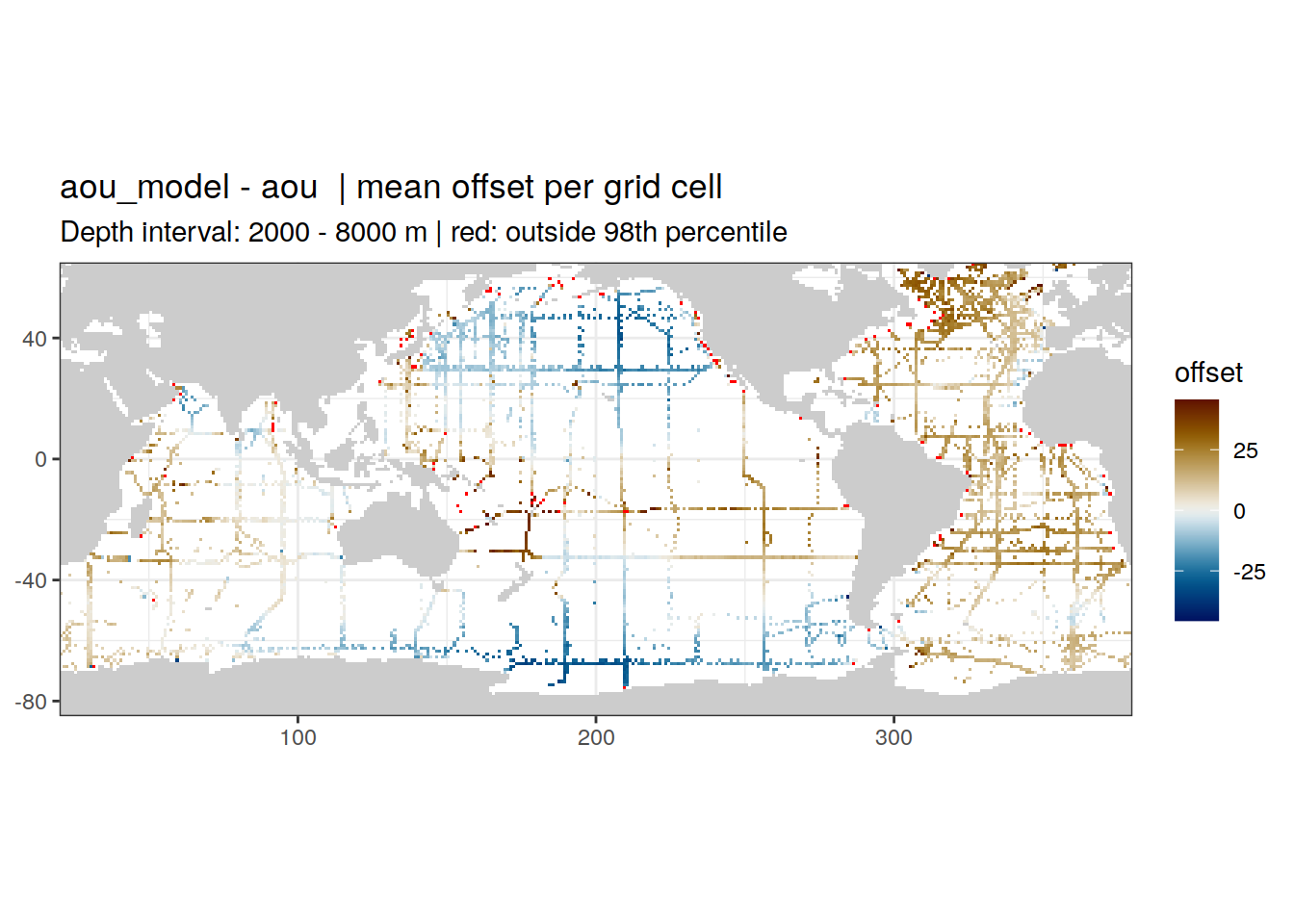

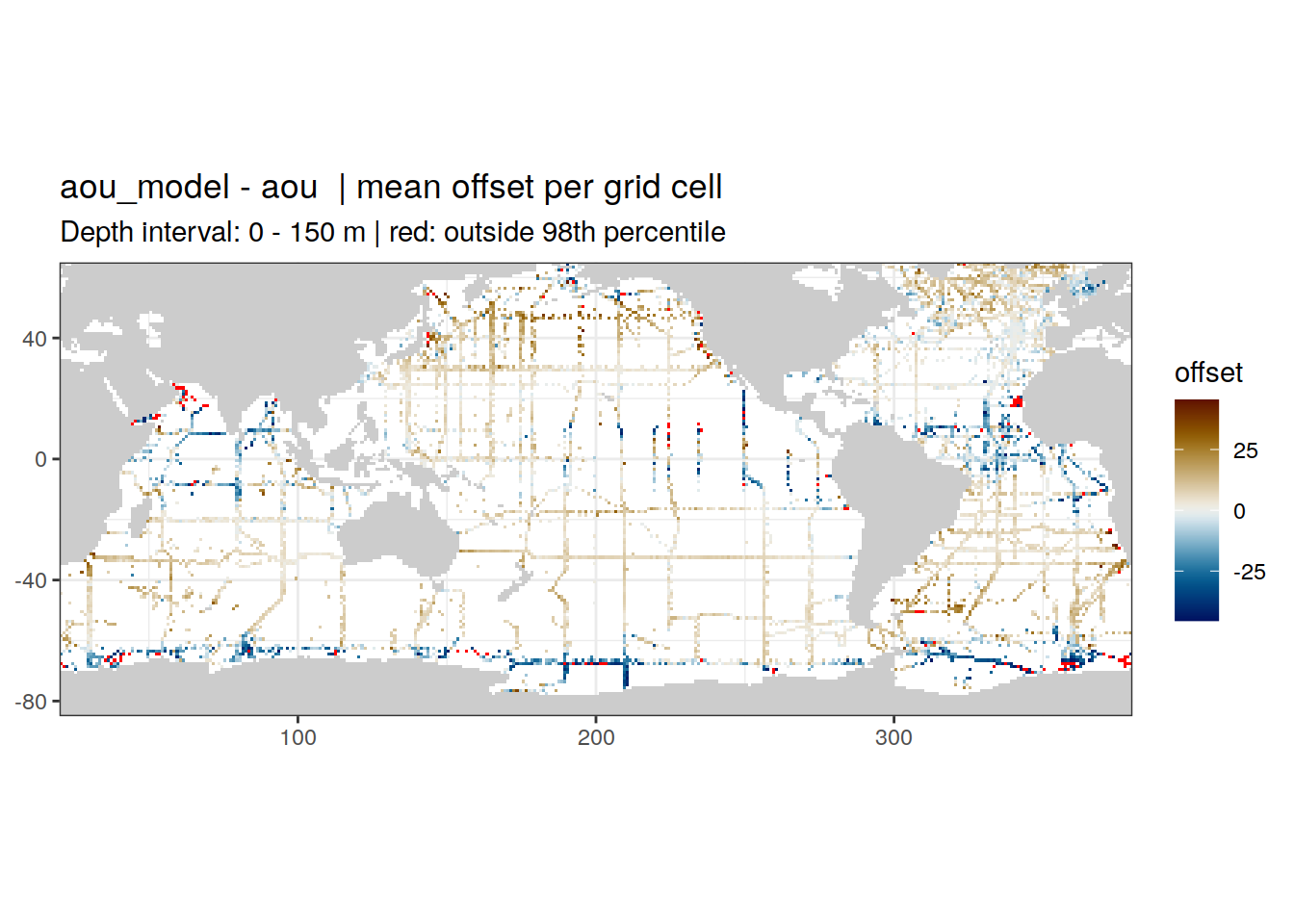

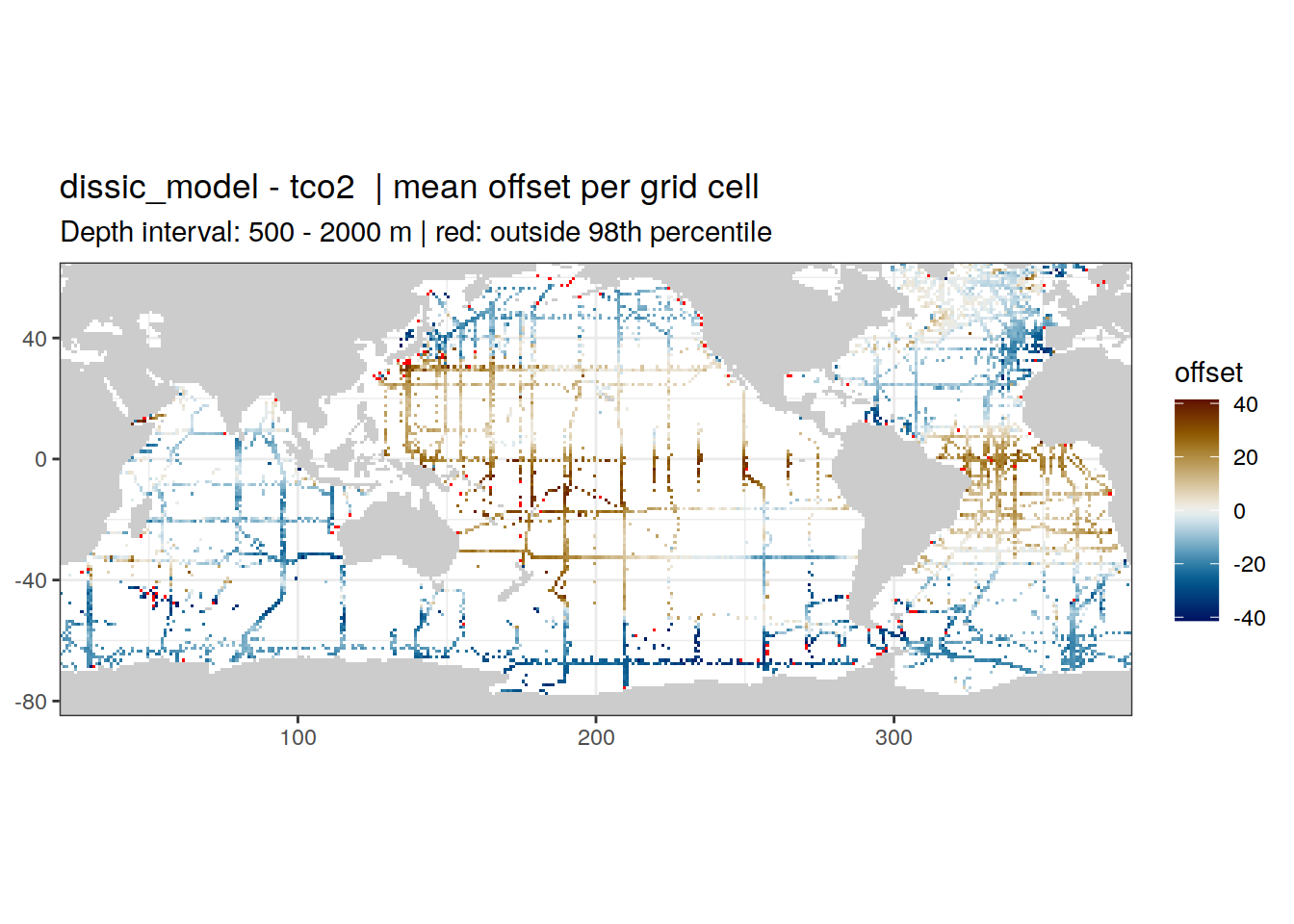

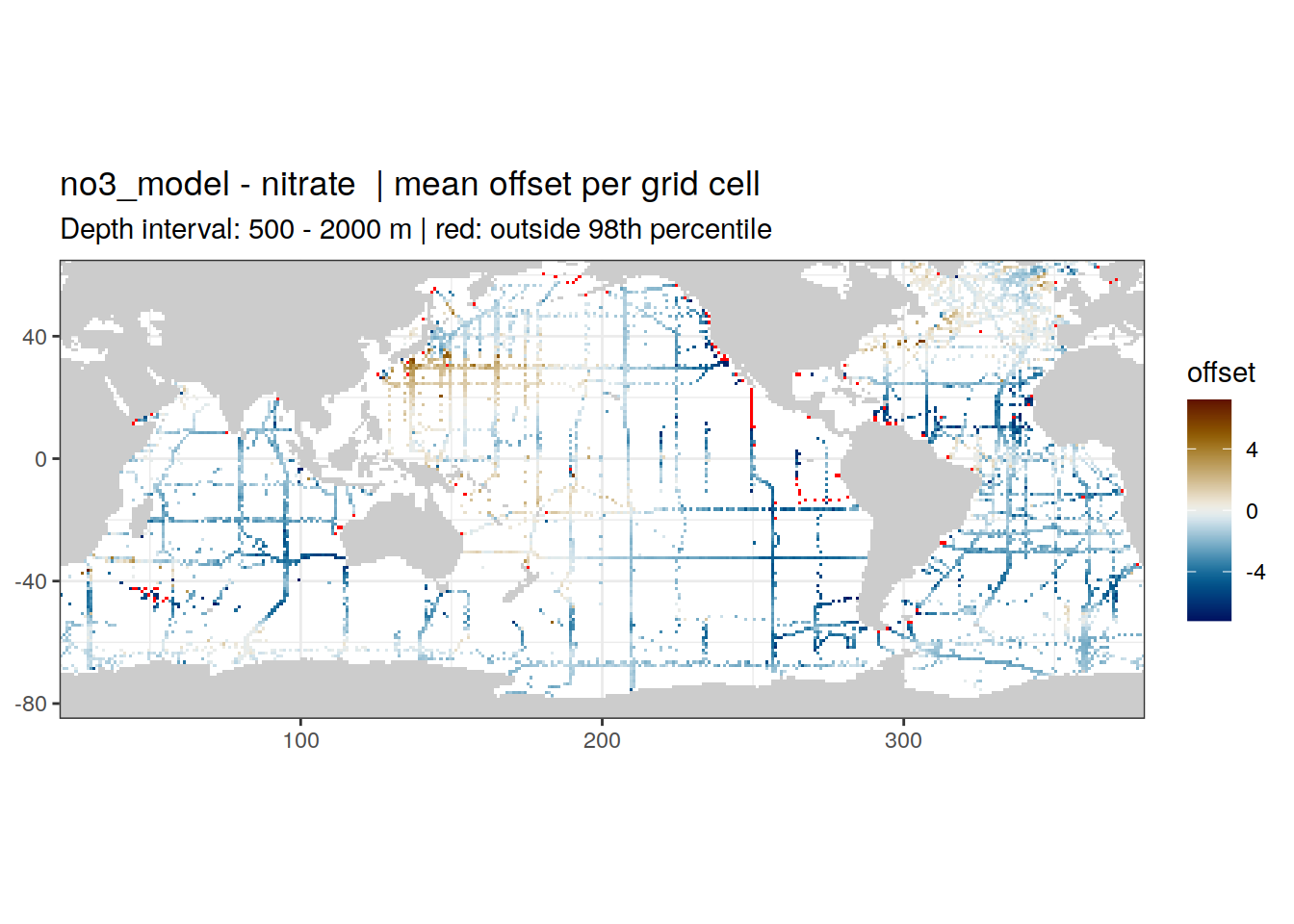

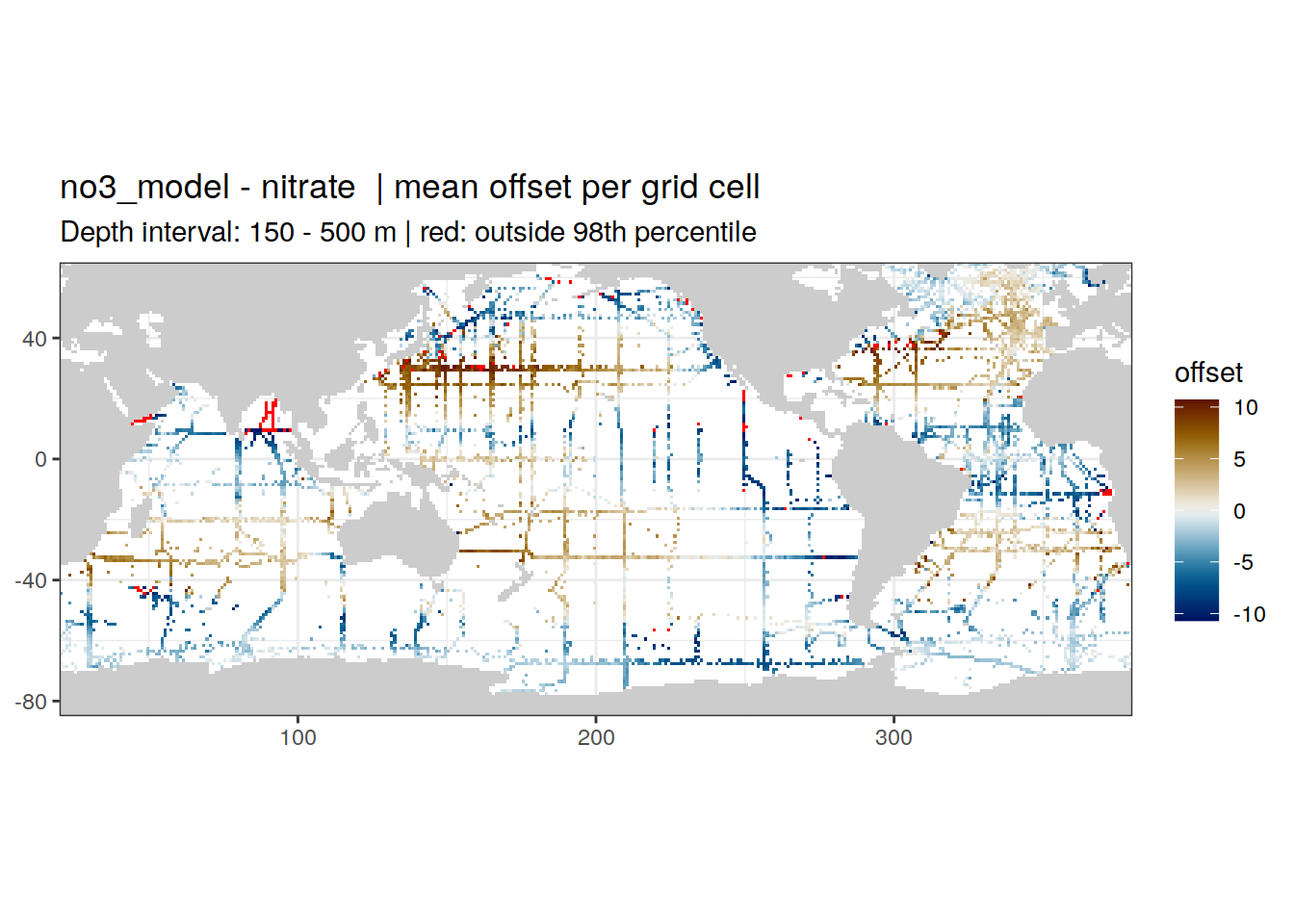

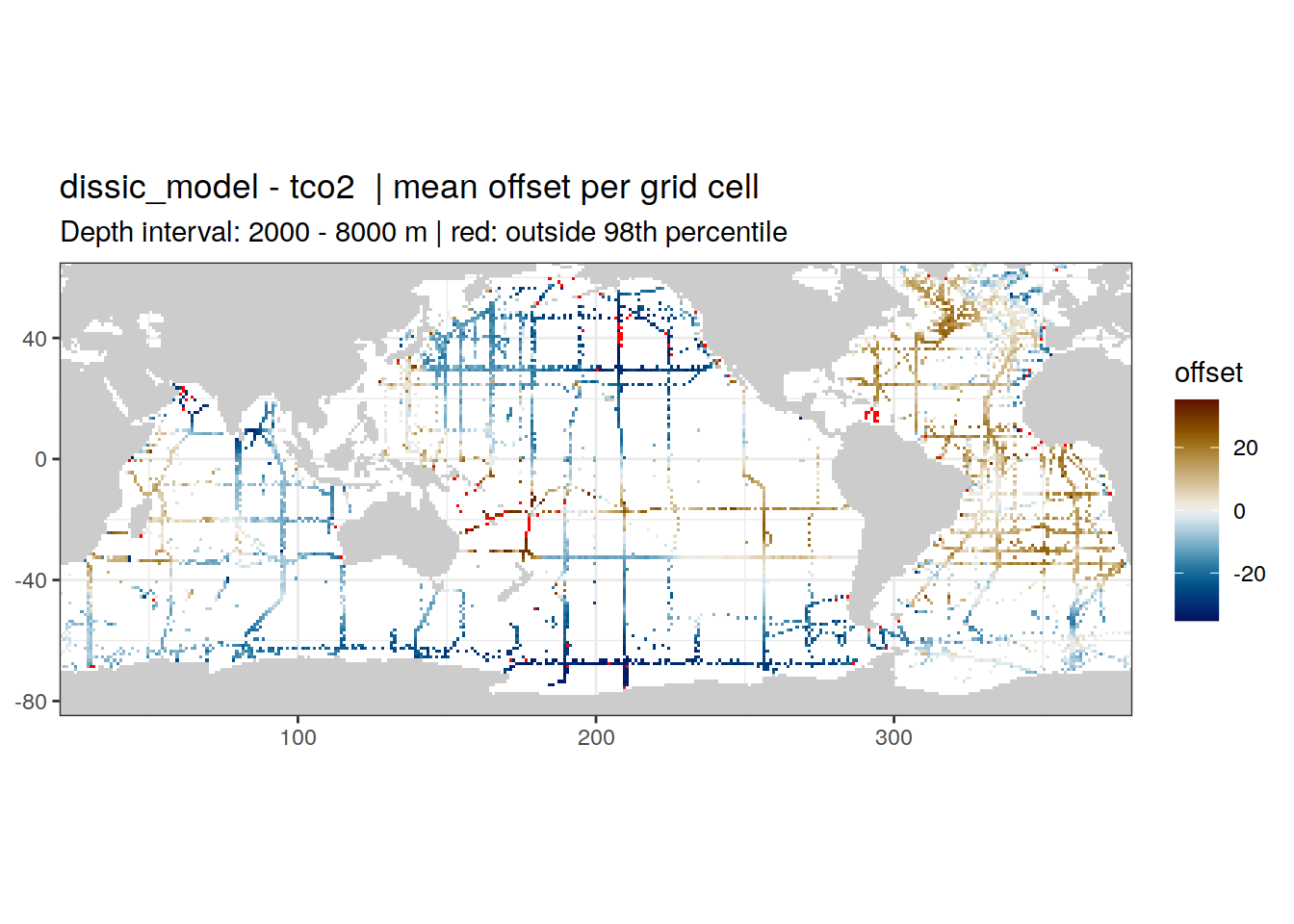

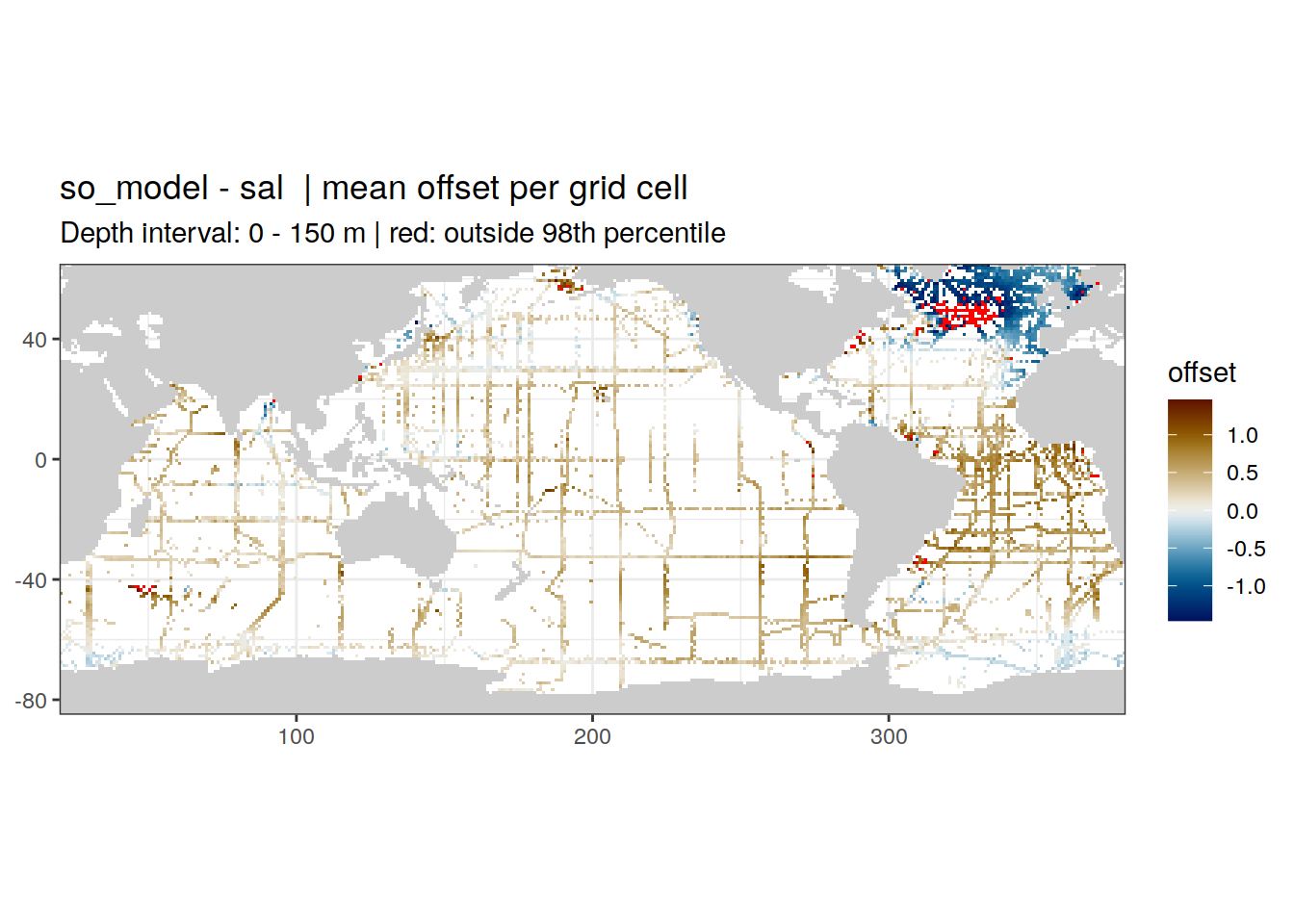

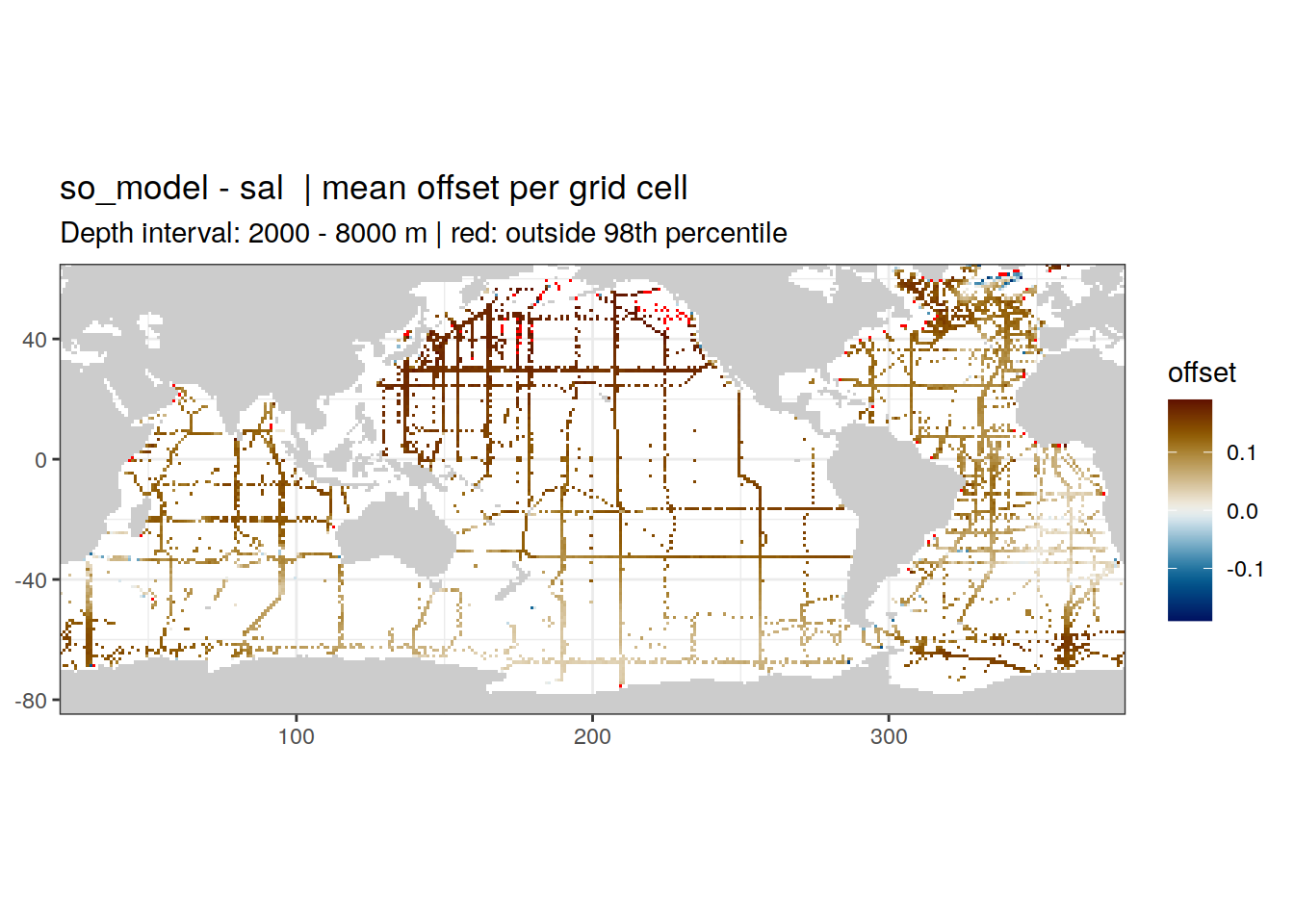

        geom_raster(data = GLODAP_cmorized_var_grid, aes(lon, lat, fill = offset)) +
        scale_fill_scico(
          palette = "vik",
          name = "offset",
          limit = limit,
          na.value = "red"
        ) +
        coord_quickmap(expand = 0) +

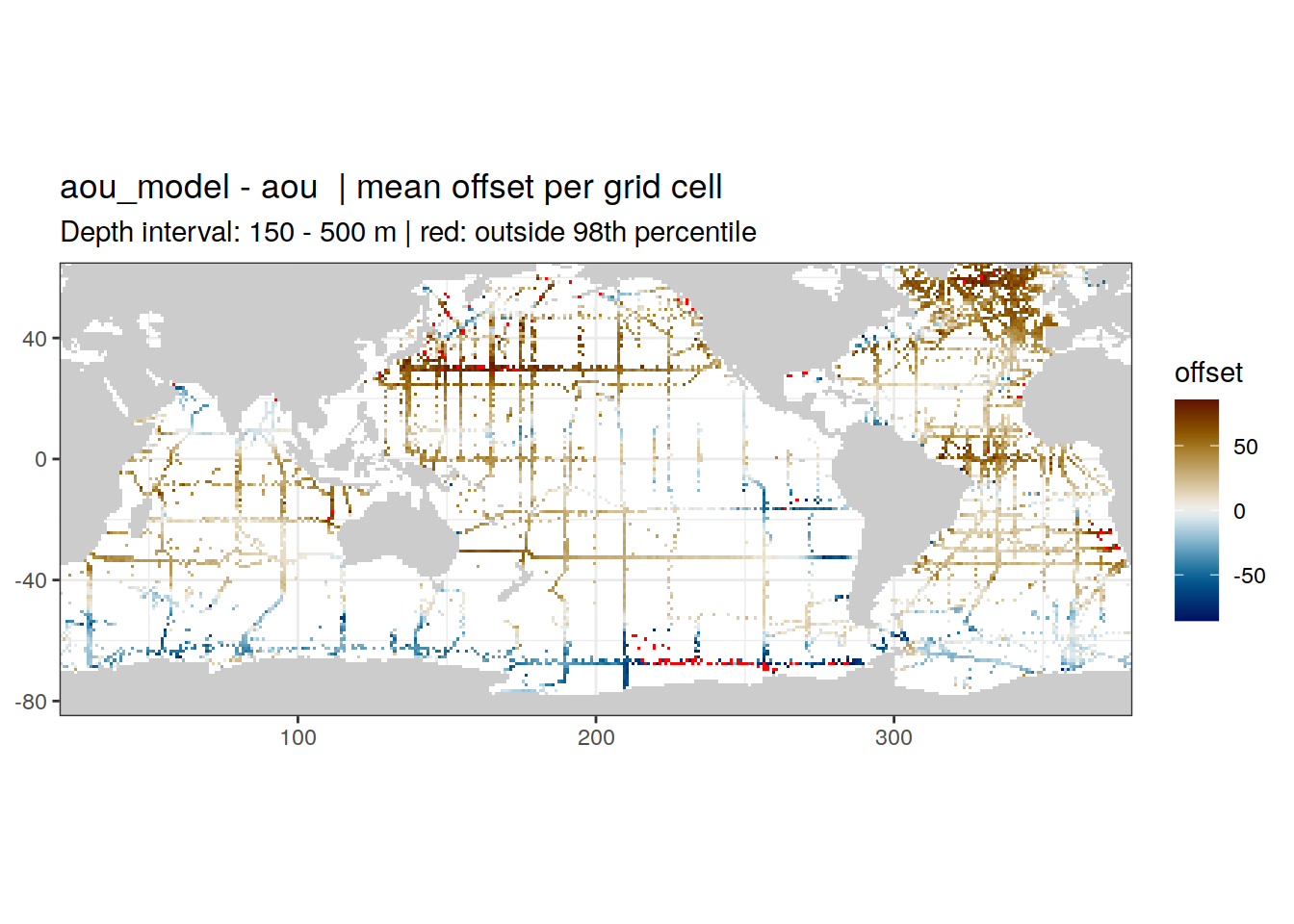

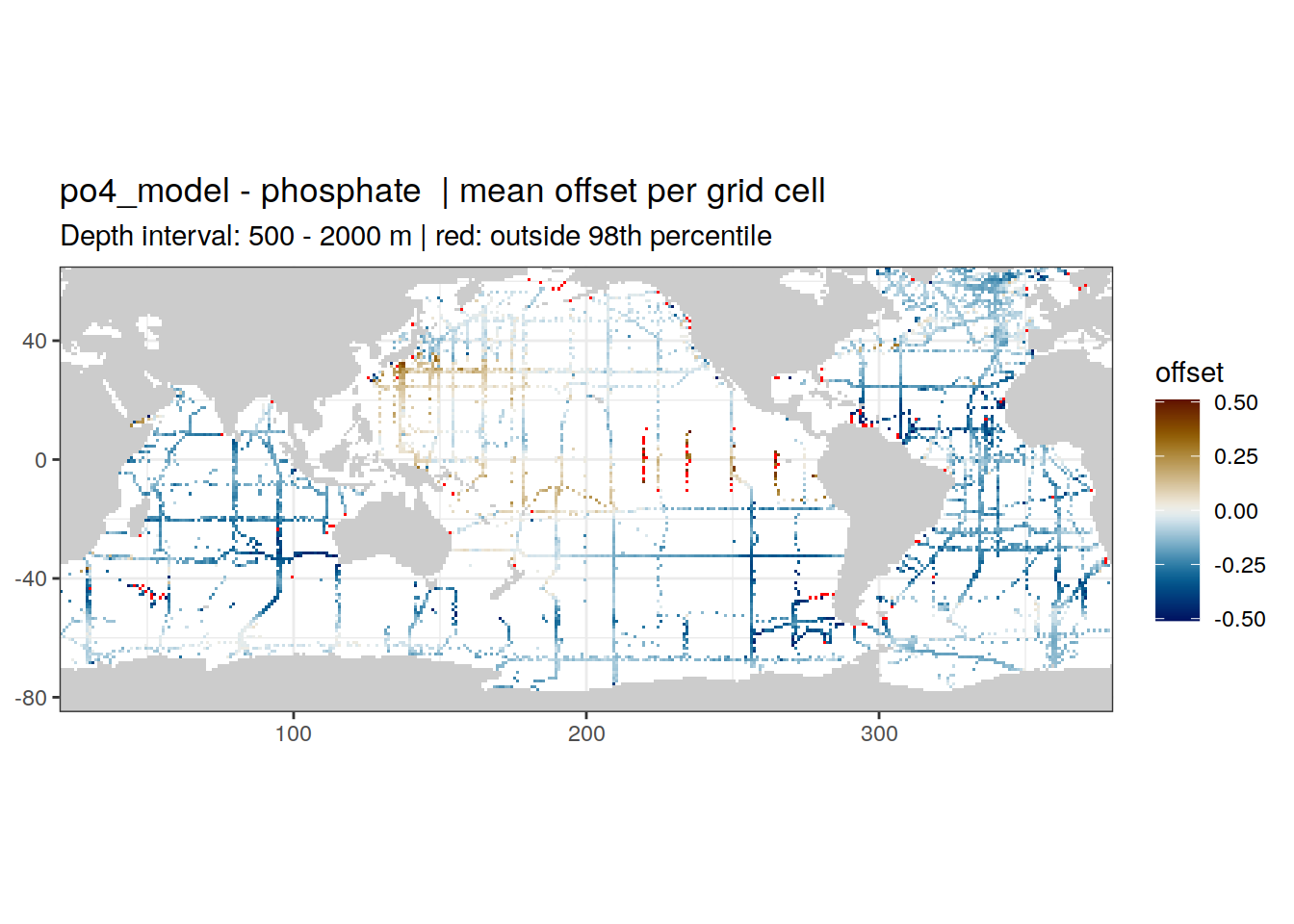

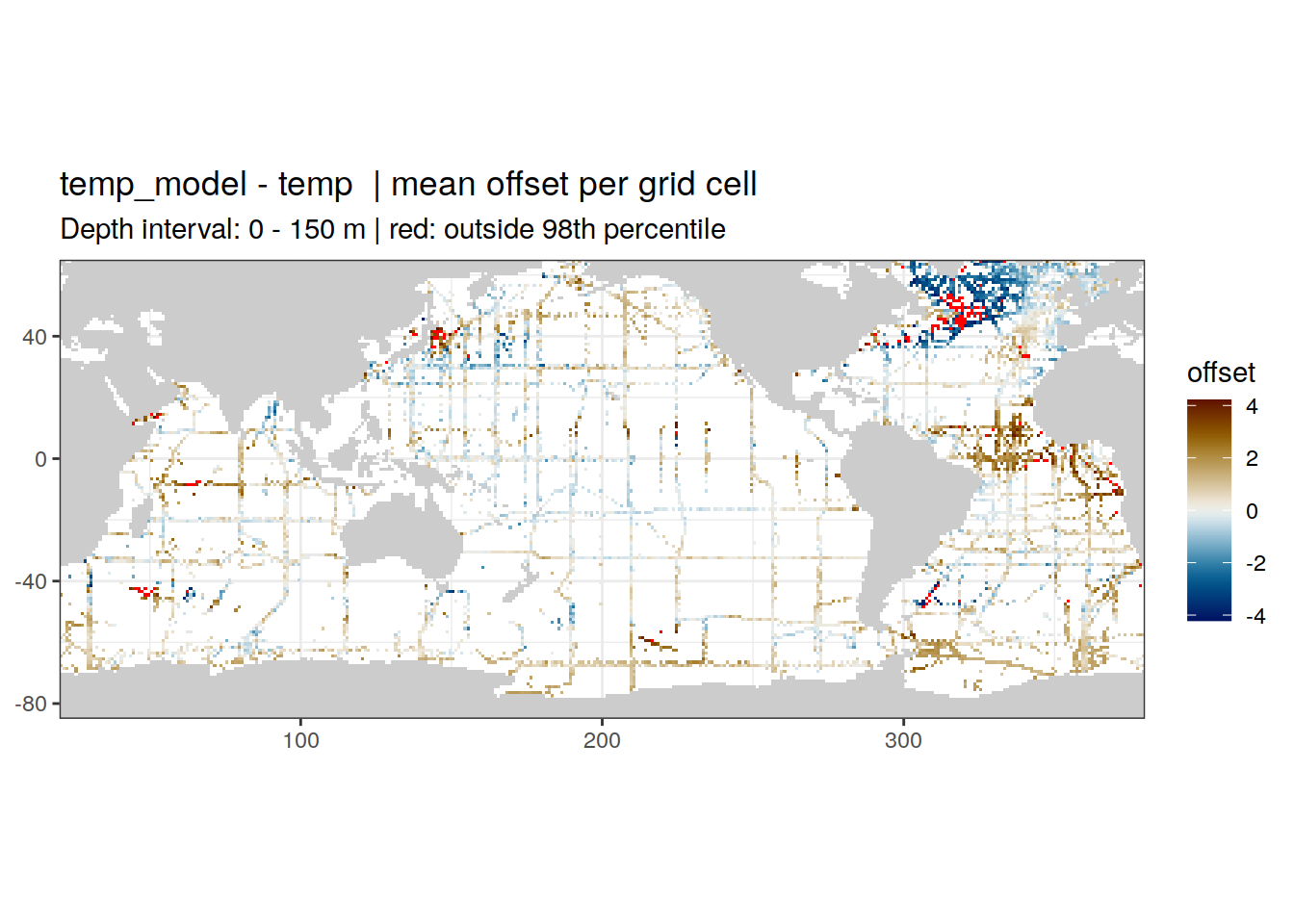

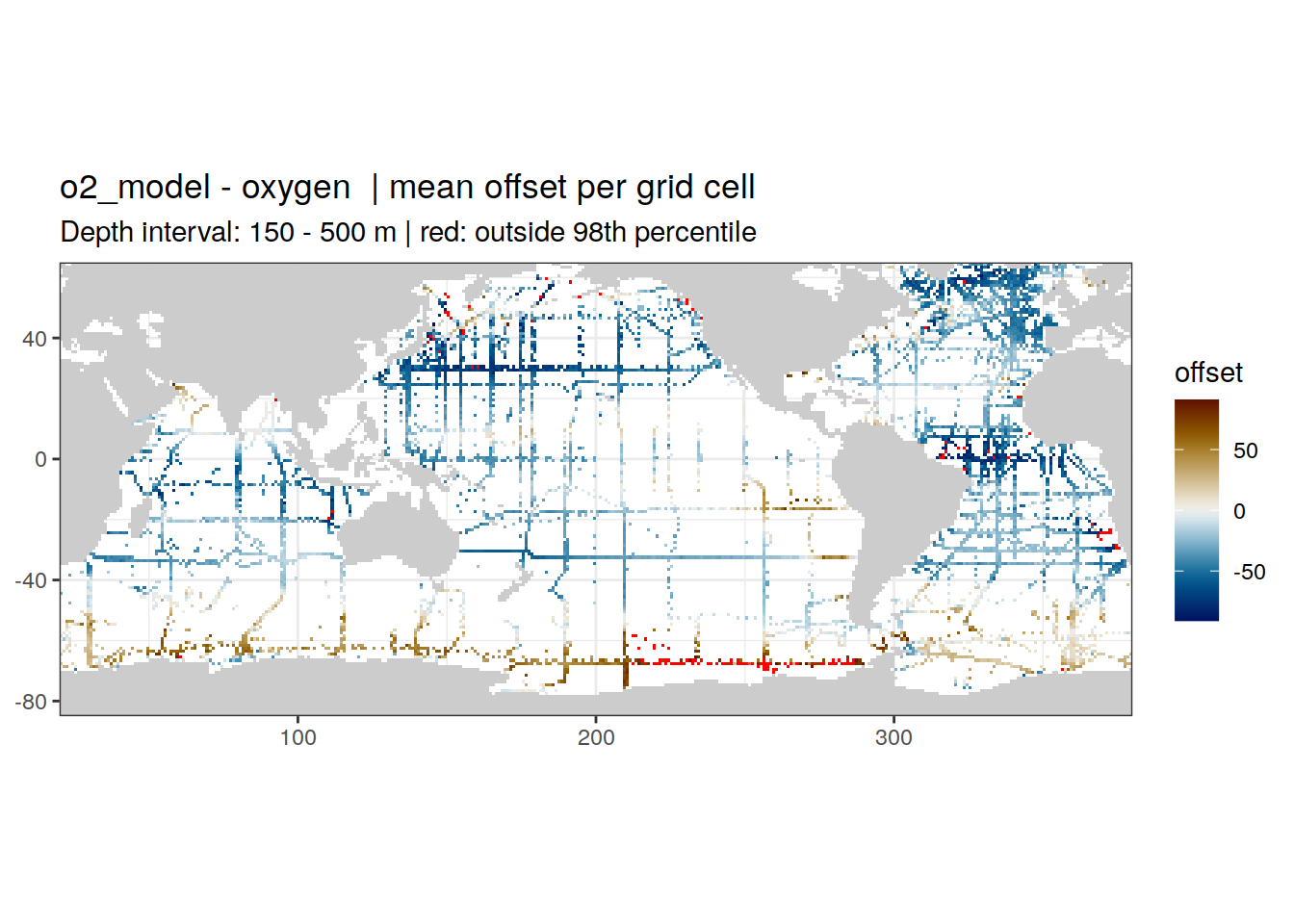

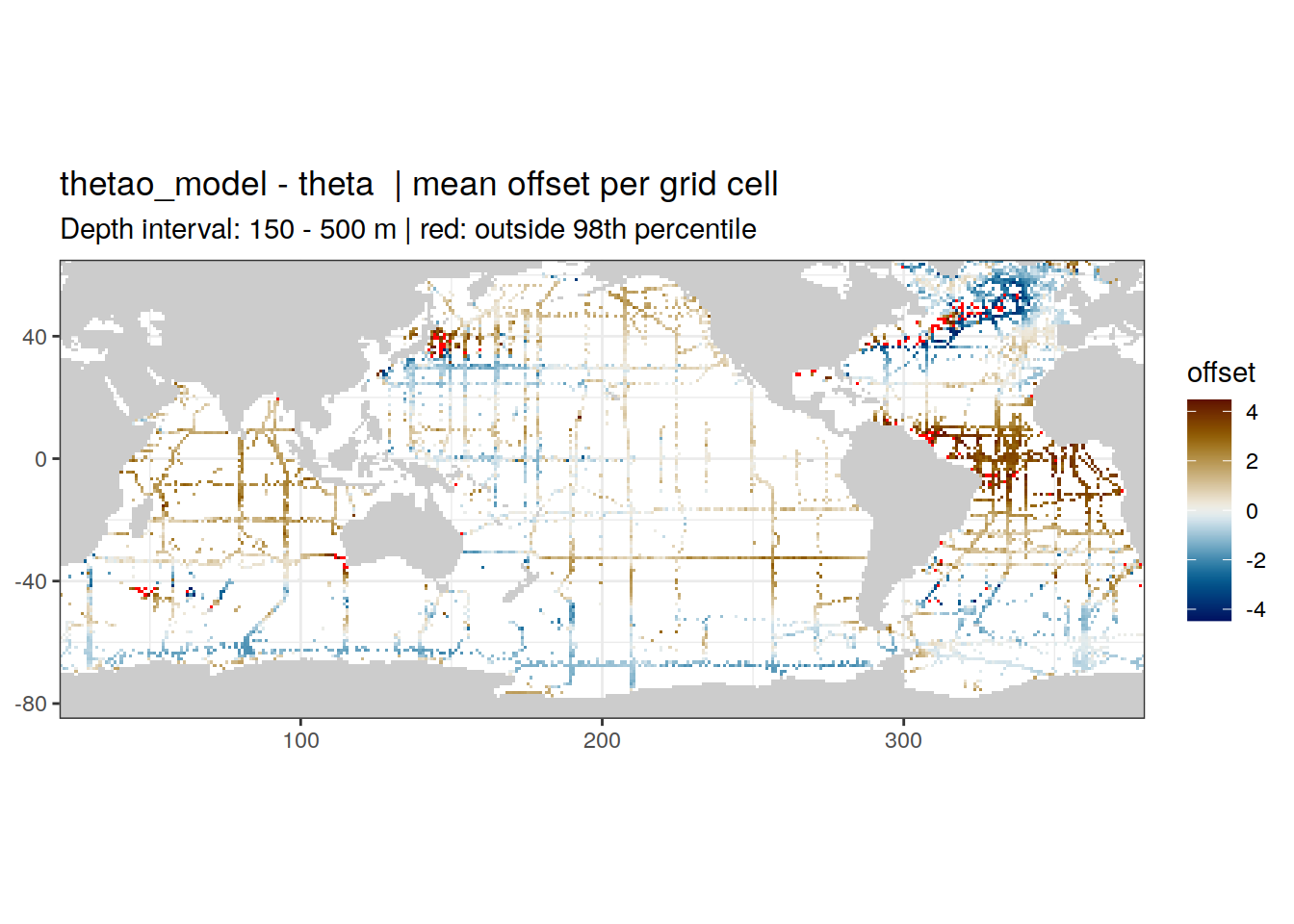

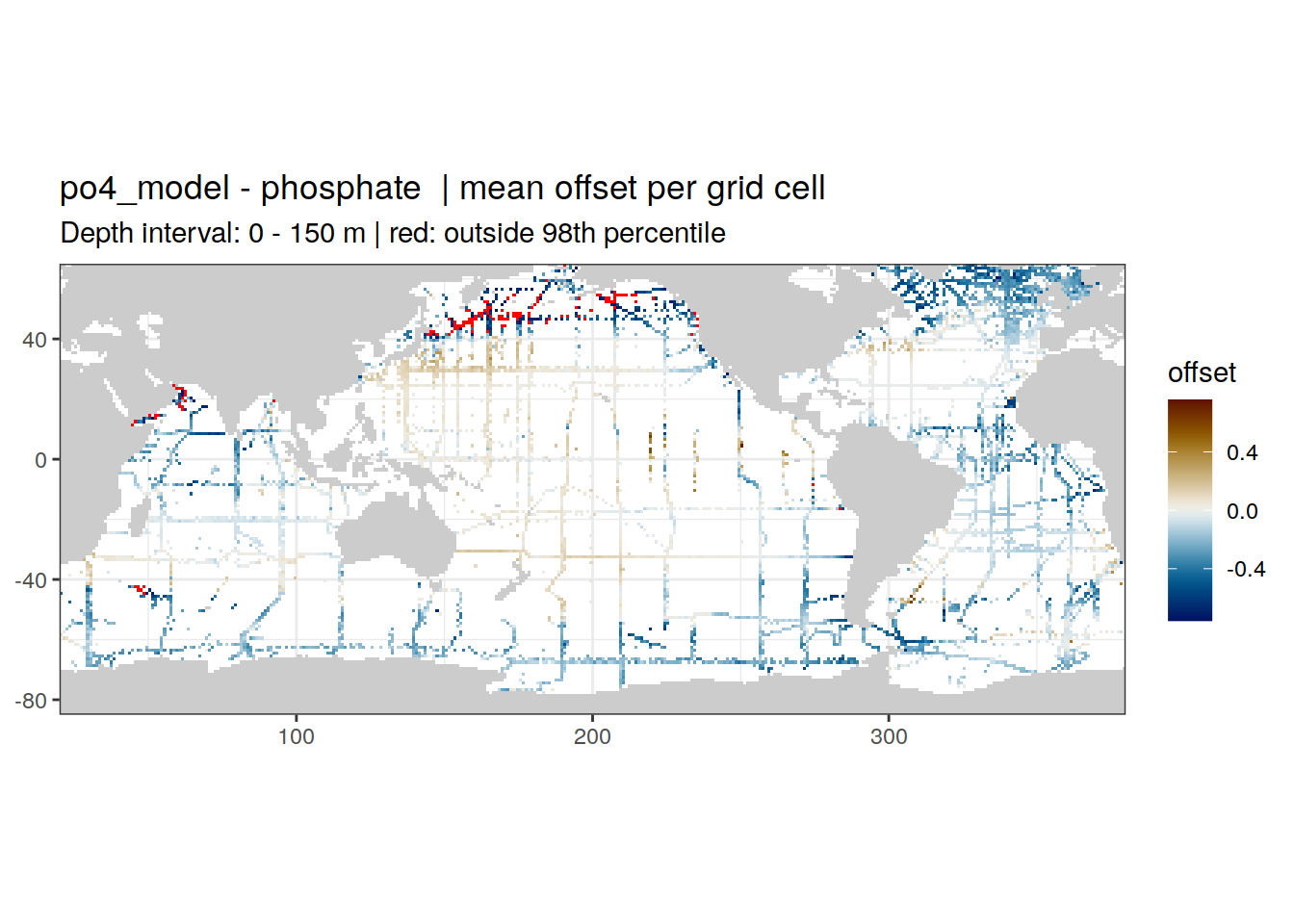

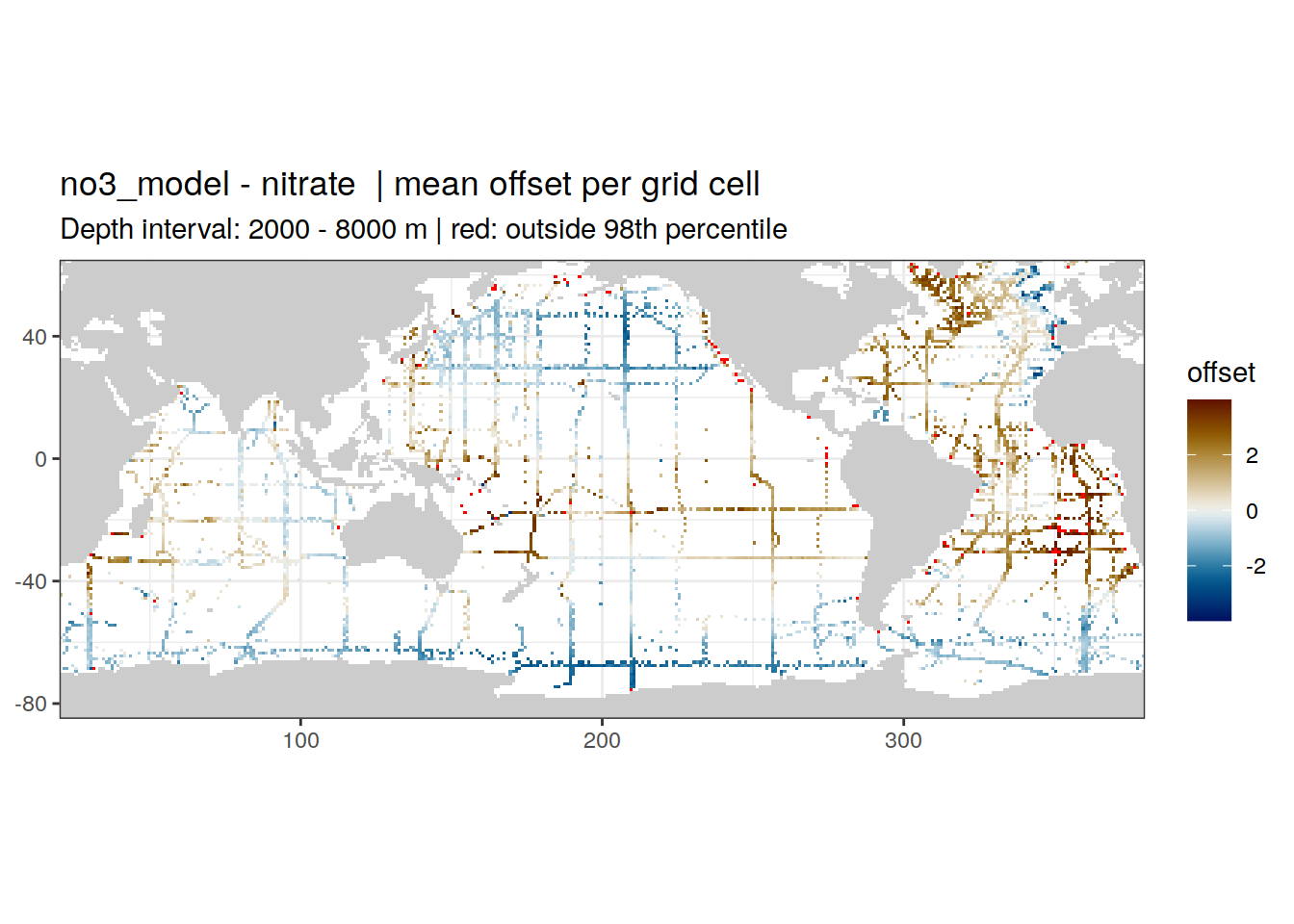

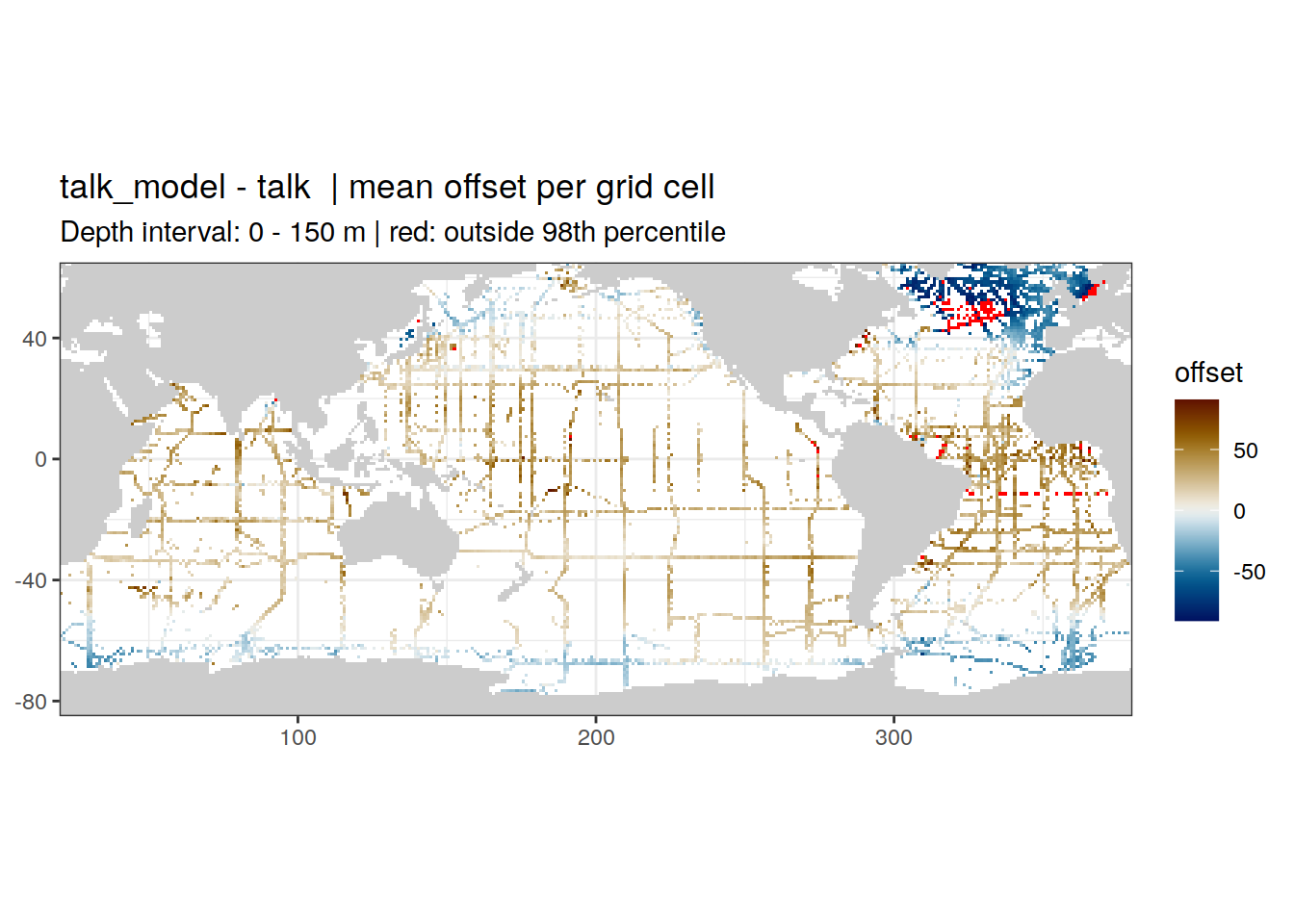

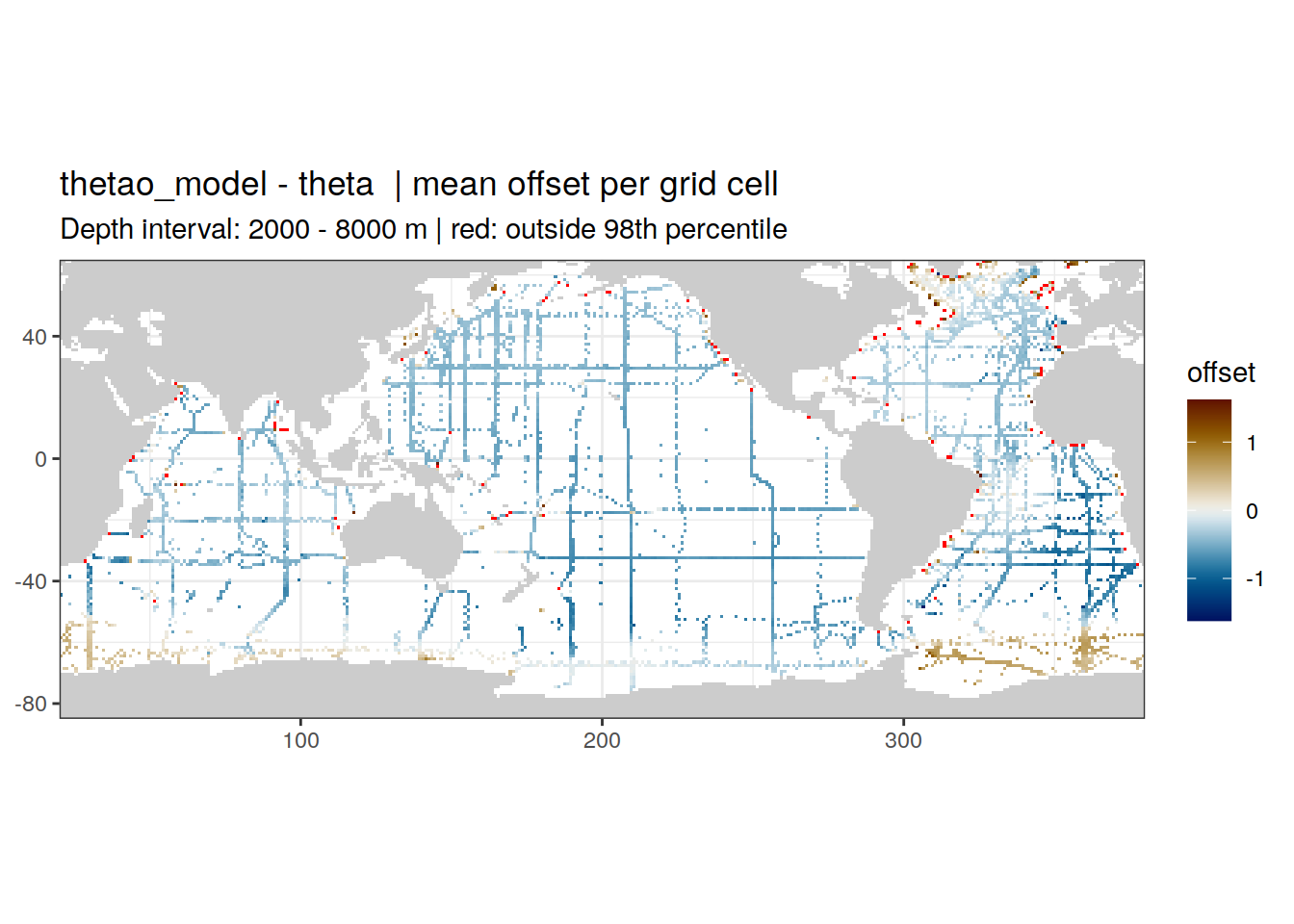

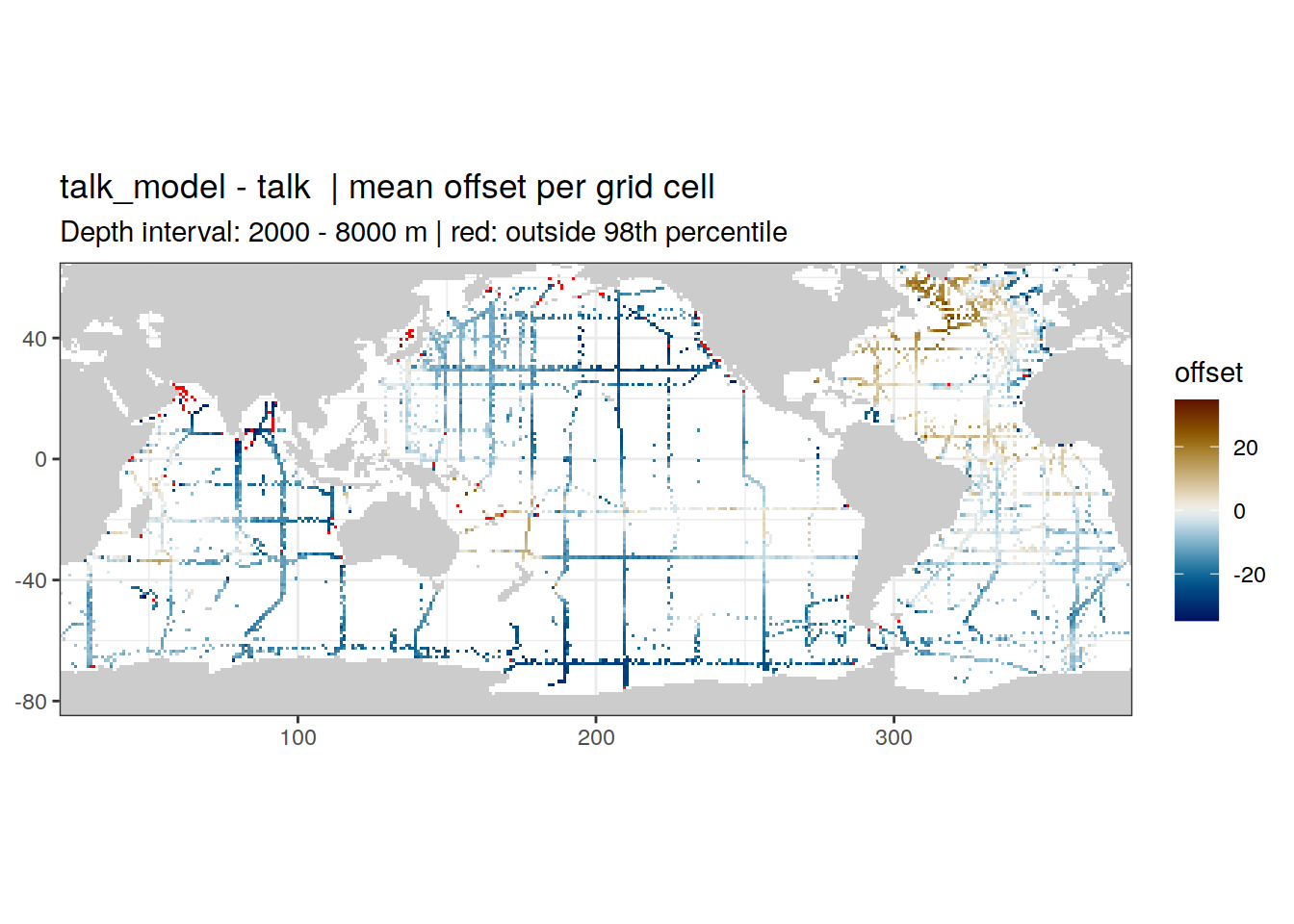

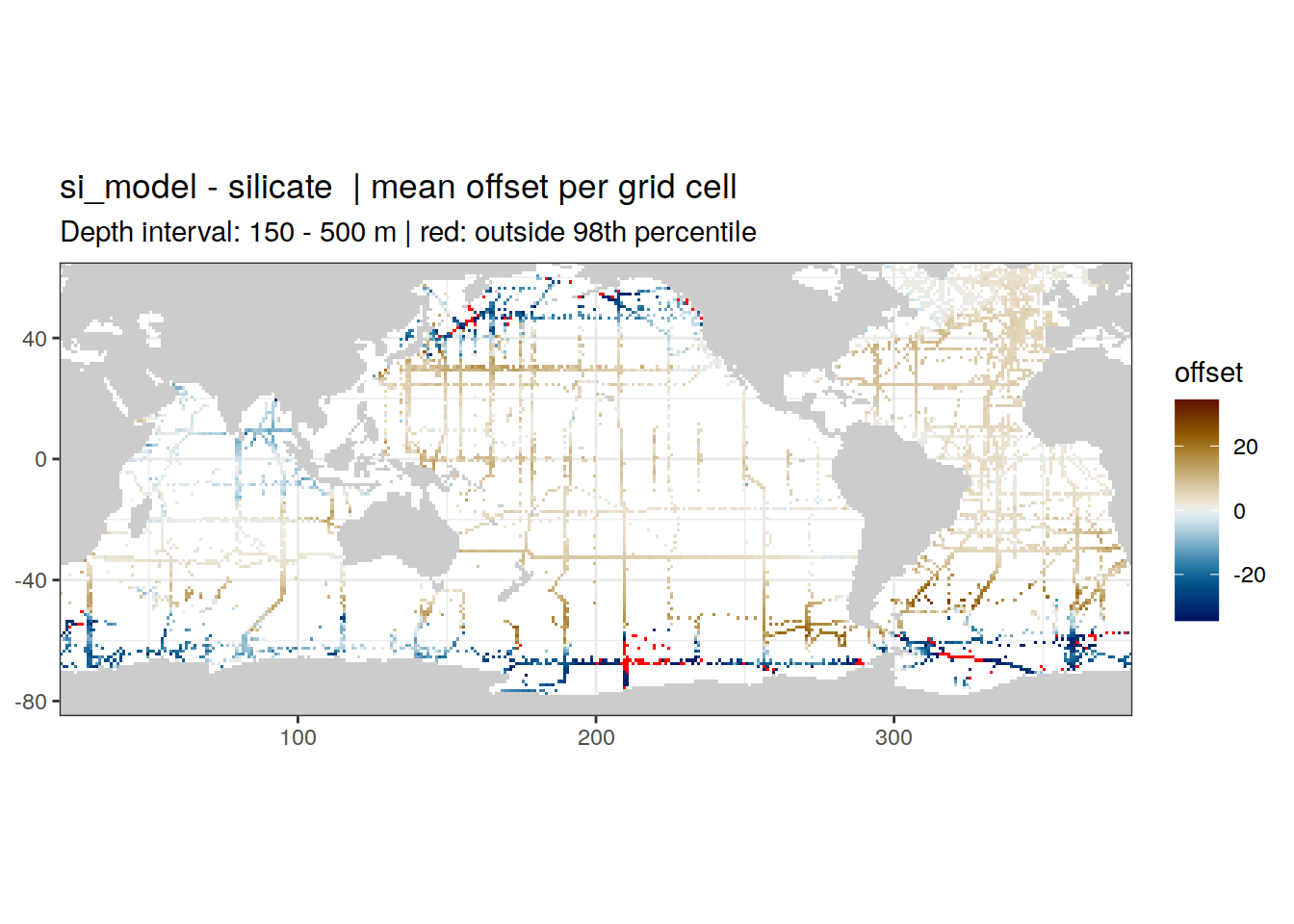

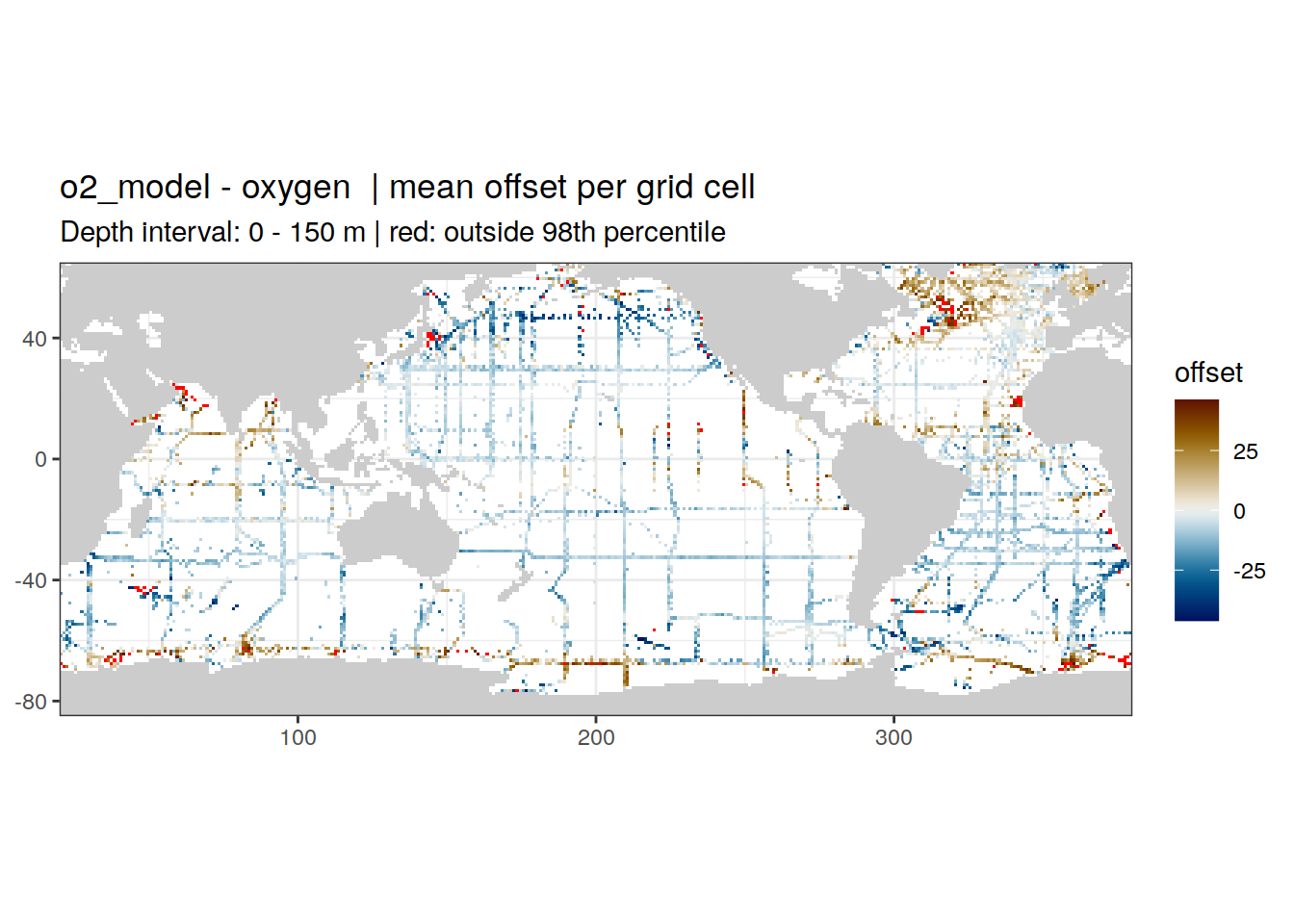

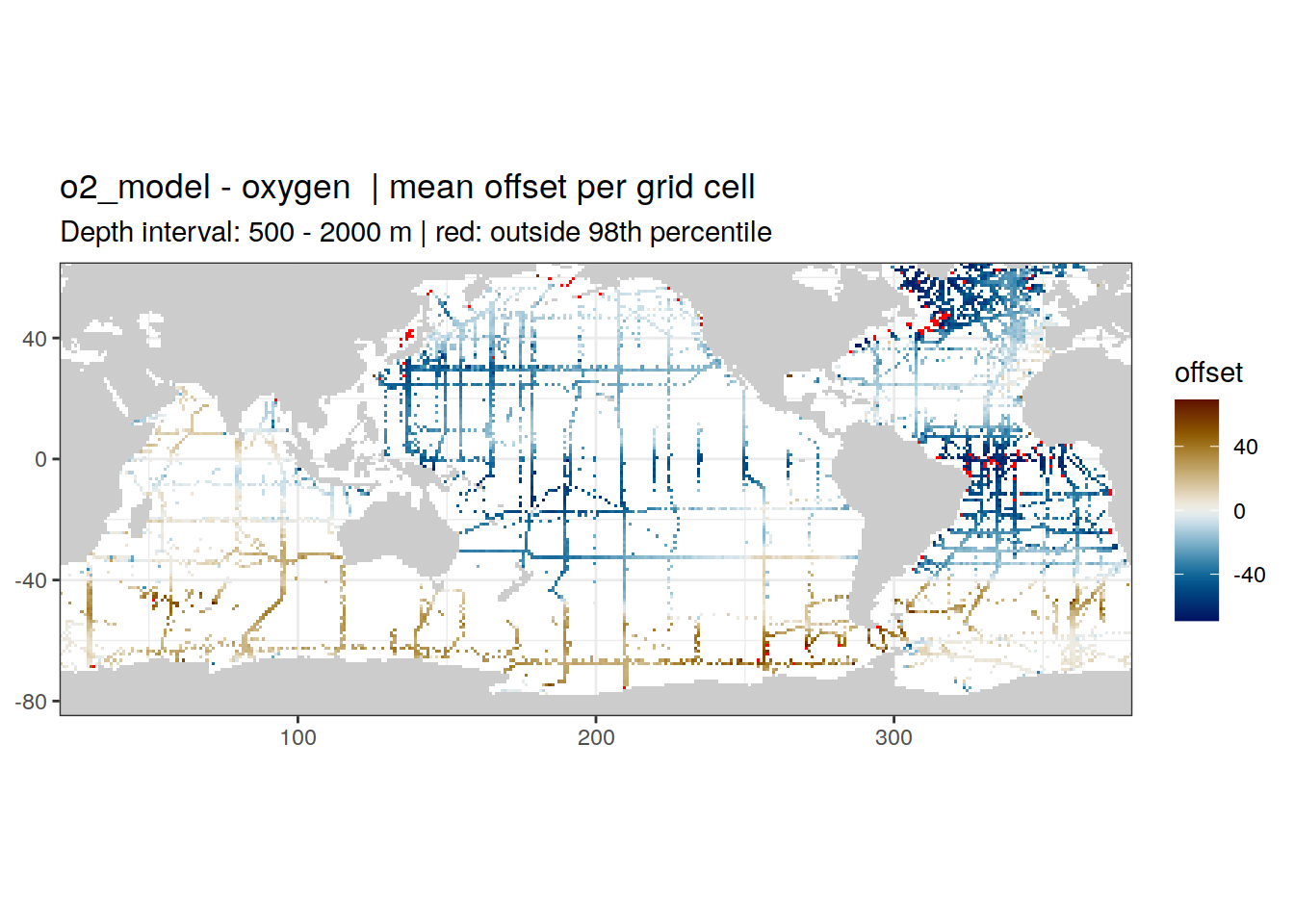

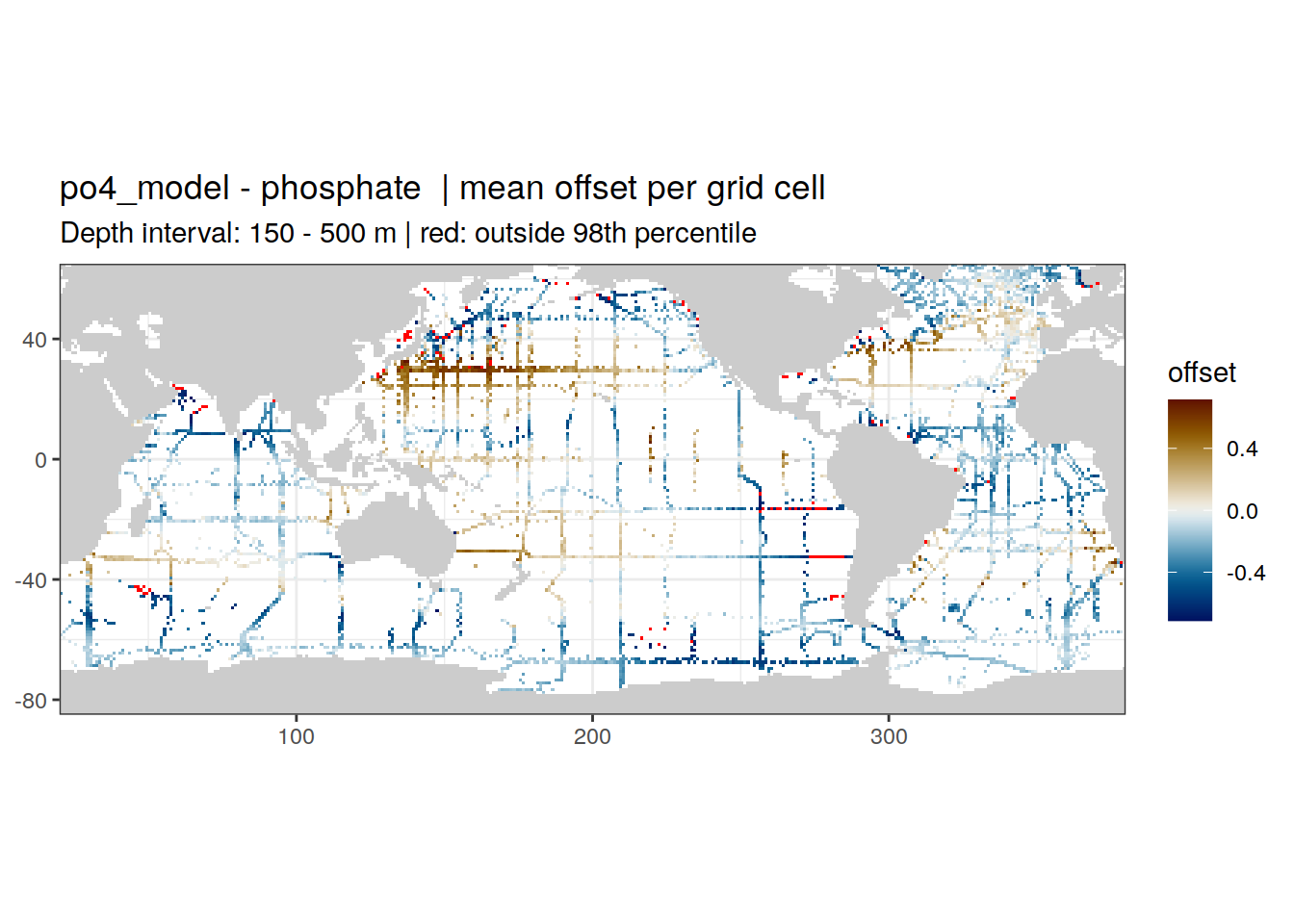

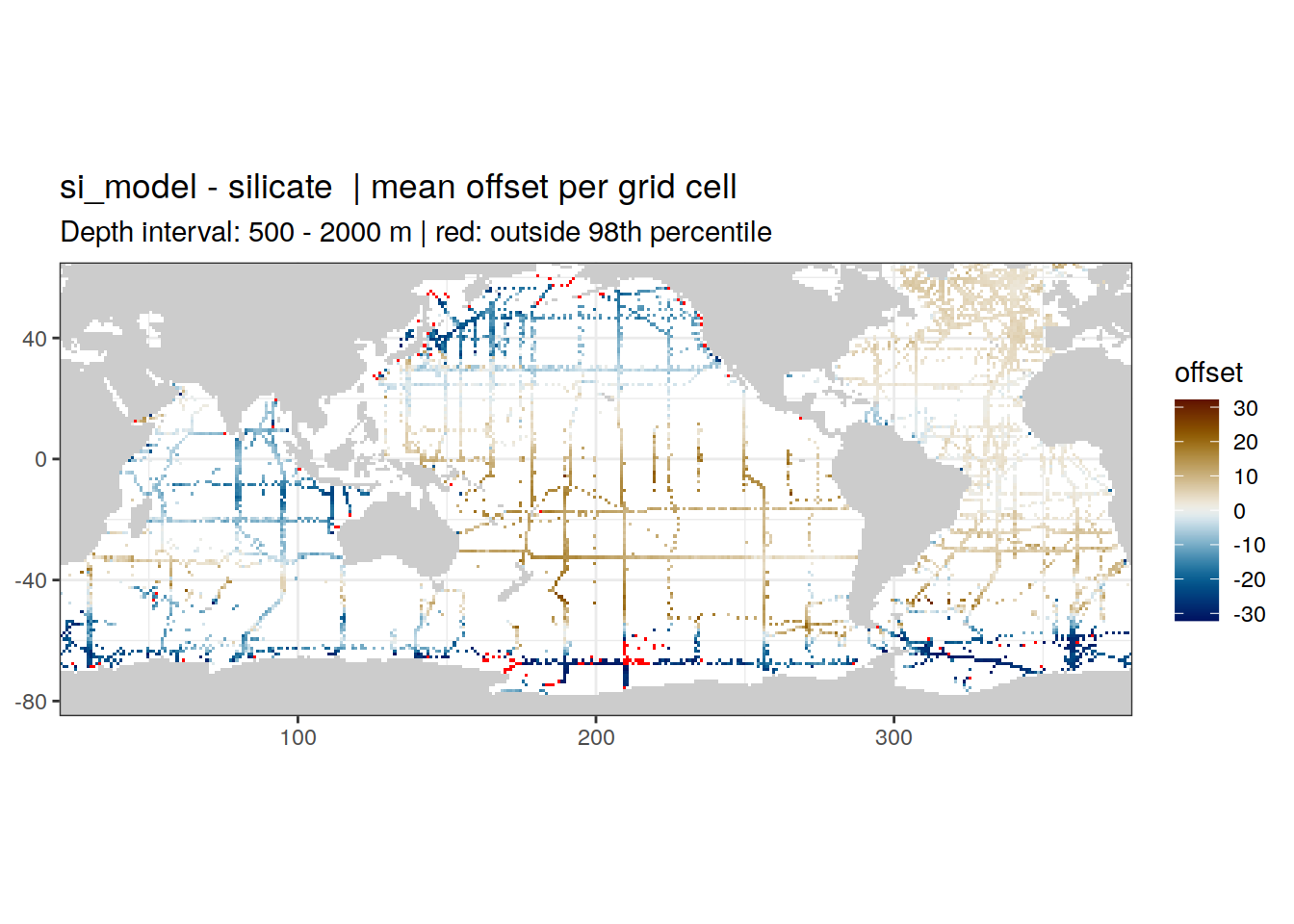

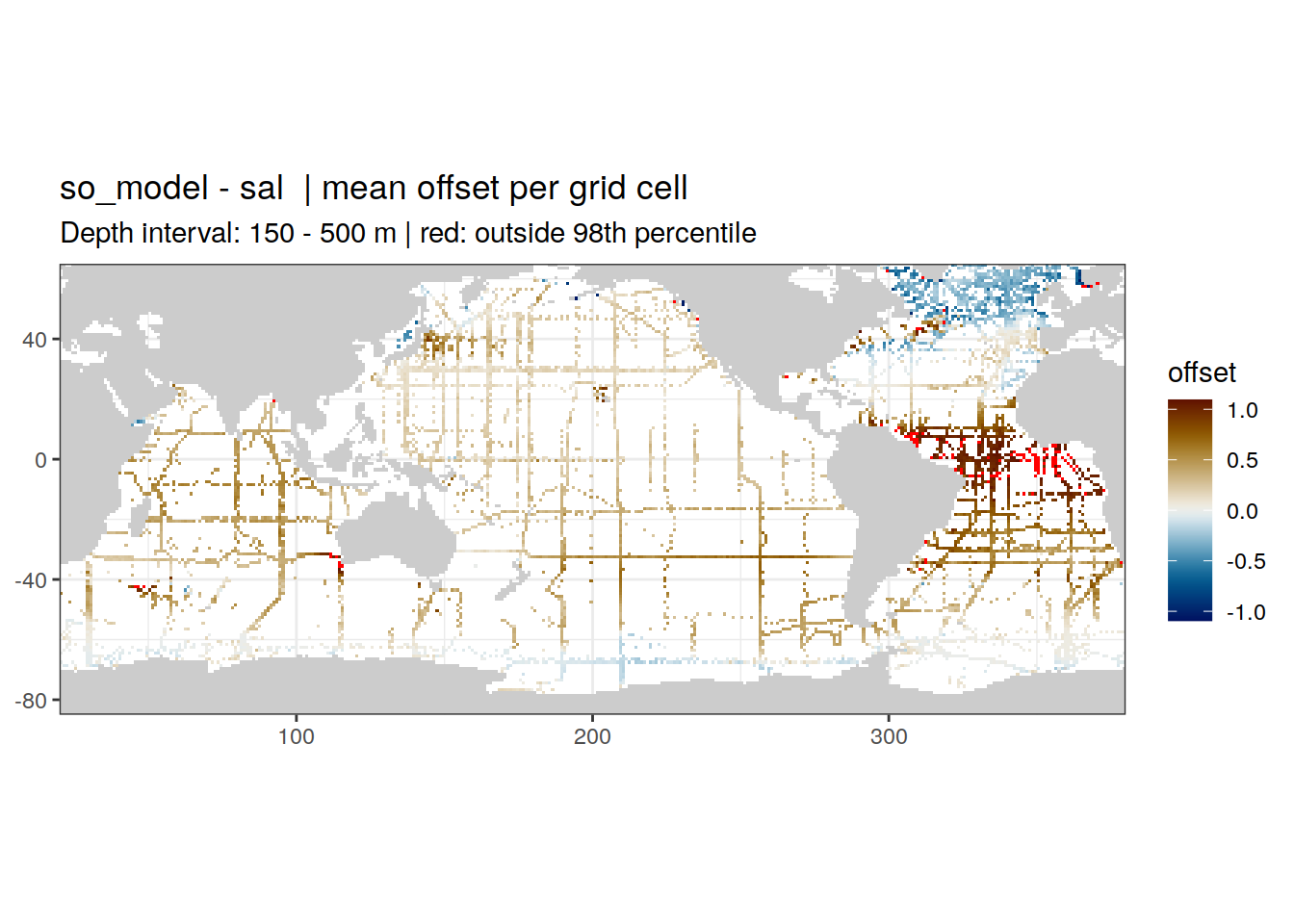

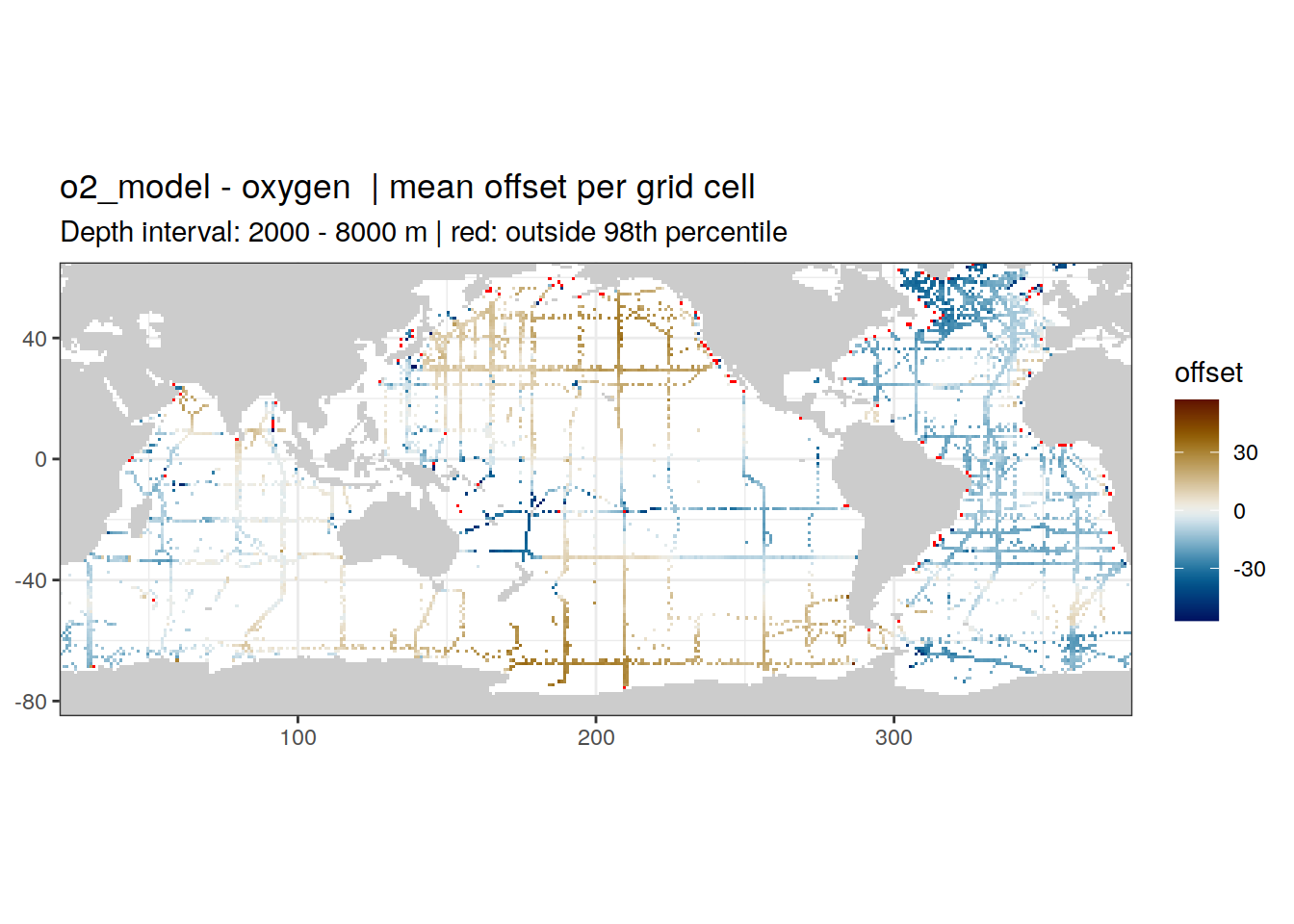

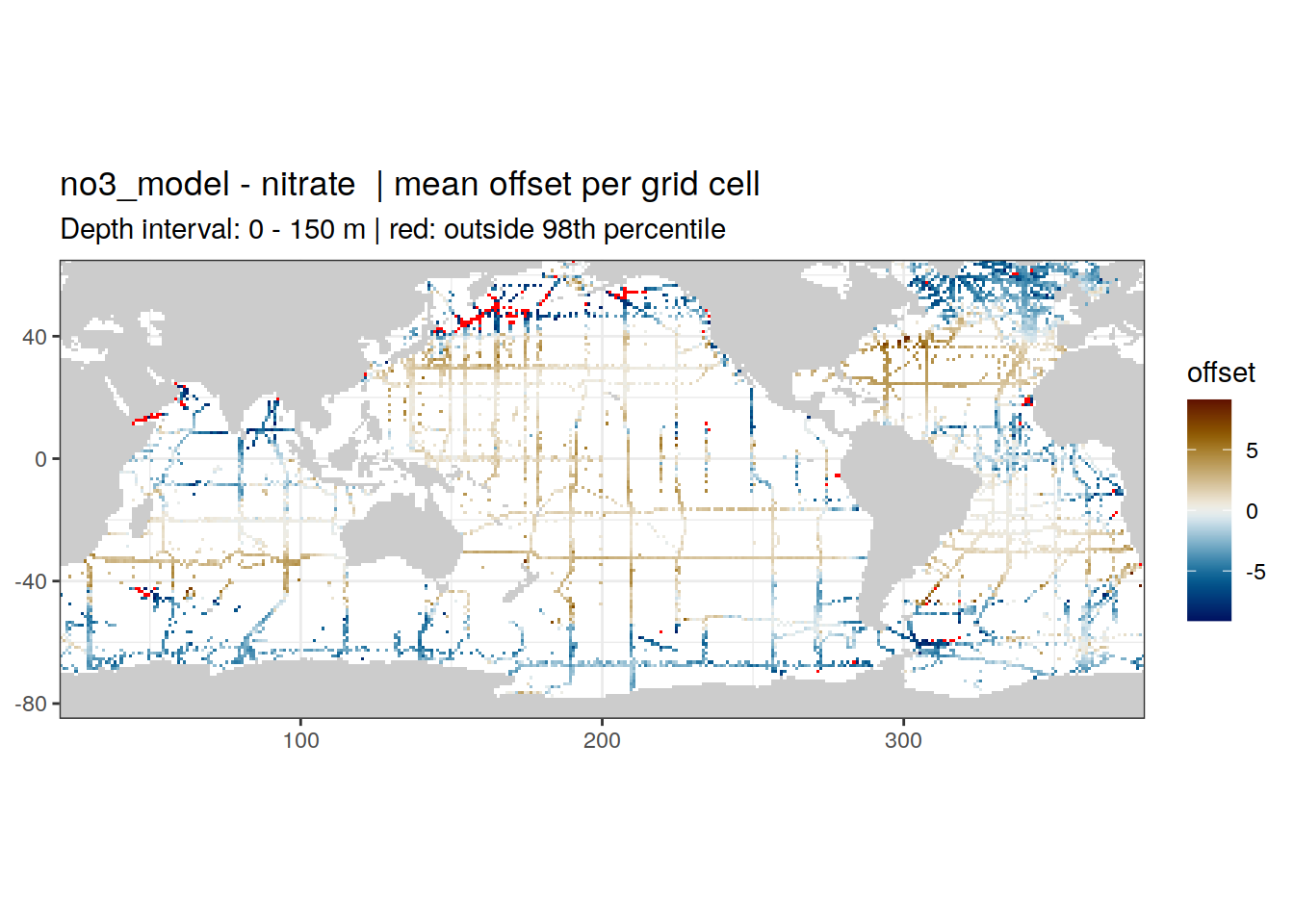

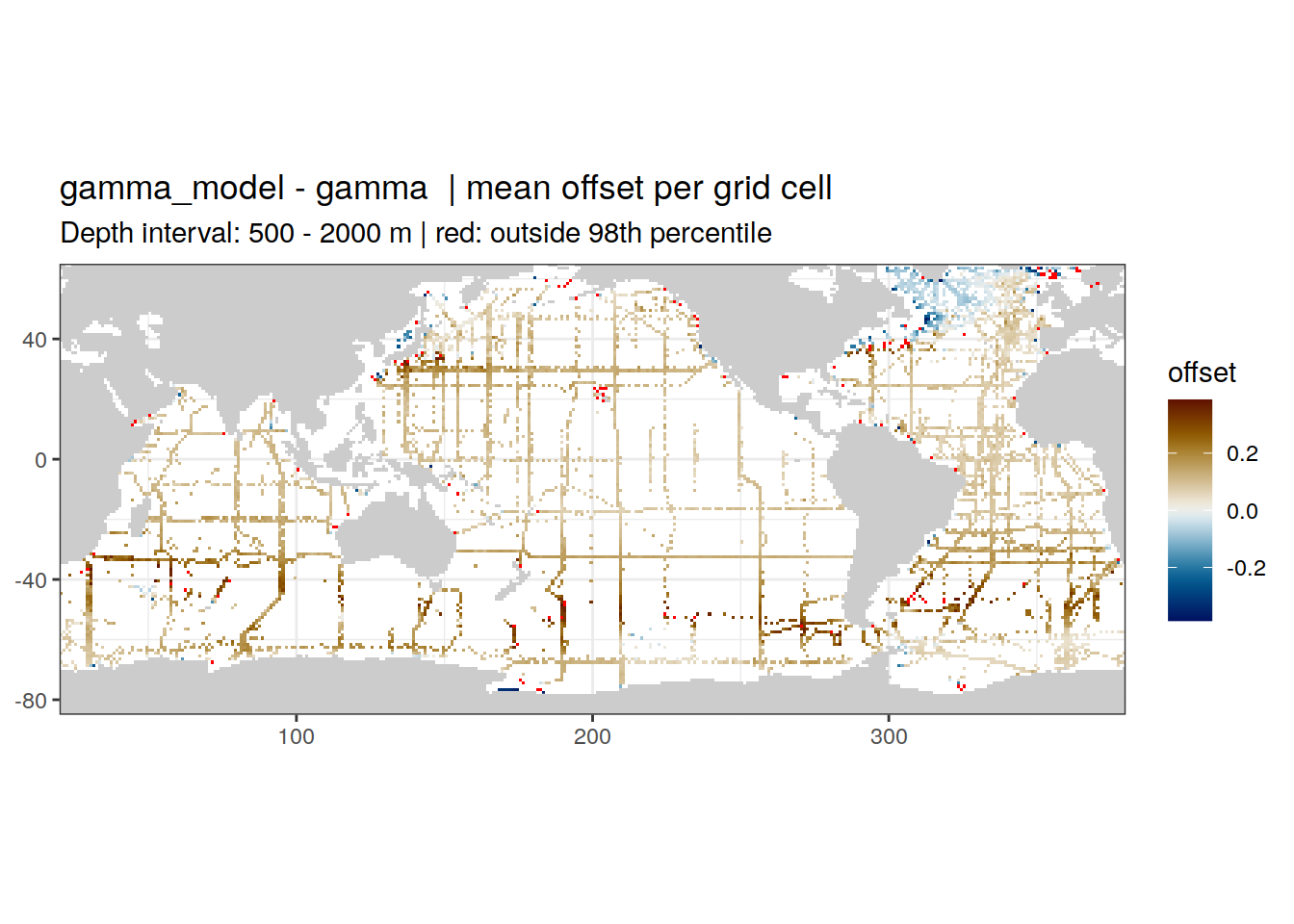

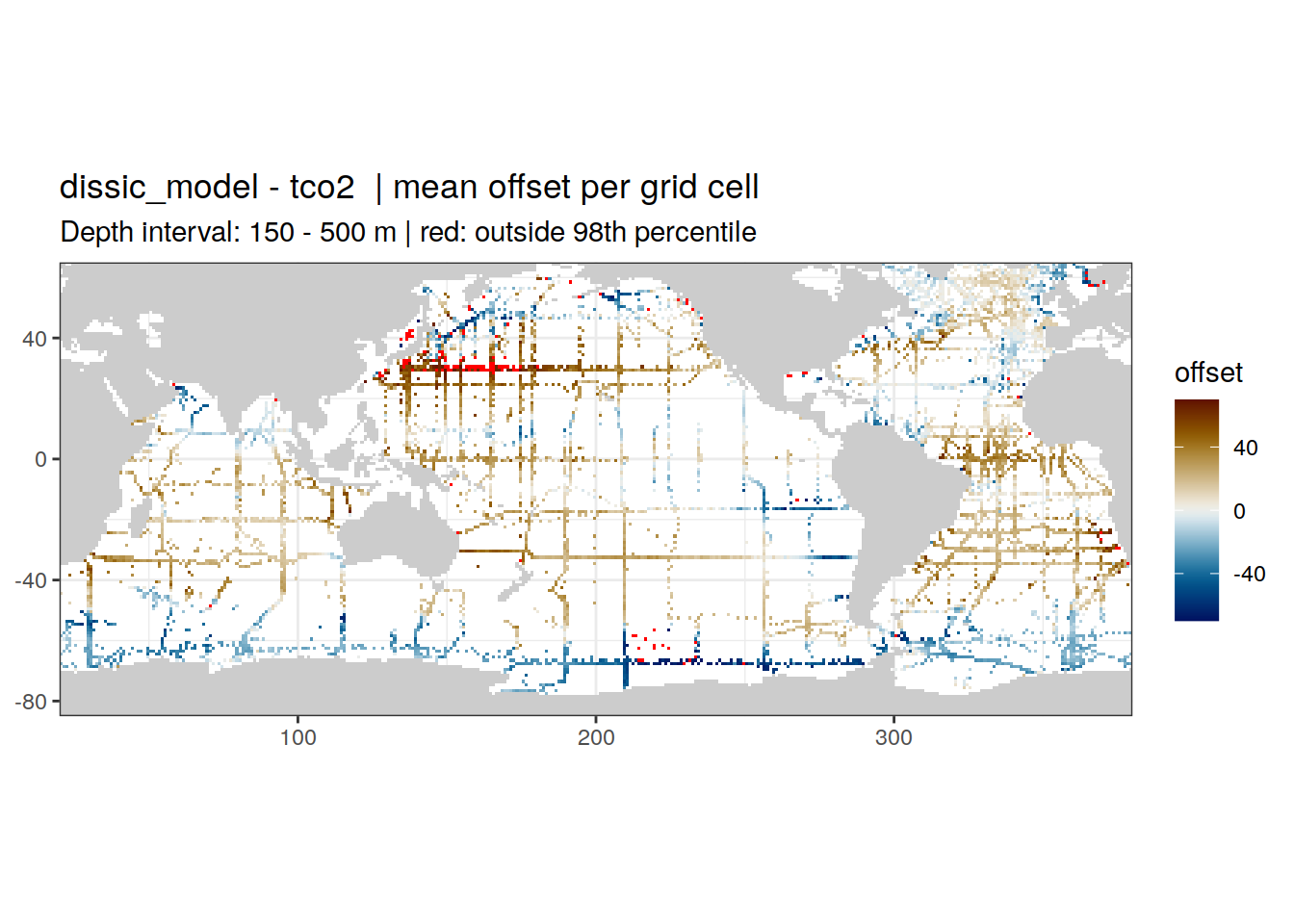

        labs(
          title = paste(model_var[i],
                        "-",
                        obs_var[i],
                        " | mean offset per grid cell"),
          subtitle = paste(
            "Depth interval:",
            intervals[j],
            "-",
            intervals[j + 1],
            "m | red: outside 98th percentile"
          ),
          x = "Longitude",
          y = "Latitude"
        )
    )

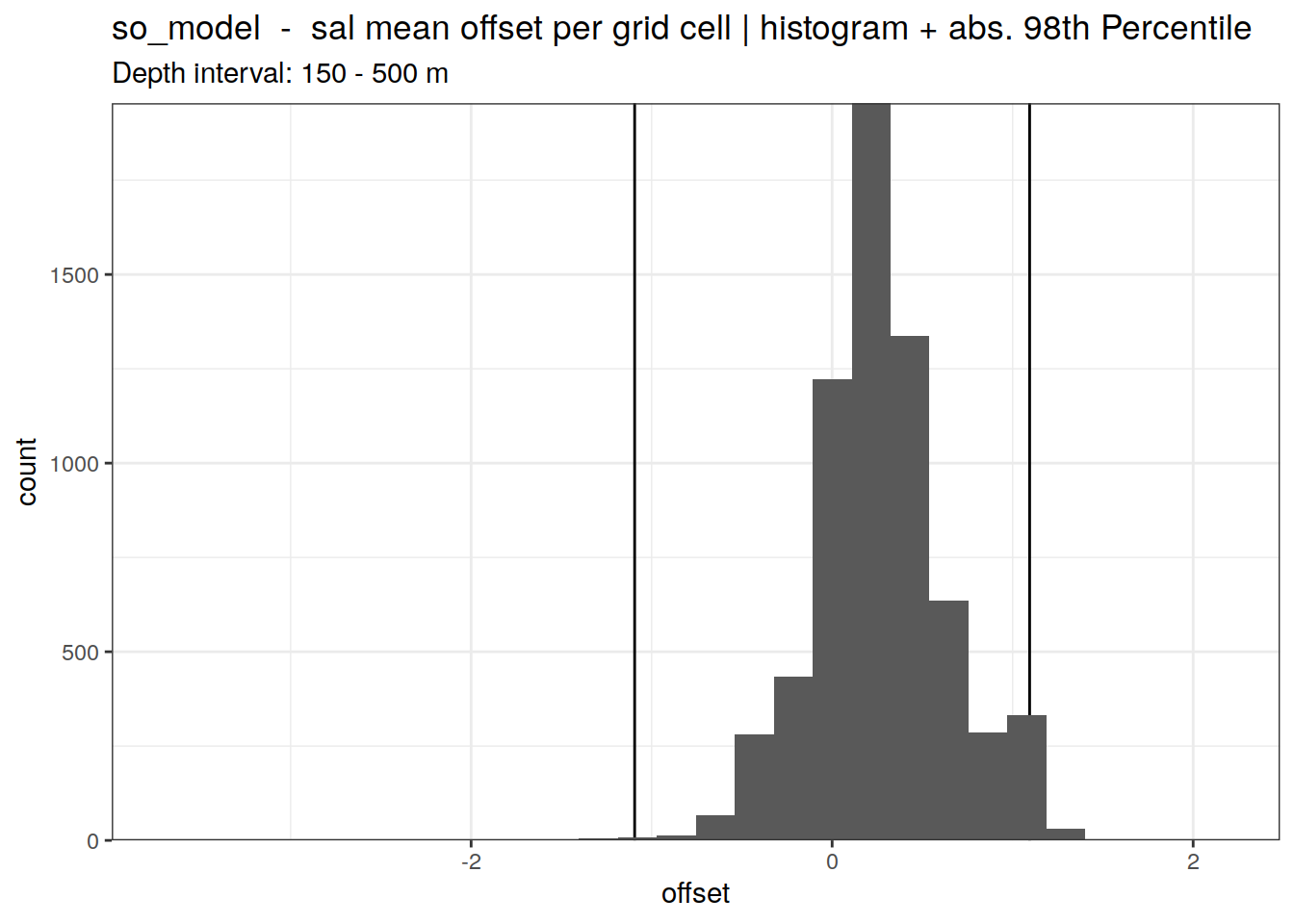

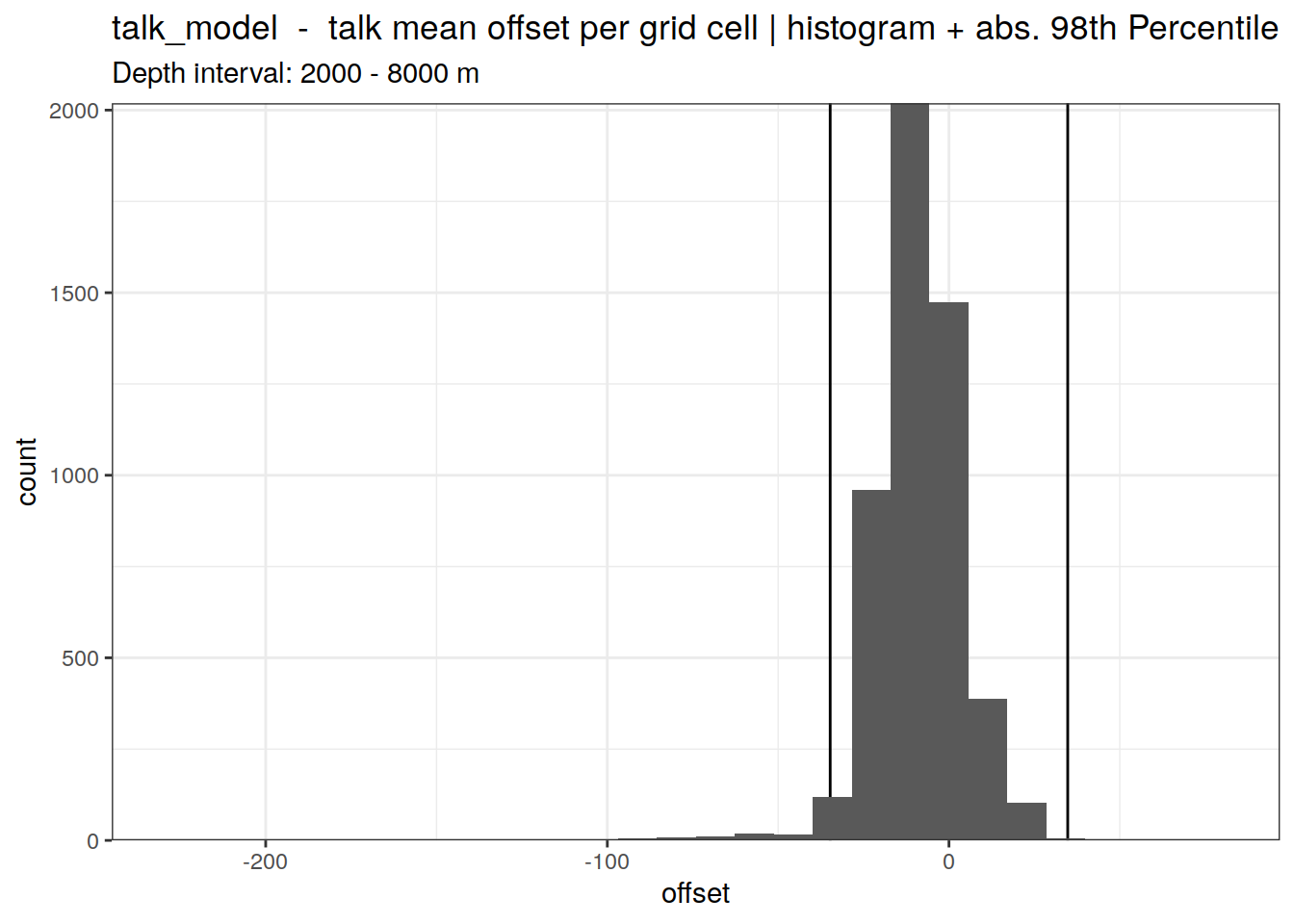

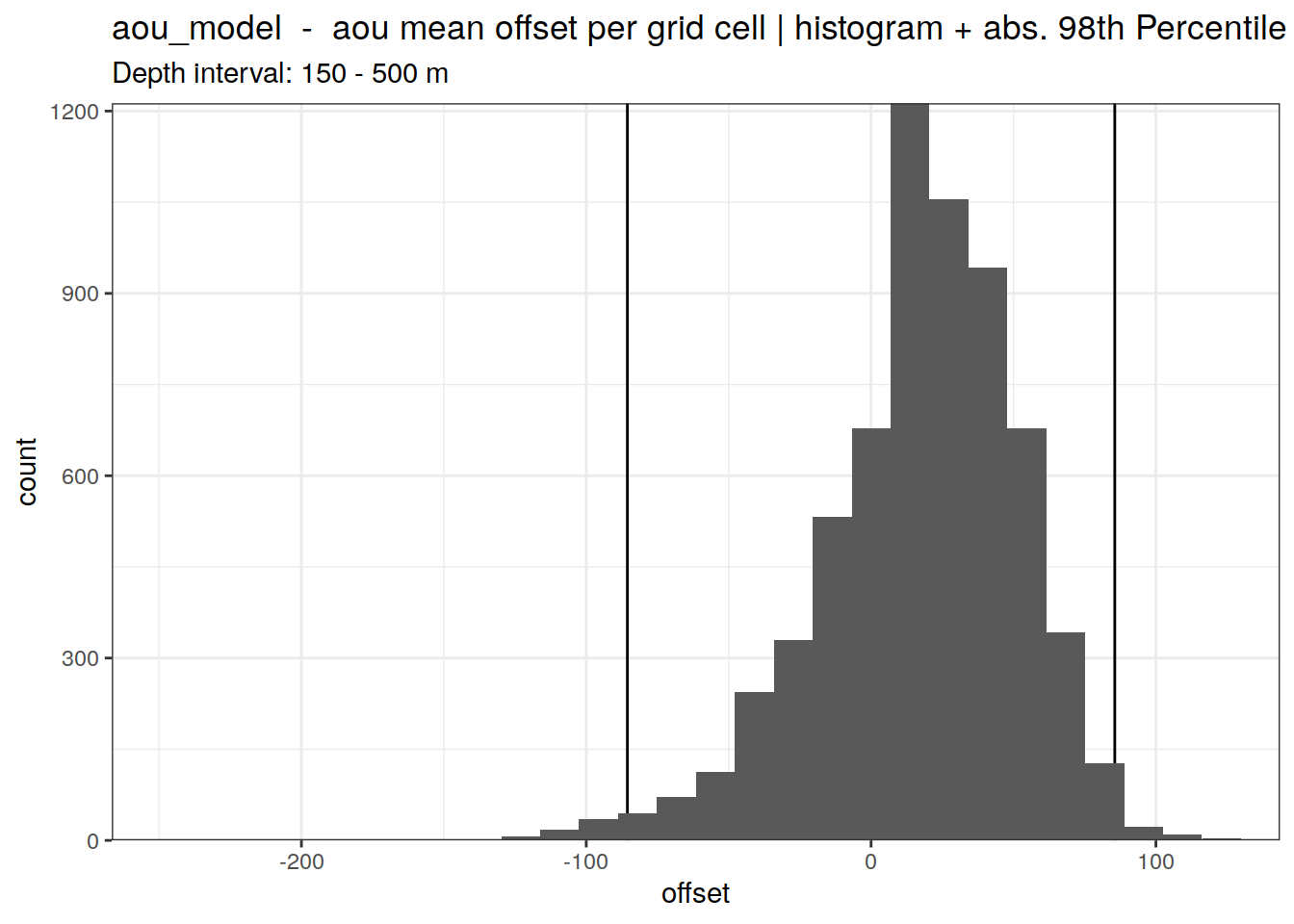

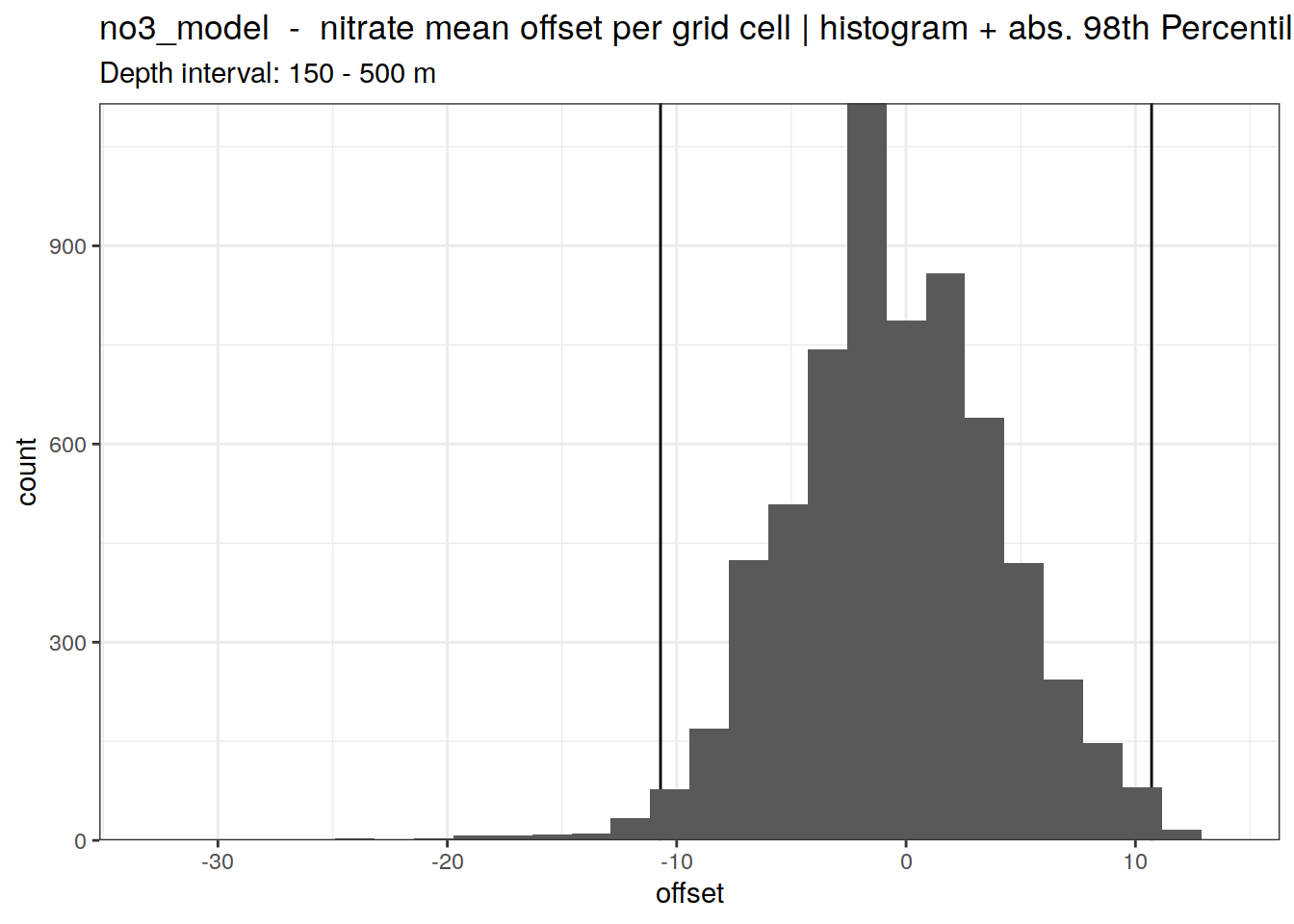

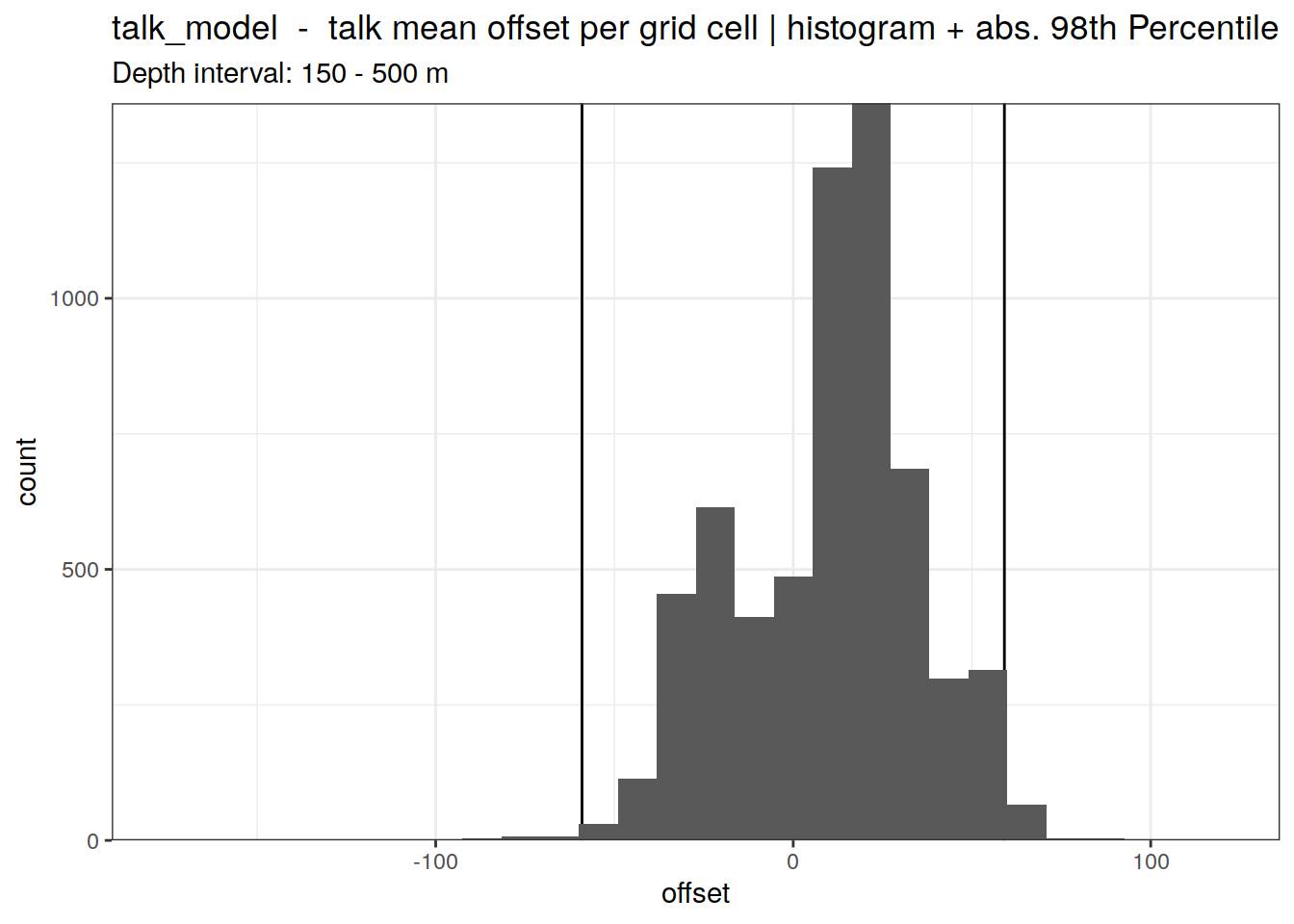

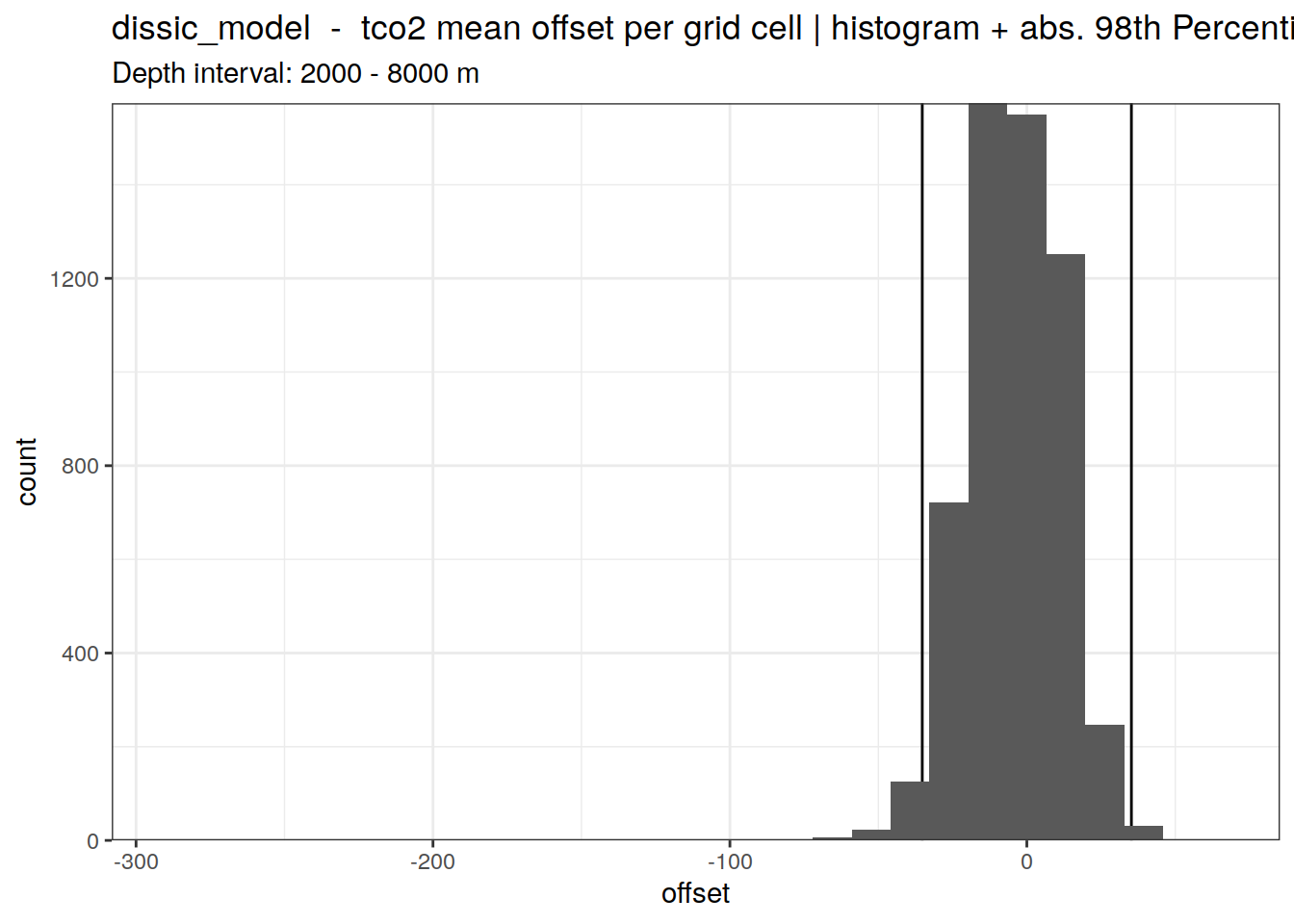

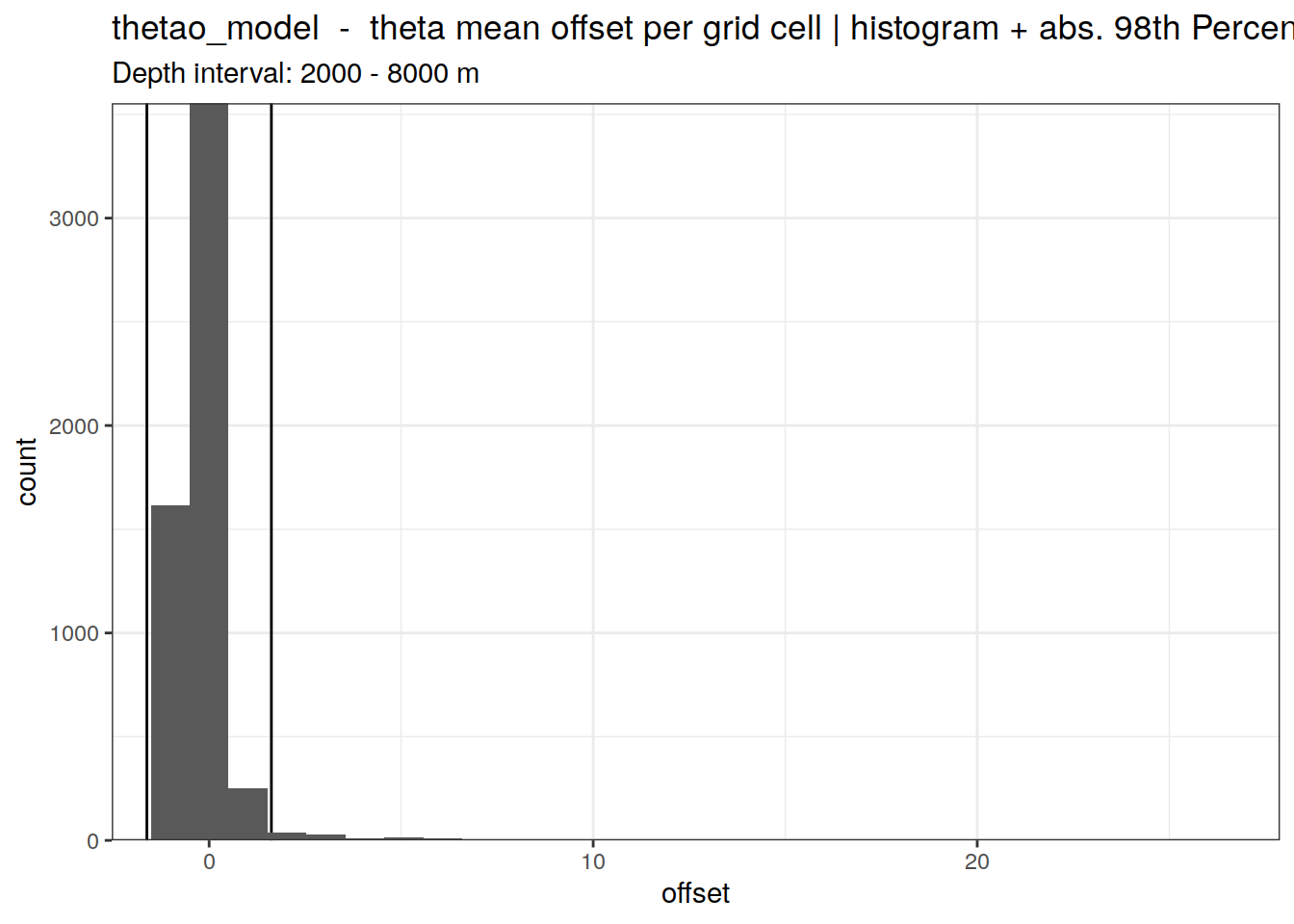

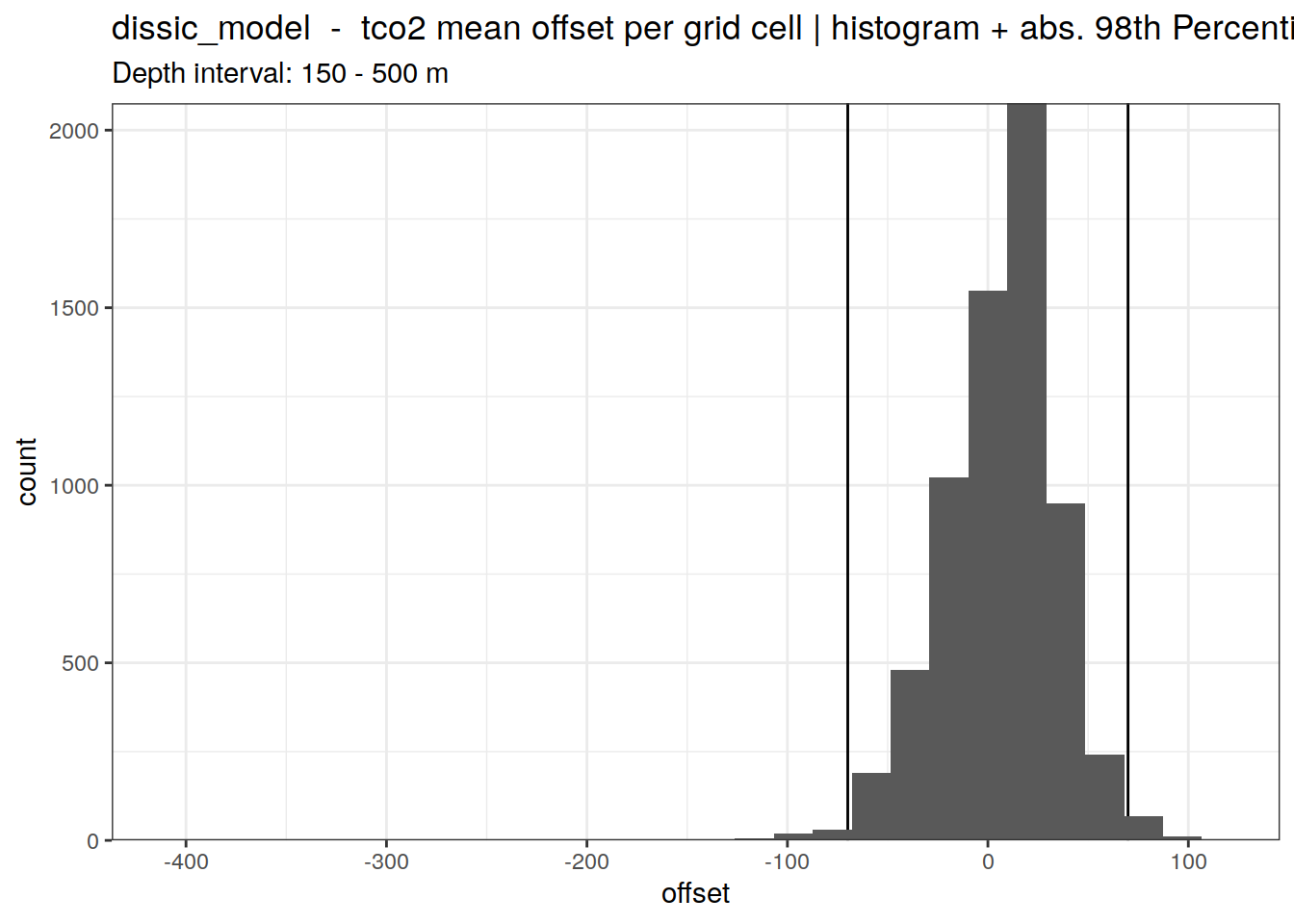

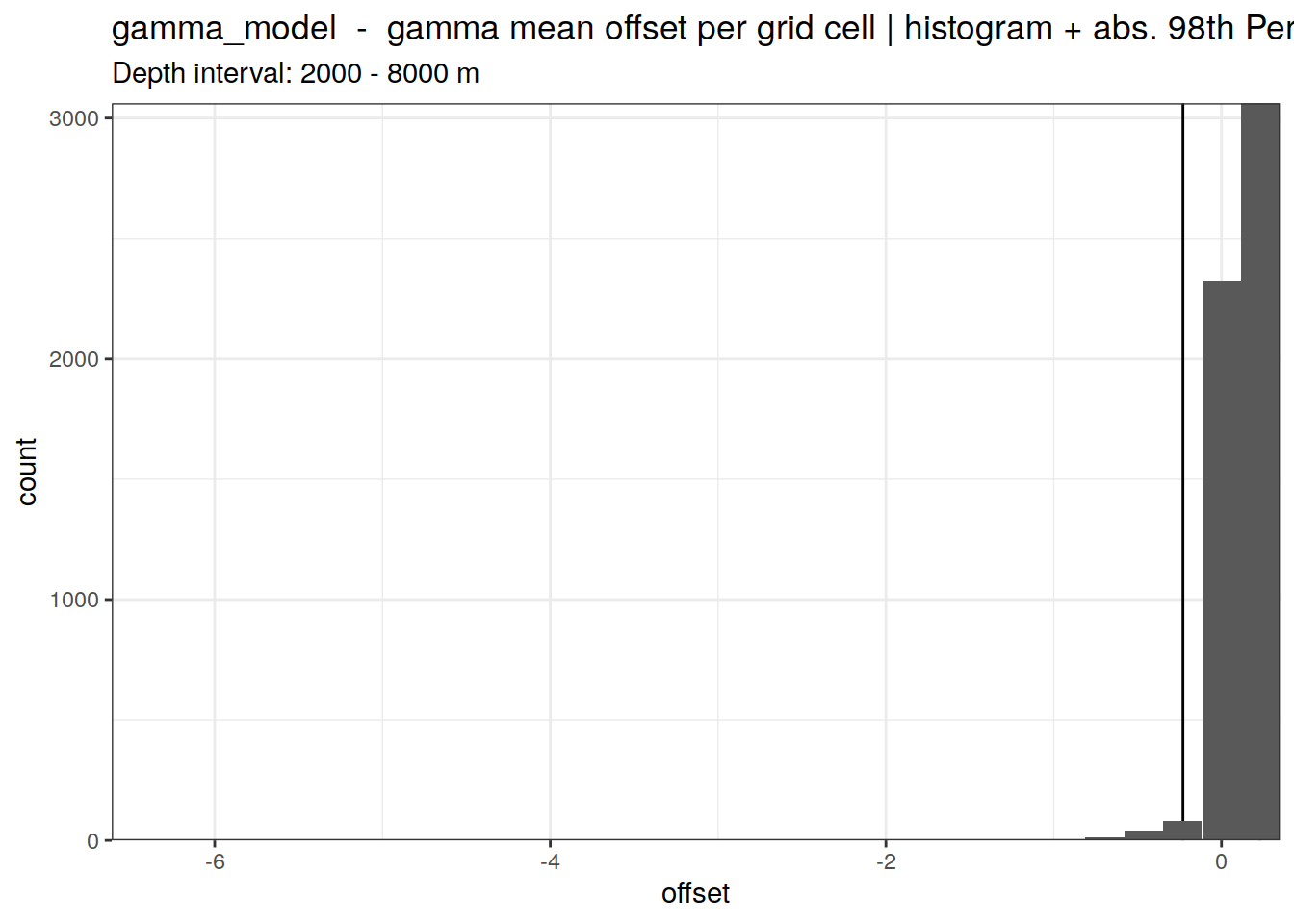

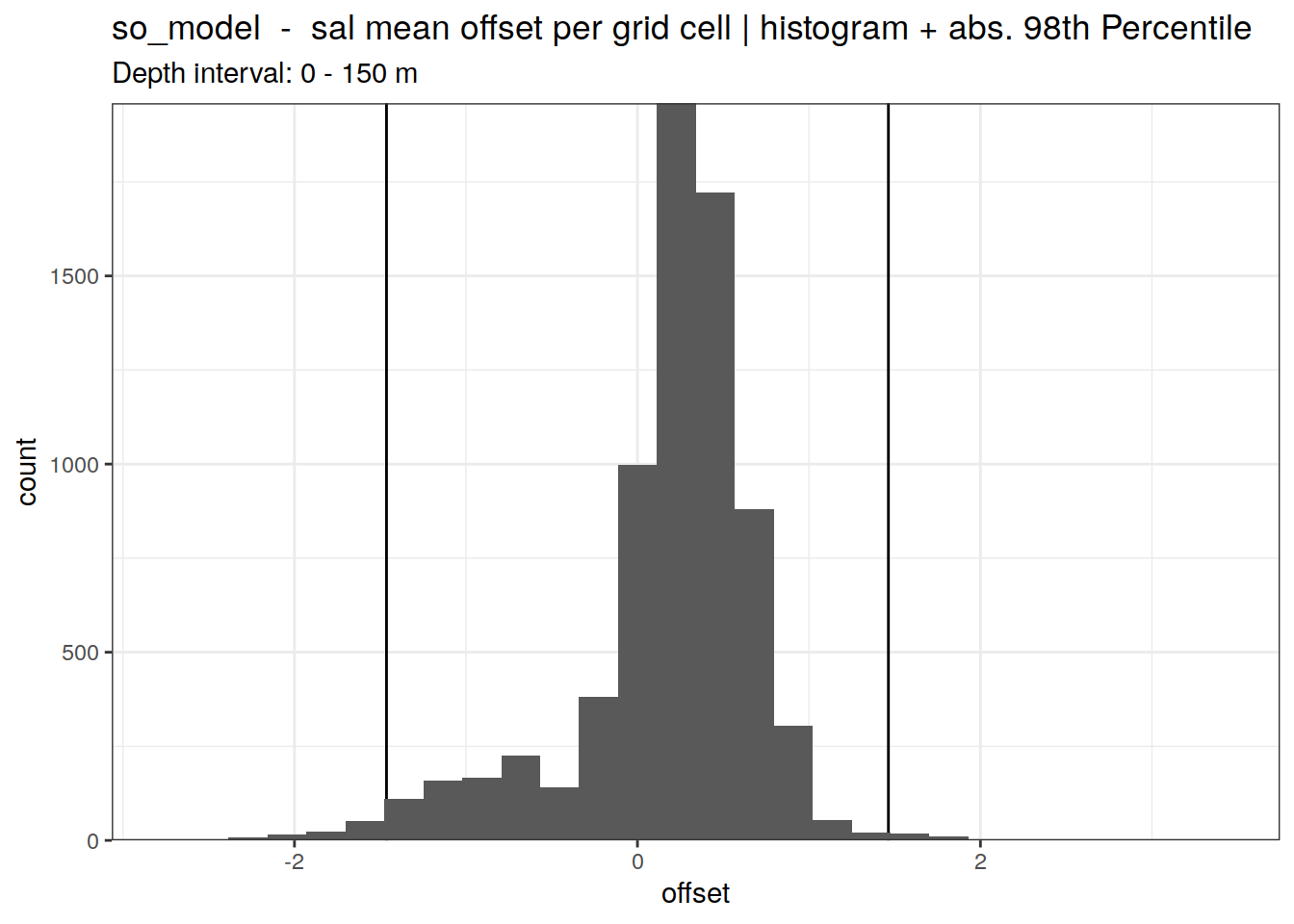

    print(

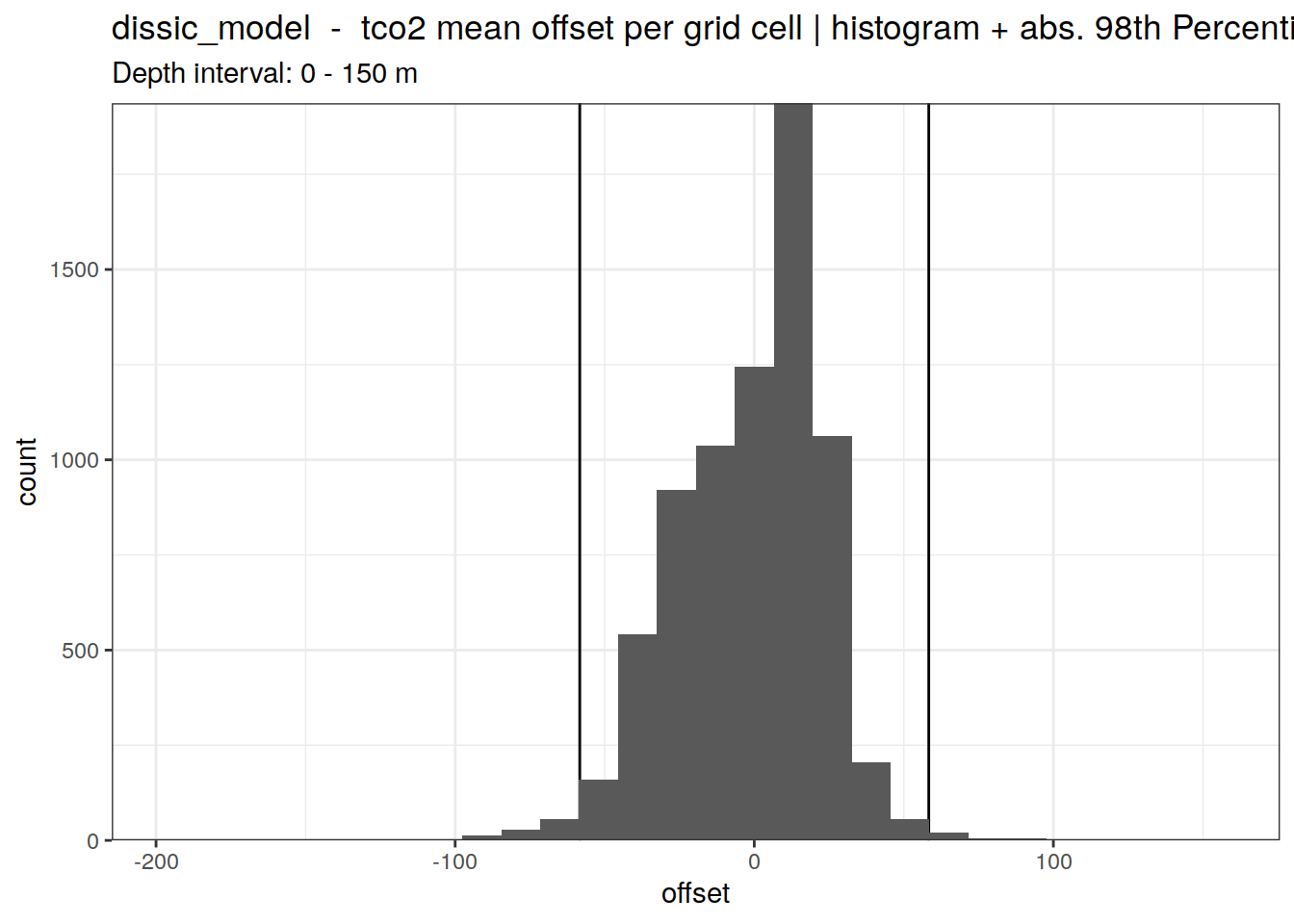

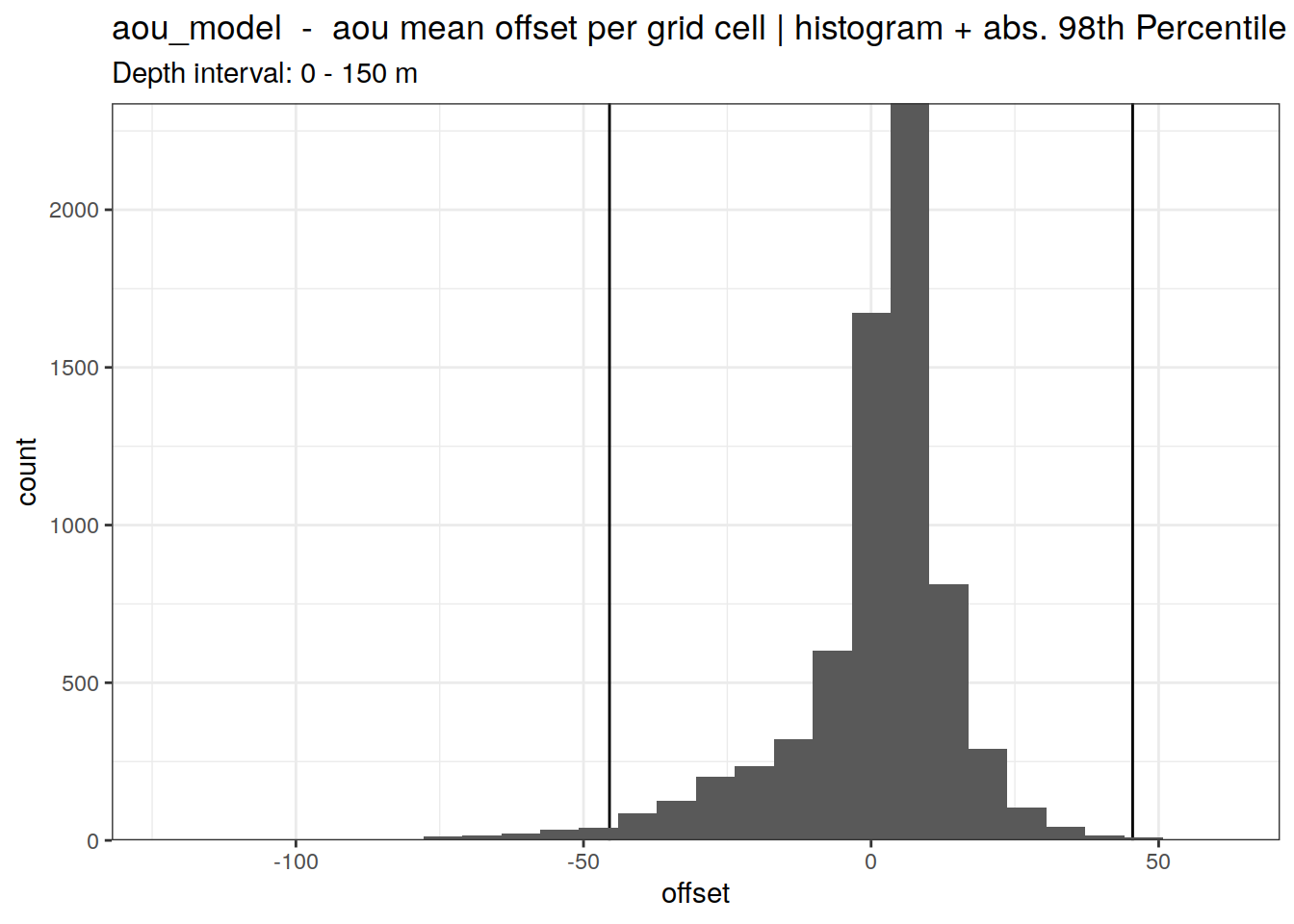

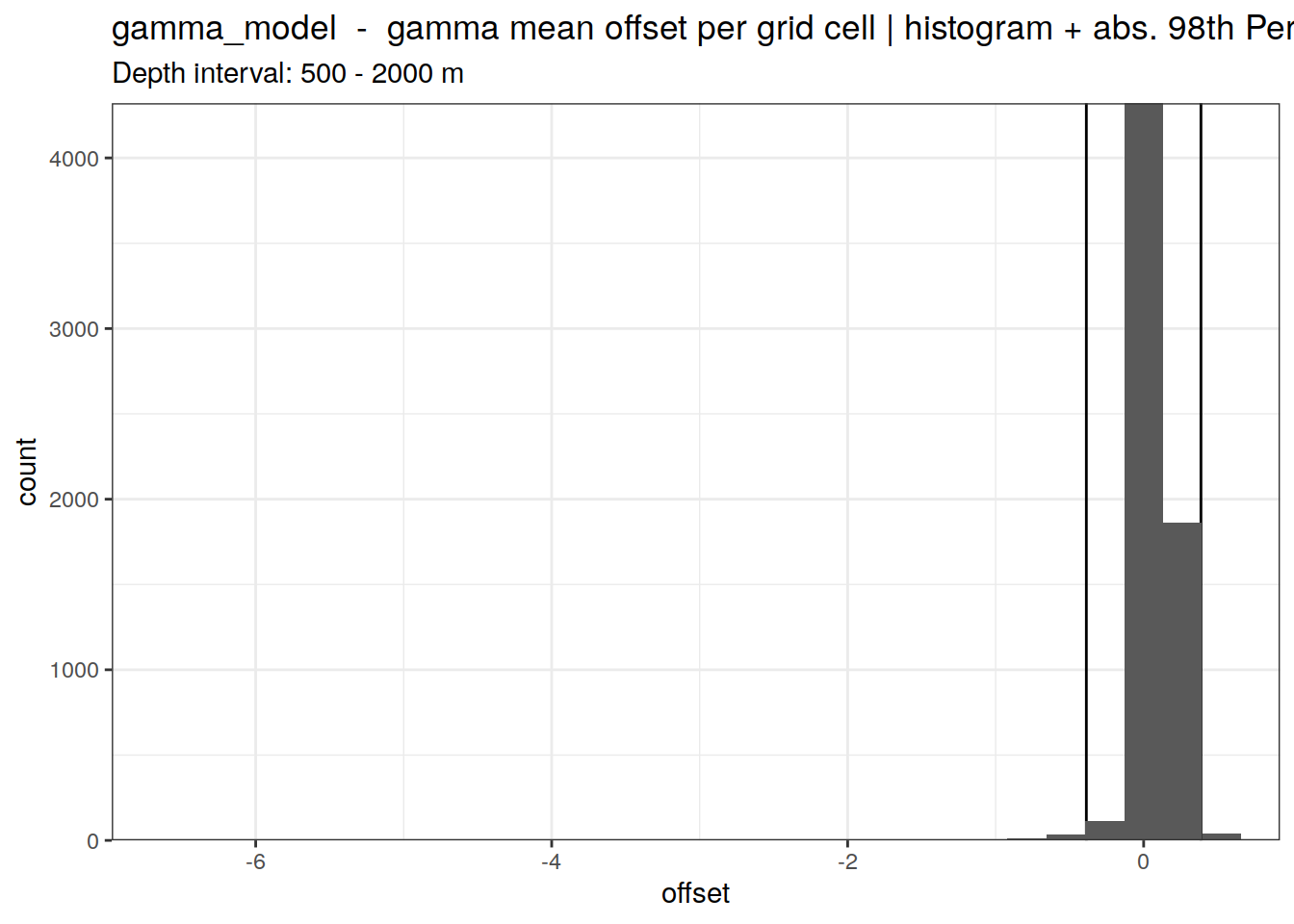

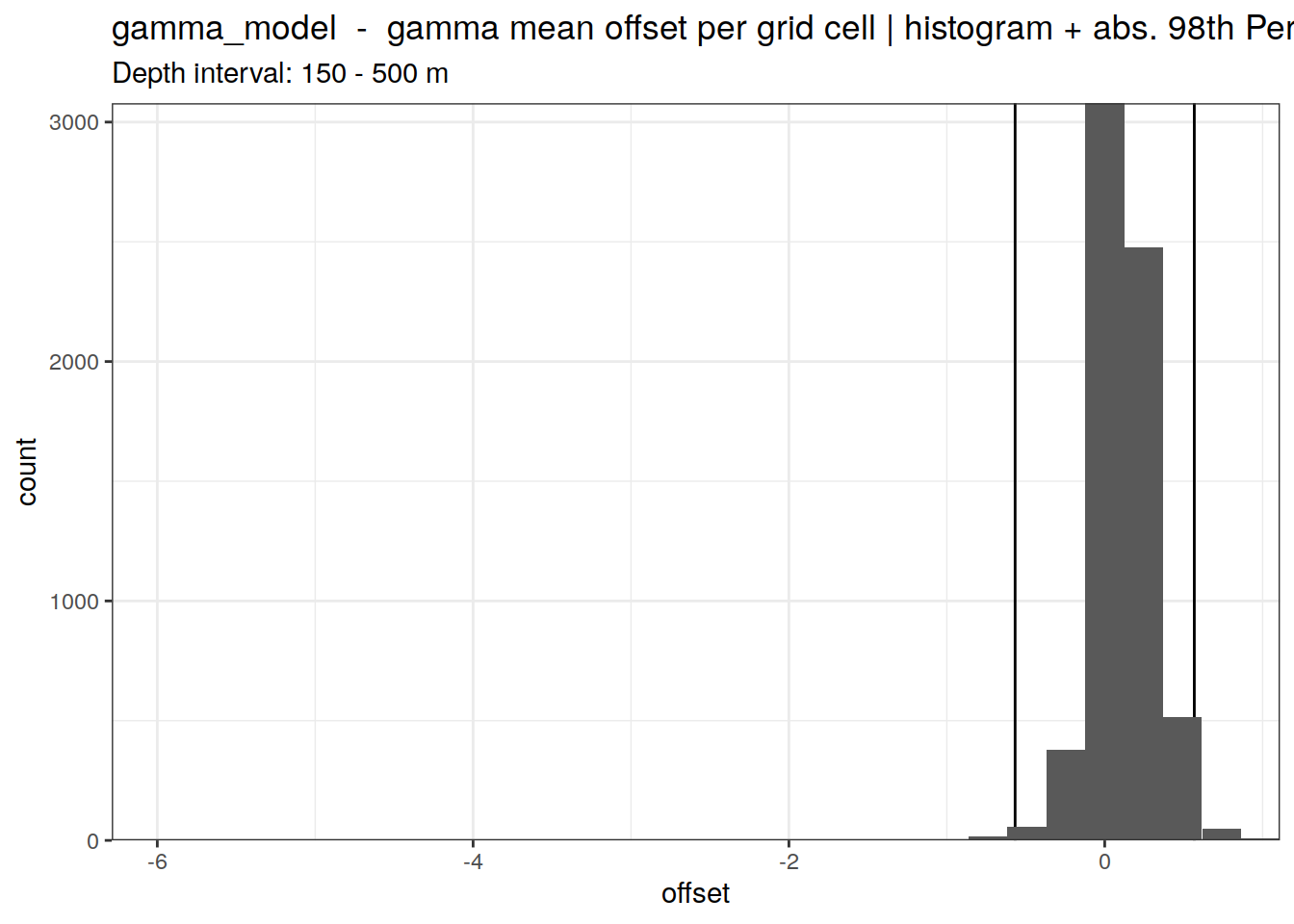

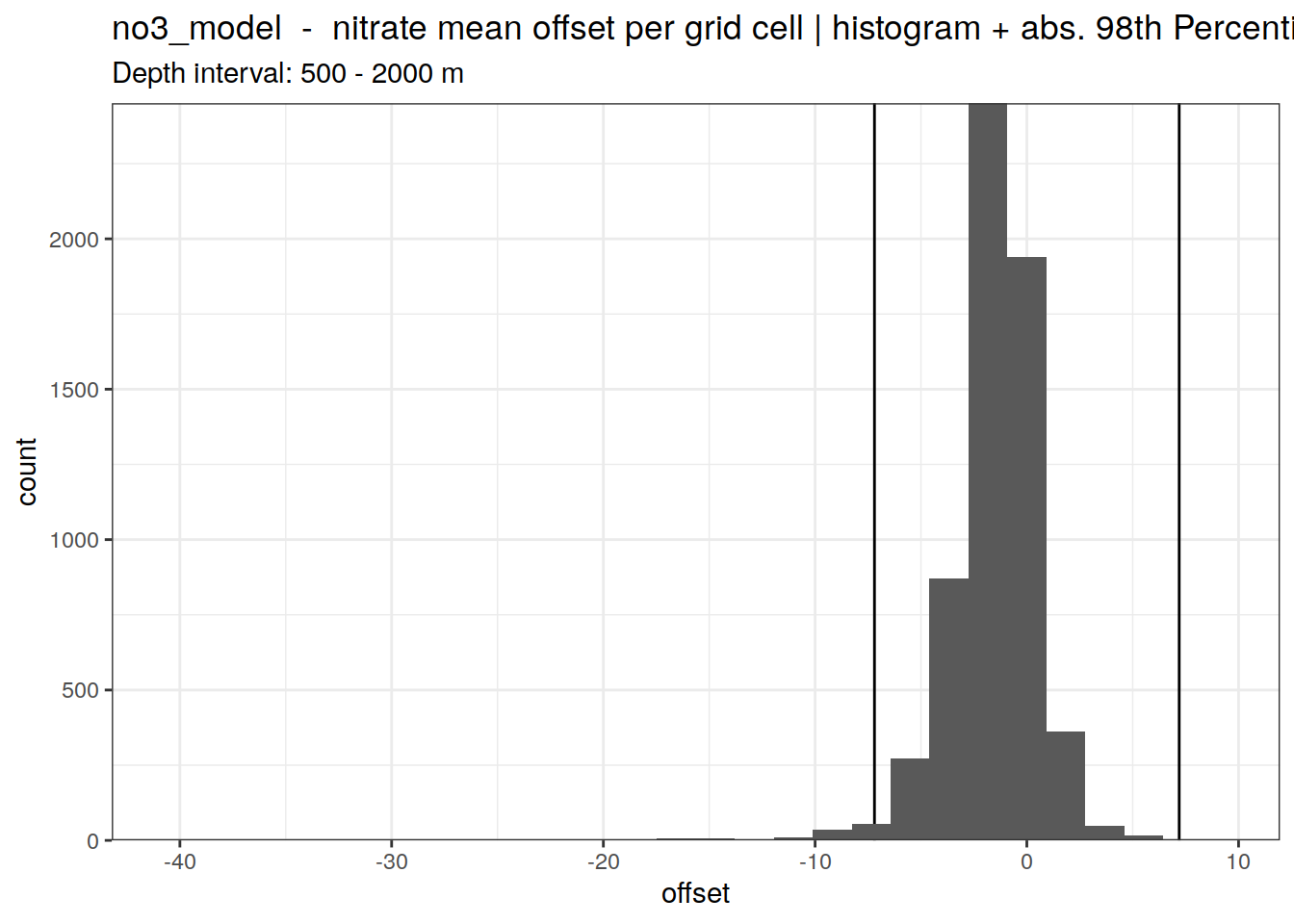

      GLODAP_cmorized_var_grid %>%
        ggplot(aes(offset)) +
        geom_vline(xintercept = limit) +
        geom_histogram() +

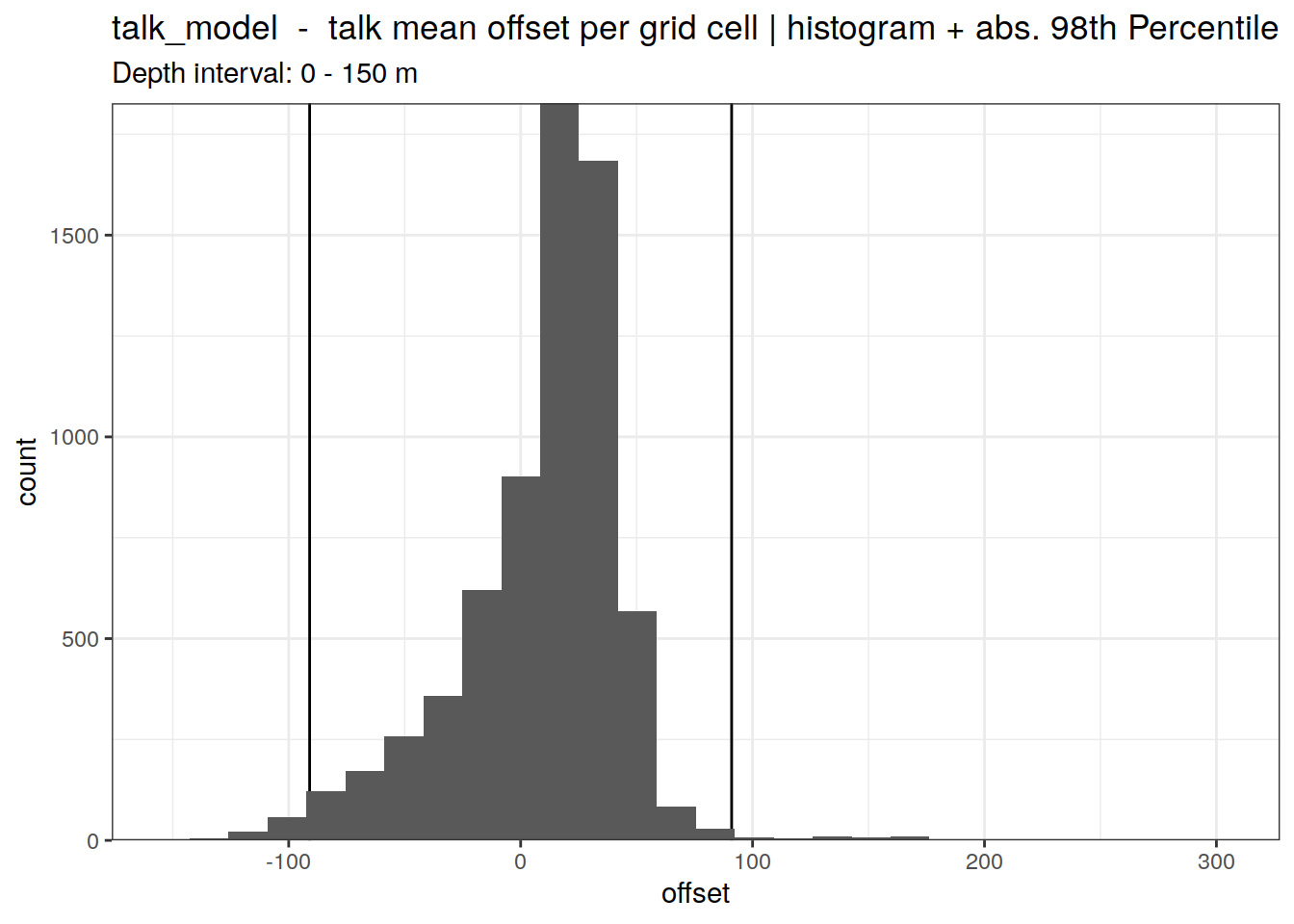

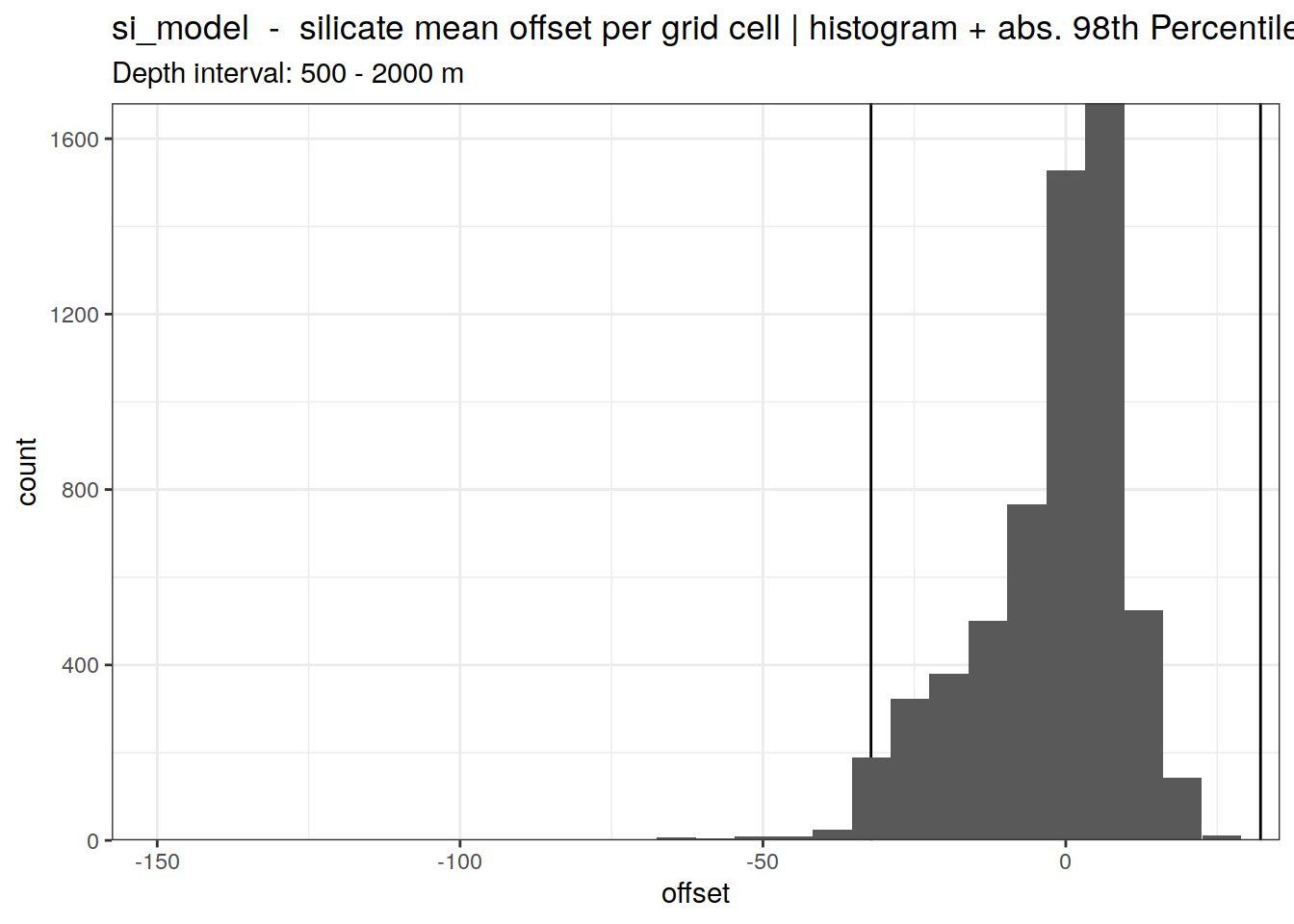

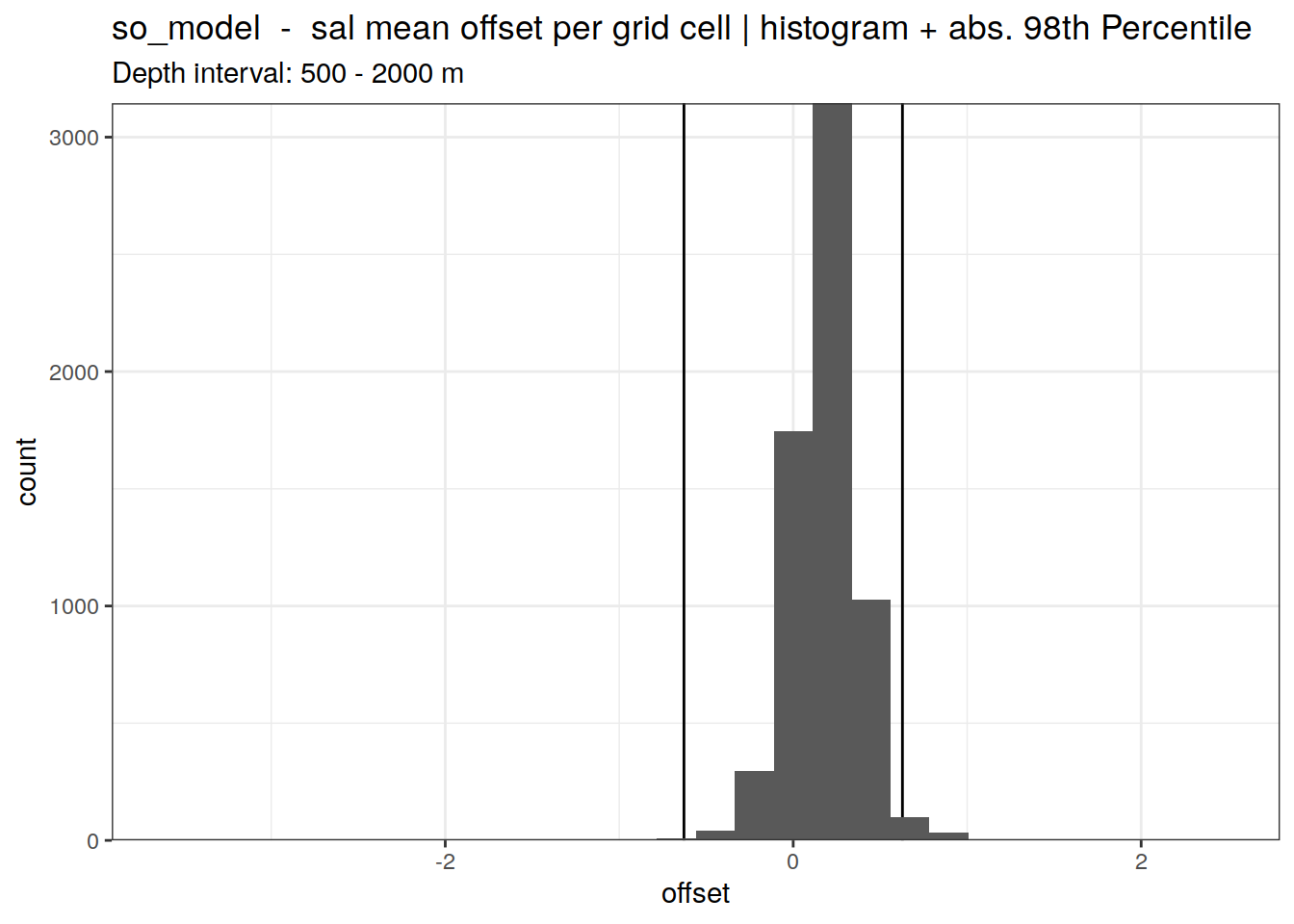

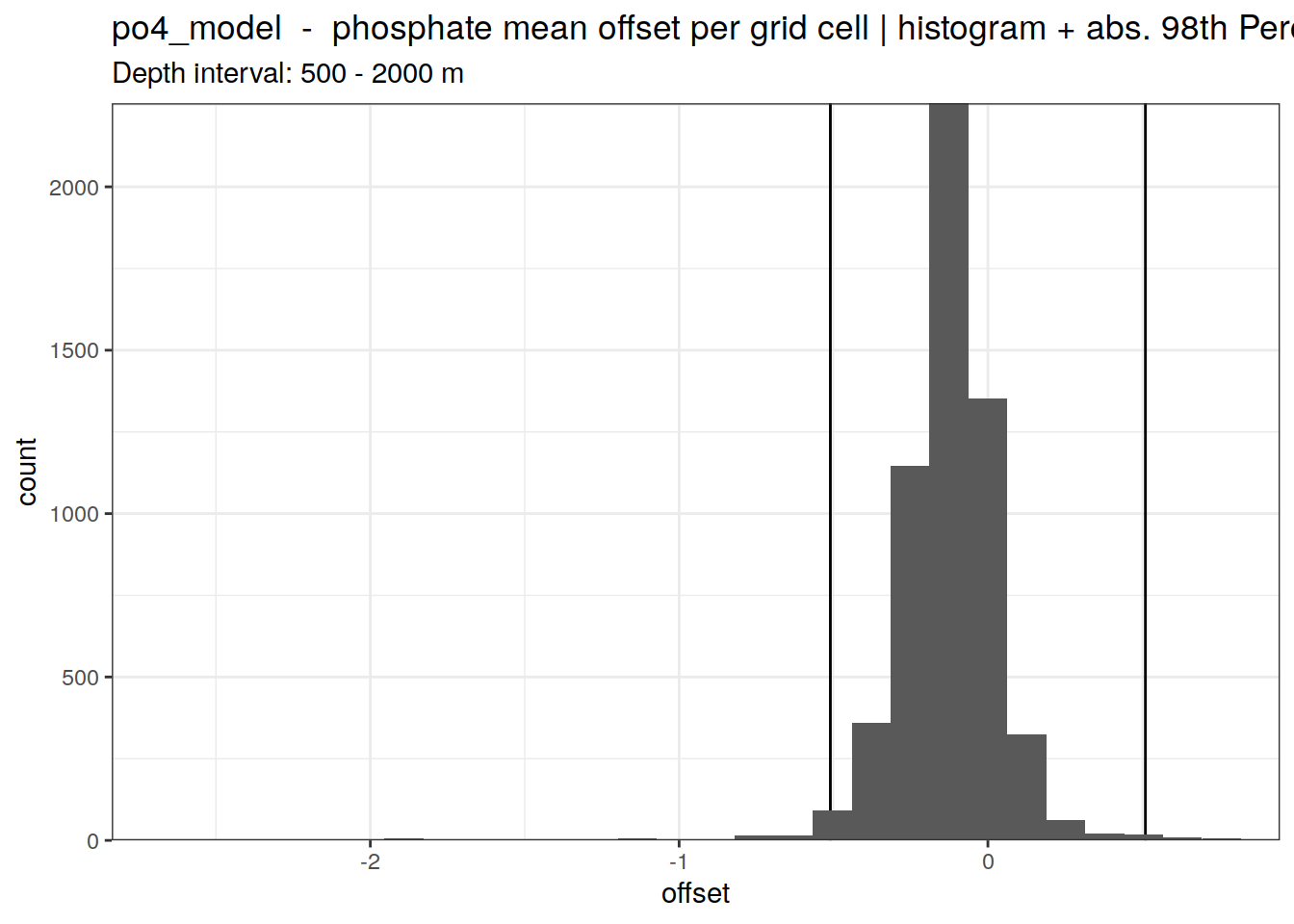

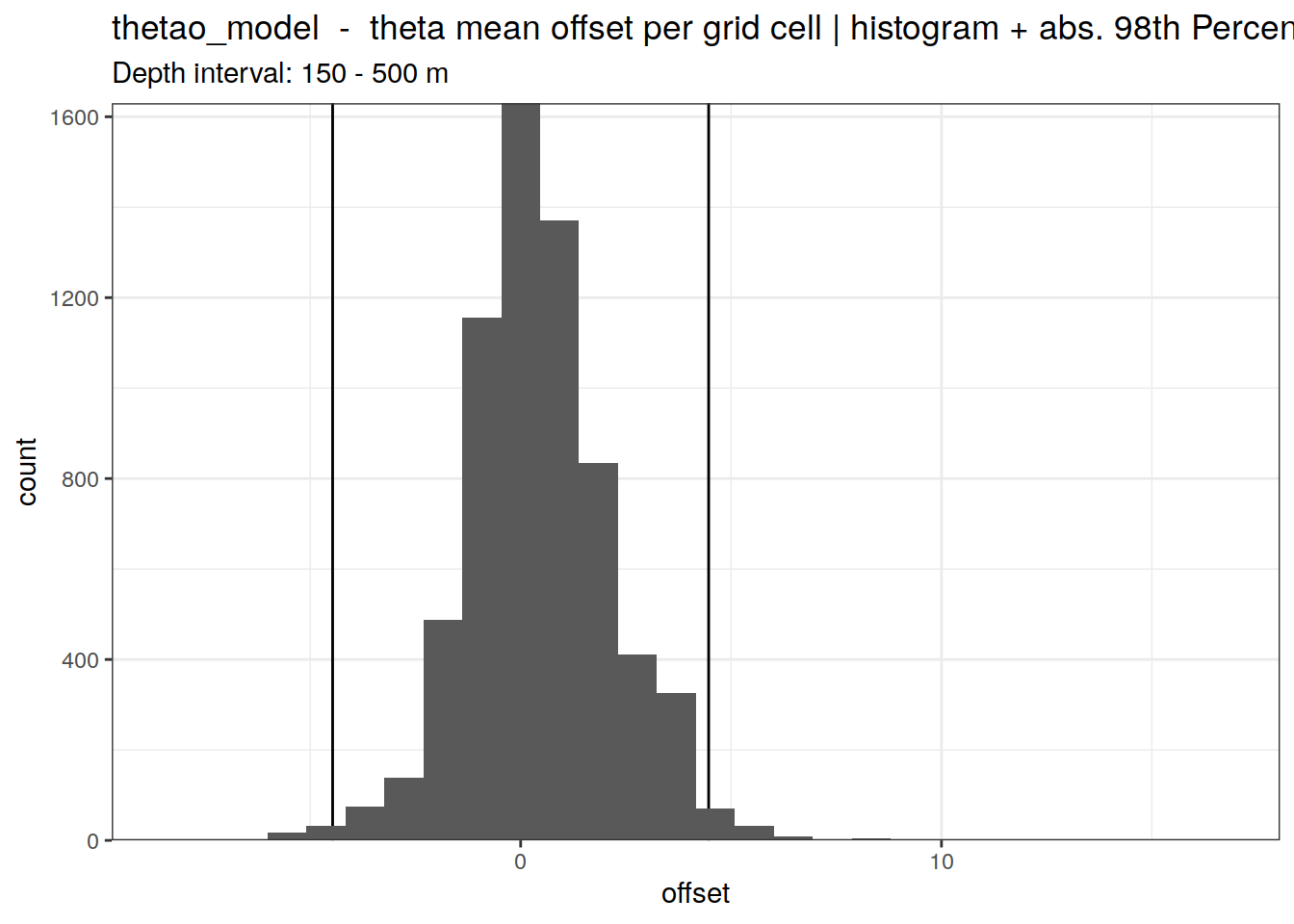

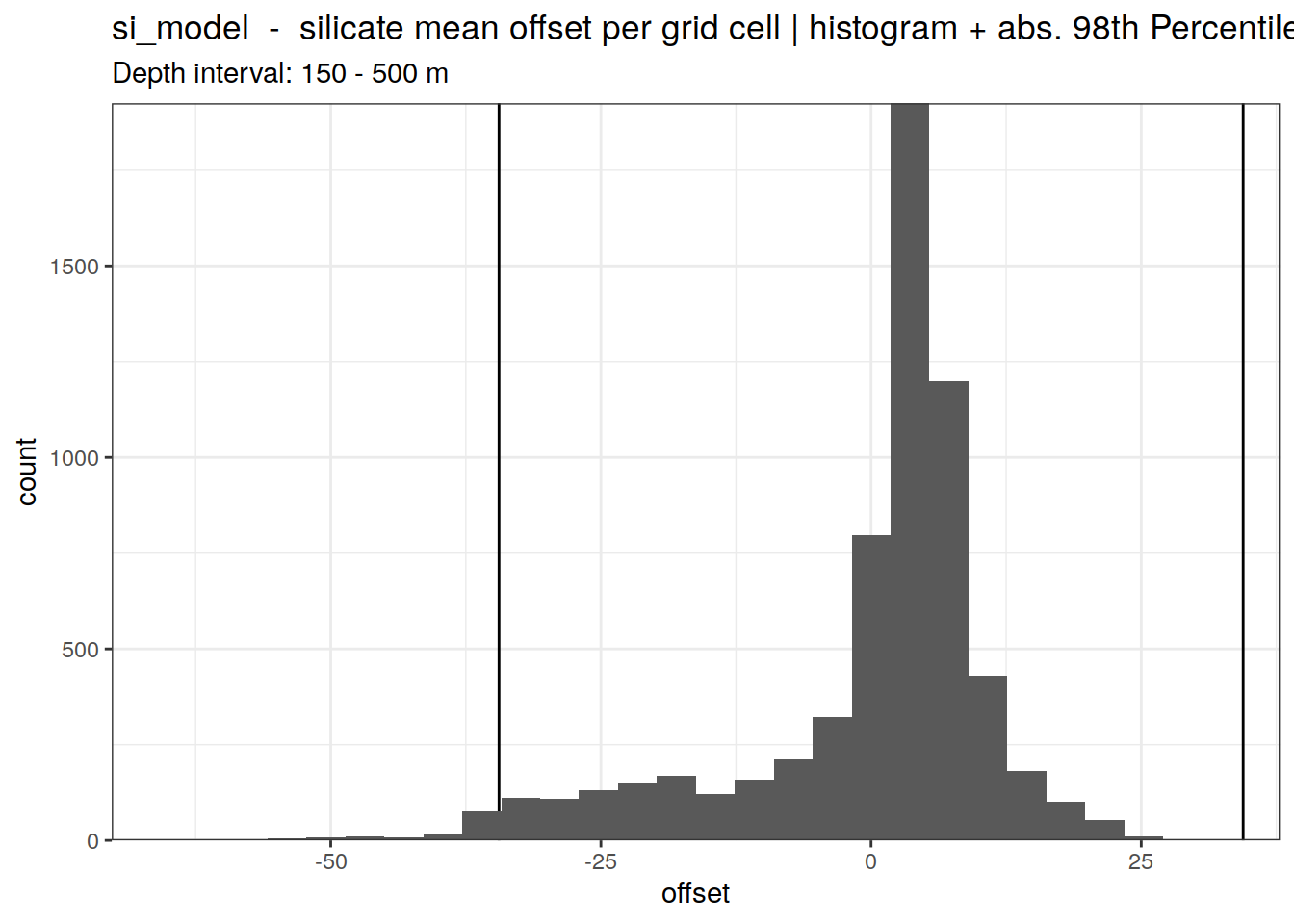

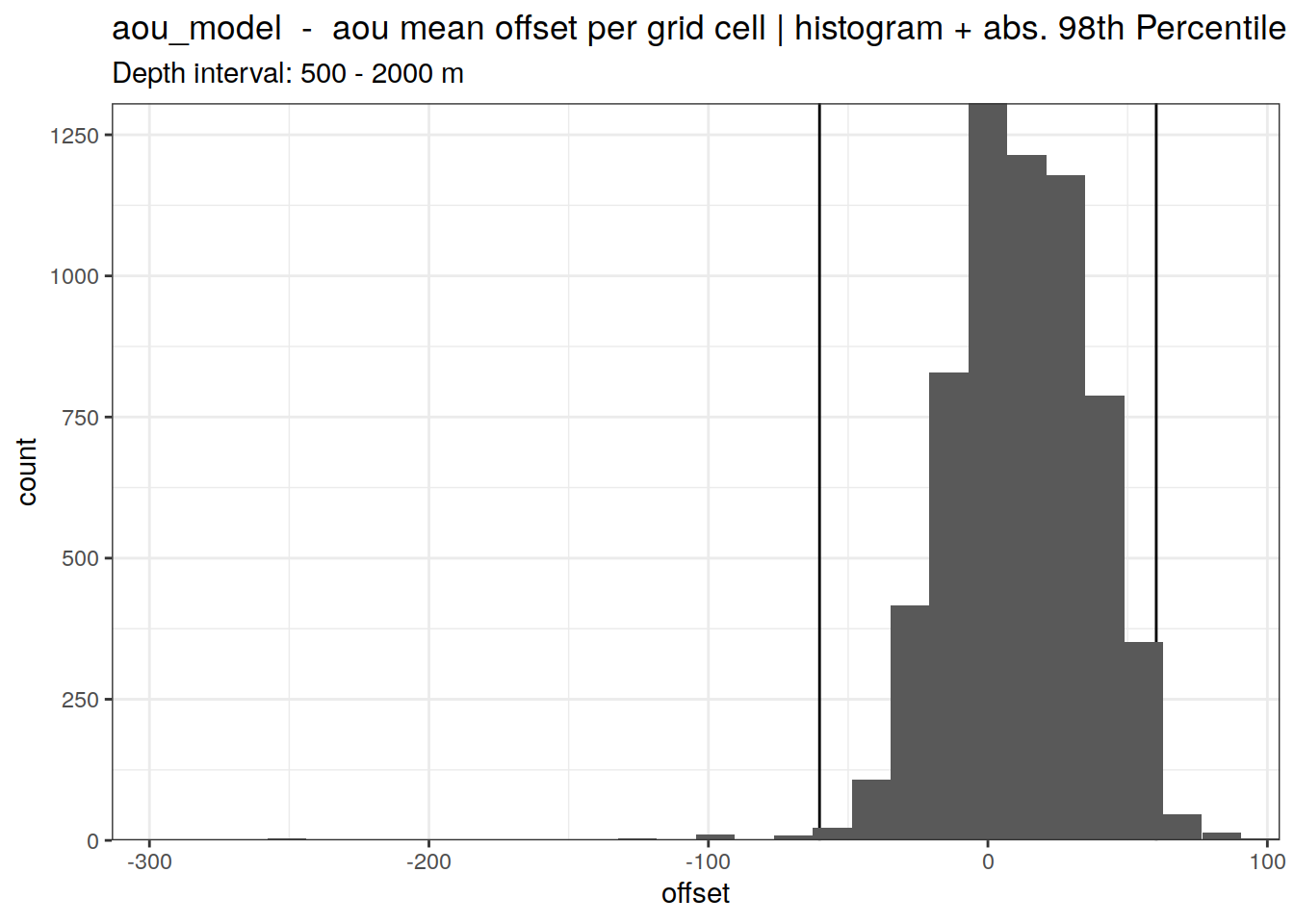

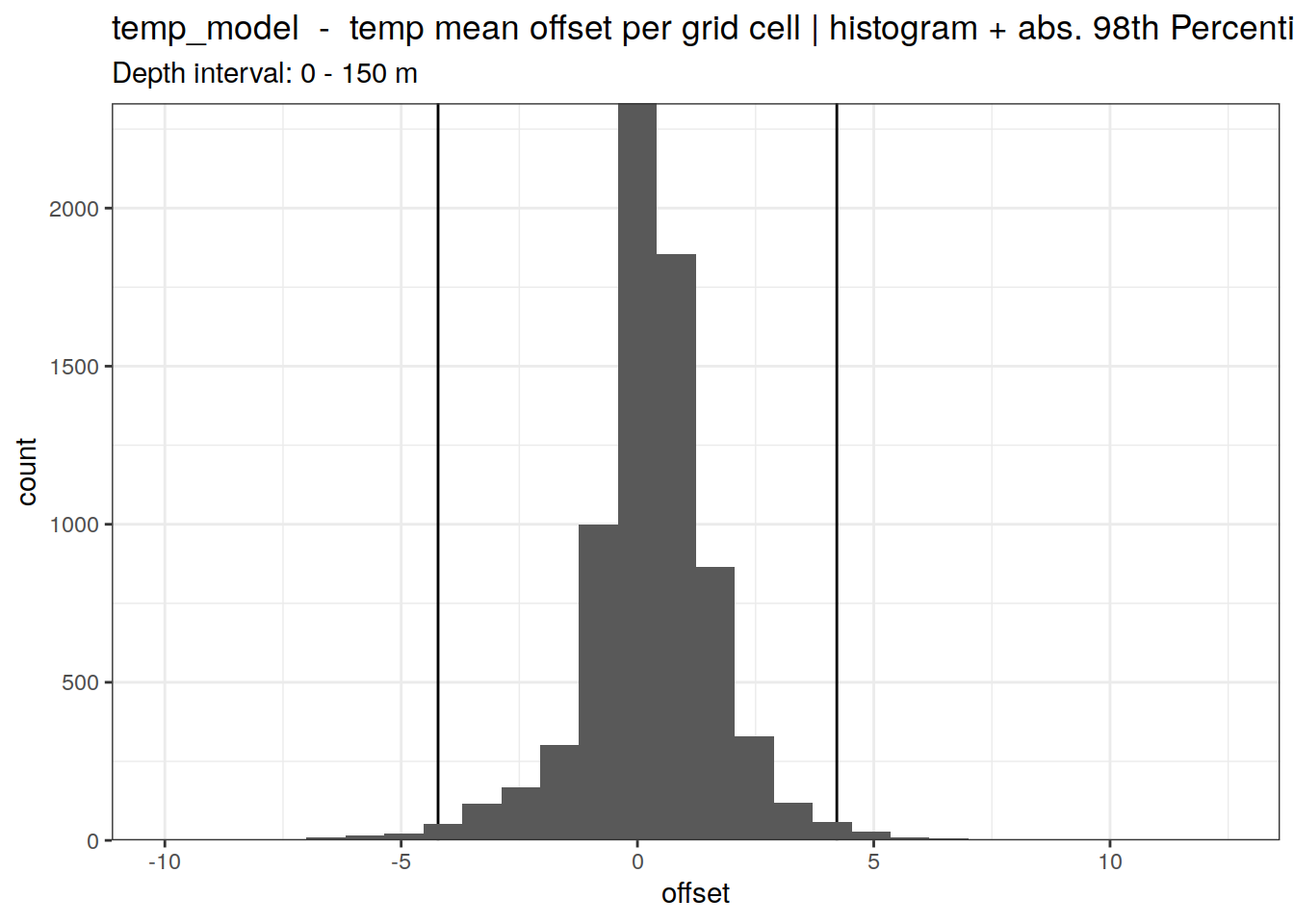

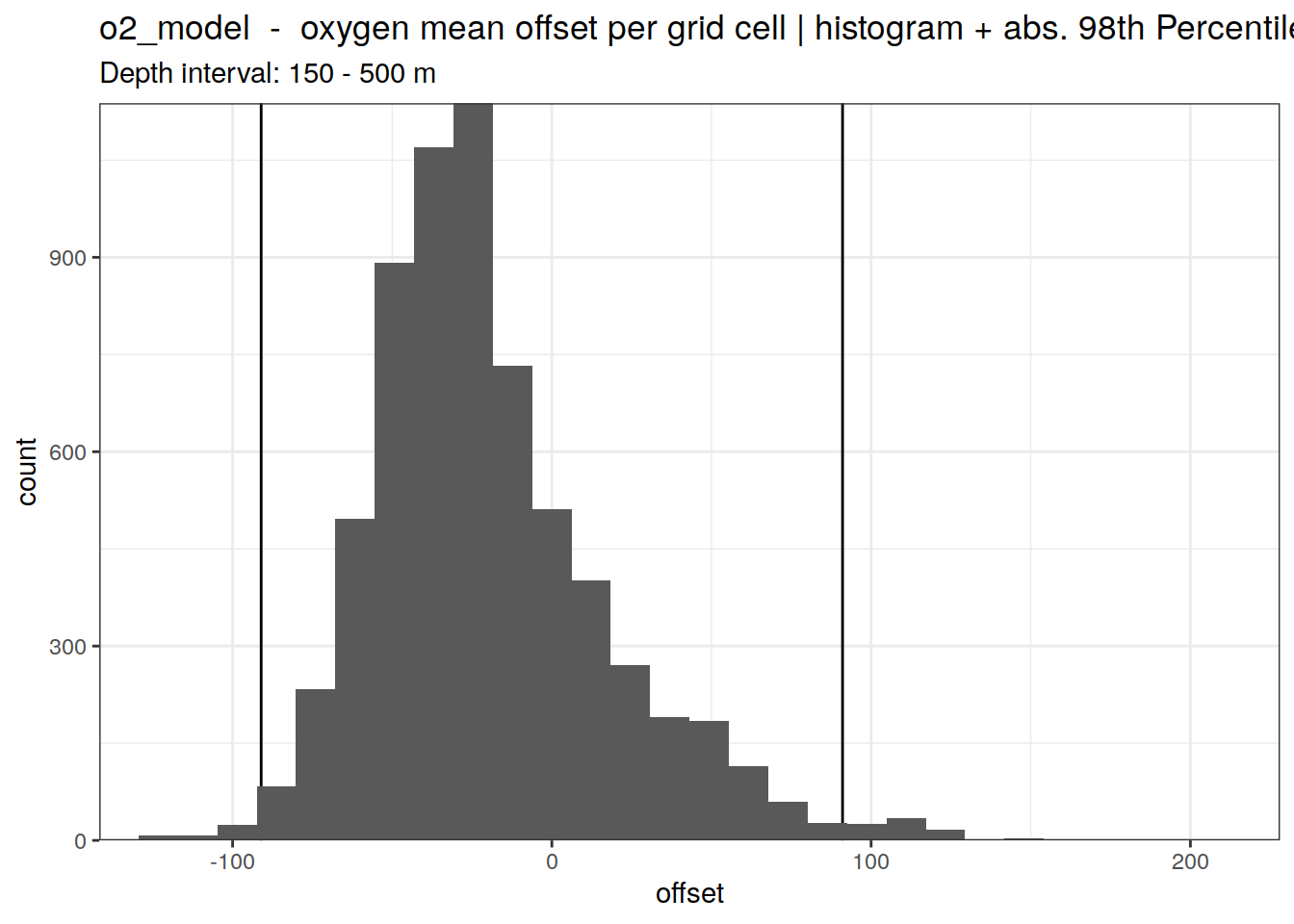

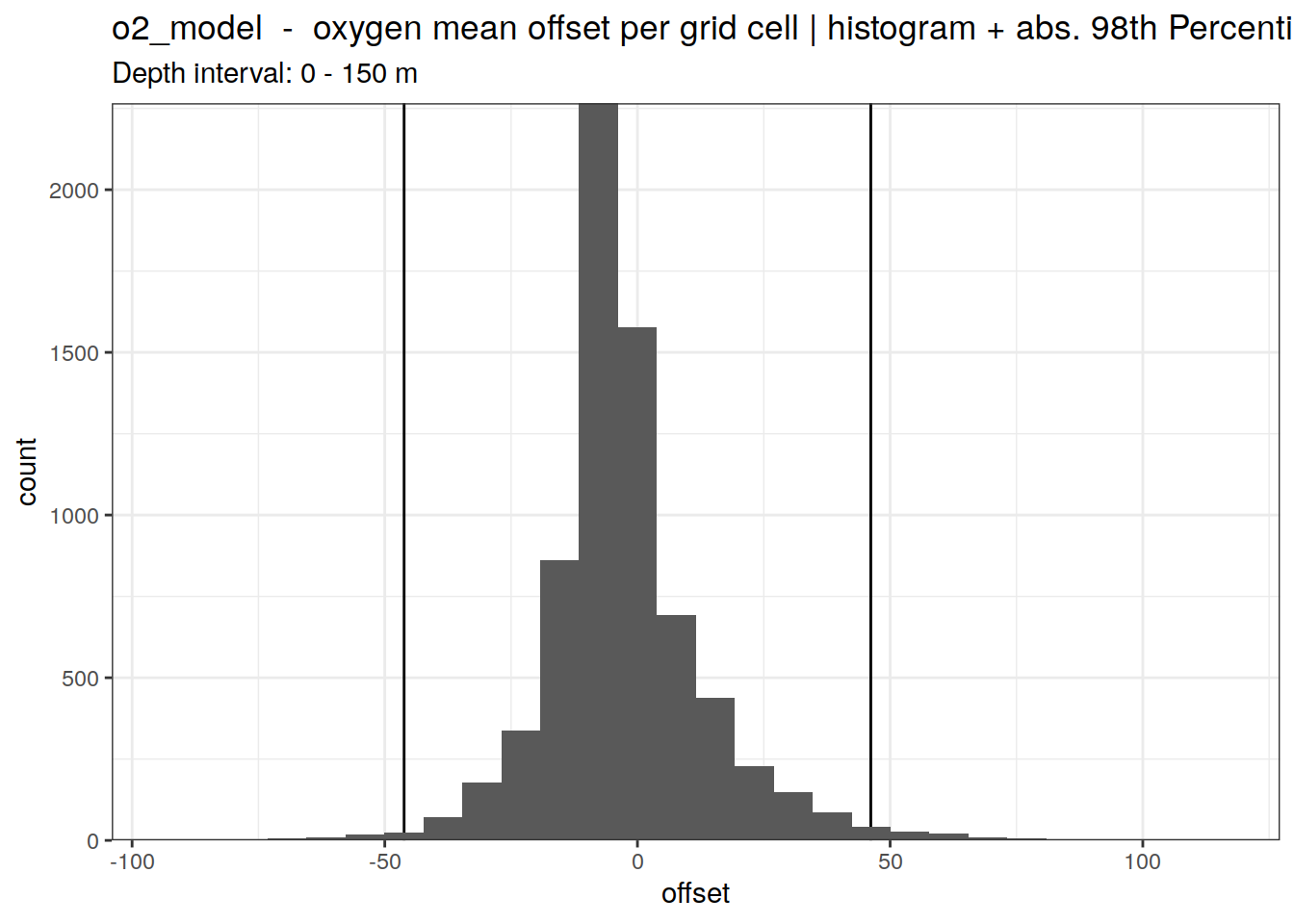

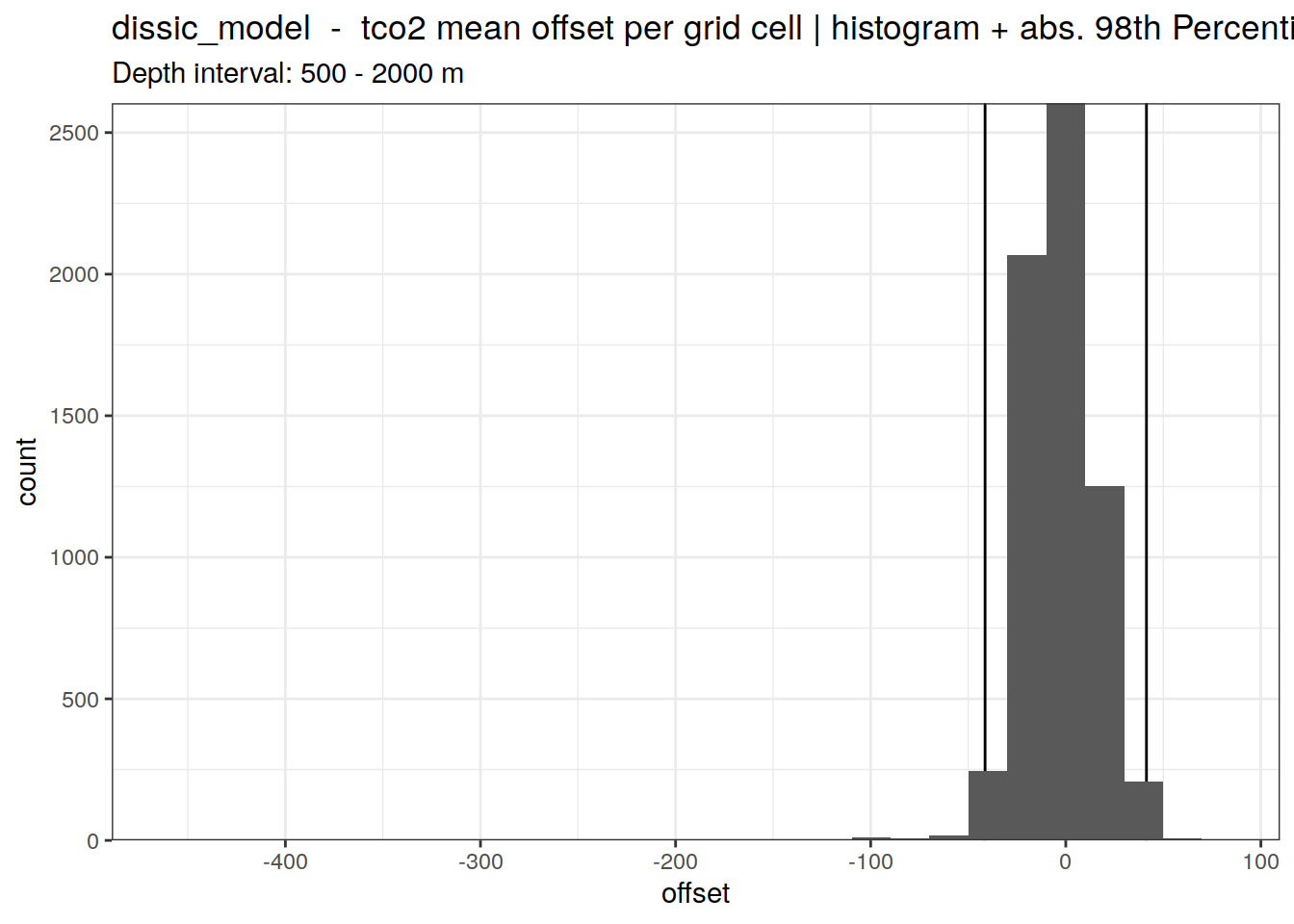

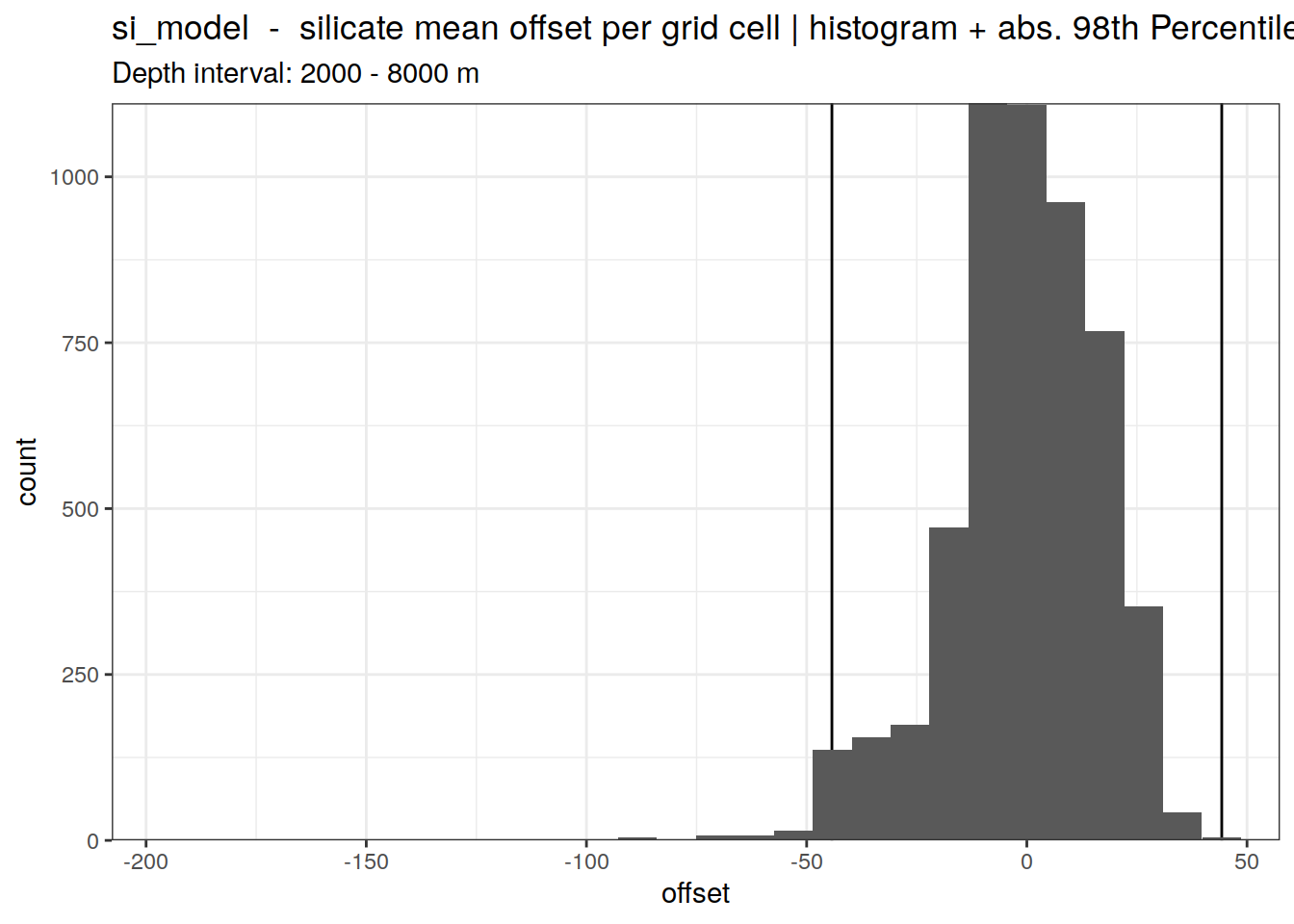

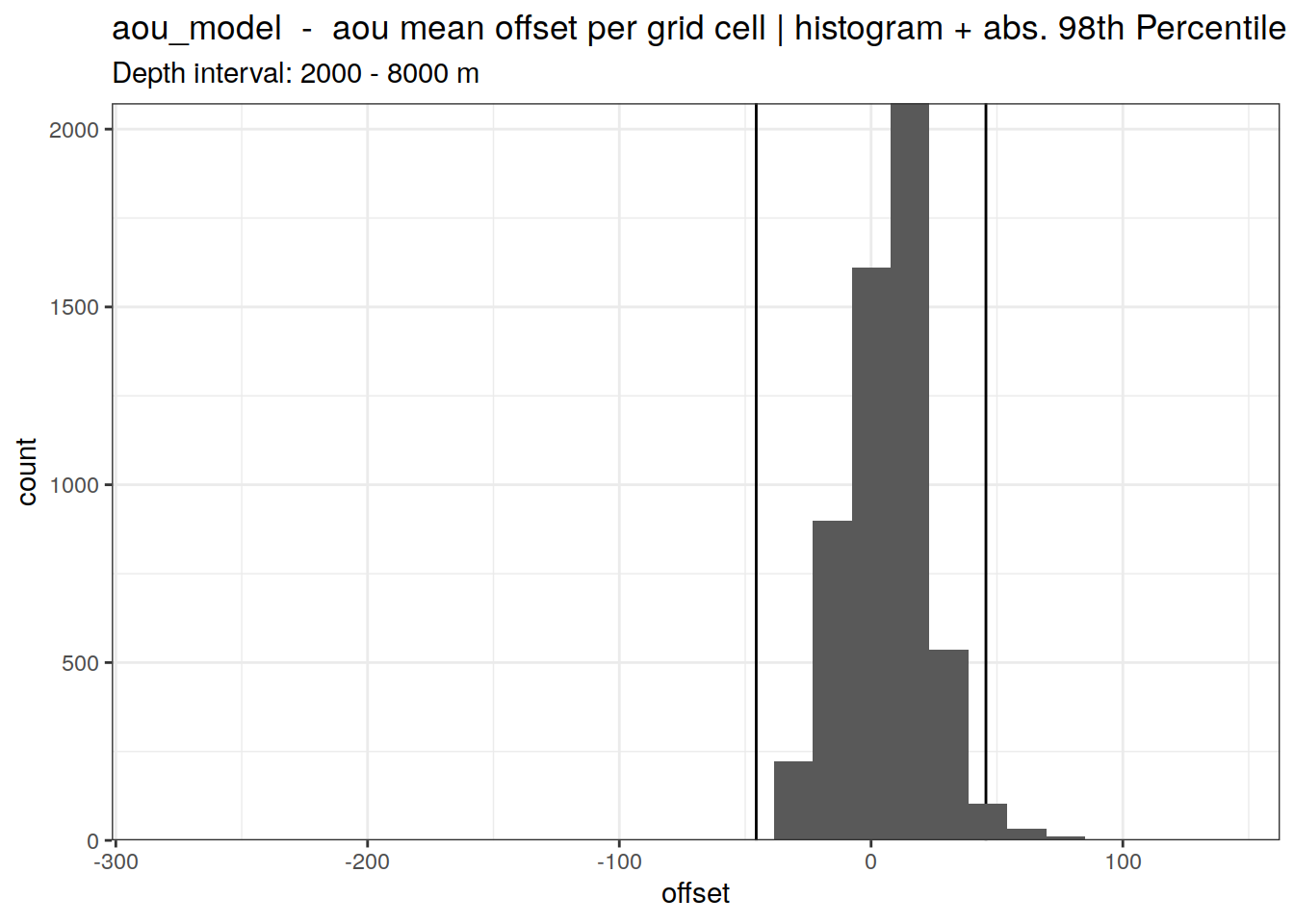

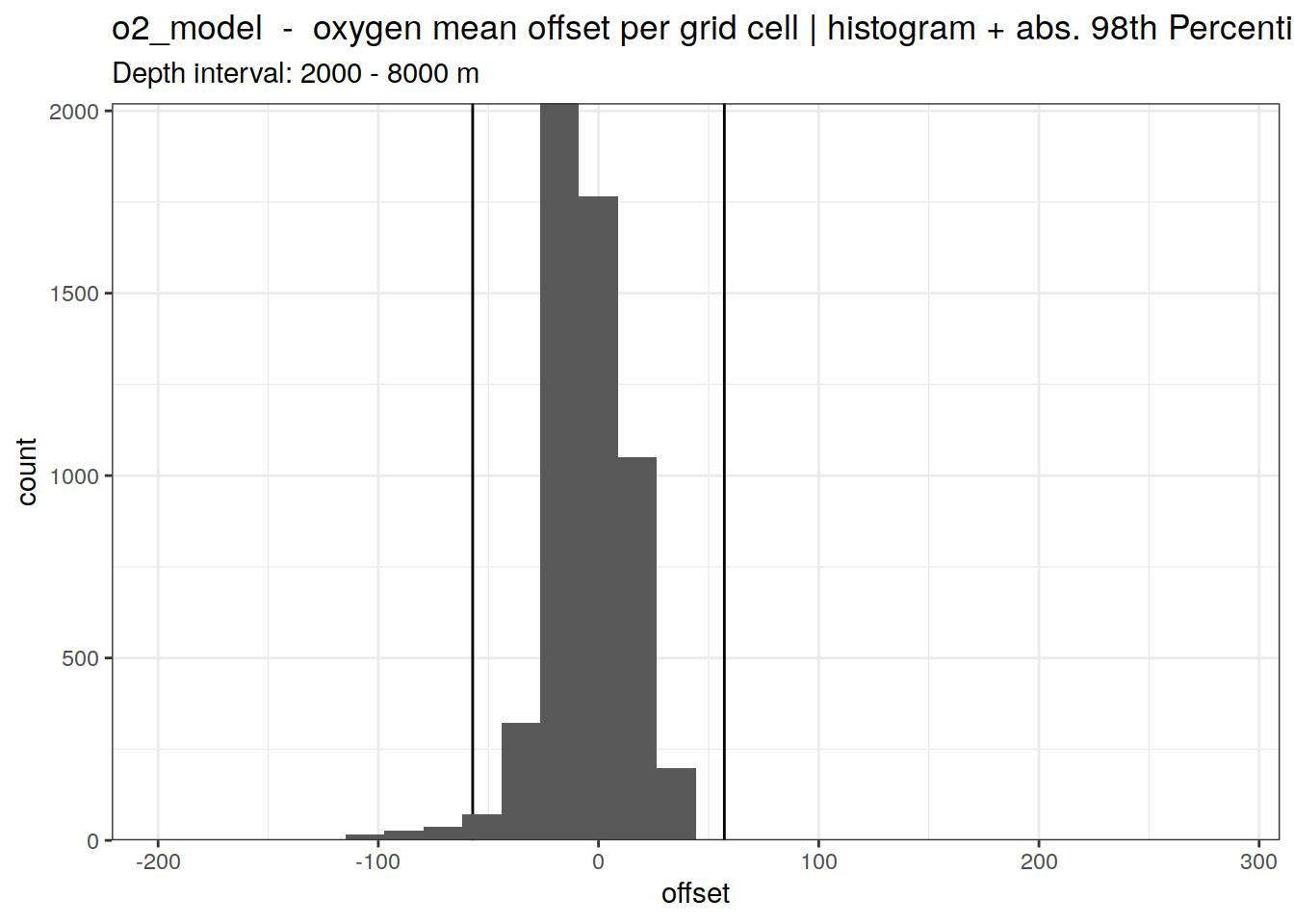

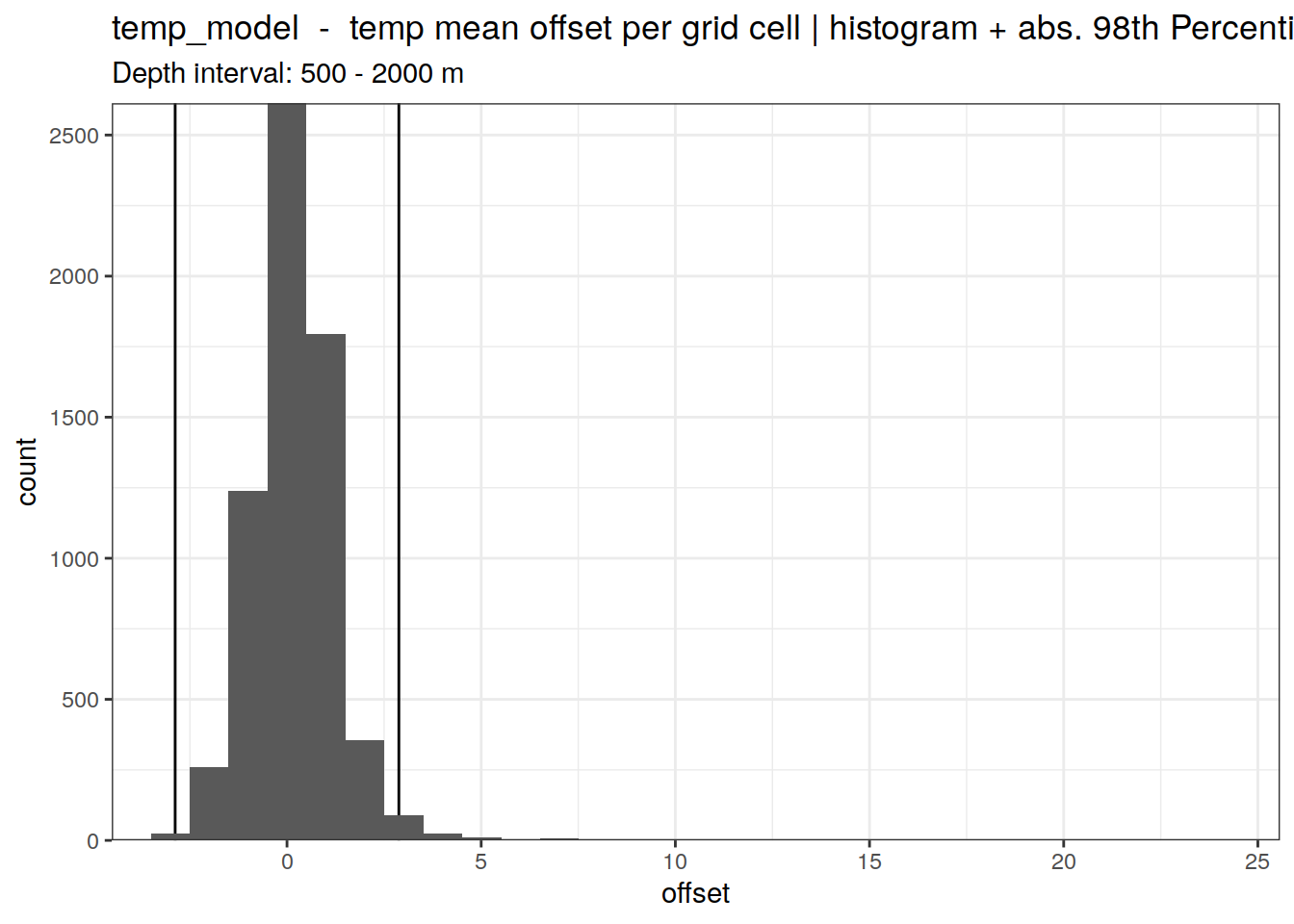

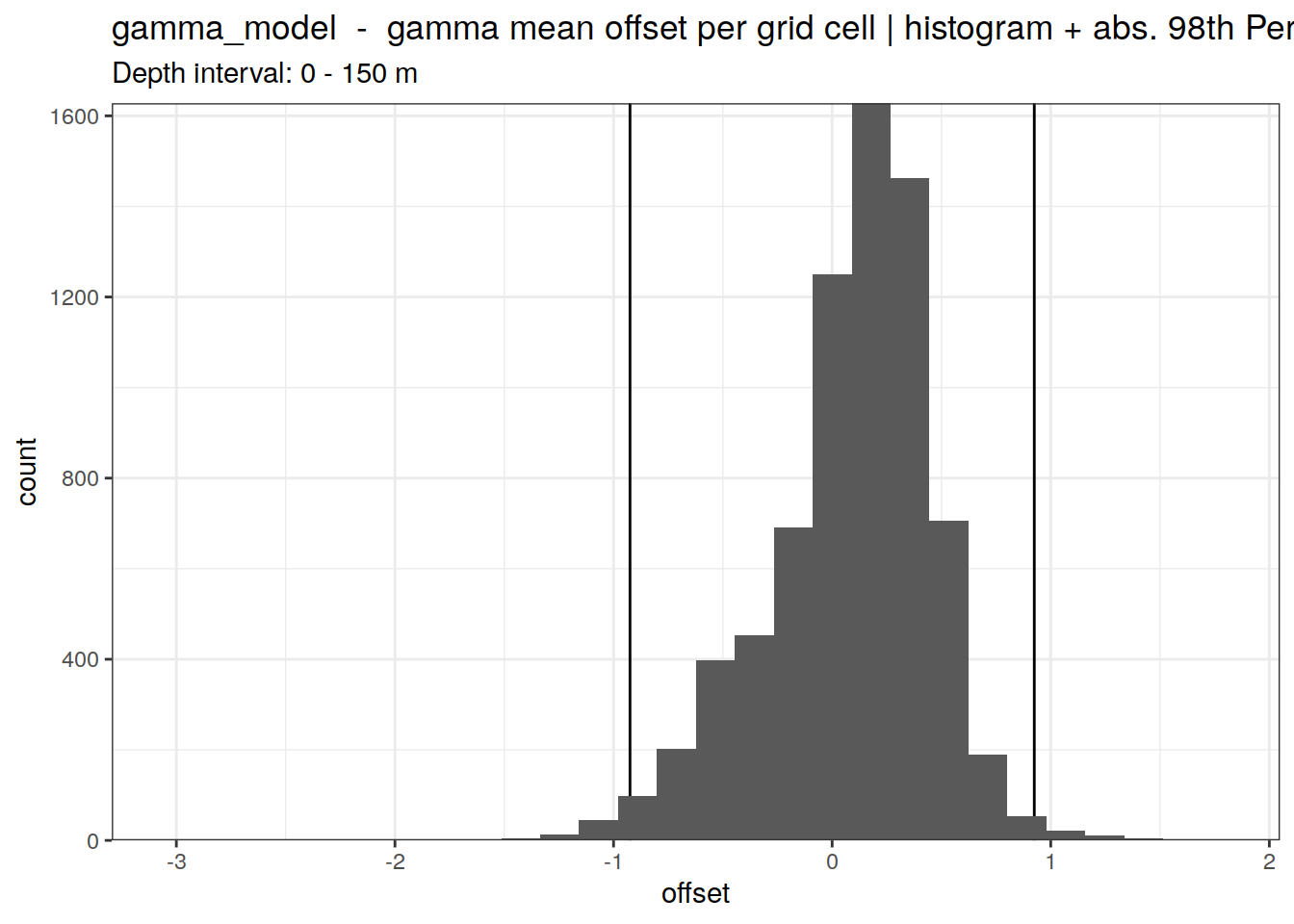

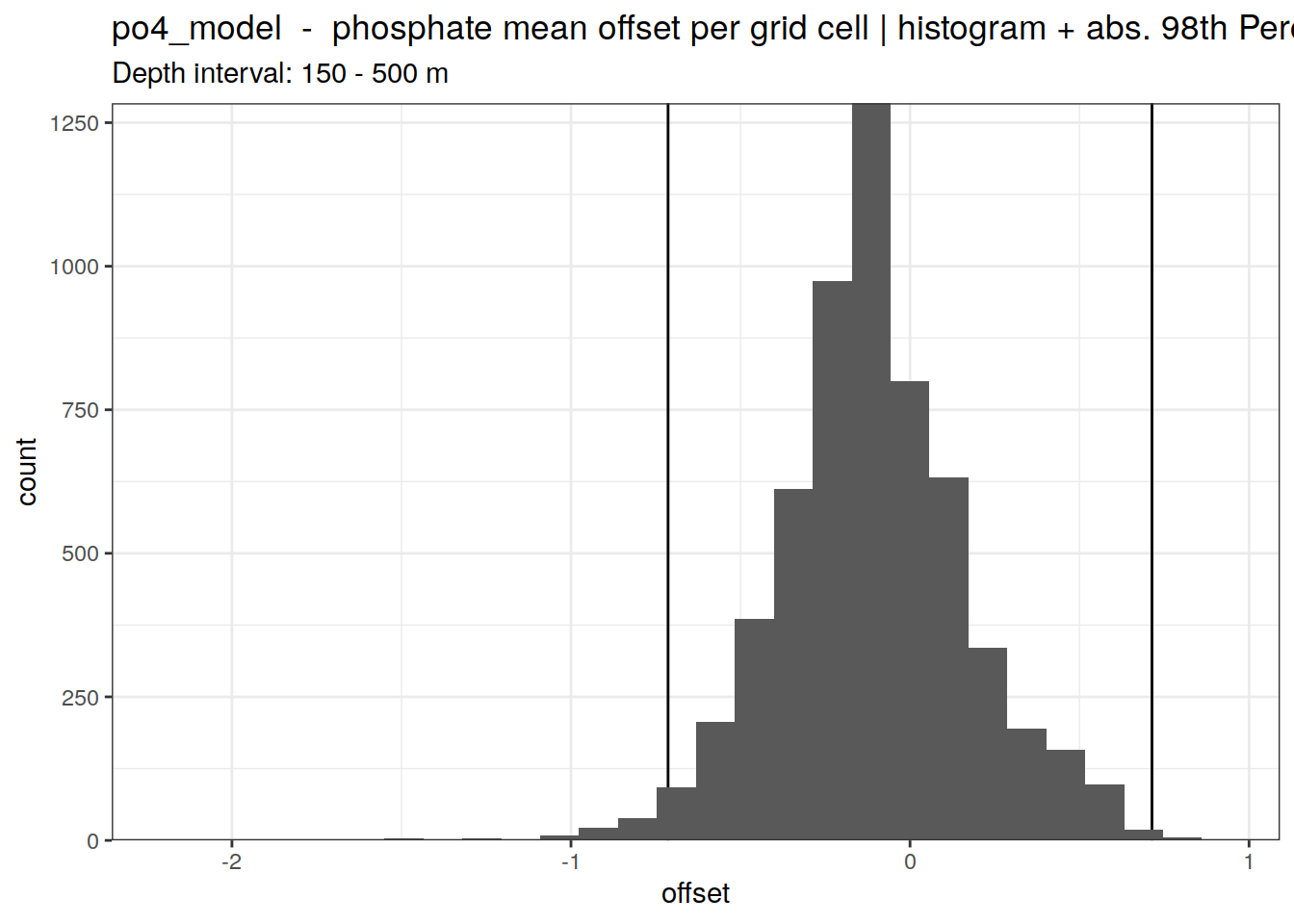

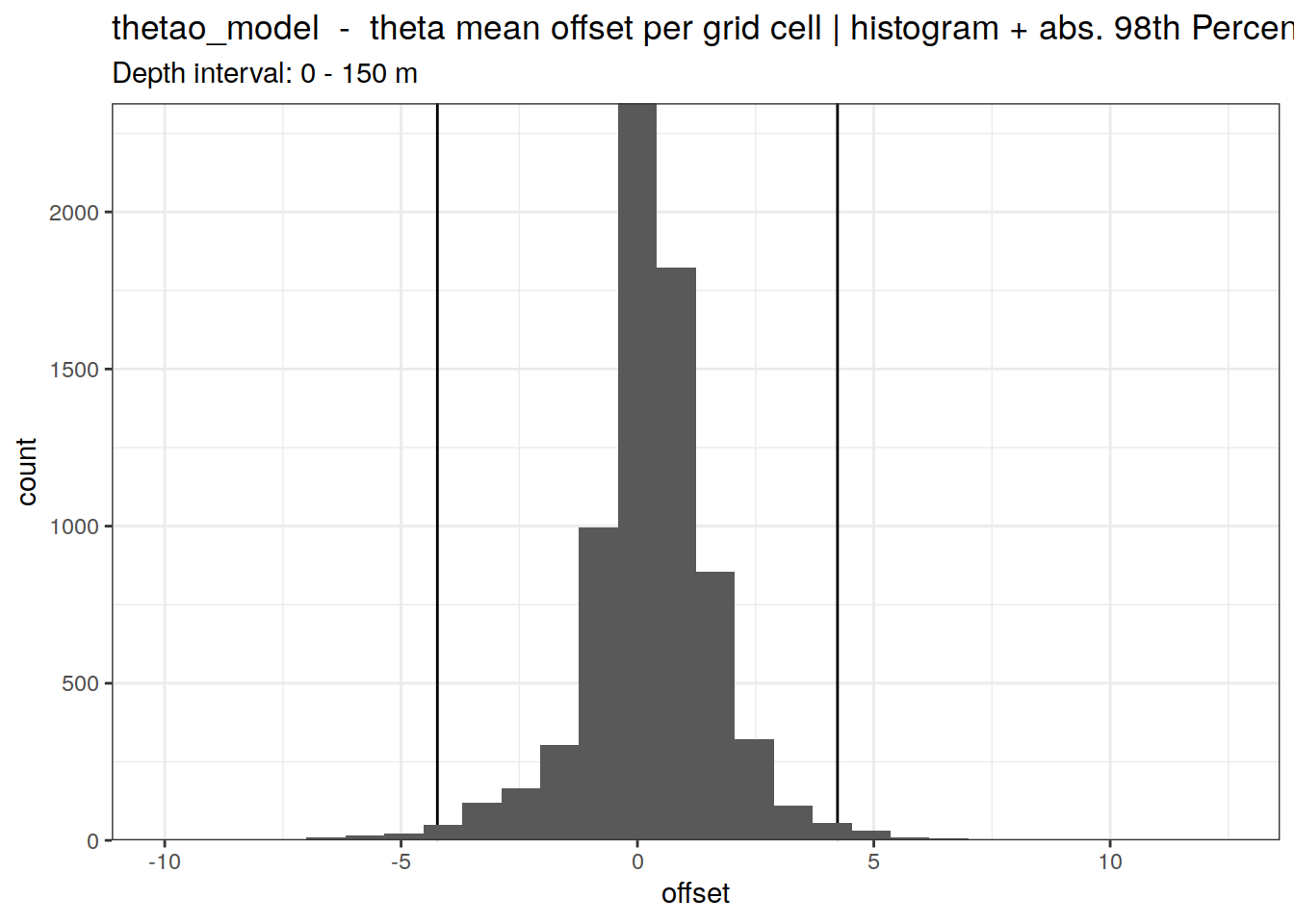

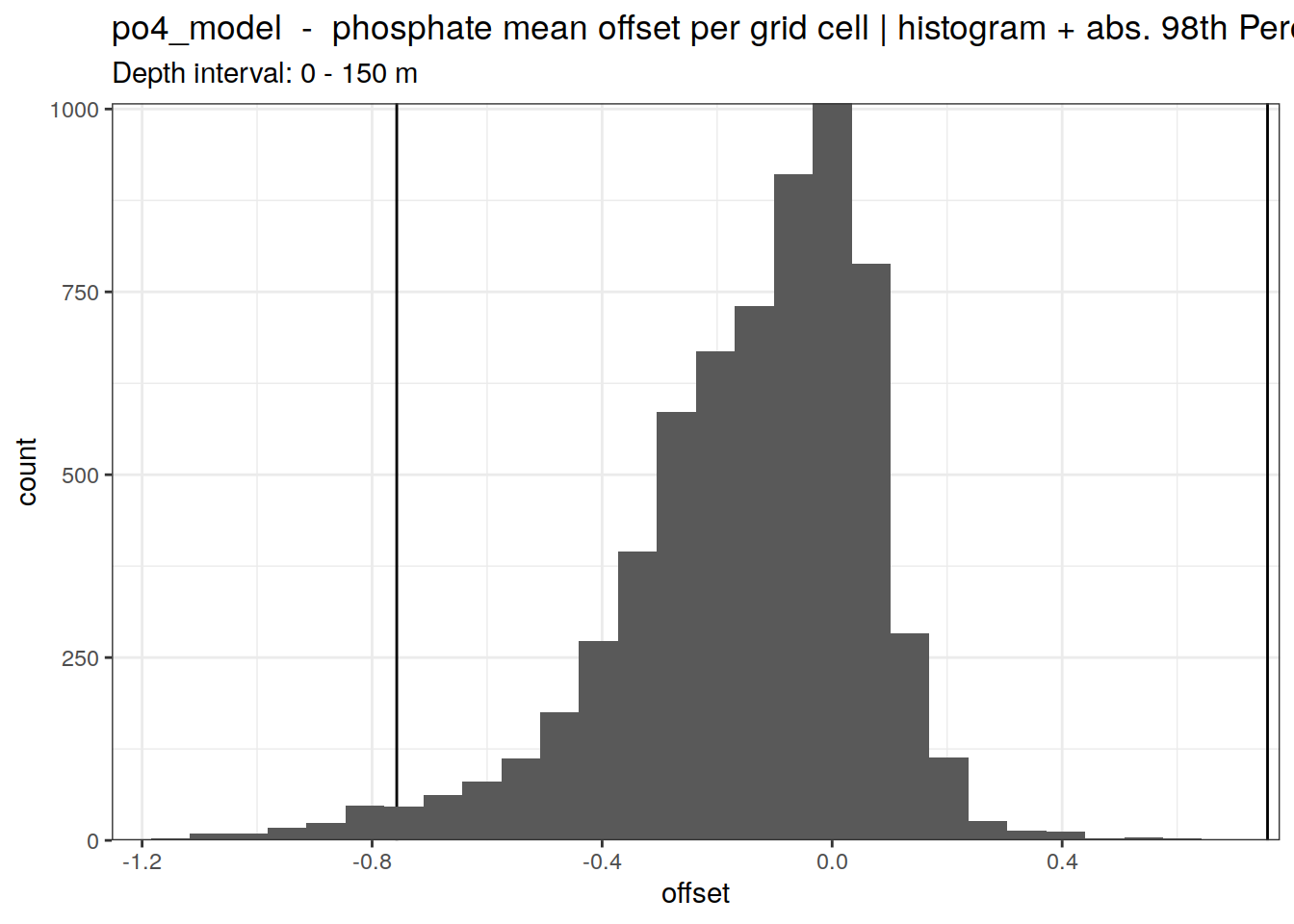

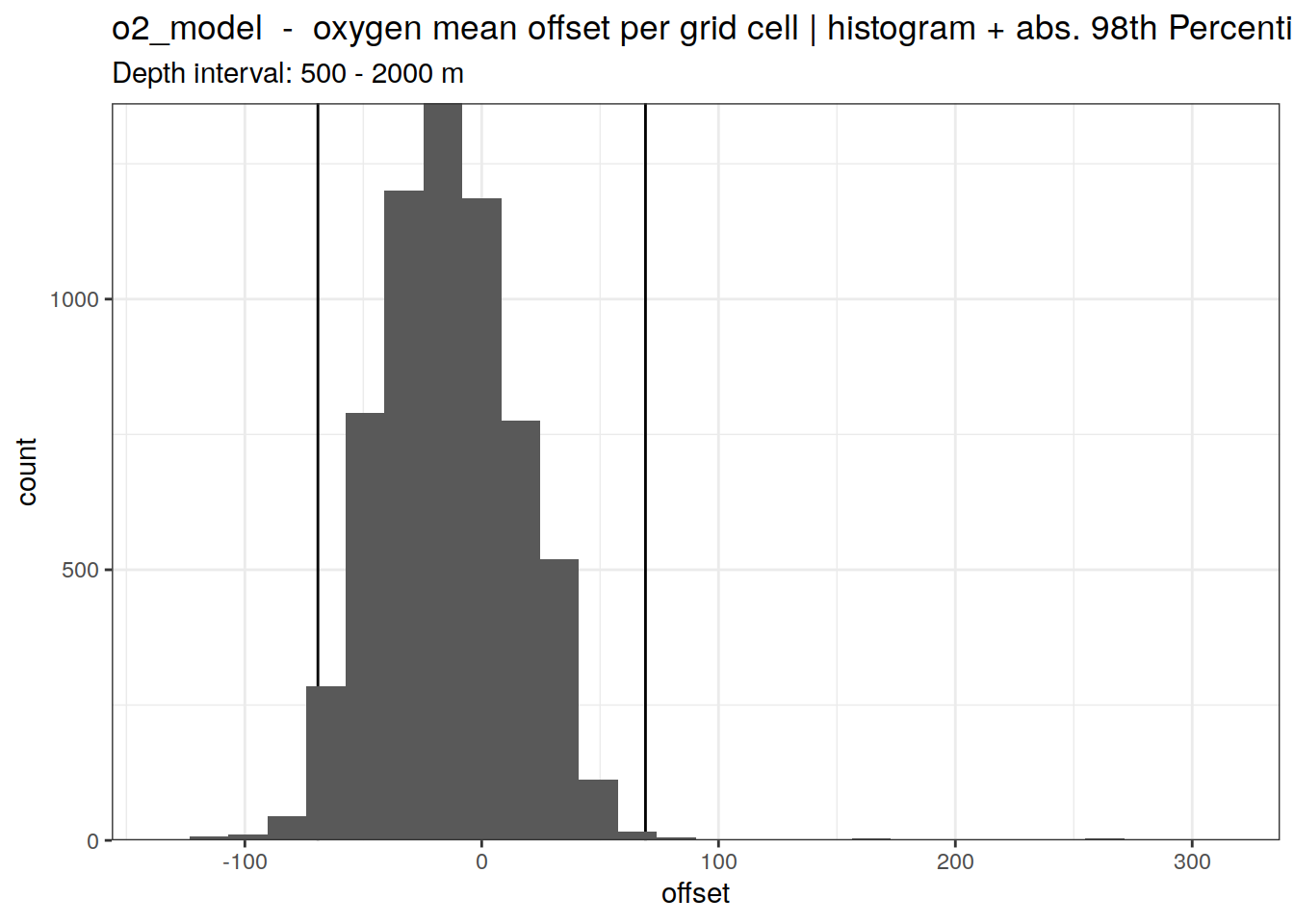

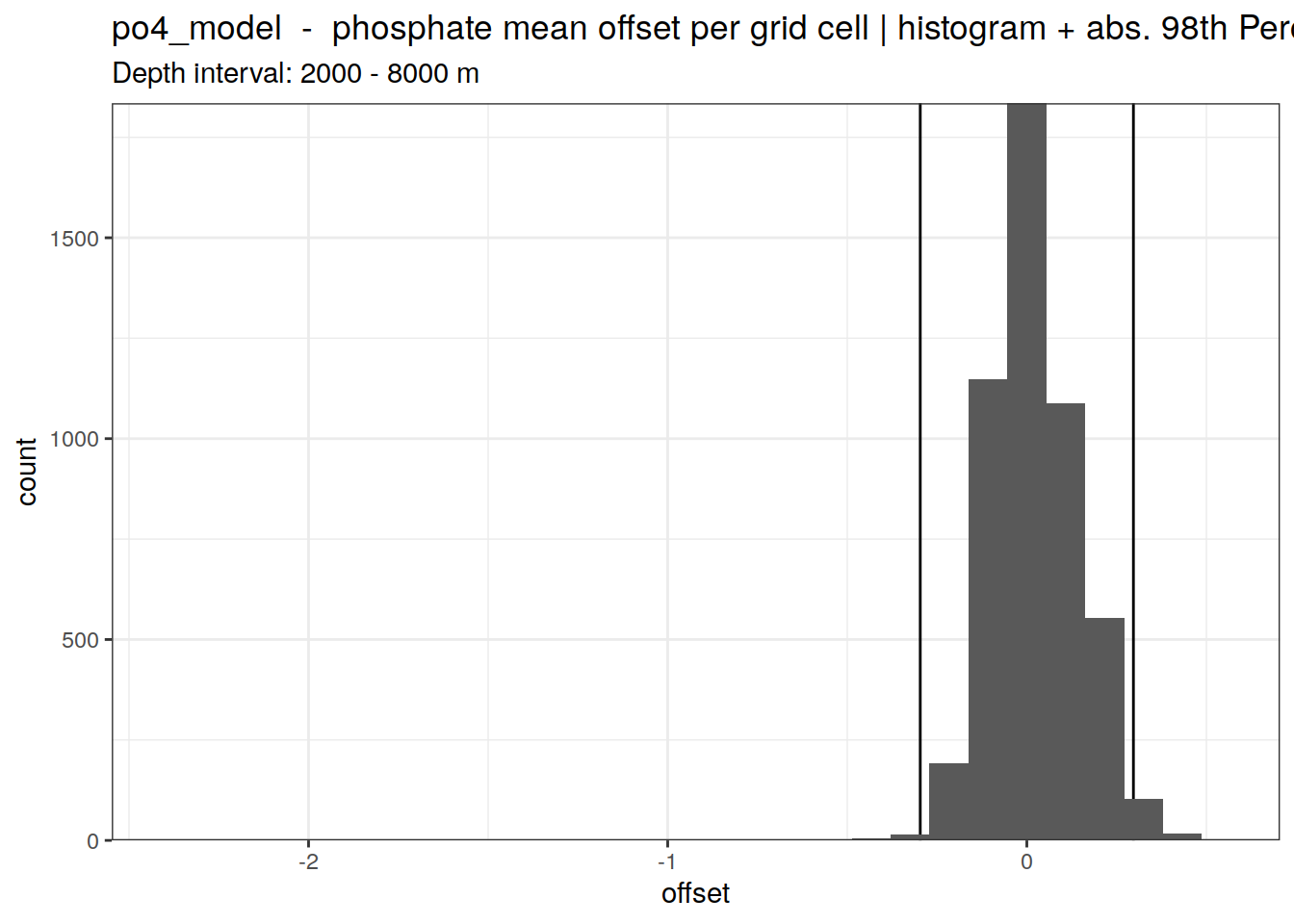

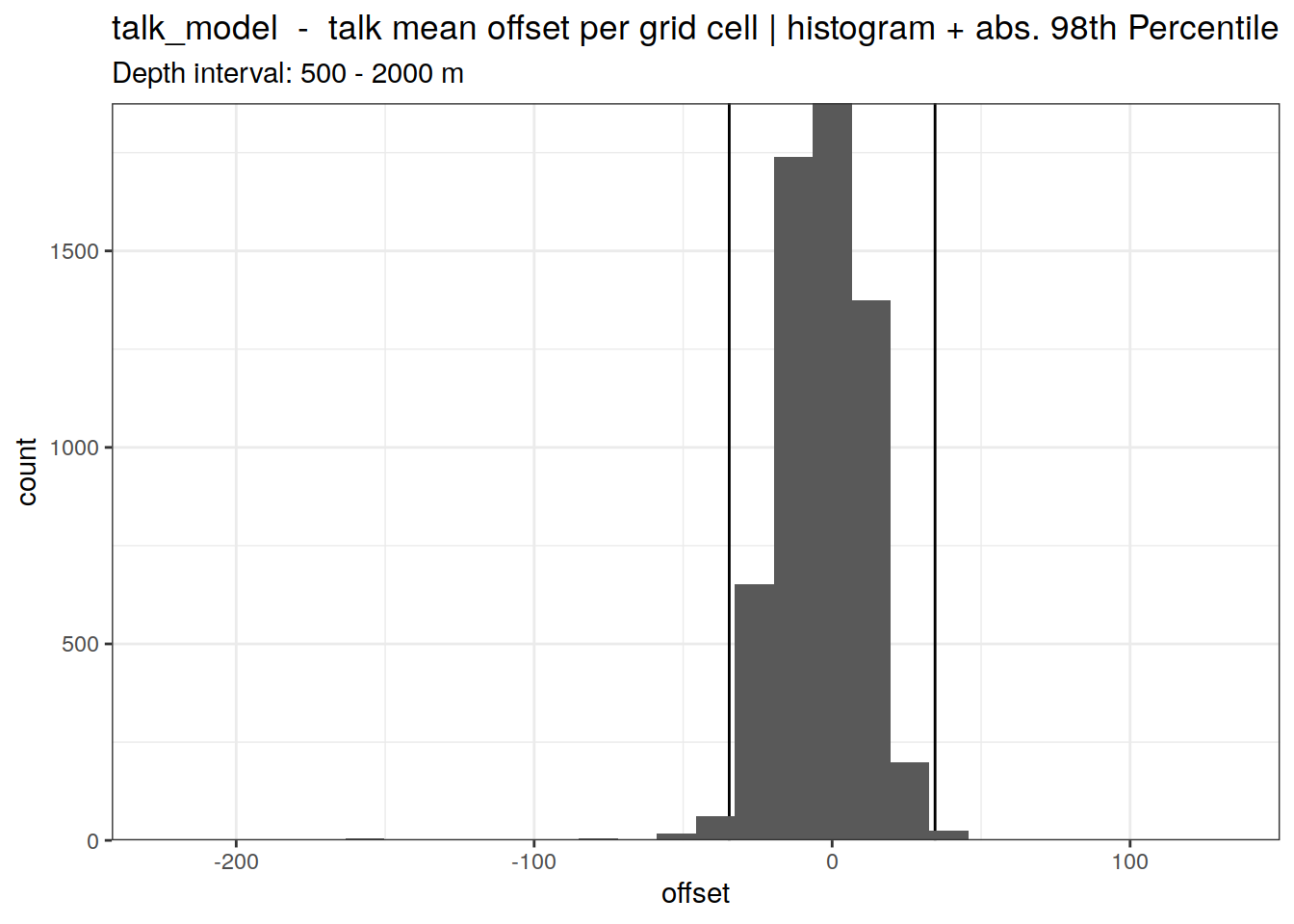

        labs(

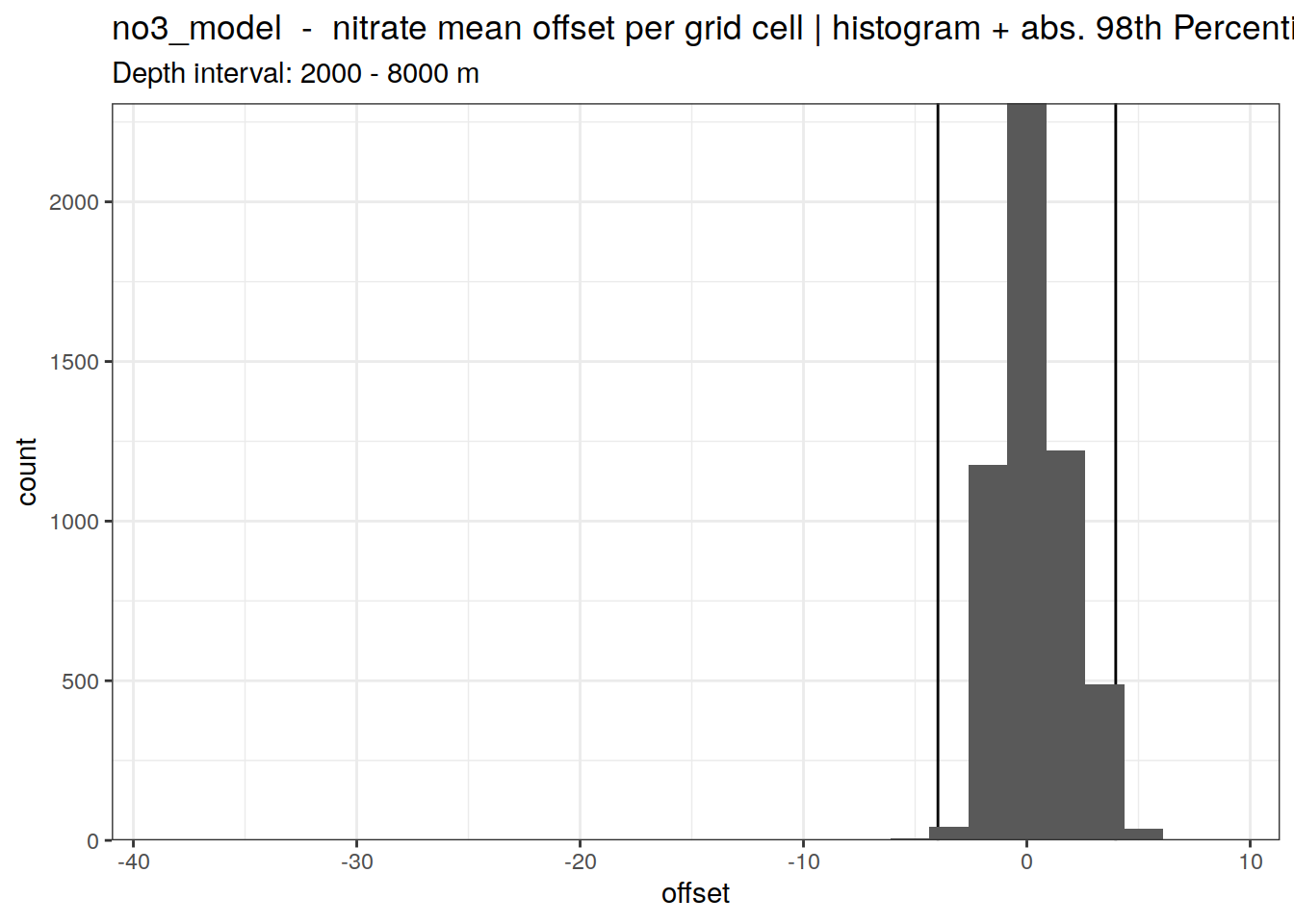

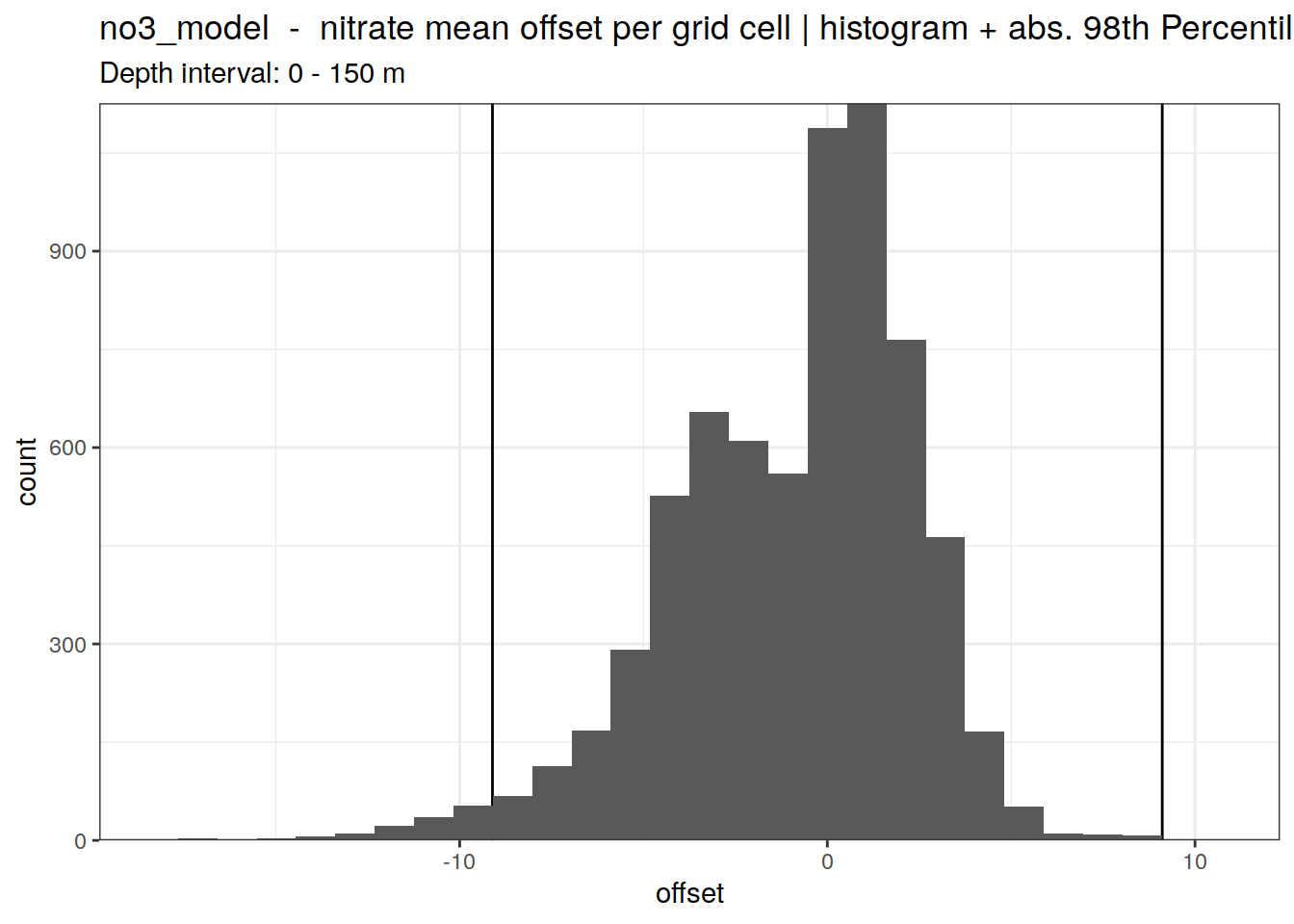

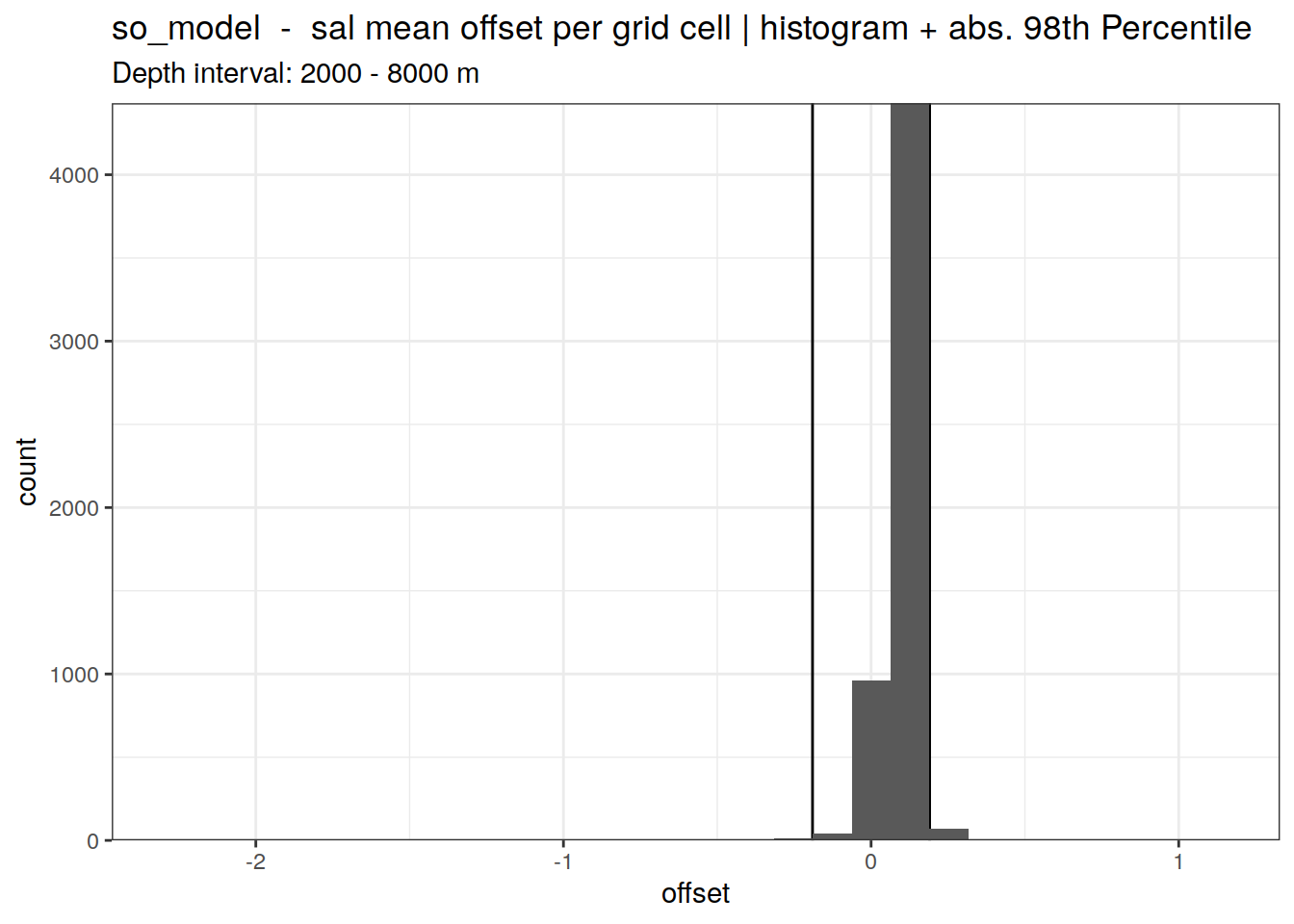

          title = paste(
            model_var[i],
            " - ",
            obs_var[i],
            "mean offset per grid cell | histogram + abs. 98th Percentile"
          ),
          subtitle = paste("Depth interval:",
                           intervals[j], "-", intervals[j + 1], "m")
        ) +
        coord_cartesian(expand = FALSE)
    )
  }

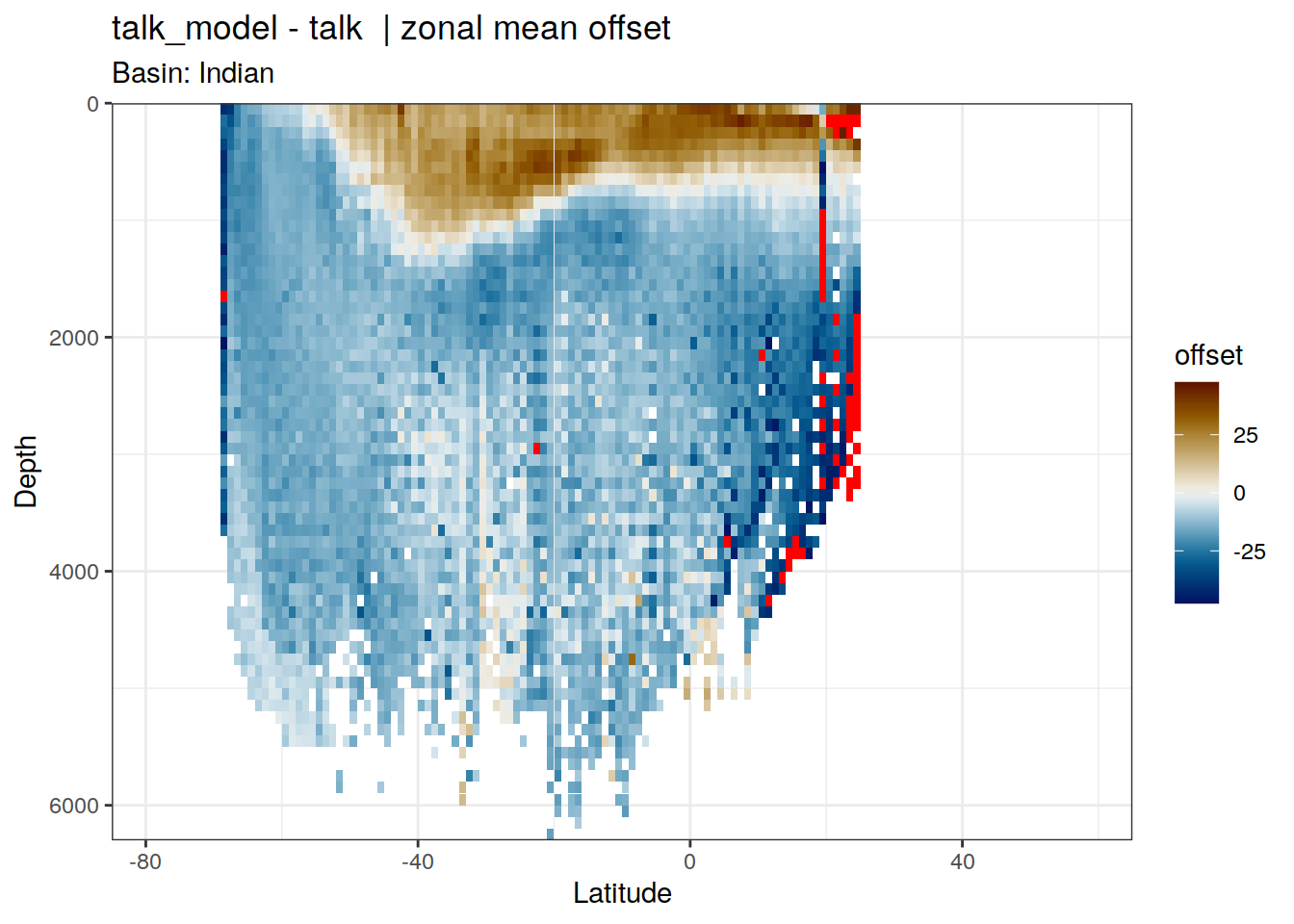

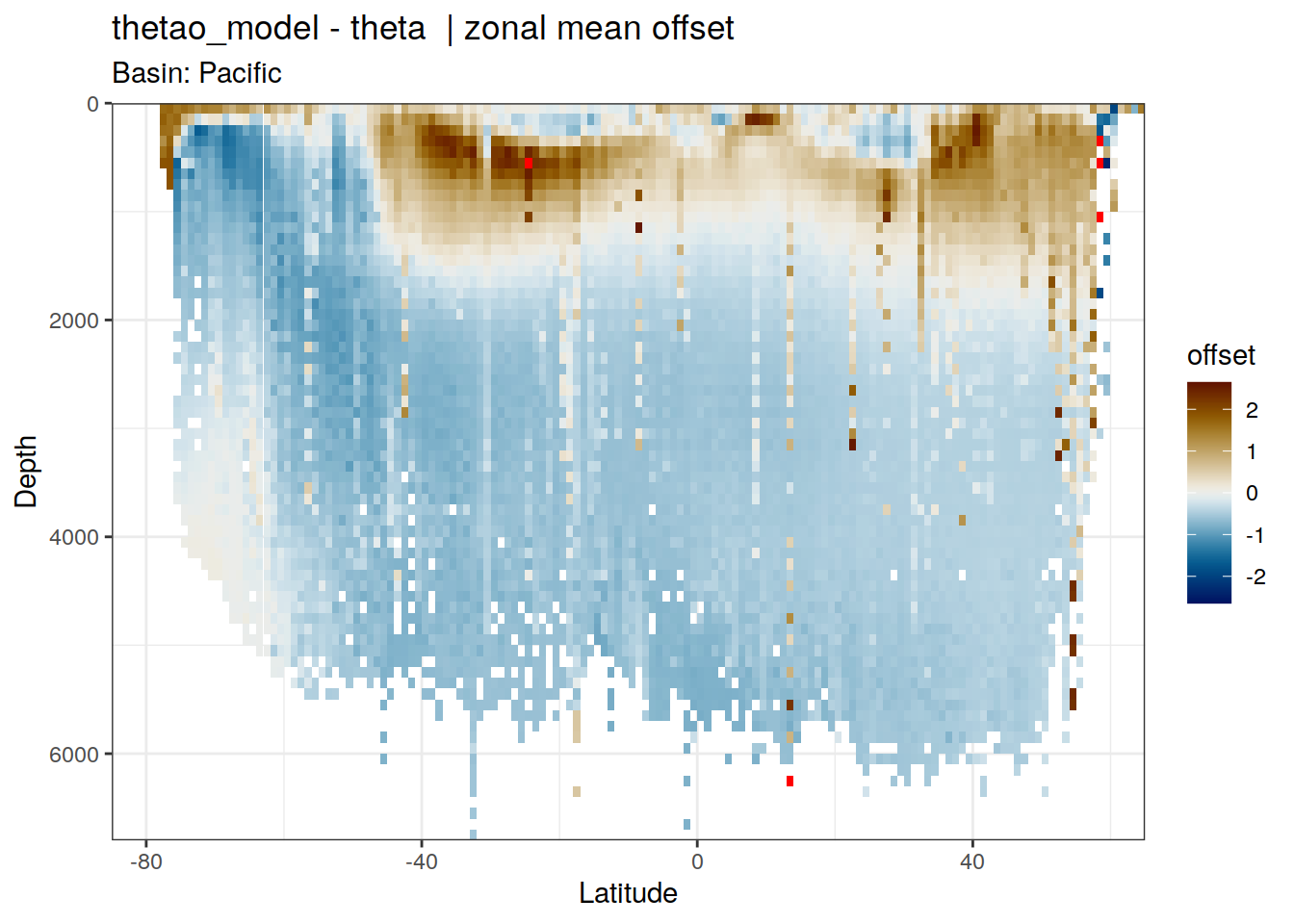

  # zonal mean section of the model-observations offset for each basin

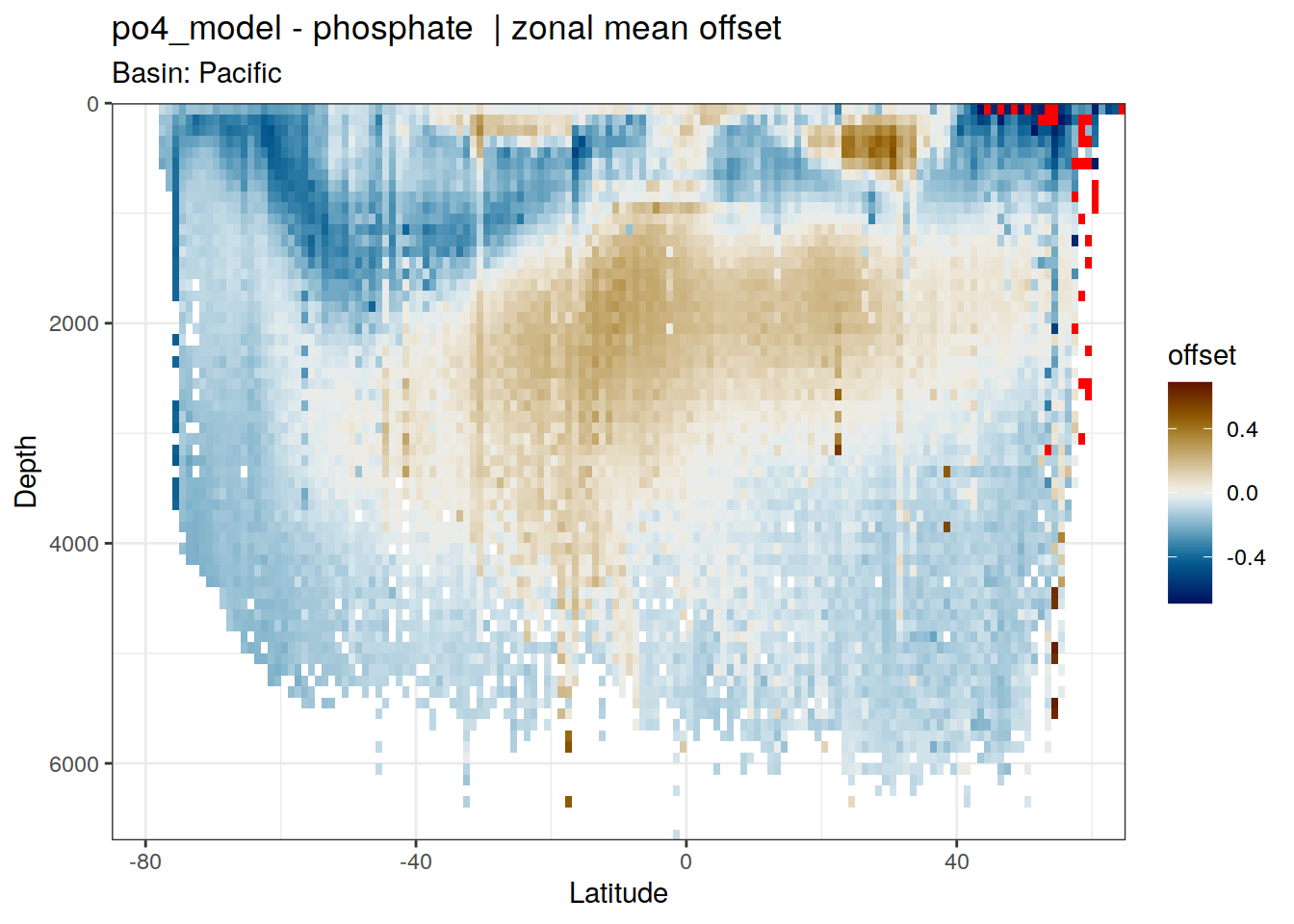

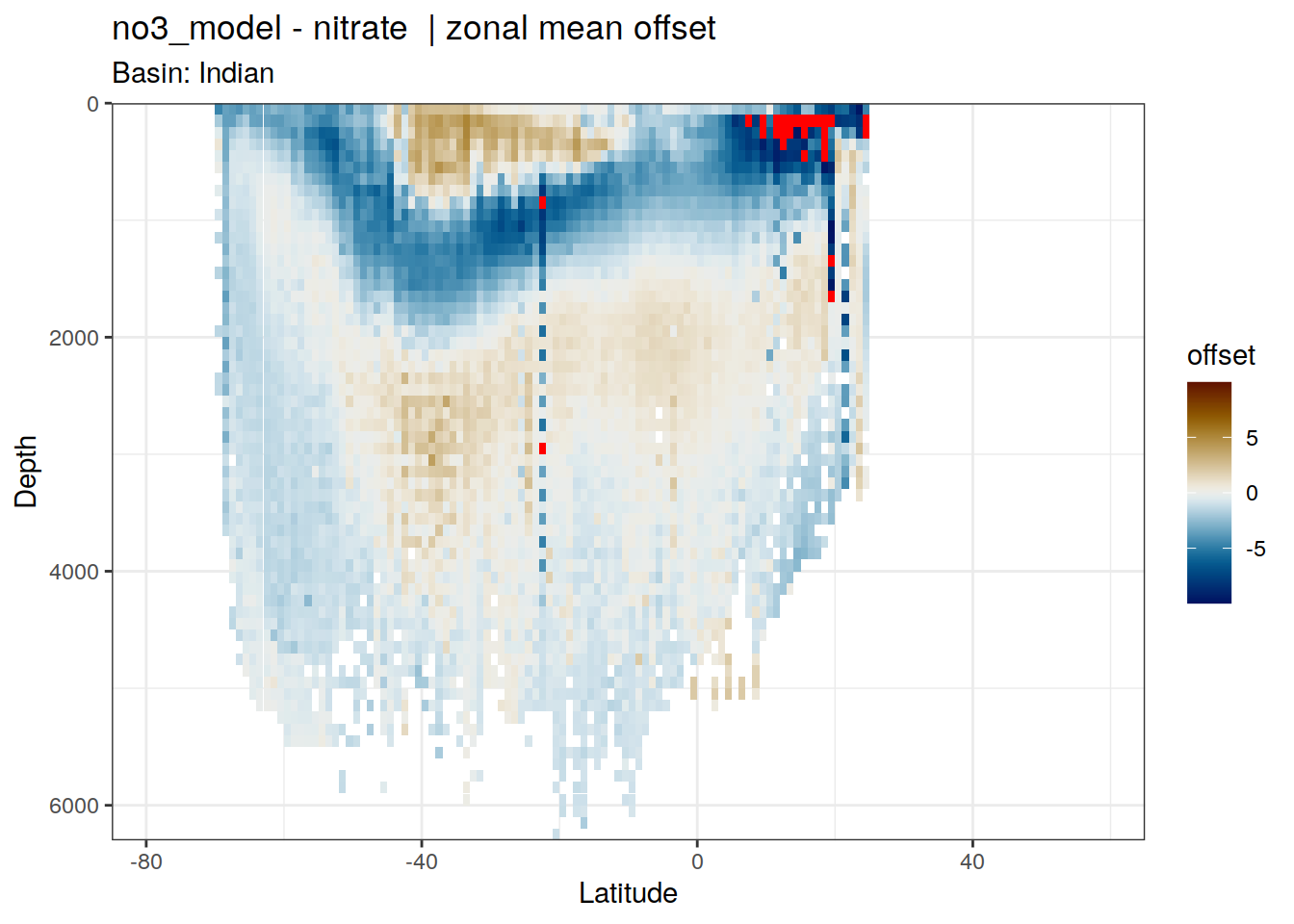

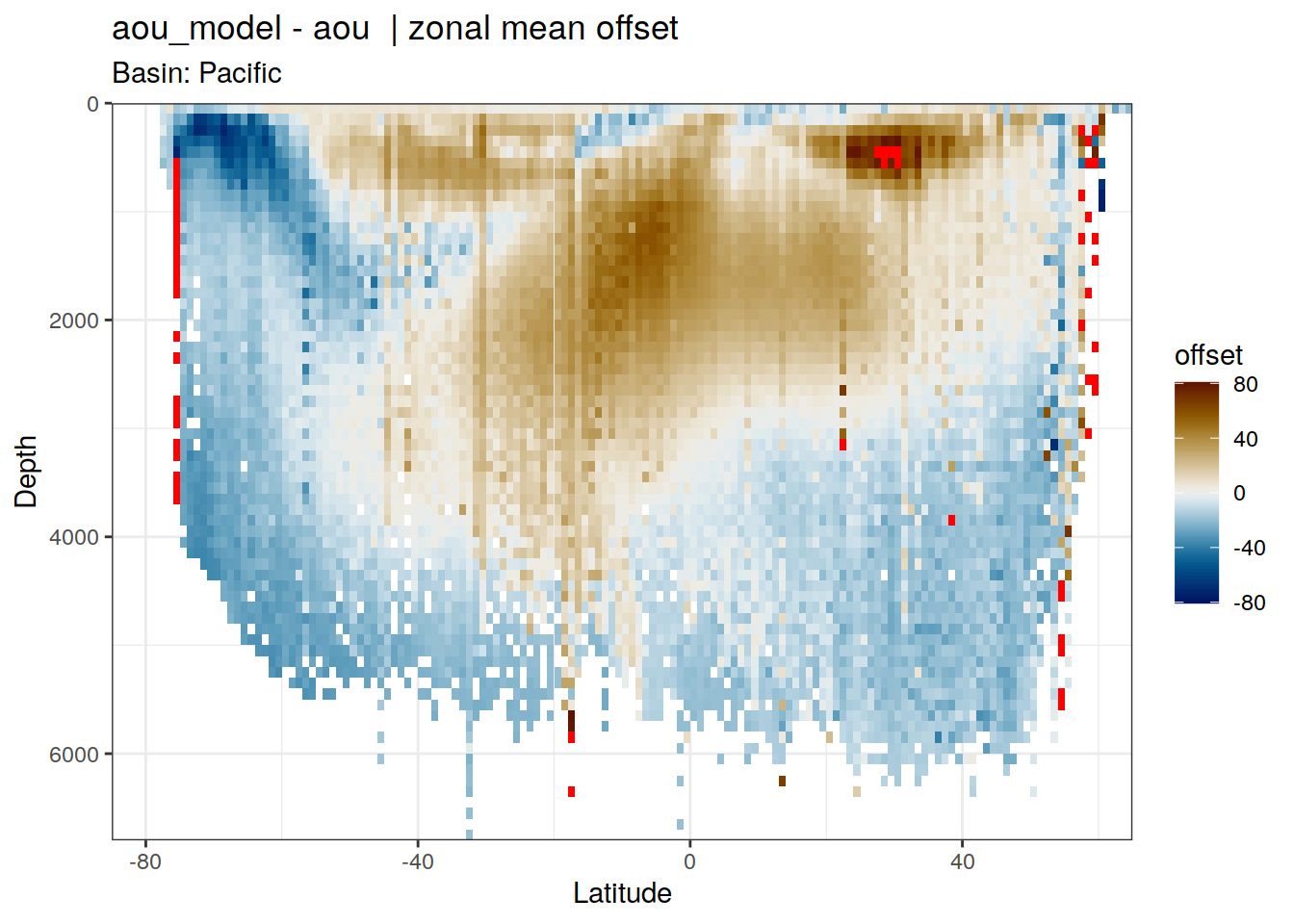

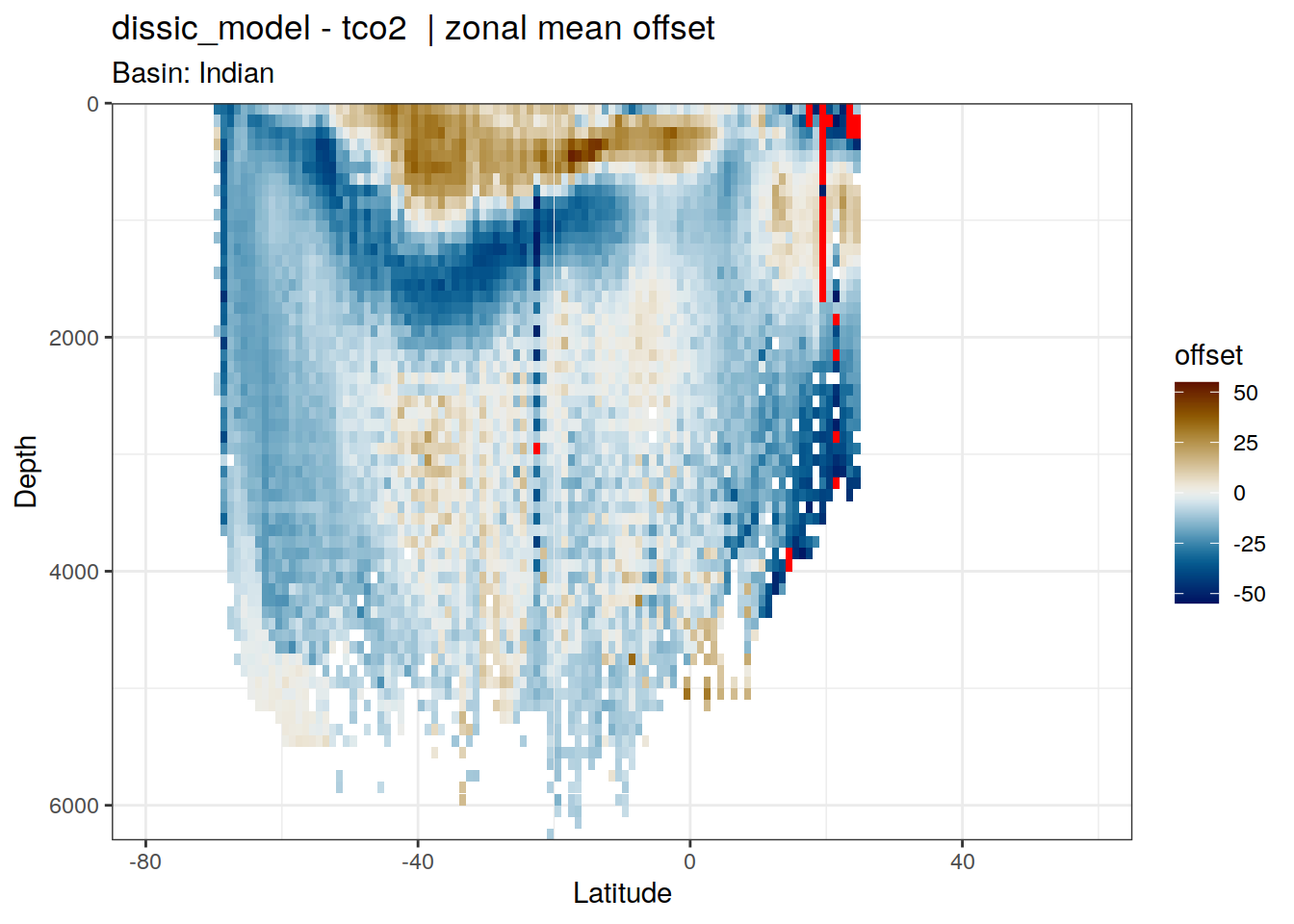

  for (i_basin_AIP in unique(GLODAP_cmorized_var$basin_AIP)) {
   # i_basin_AIP = "Atlantic"
    GLODAP_cmorized_var_zonal <- GLODAP_cmorized_var %>%
      filter(basin_AIP == i_basin_AIP) %>%
      group_by(lat, depth) %>%
      summarise(offset = mean(offset, na.rm=TRUE)) %>%
      ungroup()

    # plot zonal mean section (model - obs)
    lat_max <- params_global$lat_max
    lat_min <- params_global$lat_min
    limit <-
      quantile(abs(GLODAP_cmorized_var_zonal$offset), 0.98) * c(-1, 1)

    print(

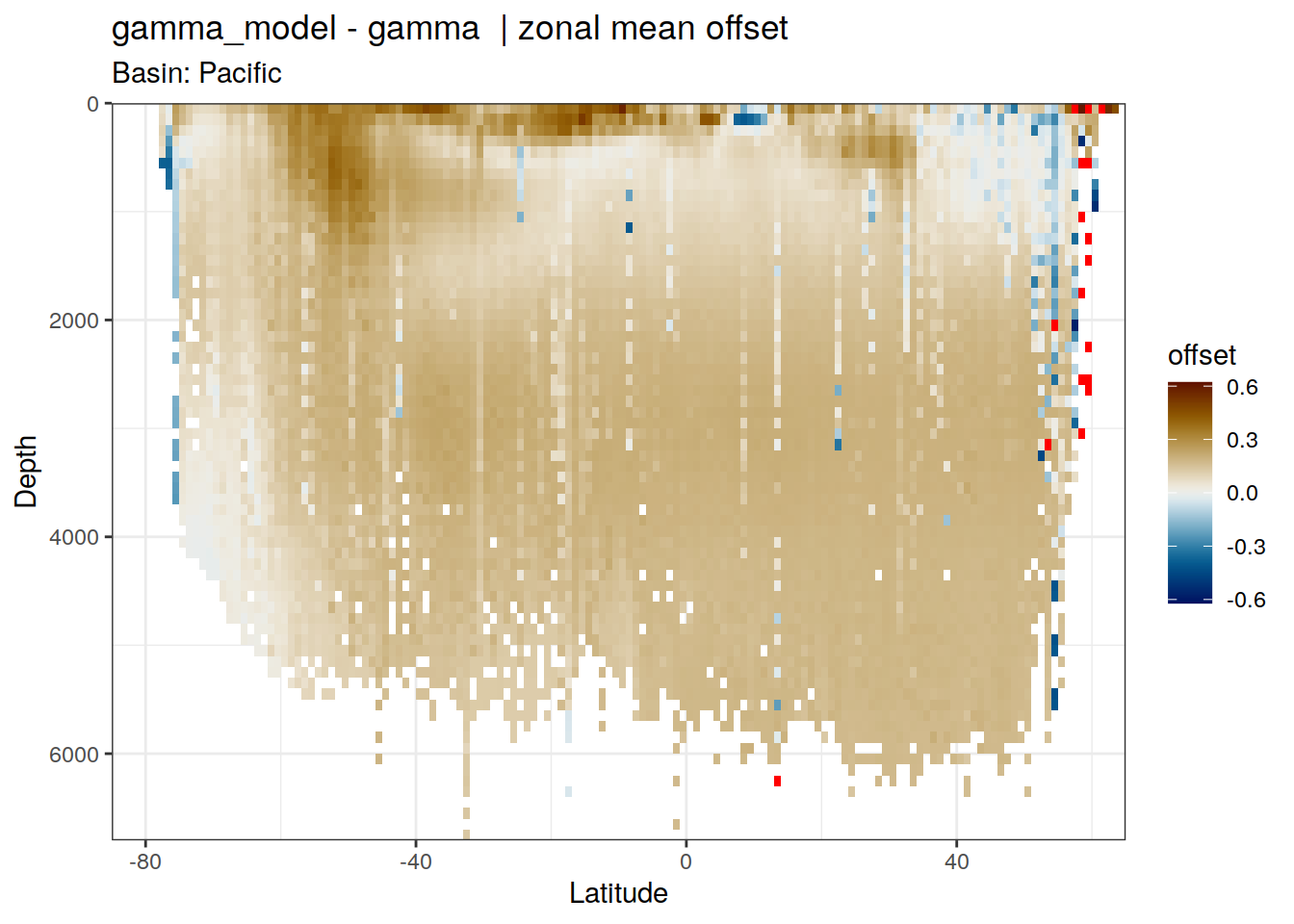

      GLODAP_cmorized_var_zonal %>%
        ggplot(aes(lat, depth, z = offset)) +
        stat_summary_2d(binwidth = c(1,100)) +
        scale_fill_scico(
          palette = "vik",
          name = "offset",
          limit = limit,
          na.value = "red"
        ) +
        coord_cartesian(expand = 0,
                        xlim = c(lat_min, lat_max)) +
        scale_y_reverse() +

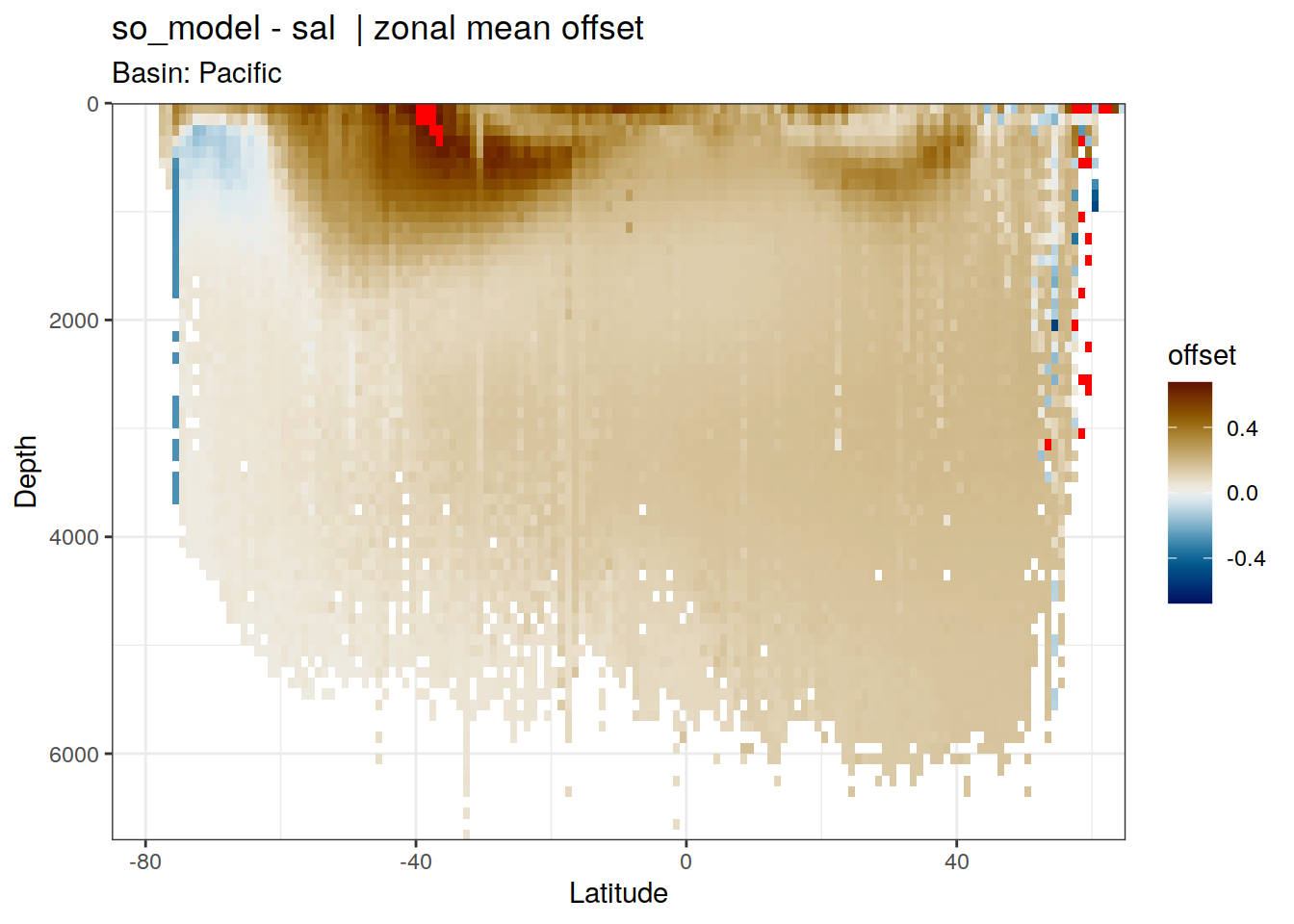

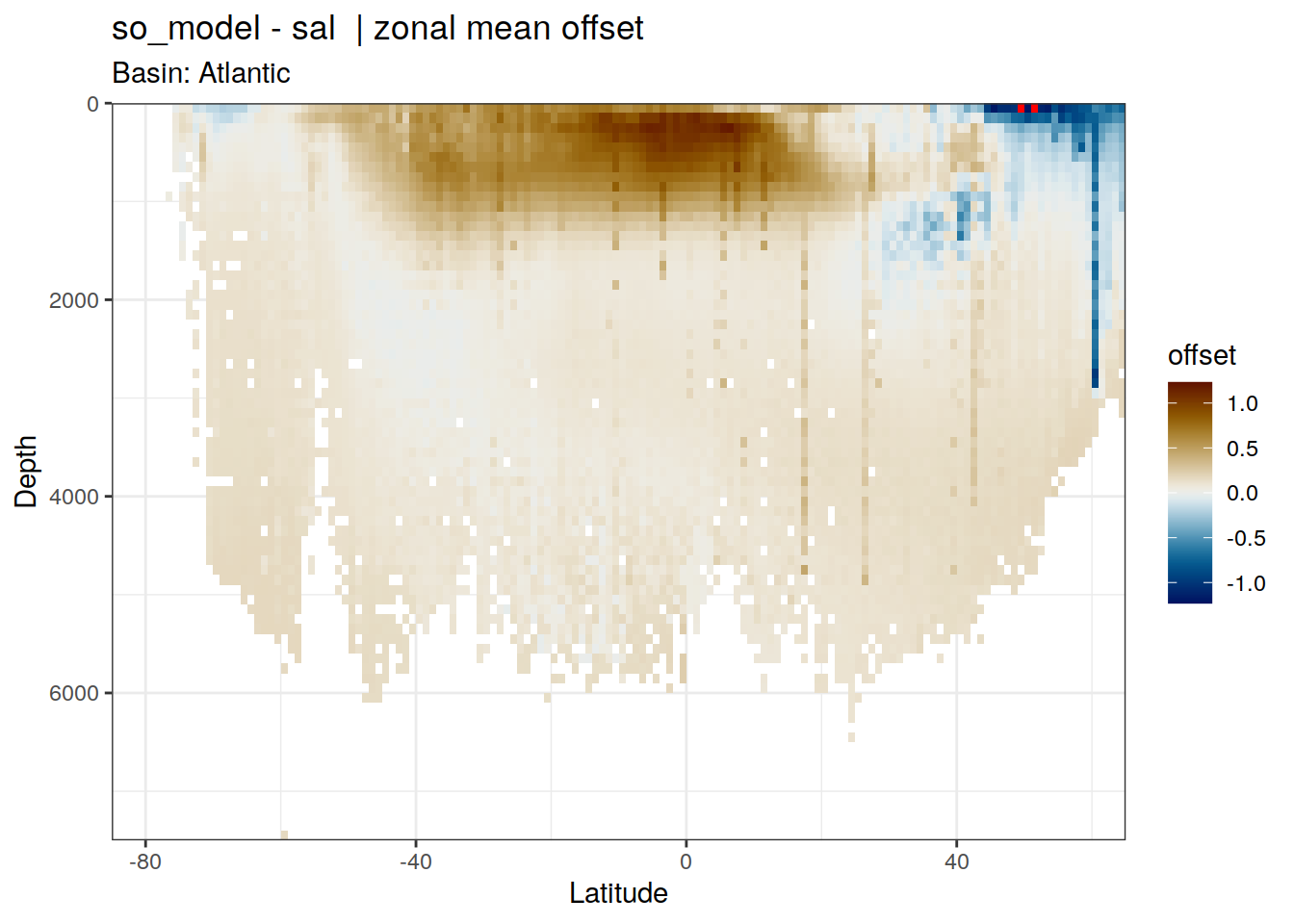

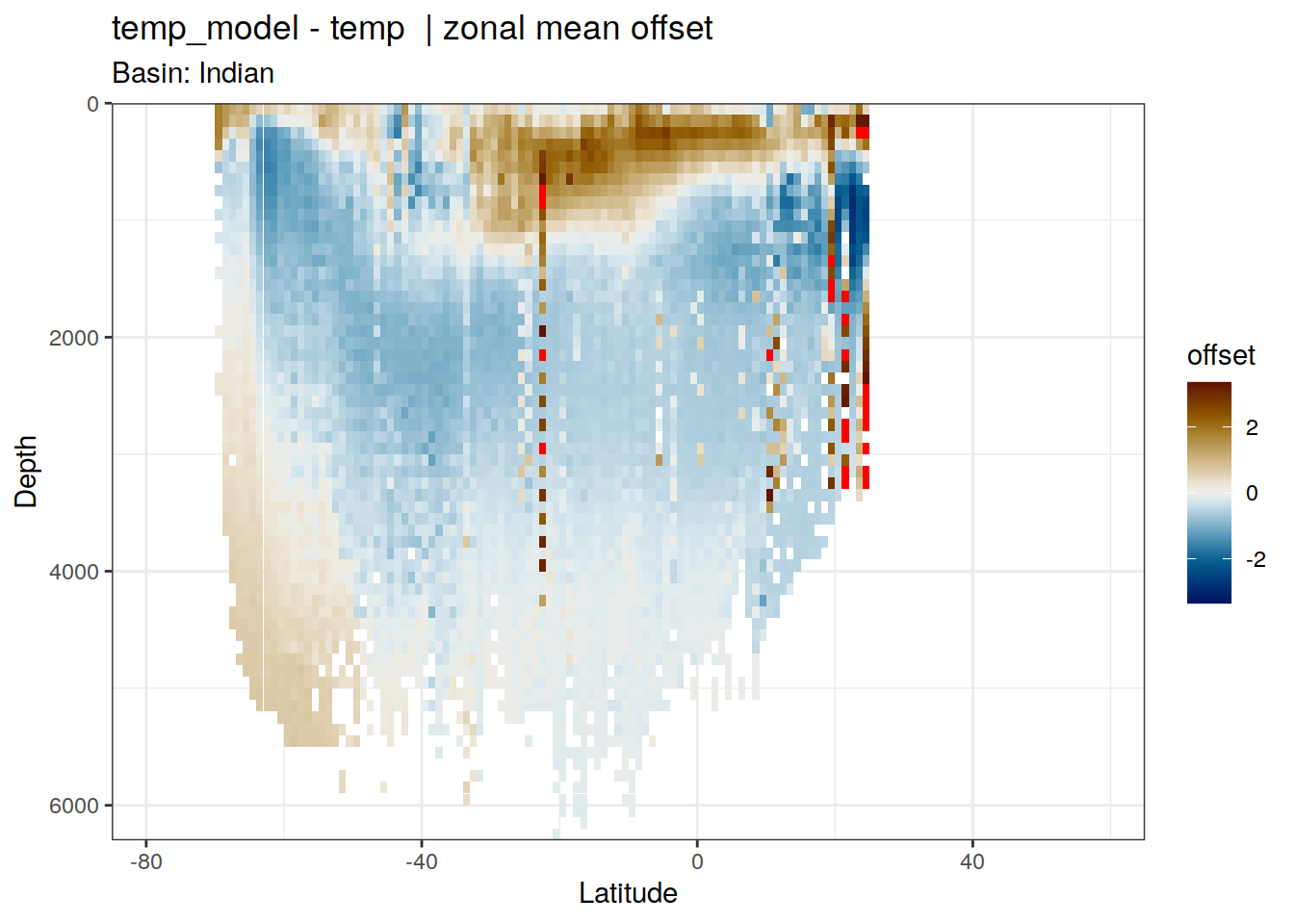

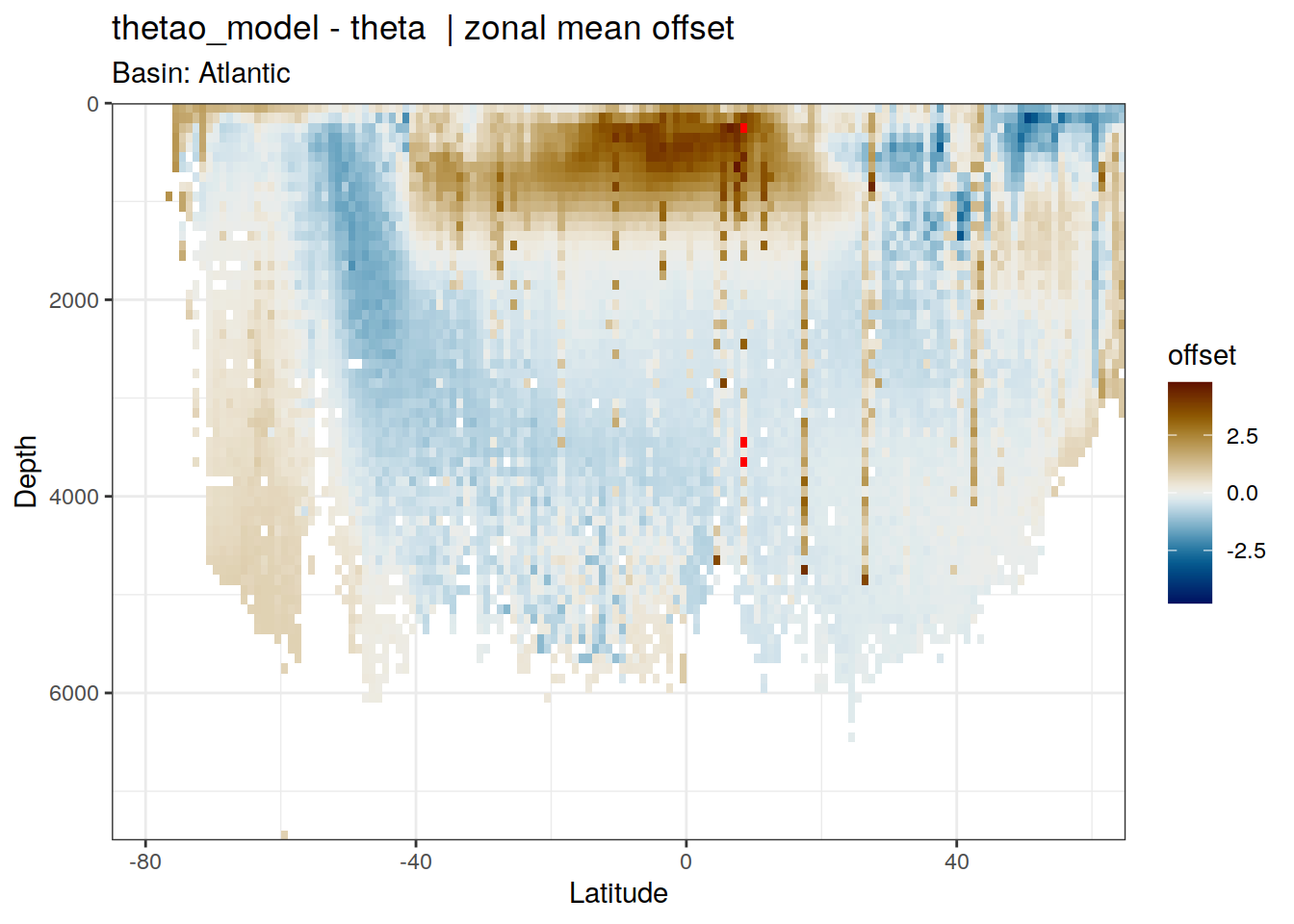

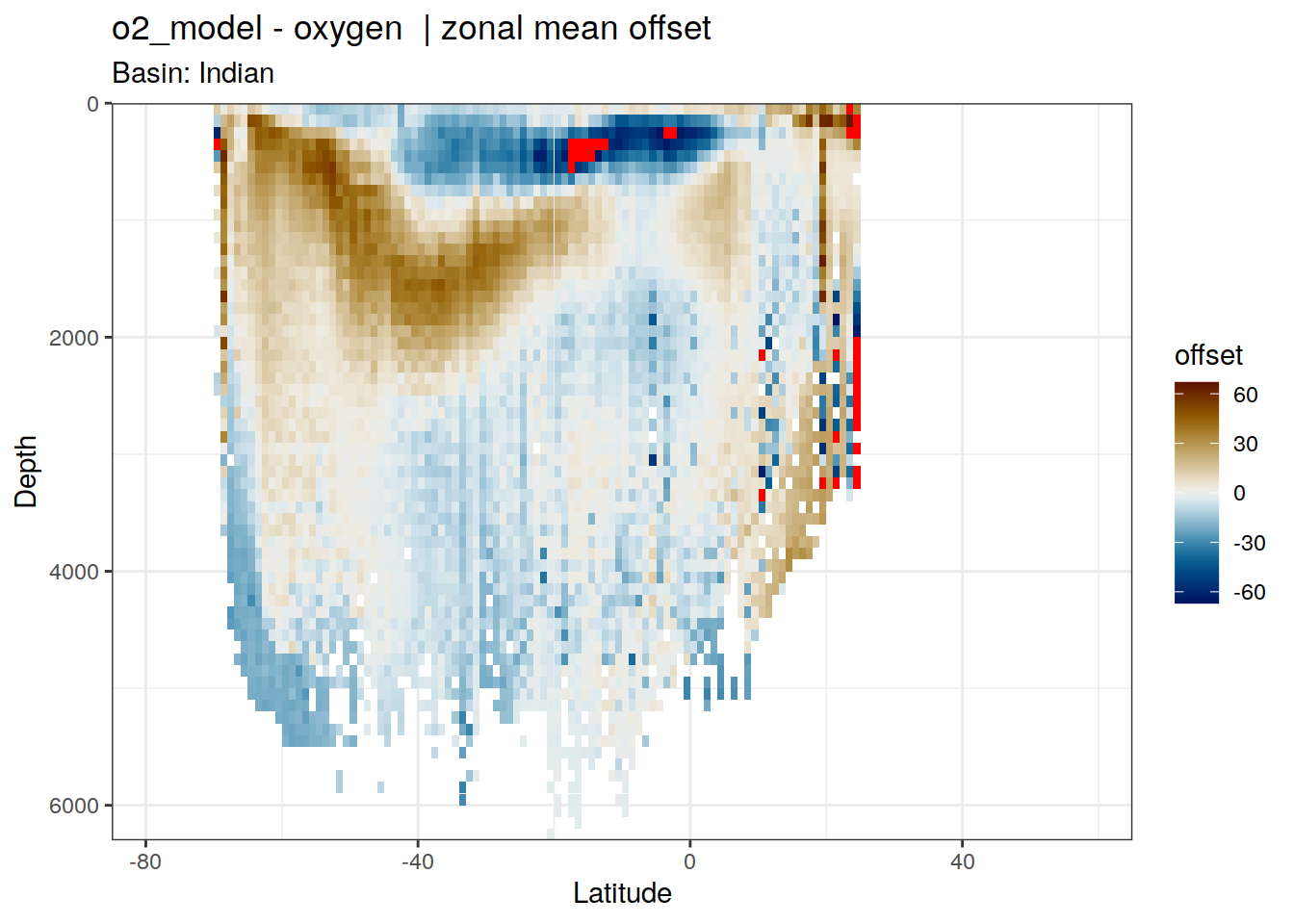

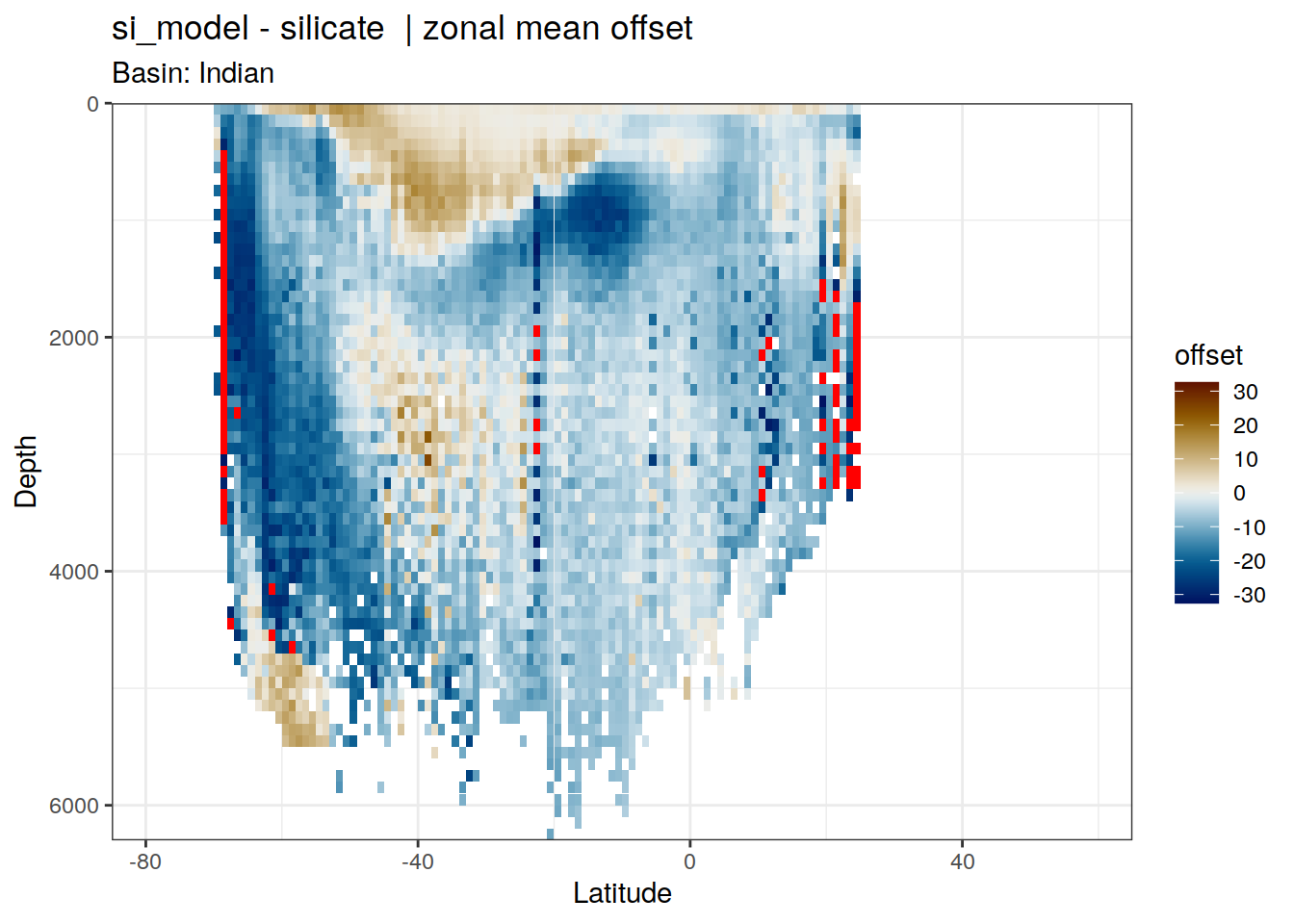

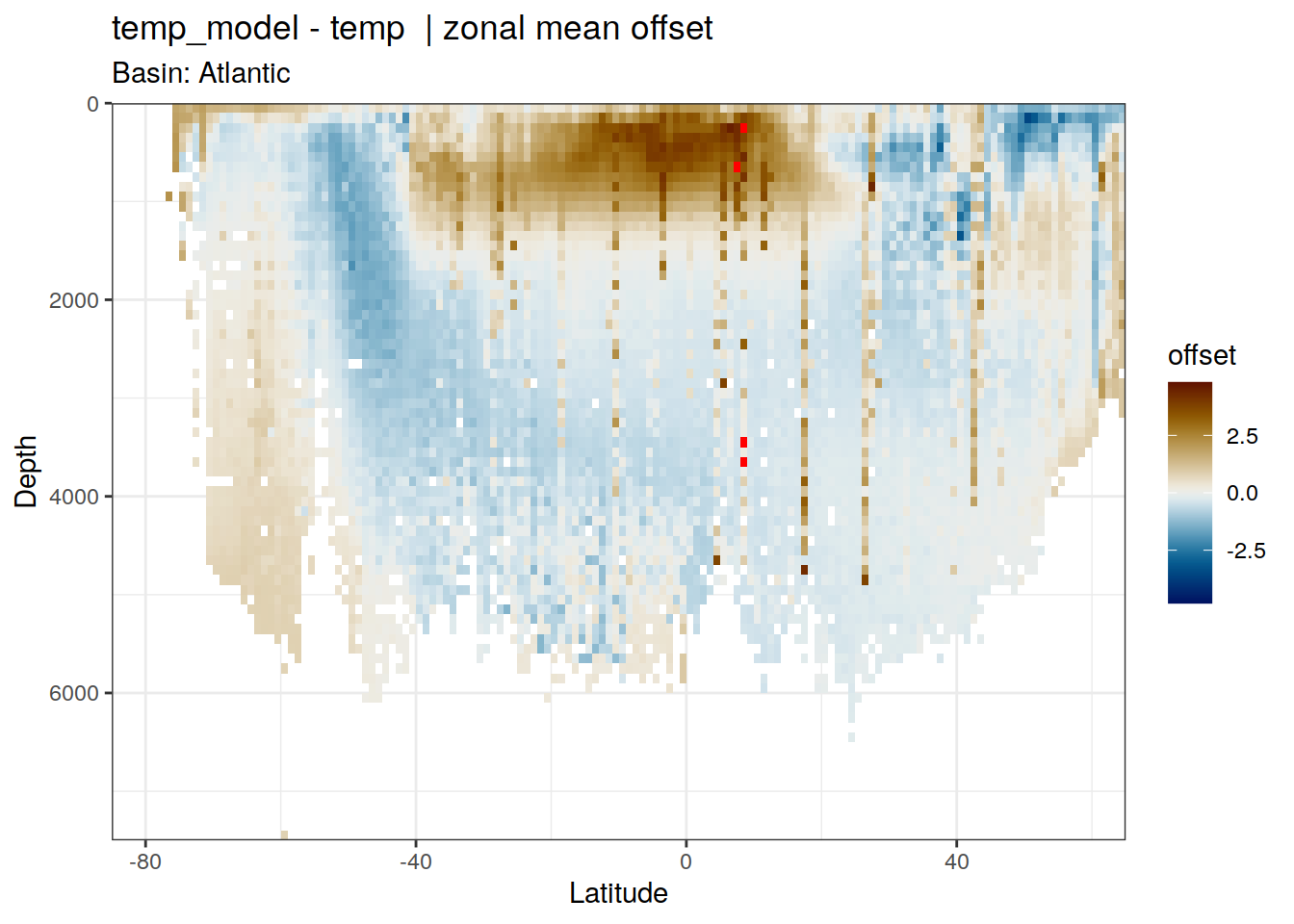

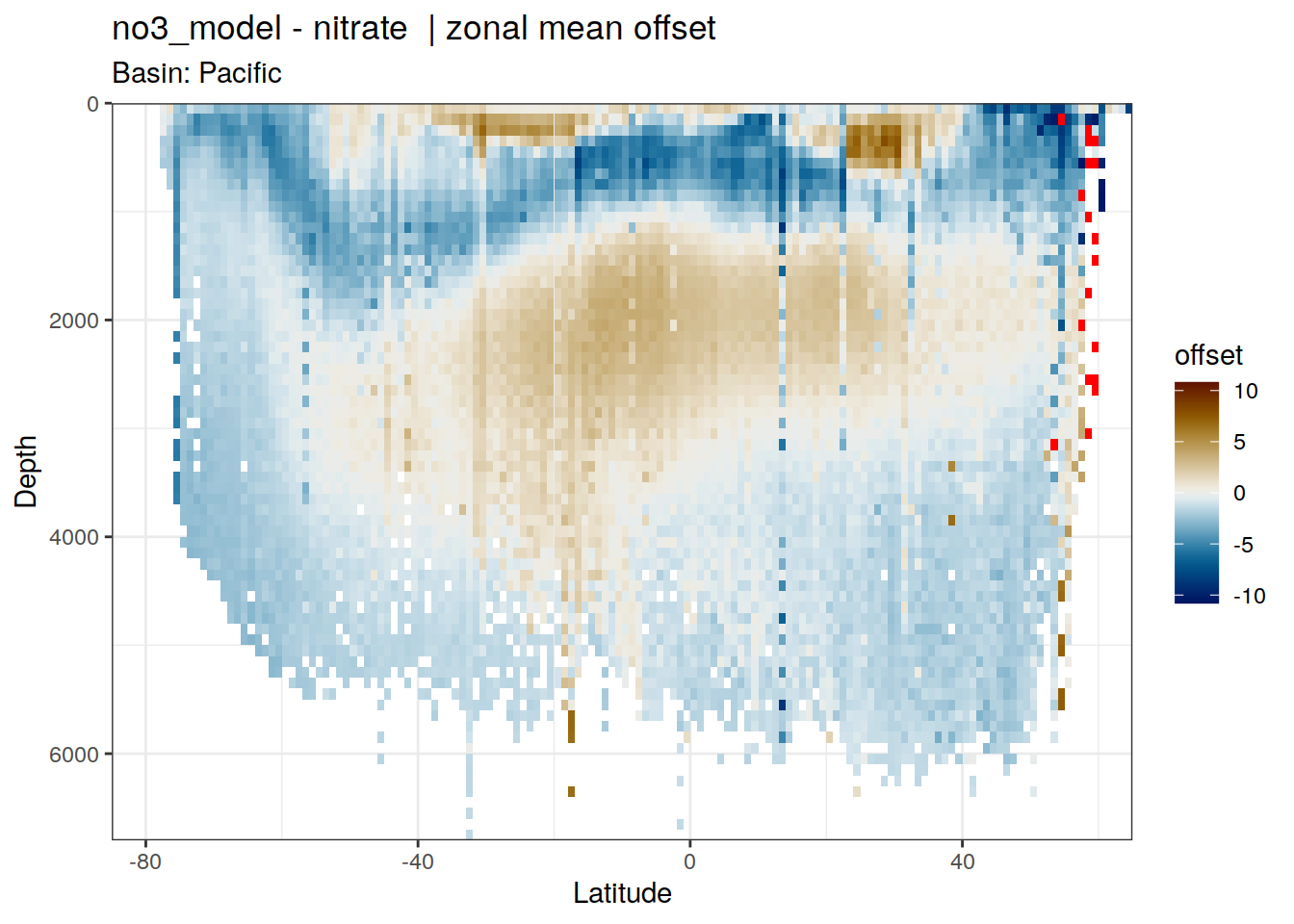

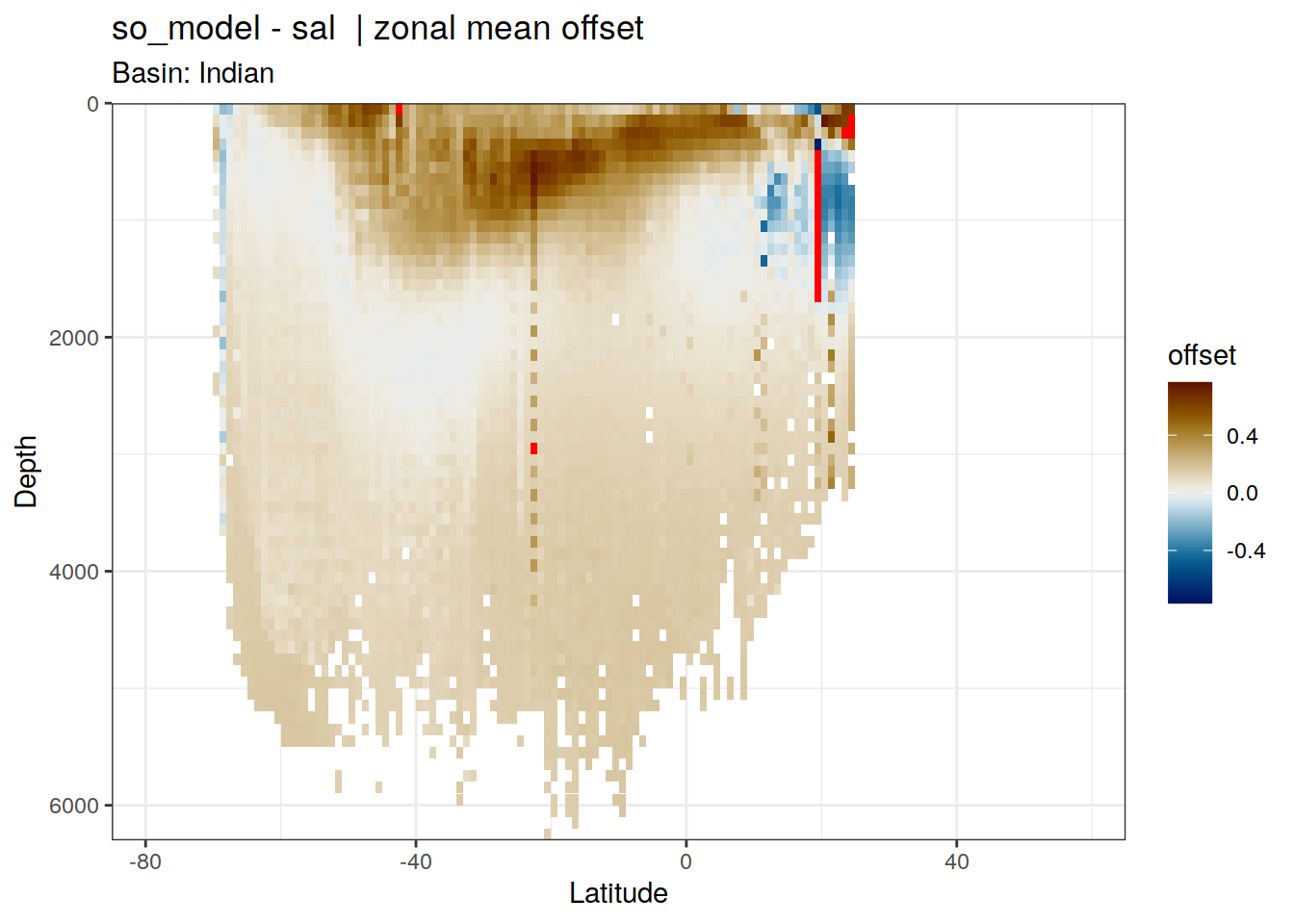

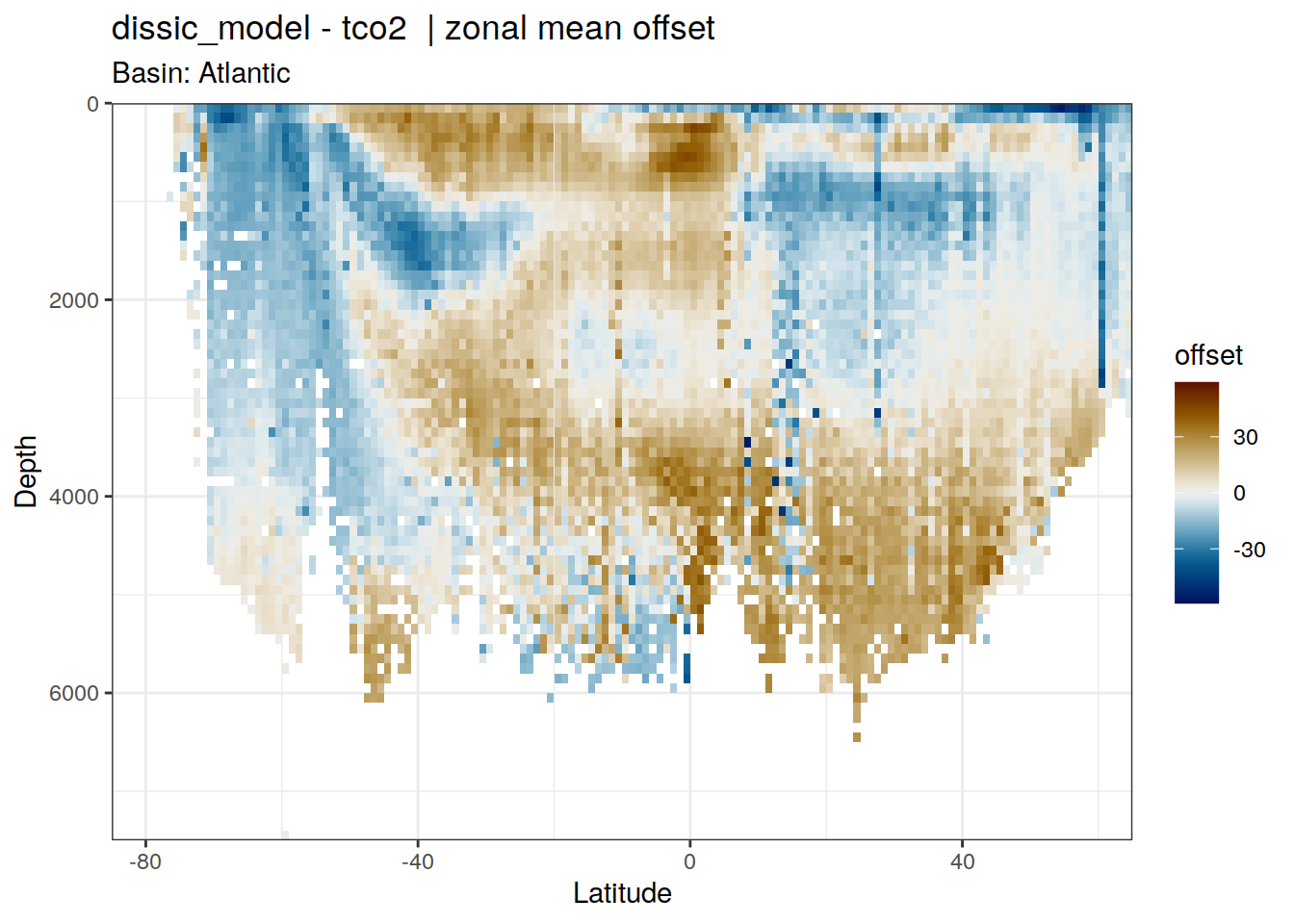

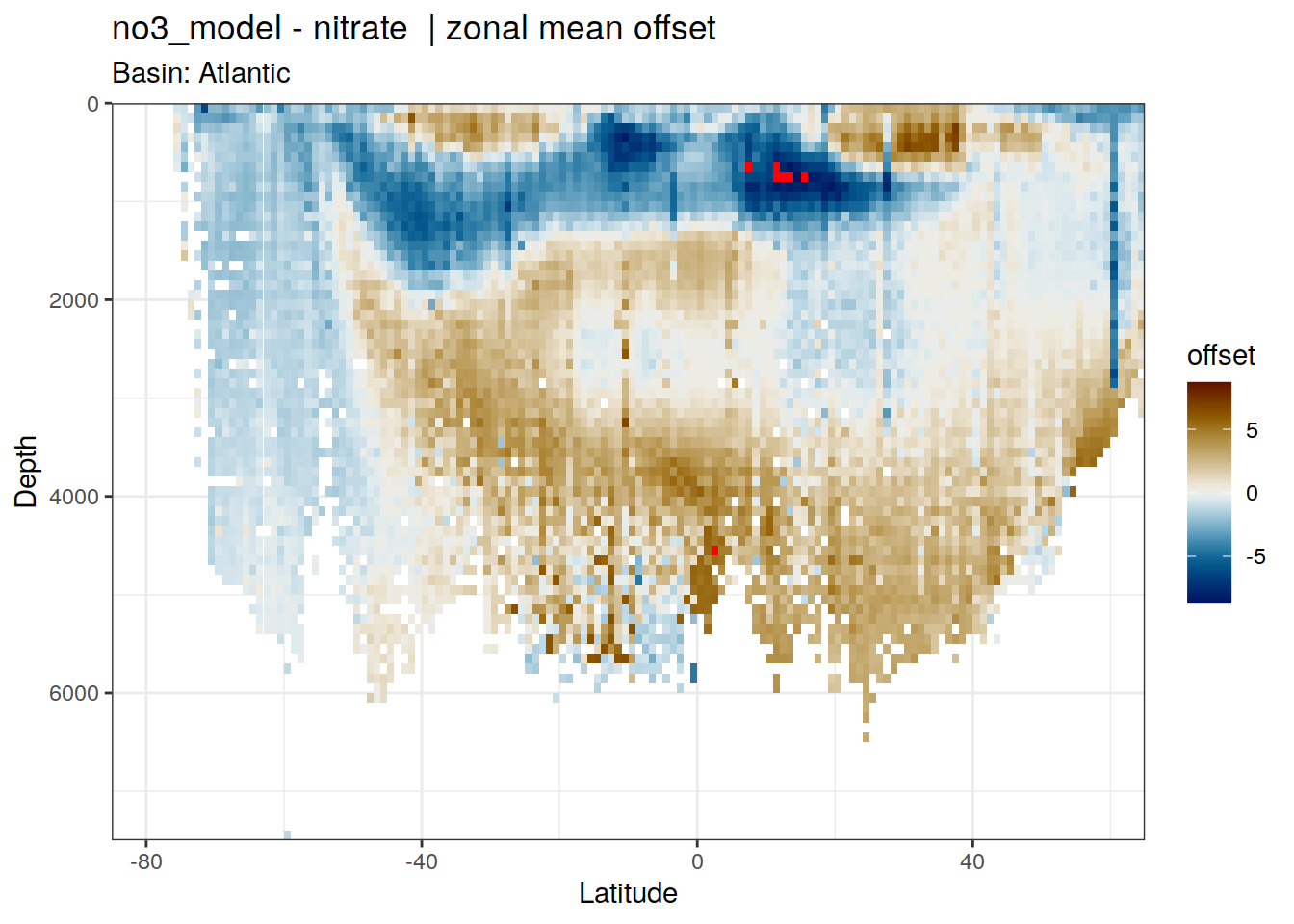

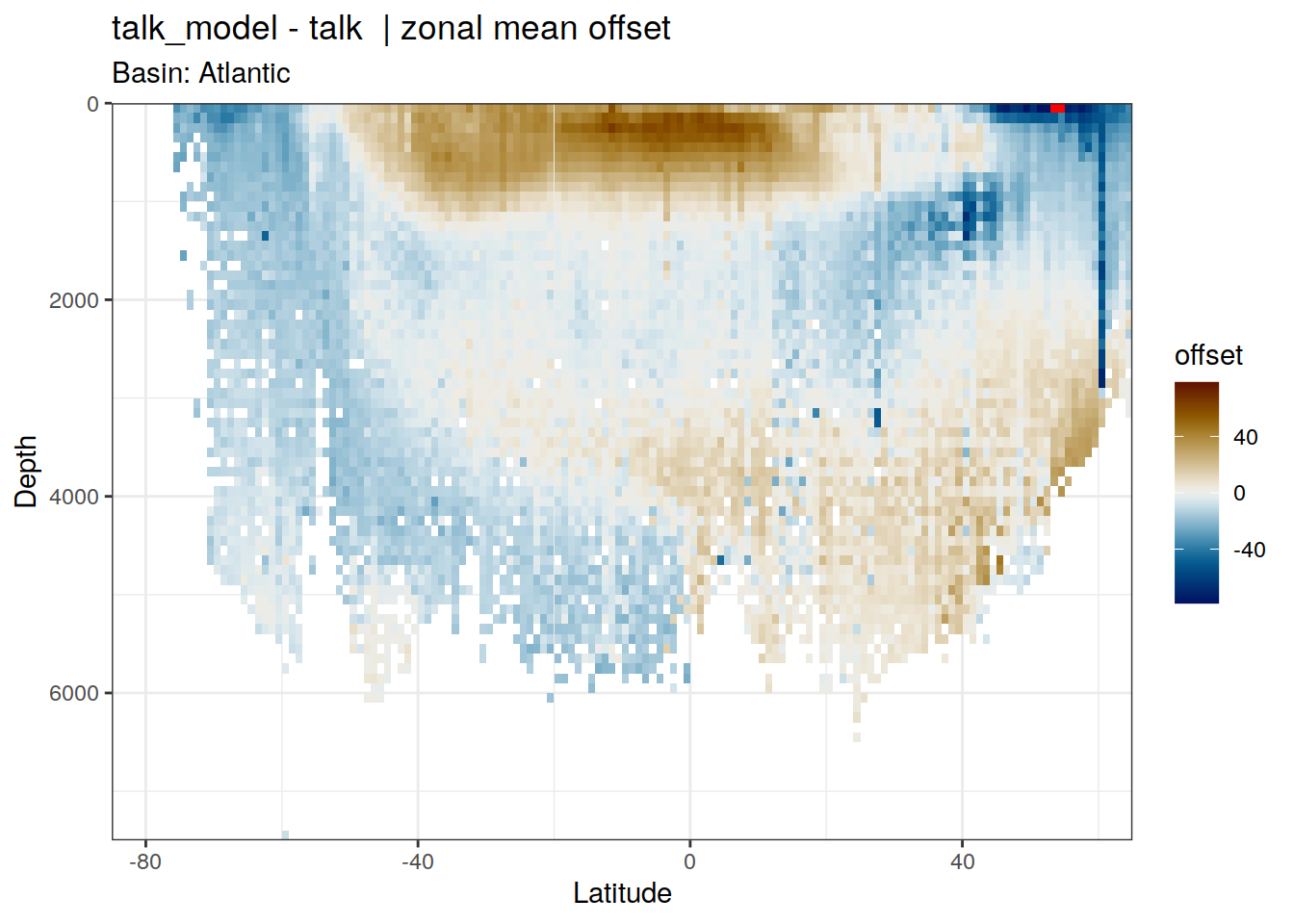

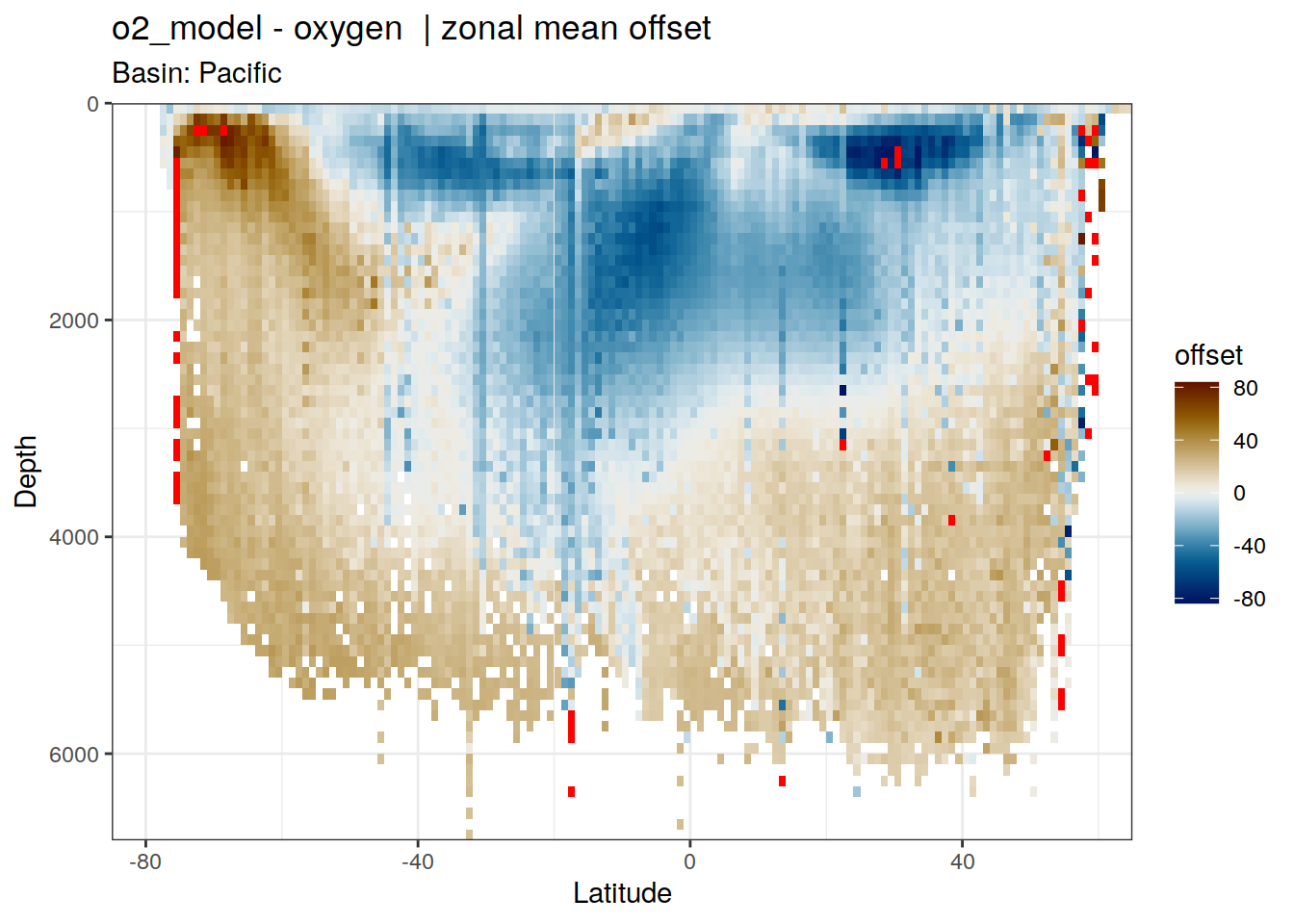

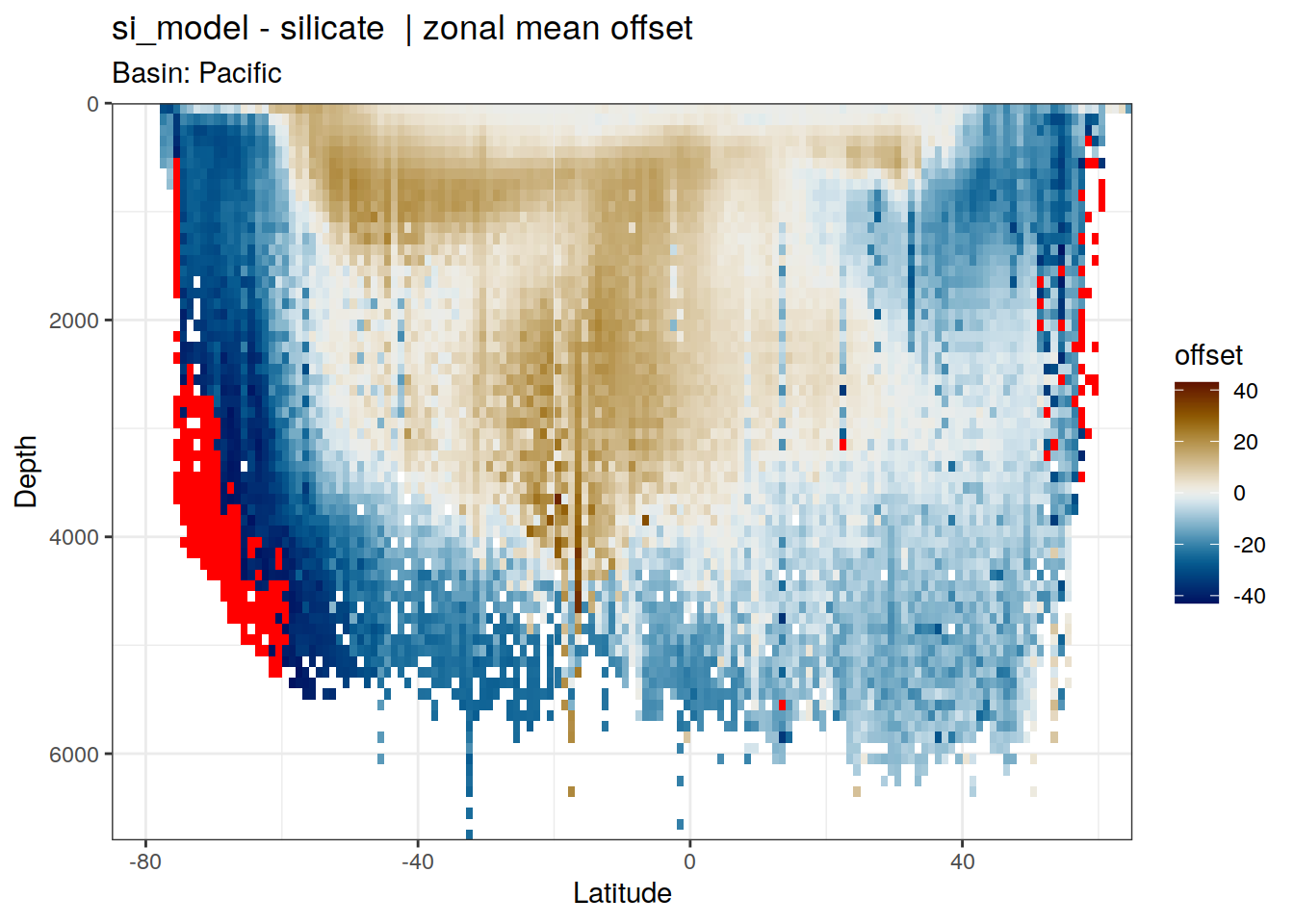

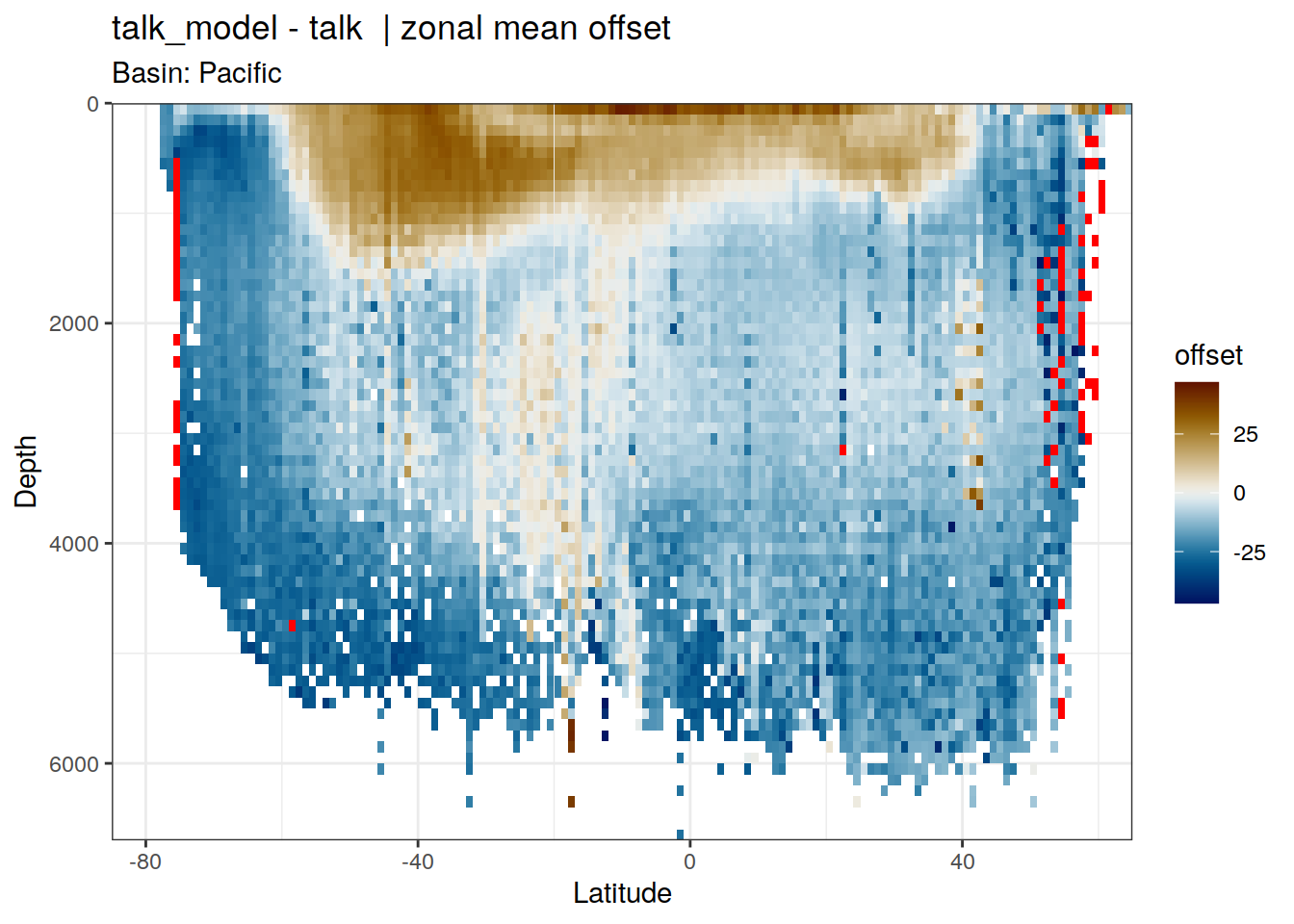

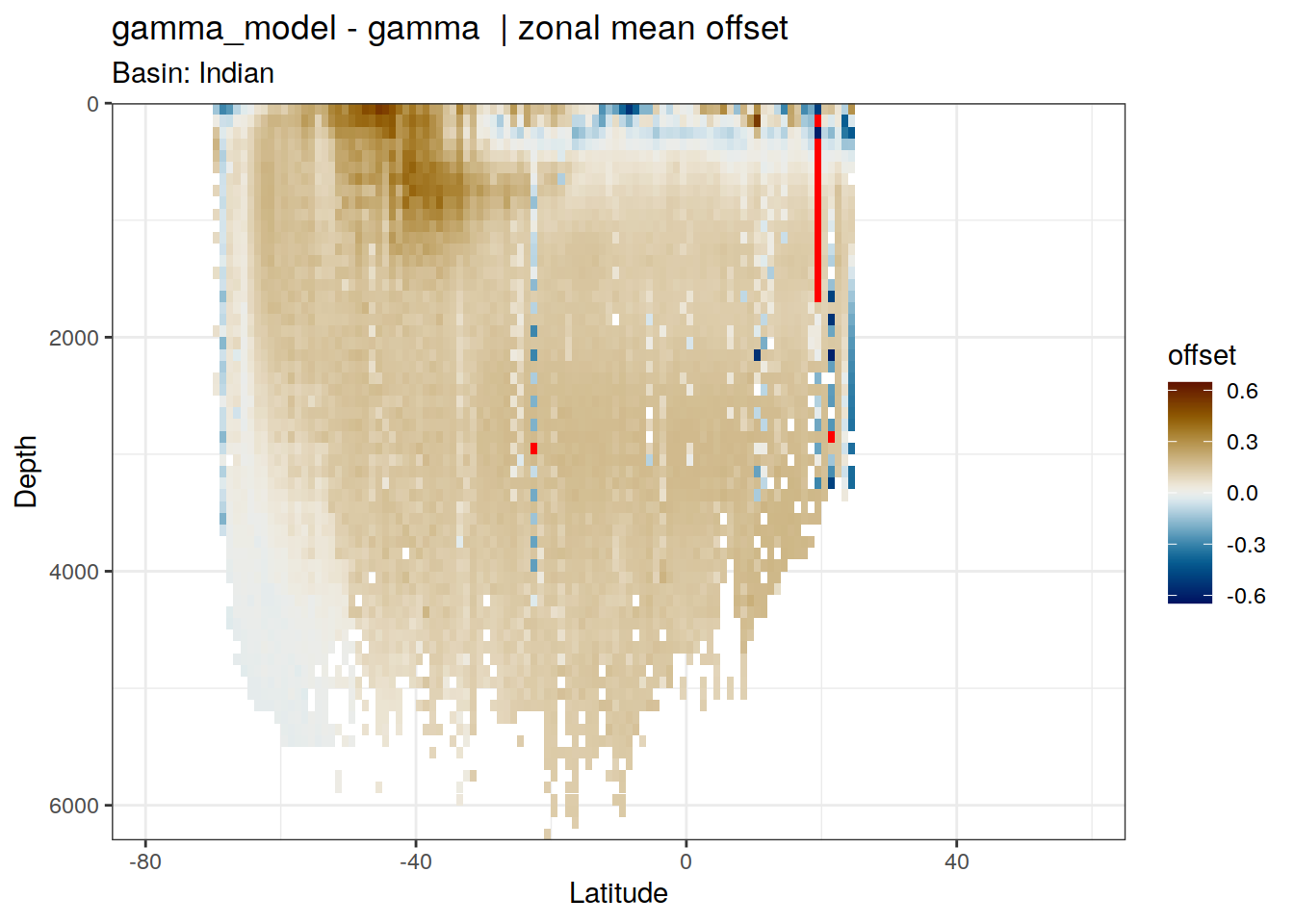

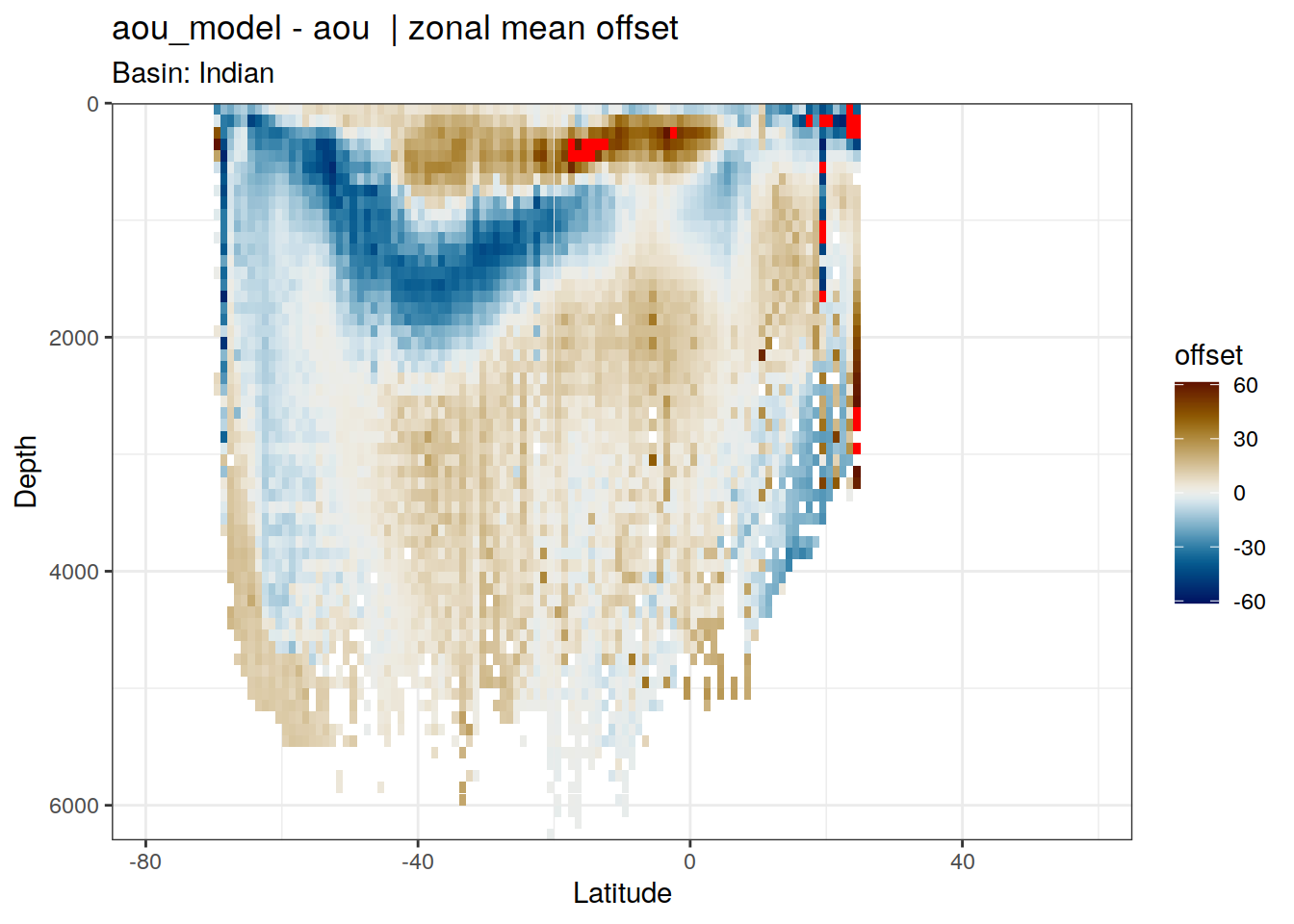

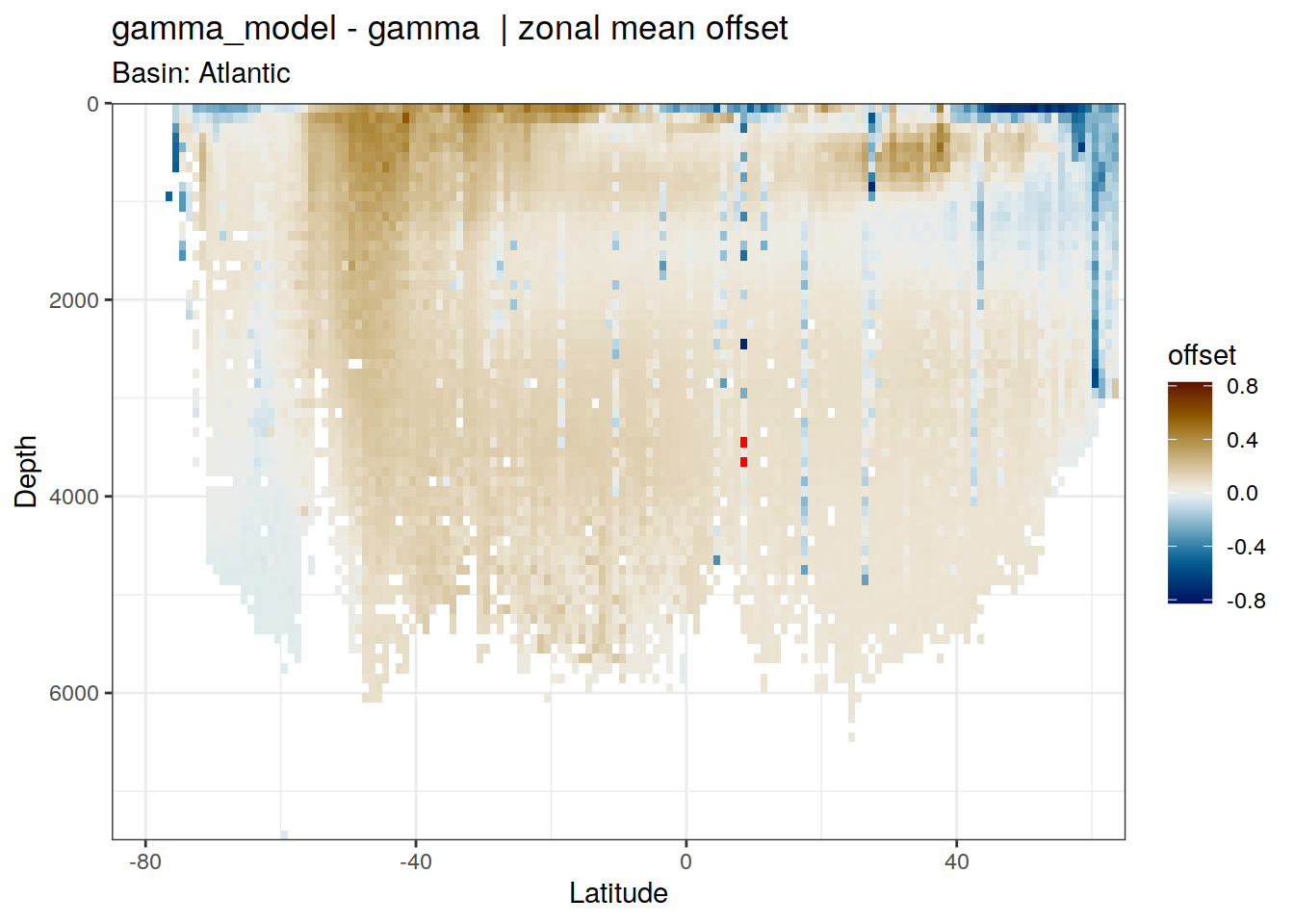

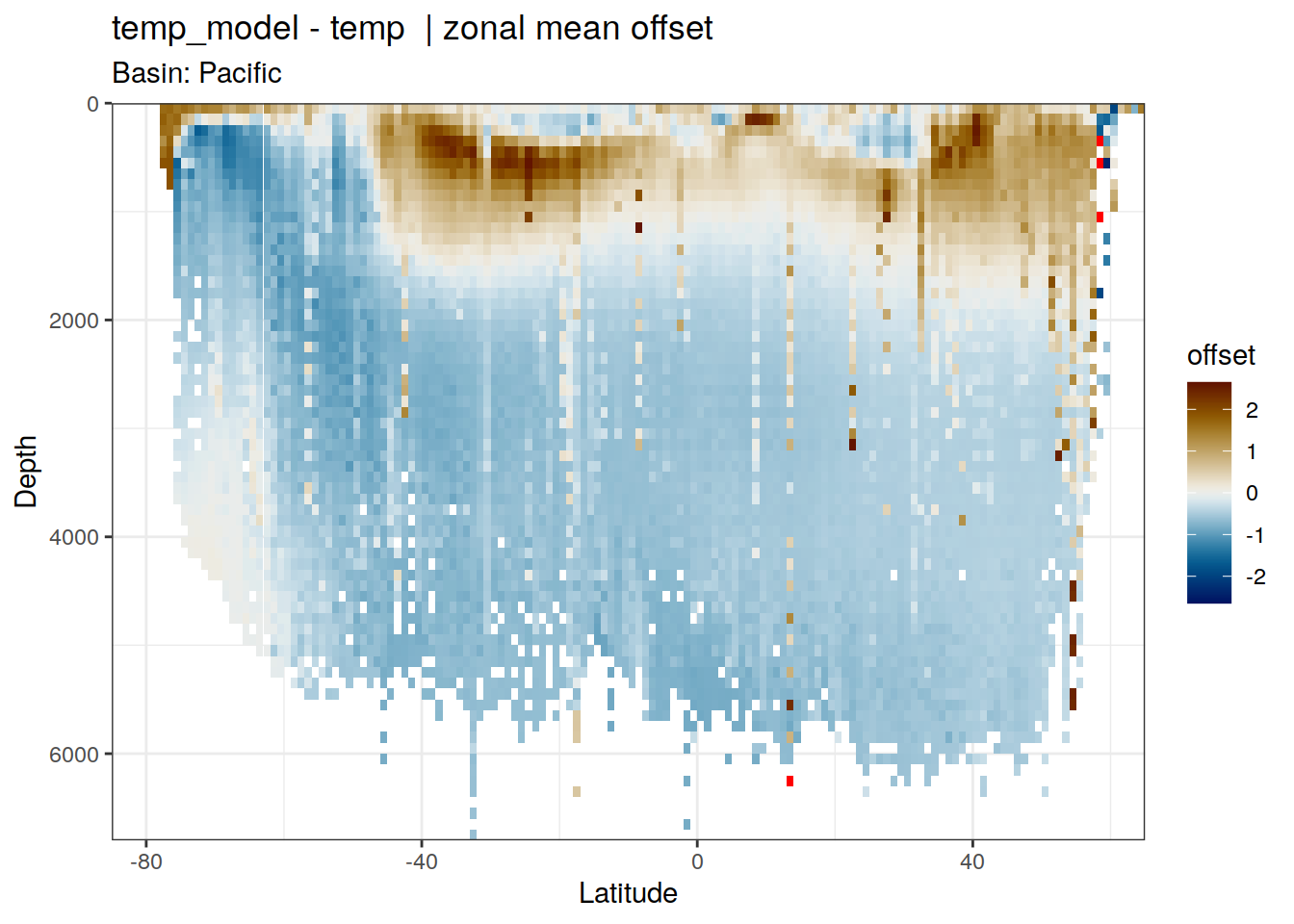

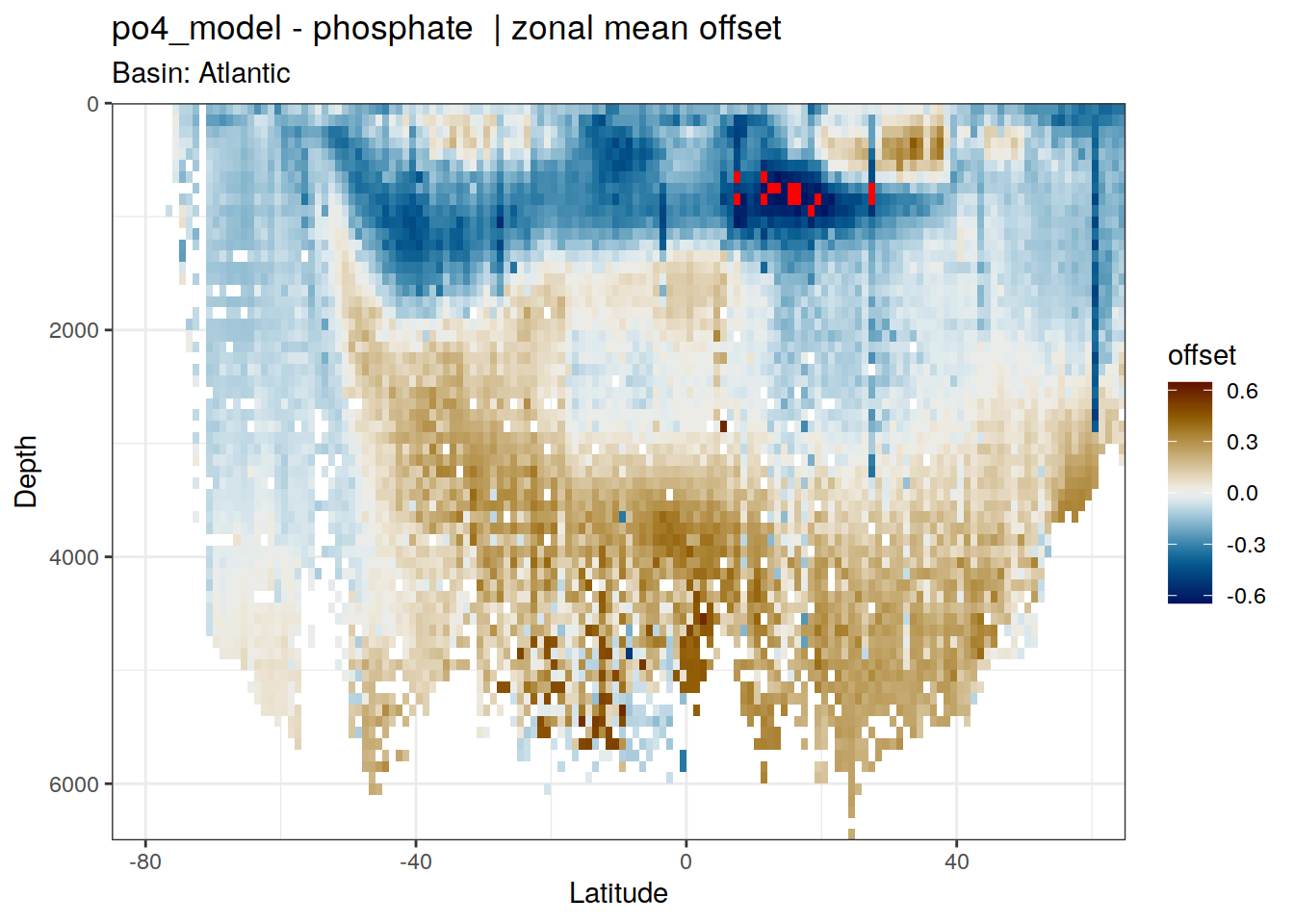

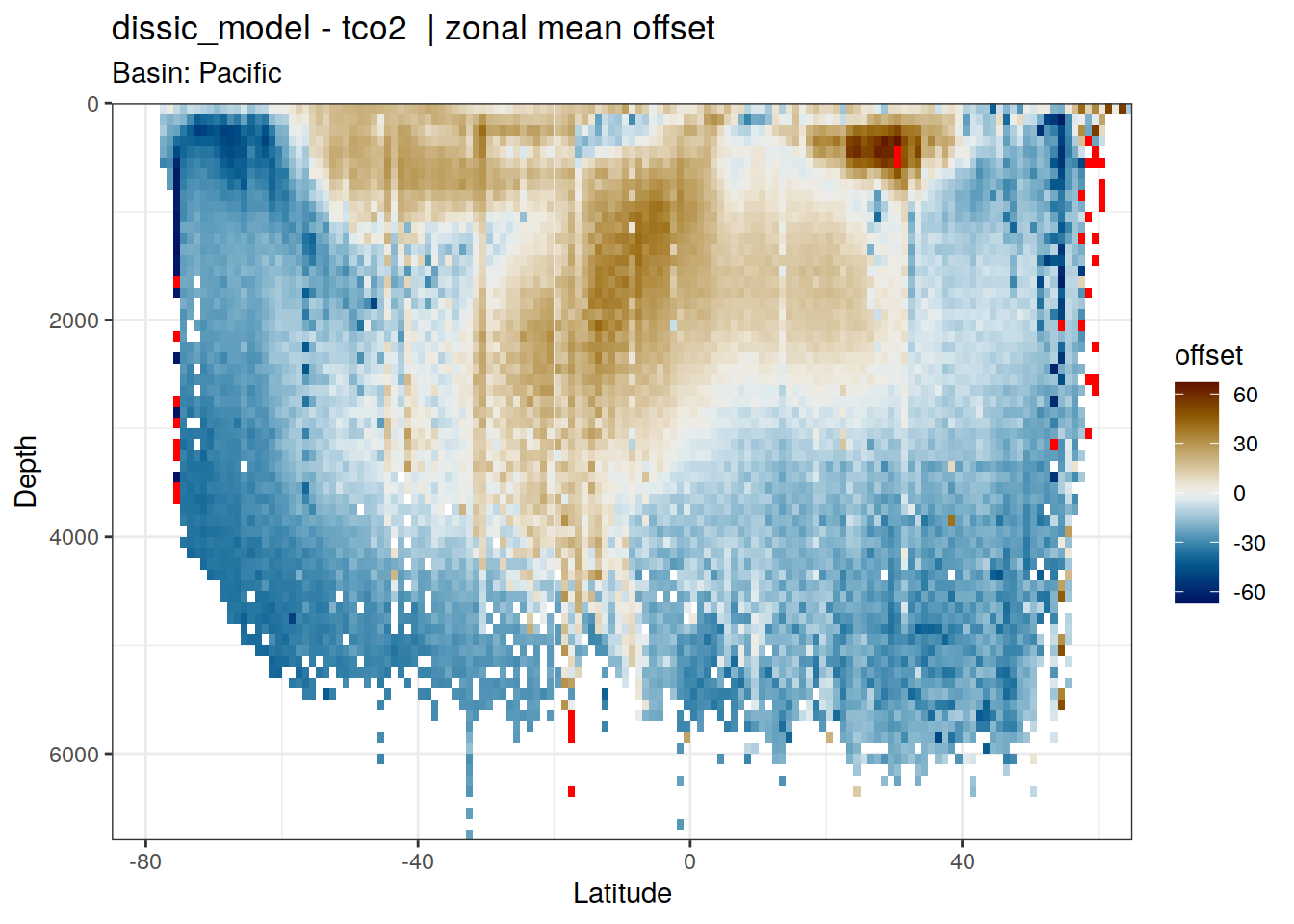

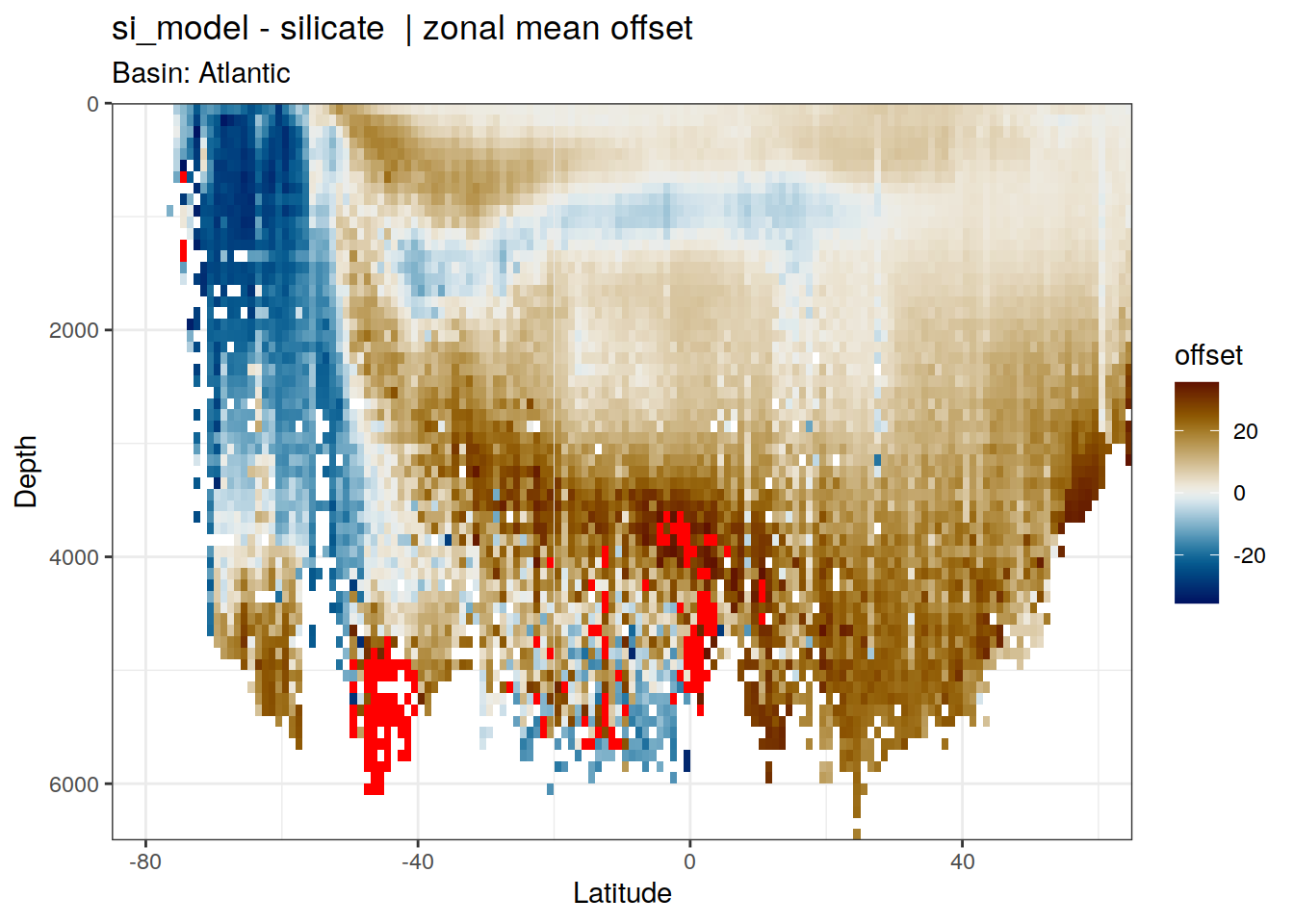

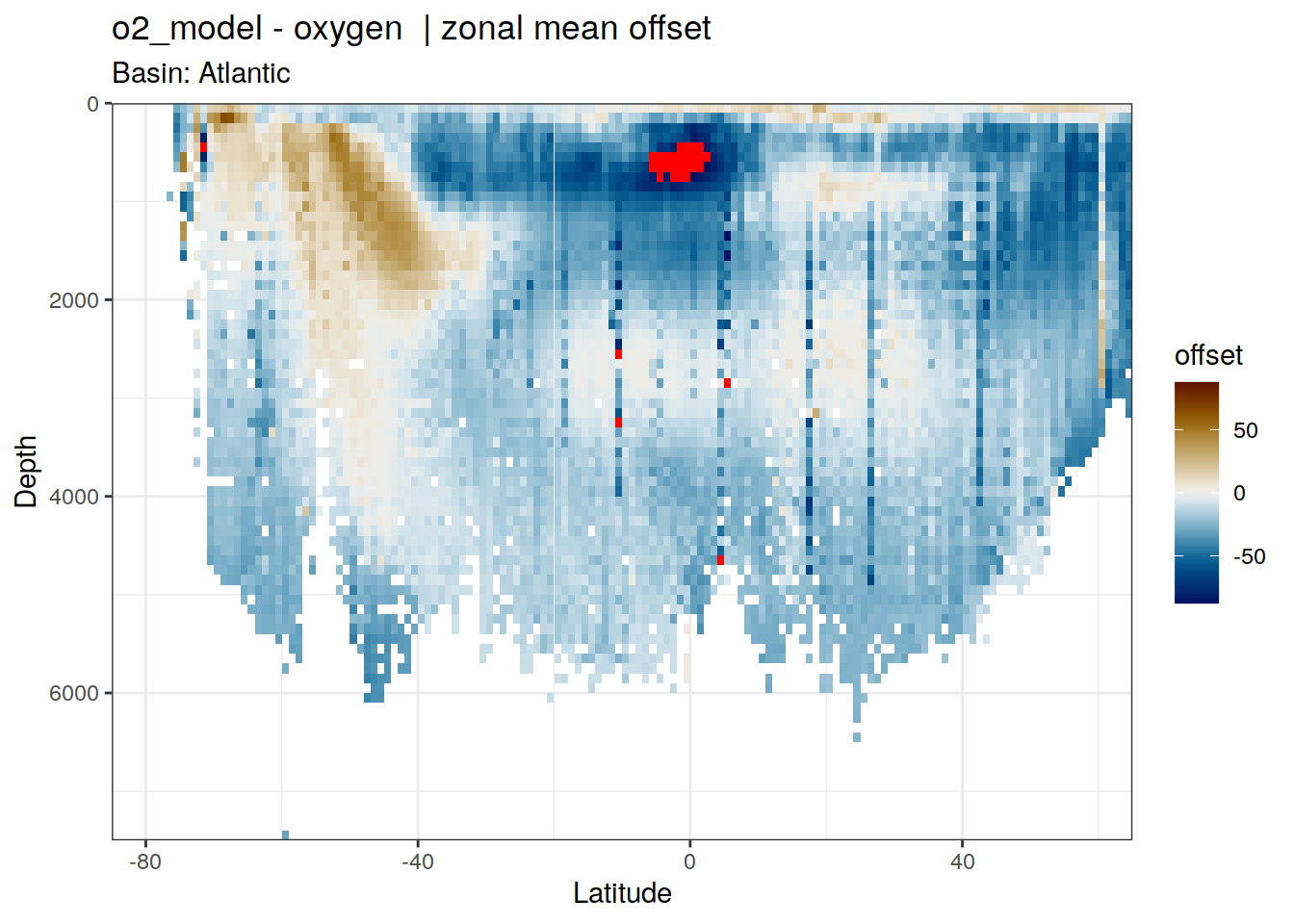

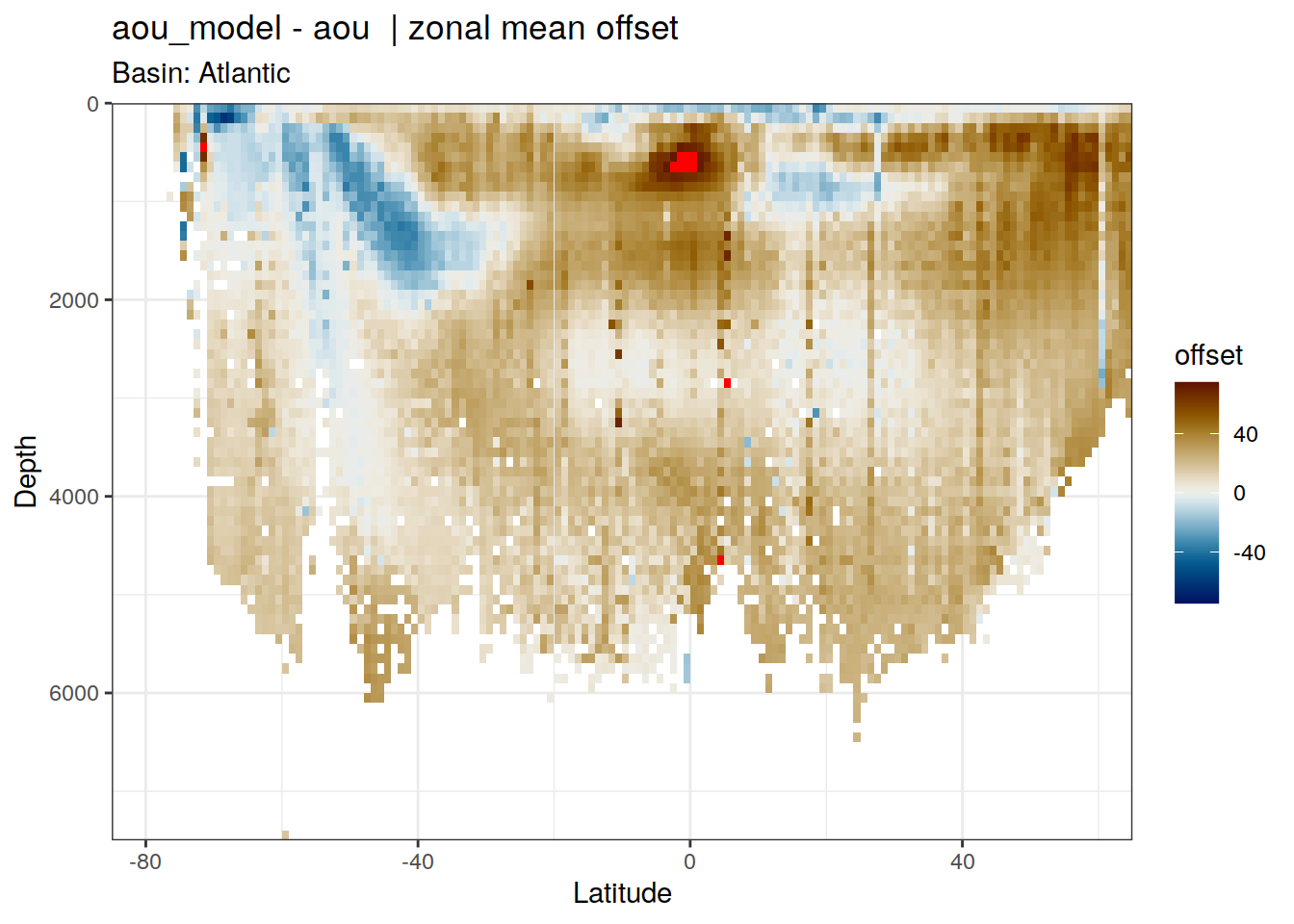

        labs(
          title = paste(model_var[i],
                        "-",
                        obs_var[i],
                        " | zonal mean offset"),
          subtitle = paste("Basin:",
                           i_basin_AIP),
          x = "Latitude",
          y = "Depth"
        )
    )
  }
}

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

Version	Author	Date
06054b2	jens-daniel-mueller	2022-05-10

sessionInfo()

R version 4.1.2 (2021-11-01)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: openSUSE Leap 15.3

Matrix products: default
BLAS:   /usr/local/R-4.1.2/lib64/R/lib/libRblas.so
LAPACK: /usr/local/R-4.1.2/lib64/R/lib/libRlapack.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] reticulate_1.23    oce_1.5-0          gsw_1.0-6          rqdatatable_1.3.0
 [5] rquery_1.4.7       wrapr_2.0.8        lubridate_1.8.0    stars_0.5-5
 [9] sf_1.0-5           abind_1.4-5        geomtextpath_0.1.0 colorspace_2.0-2
[13] marelac_2.1.10     shape_1.4.6        ggforce_0.3.3      metR_0.11.0
[17] scico_1.3.0        patchwork_1.1.1    collapse_1.7.0     forcats_0.5.1
[21] stringr_1.4.0      dplyr_1.0.7        purrr_0.3.4        readr_2.1.1
[25] tidyr_1.1.4        tibble_3.1.6       ggplot2_3.3.5      tidyverse_1.3.1
[29] workflowr_1.7.0

loaded via a namespace (and not attached):
 [1] ellipsis_0.3.2     class_7.3-20       rprojroot_2.0.2    fs_1.5.2
 [5] rstudioapi_0.13    proxy_0.4-26       farver_2.1.0       bit64_4.0.5
 [9] fansi_1.0.2        xml2_1.3.3         knitr_1.37         polyclip_1.10-0
[13] jsonlite_1.7.3     broom_0.7.11       dbplyr_2.1.1       png_0.1-7
[17] compiler_4.1.2     httr_1.4.2         backports_1.4.1    assertthat_0.2.1
[21] Matrix_1.4-0       fastmap_1.1.0      cli_3.1.1          later_1.3.0
[25] tweenr_1.0.2       htmltools_0.5.2    tools_4.1.2        gtable_0.3.0
[29] glue_1.6.0         rappdirs_0.3.3     Rcpp_1.0.8         RNetCDF_2.5-2
[33] cellranger_1.1.0   jquerylib_0.1.4    vctrs_0.3.8        lwgeom_0.2-8
[37] xfun_0.29          ps_1.6.0           rvest_1.0.2        ncmeta_0.3.0
[41] lifecycle_1.0.1    getPass_0.2-2      MASS_7.3-55        scales_1.1.1
[45] vroom_1.5.7        hms_1.1.1          promises_1.2.0.1   parallel_4.1.2
[49] yaml_2.2.1         sass_0.4.0         stringi_1.7.6      highr_0.9
[53] e1071_1.7-9        checkmate_2.0.0    rlang_1.0.2        pkgconfig_2.0.3
[57] systemfonts_1.0.3  evaluate_0.14      lattice_0.20-45    SolveSAPHE_2.1.0
[61] labeling_0.4.2     bit_4.0.4          processx_3.5.2     tidyselect_1.1.1
[65] here_1.0.1         seacarb_3.3.0      magrittr_2.0.1     R6_2.5.1
[69] generics_0.1.1     DBI_1.1.2          pillar_1.6.4       haven_2.4.3
[73] whisker_0.4        withr_2.4.3        units_0.7-2        modelr_0.1.8
[77] crayon_1.4.2       KernSmooth_2.23-20 utf8_1.2.2         tzdb_0.2.0
[81] rmarkdown_2.11     grid_4.1.2         readxl_1.3.1       data.table_1.14.2
[85] callr_3.7.0        git2r_0.29.0       reprex_2.0.1       digest_0.6.29
[89] classInt_0.4-3     httpuv_1.6.5       textshaping_0.3.6  munsell_0.5.0
[93] viridisLite_0.4.0  bslib_0.3.1

GLODAP subset variable climate A 2021

Jens Daniel Müller

23 October, 2022
