Atmospheric pCO2
Jens Daniel Müller
24 October, 2022
Last updated: 2022-10-24
Checks: 7 0
Knit directory: emlr_mod_preprocessing/
This reproducible R Markdown analysis was created with workflowr (version 1.7.0). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
The command set.seed(20200707) was run prior to running
the code in the R Markdown file. Setting a seed ensures that any results
that rely on randomness, e.g. subsampling or permutations, are
reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.
The results in this page were generated with repository version e855cad. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.
Note that you need to be careful to ensure that all relevant files for
the analysis have been committed to Git prior to generating the results
(you can use wflow_publish or
wflow_git_commit). workflowr only checks the R Markdown
file, but you know if there are other scripts or data files that it
depends on. Below is the status of the Git repository when the results
were generated:
Ignored files:
Ignored: .Rhistory
Ignored: .Rproj.user/
Untracked files:
Untracked: code/backup_analysis_scripts/Cant_CB_annual_all_models_backup_20220704.Rmd
Unstaged changes:
Modified: code/Workflowr_project_managment.R
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
These are the previous versions of the repository in which changes were
made to the R Markdown (analysis/co2_atm.Rmd) and HTML
(docs/co2_atm.html) files. If you’ve configured a remote
Git repository (see ?wflow_git_remote), click on the
hyperlinks in the table below to view the files as they were in that
past version.
| File | Version | Author | Date | Message |
|---|---|---|---|---|
| html | e829a11 | jens-daniel-mueller | 2022-07-05 | Build site. |
| Rmd | 923e07e | jens-daniel-mueller | 2022-07-04 | rerun for all models |
| html | 89cbb74 | jens-daniel-mueller | 2022-05-26 | Build site. |
| html | 42bbb89 | jens-daniel-mueller | 2022-05-24 | Build site. |
| Rmd | e82a302 | jens-daniel-mueller | 2022-05-23 | bug fixes for 5 models |
| html | 40863a2 | jens-daniel-mueller | 2022-05-22 | Build site. |
| Rmd | d9d4d68 | jens-daniel-mueller | 2022-05-21 | rebuild with revised output structure and all models |
| html | df15df5 | jens-daniel-mueller | 2022-05-12 | Build site. |
| Rmd | b1c9920 | jens-daniel-mueller | 2022-05-12 | read data from all models and write individual files |
| html | 1e7641d | jens-daniel-mueller | 2022-05-12 | Build site. |
| Rmd | f91b22d | jens-daniel-mueller | 2022-05-12 | read data from all models |
| html | 06054b2 | jens-daniel-mueller | 2022-05-10 | Build site. |
| Rmd | d43e8c0 | jens-daniel-mueller | 2022-05-10 | rerun all with multi model subsetting |
1 Read data
models <- list.files(path_cmorized)
models <-
models[!str_detect(models, pattern = "\\.t|\\.z|.p")]
models <-
models[str_detect(
models,
pattern = c(
"CESM|CNRM|EC-Earth3|FESOM_REcoM_LR|MOM6-Princeton|MRI-ESM2-1|NorESM-OC1.2|ORCA025-GEOMAR|ORCA1-LIM3-PISCES|planktom12"
)
)]
# no Atm_CO2 data provided
models <-
models[!str_detect(models, pattern = "NorESM-OC1.2")]
# no Atm_CO2 data provided
models <-
models[!str_detect(models, pattern = "ORCA1-LIM3-PISCES")]# models <- models[1]
for (i_model in models) {
# i_model <- models[7]
print(i_model)
# read list of all files
file <-
list.files(path = paste0(path_cmorized, i_model),
pattern = "CO2")[1]
print(file)
# read in data
if (i_model %in% c(
"CESM-ETHZ_Ancillary_data_v20211122",
"MOM6-Princeton_Ancillary_data_v20220125",
"ORCA025-GEOMAR_Ancillary_data_v20210804"
)) {
variable_data <-
read_ncdf(paste(paste0(path_cmorized, i_model),
file,
sep = "/"),
var = "Atm_CO2",
make_units = FALSE)
} else if (i_model == "CNRM-ESM2-1_Ancillary_data_v20211208") {
variable_data <-
read_delim(paste(paste0(path_cmorized, i_model),
file,
sep = "/"),
delim = " ") %>%
rename(year = Year,
Atm_CO2 = atmCO2)
} else if (i_model == "EC-Earth3_Ancillary_data_v20220323") {
variable_data <-
read_table(paste(paste0(path_cmorized, i_model),
file,
sep = "/"),
col_names = FALSE) %>%
rename(year = X1,
Atm_CO2 = X2)
} else if (i_model == "MRI-ESM2-1_Ancillary_data_v20220502") {
variable_data <-
tidync(paste(paste0(path_cmorized, i_model),
file,
sep = "/")) %>%
activate("D0") %>%
hyper_tibble() %>%
mutate(time = as.Date(time, origin = "1980-01-01"))
} else if (i_model == "planktom12_ancillary_data_v20220404") {
variable_data <-
read_table(paste(paste0(path_cmorized, i_model),
file,
sep = "/"),
col_names = FALSE) %>%
select(year = X1,
Atm_CO2 = X2)
} else {
variable_data <-
read_ncdf(paste(paste0(path_cmorized, i_model),
file,
sep = "/"),
make_units = FALSE)
}
# convert to tibble
variable_data_tibble <- variable_data %>%
as_tibble()
# remove open link to nc file
rm(variable_data)
if (i_model == "CESM-ETHZ_Ancillary_data_v20211122") {
variable_data_tibble <- variable_data_tibble %>%
rename(time = time_ann)
}
if (i_model == "FESOM_REcoM_LR_Ancillary_data_v20211119") {
variable_data_tibble <-
variable_data_tibble %>%
pivot_longer(
cols = -NumberOfMonths,
names_to = "year",
values_to = "Atm_CO2",
names_prefix = "AtmCO2_"
) %>%
mutate(year = as.numeric(year))
}
# mutate variables
if (!(
i_model %in% c(
"CNRM-ESM2-1_Ancillary_data_v20211208",
"EC-Earth3_Ancillary_data_v20220323",
"FESOM_REcoM_LR_Ancillary_data_v20211119",
"planktom12_ancillary_data_v20220404"
)
)) {
variable_data_tibble <- variable_data_tibble %>%
mutate(year = year(time)) %>%
select(-time)
}
variable_data_tibble <- variable_data_tibble %>%
mutate(model = i_model)
if (exists("atm_co2")) {
atm_co2 <- bind_rows(atm_co2, variable_data_tibble)
}
if (!exists("atm_co2")) {
atm_co2 <- variable_data_tibble
}
}[1] "CESM-ETHZ_Ancillary_data_v20211122"
[1] "Atm_CO2_CESM-ETHZ_1_gr_1980-2018_v20211122.nc"
[1] "CNRM-ESM2-1_Ancillary_data_v20211208"
[1] "Atm_CO2"
[1] "EC-Earth3_Ancillary_data_v20220323"
[1] "Atm_CO2_EC-Earth3_v20220323.txt"
[1] "FESOM_REcoM_LR_Ancillary_data_v20211119"
[1] "MonthlyAtmCO2_gcb2020.nc"
[1] "MOM6-Princeton_Ancillary_data_v20220125"
[1] "Atm_CO2_MOM6-Princeton_A_1_gr_1980-2018_v20220125.nc"
[1] "MRI-ESM2-1_Ancillary_data_v20220502"
[1] "Atm_CO2_MRI-ESM2-1_A_1_gm_1980-2018_v20220502.nc"
[1] "ORCA025-GEOMAR_Ancillary_data_v20210804"
[1] "Atm_CO2_ORCA025-GEOMAR_1_1980-2018_v20210804.nc"
[1] "planktom12_ancillary_data_v20220404"
[1] "Atm_CO2_PlankTOM12_v20220404.nc"atm_co2 <- atm_co2 %>%
mutate(year = round(year)) %>%
filter(year > 1979, year < 2019) %>%
group_by(model, year) %>%
summarise(Atm_CO2 = mean(Atm_CO2)) %>%
ungroup()
atm_co2 <- atm_co2 %>%
mutate(
model = str_remove(model, "Ancillary_data_"),
model = str_remove(model, "ancillary_data_")

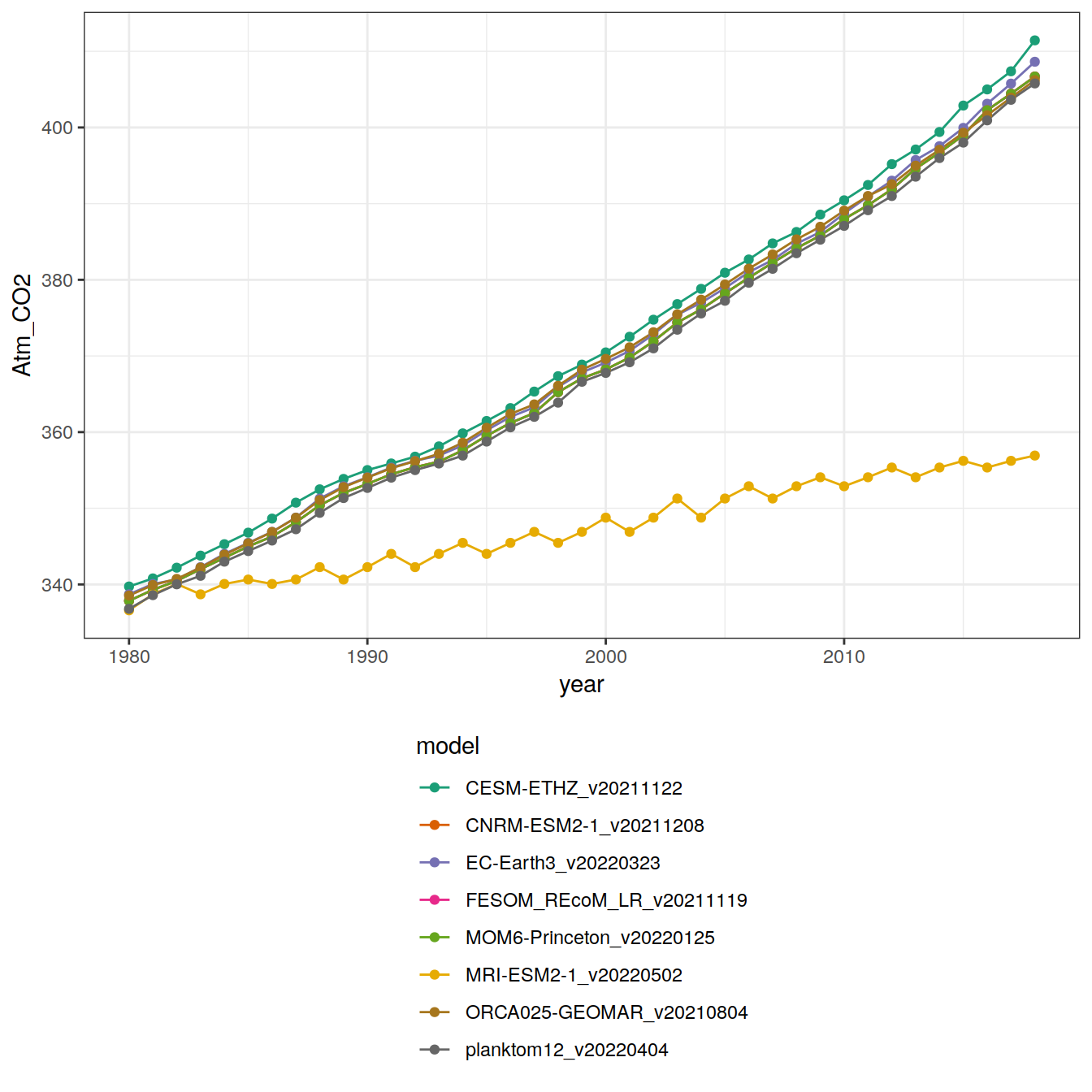

)2 Time series
atm_co2 %>%
ggplot(aes(year, Atm_CO2, col = model)) +
geom_path() +
geom_point() +
scale_color_brewer(palette = "Dark2") +
theme(legend.position = "bottom",
legend.direction = "vertical")
3 Write files
atm_co2 %>%
group_by(model) %>%
group_walk( ~ write_csv(.x, paste0(
path_preprocessing,
.y$model,
"_co2_atm.csv"
)))
sessionInfo()R version 4.1.2 (2021-11-01)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: openSUSE Leap 15.3
Matrix products: default
BLAS: /usr/local/R-4.1.2/lib64/R/lib/libRblas.so
LAPACK: /usr/local/R-4.1.2/lib64/R/lib/libRlapack.so
locale:
[1] LC_CTYPE=en_US.UTF-8 LC_NUMERIC=C
[3] LC_TIME=en_US.UTF-8 LC_COLLATE=en_US.UTF-8
[5] LC_MONETARY=en_US.UTF-8 LC_MESSAGES=en_US.UTF-8
[7] LC_PAPER=en_US.UTF-8 LC_NAME=C
[9] LC_ADDRESS=C LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] stars_0.5-5 sf_1.0-5 abind_1.4-5 tidync_0.2.4
[5] lubridate_1.8.0 geomtextpath_0.1.0 colorspace_2.0-2 marelac_2.1.10
[9] shape_1.4.6 ggforce_0.3.3 metR_0.11.0 scico_1.3.0
[13] patchwork_1.1.1 collapse_1.7.0 forcats_0.5.1 stringr_1.4.0
[17] dplyr_1.0.7 purrr_0.3.4 readr_2.1.1 tidyr_1.1.4
[21] tibble_3.1.6 ggplot2_3.3.5 tidyverse_1.3.1 workflowr_1.7.0
loaded via a namespace (and not attached):
[1] ellipsis_0.3.2 class_7.3-20 rprojroot_2.0.2 fs_1.5.2
[5] rstudioapi_0.13 proxy_0.4-26 farver_2.1.0 bit64_4.0.5
[9] fansi_1.0.2 xml2_1.3.3 ncdf4_1.19 knitr_1.37
[13] polyclip_1.10-0 jsonlite_1.7.3 gsw_1.0-6 broom_0.7.11
[17] dbplyr_2.1.1 compiler_4.1.2 httr_1.4.2 backports_1.4.1
[21] assertthat_0.2.1 fastmap_1.1.0 cli_3.1.1 later_1.3.0
[25] tweenr_1.0.2 htmltools_0.5.2 tools_4.1.2 gtable_0.3.0
[29] glue_1.6.0 Rcpp_1.0.8 cellranger_1.1.0 jquerylib_0.1.4
[33] RNetCDF_2.5-2 vctrs_0.3.8 lwgeom_0.2-8 xfun_0.29
[37] ps_1.6.0 rvest_1.0.2 lifecycle_1.0.1 ncmeta_0.3.0
[41] oce_1.5-0 getPass_0.2-2 MASS_7.3-55 scales_1.1.1
[45] vroom_1.5.7 hms_1.1.1 promises_1.2.0.1 parallel_4.1.2
[49] RColorBrewer_1.1-2 yaml_2.2.1 sass_0.4.0 stringi_1.7.6
[53] highr_0.9 e1071_1.7-9 checkmate_2.0.0 rlang_1.0.2
[57] pkgconfig_2.0.3 systemfonts_1.0.3 evaluate_0.14 SolveSAPHE_2.1.0
[61] labeling_0.4.2 bit_4.0.4 processx_3.5.2 tidyselect_1.1.1
[65] seacarb_3.3.0 magrittr_2.0.1 R6_2.5.1 generics_0.1.1
[69] DBI_1.1.2 pillar_1.6.4 haven_2.4.3 whisker_0.4
[73] withr_2.4.3 units_0.7-2 modelr_0.1.8 crayon_1.4.2
[77] KernSmooth_2.23-20 utf8_1.2.2 tzdb_0.2.0 rmarkdown_2.11
[81] grid_4.1.2 readxl_1.3.1 data.table_1.14.2 callr_3.7.0
[85] git2r_0.29.0 reprex_2.0.1 digest_0.6.29 classInt_0.4-3
[89] httpuv_1.6.5 textshaping_0.3.6 munsell_0.5.0 bslib_0.3.1
